Ubiquiti PowerBeam AC PBE-5AC-300 Manuel utilisateur

High-Performance

Integrated InnerFeed™

airMAX®ac Bridge

Model: PBE-5AC-300

Introduction

Thank you for purchasing the Ubiquiti Networks® PowerBeam™ac.

This Quick Start Guide is designed to guide you through the

installation, and show you how to access the airOS® Configuration

Interface. This Quick Start Guide also includes the warranty terms

and is for use with the PowerBeam ac, modelPBE-5AC-300.

Package Contents

Dish Reflector Antenna Feed Rear Housing Dish Bracket

Pole Clamp U-Bolt Flange Nuts

(M6, Qty. 2)

Washers

(M6, Qty. 2)

High-Performance

IntegratedInnerFeed™

airMAX®acBridge

Model:PBE-5AC-300

Gigabit PoE (24V, 0.5A)

with Mounting Bracket

Power Cord Quick Start Guide

cable and earth grounding must be used as conditions of product warranty. TOUGHCable™is

designed for outdoor installations. It is the customer’s responsibility to follow local country

regulations, including operation within legal frequency channels, output power, and Dynamic

Frequency Selection (DFS) requirements.

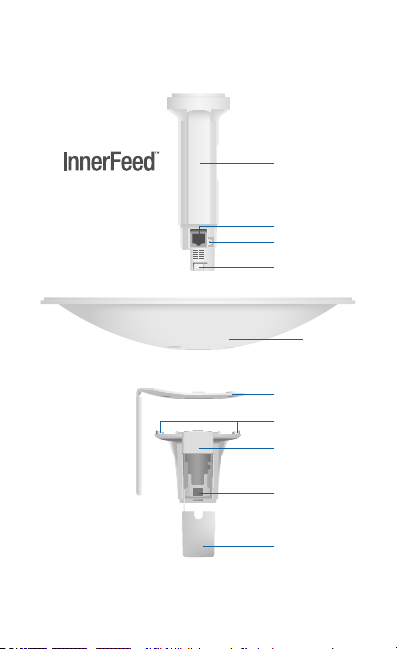

Hardware Overview

Bottom View

Cable Door

Rear Housing

Antenna Feed

Ethernet Port

Release

Button Slot

Dish Bracket

Release Button

Dish

Reflector

Alignment Pins

Reset Button

Technology

Reset Button To reset to factory defaults, press and hold the

Reset button for more than 10 seconds while the PowerBeam

is already poweredon. Alternatively, the PowerBeam may be

reset remotely via a Reset button located on the bottom of the

Gigabit PoE adapter.

Release Button After you assemble the PowerBeam, check

the Release button; it should be fully engaged in the Release

Button Slot of the Rear Housing. This ensures that the Antenna

Feed is locked into place. If you need to remove the Antenna

Feed, you must depress the Release button first.

LEDs

Signal In airOS, you can modify the wireless signal

strength threshold values for each LED on the

Advanced tab under Signal LED Thresholds. The

default values are shown below:

LED will light blue when the wireless signal

strength is above -65 dBm.

LED will light blue when the wireless signal

strength is above -73 dBm.

LED will light blue when the wireless signal

strength is above -80 dBm.

LED will light blue when the wireless signal

strength is above -94 dBm.

Ethernet The Ethernet LED will light steady blue

when an active Ethernet connection is made and

flash when there is activity.

Power The Power LED will light blue when the

device is connected to a power source.

Application Examples

The PowerBeam mounted outdoors with the Dish Reflector

installed provides directional outdoor coverage (gain is

reflector-dependent).

The PowerBeam mounted outdoors without the Dish Reflector

installed provides outdoor-to-indoor coverage using the 3 dBi

Antenna Feed only.

Installation Requirements

• 10 mm wrench

• Shielded Category 5 (or above) cabling should be used for

all wired Ethernet connections and should be grounded

through the AC ground of the PoE.

We recommend that you protect your networks from the

most brutal environments and devastating ESD attacks

with industrial-grade shielded Ethernet cable from Ubiquiti

Networks. For more details, visit www.ubnt.com/toughcable

Installation

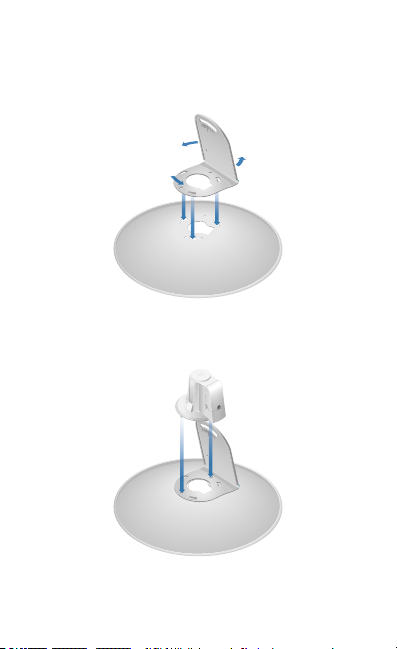

1. Align and insert the tabs of the Dish Bracket into the

slots of the Dish Reflector. Rotate the Dish Bracket

counter-clockwise until the tabs lock into place.

2. Line up the Alignment Pins of the Rear Housing with the

alignment holes of the Dish Bracket. Insert the pins and

push until they lock intoplace.

*640-00178-02*

640-00178-02

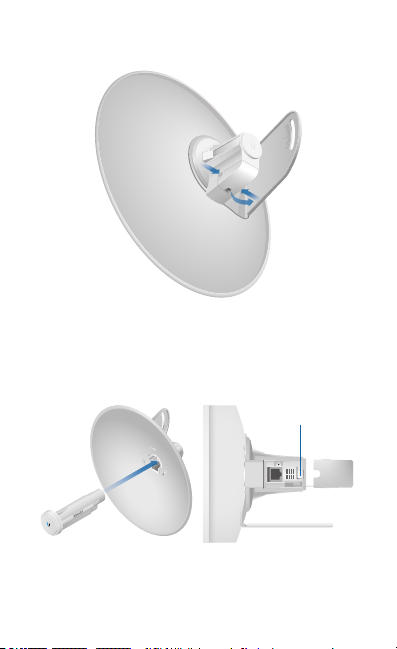

3. Push in the sides of the Cable Door and detach it from the

Rear Housing.

4. Attach the Antenna Feed:

a. Insert the Antenna Feed into the Rear Housing, and push

until it locks into place with a click.

b. Lightly pull the Antenna Feed to ensure that it is locked

into place and the Release button is fully engaged.

Release Button

Bottom View

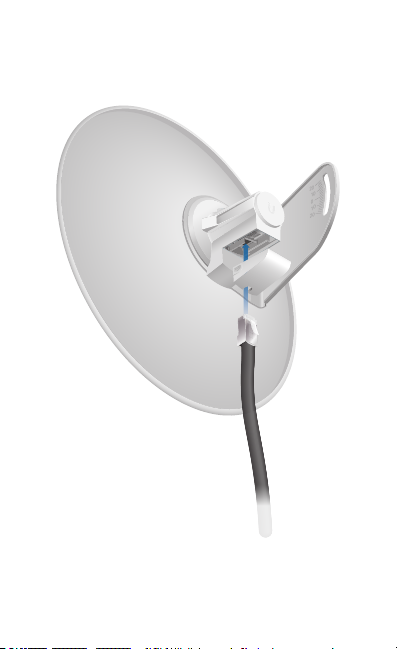

5. Connect the Ethernet cable:

a. Connect an Ethernet cable to the Ethernet Port of the

Antenna Feed.

b. Re-attach the Cable Door to the Rear Housing.

6. Insert the U-Bolt into the Pole Clamp and Dish Bracket.

Secure each end of the U-Bolt with a Washer and a

FlangeNut.

10 N-m

Note: The mounting assembly can accommodate a

Ø 32 - 56 mm pole.

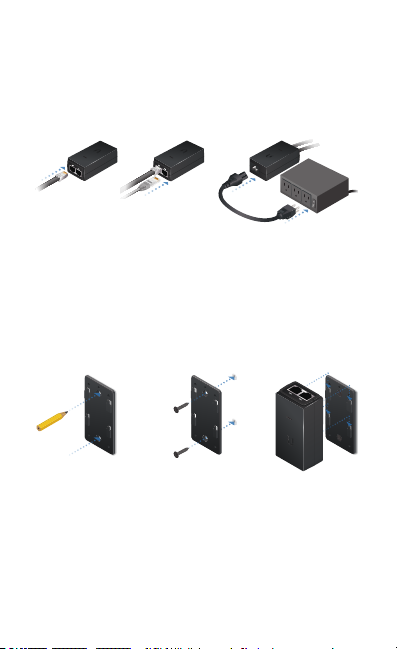

7. Connect the Ethernet cable from the PowerBeam’s Ethernet

port to the POE port of the Gigabit PoE adapter.

8. Connect an Ethernet cable from your LAN to the adapter’s

LAN port.

9. Connect the Power Cord to the adapter’s power port.

Connect the other end of the Power Cord to a power outlet.

Mounting the PoE Adapter (Optional)

1. Remove the Mounting Bracket from the adapter, place the

bracket at the desired location, and mark the two holes.

2. Pre-drill the holes if necessary, and secure the bracket

using two fasteners (not included).

3. Align the adapter’s slots with the tabs of the Mounting

Bracket, and then slide the adapterdown.
