Ubiquiti NBE-5AC-Gen2 Manuel utilisateur

airMAX®ac CPE with

Dedicated Management Radio

Model: NBE-5AC-Gen2

Introduction

Thank you for purchasing the Ubiquiti Networks®

NanoBeam®5AC Gen 2. This Quick Start Guide is designed to

guide you through installation and also includes warranty terms.

Package Contents

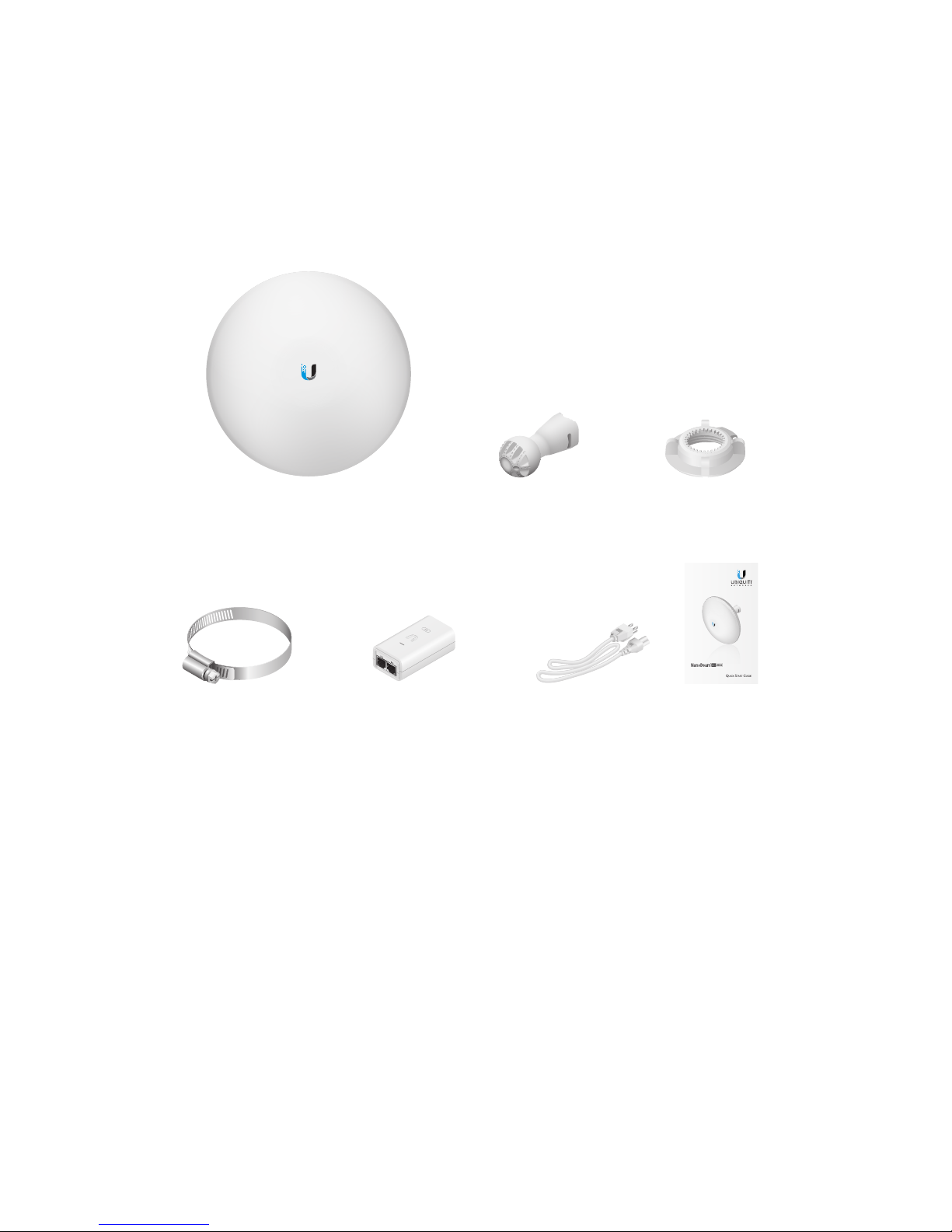

NanoBeam 5AC Gen 2 Ball Joint

Mount

Lock Ring

airMAX®ac CPE with

Dedicated Management Radio

Model: NBE-5AC-Gen2

Metal Strap Gigabit PoE (24V, 0.5A)

with Mounting Bracket

Power Cord Quick Start

Guide

cable and earth grounding must be used as conditions of product warranty. TOUGHCable™is

designed for outdoor installations. It is the Professional Installer’s responsibility to follow local

country regulations, including operation within legal frequency channels, output power, and

Dynamic Frequency Selection (DFS) requirements.

Installation Requirements

The NanoBeam can be mounted on a pole or to a wall. A Metal

Strap (included) is used for pole-mounting. For wall-mounting,

a suitable fastener such as a screw or bolt (not included) is

required.

• Pole-mounting: 7 mm socket wrench or screwdriver

• Wall-mounting: wall fastener (not included)

• Shielded Category 5 (or above) cabling with drain wire

should be used for all wired Ethernet connections and

should be grounded through the AC ground of the PoE.

We recommend that you protect your networks from

harmful outdoor environments and destructive ESD events

with industrial-grade, shielded Ethernet cable from Ubiquiti

Networks. For more details, visit www.ubnt.com/toughcable

• Surge protection should be used for all outdoor installations.

We recommend that you use two Ethernet Surge Protectors,

model ETH-SP, one near the NanoBeam and the other at the

entry point to the building. The ETH-SP will absorb power

surges and safely discharge them into the ground.

To LAN

ETH-SP

ES-8-150W

NBE-5AC-Gen2

Hardware Overview

LEDs

Reset Button Ethernet Port

(10/100/1000 Mbps)

Reset Button To reset to factory defaults, press and hold the

Reset button for more than 10 seconds while the NanoBeam

is already poweredon. Alternatively, the NanoBeam may be

reset remotely via a Reset button located on the bottom of the

Gigabit PoE Adapter.

Ethernet Port This Gigabit Ethernet port is used to connect

the power and should be connected to the LAN and DHCP

server. Power can be provided by any of the following:

• Gigabit PoE Adapter (included)

• Ubiquiti Networks TOUGHSwitch™ PoE

• Ubiquiti Networks EdgeSwitch®or EdgeRouter™ PoE

LEDs

Power The Power LED will light blue when the

device is connected to a power source.

Ethernet The Ethernet LED will light steady blue

when an active Ethernet connection is made and

flash when there is activity.

Signal In airOS®, you can modify the threshold

value for the wireless signal strength LEDs on the

Wireless tab under Signal LED Thresholds. Each LED

will light when the wireless signal strength is equal

to or greater than the LED’s threshold value. The

default threshold values for these LEDs are shown

below:

-94 dBm -80 dBm -73 dBm -65 dBm

Hardware Installation

The NanoBeam can be mounted on a pole or to a wall. Perform

the steps for the appropriate installation:

Pole-Mount

1. Insert the Ball Joint Mount into the Lock Ring with the

threads of the Lock Ring facing the ball joint.

2. Open the Metal Strap and feed it through the base of the

Ball Joint Mount.

3. Wrap the Metal Strap around the pole. Use a 7 mm socket

wrench to turn the screw clockwise and securely fasten the

clamp to the pole.

4. Attach the NanoBeam to the Ball Joint Mount and turn the

Lock Ring to secure it. Keep the Lock Ring loose enough to

allow the NanoBeam to pivot for aiming.

Wall-Mount

The NanoBeam must be mounted directly to a wood stud

or other structurally stable surface to avoid damage to the

mounting hole when you adjust the aim.

Optional Accessory

To enhance stability, you can use the NanoBeam Wall Mount

Kit, model NBE-WMK (soldseparately).

Note: Center screw included. Two optional screws (not

included) provide additional stability.

Installation Instructions

1. Mark the desired location of the mounting point.

2. If needed, drill a pilot hole for the fastener (not included).

3. Insert the Ball Joint Mount into the Lock Ring with the

threads of the Lock Ring facing the ball joint.

4. If you are using the optional NanoBeam Wall Mount Kit,

then skip to step b.

a. To attach the Ball Joint Mount to the wall, insert a

fastener (not included) through the center of the ball

joint, and into the wall. Securely tighten the fastener.

Proceed to step 5.

b. To attach the Ball Joint Mount to the wall, insert the Wall

Mount Kit screw through the center of the ball joint,

through the Wall Mount Kit plate, and into the wall.

Securely tighten the screw.

5. Attach the NanoBeam to the mount Ball Joint Mount and

turn the Lock Ring to secure it. Keep the Lock Ring loose

enough to allow the NanoBeam to pivot for aiming.

Aiming

1. Aim the front of the NanoBeam towards the other end of

the wireless link, while using the bubble level to ensure

level alignment.

2. Hand-tighten the Lock Ring to lock the aim.

Note: Do not use a tool to tighten the Lock Ring.

Tighten the Lock Ring by hand only.
