Ubiquiti UAP-Outdoor-5 Manuel utilisateur
5 GHz 802.11n Outdoor
Access Point
Model: UAP-Outdoor-5
Introduction
Thank you for purchasing the Ubiquiti Networks® UniFi®AP.
This Quick Start Guide is designed to guide you through
installation and includes warranty terms.
Package Contents
UniFi AP Outdoor 5 Antennas (Qty. 2) Wall Mount Bracket
Metal Strap Screws
(Qty. 3)
Screw Anchors
(Qty. 3)
5 GHz 802.11n Outdoor
Access Point
Model: UAP-Outdoor-5
PoE Adapter (24V, 1A)
with Mount Bracket
Power Cord Quick Start
Guide
TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet
cable and earth grounding must be used as conditions of product warranty. TOUGHCable™ is
designed for outdoor installations. It is the professional installer’s responsibility to follow local
country regulations, including operation within legal frequency channels, output power, and
Dynamic Frequency Selection (DFS) requirements.
Installation Requirements
• Pole-mounting: 7 mm socket wrench or screwdriver
• Wall-mounting: Drill and 6 mm drill bit
• Phillips screwdriver
• Shielded Category 5 (or above) cabling should be used
for all outdoor wired Ethernet connections and should be
grounded through the AC ground of the PoE.
We recommend that you protect your networks from
harmful outdoor environments and destructive ESD events
with industrial-grade, shielded Ethernet cable from Ubiquiti
Networks. For more details, visit:
www.ubnt.com/toughcable
System Requirements
• Linux, MacOSX, or Microsoft Windows 7/8/10
• Java Runtime Environment 1.8 or above recommended
• Web Browser: Google Chrome (Other browsers may have
limited functionality.)
• UniFi Controller software v5.x or newer, available at:
www.ubnt.com/download/unifi
Network Topology Requirements
• A DHCP-enabled network (for the UniFi device to obtain an IP
address as well as for the wireless clients after deployment)
• A UniFi Cloud Key or management station running the UniFi
Controller v5.x (or newer) software, located either on-site
and connected to the same Layer-2 network, or off-site in
the cloud or NOC
Internet
UAP-Outdoor-5
UniFi Switch
LAN
WAN
Wired UAP-PRO
Wireless
Uplinked
UAP/UAP-LR
UniFi Cloud Key
(UniFi Controller)
UniFi Security Gateway Pro
DOWNLOADTHROUGHPUT& LATENCY DEVICESON2.4 GHZ CHANNEL
DEVICESON5 GHZ CHANNEL
UPLOADTHROUGHPUT& LATENCY
LATENCY THROUGHPUT
SPEEDTEST
msec Mbps
7 0.94 1
2.33
25 22
597
0.9 116
200+0 700+0
0.01 413
2290.2
2 118
547
ACTIVEDEVICE
WAN
Inacve 0
Pending
0
Inacve 0
Pending
0
7
ACTIVEDEVICES
Inacve 0
Pending
0
118
ACTIVEDEVICES
LAN WLAN
DEEPPACKETINSPECTIONCLIENTSDEVICES
250
200
150
100
50
0
10
8
6
4
2
0
24HRS 12HRS NOW
Avg/MaxThroughput Latency
Latency[msec]
Throughput[Mbps]
100
80
60
40
20
0
10
8
6
4
2
0
24HRS 12HRS NOW
Latency[msec]
Throughput[Mbps]
NetworkProtocols
StreamingMedia
Web/Web 2.0
FileTransfer
SocialNetwork
Other
Motorola
Lenovo
SamsungE
Dell
Acer
Other
WLAN
LAN
WAN
118
7
1
582GB
23.3GB
22.7GB
8.47GB
3.6GB
5.46GB
258
241
220
213
130
110
126
DEVICES
645GB
TRAFFIC
1172
CLIENTS
1 2 3 4 5 6 7 8 9 10 11
36 40 44 48 52 56 60 64
100 104 108 112 116 120 124 128
132 136 140 144 149 153 157 161 165
CURRENTSITE
Default
USERNAME
admin
Remote Access to
UniFi Controller

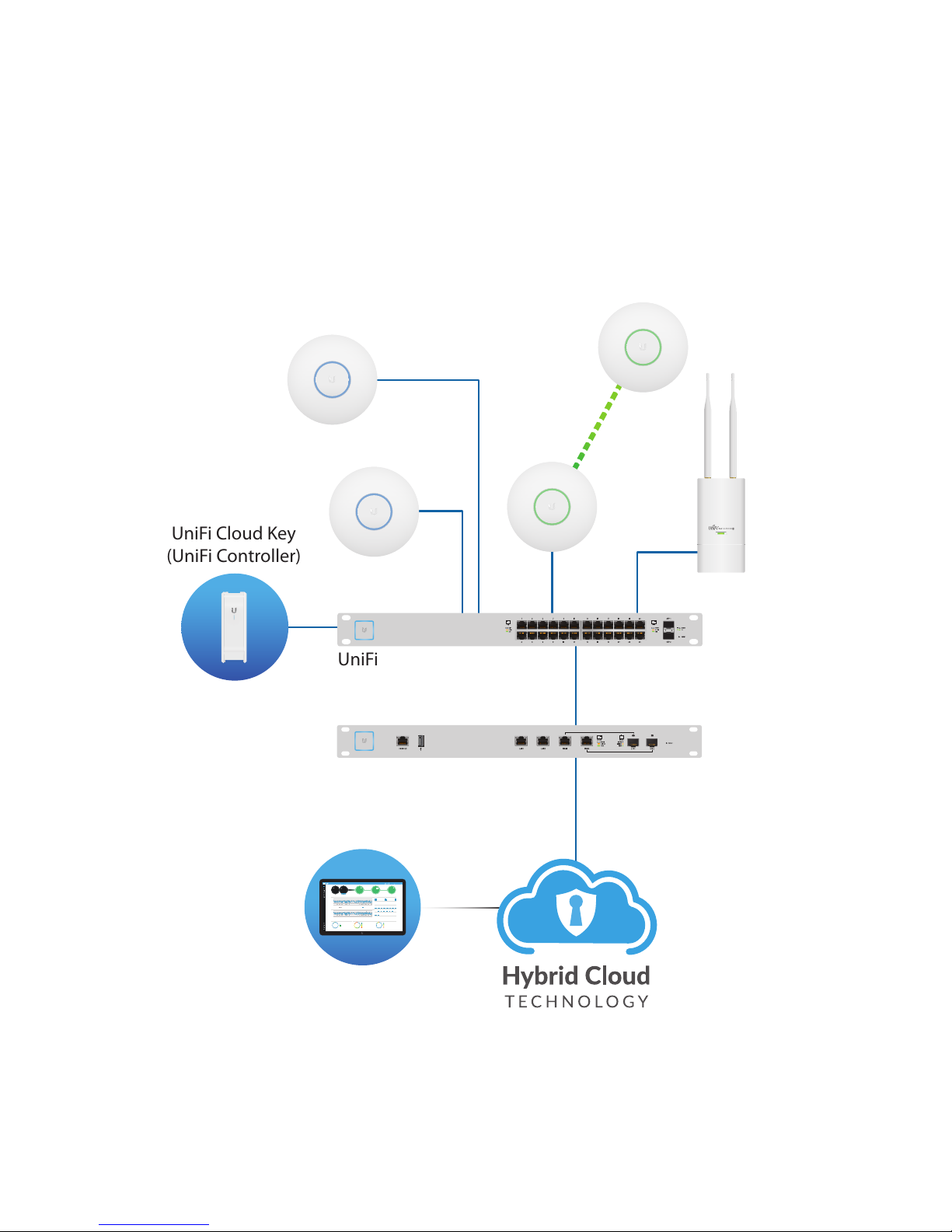

Sample Network Diagram
All UniFi devices support off-site management controllers. For
setup details, see the User Guide on the website:
www.ubnt.com/download/unifi
Hardware Overview
LED
Status
LED
LED Color Status
Flashing Amber Initializing.
Steady Amber Factory default, waiting to be integrated.
Alternating
Amber/Green
Device is busy; do not touch or unplug it.
This usually indicates that a process such
as a firmware upgrade is taking place.
Quickly Flashing
Green
Used to locate and identify a UniFi device.
When the Locate feature is activated in
the UniFi Controller software, the Status
LED will flash green. It will also display the
location of the device on the map.
Steady Green
Indicates the device has been successfully
integrated into a network and is working
properly.
Steady Green
with Occasional
Flashing
Indicates the device is in an isolated state
(all WLANs are brought down until an
uplink is found).
Ports
Main
Secondary
Main
Ethernet Port
Reset
Button
Secondary
Ethernet Port
Secondary The Secondary Ethernet port is a 10/100 Ethernet
port used for bridging.
Reset The Reset button serves two functions for the UniFi AP:
• Restart Press and release the Reset button quickly.
• Restore to Factory Default Settings Press and hold the
Reset button for more than five seconds.
Main The Main Ethernet port is a 10/100 PoE port used to
connect the power and should be connected to the LAN and
DHCP server. Power can be provided by one of the following:
• PoE Adapter (included)
• Ubiquiti Networks UniFi Switch with PoE
• Ubiquiti Networks TOUGHSwitch™
*640-00006-04*
640-00006-04
Hardware Installation
The UniFi AP can be mounted to a wall or on a pole. Perform
the steps for the appropriate installation:
Wall Mount
To mount the UniFi AP on a wall, use the included Wall Mount
Bracket, Screws, and Screw Anchors.
1. Place the Wall Mount Bracket at the desired location on the
wall, with the one screw hole pointed towards the ground.
2. Use a pencil to mark the three holes on the wall.
3. Use a 6 mm drill bit to drill the holes in the wall.
4. Insert a Screw Anchor into each hole.
5. Secure the Wall Mount Bracket to the wall with the
self-tapping Screws.
6. Align the mounting tabs on the UniFi AP with the notches
on the Wall Mount Bracket, and slide the UniFi AP down
until it locks into place.
Pole Mount
To mount the UniFi AP on a pole, use the included Metal Strap:
1. Turn the screw on the Metal Strap counter-clockwise to
open the strap.
2. Straighten out the end of the Metal Strap and slide it
through the back of the UniFi AP.
3. Wrap the Metal Strap around the pole. Use a screwdriver
to turn the screw clockwise and securely fasten the strap
to the pole.
4. Connect the two Antennas to the RP-SMA connectors.
Powering the UniFi AP
The UniFi AP can be powered by the included PoE Adapter or a
PoE switch such as a TOUGHSwitch or UniFi Switch with PoE.
1. Lift the locking tab of the Port Cover and slide the cover
down to remove it.
Main
Secondary
