Ubiquiti LTU-LR Manuel utilisateur

5 GHz LTU™Long-Range

Client Radio

Model: LTU-LR

• Package Contents

• Installation Requirements

• Hardware Overview

• Hardware Installation

• Connecting Power

• Accessing the Configuration Interface

• UNMS Management

• Installer Compliance Responsibility

• Specifications

• Safety Notices

• Electrical Safety Information

• Limited Warranty

• Compliance

• Declaration of Conformity

• Online Resources

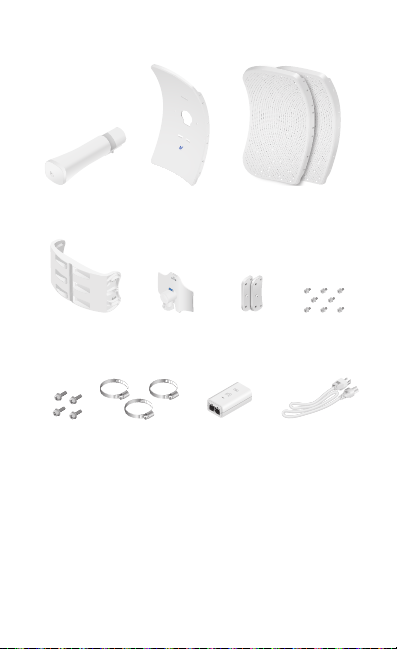

Package Contents

Antenna Feed Center Reflector

Panel

Side Reflector Panels

(Qty. 2)

0

0

Mounting Bracket Rear Housing Pivot Panels

(Qty. 2)

M4 SEM

Screws

(Qty. 8)

M8 SEM

Screws

(Qty. 4)

Metal Straps

(Qty. 3)

Gigabit PoE

(24V, 0.5A)

with Mounting Bracket

Power Cord

Installation Requirements

• LTU PtMP AP, such as model LTU-Rocket

• Phillips screwdriver

• 13 mm wrench

• 8 mm socket wrench or screwdriver

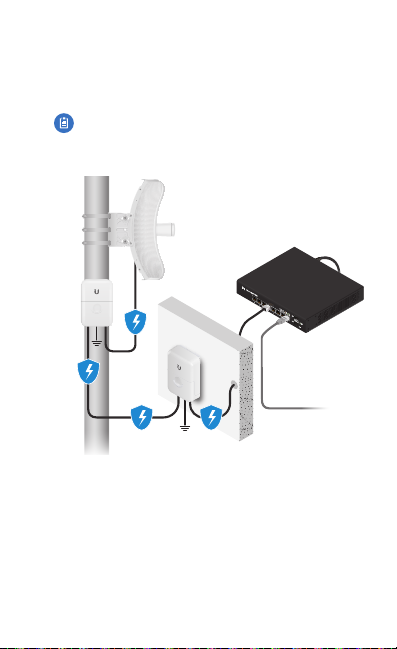

• Surge protection should be used for all outdoor installations.

We recommend that you use two Ethernet Surge Protectors,

model ETH-SP-G2, one near the device and the other at

the entry point to the building. The ETH-SP-G2 will absorb

power surges and safely discharge them into the ground.

Note: For guidelines about grounding and lightning

protection, follow your local electrical regulatory

codes.

LAN

≤1 m

ETH-SP-G2

ETH-SP-G2

ES-8-150W

LTU-LR

• Outdoor, shielded Category 6 (or above) cabling and

shielded RJ45 connectors are required for all wired Ethernet

connections.

Hardware Overview

Bottom View

2

3

4

1

LAN LED The LED will light steady blue when an active

Ethernet connection is made to the Ethernet port and flash

when there is activity.

Power LED The LED will light blue when the device is

connected to a power source.

Reset Button To reset to factory defaults, press and hold the

Reset button for more than 10 seconds while the device is

poweredon.

PoE In [24V] Port This 10/100/1000 Ethernet port is used

to connect the power and should be connected to the LAN.

Default IP address: 192.168.1.20

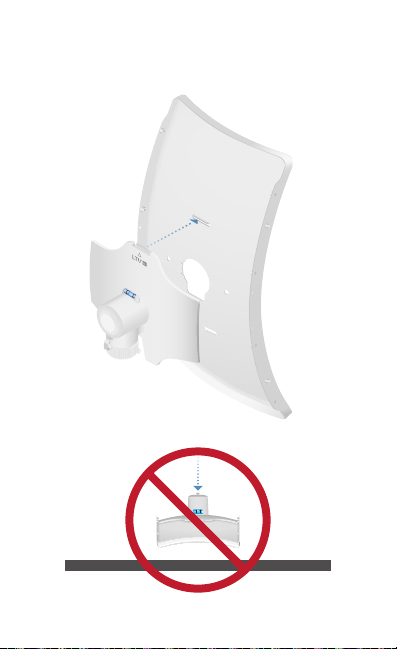

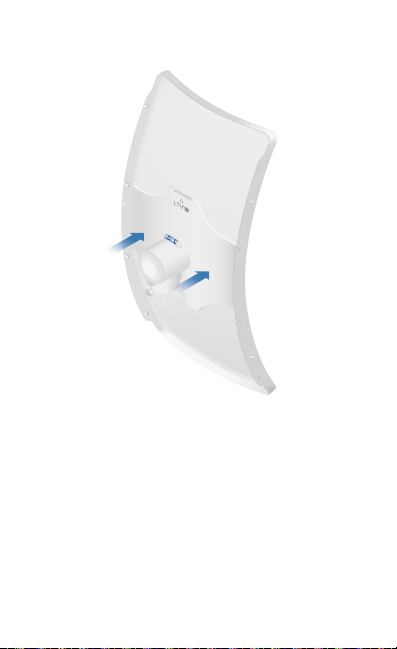

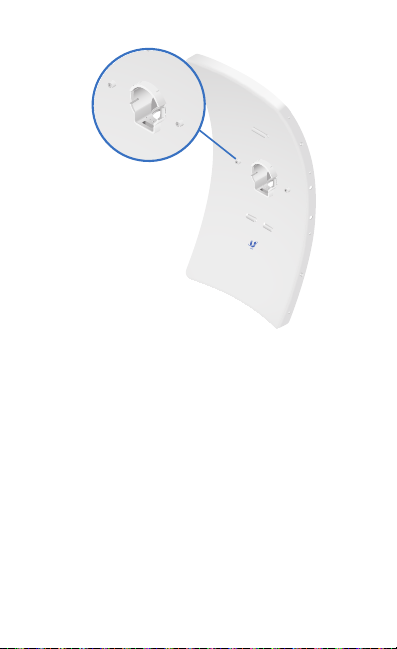

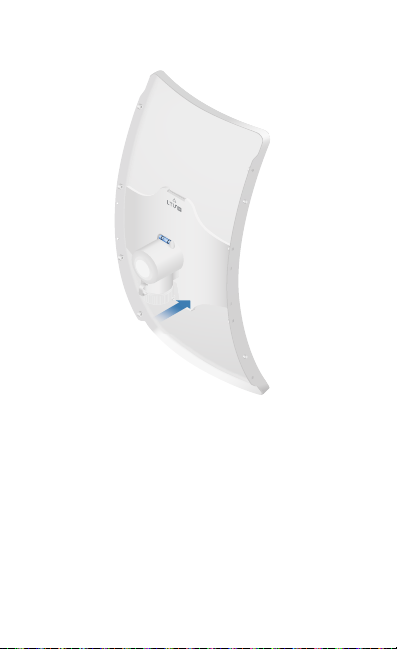

Hardware Installation

1.

2.

3.
