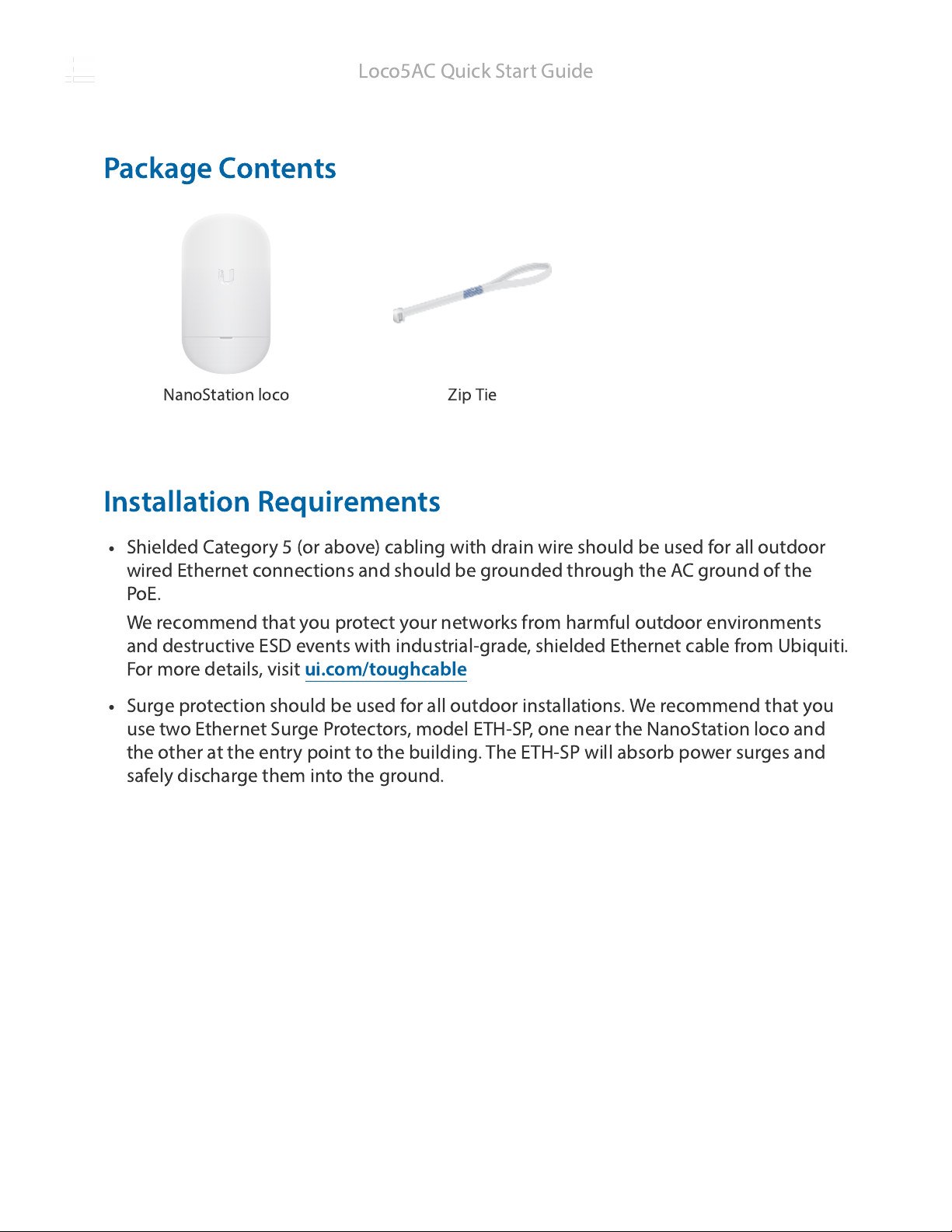

NanoStation loco Zip Tie

Package Contents

Installation Requirements

Shielded Category 5 (or above) cabling with drain wire should be used for all outdoor

wired Ethernet connections and should be grounded through the AC ground of the

PoE.

We recommend that you protect your networks from harmful outdoor environments

and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti.

For more details, visit

ui.com/toughcable

Surge protection should be used for all outdoor installations. We recommend that you

use two Ethernet Surge Protectors, model ETH-SP, one near the NanoStation loco and

the other at the entry point to the building. The ETH-SP will absorb power surges and

safely discharge them into the ground.

Loco5AC Quick Start Guide

Power LED

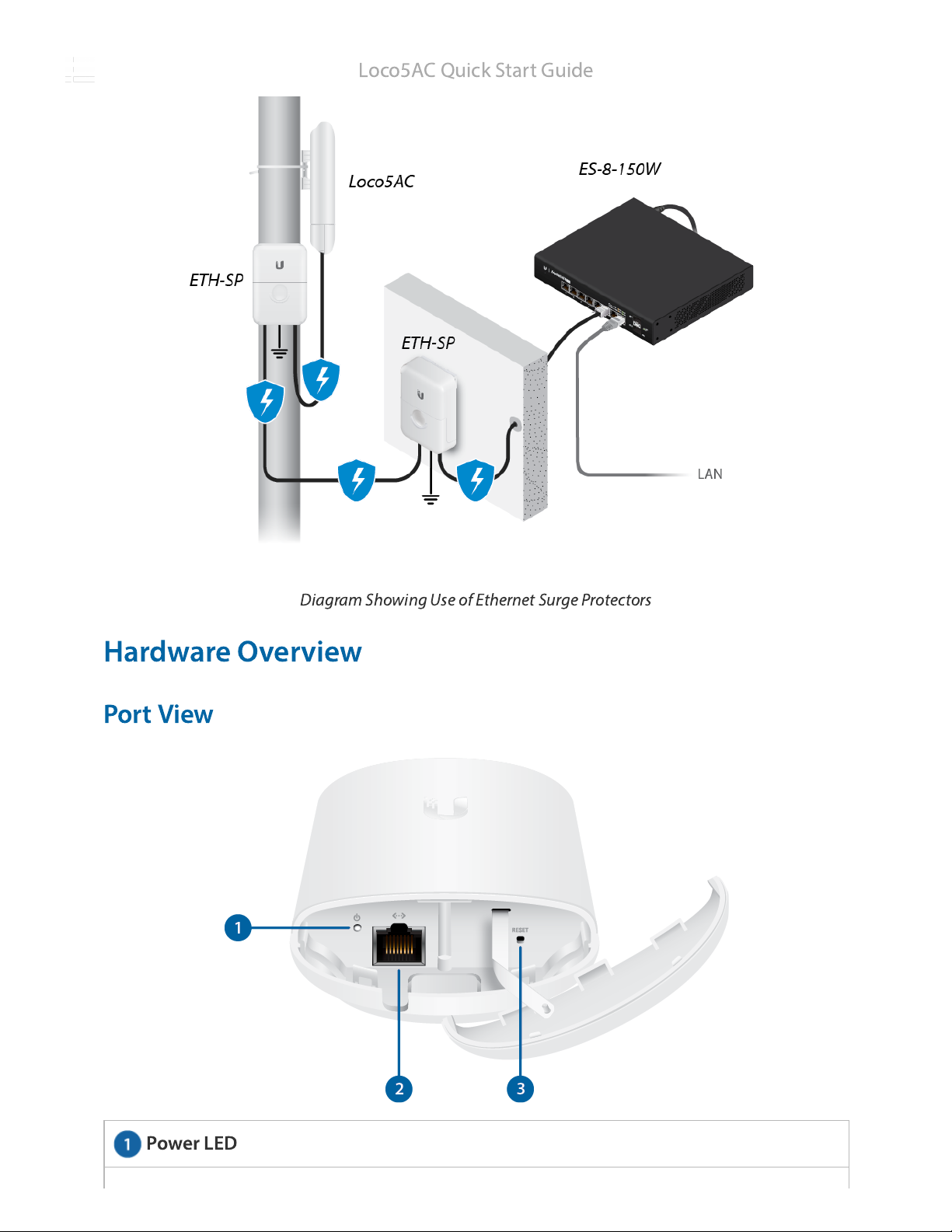

Diagram Showing Use of Ethernet Surge Protectors

Hardware Overview

Port View

Loco5AC Quick Start Guide

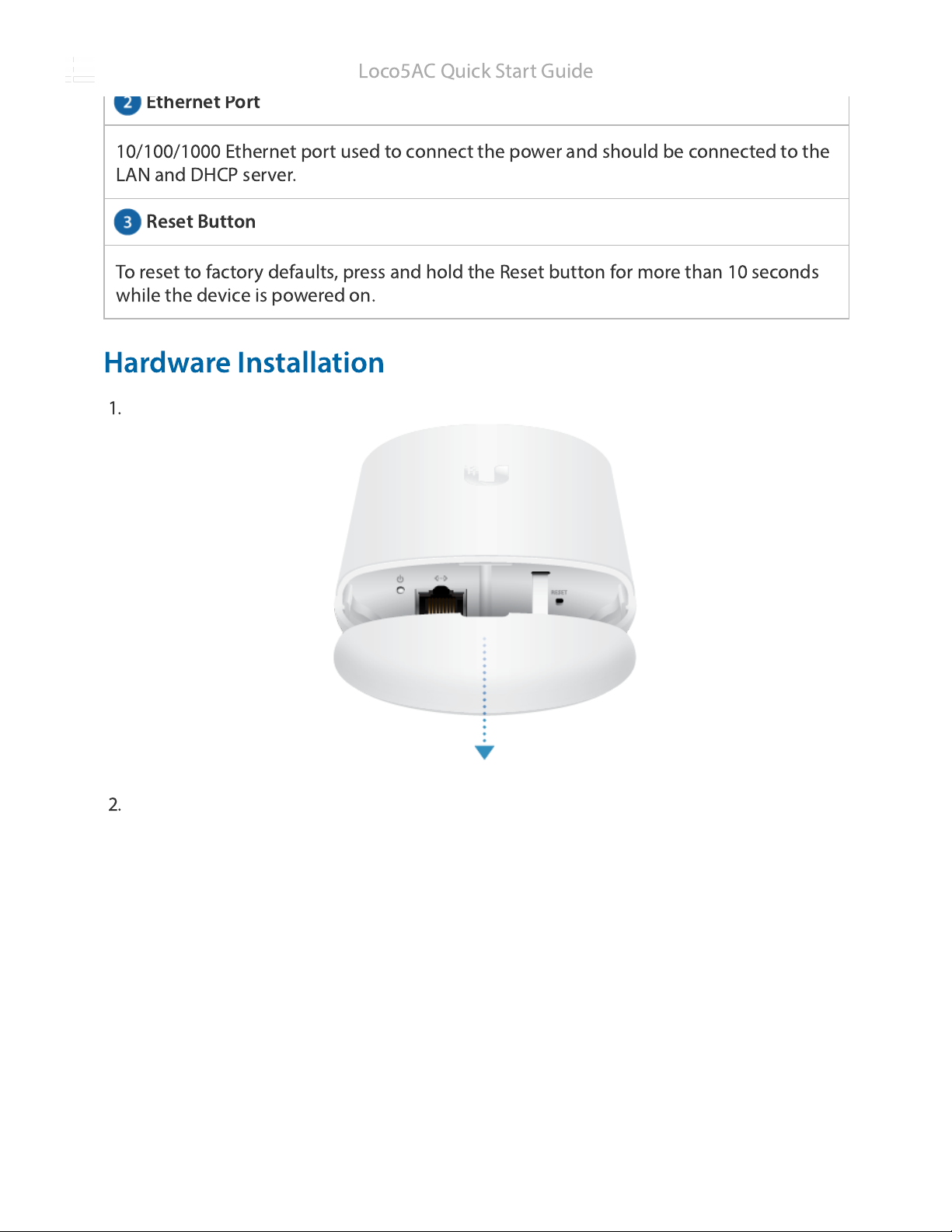

Ethernet Port

Reset Button

The Power LED will light blue when the device is connected to a power source.

10/100/1000 Ethernet port used to connect the power and should be connected to the

LAN and DHCP server.

To reset to factory defaults, press and hold the Reset button for more than 10 seconds

while the device is powered on.

Hardware Installation

1.

2.

Loco5AC Quick Start Guide

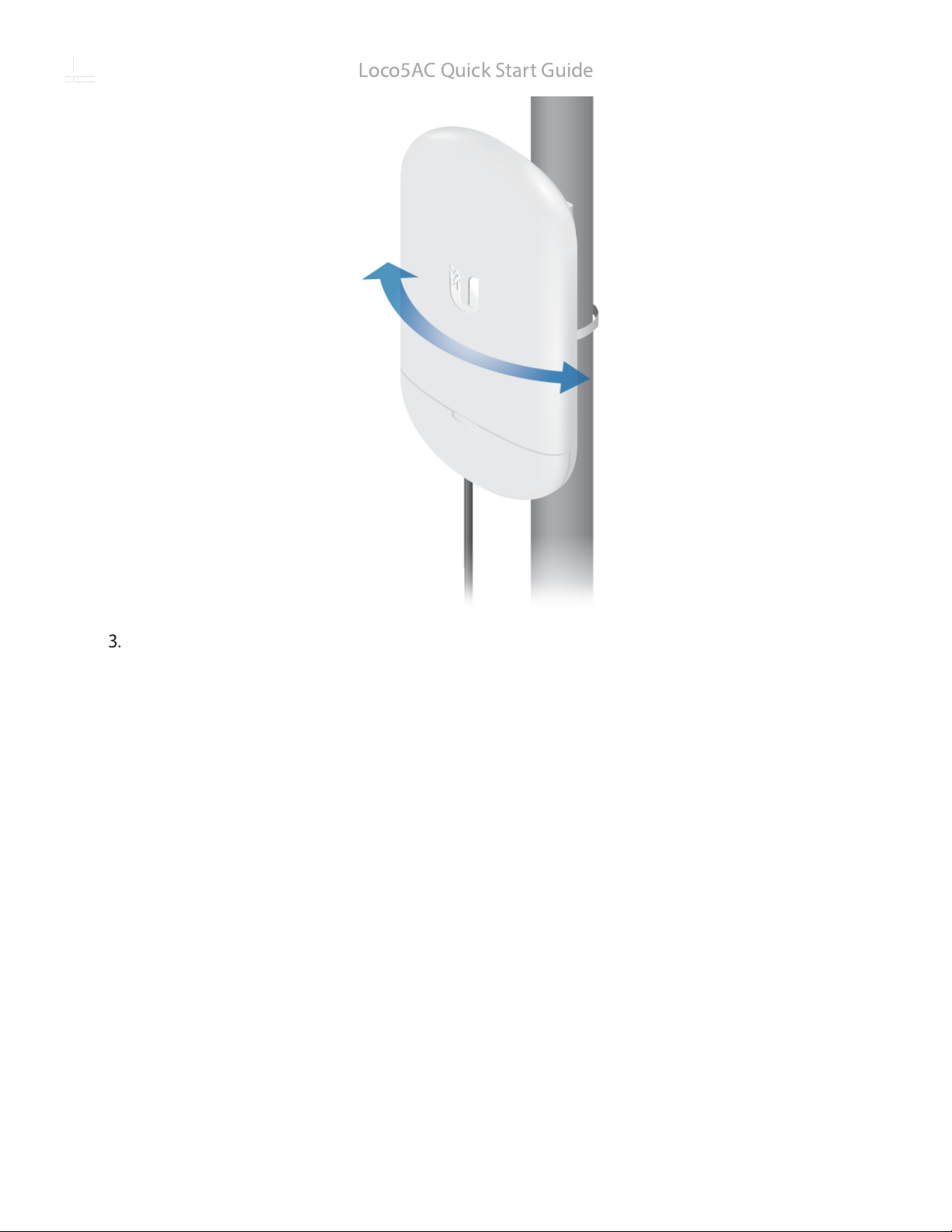

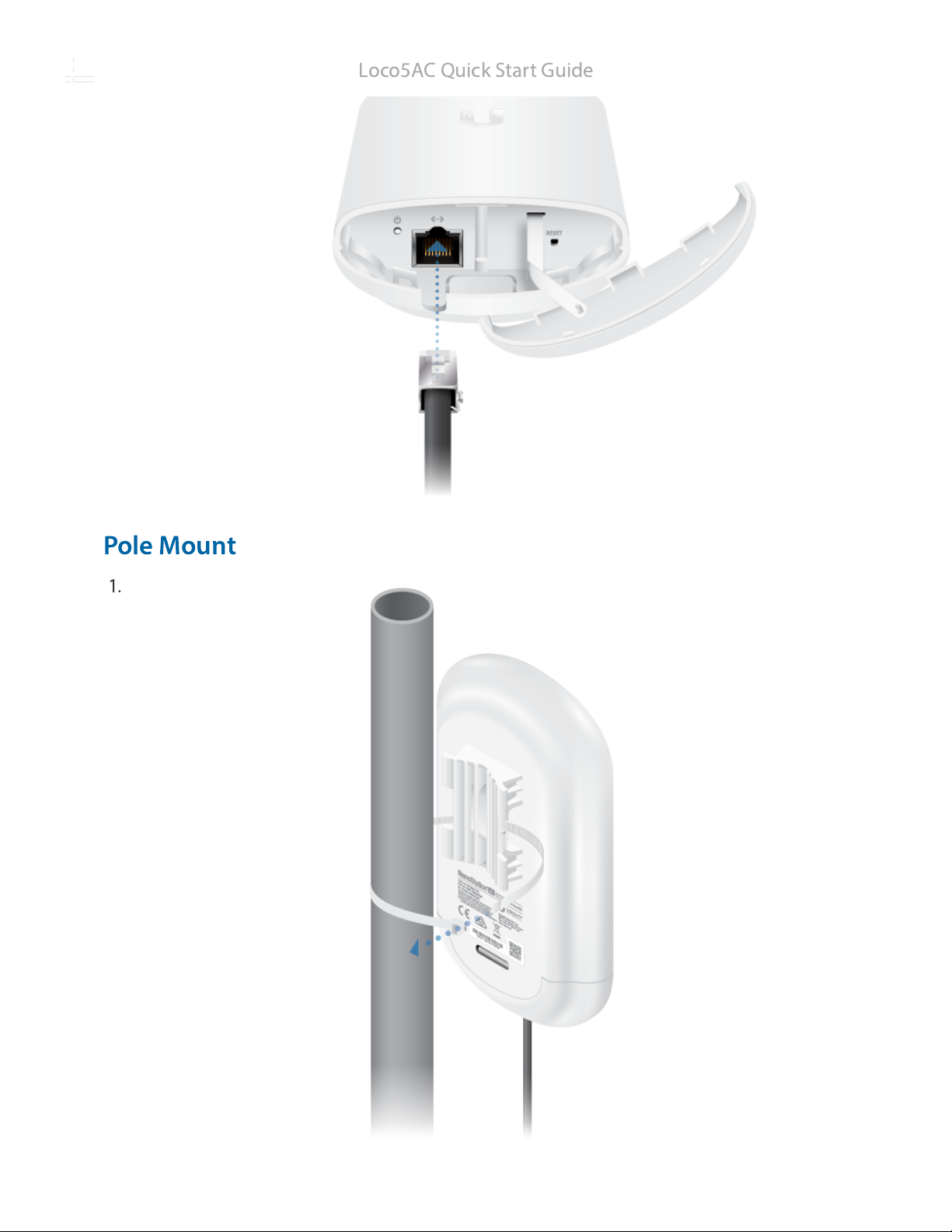

Pole Mount

1.

Loco5AC Quick Start Guide

2.

3.

Loco5AC Quick Start Guide

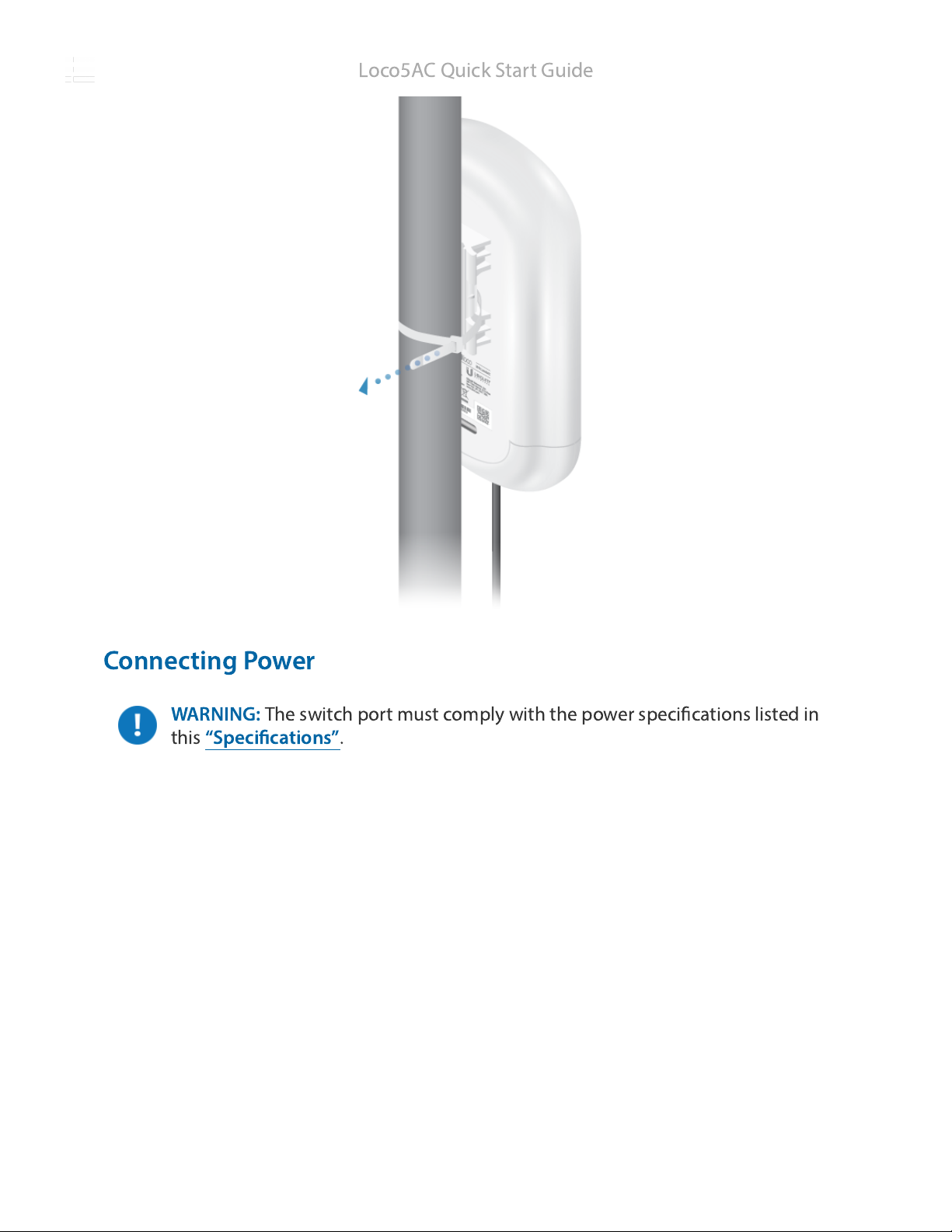

Connecting Power

WARNING:

The switch port must comply with the power specications listed in

this

“Specications”

.

Loco5AC Quick Start Guide

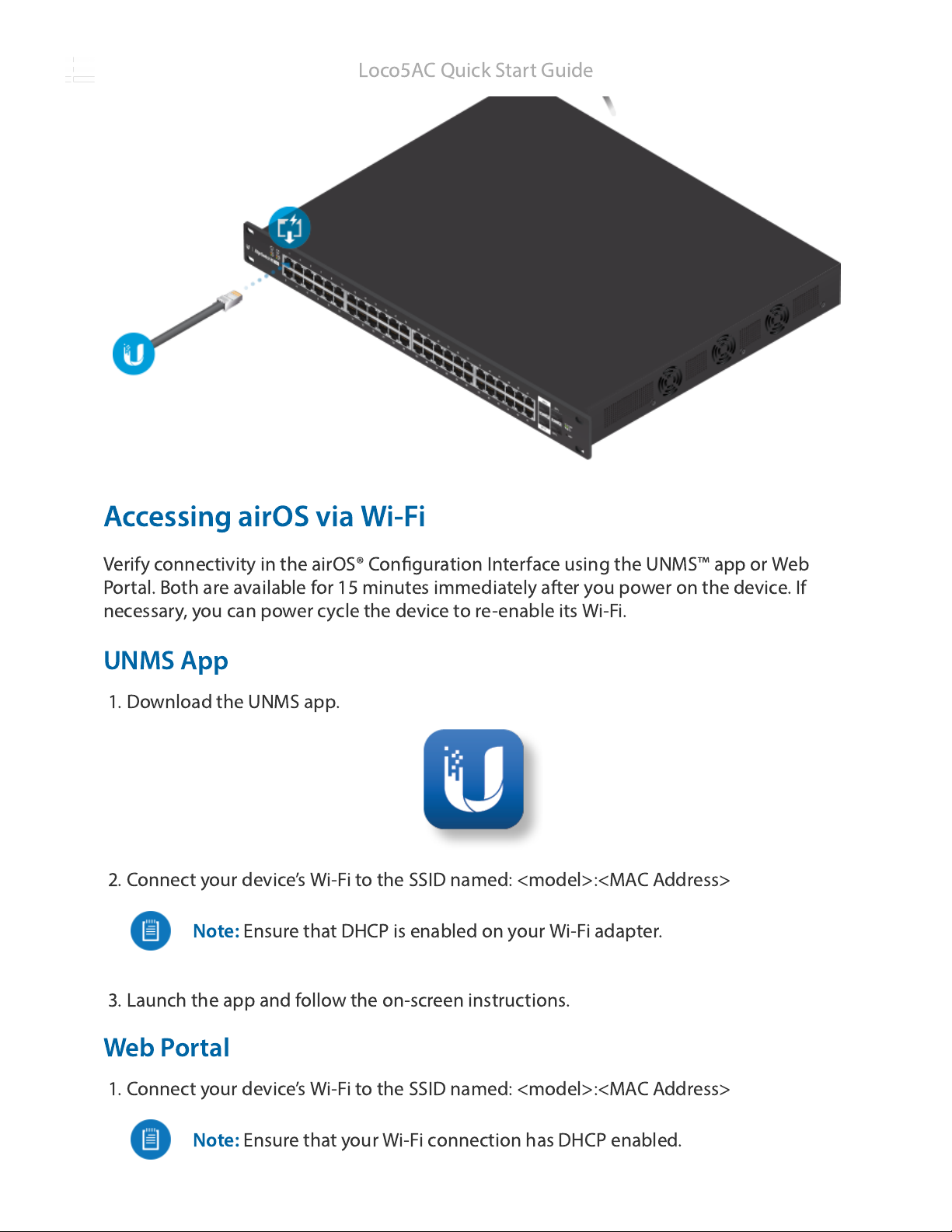

Accessing airOS via Wi-Fi

Verify connectivity in the airOS® Conguration Interface using the UNMS™ app or Web

Portal. Both are available for 15 minutes immediately after you power on the device. If

necessary, you can power cycle the device to re-enable its Wi-Fi.

UNMS App

1. Download the UNMS app.

2. Connect your device’s Wi-Fi to the SSID named: <model>:<MAC Address>

3. Launch the app and follow the on-screen instructions.

Web Portal

1. Connect your device’s Wi-Fi to the SSID named: <model>:<MAC Address>

Note:

Ensure that DHCP is enabled on your Wi-Fi adapter.

Note:

Ensure that your Wi-Fi connection has DHCP enabled.

Loco5AC Quick Start Guide

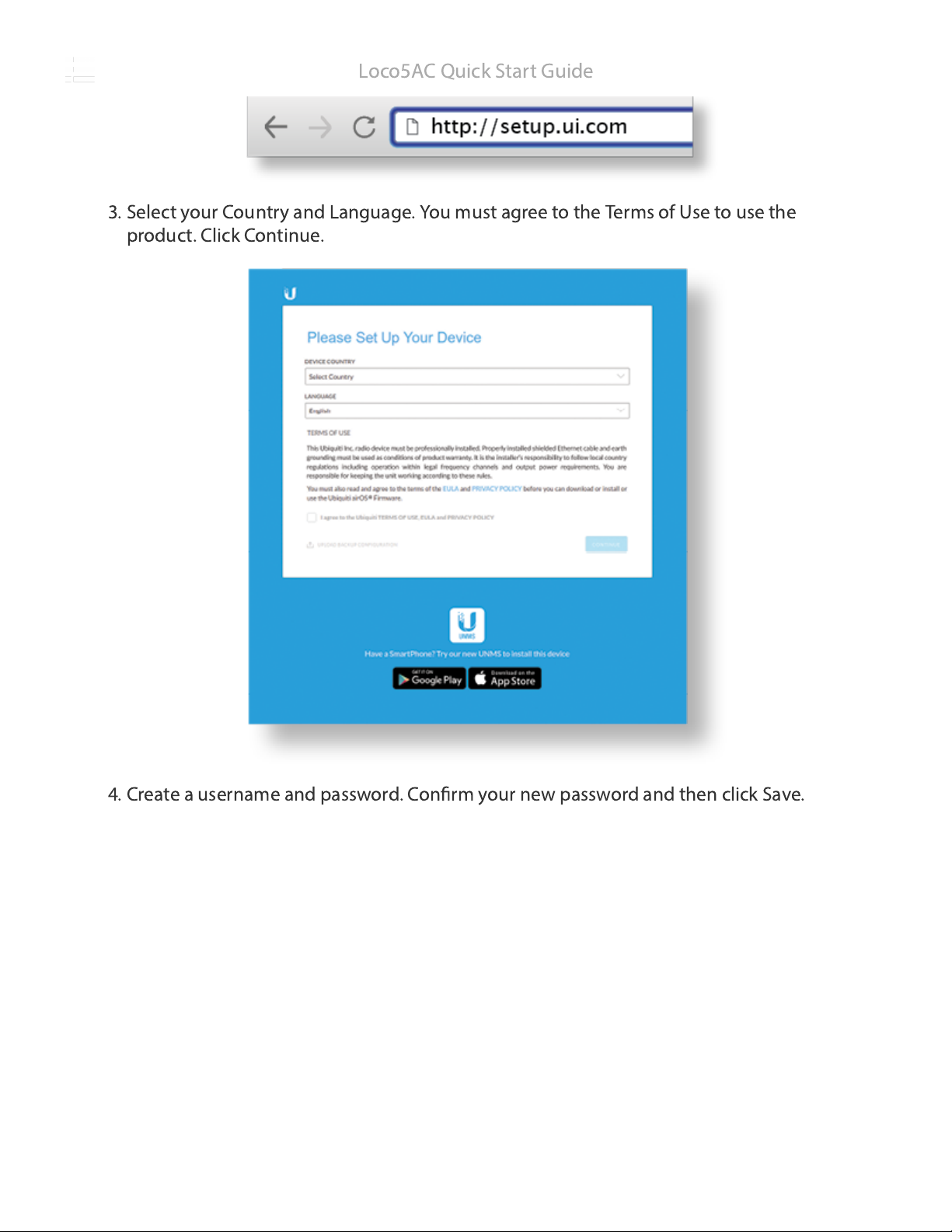

2. Launch your web browser and go to: http://setup.ui.com

3. Select your Country and Language. You must agree to the Terms of Use to use the

product. Click Continue.

4. Create a username and password. Conrm your new password and then click Save.

Loco5AC Quick Start Guide

The airOS Conguration Interface will appear, allowing you to customize your settings as

needed. For additional details, refer to the User Guide available at

ui.com/download/airmax-ac

Installer Compliance Responsibility

Devices must be professionally installed and it is the professional installer’s responsibility

to make sure the device is operated within local country regulatory requirements.

Loco5AC Quick Start Guide

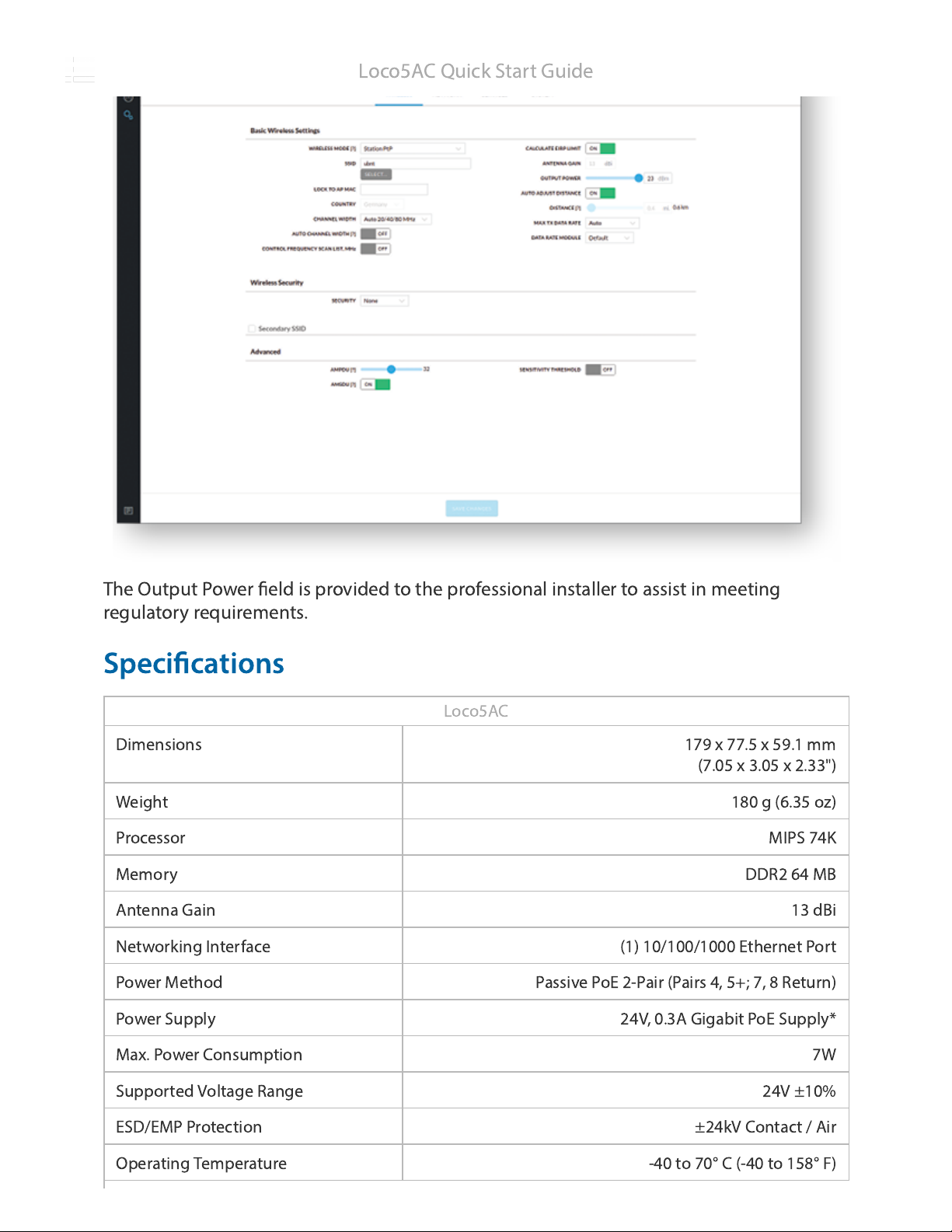

The Output Power eld is provided to the professional installer to assist in meeting

regulatory requirements.

Specications

Loco5AC

Dimensions 179 x 77.5 x 59.1 mm

(7.05 x 3.05 x 2.33")

Weight 180 g (6.35 oz)

Processor MIPS 74K

Memory DDR2 64 MB

Antenna Gain 13 dBi

Networking Interface (1) 10/100/1000 Ethernet Port

Power Method Passive PoE 2-Pair (Pairs 4, 5+; 7, 8 Return)

Power Supply 24V, 0.3A Gigabit PoE Supply*

Max. Power Consumption 7W

Supported Voltage Range 24V ±10%

ESD/EMP Protection ±24kV Contact / Air

Operating Temperature -40 to 70° C (-40 to 158° F)

Loco5AC Quick Start Guide
