Ubiquiti TouchSwitch Poe TS-5-POE Manuel utilisateur
5-Port Power over Ethernet
Managed Switch
Model: TS-5-POE
1
Introduction
Introduction
Thank you for purchasing the Ubiquiti Networks 5-Port
TOUGHSwitch™PoE, model TS-5-POE. It is part of the
TOUGHSwitch series:
Name Model Description
5-Port TOUGHSwitch PoE TS-5-POE Managed switch
featuring 24V PoE
8-Port TOUGHSwitch PoE PRO TS-8-PRO Managed switch
featuring 24V or 48V PoE
TOUGHSwitch PoE Carrier TS-16-Carrier Two 8-Port
TOUGHSwitch PoE PROs
mounted in a rack
For more information, visit www.ubnt.com.
This Quick Start Guide is designed to guide you through the
installation of the TOUGHSwitch and show you how to access the
Configuration Interface.
Package Contents

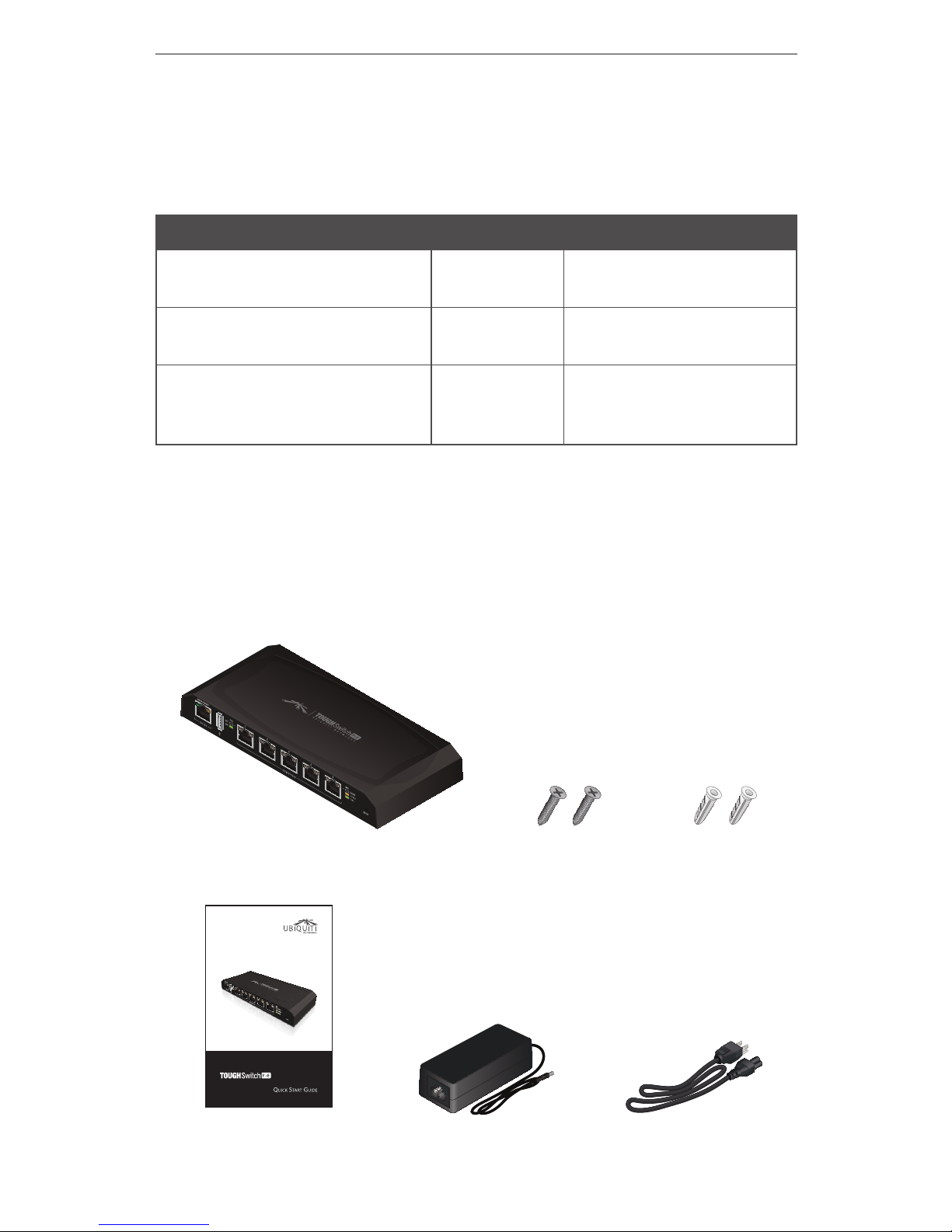

5-Port TOUGHSwitch PoE M2.9x20 Screws
(Qty. 2)
M2.9 Anchors
(Qty. 2)
Carrier Class
5-Port TOUGHSwitch PoE
Model: TOUGHSwitch-5-POE
Quick Start Guide Power Adapter
(24V, 2.5A)
Power Cord
2
5-Port TOUGHSwitch™PoE Quick Start Guide
Hardware
Back Panel
Power
Grounding
Slot
Grounding
Slot
Ventilation Holes
Front Panel Ports
Management
USB Reset
1-5
Interface Description
Management
10/100 Mbps port for management. Traffic between
the Management port and numbered ports will
be limited to 10/100 Mbps and, under heavy
load, may cause performance degradation of the
TOUGHSwitch.
USB Reserved for future use.
1-5 10/100/1000 Mbps ports for switching and PoE (also
available for management by default).
Reset
To reset to factory defaults, press and hold the Reset
button for more than five seconds while the unit is
already powered on.
3
Hardware

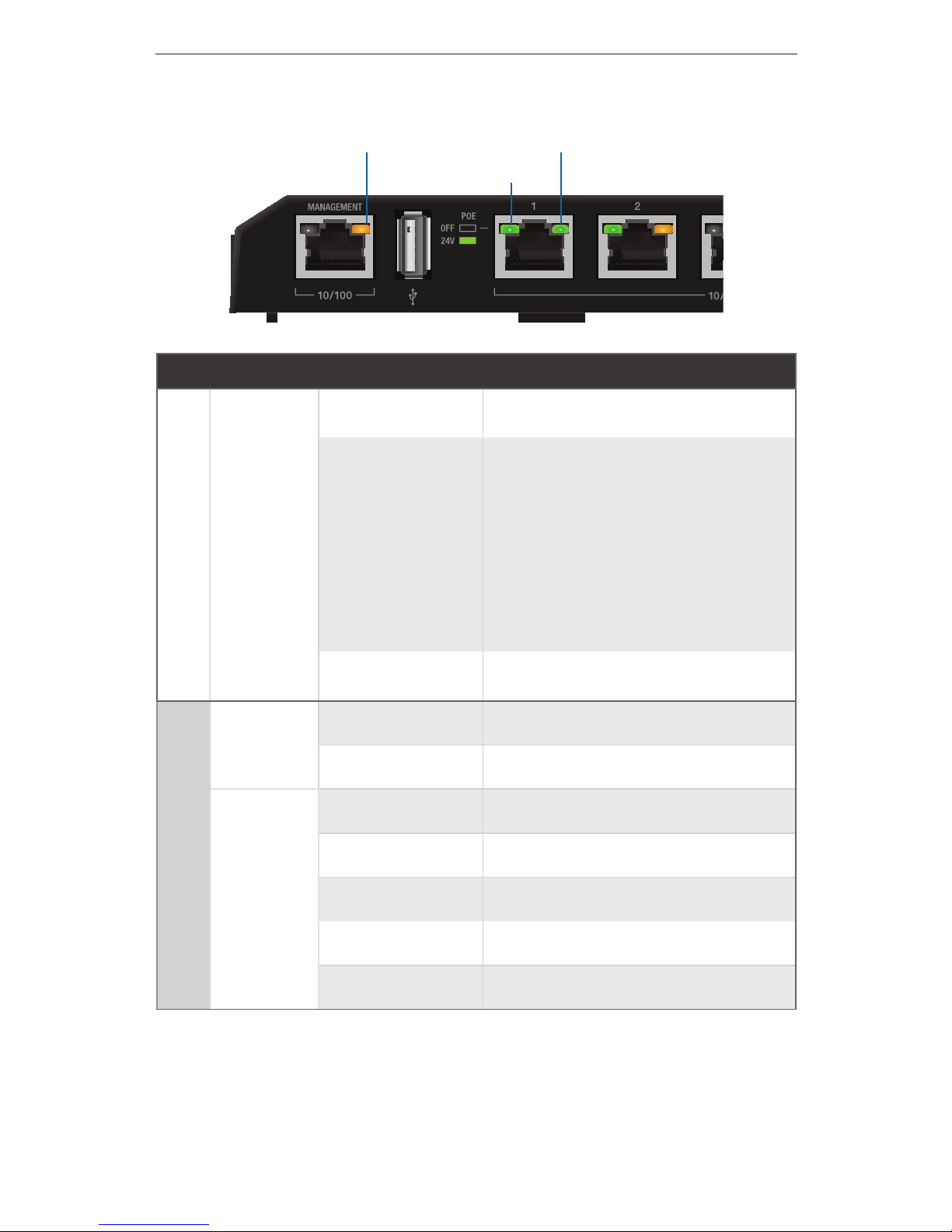

Front Panel LEDs
Link/Act
PoE
Speed/Link/Act
LED State Status
Management
Link/Act
Off No Link
Amber
After bootup, the LED indicates
power. After an initial link is
established, the LED indicates a
10/100 Mbps connection. If the
link terminates, the LED turns
off until a link is re-established.
If the unit reboots, the LED will
again indicate power until a link is
established.
Amber Flashing Activity
1-5
PoE
Off No Power over Ethernet
Green 24V Power over Ethernet
Speed/
Link/Act
Off No Link
Amber Link Established at 10/100 Mbps
Amber Flashing Link Activity at 10/100 Mbps
Green Link Established at 1000 Mbps
Green Flashing Link Activity at 1000 Mbps
4
5-Port TOUGHSwitch™PoE Quick Start Guide
Hardware Installation
Mount the TOUGHSwitch on a wall or place it on a bench top.
Note: Keep 20 mm of clearance next to the ventilation
holes for adequate airflow.
Wall-Mounting
Installation Requirements
• Drill and 6 mm drill bit
• Phillips screwdriver
Instructions

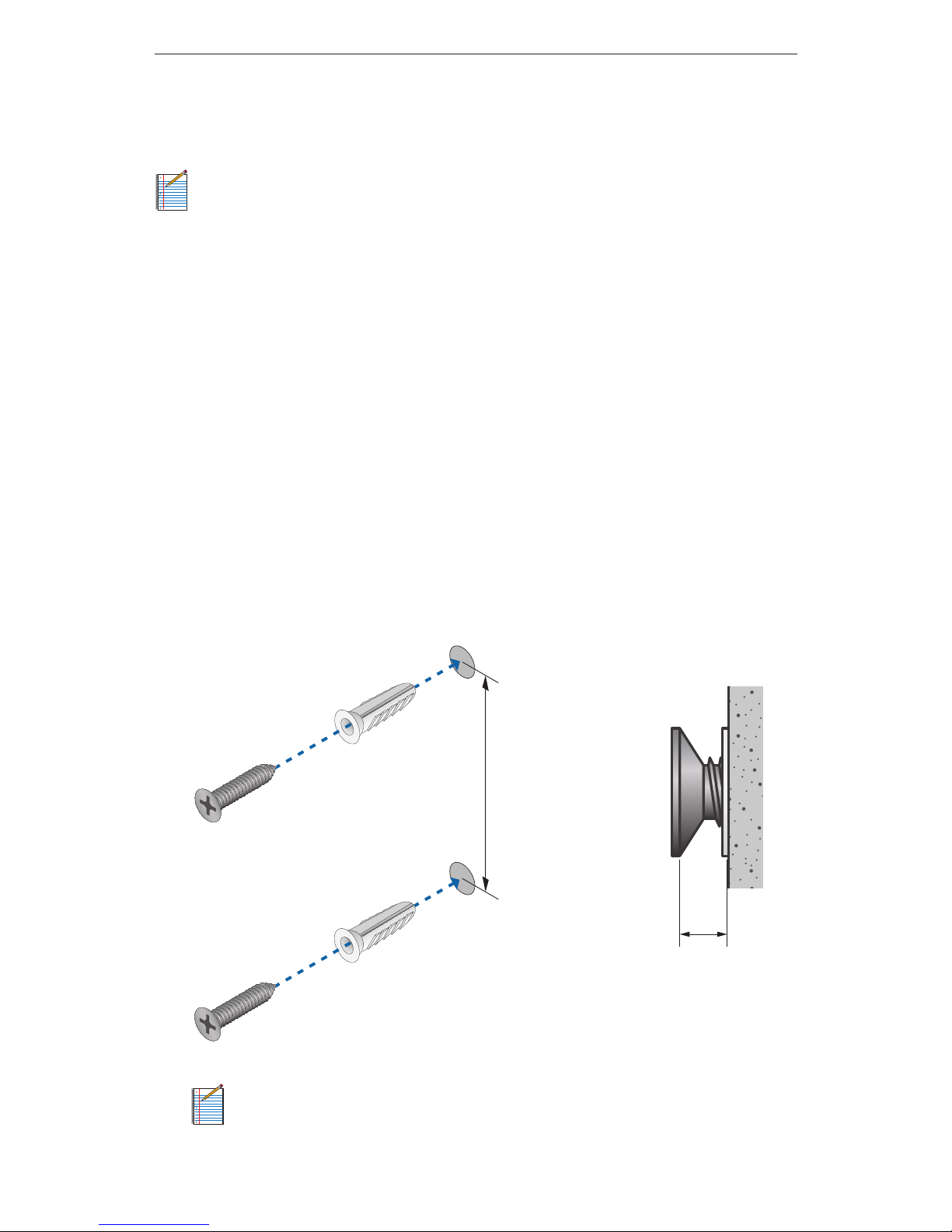

To mount the TOUGHSwitch on a wall:
1. Use a 6 mm drill bit to drill two holes 60 mm apart.
2. Insert the M2.9 Anchors into the holes.
3. Use a Phillips screwdriver to secure a M2.9x20 Screw to each
anchor. Leave a clearance of approximately 3 mm between
each screw head and its anchor.
60 mm
3 mm
Note: You can also mount the TOUGHSwitch in a
horizontal orientation.
5
Hardware Installation

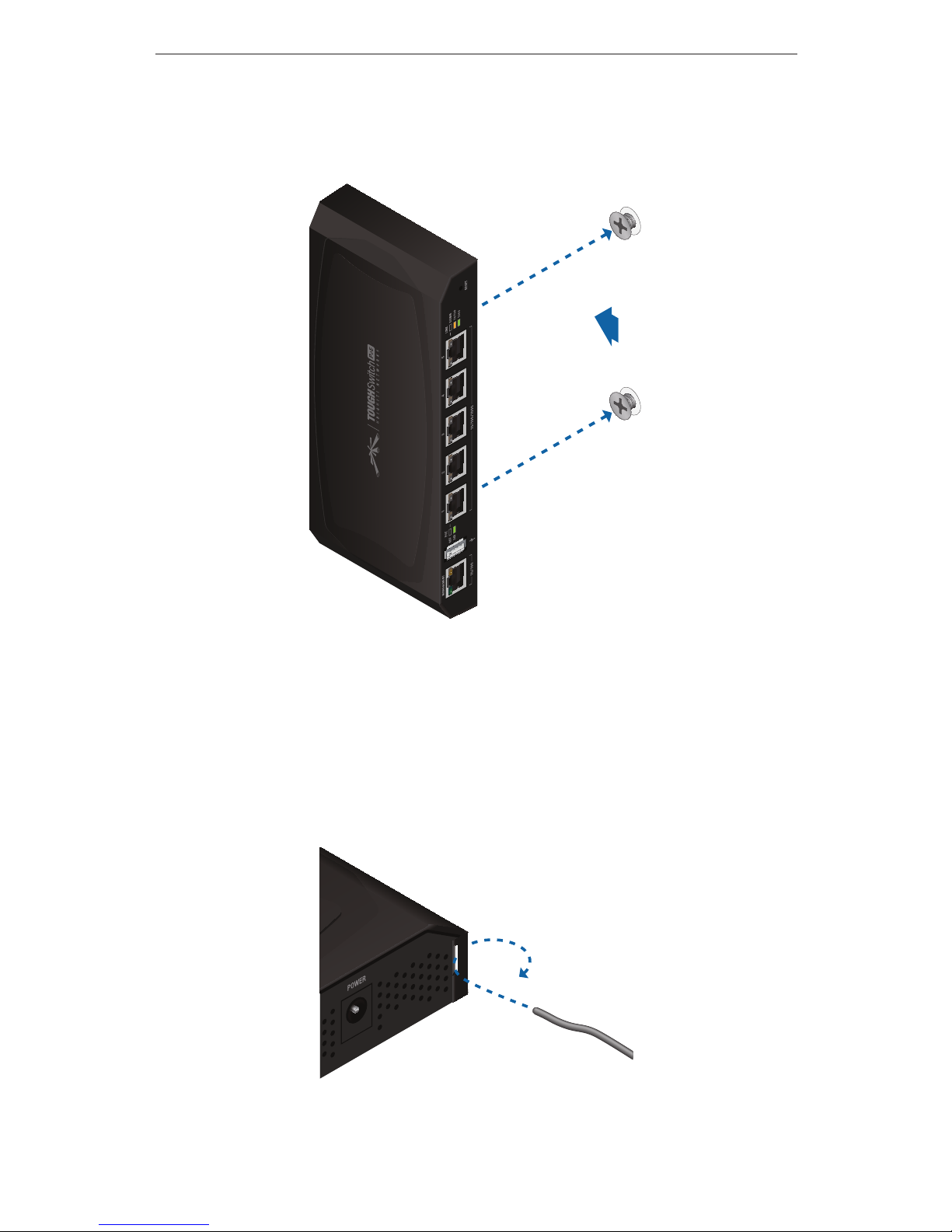

4. Position the Wall-Mount Slots of the TOUGHSwitch over the
screw heads on the wall. Then slide the TOUGHSwitch to the
left to lock it into place.
Grounding the TOUGHSwitch (Optional)
The TOUGHSwitch is grounded through the Power Adapter;
however, you can add optional ESD grounding for enhanced ESD
protection.
1. Insert a ground wire (not included) through a corner slot.
2. Twist tie to secure the ground wire to the TOUGHSwitch.
3. Secure the other end of the ground wire to a grounding block.
6
5-Port TOUGHSwitch™PoE Quick Start Guide

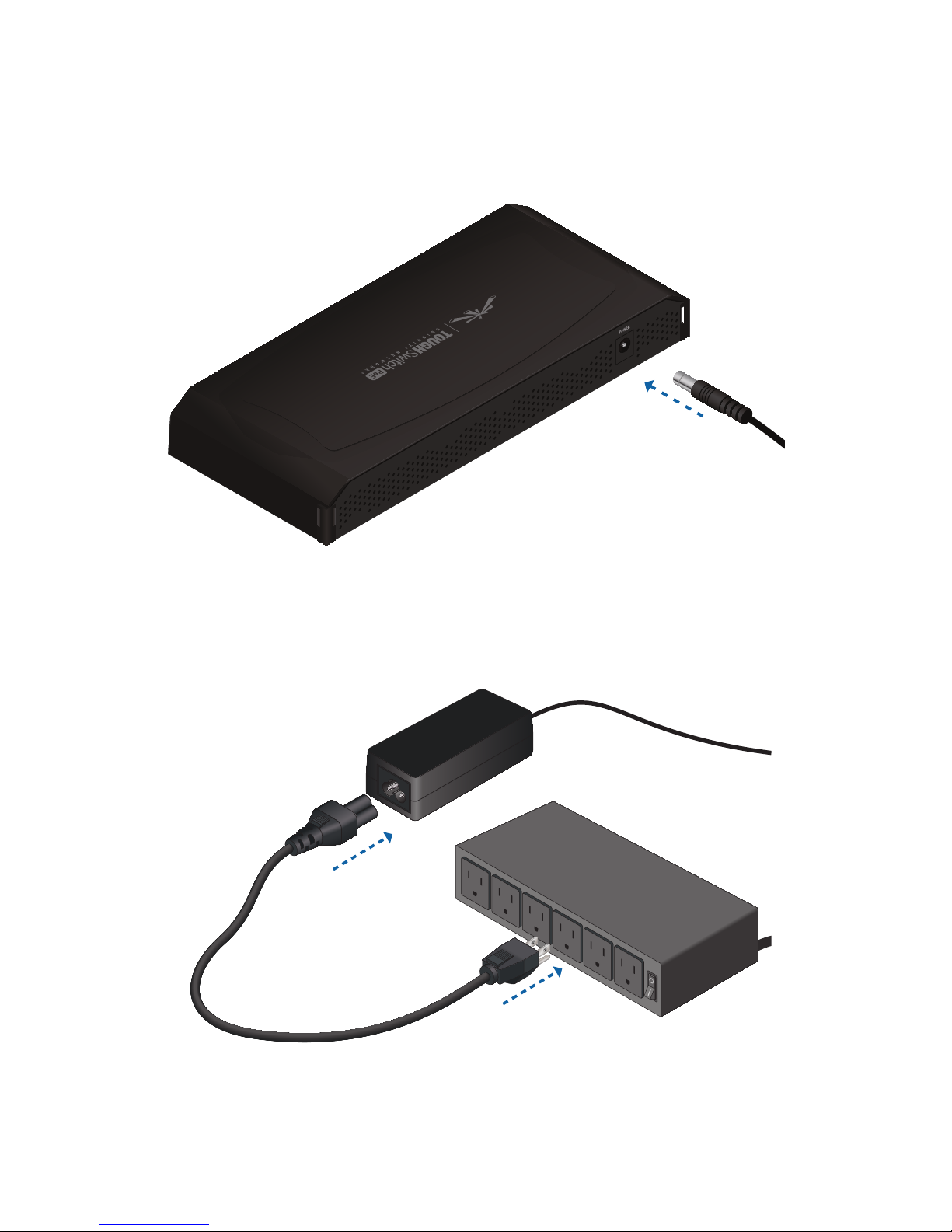

Connecting Power
1. Connect the power connector of the Power Adapter to the
Power port of the TOUGHSwitch.
2. Connect the Power Cord to the power port on the Power
Adapter. Connect the other end of the Power Cord to a power
outlet.
7
Hardware Installation

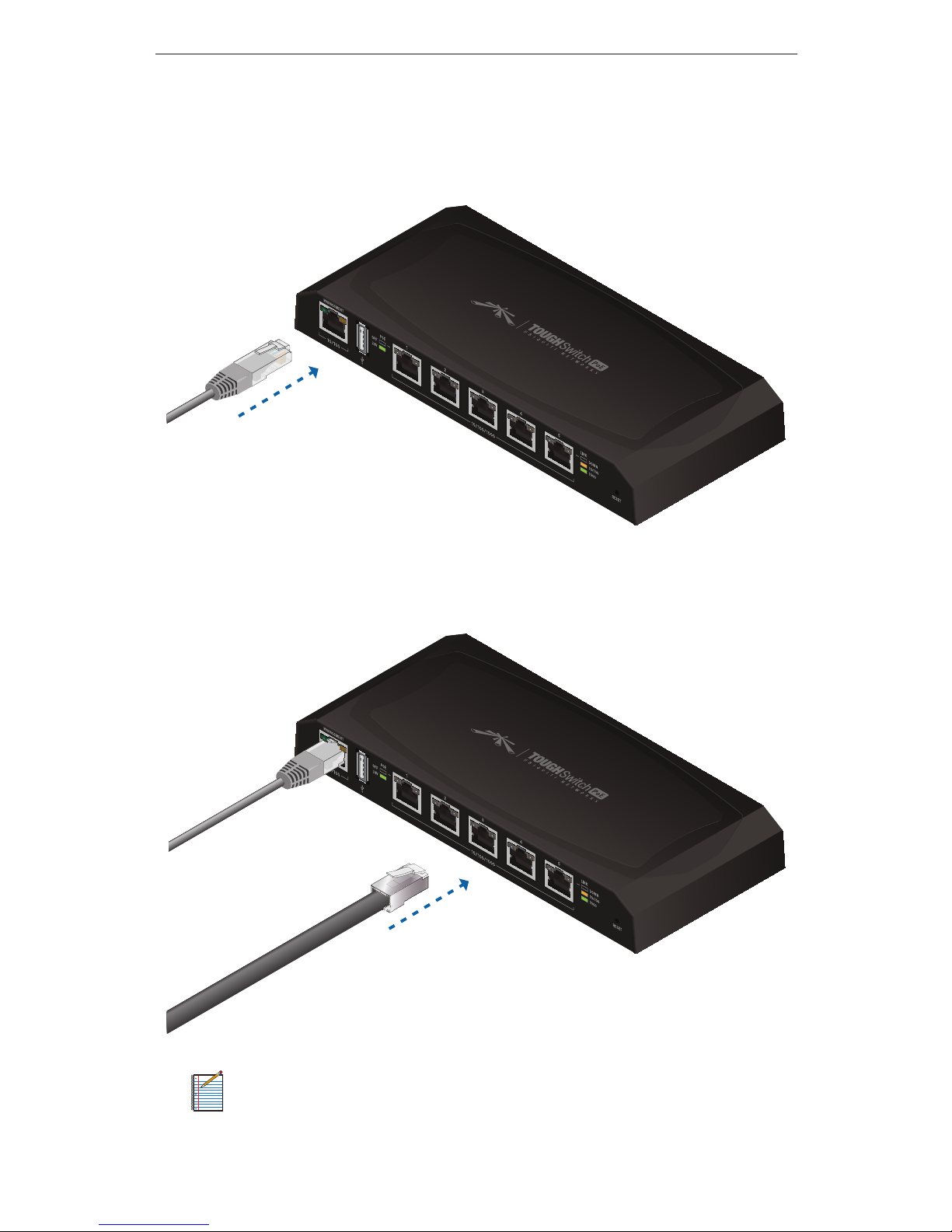

Connecting Ethernet
1. Connect an Ethernet cable from the Ethernet port of your
computer to the Management port of the TOUGHSwitch.
2. Connect Ethernet cables from the Ethernet ports of your
devices to the numbered ports of the TOUGHSwitch.
Note: PoE is disabled by default on all numbered ports
and is not available on the Management port. To enable
PoE on the appropriate ports, use the Ports tab in the
Configuration Interface.
8
5-Port TOUGHSwitch™PoE Quick Start Guide
Accessing the Configuration Interface
Connect to the Configuration Interface by performing the
following steps:
1. Ensure that your computer (or other host machine) is
connected to the Management port on the TOUGHSwitch.
Note: By default, you can configure the TOUGHSwitch
via any port; however, we recommend the Management
port. (Access to the Configuration Interface can be
limited to the Management port only. You can configure
this setting on the Device tab.)
2. Configure the Ethernet adapter on your host system with a
static IP address on the 192.168.1.x subnet (e.g., 192.168.1.100).

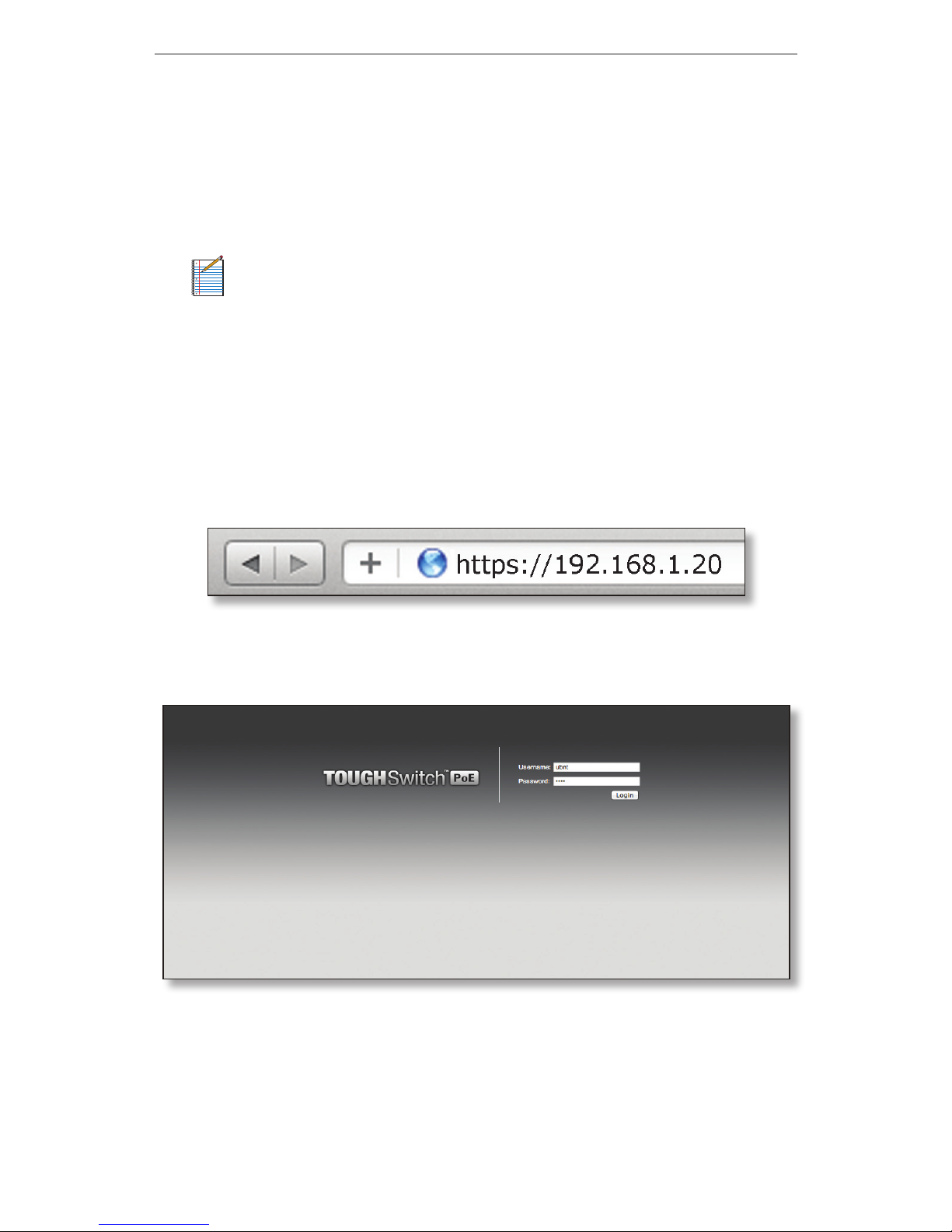

3. Launch your web browser. Type https://192.168.1.20 in the
address field. Press enter (PC) or return (Mac).
4. The login screen will appear. Enter ubnt in the Username and
Password fields. Click Login.
The Configuration Interface will appear, allowing you to customize
your settings as needed. You can enable PoE on the Ports tab.
Refer to the TOUGHSwitch PoE User Guide for instructions on
configuring the TOUGHSwitch. The User Guide is available at
documentation.ubnt.com
