Ubiquiti EdgeSwitch ES-16-XG Manuel utilisateur

EdgeSwitch Rack-Mount Brackets (Qty. 2) Bracket Screws (Qty. 8)

Mounting Screws (Qty. 4) Cage Nuts (Qty. 4) Power Cord

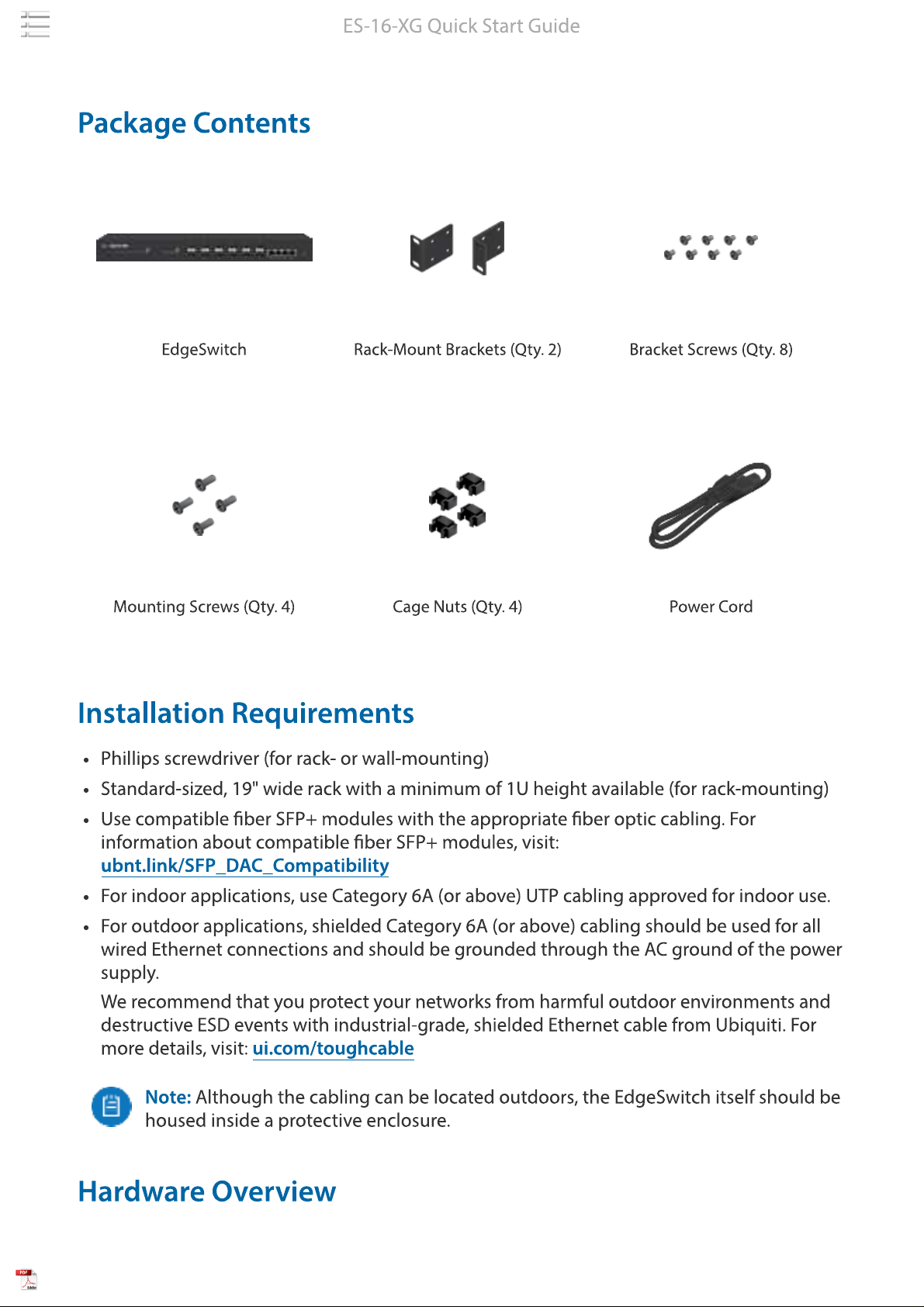

Package Contents

Installation Requirements

Phillips screwdriver (for rack- or wall-mounting)

Standard-sized, 19" wide rack with a minimum of 1U height available (for rack-mounting)

Use compatible ber SFP+ modules with the appropriate ber optic cabling. For

information about compatible ber SFP+ modules, visit:

ubnt.link/SFP_DAC_Compatibility

For indoor applications, use Category 6A (or above) UTP cabling approved for indoor use.

For outdoor applications, shielded Category 6A (or above) cabling should be used for all

wired Ethernet connections and should be grounded through the AC ground of the power

supply.

We recommend that you protect your networks from harmful outdoor environments and

destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti. For

more details, visit:

ui.com/toughcable

Note:

Although the cabling can be located outdoors, the EdgeSwitch itself should be

housed inside a protective enclosure.

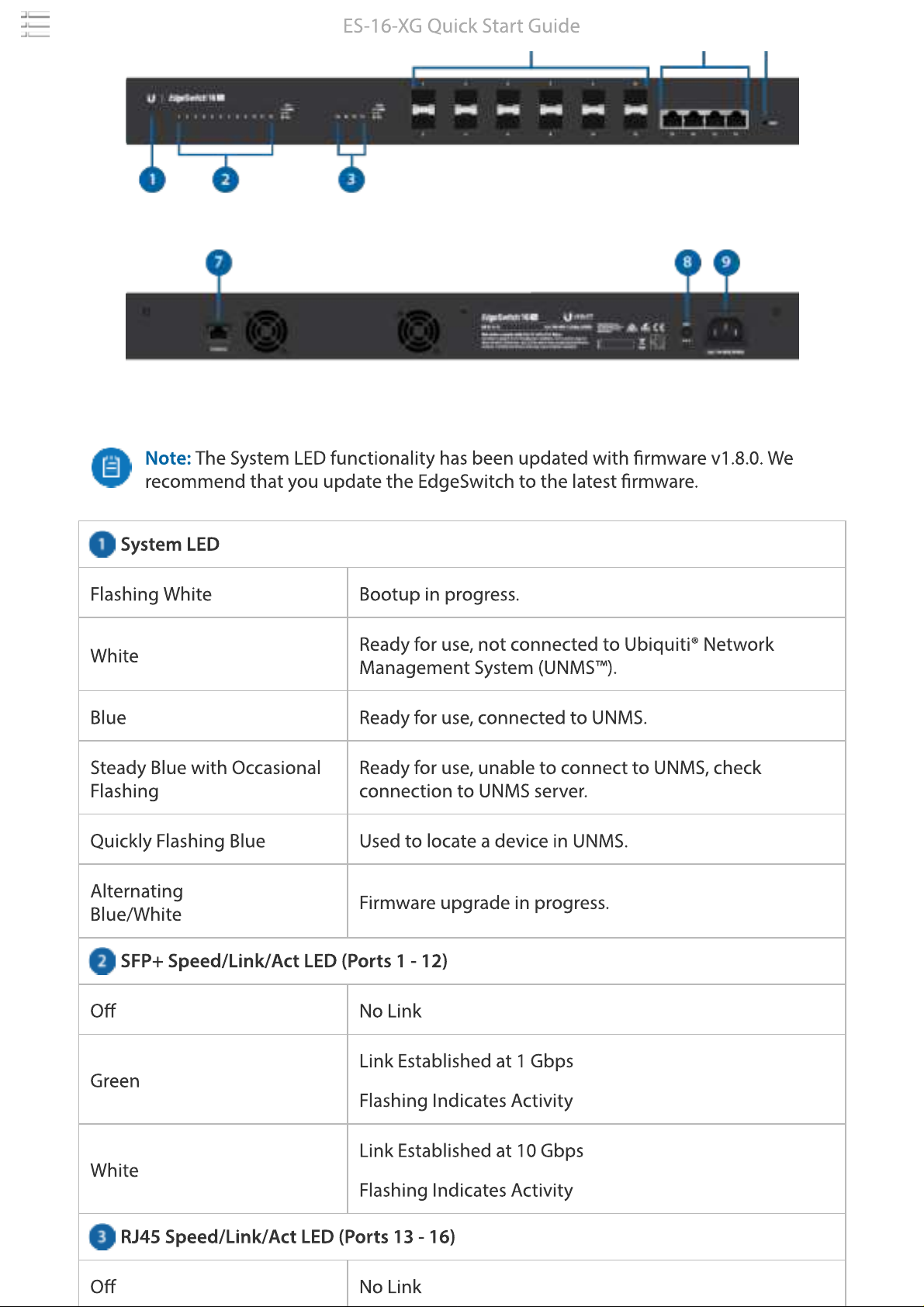

Hardware Overview

ES-16-XG Quick Start Guide

System LED

SFP+ Speed/Link/Act LED (Ports 1 - 12)

RJ45 Speed/Link/Act LED (Ports 13 - 16)

Note:

The System LED functionality has been updated with rmware v1.8.0. We

recommend that you update the EdgeSwitch to the latest rmware.

Flashing White Bootup in progress.

White Ready for use, not connected to Ubiquiti® Network

Management System (UNMS™).

Blue Ready for use, connected to UNMS.

Steady Blue with Occasional

Flashing Ready for use, unable to connect to UNMS, check

connection to UNMS server.

Quickly Flashing Blue Used to locate a device in UNMS.

Alternating

Blue/White Firmware upgrade in progress.

Oﬀ No Link

Green Link Established at 1 Gbps

Flashing Indicates Activity

White Link Established at 10 Gbps

Flashing Indicates Activity

Oﬀ No Link

ES-16-XG Quick Start Guide

SFP+ (Ports 1 - 12)

RJ45 (Ports 13 - 16)

Reset Button

Console

DC Input

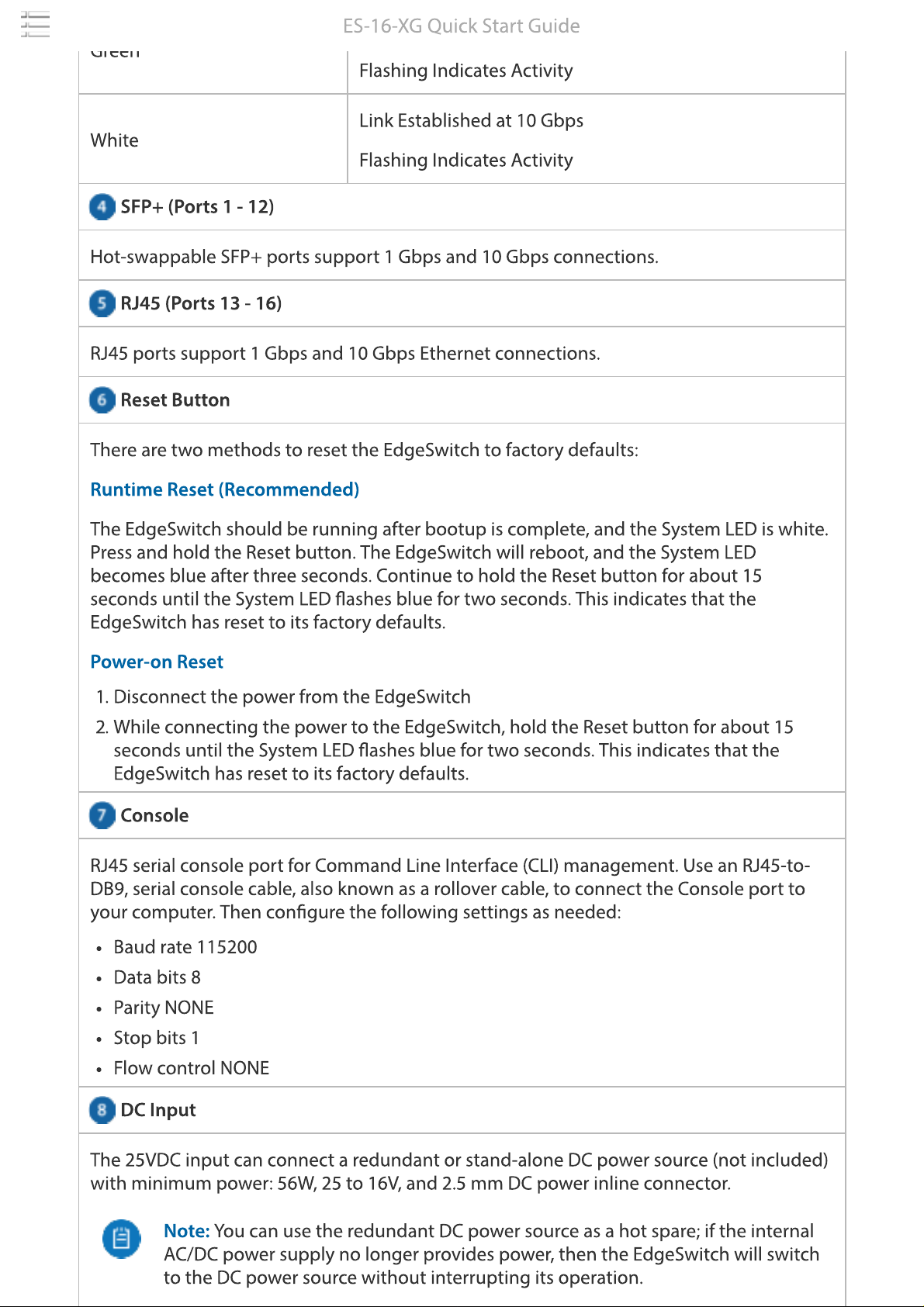

Green Link Established at 1 Gbps

Flashing Indicates Activity

White Link Established at 10 Gbps

Flashing Indicates Activity

Hot-swappable SFP+ ports support 1 Gbps and 10 Gbps connections.

RJ45 ports support 1 Gbps and 10 Gbps Ethernet connections.

There are two methods to reset the EdgeSwitch to factory defaults:

Runtime Reset (Recommended)

The EdgeSwitch should be running after bootup is complete, and the System LED is white.

Press and hold the Reset button. The EdgeSwitch will reboot, and the System LED

becomes blue after three seconds. Continue to hold the Reset button for about 15

seconds until the System LED ashes blue for two seconds. This indicates that the

EdgeSwitch has reset to its factory defaults.

Power-on Reset

1. Disconnect the power from the EdgeSwitch

2. While connecting the power to the EdgeSwitch, hold the Reset button for about 15

seconds until the System LED ashes blue for two seconds. This indicates that the

EdgeSwitch has reset to its factory defaults.

RJ45 serial console port for Command Line Interface (CLI) management. Use an RJ45-to-

DB9, serial console cable, also known as a rollover cable, to connect the Console port to

your computer. Then congure the following settings as needed:

Baud rate 115200

Data bits 8

Parity NONE

Stop bits 1

Flow control NONE

The 25VDC input can connect a redundant or stand-alone DC power source (not included)

with minimum power: 56W, 25 to 16V, and 2.5 mm DC power inline connector.

Note:

You can use the redundant DC power source as a hot spare; if the internal

AC/DC power supply no longer provides power, then the EdgeSwitch will switch

to the DC power source without interrupting its operation.

ES-16-XG Quick Start Guide

Power

Connect the included Power Cord to the Power port.

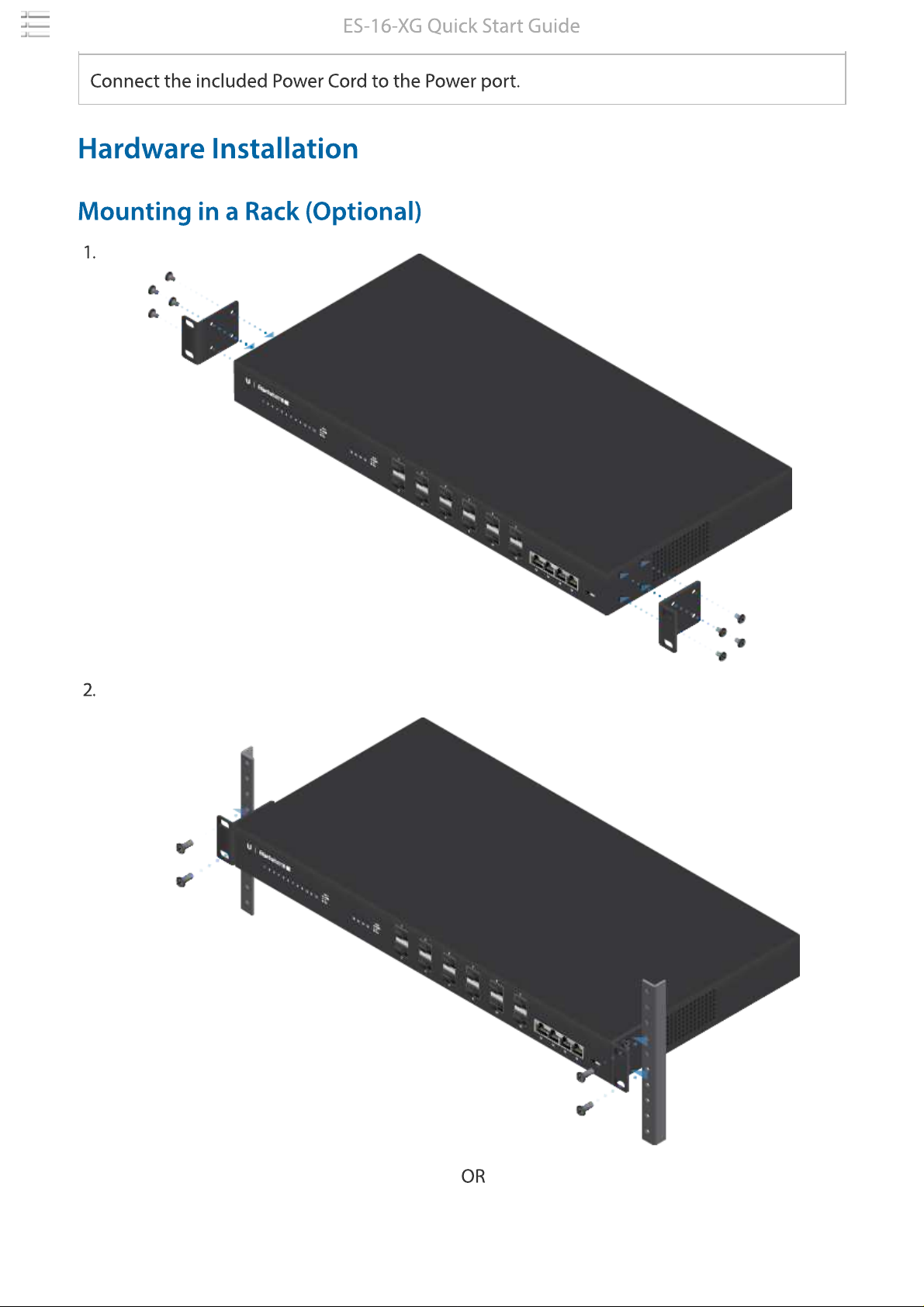

Hardware Installation

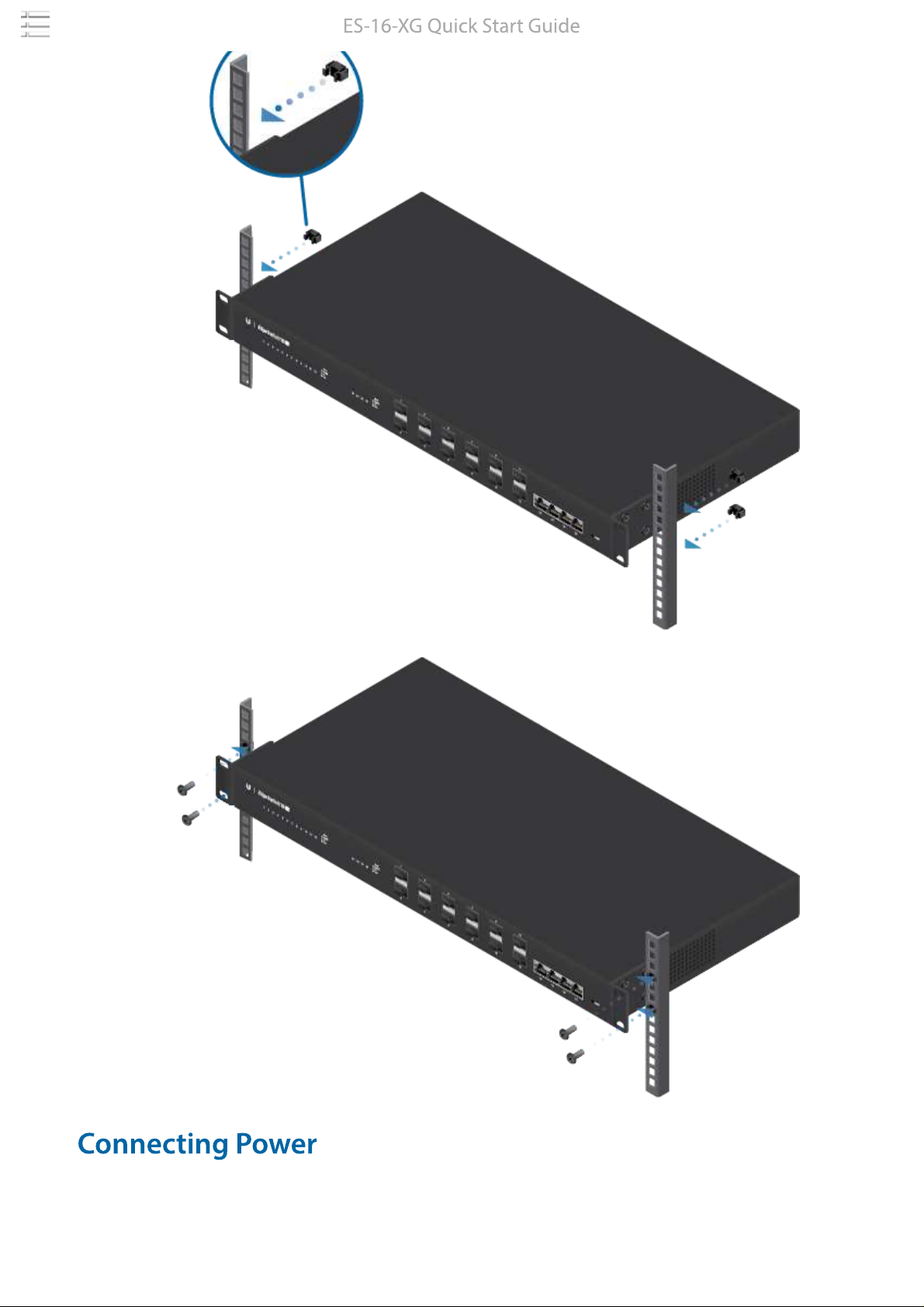

Mounting in a Rack (Optional)



ES-16-XG Quick Start Guide

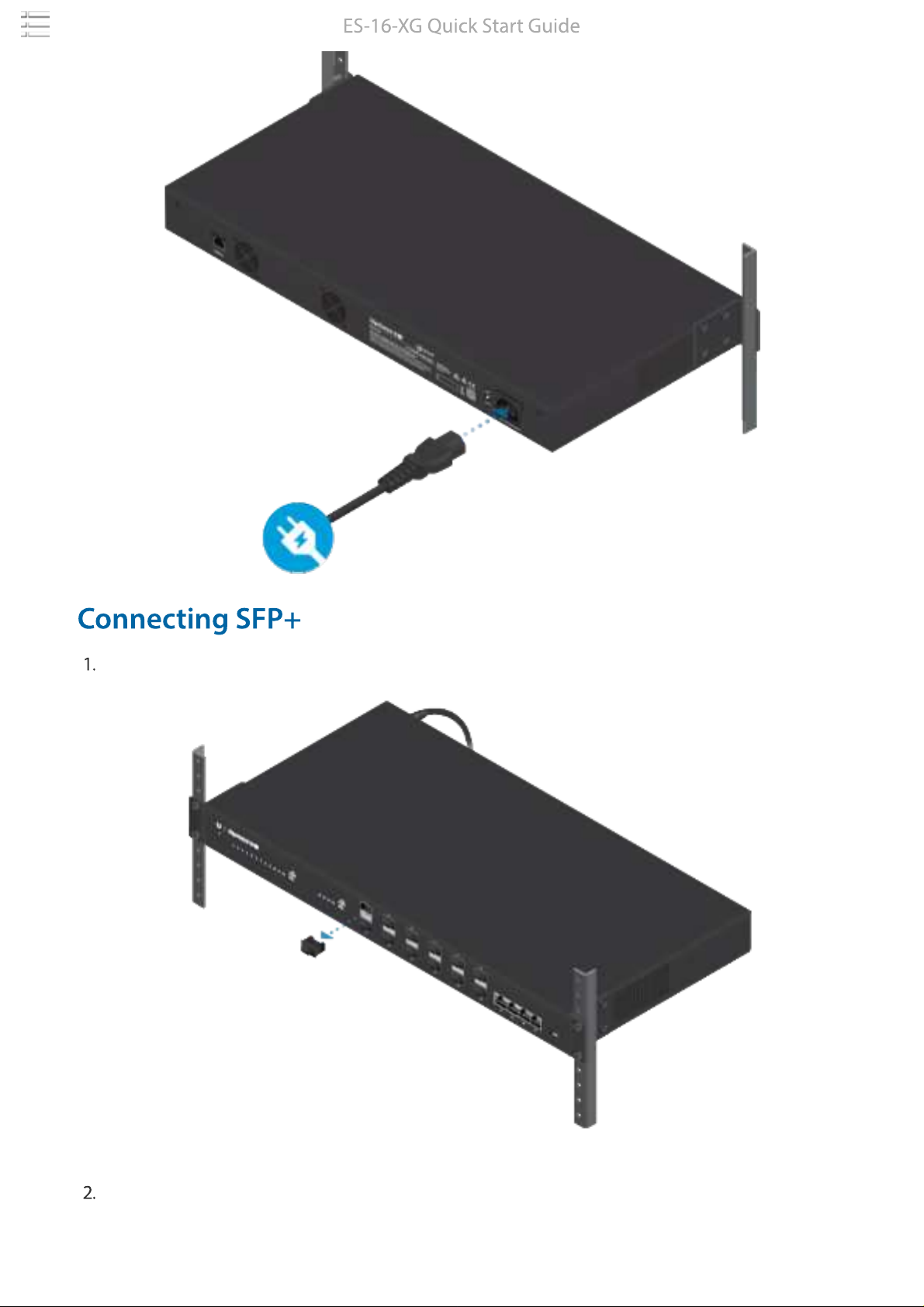

Connecting Power

ES-16-XG Quick Start Guide

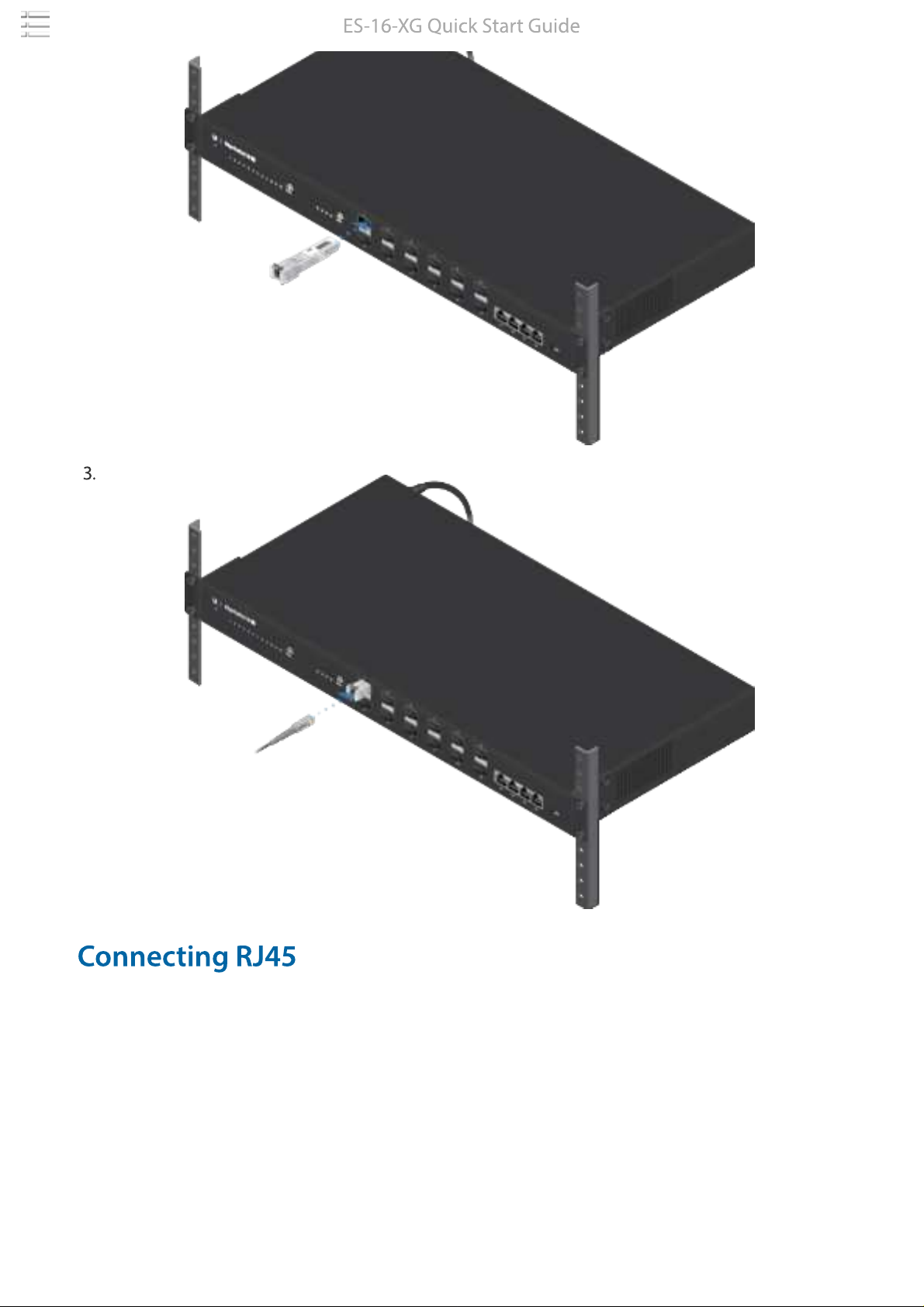

Connecting SFP+

ES-16-XG Quick Start Guide

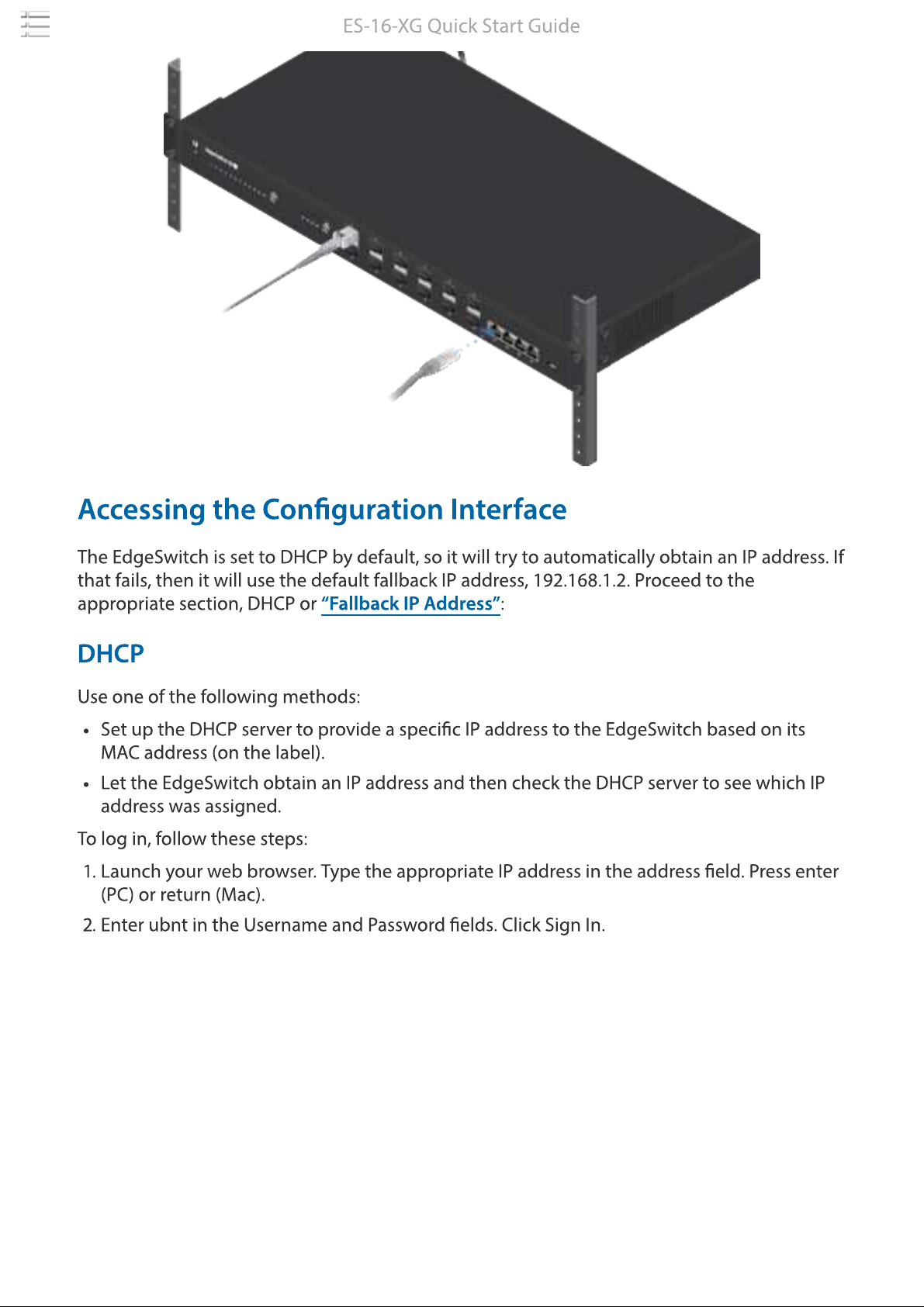

Connecting RJ45

ES-16-XG Quick Start Guide

Accessing the Conguration Interface

The EdgeSwitch is set to DHCP by default, so it will try to automatically obtain an IP address. If

that fails, then it will use the default fallback IP address, 192.168.1.2. Proceed to the

appropriate section, DHCP or

“Fallback IP Address”

DHCP

Use one of the following methods:

Set up the DHCP server to provide a specic IP address to the EdgeSwitch based on its

MAC address (on the label).

Let the EdgeSwitch obtain an IP address and then check the DHCP server to see which IP

address was assigned.

To log in, follow these steps:

1. Launch your web browser. Type the appropriate IP address in the address eld. Press enter

(PC) or return (Mac).

2. Enter ubnt in the Username and Password elds. Click Sign In.

ES-16-XG Quick Start Guide

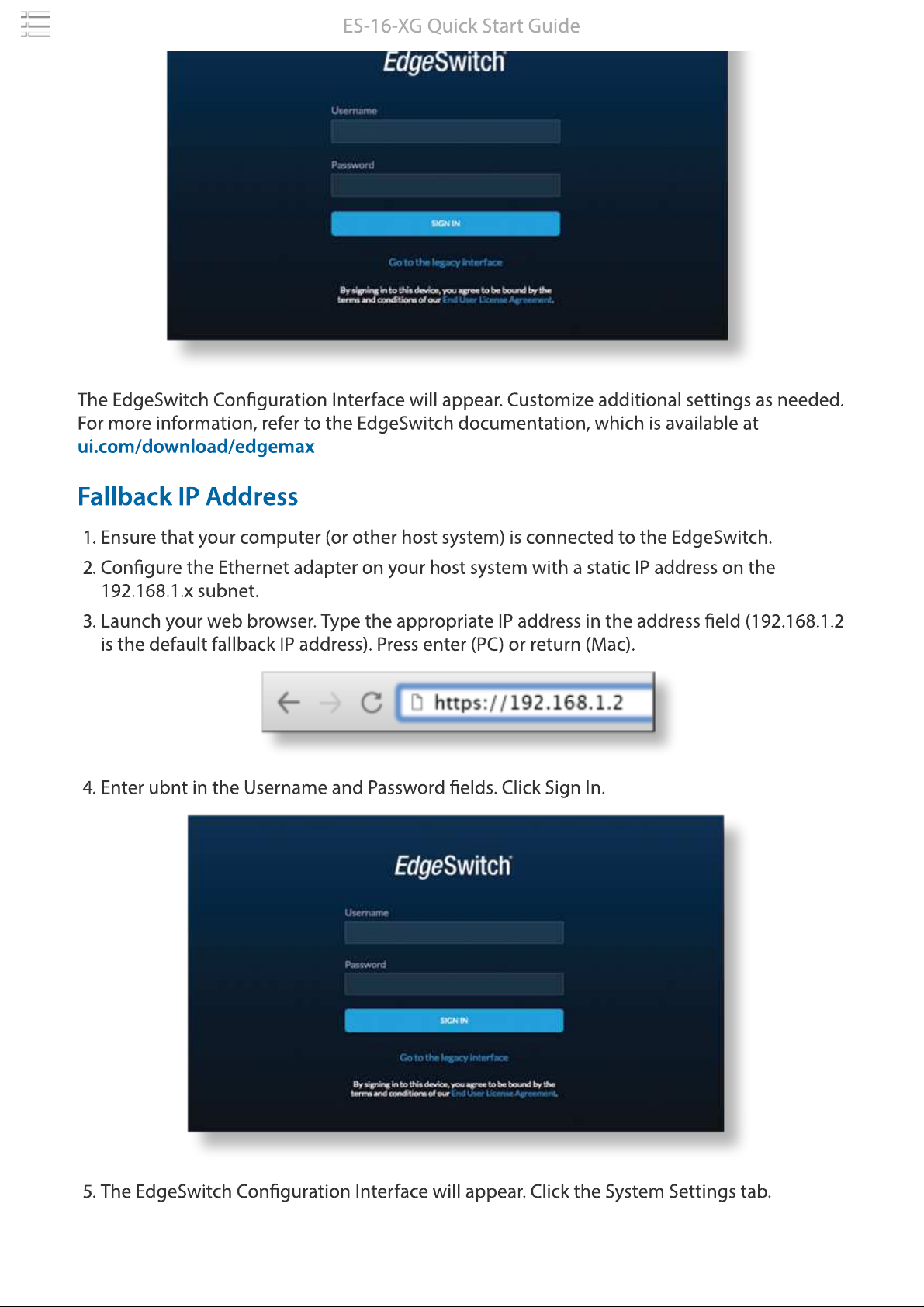

The EdgeSwitch Conguration Interface will appear. Customize additional settings as needed.

For more information, refer to the EdgeSwitch documentation, which is available at

ui.com/download/edgemax

Fallback IP Address

1. Ensure that your computer (or other host system) is connected to the EdgeSwitch.

2. Congure the Ethernet adapter on your host system with a static IP address on the

192.168.1.x subnet.

3. Launch your web browser. Type the appropriate IP address in the address eld (192.168.1.2

is the default fallback IP address). Press enter (PC) or return (Mac).

4. Enter ubnt in the Username and Password elds. Click Sign In.

5. The EdgeSwitch Conguration Interface will appear. Click the System Settings tab.

ES-16-XG Quick Start Guide

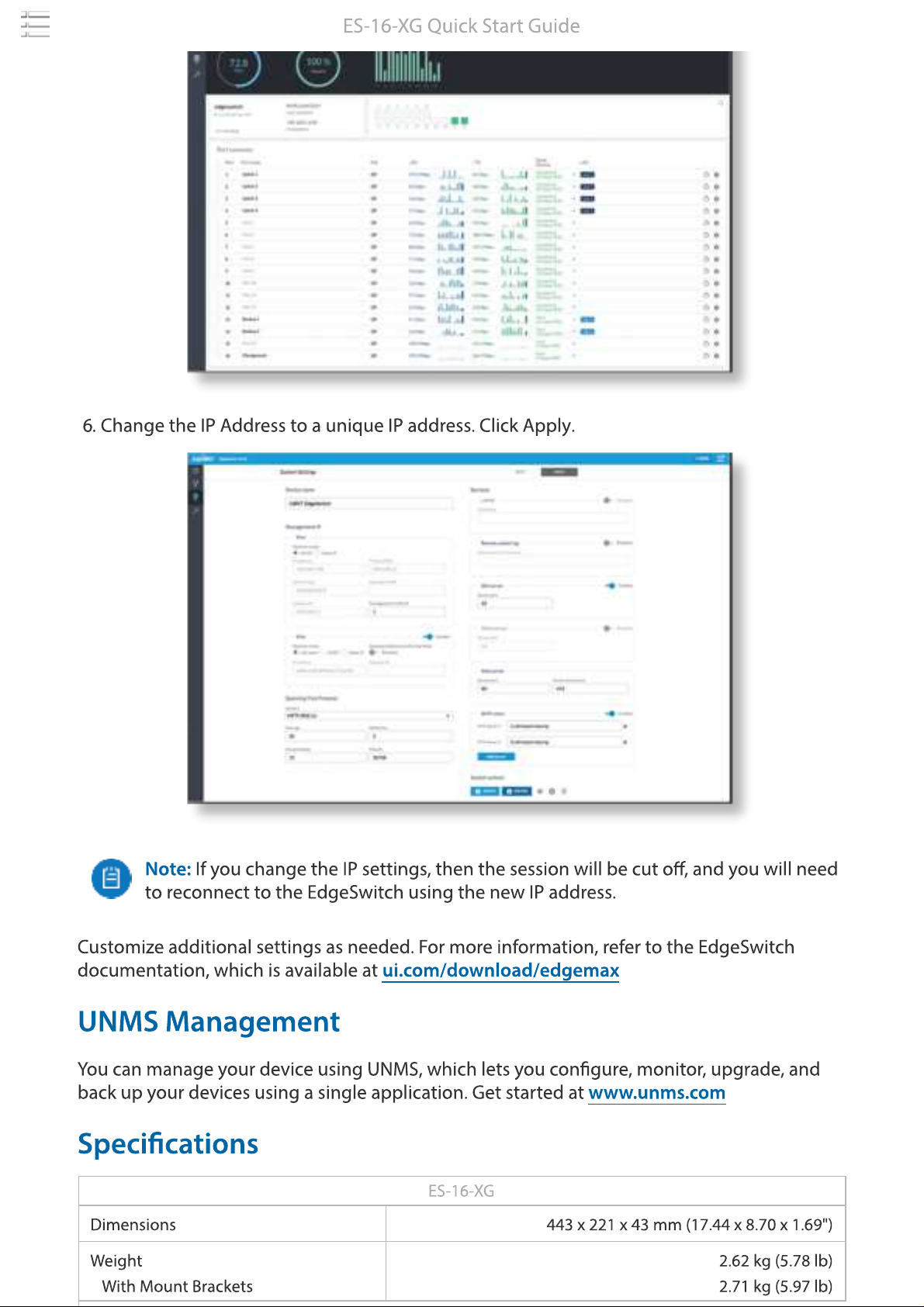

6. Change the IP Address to a unique IP address. Click Apply.

Note:

If you change the IP settings, then the session will be cut oﬀ, and you will need

to reconnect to the EdgeSwitch using the new IP address.

Customize additional settings as needed. For more information, refer to the EdgeSwitch

documentation, which is available at

ui.com/download/edgemax

UNMS Management

You can manage your device using UNMS, which lets you congure, monitor, upgrade, and

back up your devices using a single application. Get started at

www.unms.com

Specications

ES-16-XG

Dimensions 443 x 221 x 43 mm (17.44 x 8.70 x 1.69")

Weight 2.62 kg (5.78 lb)

With Mount Brackets 2.71 kg (5.97 lb)

ES-16-XG Quick Start Guide
