Ubiquiti UniFi USW-16-POE Manuel utilisateur

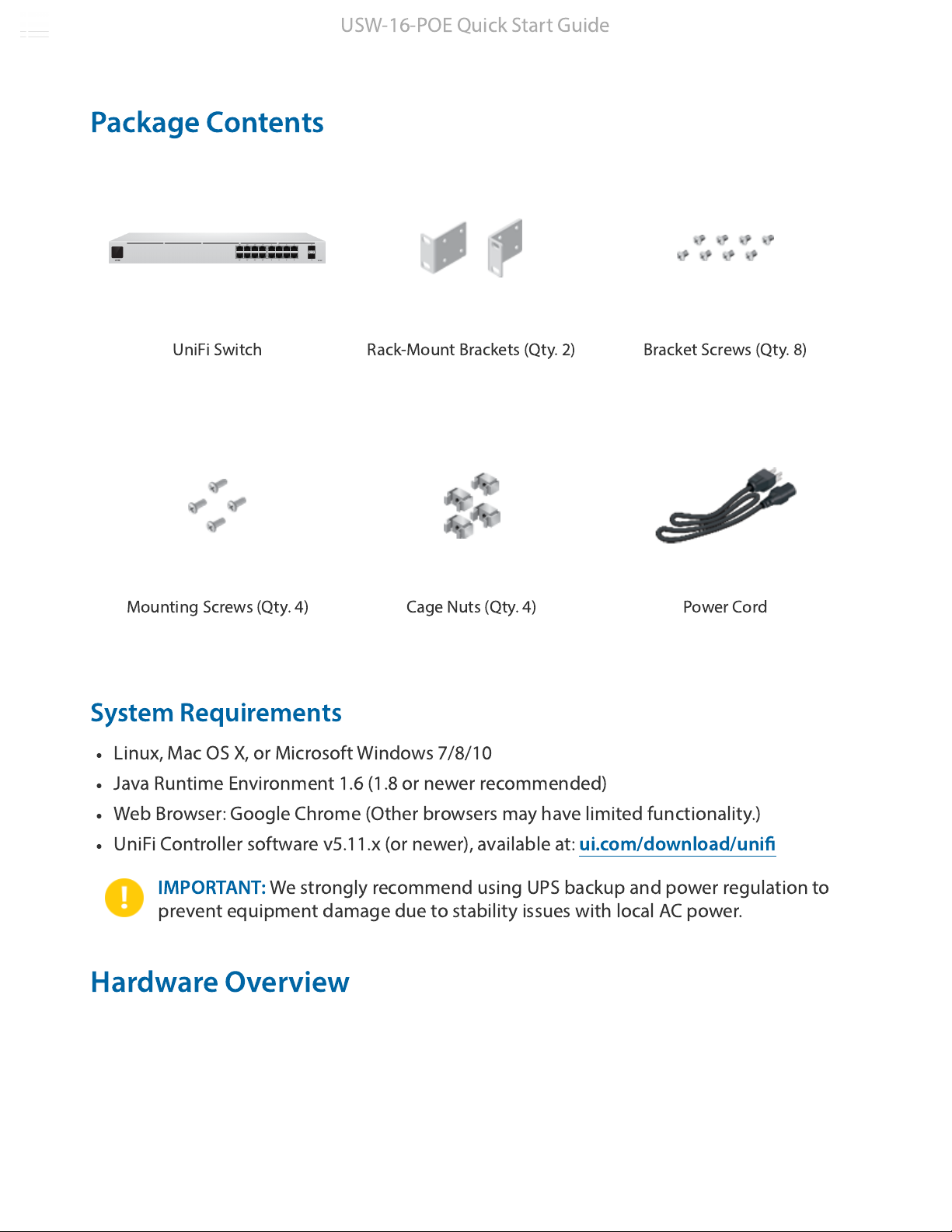

UniFi Switch Rack-Mount Brackets (Qty. 2) Bracket Screws (Qty. 8)

Mounting Screws (Qty. 4) Cage Nuts (Qty. 4) Power Cord

Package Contents

System Requirements

Linux, Mac



X, or Microsoft Windows 7/8/10

Java Runtime Environment 1.6 (1.8 or newer recommended)

Web Browser: Google Chrome (Other browsers may have limited functionality.)

UniFi Controller software v5.11.x (or newer), available at:

ui.com/download/uni

IMPORTANT:

We strongly recommend using UPS backup and power regulation to

prevent equipment damage due to stability issues with local AC power.

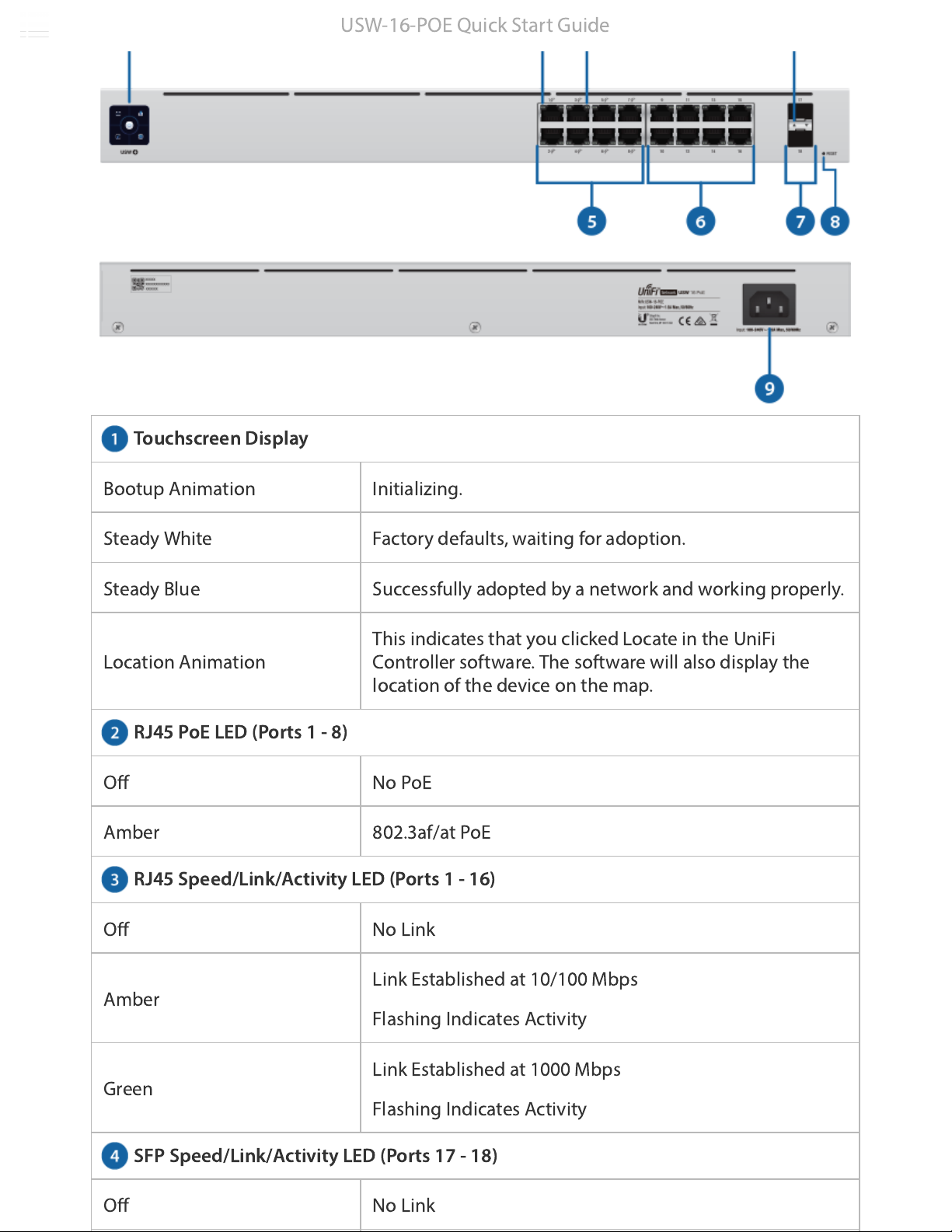

Hardware Overview

USW-16-POE Quick Start Guide

Touchscreen Display

RJ45 PoE LED (Ports 1 - 8)

RJ45 Speed/Link/Activity LED (Ports 1 - 16)

SFP Speed/Link/Activity LED (Ports 17 - 18)

Bootup Animation Initializing.

Steady White Factory defaults, waiting for adoption.

Steady Blue Successfully adopted by a network and working properly.

Location Animation This indicates that you clicked Locate in the UniFi

Controller software. The software will also display the

location of the device on the map.

Oﬀ No PoE

Amber 802.3af/at PoE

Oﬀ No Link

Amber Link Established at 10/100



Mbps

Flashing Indicates Activity

Green Link Established at 1000



Mbps

Flashing Indicates Activity

Oﬀ No Link

USW-16-POE Quick Start Guide

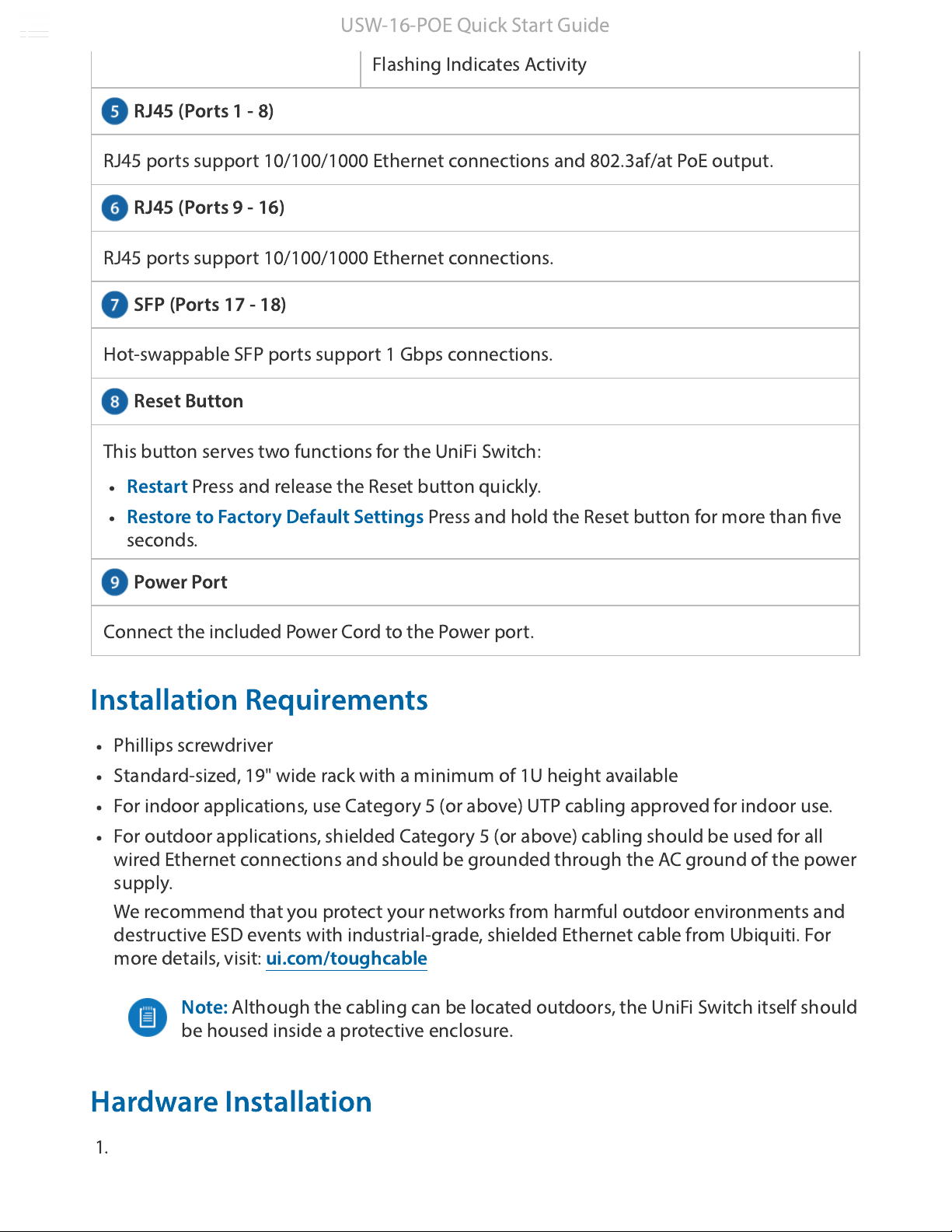

RJ45 (Ports 1 - 8)

RJ45 (Ports 9 - 16)

SFP (Ports 17 - 18)

Reset Button

Power Port

Green Link Established at 1



Gbps

Flashing Indicates Activity

RJ45 ports support 10/100/1000 Ethernet connections and 802.3af/at PoE output.

RJ45 ports support 10/100/1000 Ethernet connections.

Hot-swappable SFP ports support 1 Gbps connections.

This button serves two functions for the UniFi Switch:

Restart

Press and release the Reset button quickly.

Restore to Factory Default Settings

Press and hold the Reset button for more than ve

seconds.

Connect the included Power Cord to the Power port.

Installation Requirements

Phillips screwdriver

Standard-sized, 19" wide rack with a minimum of 1U height available

For indoor applications, use Category 5 (or above) UTP cabling approved for indoor use.

For outdoor applications, shielded Category 5 (or above) cabling should be used for all

wired Ethernet connections and should be grounded through the AC ground of the power

supply.

We recommend that you protect your networks from harmful outdoor environments and

destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti. For

more details, visit:

ui.com/toughcable

Note:

Although the cabling can be located outdoors, the UniFi Switch itself should

be housed inside a protective enclosure.

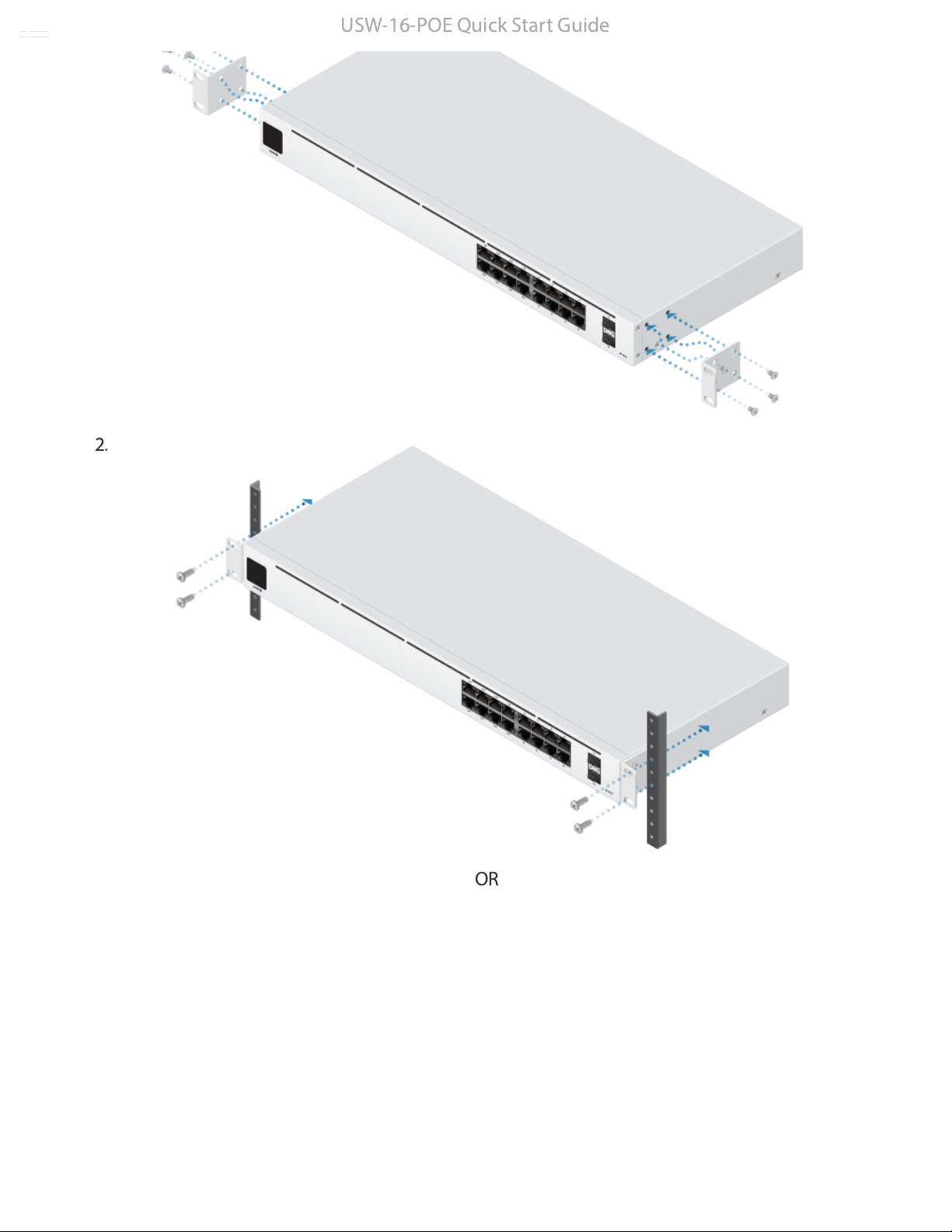

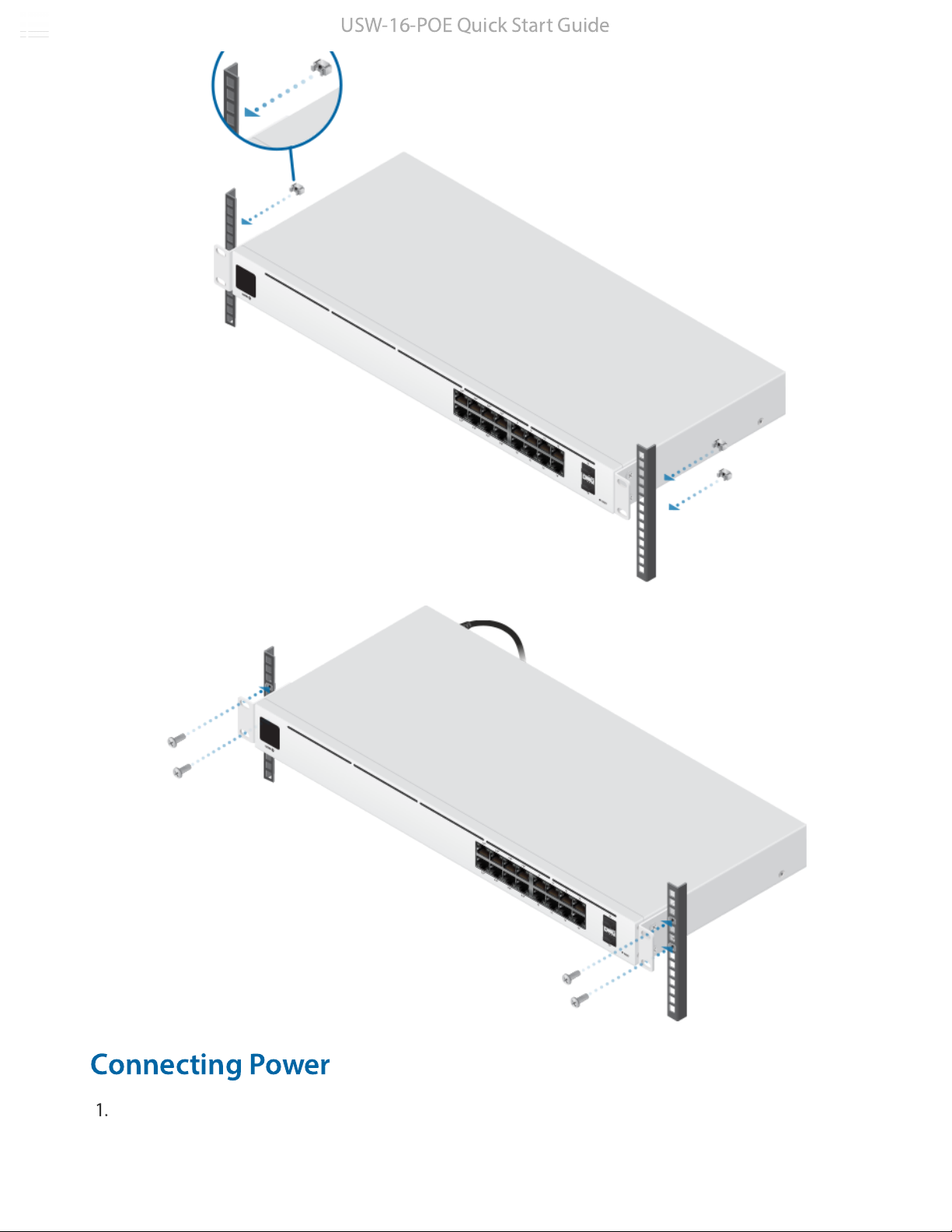

Hardware Installation

USW-16-POE Quick Start Guide

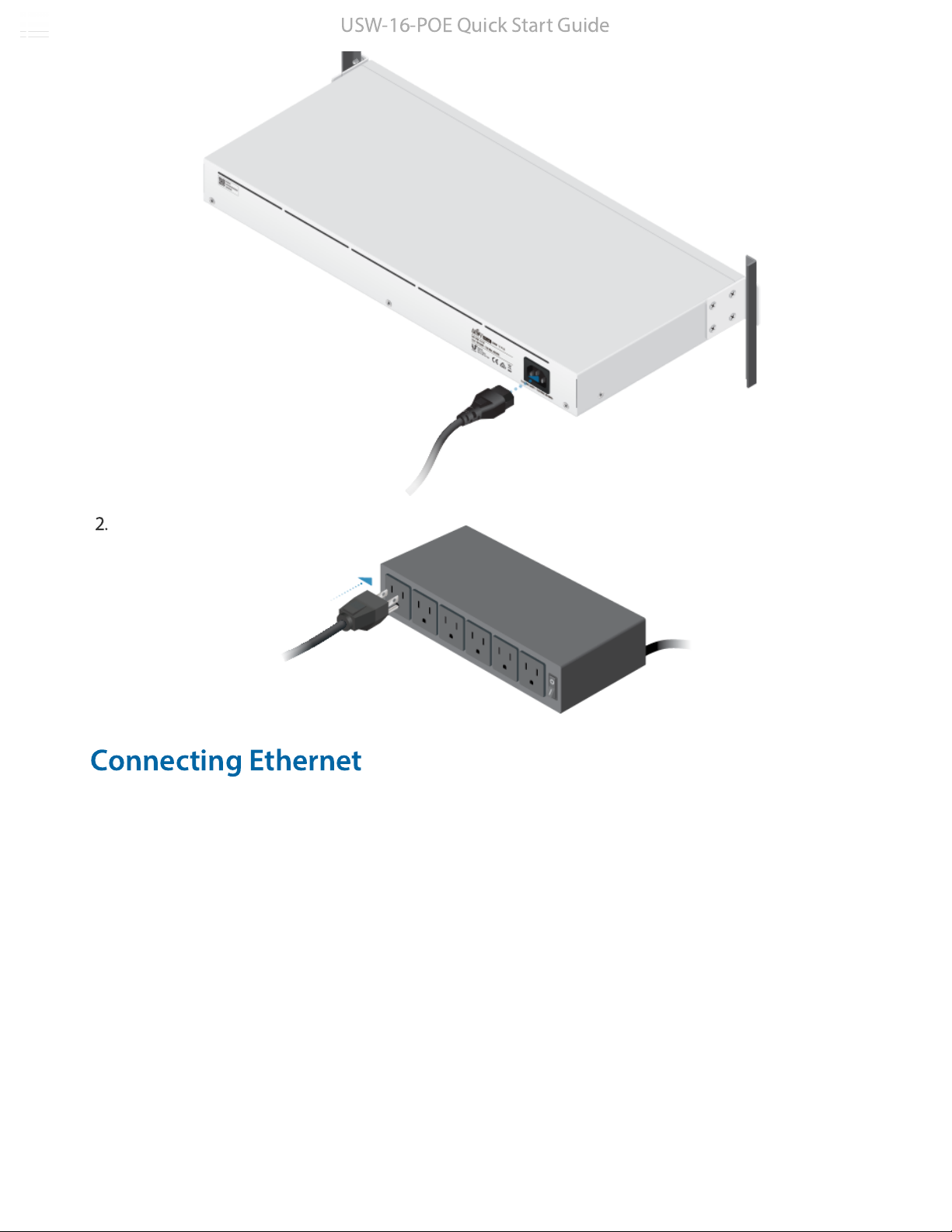

Connecting Power

USW-16-POE Quick Start Guide

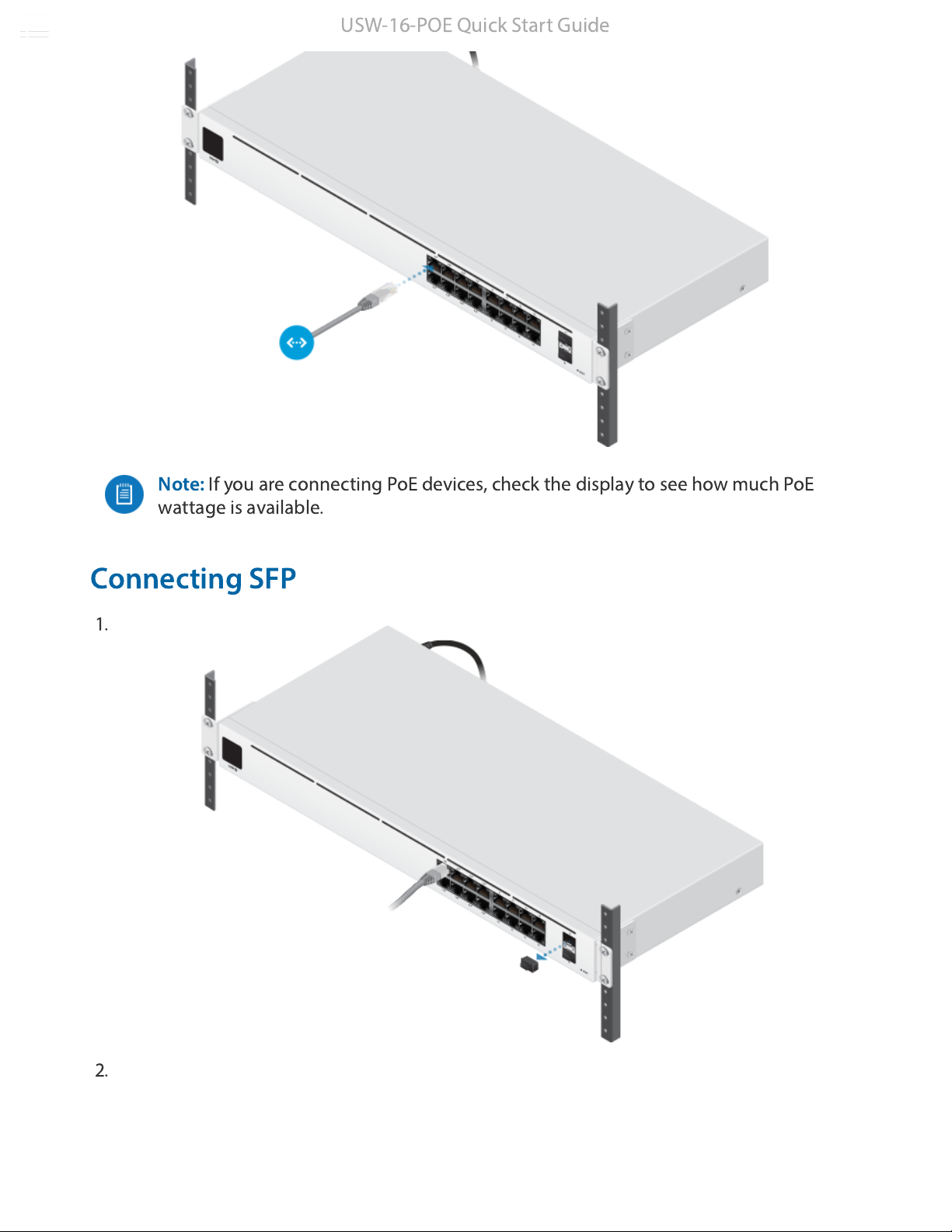

Connecting Ethernet

USW-16-POE Quick Start Guide

Note:

If you are connecting PoE devices, check the display to see how much PoE

wattage is available.

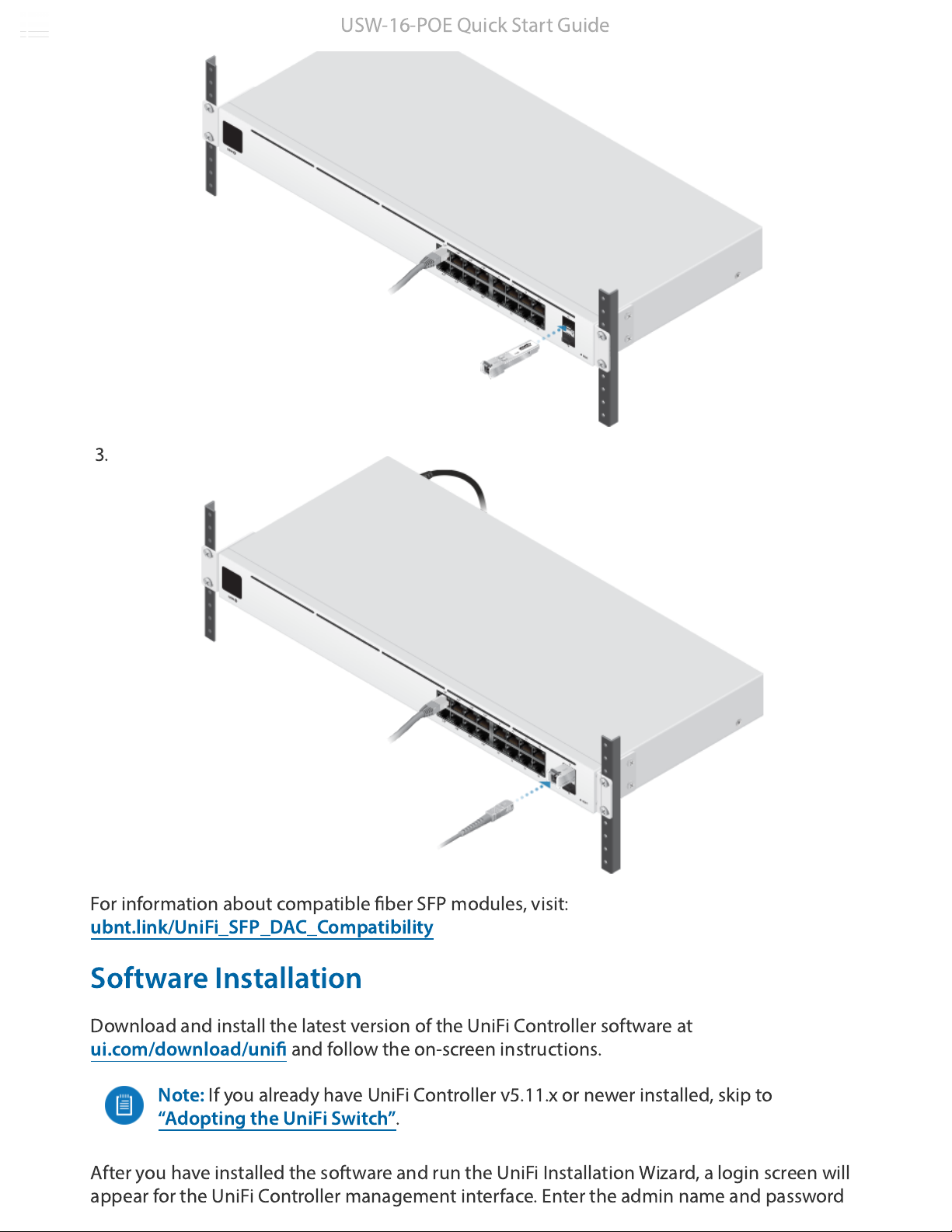

Connecting SFP

USW-16-POE Quick Start Guide

For information about compatible ber SFP modules, visit:

ubnt.link/UniFi_SFP_DAC_Compatibility

Software Installation

Download and install the latest version of the UniFi Controller software at

ui.com/download/uni

and follow the on-screen instructions.

Note:

If you already have UniFi Controller v5.11.x or newer installed, skip to

“Adopting the UniFi Switch”

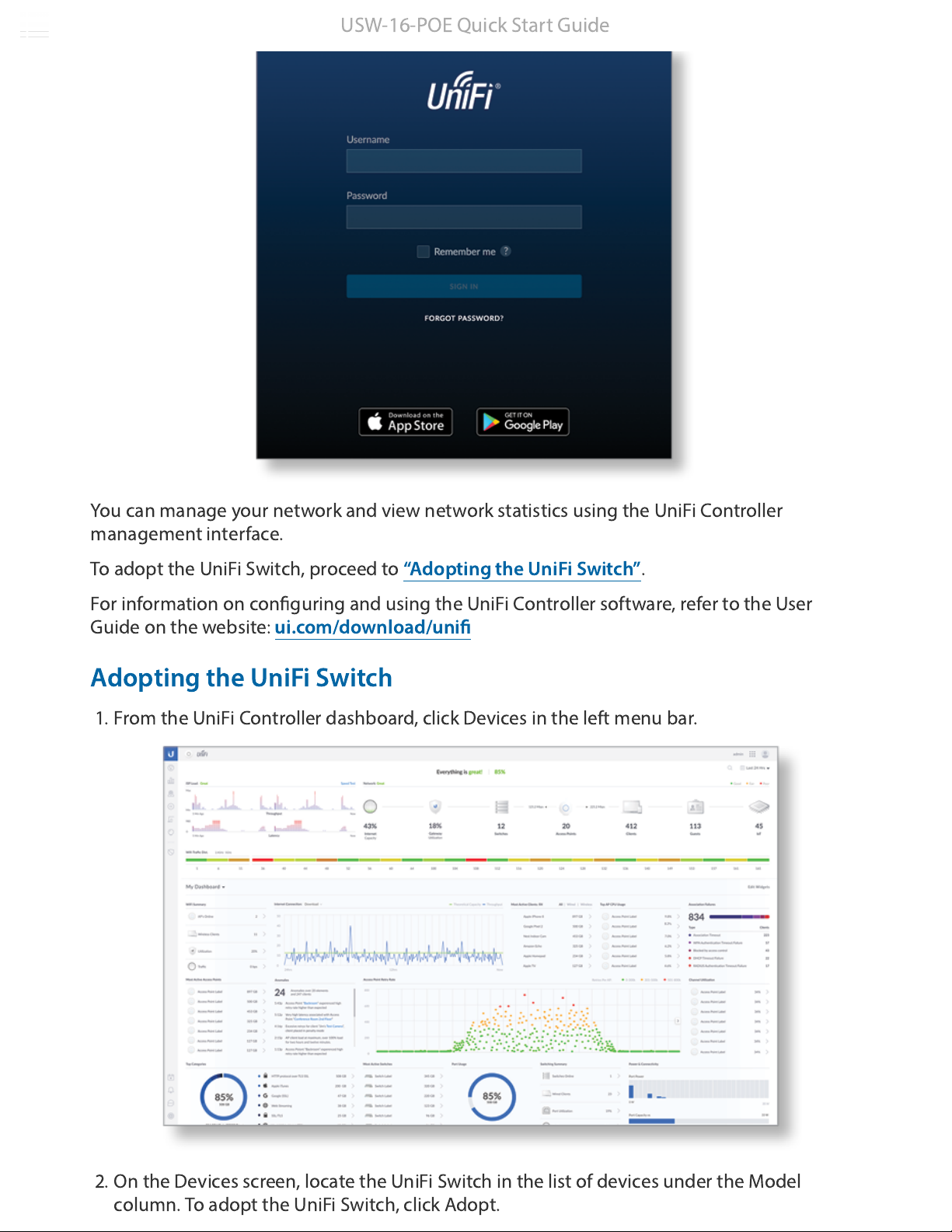

After you have installed the software and run the UniFi Installation Wizard, a login screen will

appear for the UniFi Controller management interface. Enter the admin name and password

USW-16-POE Quick Start Guide

that you created and click Sign In.

You can manage your network and view network statistics using the UniFi Controller

management interface.

To adopt the UniFi Switch, proceed to

“Adopting the UniFi Switch”

For information on conguring and using the UniFi Controller software, refer to the User

Guide on the website:

ui.com/download/uni

Adopting the UniFi Switch

1. From the UniFi Controller dashboard, click Devices in the left menu bar.

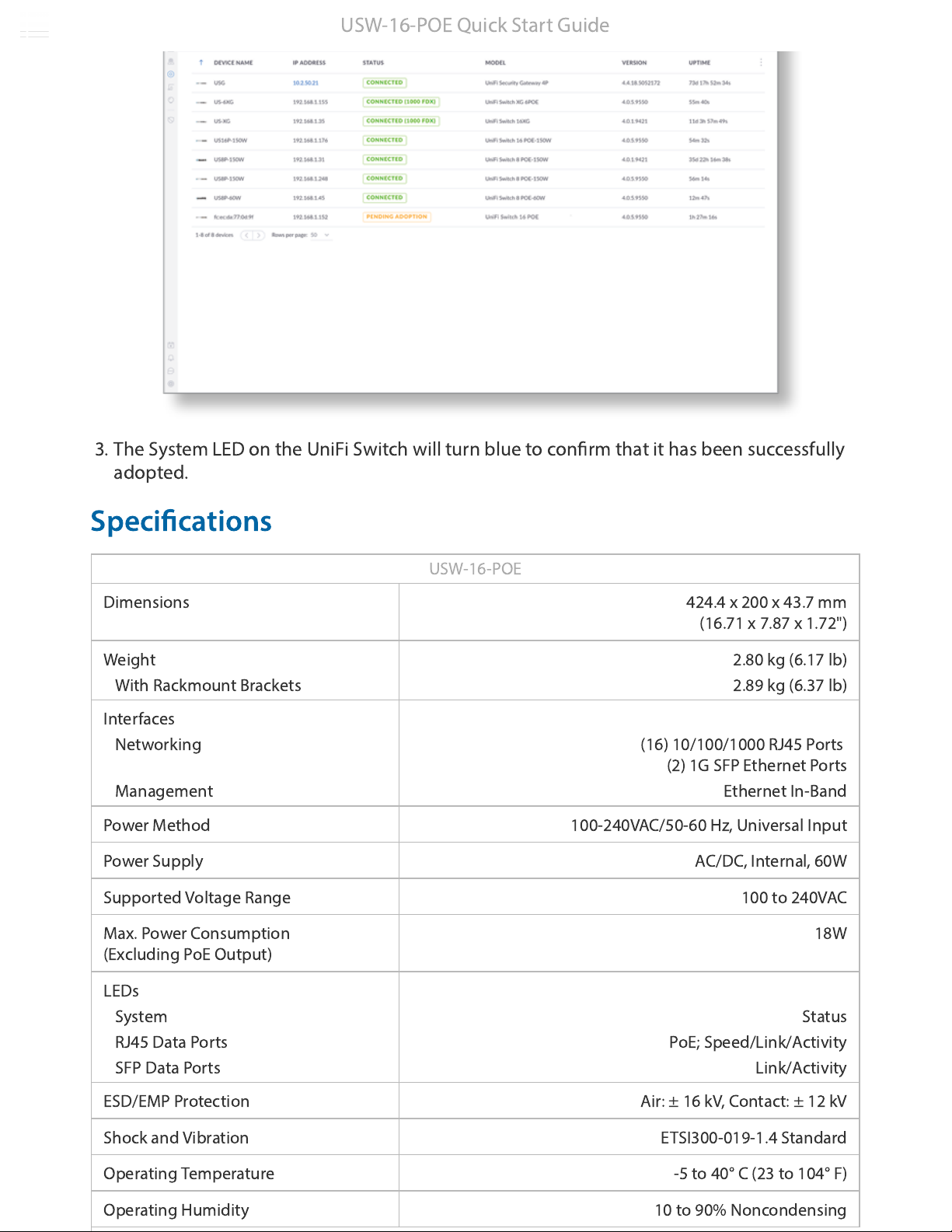

2. On the Devices screen, locate the UniFi Switch in the list of devices under the Model

column. To adopt the UniFi Switch, click Adopt.

USW-16-POE Quick Start Guide

3. The System LED on the UniFi Switch will turn blue to conrm that it has been successfully

adopted.

Specications

USW-16-POE

Dimensions 424.4 x 200 x 43.7 mm

(16.71 x 7.87 x 1.72")

Weight 2.80 kg (6.17 lb)

With Rackmount Brackets 2.89 kg (6.37 lb)

Interfaces

Networking (16) 10/100/1000 RJ45 Ports

(2) 1G SFP Ethernet Ports

Management Ethernet In-Band

Power Method 100-240VAC/50-60 Hz, Universal Input

Power Supply AC/DC, Internal, 60W

Supported Voltage Range 100 to 240VAC

Max. Power Consumption

(Excluding PoE Output) 18W

LEDs

System Status

RJ45 Data Ports PoE; Speed/Link/Activity

SFP Data Ports Link/Activity

ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV

Shock and Vibration ETSI300-019-1.4 Standard

Operating Temperature -5 to 40° C (23 to 104° F)

Operating Humidity 10 to 90% Noncondensing

USW-16-POE Quick Start Guide
