Ubiquiti UniFi USW-Pro-48-POE Manuel utilisateur

UniFi Switch Rack-Mount Brackets (Qty.

Bracket Screws (Qty. 8)

Mounting Screws (Qty. 4) Cage Nuts (Qty. 4) Power Cord

Rubber Feet (Qty. 4)

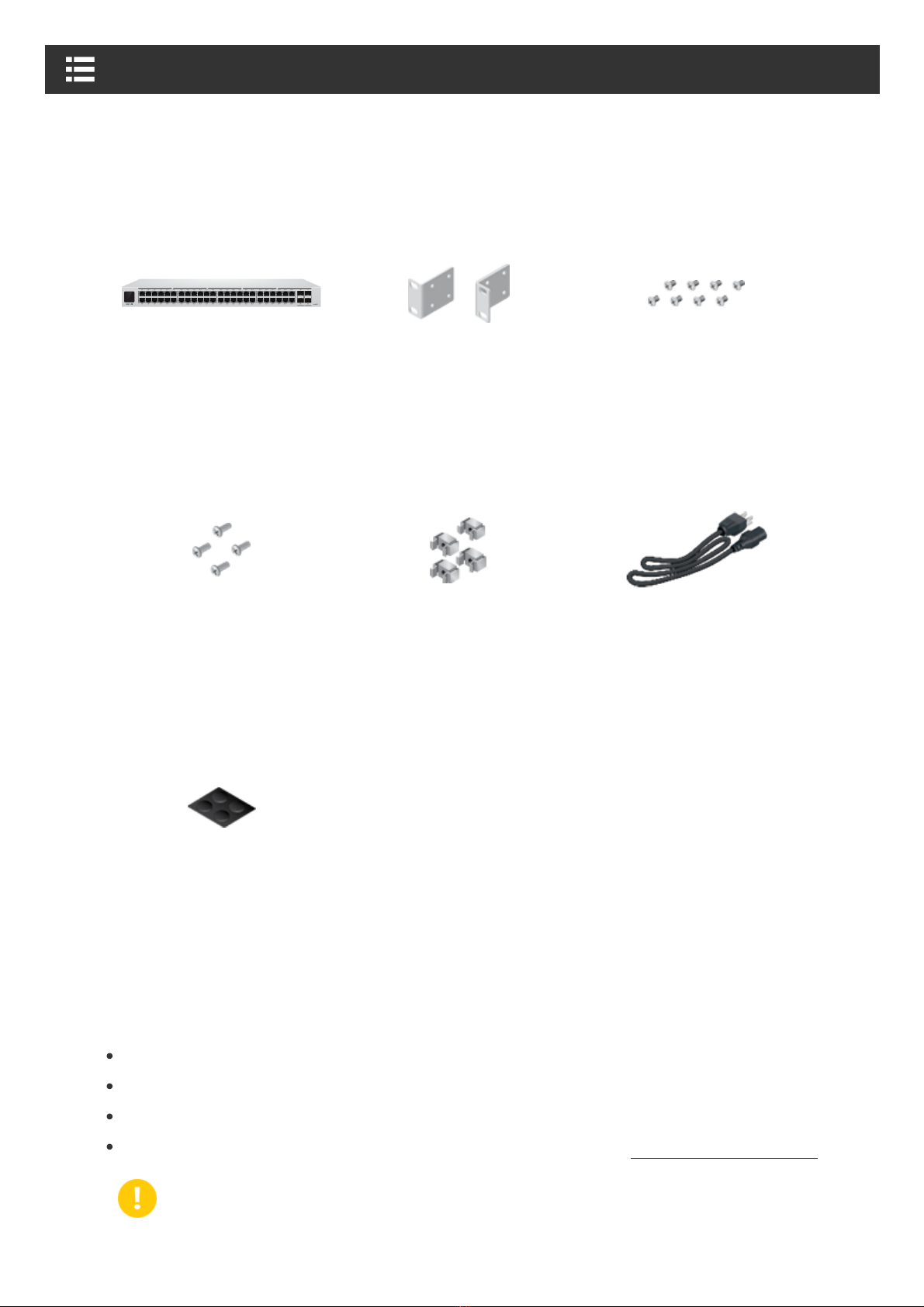

Package Contents

System Requirements

Linux, Mac OS X, or Microsoft Windows 7/8/10

Java Runtime Environment 1.6 (1.8 or newer recommended)

Web Browser: Google Chrome (Other browsers may have limited functionality.)

UniFi Controller software v5.10.x (or newer), available at: ui.com/download/unifi

IMPORTANT: We strongly recommend using UPS backup and power

regulation to prevent equipment damage due to stability issues with local

AC power.

USW-Pro-48-POE Quick Start Guide

Touchscreen Display

RJ45 PoE LED (Ports 1 - 48)

RJ45 Speed/Link/Activity LED (Ports 1 - 48)

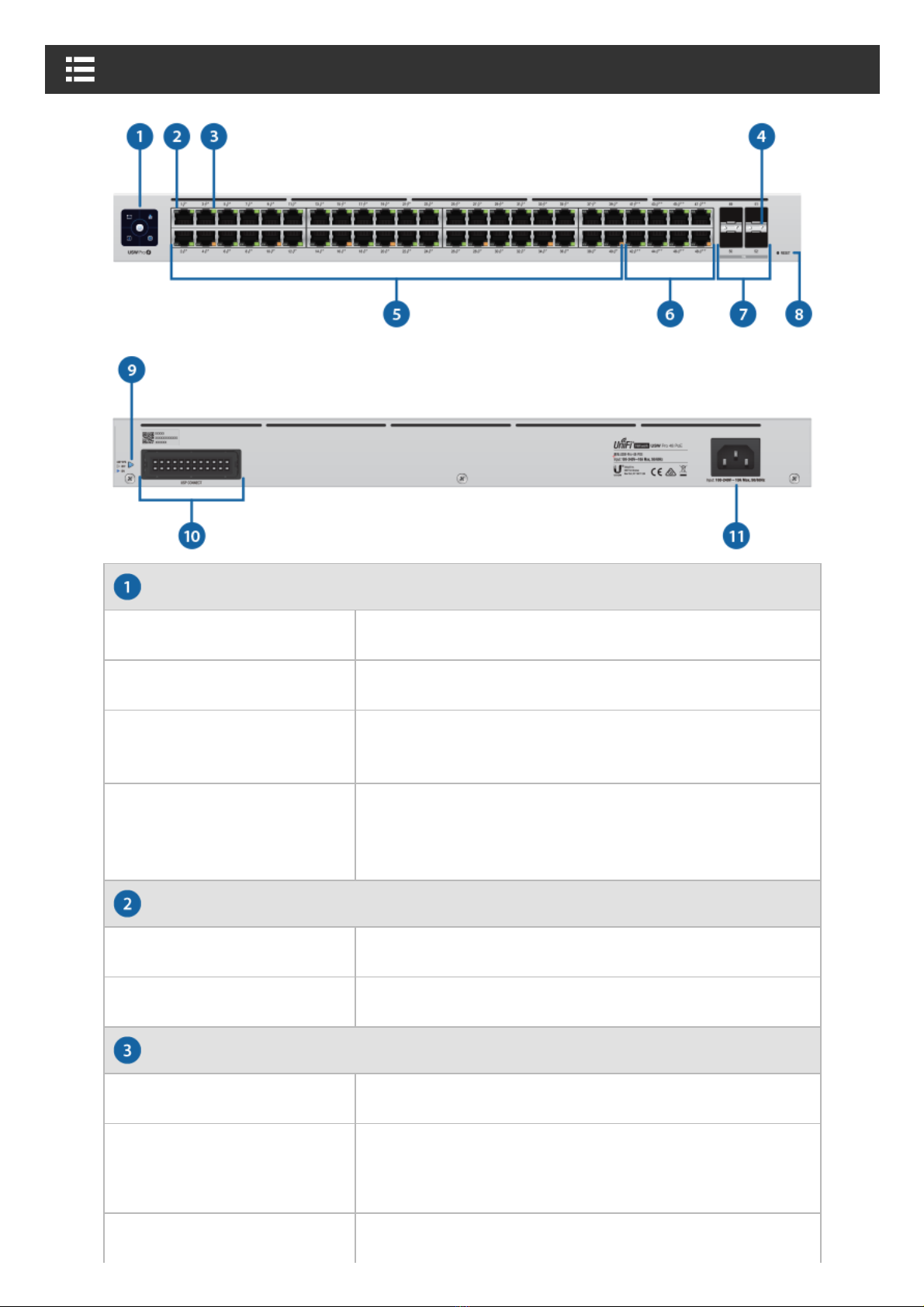

Hardware Overview

Bootup Animation Initializing.

Steady White Factory defaults, waiting for adoption.

Steady Blue Successfully adopted by a network and working

properly.

Location Animation

This indicates that you clicked Locate in the UniFi

Controller software. The software will also display

the location of the device on the map.

Off No PoE

Amber 802.3af/at/bt PoE

Off No Link

Amber

Link Established at 10/100 Mbps

Flashing Indicates Activity

Green Link Established at 1000 Mbps

USW-Pro-48-POE Quick Start Guide

SFP+ Speed/Link/Activity LED (Ports 49 - 52)

RJ45 (Ports 1 - 40)

RJ45 (Ports 41 - 48)

SFP+ (Ports 49 - 52)

Reset Button

USP LED

USP Connect DC Input

Power Port

Flashing Indicates Activity

Off No Link

Green

Link Established at 1 Gbps

Flashing Indicates Activity

White

Link Established at 10 Gbps

Flashing Indicates Activity

RJ45 ports support 10/100/1000 Ethernet connections and 802.3af/at PoE

output.

RJ45 ports support 10/100/1000 Ethernet connections and 802.3af/at/bt PoE

output.

Hot-swappable SFP+ ports support 1/10 Gbps connections.

This button serves two functions for the UniFi Switch:

Restart Press and release the Reset button quickly.

Restore to Factory Default Settings Press and hold the Reset button for

more than five seconds.

Reserved for future use.

Connect the included Power Cord to the Power port.

Installation Requirements

USW-Pro-48-POE Quick Start Guide

Phillips screwdriver

Standard-sized, 19" wide rack with a minimum of 1U height available

For indoor applications, use Category 5 (or above) UTP cabling approved for

indoor use.

For outdoor applications, shielded Category 5 (or above) cabling should be used

for all wired Ethernet connections and should be grounded through the AC

ground of the power supply.

We recommend that you protect your networks from harmful outdoor

environments and destructive ESD events with industrial-grade, shielded

Ethernet cable from Ubiquiti. For more details, visit: ui.com/toughcable

Note: Although the cabling can be located outdoors, the UniFi Switch

itself should be housed inside a protective enclosure.

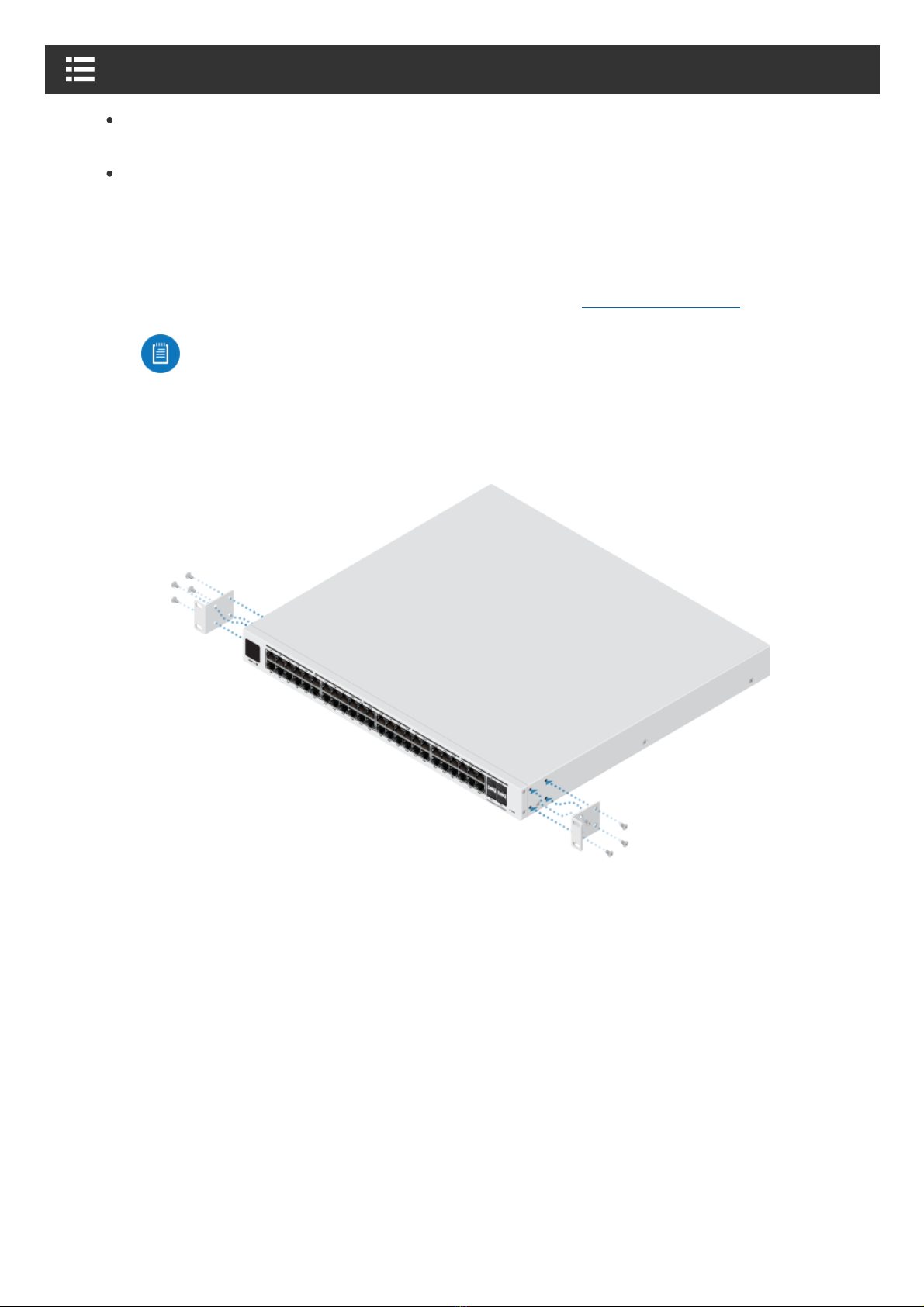

Hardware Installation

2. 

USW-Pro-48-POE Quick Start Guide

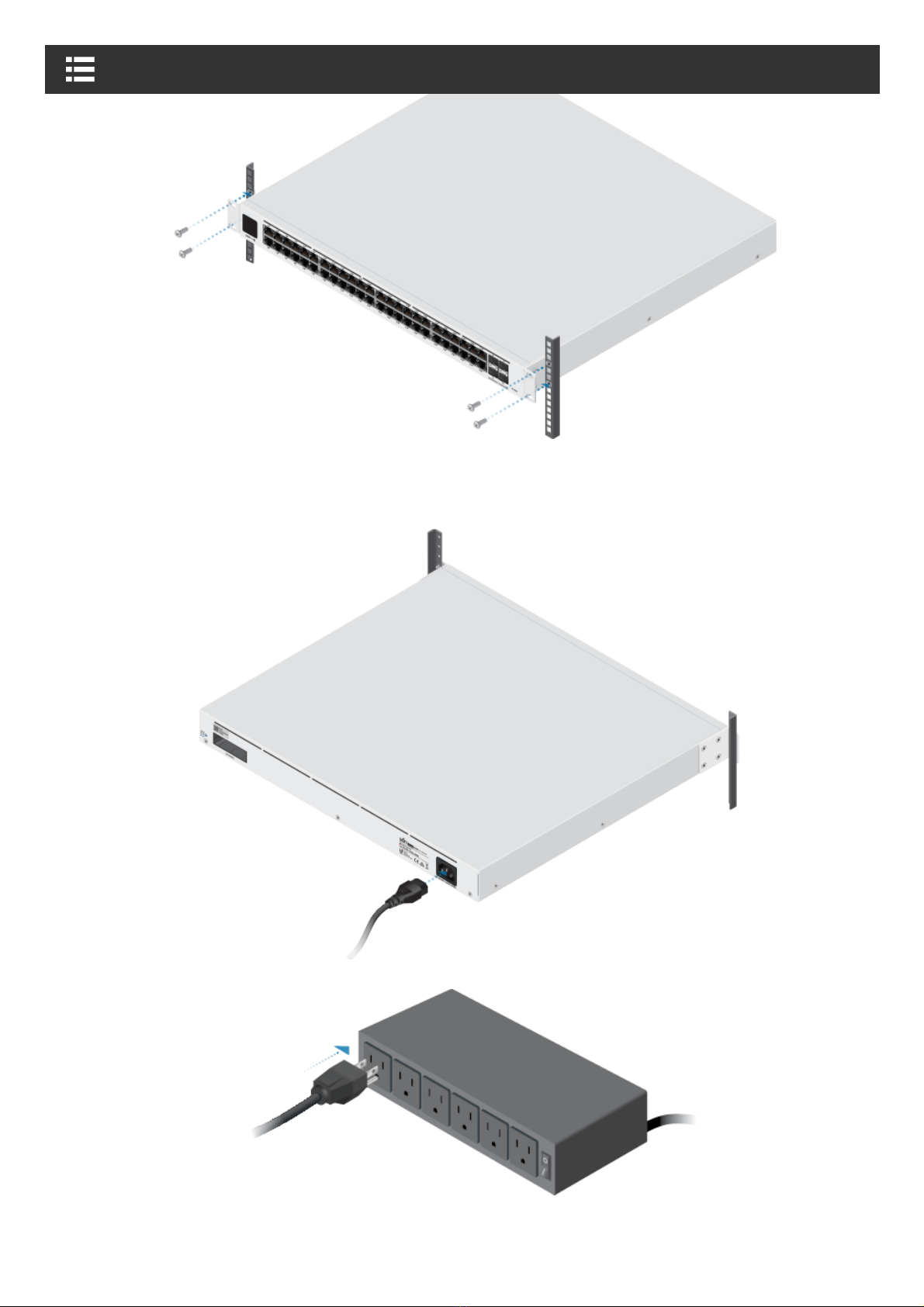

Connecting Power

USW-Pro-48-POE Quick Start Guide

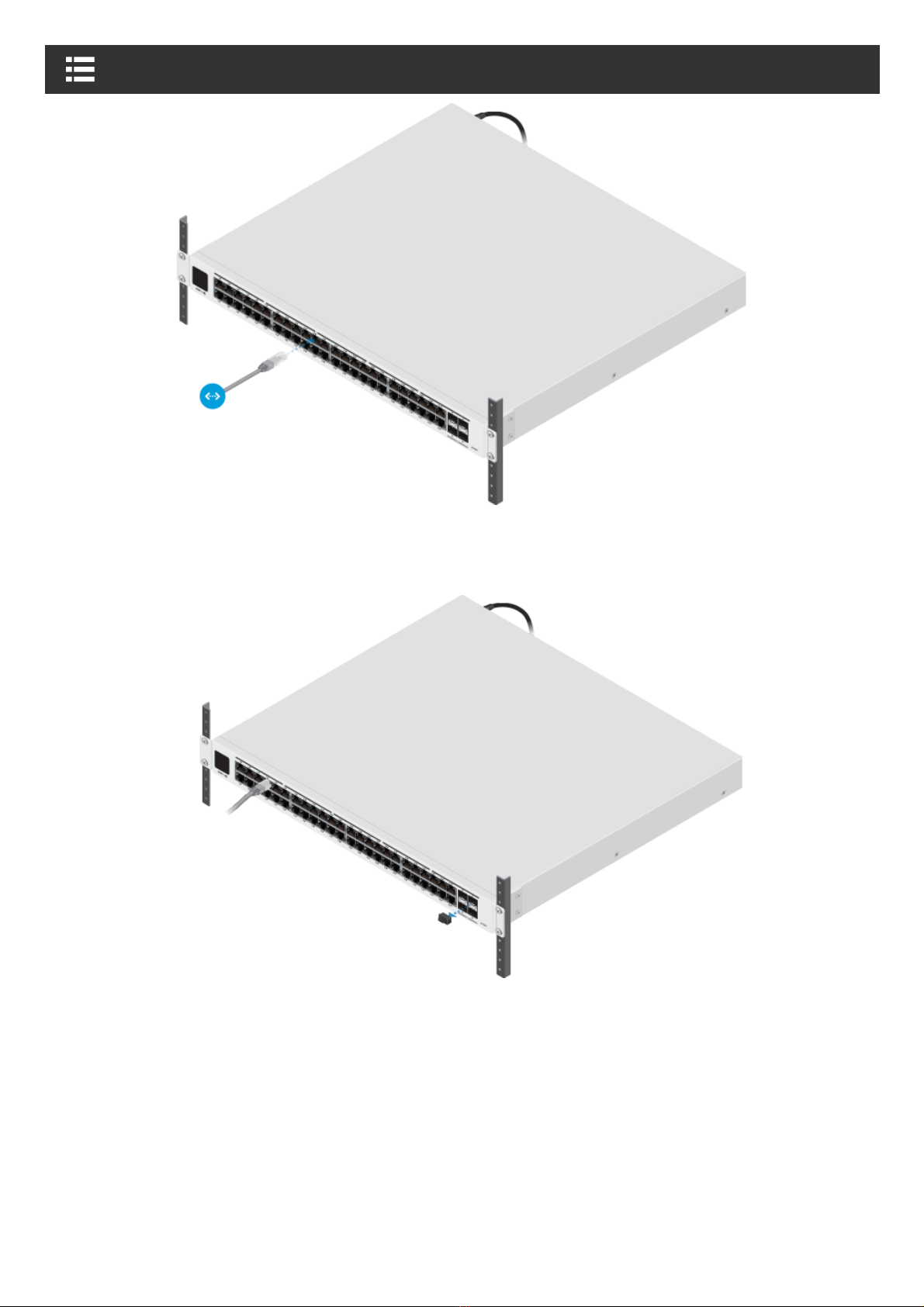

Connecting Ethernet

Connecting SFP

USW-Pro-48-POE Quick Start Guide

For information about compatible fiber SFP modules, visit:

ubnt.link/UniFi_SFP_DAC_Compatibility

Software Installation

Download and install the latest version of the UniFi Controller software at

ui.com/download/unifi and follow the on-screen instructions.

Note: If you already have UniFi Controller v5.10.x or newer installed, skip

to “Adopting the UniFi Switch”.

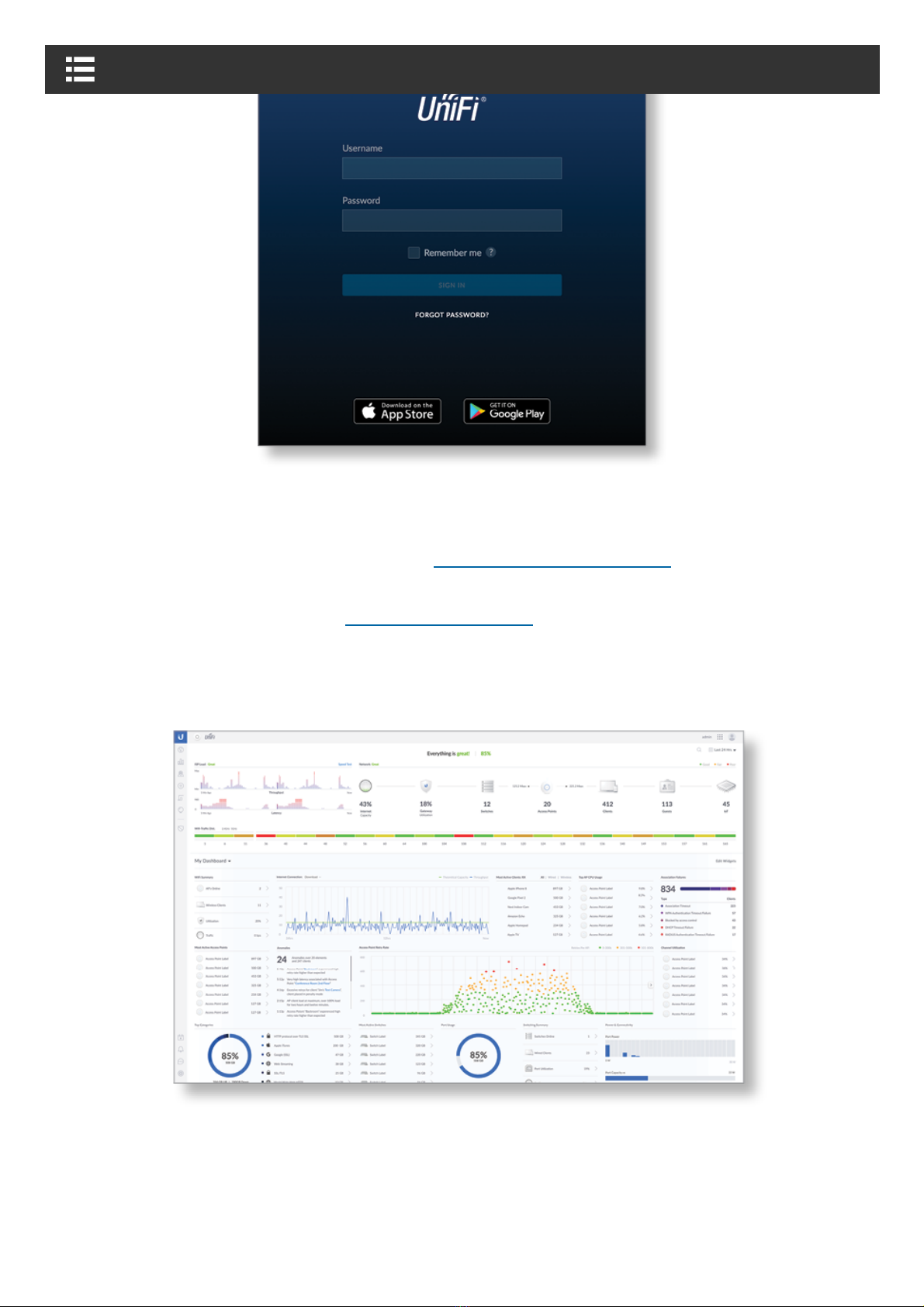

After you have installed the software and run the UniFi Installation Wizard, a login

screen will appear for the UniFi Controller management interface. Enter the admin

name and password that you created and click Sign In.

USW-Pro-48-POE Quick Start Guide

You can manage your network and view network statistics using the UniFi

Controller management interface.

To adopt the UniFi Switch, proceed to “Adopting the UniFi Switch”.

For information on configuring and using the UniFi Controller software, refer to the

User Guide on the website: ui.com/download/unifi

Adopting the UniFi Switch

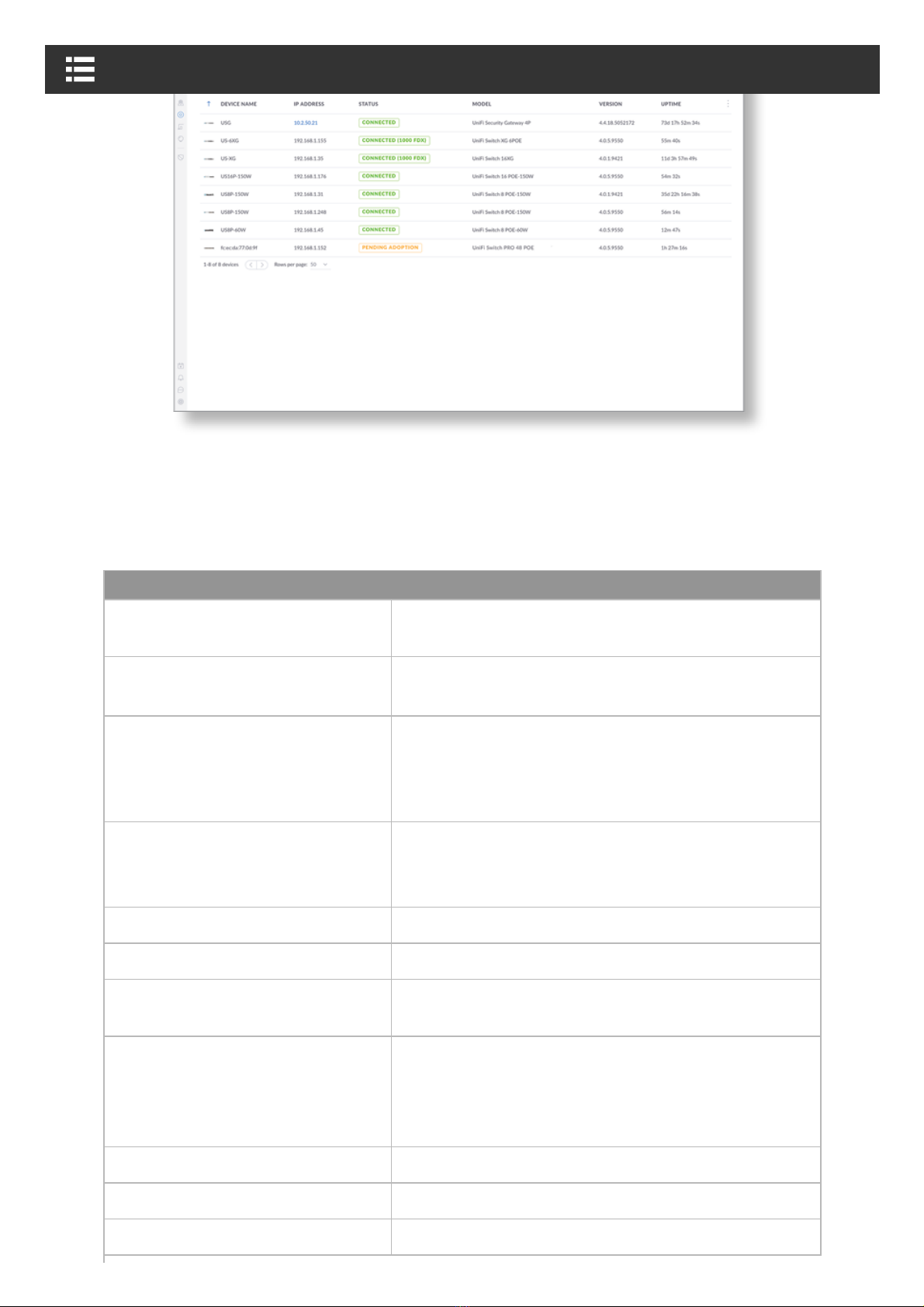

1. From the UniFi Controller dashboard, click Devices in the left menu bar.

2. On the Devices screen, locate the UniFi Switch in the list of devices under the

Model column. To adopt the UniFi Switch, click Adopt.

USW-Pro-48-POE Quick Start Guide

3. The System LED on the UniFi Switch will turn blue to confirm that it has been

successfully adopted.

Specifications

USW-Pro-48-POE

Dimensions 442.4 x 399.6 x 43.7 mm

(17.42 x 15.73 x 1.72")

Weight 6.25 kg (13.78 lb)

With Rackmount Brackets 6.34 kg (13.98 lb)

Interfaces

Networking (48) 10/100/1000 RJ45 Ports

(4) 1/10G SFP+ Ethernet Ports

Management Ethernet In-Band

Power Method

Universal Input 100-240VAC/50-60 Hz

USP RPS DC Input 52VDC, 11.54A; 11.5VDC, 5.22A

Power Supply AC/DC, Internal, 660W

Supported Voltage Range 100 to 240VAC

Max. Power Consumption

(Excluding PoE Output)

60W

LEDs

System Status

RJ45 Data Ports PoE; Speed/Link/Activity

SFP+ Data Ports Link/Activity

ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV

Shock and Vibration ETSI300-019-1.4 Standard

Operating Temperature -5 to 40° C (23 to 104° F)

USW-Pro-48-POE Quick Start Guide
