Ubiquiti UniFi SWITCH 8 60W Manuel utilisateur

8-Port Managed Gigabit Switch

with 802.3af PoE

Model: US-8-60W

Introduction

Thank you for purchasing the Ubiquiti Networks® UniFi® 8-Port

Managed Gigabit Switch with 802.3af PoE. This Quick Start

Guide is designed to guide you through the installation and

also includes the warranty terms.

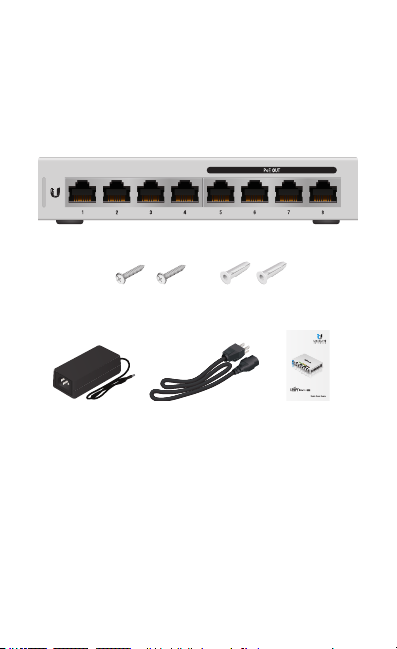

Package Contents

UniFi Switch

Mounting Screws

(Qty. 2)

Screw Anchors

(Qty. 2)

8-PortManaged Gigabit Switch

with802.3af PoE

Model:US-8-60W

Power Adapter Power Cord Quick Start Guide

System Requirements

• Linux, MacOSX, or Microsoft Windows 7/8/10

• Java Runtime Environment 1.8 or above recommended

• Web Browser: Google Chrome (Other browsers may have

limited functionality)

• UniFi Controller software v5.3.x (or newer), available at:

www.ubnt.com/download/unifi

installer’s responsibility to follow local country regulations, including operation within legal

frequency channels, output power, indoor cabling requirements, and Dynamic Frequency

Selection (DFS) requirements.

Network Topology Requirements

• A DHCP-enabled network for the UniFi Switch to obtain an

IPaddress (connected devices will also obtain IP addresses

after deployment)

• A UniFi Cloud Key or management station running the UniFi

Controller software v5.3 (or newer), located either on-site

and connected to the same Layer2 network, or off-site in a

cloud or NOC

US-8-60W

USG-PRO-4

Internet

UAP-AC-PROUVC-G3-DOME

UAP-AC-IW

LAN

WAN

UniFi Cloud Key

(UniFi Controller)

Remote Access to

UniFi Controller

DOWNLOADTHROUGHPUT&LATENCY DEVICESON2.4GHZCHANNEL

DEVICESON5GHZCHANNEL

UPLOADTHROUGHPUT&LATENCY

LATENCY THROUGHPUT

SPEEDTEST

msec Mbps

70.94 1

2.33

25 22

597

0.9 116

200+0700+0

0.01 413

2290.2

2118

547

ACTIVEDEVICE

WAN

Inacve 0

Pending

Inacve 0

Pending

ACTIVEDEVICES

Inacve 0

Pending

118

ACTIVEDEVICES

LAN WLAN

DEEPPACKETINSPECTIONCLIENTSDEVICES

250

200

150

100

24HRS 12HRS NOW

Avg/MaxThroughput Latency

Latency[msec]

Throughput[Mbps]

100

24HRS 12HRS NOW

Latency[msec]

Throughput[Mbps]

NetworkProtocols

StreamingMedia

Web/Web2.0

FileTransfer

SocialNetwork

Other

Motorola

Lenovo

SamsungE

Dell

Acer

Other

WLAN

LAN

WAN

118

582GB

23.3GB

22.7GB

8.47GB

3.6GB

5.46GB

258

241

220

213

130

110

126

DEVICES

645GB

TRAFFIC

1172

CLIENTS

1 2 3 4 5 6 7 8 9 10 11

36 40 44 48 52 56 60 64

100 104 108 112 116 120 124 128

132 136 140 144 149 153 157 161 165

CURRENTSITE

Default

USERNAME

admin

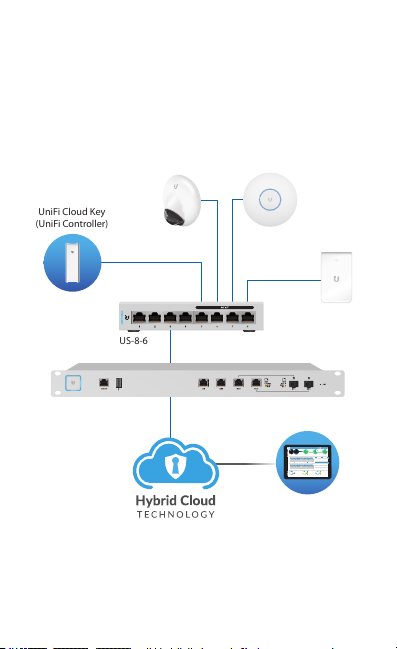

Sample Network Diagram

All UniFi devices support off-site management controllers.

For setup details, refer to the User Guide on the website:

www.ubnt.com/download/unifi

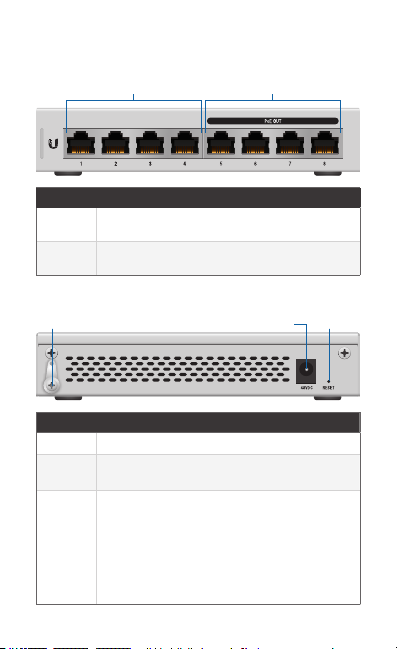

Hardware Overview

Front Panel

Ports 1-4 Ports 5-8

Port Description

1-4 RJ45 ports support 10/100/1000 Ethernet

connections.

5-8 RJ45 ports support 10/100/1000 Ethernet

connections and auto-sensing 802.3af PoE.

Back Panel

Reset

Button

PowerGround

Port Description

Ground Optional ancillary grounding point.

Power Connect the included Power Adapter to the

Power port.

Reset

Button

This button serves two functions for the UniFi

Switch:

• Restart Press and release the Reset button

quickly.

• Restore to Factory Default Settings Press

and hold the Reset button for more than five

seconds.

LEDs

System

System LED

State Status

Flashing White Initializing.

Steady White Factory defaults, waiting for integration.

Alternating

White/Blue

Device is busy; do not touch or unplug it.

This usually indicates that a process such

as a firmware upgrade is taking place.

Steady Blue Successfully integrated into a network

and working properly.

Flashing Blue This is used to locate a device.

When you click Locate in the UniFi

Controller software, the System LED

will flash blue. The software will also

display the location of the UniFi Switch

on themap.

RJ45 LEDs

PoE

Link/Speed/Activity

LED State Status

PoE

Off PoE Off

Amber PoE On (IEEE 802.3af)

Link/

Speed/

Activity

Off No Link

Amber Link Established at 10/100Mbps

Flashing Indicates Activity

Green Link Established at 1 Gbps

Flashing Indicates Activity

*640-00253-05*

640-00253-05

Side Panels

Ventilation Holes

WARNING: FAILURE TO PROVIDE PROPER VENTILATION

MAY CAUSE FIRE HAZARD. KEEP AT LEAST 20 MM OF

CLEARANCE NEXT TO THE VENTILATION HOLES FOR

ADEQUATE AIRFLOW.

WARNING: The US-8-60W must not be stacked. Do not

place it on top of another switch. Do not place anything

on top of the US-8-60W.

Hardware Installation

The UniFi Switch can be mounted on a vertical surface or

placed on a desktop. Follow the Wall Mounting instructions to

mount the switch using the included screws and anchors.

WARNING: To reduce the risk of fire or electric shock, do

not expose the switch to rain or moisture.

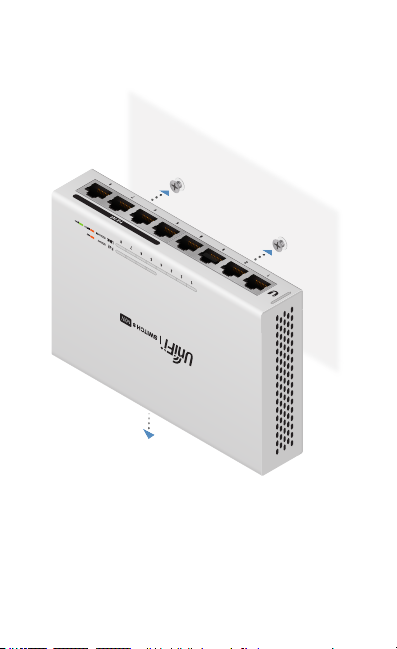

Wall Mounting

1. Drill two 6 mm holes set 73.5 mm apart.

73.5 mm

2. Insert a Screw Anchor into each hole, and fasten a Screw

into each anchor.

3. Leave a clearance of approximately 3mm between the

screw head and the wall.

3 mm

4. Mount the UniFi Switch by inserting the screw heads into

the mounting slots on the bottom of the switch. Then slide

the switch down to lock it in place.

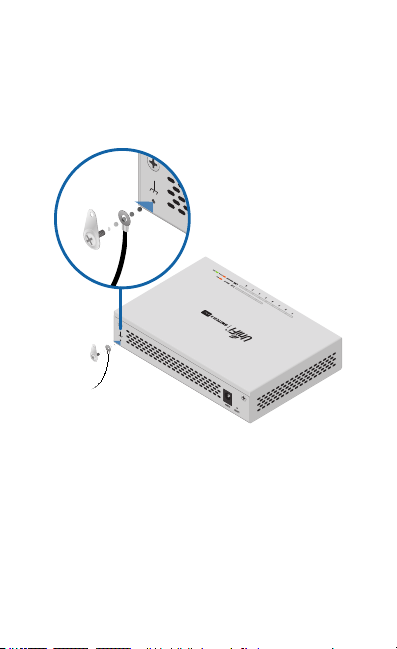

Grounding (Recommended)

The UniFi Switch is grounded through the Power Adapter;

however, you can enhance ESD protection by connecting the

ancillary ground.

1. Loosen the ground screw and secure a ground wire (not

included) to the grounding point.

2. Secure the other end of the ground wire to a grounding

block or other grounded structure.
