Ubiquiti US-XG-6POE Manuel utilisateur

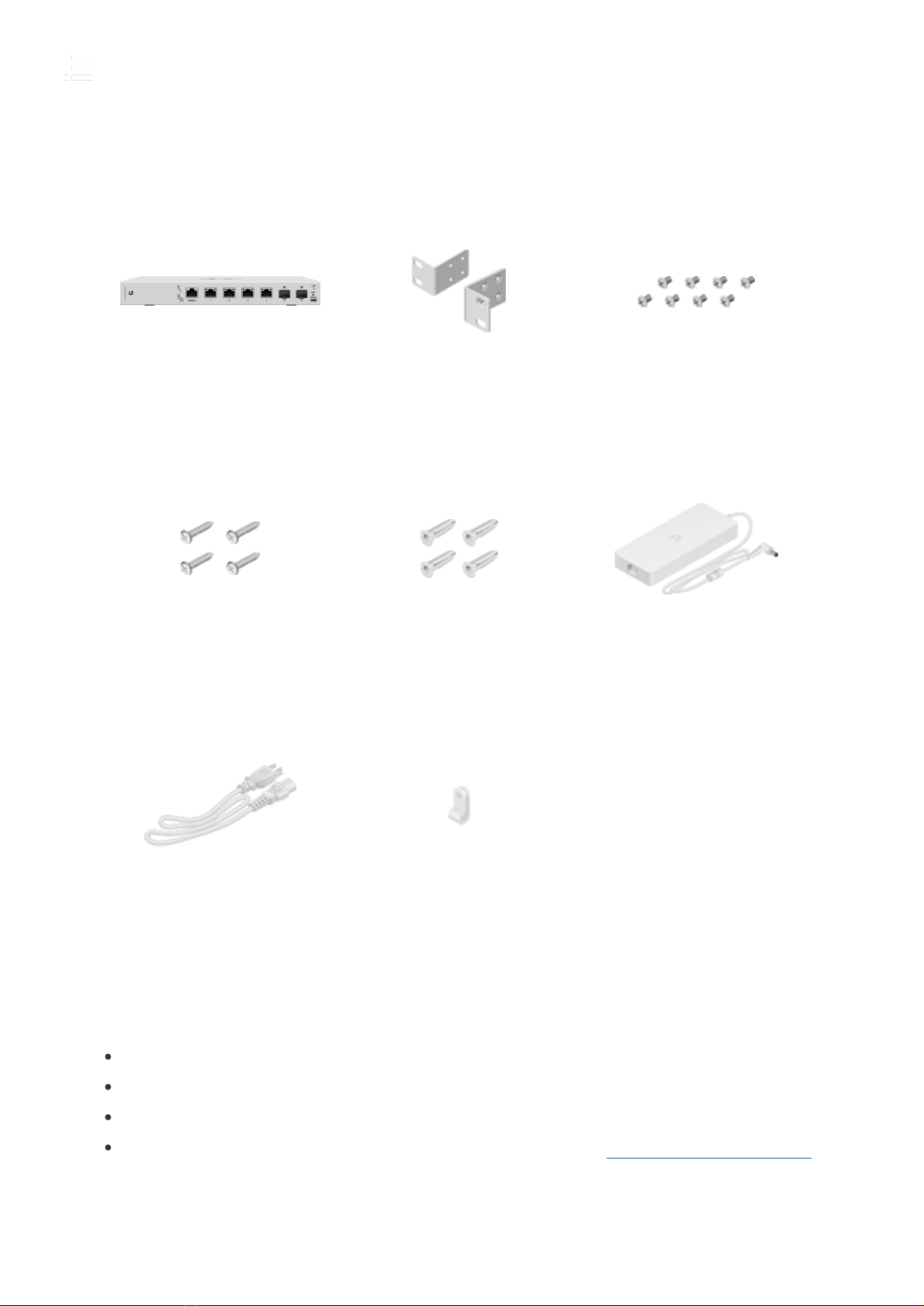

UniFi Switch Mount Brackets (Qty. 2) Bracket Screws (Qty. 8)
Mounting Screws (Qty. 4) Screw Anchors (Qty. 4) Power Adapter
Power Cord Cable Clip
Package Contents
System Requirements
Linux, Mac OS X, or Microsoft Windows 7/8/10
Java Runtime Environment 1.8 or above recommended
Web Browser: Google Chrome (Other browsers may have limited functionality)
UniFi Network Application v5.8.x (or newer), available at: ui.com/download/unifi

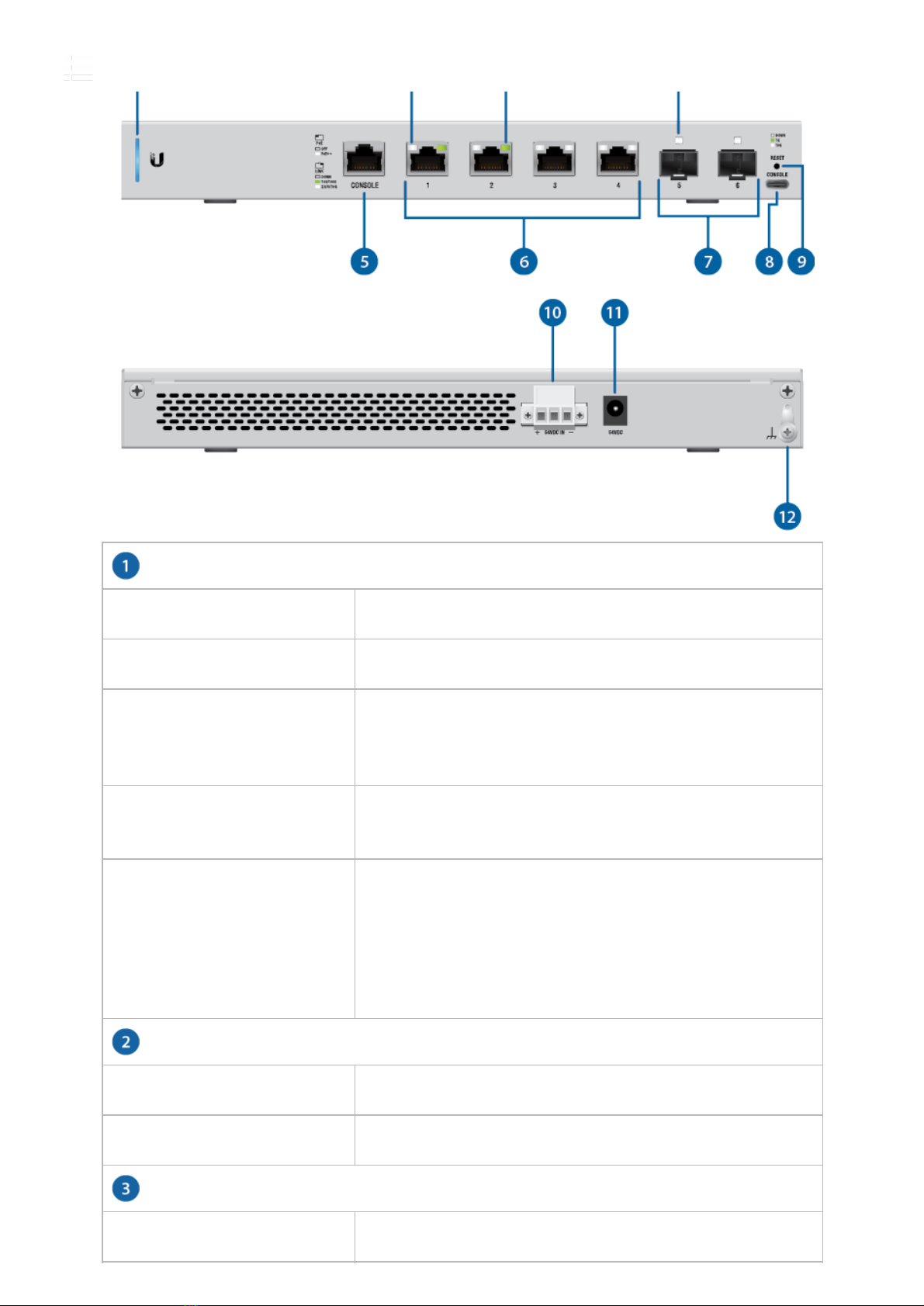

Hardware Overview
US-XG-6POE Quick Start Guide
System LED
RJ45 PoE LED (Ports 1 - 4)
RJ45 Link/Speed/Activity LED (Ports 1 - 4)
Flashing White Initializing.
Steady White Factory defaults, waiting for adoption.
Alternating White/Blue
Device is busy; do not touch or unplug it. This
usually indicates that a process such as a firmware
upgrade is taking place.
Steady Blue Successfully adopted by a network and working
properly.
Flashing Blue
This is used to locate a device.
When you click Locate in the UniFi Network
Application, the System LED will flash blue. The
Application will also display the location of the UniFi
Switch on the map.
Off PoE Disabled
White 802.3af/at/bt PoE
Off No Link
US-XG-6POE Quick Start Guide
SFP+ Link/Speed/Activity LED (Ports 5 - 6)
RJ45 Console Port
RJ45 (Ports 1 - 4)
SFP+ (Ports 5 - 6)
USB Console Port
Reset Button
Green Link Established at 1 Gbps
Flashing Indicates Activity
White
Link Established at 10 Gbps
Flashing Indicates Activity
Off No Link
Green
Link Established at 1 Gbps
Flashing Indicates Activity
White
Link Established at 10 Gbps
Flashing Indicates Activity
RJ45 serial console port for Command Line Interface (CLI) management. Use an
RJ45-to-DB9, serial console cable, also known as a rollover cable, to connect the
Console port to your computer. Then configure the following settings as needed:
Baud rate 115200
Data bits 8
Parity NONE
Stop bits 1
Flow control NONE
RJ45 ports support 100 Mbps or 1/2.5/5/10 Gbps Ethernet connections and
802.3af/at/bt PoE output.
Hot-swappable SFP+ ports support 1/10 Gbps connections.
USB Type C console port for Command Line Interface (CLI) management.
This button serves two functions for the UniFi Switch:
Restart Press and release the Reset button quickly.
US-XG-6POE Quick Start Guide
DC Input
Power Port
Ground
Restore to Factory Default Settings Press and hold the Reset button for
more than five seconds.
Optional DC input for connecting a stand-alone or redundant DC power source
(not included) with minimum power: 40W, 44 to 57VDC.
Note: Ensure the polarity is correct: red is positive (+) and black is
negative (-).
You can use the redundant DC power source as a hot spare; if there is no longer
power through the Power port, the UniFi Switch will switch to the DC power
source without interrupting its operation.
Connect the included Power Adapter to the Power port.
Ancillary grounding point for enhanced ESD protection.
Hardware Installation
The UniFi Switch can be mounted on a horizontal or vertical surface.
WARNING: The US-XG-6POE must not be stacked. Do not place it on top
of another switch. Do not place anything on top of the US-XG-6POE.
Grounding (Recommended)
The UniFi Switch is grounded through the Power Adapter; however, you can add
optional ESD grounding for enhanced ESD protection.
Note: You also have the option to use the Cable Clip to secure the cord of
the Power Adapter. For instructions, proceed to "Using the Cable Clip
(Optional)".
US-XG-6POE Quick Start Guide

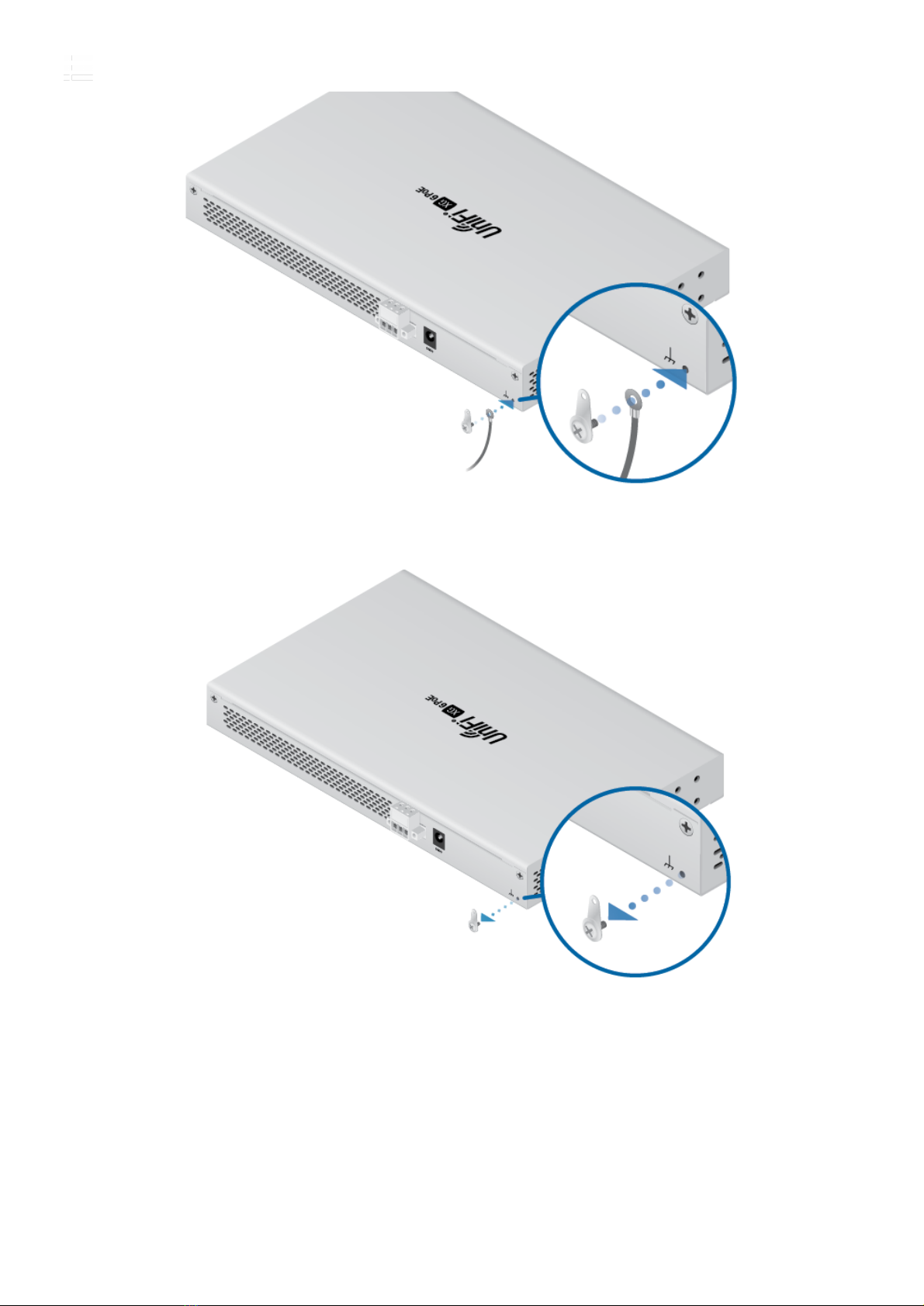

Using the Cable Clip (Optional)
1.
2.
US-XG-6POE Quick Start Guide
3.
4.
Connecting Power
US-XG-6POE Quick Start Guide
You have two options:
"Using the Power Adapter"
"Using the DC Input (Optional)"

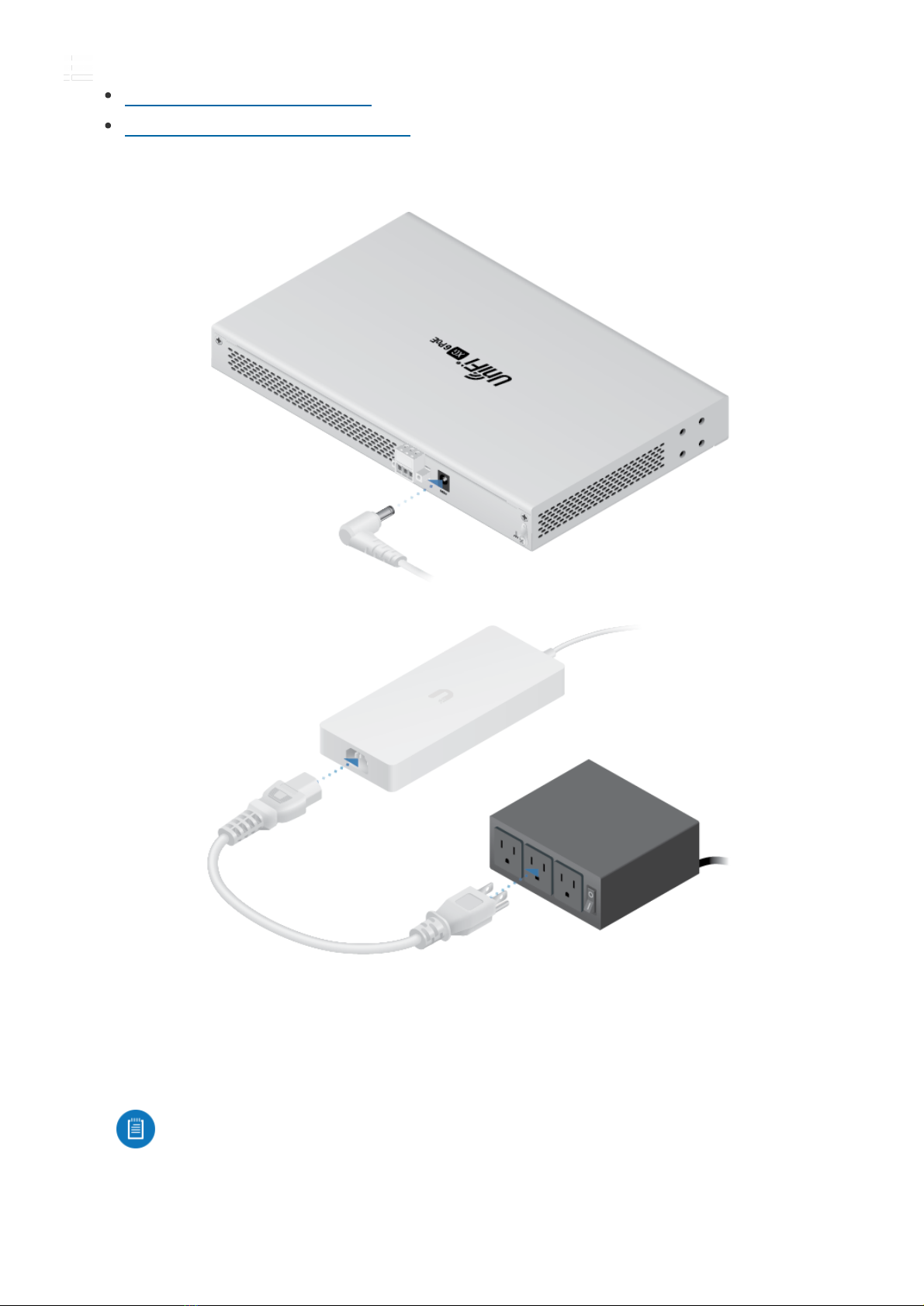

Using the Power Adapter
1.
2.

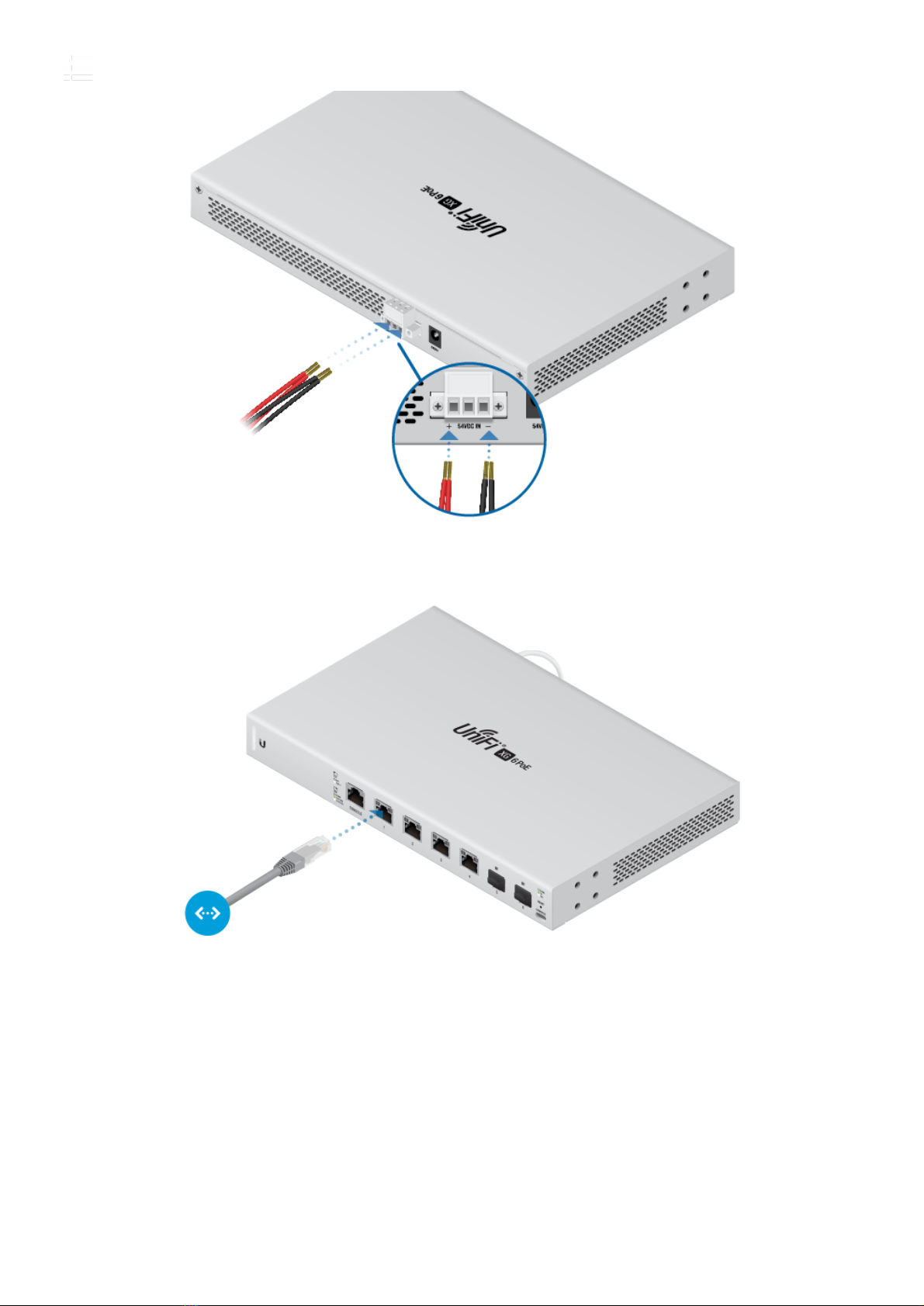

Using the DC Input (Optional)
For stand-alone power or redundant backup, connect a DC power source to the
UniFi Switch.
Note: Only one power source can be used at any one time. With both power
sources connected, the input with the highest voltage will be used; the other
power source defaults to backup.
Wire a DC/DC cable (not included) to the DC Input. Ensure the polarity is correct: red
is positive (+) and black is negative (-).
US-XG-6POE Quick Start Guide
Connecting Ethernet

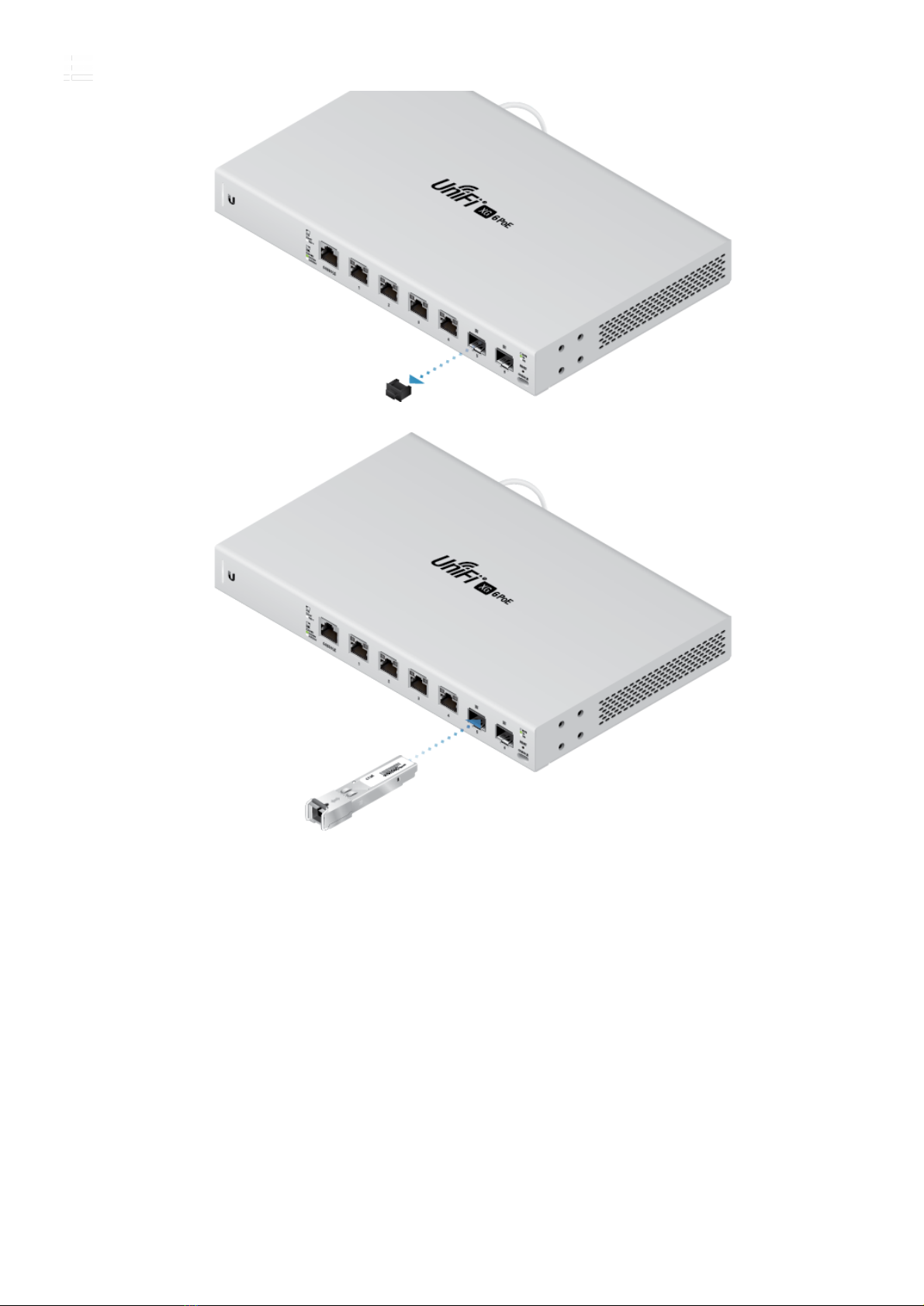

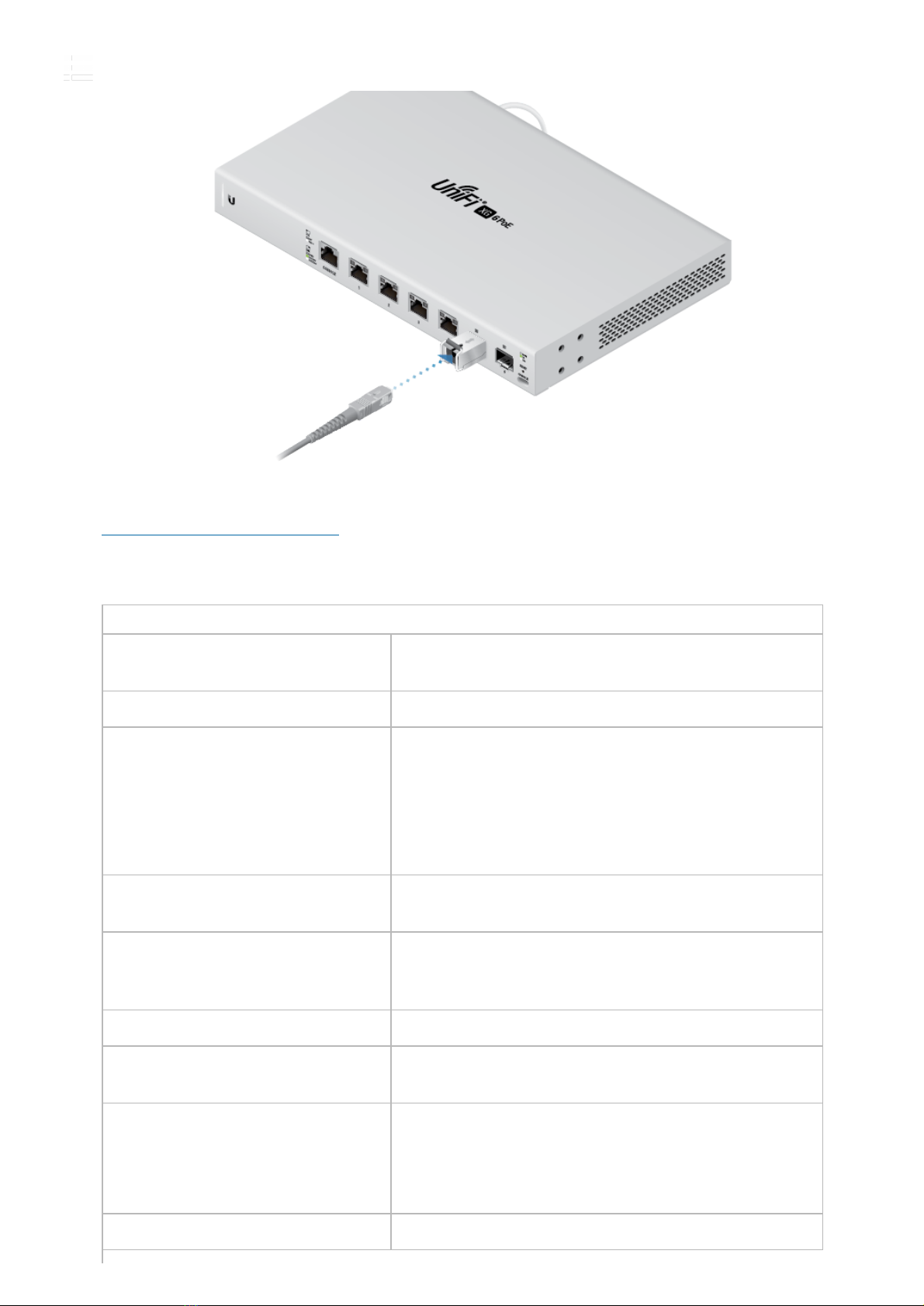

Connecting SFP+
1.
US-XG-6POE Quick Start Guide
2.
3.
US-XG-6POE Quick Start Guide
For information about compatible fiber SFP modules, visit:
community.ubnt.com/unifi
Specifications
US-XG-6POE
Dimensions 165 x 268.1 x 31.8 mm
(6.50 x 10.56 x 1.25")
Weight 1.3 kg (2.87 lb)
Interfaces
Networking (4) 100 Mbps or 1/2.5/5/10G RJ45 Ports
(2) 1/10G SFP+ Ethernet Ports
Management Ethernet In-Band
(1) RJ45 Serial Port Out-of-Band
(1) USB Type C Port Out-of-Band
Power Method 54VDC, 3.88A Power Adapter (Included)
or 44 to 57VDC, 5.56A DC Input with Terminal Block
Power Supply External AC/DC Adapter (Included)
or
DC Power Source
Supported Voltage Range 44 to 57VDC
Max. Power Consumption
(Excluding PoE Output)
40W
LEDs
System Status
RJ45 Data Ports PoE; Speed/Link/Activity
SFP+ Data Ports Link/Activity
ESD/EMP Protection Air: ± 18 kV, Contact: ± 12 kV
US-XG-6POE Quick Start Guide
