CC3100 and CC3200 SimpleLink™ Wi-Fi®and Internet of Things Solution

Layout Guidelines

User's Guide

SWRU370B–June 2014–Revised August 2018

CC3100 and CC3200 SimpleLink™ Wi-Fi®and Internet of

Things Solution Layout Guidelines

..................................................................................................... Embedded Processing Applications

ABSTRACT

This document provides the design guidelines of a 4-layer PCB board, for the CC31xx and CC32xx

SimpleLink™ Wi-Fi®family of devices. The CC31xx and CC32xx are easy to lay-out, QFN-packaged

devices. Optimize the board’s performance by following these suggestions during the board’s design. The

first section is a brief overview of the SimpleLink Wi-Fi family of devices. The second section focuses on

the PCB specification; the third section addresses components placement, and board layer information.

The last section, on layout guidelines, covers the board’s main sections such as RF, power, clock, digital

I/O, and the ground. Each section can be read independently.

In addition to this document, TI recommends verifying the schematic board design with the associated

schematic checklist.

1 Trademarks

SimpleLink, Internet-on-a-chip, E2E are trademarks of Texas Instruments.

ARM, Cortex are registered trademarks of ARM Limited.

Wi-Fi is a registered trademark of Wi-Fi Alliance.

All other trademarks are the property of their respective owners.

Type Layer Height(um)

Mask 25

Copper L1 35

FR-4 255

Copper L2 35

FR-4 350

Copper L3 35

FR-4 255

Copper L4 35

Mask 25

Total 1050

Total thickness ~ 1.1mm (+/- 10%)

www.ti.com

Device Overview

SWRU370B–June 2014–Revised August 2018

CC3100 and CC3200 SimpleLink™ Wi-Fi®and Internet of Things Solution

Layout Guidelines

2 Device Overview

Start the design with the industry’s first Internet-on-a-chip™. Created for the Internet of Things (IoT), the

SimpleLink Wi-Fi family has several variants. The CC3100 SimpleLink Wi-Fi and IoT solution dramatically

simplifies the implementation of Internet connectivity. This product integrates all protocols for Wi-Fi and

Internet, which greatly minimizes host microcontroller (MCU) software requirements. CC3200 device is a

wireless MCU that integrates a high-performance ARM®Cortex®-M4 MCU with the CC3100 network

processor subsystem, allowing customers to develop an entire application with a single IC. With on-chip

Wi-Fi, Internet, and robust security protocols, no prior Wi-Fi experience is needed for faster development.

SimpleLink Wi-Fi is a complete platform solution, including various tools and software, sample

applications, user and programming guides, reference designs, and the TI E2E™ support community. The

devices are available in an easy to lay-out QFN package. The layout for both devices are similar, with a

higher number of IOs routed for the CC3200.

3 PCB Specification

3.1 PCB Stack-Up

An example stack-up is shown in Figure 1, used for the construction of the CC3100BOOST Rev3.3-A. The

user can alter the layer stack-up based on their requirements, but the impedance of the 50-Ωlines should

be recalculated. Having the L1-L2 distance reduced helps improve the grounding and the RF decoupling.

TI recommends keeping the L1-L2 distance similar to the recommended value.

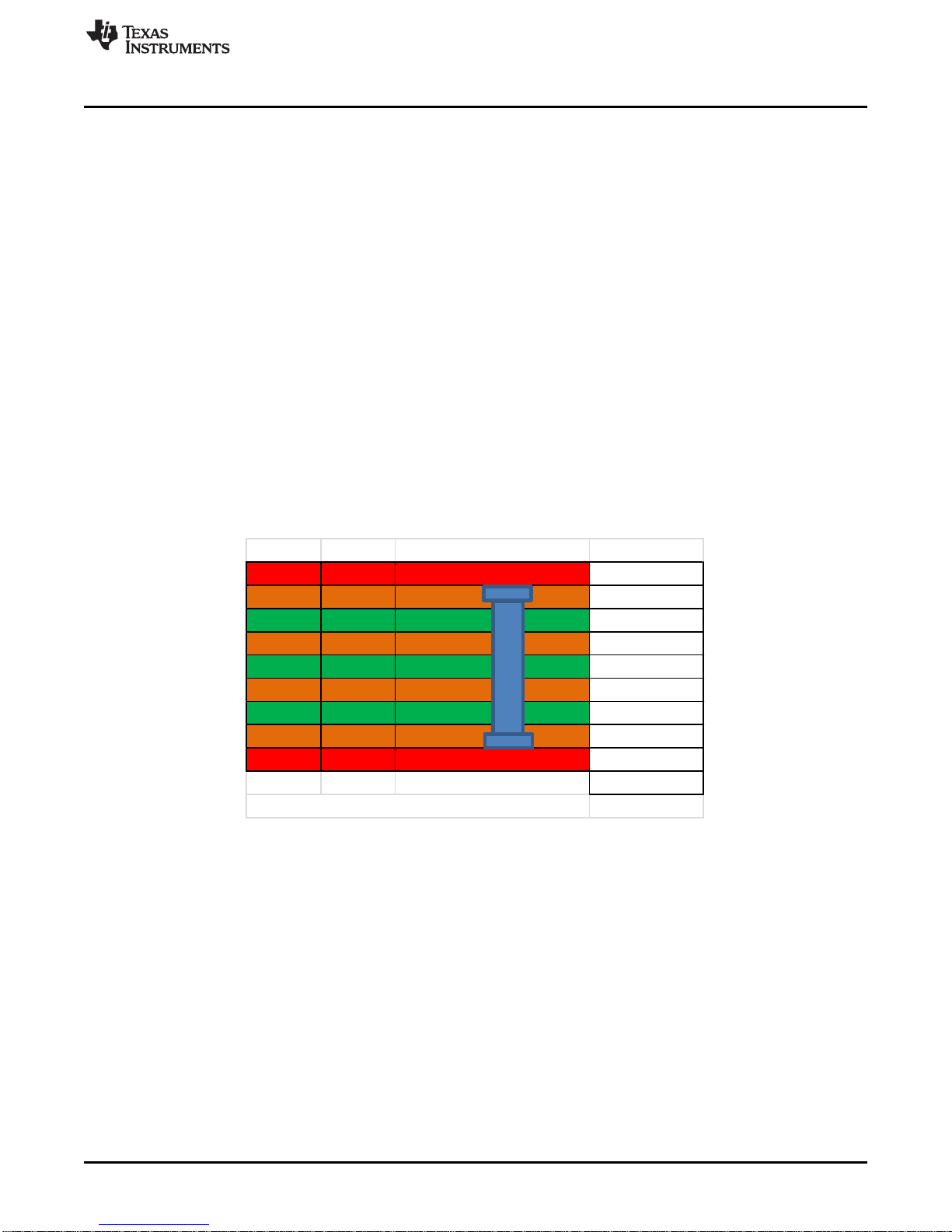

Figure 1. Example Stack-up

PCB Specification

www.ti.com

6SWRU370B–June 2014–Revised August 2018

Submit Documentation Feedback

CC3100 and CC3200 SimpleLink™ Wi-Fi®and Internet of Things Solution

Layout Guidelines

3.2 PCB Design Rules

Table 1. PCB Design Rules

Parameter Value Comments

Number of layers 4

Thickness 1.1 mm ±

10% For greater thickness increase the distance between L2 and L3

Size of PCB 2.0” x 1.7”

Solder mask Red Can be replaced with any color

Dielectric FR4

Silk White Can be replaced with any color

Surface finish ENIG

Min track width 6 mils Min track width can be reduced but cost would be higher

Min spacing 6 mils Min spacing can be reduced but the cost would be higher

Mid drill diameter 8 mils 12-mil diameter drill is used on the Rev 3.3-A board

Copper thickness 1 oz

Lead free / ROHS Yes

Impedance control Yes 50-Ωcontrolled impedance trace of 18-mils width on L1 w.r.t L2 (GND).

Air gap = 15 mils

Note: The above calculations are based on CPW-G (NOT microstrip).

Impedance variation 5%

3.3 Layer Information

The 4-layer PCB is used with the configuration, as shown in Table 2.

Table 2. 4 Layer PCB

Layer Usage Notes

1 Signal + RF RF trace is a CPW on L1 w.r.t. L2 ground

2 GND Reference plane for RF

3 Power + signal The power planes for the power amplifier (PA), analog blocks and the main input supply are routed on

this layer

4 Power + signal

www.ti.com

Layout Information

SWRU370B–June 2014–Revised August 2018

CC3100 and CC3200 SimpleLink™ Wi-Fi®and Internet of Things Solution

Layout Guidelines

4 Layout Information

The complete layout package is available for download on the TI website at http://www.ti.com/tool/cc3200-

launchxl-rd and http://www.ti.com/tool/cc3100boost-rd. TI recommends that the customers copy the exact

layout of the engine area to ensure optimum performance as measured on the CC3x00 reference boards.

4.1 Placement of Components

The components placement on the CC3100 BoosterPack is provided in Figure 2. This placement provides

optimum performance of the device. Great care must be taken for the power inductors components to

ensure reduced emissions and optimum EVM and mask performance. The power inductors should be

placed close to the device, and the power traces should be minimized. The CC3x00 device is sensitive to

the layout of the DC-DC converter, which can impact the performance of the device. For the main

inductors at the analog, power amplifier, and digital DC-DC output, see Table 3.

Table 3. Inductors

Inductor @ Value Size Current Rating Recommended PN Description

ANA DCDC OUT 2.2 µH 1008 1.3A LQM2HPN2R2MG0L INDUCTOR 2.2UH 20% 1008

PA DCDC OUT 1 µH 1008 1.5A LQM2HPN1R0MJ0L INDUCTOR 1UH 20% 1008

DIG DCDC OUT 2.2 µH 1008 1.3A LQM2HPN2R2MG0L INDUCTOR 2.2UH 20% 1008

Figure 2. CC3100BOOST 3.3-A Placement Diagram

Layout Information

www.ti.com

8SWRU370B–June 2014–Revised August 2018

Submit Documentation Feedback

CC3100 and CC3200 SimpleLink™ Wi-Fi®and Internet of Things Solution

Layout Guidelines

4.2 Layer Information

4.2.1 Layer-1

Most of the routing is performed on Layer-1 to avoid vias on the board (see Figure 3). The trace widths

are maximized for high-current pins and minimized for signal pins. For example, the signal pins can be

routed with 6 mils (4 mils, if possible) and the power pins with 12 mils and above.

Figure 3. Layer-1

www.ti.com

Layout Information

SWRU370B–June 2014–Revised August 2018

CC3100 and CC3200 SimpleLink™ Wi-Fi®and Internet of Things Solution

Layout Guidelines

4.2.2 Layer-2

Layer-2 is primary ground plane for the board reference (see Figure 4). It has a void for the antenna

section, which is per the antenna guidelines. This return current path for the input de-coupling capacitors

(C11, C13, and C18) is routed on L2 using thick traces to isolate RF ground from a noisy supply ground.

This is also required to meet the IEEE spectral mask specifications.

Figure 4. Layer-2

Layout Information

www.ti.com

10 SWRU370B–June 2014–Revised August 2018

Submit Documentation Feedback

CC3100 and CC3200 SimpleLink™ Wi-Fi®and Internet of Things Solution

Layout Guidelines

4.2.3 Layer-3

Layer-3 is used to route the power lines to the device (see Figure 5). Power planes are necessary for the

power amplifier (PA) and the main supply input to the device. More details are available in subsequent

sections.

Figure 5. Layer-3

Autres manuels pour CC3100 SimpleLink

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Texas Instruments Matériel informatique

Texas Instruments

Texas Instruments ADS41 Series Manuel utilisateur

Texas Instruments

Texas Instruments AM64 Series Manuel utilisateur

Texas Instruments

Texas Instruments CC1000PP Manuel utilisateur

Texas Instruments

Texas Instruments SimpleLink CC3200 Wi-Fi Manuel utilisateur

Texas Instruments

Texas Instruments LM38020EVM Manuel utilisateur

Texas Instruments

Texas Instruments TMDSCNCD2800157 Manuel technique

Texas Instruments

Texas Instruments TMS320DM355 Manuel utilisateur

Texas Instruments

Texas Instruments DUAL SOCKET PC CARD CONTROLLER PCI1520... Manuel utilisateur

Texas Instruments

Texas Instruments OMAP-L137 EVM Manuel utilisateur

Texas Instruments

Texas Instruments MSP430x1xx Manuel utilisateur

Texas Instruments

Texas Instruments SimpleLink CC2651R3SIPA Manuel utilisateur

Texas Instruments

Texas Instruments MCT8317 Manuel utilisateur

Texas Instruments

Texas Instruments PMP15034 Manuel utilisateur

Texas Instruments

Texas Instruments TMS320C642x DSP Manuel utilisateur

Texas Instruments

Texas Instruments TMS320C2 Series Manuel utilisateur

Texas Instruments

Texas Instruments TPA6138A2 EVM Manuel utilisateur

Texas Instruments

Texas Instruments TPS65381EVM Manuel utilisateur

Texas Instruments

Texas Instruments TLV320AIC12KEVMB-K Manuel utilisateur

Texas Instruments

Texas Instruments MSP430FR5739 Manuel utilisateur

Texas Instruments

Texas Instruments bq27220 Manuel du produit

Texas Instruments

Texas Instruments Serial Programming Adapter MSP430 Manuel utilisateur

Texas Instruments

Texas Instruments TMP119 Manuel utilisateur

Texas Instruments

Texas Instruments MSP-EXP430F5438 Manuel utilisateur

Texas Instruments

Texas Instruments AM57 Series Manuel utilisateur

Manuels Matériel informatique populaires d'autres marques

EMC2

EMC2 VNX Series Manuel du propriétaire

Panasonic

Panasonic DV0PM20105 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuel utilisateur

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuel utilisateur

Raidon

Raidon iT2300 Manuel utilisateur

National Instruments

National Instruments PXI-8186 Manuel utilisateur

Hauppauge

Hauppauge WinTV-HVR-2250 Manuel utilisateur

Kontron

Kontron CP6002 Manuel utilisateur

Manhattan

Manhattan 702843 Manuel utilisateur

Aphex

Aphex 230 Manuel utilisateur

AMD

AMD Phenom II Manuel d'exploitation

Intel

Intel NUC 12 Pro Manuel utilisateur

dbx

dbx Zone Pro 1260 Manuel utilisateur

Galaxy

Galaxy GHDX2-2430S-24F4D Manuel utilisateur

Intel

Intel AXXRMFBU4 Manuel utilisateur

Kontron

Kontron DIMM-PC/MD Manuel utilisateur

ST X-NUCLEO-SAFEA1B Mode d'emploi

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuel utilisateur
