Texas Instruments CC3100 SimpleLink Manuel utilisateur

CC3100 SimpleLink™ Wi-Fi®and IoT Solution

BoosterPack Hardware

User's Guide

Literature Number: SWRU371B

June 2014–Revised January 2015

Contents

1 Introduction......................................................................................................................... 4

1.1 CC3100 BOOST.......................................................................................................... 4

1.2 What Is Included ......................................................................................................... 5

1.3 FCC/IC Regulatory Compliance........................................................................................ 5

2 Hardware Description........................................................................................................... 6

2.1 Block Diagram............................................................................................................ 7

2.2 Hardware Features....................................................................................................... 7

2.3 Connector and Jumper Descriptions .................................................................................. 8

2.4 Power..................................................................................................................... 10

2.5 Measure the CC3100 Current Draw ................................................................................. 13

2.6 Clocking.................................................................................................................. 14

2.7 Performing Conducted Testing ....................................................................................... 14

3 Connecting to the PC Using EMUBOOST .............................................................................. 15

3.1 CC31XXEMUBOOST ................................................................................................. 15

3.2 Connecting the Boards................................................................................................. 17

3.3 Jumper Settings on the CC3100BOOST ............................................................................ 17

3.4 Jumper Settings on the EMUBOOST................................................................................ 18

4 Connecting to a LaunchPad................................................................................................. 18

4.1 LaunchPad Current Limitation ........................................................................................ 19

5 Additional Information ........................................................................................................ 19

5.1 Design Files ............................................................................................................. 19

5.2 Software.................................................................................................................. 19

5.3 Hardware Change Log................................................................................................. 20

5.4 Known Limitations ...................................................................................................... 20

Revision History.......................................................................................................................... 21

2Table of Contents SWRU371B–June 2014–Revised January 2015

Submit Documentation Feedback

www.ti.com

List of Figures

1 CC3100BOOST Front Side................................................................................................. 6

2 CC3100 Block Diagram..................................................................................................... 7

3 Signal Assignments.......................................................................................................... 9

4 3.3 V Power From MCU................................................................................................... 11

5 Feed USB on the BoosterPack (if the LaunchPad cannot source 5 V on 20-pin connector) .................... 11

6 3.3 V Power From LDO ................................................................................................... 12

7 Feed USB on the BoosterPack (always while using the on-board LDO) ........................................... 12

8 Low Current Measurement................................................................................................ 13

9 Active Current Measurement ............................................................................................. 13

10 Connectors on the Board.................................................................................................. 14

11 Radiated Mode (Left) vs Conducted Mode (Right) .................................................................... 14

12 CC31XXEMUBOOST Board.............................................................................................. 15

13 Portable Devices ........................................................................................................... 16

14 The CC3100BOOST Connected to the EMUBOOST ................................................................. 17

15 CC3100BP connected to MSP430F5529 LaunchPad................................................................. 18

16 Jumper Settings When Used With LaunchPad......................................................................... 19

List of Tables

1 Push Buttons ................................................................................................................. 8

2 LEDs........................................................................................................................... 8

3 Jumper Settings.............................................................................................................. 8

4 Outer Row Connectors...................................................................................................... 9

5 Inner Row Connectors..................................................................................................... 10

6 Ports Available on J6 ...................................................................................................... 15

7 Ports Available on J5 ...................................................................................................... 16

8 CC3100BOOST Jumper Settings........................................................................................ 17

9 EMUBOOST Jumper Settings............................................................................................ 18

10 Hardware Change Log..................................................................................................... 20

SWRU371B–June 2014–Revised January 2015 List of Figures

User's Guide

SWRU371B–June 2014–Revised January 2015

CC3100 SimpleLink™ Wi-Fi®and IoT Solution

BoosterPack Hardware

1 Introduction

1.1 CC3100 BOOST

The CC3100 SimpleLink™ Wi-Fi®solution provides the flexibility to add Wi-Fi to any microcontroller

(MCU). This user guide explains the various configurations of the CC3100 hardware BoosterPack™. This

internet on a chip solution contains everything that you need to easily create IoT solutions – security, quick

connection, cloud support and more. The CC3100 BoosterPack can be used in several ways. First, it can

be connected to a TI MCU LaunchPad (software examples provided for MSP-EXP430F5529LP). Second,

it can be plugged into a CC31XXEMUBOOST1board and connected to a PC for MCU emulation. Finally, it

can be connected onto an adapter board (MCU-ADAPT), which allows customers to use CC3100BOOST

with additional platforms beyond TI LaunchPads.

This kit comes in three configurations:

• CC3100BOOST + CC31XXEMUBOOST + MSP-EXP430F5529LP – Able to run all software in SDK,

and develop on MSP430F5529 MCU.

• CC3100BOOST + CC31XXEMUBOOST – Used for any CC3100 development.

• CC3100BOOST – If extra CC3100 BoosterPacks are needed, and the user already has

CC31XXEMUBOOST.

NOTE: 1CC31XXEMUBOOST is an advanced emulation board that is required for flashing

CC3100BOOST, using the radio tool (Radio performance testing or putting into certification

modes), and for doing networking processing logs for advanced debug.

NOTE: The antennas used for this transmitter must be installed to provide a separation distance of

at least 20 cm from all people and must not be co-located or operate in conjunction with any

other antenna or transmitter.

NOTE: The pictures used in this document refer to Rev 3.x, but the contents also apply to Rev4.0

and higher unless otherwise stated. For the changes across the various revisions of board,

please refer to Section 5.3.

SimpleLink is a trademark of Texas Instruments.

Wi-Fi is a registered trademark of Wi-Fi Alliance.

4CC3100 SimpleLink™ Wi-Fi®and IoT Solution BoosterPack Hardware SWRU371B–June 2014–Revised January 2015

Submit Documentation Feedback

www.ti.com

Introduction

1.2 What Is Included

• 1x CC3100BOOST

• 1x Micro USB cable

• 1x Quick start guide

1.3 FCC/IC Regulatory Compliance

The CC3100 SimpleLink Wi-Fi and IoT Solution BoosterPack Hardware is FCC Part 15 and IC ICES-003

Class A Compliant.

SWRU371B–June 2014–Revised January 2015 CC3100 SimpleLink™ Wi-Fi®and IoT Solution BoosterPack Hardware

Hardware Description

www.ti.com

2 Hardware Description

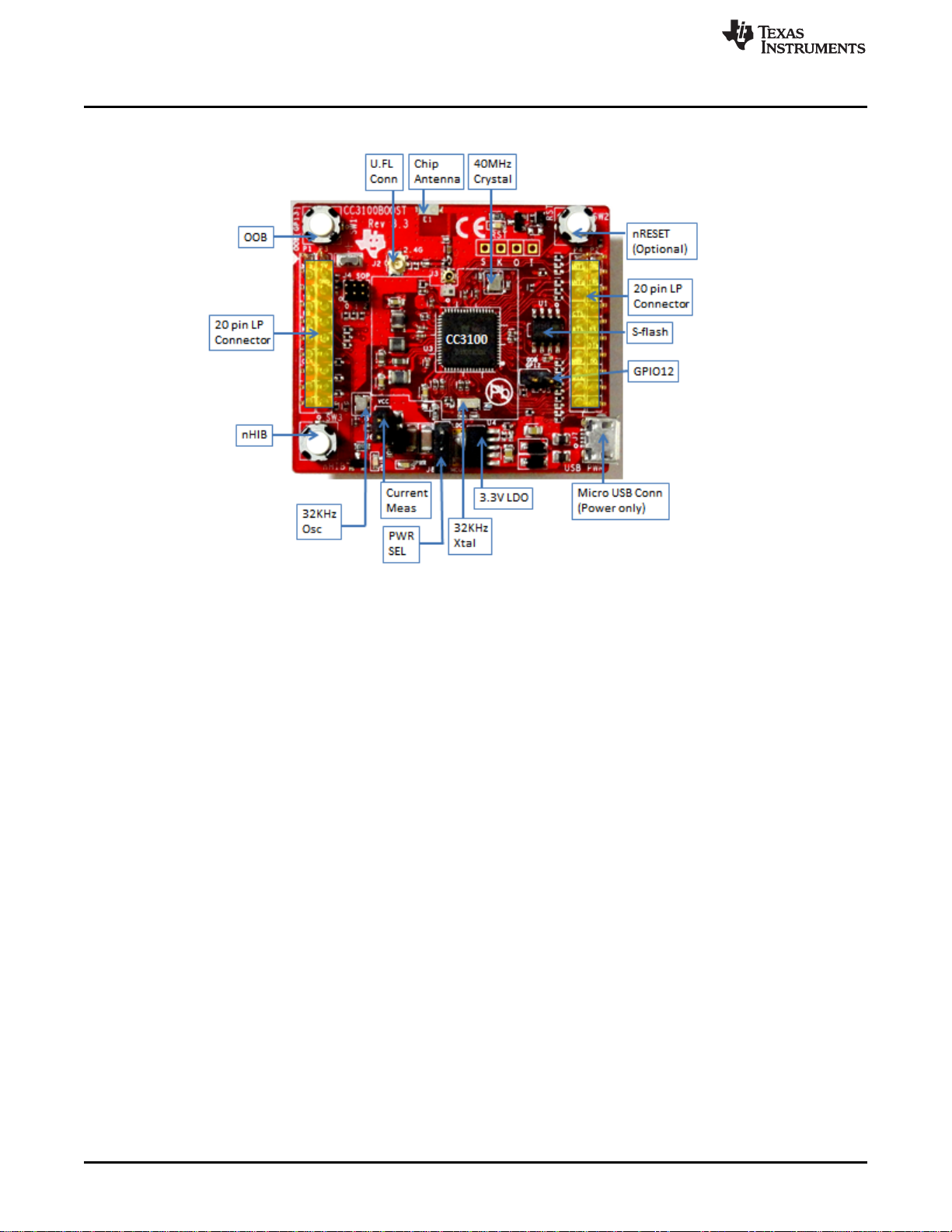

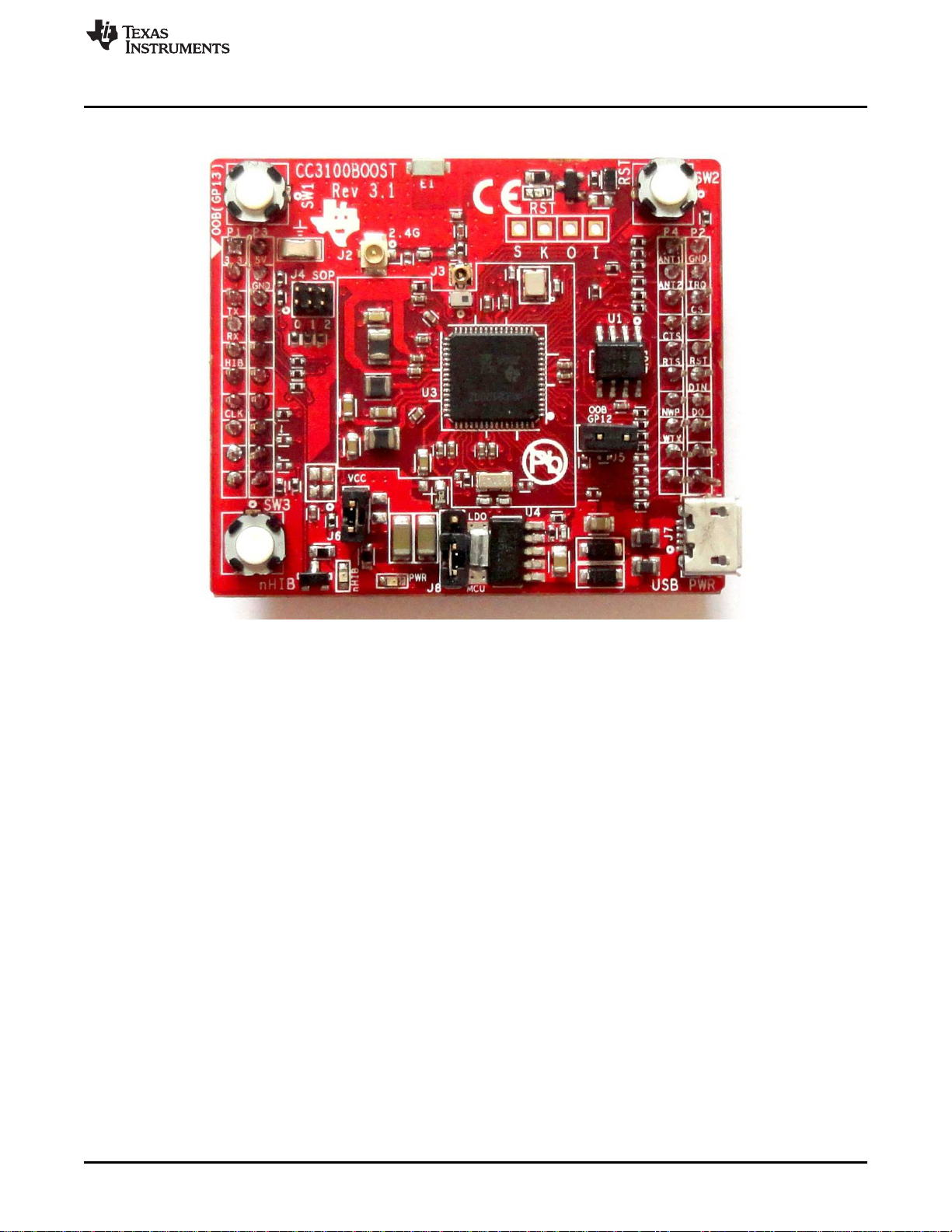

Figure 1. CC3100BOOST Front Side

6CC3100 SimpleLink™ Wi-Fi®and IoT Solution BoosterPack Hardware SWRU371B–June 2014–Revised January 2015

Submit Documentation Feedback

www.ti.com

Hardware Description

2.1 Block Diagram

Figure 2. CC3100 Block Diagram

2.2 Hardware Features

• 2x20 pin stackable connectors

• On-board chip antenna with option for U.FL-based conducted testing

• Power from on-board LDO using USB or 3.3 V from MCU LaunchPad

• Three push buttons

• Two LEDs

• Jumper for current measurement with provision to mount 0.1R resistor for measurement with voltmeter

• 8 Mbit serial flash (M25PX80 from Micron)

• 40 MHz crystal, 32 KHz crystal and optional 32 KHz oscillator

• 4-layer PCB with 6 mil spacing and track width

SWRU371B–June 2014–Revised January 2015 CC3100 SimpleLink™ Wi-Fi®and IoT Solution BoosterPack Hardware

Hardware Description

www.ti.com

2.3 Connector and Jumper Descriptions

2.3.1 Push Buttons and LEDs

Table 1. Push Buttons

Reference Usage Comments

SW1 OOB Demo This is used as an input for the OOB demo.

SW2 RESET The use of this pin is optional. It resets the device to a known state.

SW3 nHIB This boots the device to the bootloader mode for flashing the firmware over a universal asynchronous

receiver/transmitter (UART).

Table 2. LEDs

Reference Colour Usage Comments

D5 RED PWR ON, when the 3.3 V power is provided to the board.

indication

D1 Yellow nRESET This LED indicates the state of the nRESET pin. If this LED is glowing, the device is functional.

D6 Green nHIB This LED indicates the state of the nHIB pin. When the LED is OFF, the device is in hibernate

state.

2.3.2 Jumper Settings

Table 3. Jumper Settings

Reference Usage Comments

J7 USB connector For powering the BoosterPack when connected with a LaunchPad. This is mandatory when using “Z”

devices (for example, CC3100HZ).

J8 Power selection Choose the power supply from the Lauchpad or the on-board USB.

J8 (1-2) power from MCU LaunchPad

J8 (2-3) power from on-board USB using 3.3 V LDO

J6 Current For Hibernate and LPDS currents, connect an ammeter across J26 : Range (< 500 µA)

measurement For Active current, mount a 0.1 Ωresistor on R42 and measure the voltage across the 0.1 Ωresistor

using a voltmeter (range (< 50 mV peak-peak)).

J5 Reserved Closed: nHIB is pulled to VCC using 10K

Open: nHIB pin is floating and is driven from EMUBOOST. (On Rev 3.3 and earlier, this was used to

control GPIO_12)

J10, J9 BoosterPack 2x10 pins each connected to the LaunchPad.

header

J3 RF Test Murata connector (MM8030-2610) for production line tests.

J2 RF Test U.FL connector for conducted testing in the lab.

8CC3100 SimpleLink™ Wi-Fi®and IoT Solution BoosterPack Hardware SWRU371B–June 2014–Revised January 2015

Submit Documentation Feedback

P1 P3

VCC(3.3V) +5V

UN-USED GND

UART1_TX NC

UART1_RX NC

nHIB NC

UNUSED NC

SPI_CLK NC

UN-USED NC

P4 P2

NC GND

NC IRQ

NC SPI_CS

UART1_CTS NC

UART1_RTS nRESET

NC SPI_MOSI

NWP_LOG_TX SPI_MISO

WLAN_LOG_TX NC

NC NC

P4 P2

P1 P3

www.ti.com

Hardware Description

2.3.3 2x20 Pin Connector Assignment

The signal assignment on the 2x20 pin connector is shown in Figure 3. The convention of J1..J4 is

replaced with P1…P4 to avoid confusion with the actual board reference.

Figure 3. Signal Assignments

Table 4. Outer Row Connectors

Pin No Signal Name Direction Pin No Signal Name Direction

P1.1 VCC (3.3 V) IN P2.1 GND IN

P1.2 UNUSED NA P2.2 IRQ OUT

P1.3 UART1_TX OUT P2.3 SPI_CS IN

P1.4 UART1_RX IN P2.4 UNUSED NA

P1.5 nHIB IN P2.5 nRESET IN

P1.6 UNUSED NA P2.6 SPI_MOSI IN

P1.7 SPI_CLK IN P2.7 SPI_MISO OUT

P1.8 UNUSED NA P2.8 UNUSED NA

P1.9 UNUSED NA P2.9 UNUSED NA

P1.10 UNUSED NA P2.10 UNUSED NA

SWRU371B–June 2014–Revised January 2015 CC3100 SimpleLink™ Wi-Fi®and IoT Solution BoosterPack Hardware

Hardware Description

www.ti.com

Table 5. Inner Row Connectors

Pin No Signal Name Direction Pin No Signal Name Direction

P3.1 +5 V IN P4.1 UNUSED OUT

P3.2 GND IN P4.2 UNUSED OUT

P3.3 UNUSED NA P4.3 UNUSED NA

P3.4 UNUSED NA P4.4 UART1_CTS IN

P3.5 UNUSED NA P4.5 UART1_RTS OUT

P3.6 UNUSED NA P4.6 UNUSED NA

P3.7 UNUSED NA P4.7 NWP_LOG_TX OUT

P3.8 UNUSED NA P4.8 WLAN_LOG_TX OUT

P3.9 UNUSED NA P4.9 UNUSED IN

P3.10 UNUSED NA P4.10 UNUSED OUT

NOTE: All signals are 3.3 V CMOS 400mA logic levels and are referred w.r.t. CC3100 IC. For

example, UART1_TX is an output from the CC3100.

For the SPI lines, the CC3100 always acts like a slave.

2.4 Power

The board is designed to accept power from a connected LaunchPad or from the CC3100EMUBOOST

board. Some of the LaunchPads are not capable of sourcing the peak current requirements of Wi-Fi. In

such a case, the USB connector on the CC3100BOOST can be used to aid the peak current. The use of

Schottky diodes ensure that the load sharing happens between the USB connectors on the LaunchPad

and the BoosterPack without any board modifications.

Also the 3.3 V power can be sourced from the LaunchPad or from the 3.3 V LDO on the board. This is

done by using jumper J8. In the case where the LaunchPad is not able to source the 3.3 V up to 350mA,

then the J8 needs to be configured to work from the on-board LDO.

10 CC3100 SimpleLink™ Wi-Fi®and IoT Solution BoosterPack Hardware SWRU371B–June 2014–Revised January 2015

Submit Documentation Feedback

Autres manuels pour CC3100 SimpleLink

Table des matières

Autres manuels Texas Instruments Matériel informatique

Texas Instruments

Texas Instruments AM57 Series Manuel utilisateur

Texas Instruments

Texas Instruments MSP-FET430 Manuel utilisateur

Texas Instruments

Texas Instruments AM335 Series Mode d’emploi

Texas Instruments

Texas Instruments TUSB522P Manuel utilisateur

Texas Instruments

Texas Instruments TMS320DM355 Manuel utilisateur

Texas Instruments

Texas Instruments BoosterPack BOOSTXL-RS232 Manuel utilisateur

Texas Instruments

Texas Instruments Sitara AM335x Manuel utilisateur

Texas Instruments

Texas Instruments TAS3002 Guide d'installation et d'utilisation

Texas Instruments

Texas Instruments TMS320C6000 DSP Manuel utilisateur

Texas Instruments

Texas Instruments LDC3114-Q1 Manuel utilisateur

Texas Instruments

Texas Instruments SimpleLink Wi-Fi CC3 20 Series Manuel utilisateur

Texas Instruments

Texas Instruments OMAP5912 Manuel utilisateur

Texas Instruments

Texas Instruments TPA6138A2 EVM Manuel utilisateur

Texas Instruments

Texas Instruments Chipcon Products CC2431 Manuel utilisateur

Texas Instruments

Texas Instruments TPS65910A Series Manuel utilisateur

Texas Instruments

Texas Instruments DRA821 Manuel utilisateur

Texas Instruments

Texas Instruments AM1808 Manuel utilisateur

Texas Instruments

Texas Instruments MCT8317 Manuel utilisateur

Texas Instruments

Texas Instruments Jacinto 7 DRA829 Manuel utilisateur

Texas Instruments

Texas Instruments TPA6141A2 Manuel utilisateur

Texas Instruments

Texas Instruments DAC8803/14 EVM Manuel utilisateur

Texas Instruments

Texas Instruments TMS320DM646x Manuel utilisateur

Texas Instruments

Texas Instruments bq20z60EVM-001 Manuel utilisateur

Texas Instruments

Texas Instruments Motor Control Manuel utilisateur

Manuels Matériel informatique populaires d'autres marques

EMC2

EMC2 VNX Series Manuel du propriétaire

Panasonic

Panasonic DV0PM20105 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuel utilisateur

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuel utilisateur

Raidon

Raidon iT2300 Manuel utilisateur

National Instruments

National Instruments PXI-8186 Manuel utilisateur

Hauppauge

Hauppauge WinTV-HVR-2250 Manuel utilisateur

Kontron

Kontron CP6002 Manuel utilisateur

Manhattan

Manhattan 702843 Manuel utilisateur

Aphex

Aphex 230 Manuel utilisateur

AMD

AMD Phenom II Manuel d'exploitation

Intel

Intel NUC 12 Pro Manuel utilisateur

dbx

dbx Zone Pro 1260 Manuel utilisateur

Galaxy

Galaxy GHDX2-2430S-24F4D Manuel utilisateur

Intel

Intel AXXRMFBU4 Manuel utilisateur

Kontron

Kontron DIMM-PC/MD Manuel utilisateur

ST X-NUCLEO-SAFEA1B Mode d'emploi

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuel utilisateur
