MOBILITY SCOOTER USER’S GUIDE

SHOPRIDER NEW ZEALAND

TE-GK9

Compact Shoprider Mobility Scooter

Shoprider Scooters User Guide

CONTENTS

page page

1 Introduction...............................................1

2 Features......................................................1

3 Safety Precautions.................................... 2

4 Adjustments.............................................. 3

Tiller Angle Adjustment............................... 3

Folding the Tiller..........................................3

Seat Removal.............................................. 3

Seat Height Adjustment.............................. 3

Serial Number Position................................ 3

Armrest Width Adjustment..........................4

Armrest Adjustments...................................4

5 Scooter Tiller Controls.............................. 4

Speed Controls............................................5

Battery Level Indicator Gauge...................... 5

Horn........................................................... 5

Thumb Lever Control (Wig Wag)................. 5

Key Switch.................................................. 5

Electromagnetic Brake.................................5

6 Drive/Freewheel Operation......................5

Anti-tip Wheels........................................... 6

7 Starting to Drive your Scooter................. 6

First Time Use..............................................6

Getting Started............................................6

Starting Scooter Movement.........................6

Steering...................................................... 6

Reversing.................................................... 6

Dismounting............................................... 6

8 Extra Guidelines in the Control of your

Scooter.......................................................7

Ramps.........................................................7

Safe Climbing Angle....................................7

Grass and Gravel........................................... 7

9 Batteries and Battery Charging................7

Battery Charger........................................... 7

First Time Use..............................................8

Charging.....................................................8

10 Transport / Storage............................ 8

Disassembly........................................... 8

11 Maintenance............................................9

Tyres............................................................9

General Maintenance and Lubrication......... 9

12 Troubleshooting Guide......................... 9

Circuit Breaker.............................................9

Check List................................................... 9

13 Warranty Information...........................10

14 Technical Speciﬁcations........................ 11

Shoprider Scooters User Guide 1

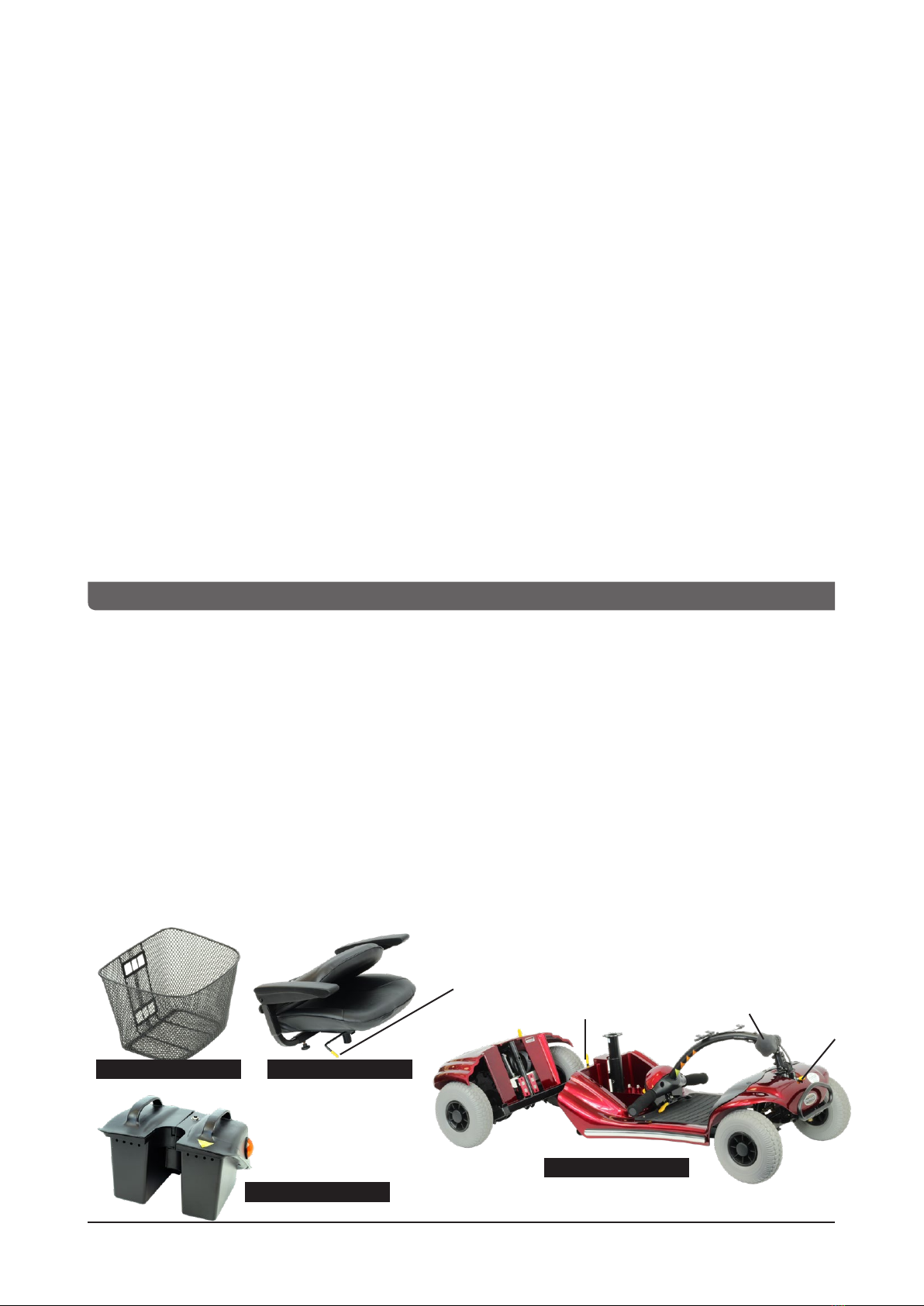

1 Tiller control head

2 Adjustable angle fold down

detachable seat

3 Removable ﬂip-up armrests

4 Detachable basket

5 Detachable battery pack

6 Tiller adjustment knob

7 Swivel seat adjustment

8 Puncture proof tyres

9 Fold down tiller lock

1. INTRODUCTION

Congratulations on your purchase of the Shoprider® TE-GK9 Portable scooter. The

TE-GK9 is the ultimate combination of style, comfort and portability.

The TE-GK9 includes several innovative and convenient features.

The TE-GK9 goes with you wherever you go and can be assembled or disassembled in

just seconds with wireless quick-connect components. The TE-GK9 is light and compact,

and can be stored in small areas such as the trunk or back seat of your car. The

compact features support easy transportation of your TE-GK9 for today’s active lifestyle.

The TE-GK9 can be used in conﬁned spaces both indoors and out. Direct drive transaxle

and automatic electromagnetic brake give a smooth, safe and efﬁcient ride. We know

that the TE-GK9 portable scooter will provide many years of mobility for you.

This manual contains important information regarding the safe use of your scooter. Please,

read it carefully before using the scooter and make sure you understand the instructions.

2. FEATURES

2Shoprider Scooters User Guide

3. SAFETY PRECAUTIONS

• Do not drink alcohol and drive

• Do not drink/eat or use a mobile phone while riding

• Do not carry passengers

• Do not exceed any incline over 9°

• Do not turn on steep inclines

• Do not proceed on any incline that has oil, ice or other slippery substances

• Proceed carefully when on any incline, always lean forward

• Do not operate scooter without anti-tip wheels attached - doing so could cause injury

• Do not turn suddenly at full speed

• Do not mount or dismount the scooter unless the brake is engaged and the key is off

• Do not switch off the scooter while the scooter is moving

• Do not ride the scooter where you cannot safely walk (e.g. soft dirt/sand, deep grass,

loose gravel)

• Always proceed carefully while riding on uneven surfaces

• Do not ride the scooter on roads, streets or motorways

• Remember to observe all rules and regulations of other pedestrians

• Do not attempt to climb over kerbs greater than 2 inches (5cm). For kerbs under 2 inches,

always approach slowly and at 90° to the kerb.

• Do not reverse the scooter unless the speed dial is set low

• Always stop fully before changing direction (forward or reverse)

• Always keep your feet on the platform when riding

• Do not use parts or accessories that are not authorised by Shoprider NZ

• Do not connect any medical device to the scooter battery - doing so could cause injury

• Do not exceed the suggested user weight limit - doing so could cause injury and invalidate

the warranty

• Make sure the tiller and seat are properly adjusted - failure to do so could cause personal

injury

• Do not sit on your scooter while the scooter is being transported in a vehicle - doing so

could cause injury

• Do no use the scooter as a commercial delivery vehicle, e.g. for delivery of leaﬂet,

newspapers etc

• Do not use the scooter in the rain, in the shower, or in any wet environment - direct

exposure to wet can cause rust and failure of the electronics

Shoprider/Shoprider NZ Ltd are not responsible for any damage or injury caused due to

improper or unsafe use of their scooters.

EMI Warning

Shoprider scooters may be susceptible to electromagnetic interference (EMI), which is a kind

of interfering electromagnetic energy (EM) emitted from sources such as radio stations, TV

stations, amateur radio (HAM) transmitters, two-way radio, and cellular phones. Do not

operate hand held transceivers (transmitters-receivers), such as citizens band (CB) radios, or

turn on personal communication devices, such as cellular phones, while the scooter is turned

on. Be aware of nearby transmitters, such as radio or TV stations and try to avoid getting

close to them. Adding accessories or components or modifying the scooter may make it more

susceptible to EMI.

Shoprider Scooters User Guide 3

4. ADJUSTMENTS

Tiller Angle Adjustment (Fig 2)

At the base of the tiller is a round knob.

Turn the knob counterclockwise to loosen the tiller and select the desired tiller angle.

Turn the knob clockwise to securely lock the tiller into place.

Folding the Tiller (Fig 2)

Fold down the tiller by loosening the tiller angle adjustment knob located at the base of the

tiller. Tighten knob to lock tiller in place.

You may lock the tiller assembly into place so that it doesn’t swing from side to side by lifting

the yellow tiller lock lever up and to the right. (Do not forget to unlock the tiller lever lock

when driving scooter.

NOTE: For Safety, this lock is designed to break away if the scooter is driven when locked.

Seat Removal (Fig 3)

Fold down the back of the seat. Lift the swivel seat release handle up to lift the seat up and

off the seat post.

Seat Height Adjustment (Fig 4)

Remove seat as described (ﬁg 3). Remove battery pack (refer to disassembly section). Using

two 13mm wrenches, remove locking bolt and nut.

Adjust seat post up or down to desired position.

The seat height can be adjusted to ﬁve different positions by inserting the locking bolt in the

desired hole. Replace washer and nut and tighten.

Replace battery pack and seat.

Serial Number (Fig 5)

Serial number is located on the seat post. It is on a white sticker with a barcode. The serial

number is 13 alpha numerical digits beginning with the number 1.

Fig. 2

Tiller angle

adjustment

Fig. 5

Fig. 4

Tiller lock

lever

Fig. 3

Fold down

seat back

Locking

bolt

Seat post

Serial no.

Swivel seat

release handle

4Shoprider Scooters User Guide

Armrest Width Adjustments (Fig 6)

On the underside back of the seat there are two arm rest hand knobs, one on each side. Turn

hand knobs counterclockwise to loosen.

Loosening the arm rest hand knob allows the armrest width to be adjusted or arm rest to

be removed. Once the desired positions of the arm rests are set, tighten the hand knobs by

turning clockwise to lock the arm rests into place.

Armrest Adjustments (Fig 6)

The arm rests may be pulled up and out of the way for sideways transfer. Pull arm rest up and

back.

The arm rest angle may be adjusted by turning the adjustment screw either clockwise or

counterclockwise depending on the desired angle.

5. SCOOTER TILLER CONTROLS (FIG 7)

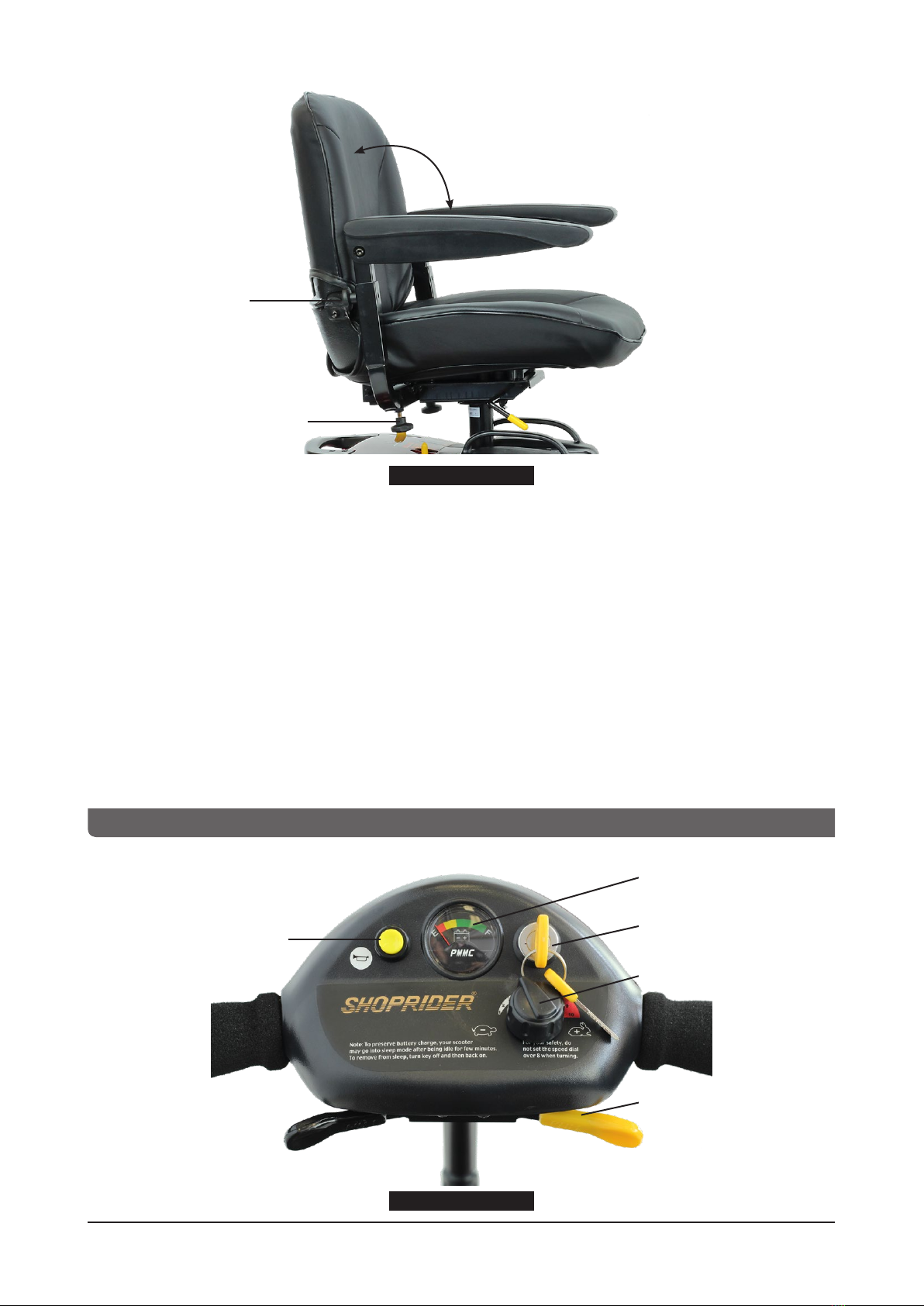

Fig. 6

Fig. 7

Armrest width

adjustment knob

Armrest height

adjustment knob

Horn Key switch

Battery level

Speed control dial

Thumb lever controls

Armrests

swing up for

easier access

Shoprider Scooters User Guide 5

Speed Controls (Fig 7)

The speed control allows you to set a speed between slow (turtle) and fast (rabbit).

Battery Level Indicator Gauge (Fig 7)

Where the needle sits, shows the amount of charge left in your batteries. The amount of

charge will only show at its true level when the scooter is in drive. Always charge the batteries

completely before beginning out on any journey.

Caution – Do not allow the gauge needle to go down completely as complete discharge of the

batteries could cause irreversible battery damage.

Horn (Fig 7)

A yellow button on top of the tiller operates the horn.

Thumb Lever Controls (Fig 7)

The left thumb lever controls the reverse and the right thumb lever controls the forward

motion. The amount of pressure applied to each lever will determine the speed the scooter

travels at up to the speed selected. Release the thumb lever and the scooter will automatically

come to a stop as the electromagnetic brake is applied to the motor.

On/Off Key Switch (Fig 7)

Insert the key into the key switch located on top of the tiller. Turn the key and the battery

gauge needle will move. There may be a slight delay before the thumb lever control can be

operated, while the main controller checks the circuits.

Electromagnetic Brake

The brake is automatically operated when the thumb control levers are pressed or released.

There is a slight delay when the scooter accelerates and decelerates; this allows the scooter to

TE-GK9 smoothly and come to a smooth stop.

6. DRIVE/FREEWHEEL OPERATION (FIG 8)

The drive/freewheel lever (yellow handle) is located under the seat at the left rear of unit. This

lever allows you to disengage the drive mechanism and push the scooter while in freewheel

mode. To disengage the drive mechanism (neutral), move the lever forward (the scooter can

now be pushed). To re-engage the drive mechanism (drive), move the lever backward (now

the unit may be driven).

Note: The scooter will not operate while the drive/freewheel lever is in the neutral position

(forward). The scooter must be turned off, lever moved backward (drive position) and then

turned on in order to reset the circuits.

WARNING! Always re-engage Freewheel lever after use. Failure to do so may result in injury.

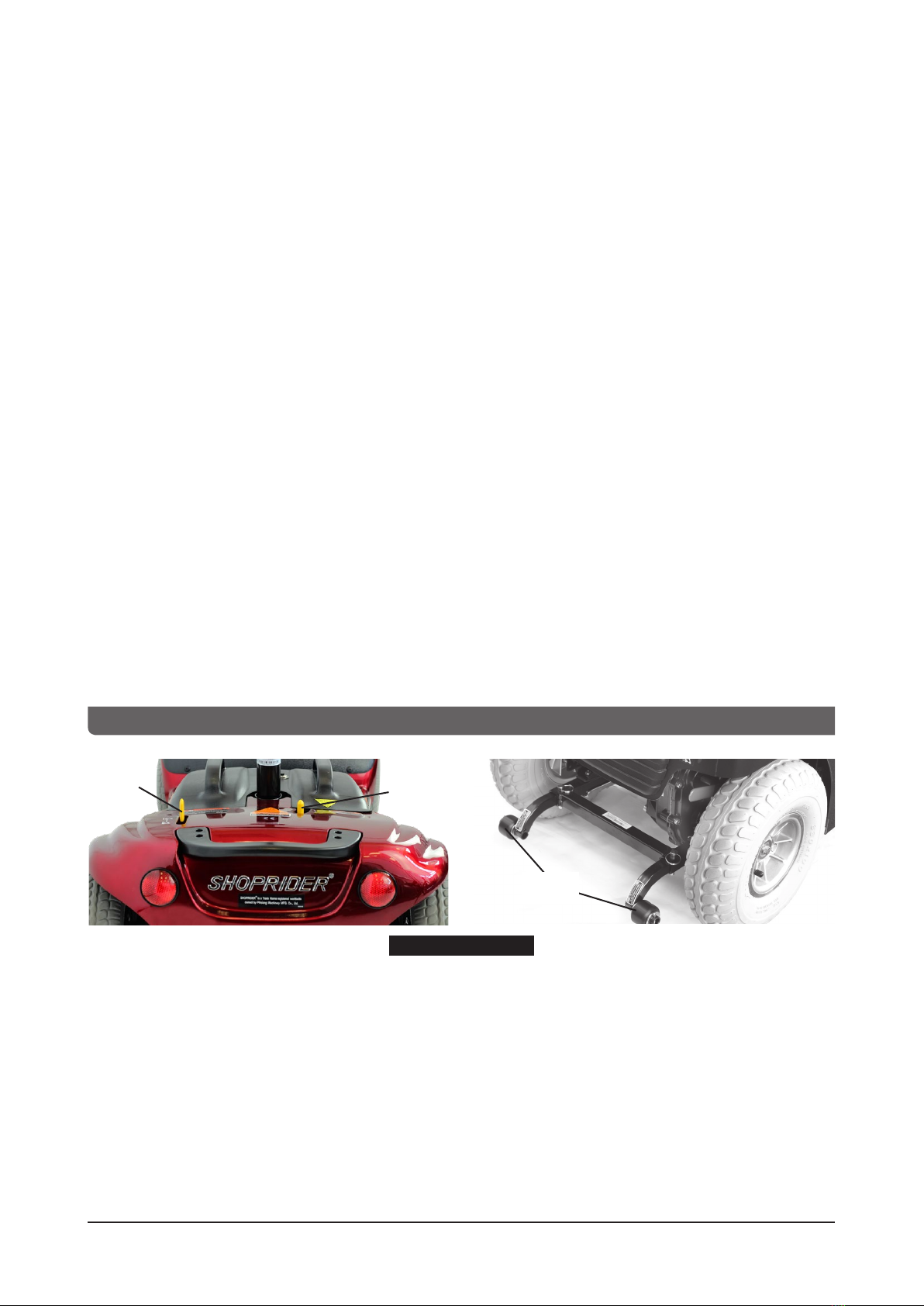

Fig. 8

Anti tip

wheels

Freewheel

lever

Rear section

removal

lever

6Shoprider Scooters User Guide

Anti-tip wheels

The anti-tip wheels are located at the rear of the scooter frame (Fig 8). The scooter should not

be used unless the anti-tipping wheels are in place.

Shoprider® is not responsible for damage or injury incurred due to improper or misuse of the

scooter.

7. STARTING TO DRIVE YOUR SCOOTER

First Time Use

Prior to using your TE-GK9 Portable scooter for the ﬁrst time, you must charge the batteries

fully (refer to Battery Charging Procedures). Charging may take up to 12 hours. Charging the

batteries completely prior to ﬁrst time use will beneﬁt battery efﬁciency. Failure to do so may

cause permanent damage.

Getting Started

• Select a level area with plenty of space.

• Mount the scooter by pushing the arm upward out of the way and sliding onto the seat

or swivel the seat around to mount. Use the arm rest for support if necessary.

• Adjust the tiller and seat as previously described.

Starting Scooter Movement

• Ensure that you are seated in a comfortable position.

• Turn the key to the on position.

• Your speed setting should be on or near the turtle (slow).

• Push your right thumb lever (yellow) and the scooter will move forward slowly. The harder

you push, the faster the scooter goes but will only reach the speed level that has been

selected.

• Release the lever and the scooter will slowly come to a stop as the magnetic brake

automatically engages.

Steering

Steering the scooter is light and easy. When Starting off ensure that you give a wide clearance

when turning so that the rear wheels clear any obstacle that you are passing.

When steering through limited spaces such as a doorway or when turning around, turn the

tiller handles where you want to go and apply power gently. The scooter will turn very tightly,

but will still move with complete stability as long as the speed is not too high.

Reversing

Before reversing ensure that the area behind is free from any hazards or obstructions. Adjust

your speed setting to a low setting before you move in reverse. Push your left thumb lever

(black), and steer wide of all corners and obstacles.

Dismounting

Before dismounting ensure that the key is turned to the off position.

Dismount the scooter by pushing the arm upward out of the way and sliding off the seat or

swivel the seat around to dismount. Use the arm rest for support if necessary.

CAUTION: Please ensure that care is exercised when mounting or dismounting the scooter and

that the tiller and foot rest is not used for support.

Shoprider Scooters User Guide 7

8. EXTRA GUIDELINES IN THE CONTROL OF YOUR SCOOTER

Ramps

The stability of your scooter is governed by several factors such as the seating position, the

angle of the slope and your height and weight. When approaching an incline, do so directly

and not at an angle and where ever possible avoid making turns. When going down a ramp

or slope keep the speed settings to slow. This will ensure there is a safe controlled descent.

When the thumb levers are released the scooter will slowly stop.

Safe Climbing Angle

Always follow the guidelines of the safe climbing angle as shown in ﬁgure 9.

Caution - Do not turn off the control key while the unit is in motion

Grass and Gravel

Please follow the guidelines given previously and your scooter will perform admirably over

many surfaces. Avoid long grass, loose gravel and sand.

NOTE: You should not operate your scooter in wet weather or on wet surfaces. This may cause

the motor to short out or cause other irreversible damage.

NOTE: To preserve battery charge, your scooter may go into sleep mode after being idle for a

few minutes.To remove from sleep mode, turn the key off and back on again.

9. BATTERIES AND BATTERY CHARGING

The Shoprider® TE-GK9 Portable scooter is supplied with maintenance-free, sealed lead acid

batteries. For easy handling, the batteries are contained within a battery pack. Battery life and

performance may be affected by temperature, terrain, condition of battery, the weight of the

user, care of batteries, and other conditions. The battery needle gauge is only a guide and is

most effective when the scooter is moving, only then is the true discharge level displayed.

• When the scooter stops the battery needle gauge may indicate full.

• An active user can use up to 30% of battery capacity or more per day.

• Inactive users may only use 50% of battery capacity in a week.

• In both these instances the battery should be put on charge over night.

**Keeping the batteries charged at all times will extend the life of the batteries**

Battery Charger

The battery charger is a 3-amp transformer type off board. The TE-GK9 Portable scooter has

12º - 70kg

9º - 91kg

6º - 113kg

0º - 136kg

Fig. 9

8Shoprider Scooters User Guide

a built in charger port on the rear side of the battery pack. This special feature allows the

batteries within the battery pack to be charged without the scooter.

First Time Use

Prior to using your TE-GK9 Portable scooter for the ﬁrst time, you must charge the batteries

fully (refer to Battery Charging Procedures). Charging may take up to 12 hours. Charging the

batteries completely prior to ﬁrst time use will beneﬁt battery efﬁciency. Failure to do so may

cause damage.

Charging

To charge the batteries connect the 3-pin male plug lead into the 3-pin female battery

charging socket located on the battery pack. Plug the A/C cord plug into the wall socket

and the other end into the charger (2-pin). The battery charger has two indicator lights. The

red light shows the batteries are charging. When the light turns green while connected to

the charging port the batteries are fully charged. Once the batteries are completely charged,

unplug the A/C cord from the wall then unplug the 3-pin lead from the battery pack. Remove

charger once charging cycle is ﬁnished.

WARNING: Only use the original Shoprider approved charger!

This charger is for indoor use only. DO NOT expose it to rain or water spray.

Do not leave the charger plugged into the charger port if the charger is not charging.

10. TRANSPORT / STORAGE

The TE-GK9 Portable scooter is designed to be quickly and easily disassembled into sections

for transportation and storage. Follow these simple guidelines for disassembly:

TE-GK9 Disassembly (Fig 10 - 13)

1) Remove the front basket: Lift basket up and off. (Fig 10)

2) Fold the seat down and remove: Pull yellow seat lever up and lift seat up and off. (Fig 11)

3) Remove battery pack: Lift battery pack up and off using handle (Note: battery pack may

be removed in 2 parts). (Fig 12)

4) Fold tiller down and lock into place: Loosen tiller adjustment knob, lower tiller, and

tighten adjustment knob. Lock tiller assembly so that it doesn’t swing sideways by pulling

yellow tiller lock lever up and to the right. (Fig 13)

5) Detach rear section from front section: Detach lever is located in the rear of the scooter next

to the freewheel lever. Slide lever to “detach” and separate rear section from front section.

Fig. 10 Fig. 11

Fig. 12

Fig. 13

Rear section

removal lever

Seat release

handle Tiller angle

adjustment Tiller lock

lever

Table des matières

Autres manuels Shoprider Scooter

Shoprider

Shoprider Echo 3 SL7-3 Manuel utilisateur

Shoprider

Shoprider 888SE Explorer Manuel utilisateur

Shoprider

Shoprider Paris GK9 Manuel utilisateur

Shoprider

Shoprider QT3 Manuel utilisateur

Shoprider

Shoprider Traveso 889XLSBN/CAN Manuel utilisateur

Shoprider

Shoprider eclipse 778EL Manuel utilisateur

Shoprider

Shoprider Dasher 9 Manuel utilisateur

Shoprider

Shoprider LITTLE BEAUTY With SUSPENSION Manuel utilisateur

Shoprider

Shoprider Dasher 9 Manuel utilisateur

Shoprider

Shoprider 889-3XLS Manuel utilisateur

Shoprider

Shoprider 889xlsn Manuel utilisateur

Shoprider

Shoprider Recreational Scooter GR889 Manuel utilisateur

Shoprider

Shoprider TE-FS4 Manuel utilisateur

Shoprider

Shoprider Dasher 3 Manuel utilisateur

Shoprider

Shoprider Scootie Manuel utilisateur

Shoprider

Shoprider LITTLE BEAUTY Manuel utilisateur

Shoprider

Shoprider Venturer Manuel utilisateur

Shoprider

Shoprider Mikra TE-7A Manuel utilisateur

Shoprider

Shoprider ROCKY 8 Manuel utilisateur

Shoprider

Shoprider FLAGSHIP TE-889XLSN Manuel utilisateur

Shoprider

Shoprider Solares FS777 Manuel utilisateur

Shoprider

Shoprider mobility scooter Manuel utilisateur

Shoprider

Shoprider TE-787M Manuel utilisateur

Shoprider

Shoprider EZ Chopper S8M Manuel utilisateur

Manuels Scooter populaires d'autres marques

TEKTRO

TEKTRO CHEETAH Manuel utilisateur

Douglas

Douglas Vespa Sprint Guide d'installation

PLAYTIVE

PLAYTIVE AS-2448 Manuel utilisateur

Ebinger

Ebinger DONKEY XL Manuel utilisateur

Flyer

Flyer Mountain Guide de l'utilisateur

BackCountry eBikes

BackCountry eBikes Storm Manuel utilisateur

equipmed

equipmed FreeRoam II Manuel utilisateur

Yoto

Yoto Lion Manuel utilisateur

WESTHILL BIKES

WESTHILL BIKES LINK Manuel utilisateur

BAnff

BAnff eProdigy series Manuel utilisateur

Winther

Winther 475 Manuel utilisateur

Jetson

Jetson JBZL17 Manuel utilisateur

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 Manuel utilisateur

Carrera

Carrera impel Manuel utilisateur

Afikim

Afikim Superlight SL-3 Manuel utilisateur

CareCo

CareCo ZOOM Manuel utilisateur

Douglas

Douglas Vespa G.S. Manuel utilisateur

Gazelle

Gazelle with BOSCH System Manuel utilisateur
