Shoprider QT3 Manuel utilisateur

QT3 QT4

GK9

GK10

OWNERS MANUAL

MODELS

RELIABLE MOBILITY GUARANTEED

www.shoprider.com.au

Introduction

Congratulations on the purchase of your SHOPRIDER®scooter

SHOPRIDER® owners are a distinguished, growing group of people who care

about quality, performance and FUDIWVPDQVKLS%HFDXVHRIWKH³7UDQVD[OH´

engineering SHOPRIDER® scooters are able to navigate a multitude of terrains

with comfort and stability other conventional scooters can not provide.

With careful reading of this manual and not exceeding the parameters set down

in this manual you can ensure that your SHOPRIDER ® scooter will give you

years of trouble free service and enjoyment.

Please ensure that you read this manual carefully, it is important for your safety

that you understand the guidelines and instructions given.

This User manual contains the operating instructions for a number of different

SHOPRIDER® scooters ³3OHDVHORFDWHWKHVFRRWHUZKLFKUHSUHVHQWVWKHPRGHO

SXUFKDVHG´

Please complete the information below for future reference:

ATTENTION:

This owner's manual is printed based on the latest specifications and product

information available at the time of publication. SHOPRIDER® reserves the

right to make changes as they become necessary. Any changes to the

SHOPRIDER® range may cause slight variations between the illustrations and

explanations in this manual and the scooter model that was purchased. Where

possible a newer version of this manual may be available on our website.

www.shoprider.com.au

SHOPRIDER Selling Dealer - __________________________________

Scooter Model Number - __________________________________

Scooter Serial Number - __________________________________

Date of Purchase - __________________________________

Safety Rules

Please use your SHOPRIDER® scooter often and let it expand your horizons.

The more mobility your SHOPRIDER brings the happier we will be! But as

with all things, observing a few rules will ensure safe scootering. So please take

the time to read and fully understand each rule below.

Do not ride the SHOPRIDER® scooter without reading this instruction manual.

Do not exceed the safe maximum climbing angle of the scooter.

Do not exceed the maximum user weight at anytime. (Refer Appendix 1)

Failure to observe these limits may cause personal injury and invalidate

your scooter warranty.

Do not mount or dismount the scooter when turned on. Always ensure the

key is switched to the off position.

Do not operate or sit on the scooter if the unit is in Free wheel mode.

Do not drive in reverse unless the speed governing dial is set to Low.

Do not turn suddenly at full speed.

Do not drive your scooter where you can not safely or legally walk.

Do not drive your scooter unless the seat is locked in the driving position.

Do not ride the scooter over deep, soft terrain.(e.g. soft dirt, deep grass, loose gravel)

Do not drink alcohol and then operate the scooter.

Do not use a mobile phone when operating the scooter.

Always keep you feet on the scooter platform when moving.

Do not attempt to drive over curbs that exceed the safe climbing angle for

your model of scooter.

Always approach curbs at a 90 degree angle at a slow speed.

Always stop fully before changing direction. (forward & reverse)

Always proceed carefully while riding, especially as you approach the

downgrade of a ramp or hill.

Always proceed carefully while driving on rough or uneven surfaces.

Always consult your physician if in any doubt about your ability to operate

the scooter safely.

If equipped Never remove the scooters Anti-Tip wheels.

Do not use an escalator to move a scooter between floors ±Serious injury

could occur.

Do not use any parts or accessories that are not supplied by Shoprider®.

SHOPRIDER® Doesn't recommend that the scooter users be

transported in a vehicle WHILE they are on the scooter.

Do not use the scooter in the rain. If caught out in a rain shower as soon as

possible return the scooter to a dry area and wipe any excess moisture off

the scooter.

Do not drive the scooter through puddles.

Do not wash the scooter with a hose if the scooter requires a clean use a

damp soft cloth only.

Always ensure the correct pressure is maintained in the tyres on the scooter.

Failure to do so may result in unstable handling of the scooter and reduced

driving distance.

DISCLAIMER

SHOPRIDER® is not responsible for any damage or injury incurred due to

improper or unsafe use of the SHOPRIDER® scooter. Mechanical or

electrical defects will be dealt with on a contingency liability basis. The parts

will be replaced but no responsibility for any damage or injury can be implied

to SHOPRIDER®.

EMI Warning

SHOPRIDER® scooters as with all electric braked scooters may be susceptible

to electromagnetic interference (EMI), which is a kind of interfering

electromagnetic energy (EM) emitted from sources such as radio stations, TV

stations, amateur radio(HAM) transmitters, two-way radio, and cellular phones.

The interference (from radio wave sources) can cause the scooter

to release its brakes, move by itself, or move in unintended directions. (Forward

or Reverse) It can also permanently damage the scooter's control system but this

would likely be at levels exceeding the Australian standard.

The intensity of the interfering EMI energy can be measured in volts per meter

(V/M). Each SHOPRIDER® scooter can resist up to a certain intensity. This is

FDOOHG³LPPXQLW\OHYHO´WKHKLJKHUWKHLPPXQLW\WKHJUHDWHUWKHSURWHFWLRQ$W

this time current technology is capable of achieving 20V/M immunity level

which will provide useful protection from the more common sources of radiated

EMI.

The sources of radiated EMI can be broadly classified into three types:

1. Hand-held portable transceivers (transmitters-receivers) with the antenna

mounted directly on the transmitting unit. Examples include: citizens band (CB)

UDGLRV³ZDONLHWDONLH´VHFXULW\ILUHDQGSROLFHWUDQVFHLYHUVFHOOXODUWHOHSKRQHV

and other personal communication devices.

NOTE! Some cellular telephones and similar devices transmit signals while

they are ON, even when not

being used.

2. Medium-range mobile transceivers, such as those used in police cars, fire

trucks, ambulances, and taxis. These usually have the antenna mounted on the

outside of the vehicle.

3. Long-range transmitters and transceivers, such as commercial broadcast

transmitters (radio and TV broadcast antenna towers) and amateur (HAM)

radios.

NOTE! Other types of hand-held devices, such as cordless phones, laptop

computers, AM/FM radios, TV sets, CD players, and cassette players, and

small appliances, such as electric shavers and hair dryers, so far as we now,

are not likely to cause problems to the scooter.

EMI Warning(Continued)

Scooter Electromagnetic Interference (EMI)

Because EM energy rapidly becomes more intense as one moves closer to the

transmitting antenna (source), the EM fields from hand-held radio sources

(transceivers) are of special concern. It is possible to unintentionally bring high

levels of EM energy very close to the scooter's control system while using these

devices.

This can affect scooter movement and raking. Therefore, the warnings listed

below are recommended to prevent possible interference with the control system

of the scooter.

WARNINGS

1. Do not operate hand-held transceivers (transmitters-receivers), such as

citizens band (CB) radios, or turn ON personal communication devices,

such as cellular phones, while the scooter is turned ON.

2. Be aware of nearby transmitters, such as radio or TV stations, and try to

avoid coming close to them.

3. If unintended movement or brake release occurs, turn the scooter OFF as

soon as it is safe.

4. Be aware that adding accessories or components, or modifying the scooter

may make it more susceptible.

Report all incidents of unintended movement or braking to your

Shoprider® provider, and note whether there are sources of EMI nearby. If

your scooter does unexpectedly stop then turn the key off, Wait for a few

seconds and turn the key back on.

WARNING: Shoprider® Mobility Products is not responsible for damage or

injury incurred due to improper and

unsafe use of our scooter.

Scooter Tiller Controls

Speed Control Dial

The speed control dial allow the scooter to set the speed between 1 (minimum)

and 10 (maximum).

Battery Level Indicator

There are two types of battery level indicators available on the models in this

manual please refer to the indicator like the model you have.

Dial Gauge

If your scooter has a battery indicator dial gauge fitted and when fully charged

the red pointer will indicate in the green section ³)´.

As the charge in the scooter batteries diminishes the battery indicator gauge

pointer will move further down the green section.

When the pointer reaches the Yellow section of the gauge the scooter batteries

will need a full charge as soon as possible. If the battery indicator gauge reaches

the red section of the dial the scooter needs urgent charging.

Led Gauge

If your scooter has a LED battery gauge fitted it has 8 LED light bars which

indicate the amount of charge remaining in the batteries for the scooter. As the

charge diminishes the LED light will move to the next brightest LED light (from

left to right). When the LED light bars move to the last light and start flashing

the batteries are in critical need of charging.

Caution ±Do Not Allow the LED bars to go out completely as complete

discharge of the batteries could cause critical damage to the batteries and

scooter electrics.

Lights (where fitted )

A blue coloured button on the tiller operates the lights on the scooter.

Horn

A yellow coloured button on the tiller operates the horn.

Thumb/Finger Lever Control (Wig Wag)

The thumb/finger lever control known as the Wig Wag controls the forward and

reverse movement of the scooter. There is a sticker on the tiller to indicate the

direction that scooter will travel when the Wig Wag is depressed or pulled. The

amount of pressure applied to each lever will determine the speed the scooter

will travel. Release the lever and the scooter will slowly come to a stop and the

electromagnetic brake will be applied.

Scooter Tiller Controls ( Continued )

On/Off Key Switch

Insert the key in to the key barrel on the tiller. Turn the key and the Battery

indicator gauge pointer will move to the green or LED light bars light up. There

will be a short delay before the thumb/finger lever can be operated, while the

controller is

checking the circuits.

Indicator Switch (where fitted)

Operates the turn indicators on the scooter.

Hazard Warning Switch (where fitted)

A red button operates all the indicators on the scooter at one time.

Electromagnetic Brake

All Shoprider® scooters have Electromagnetic brakes fitted. The brake is

automatically operated when the control levers (Wig Wag) are released. There is

a very slight delay when the scooter decelerates ±This allows the scooter to

come to a smooth stop.

Free Wheel Operation

The free wheel release lever (this may be red or yellow depending on the model

of the scooter) is located inside the Right or Left rear wheel.

To disengage the motor, move the lever in the opposite direction ±The scooter

can now be pushed.

To re-engage the motor return the lever to the original location ±The scooter

should now be unable to be pushed.

WARNING!

Always re-engage the Free Wheeling device after use. Failure to do so may

result in Injury.

Do not release the free wheel lever on any incline.

Anti-Tip Wheels

The anti-tip wheels are located at the rear of the scooter frame. The anti-tip

wheels are removable on some models. The scooter should not be used unless

the ant-tips are fitted.

Shoprider® is not responsible for the damage or injury due to improper or

misuse of the scooter.

Operating Your Shoprider® Scooter

Mounting the Scooter

For your first lesson be sure you and your Shoprider® are on a level surface

with plenty of room to test drive the scooter (ensure the key is not in the scooter)

Mount the scooter, either by lifting the armrest and sliding on to the seat or

rotate the seat by lifting seat swivel lever and then rotate to face the tiller.

Make sure the seat locks in place.

Adjust the seat so you are comfortable and are able to easily reach the

steering tiller.

Adjust the tiller.

Ensure you have both hands free and any items such as walking canes are

stored in the optional cane/crutch holder (see the dealer if you require one

of these optional items).

Starting Scooter Movement

Insert the Key in to the slot and turn it to the ON position

The speed setting should be set to 1 or 2 setting.

Pull the right hand finger lever (Wig Wag) the scooter will move slowly

forward. The further you pull/ push the faster the scooter goes but will only

reach the speed level that has been selected.

To STOP release the lever and the scooter will slowly come to a stop and

the magnetic brake will be applied.

Steering

Steering the scooter is light and easy. Ensure when starting off you give a wide

clearance when turning so that the rear wheels clear any obstacle that you are

passing. When steering through limited spaces such as a doorway or when

turning around, turn the tiller handles where you want to go and then apply

power gently. The scooter will turn very tightly, but will still move with

complete stability as long as the speed is not too high.

Do not turn sharply at high speed

Reversing

Before reversing ensure that the area behind is free from any hazards or

obstructions. Adjust your speed setting to a low setting before you reverse.

Pull/press the left thumb/finger lever (Wig Wag), and steer wide of all corners

and obstacles.

Remember that when reversing you have to steer in the opposite direction to the

way you want to go. Take your time when reversing to ensure you do not run it

to any objects.

Please note your scooter will always travel slower in reverse and has a slight

delay before moving, this is due to safety measures built into the scooters

electric system.

Maximum User Weight & Incline Angle (continued)

WARNING: Exceeding user weight or incline specifications may damage your

scooter & void your warranty.

WARNING: If fitted Never remove the anti-tip wheels from the scooter.

CAUTION: When on any incline or decline never place the scooter in free

wheel mode.

CAUTION: When driving on an incline never Zigzag or drive at an angle up

the incline. Always drive your scooter straight up the incline. This will reduce

the possibility of the scooter tipping.

CAUTION: Do not drive your Shoprider® across the side of an incline Do not

stop if possible while driving up or down an incline. Use 7-10 setting on your

speed dial when going up an incline and 1-4 when going down the incline.

WARNING: You should not travel up or down a potentially hazardous incline

(i.e., areas covered with snow, ice, cut grass, or wet leaves).

WARNING: Shoprider® scooters are capable of climbing slopes greater than

those indicated below, do not under any circumstances, exceed the incline

guidelines or any other specifications presented in this manual. Doing so could

cause instability in your scooter and or cause future problems with the electrical

systems on the scooter.

Batteries & Battery Chargers

All Shoprider® scooters require two maintenance free, sealed lead acid batteries

or gel batteries. Please note that if you scooter is fitted with a removable battery

pack/ packs your batteries are inside these packs. Battery performance can be

affected by temperature, terrain, condition of battery, the weight of the user, etc.

The battery level indicator/gauge is only a guide and is most effective when the

scooter is being driven, only then is the true battery discharge level displayed.

Batteries life is not specific due to a number of reasons however Shoprider®

encourages that the scooter be placed on charge every night. This should give

optimum battery life and performance.

Battery Charger

Batteries required for your scooter are specially designed. All Shoprider®

scooters require a Shoprider® automatic battery charger. These chargers have

an electronic switch that will terminate the charge when the batteries are fully

charged. It is very important that you do not run the batteries completely flat this

will impact on the battery life, performance and may damage the scooters

electrics.

Shoprider® recommends that only Genuine Shoprider® Chargers be used to

recharge the batteries in your scooter.

Please contact your authorised Shoprider® provider for assistance.

Batteries & Battery Chargers

Charging

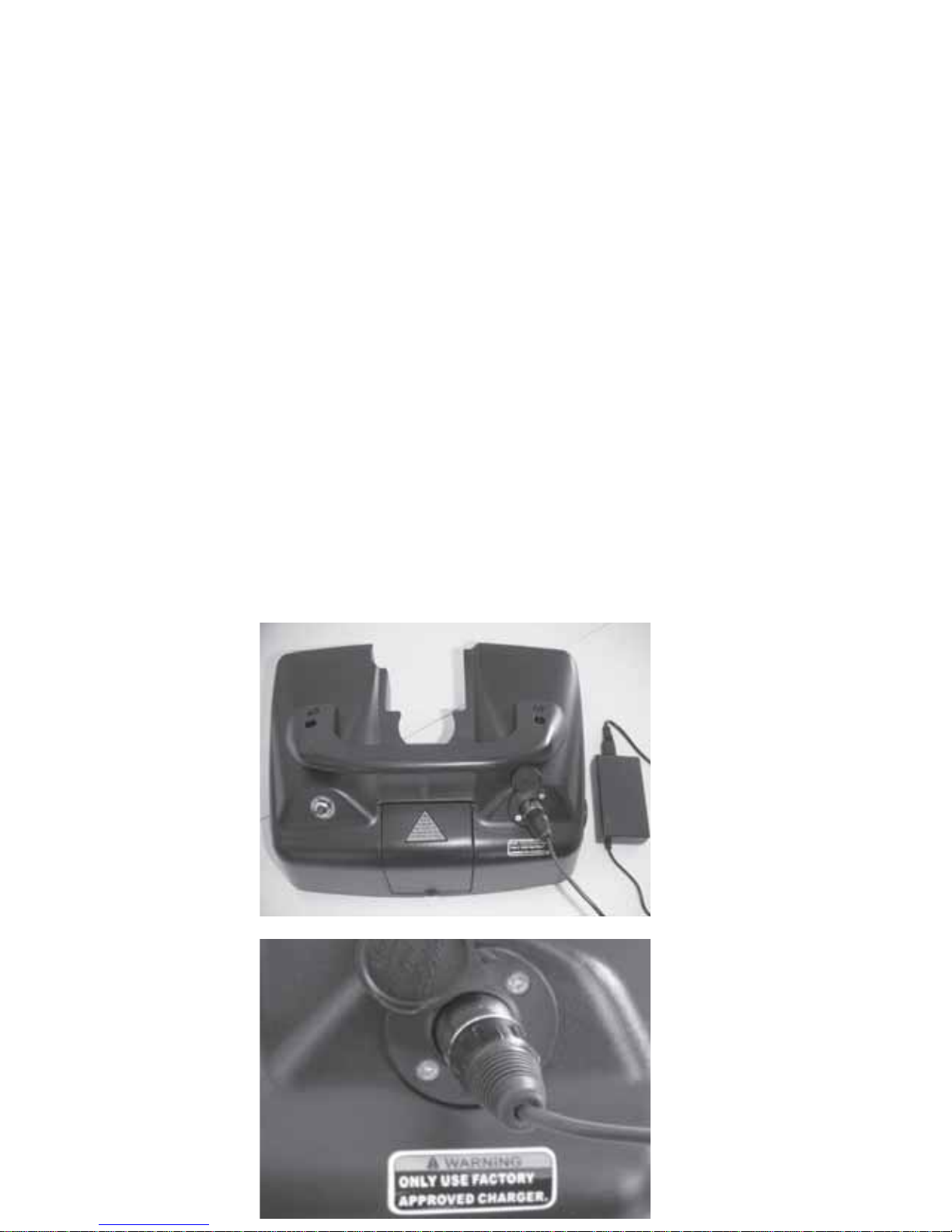

The battery pack can be charged as an independent unit. It does not have to be

connected to the scooter (See Diagram below)

If your scooter has the round battery charge level indicator it will be in the RED

section when the battery is very low. If your scooter has the 8 light LED charge

level indicator it will require urgent recharging when the last LED starts flashing

QT3 / QT4

Place the MALE socket of the battery charger into the female socket on the

battery pack taking care to ensure that the pins line up correctly.

Plug your charger into the wall and turn the power on. The charger light will

glow RED indicating the batteries are NOT fully charged. When the batteries

have reached their capacity the charger light will glow GREEN.

If you turn your Q.T. Scooter on while the battery charger is still operating a

beeping alarm will sound to advise you to turn off and disengage the charger.

Autres manuels pour QT3

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Shoprider Scooter

Shoprider

Shoprider GK10 Manuel utilisateur

Shoprider

Shoprider TE-FS4 Manuel utilisateur

Shoprider

Shoprider TE-GK9 Manuel utilisateur

Shoprider

Shoprider 889SLBF Manuel utilisateur

Shoprider

Shoprider Echo 3 SL7-3 Manuel utilisateur

Shoprider

Shoprider SPRINTER XL4 Manuel utilisateur

Shoprider

Shoprider SUNRUNNER 3 888B-3 Manuel utilisateur

Shoprider

Shoprider QT3 Manuel utilisateur

Shoprider

Shoprider ROCKY 8 Manuel utilisateur

Shoprider

Shoprider Scootie TE-787NA Manuel utilisateur

Shoprider

Shoprider Mobility Manuel utilisateur

Shoprider

Shoprider (888-3L) Manuel utilisateur

Shoprider

Shoprider TE-889NRS Manuel utilisateur

Shoprider

Shoprider Mikra TE-7A Manuel utilisateur

Shoprider

Shoprider LITTLE BEAUTY Manuel utilisateur

Shoprider

Shoprider Traveso 889XLSBN/CAN Manuel utilisateur

Shoprider

Shoprider FS777 GETABOUT Manuel utilisateur

Shoprider

Shoprider S-889NR Manuel utilisateur

Shoprider

Shoprider Altea SL7-3 Manuel utilisateur

Shoprider

Shoprider Cadiz S-889SL Manuel utilisateur

Shoprider

Shoprider Capri S787M Manuel utilisateur

Shoprider

Shoprider Cordoba 889XLSBN Manuel utilisateur

Shoprider

Shoprider Solares FS777 Manuel utilisateur

Shoprider

Shoprider GK4 Manuel utilisateur

Manuels Scooter populaires d'autres marques

TEKTRO

TEKTRO CHEETAH Manuel utilisateur

Douglas

Douglas Vespa Sprint Guide d'installation

PLAYTIVE

PLAYTIVE AS-2448 Manuel utilisateur

Ebinger

Ebinger DONKEY XL Manuel utilisateur

Flyer

Flyer Mountain Guide de l'utilisateur

BackCountry eBikes

BackCountry eBikes Storm Manuel utilisateur

equipmed

equipmed FreeRoam II Manuel utilisateur

Yoto

Yoto Lion Manuel utilisateur

WESTHILL BIKES

WESTHILL BIKES LINK Manuel utilisateur

BAnff

BAnff eProdigy series Manuel utilisateur

Winther

Winther 475 Manuel utilisateur

Jetson

Jetson JBZL17 Manuel utilisateur

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 Manuel utilisateur

Carrera

Carrera impel Manuel utilisateur

Afikim

Afikim Superlight SL-3 Manuel utilisateur

CareCo

CareCo ZOOM Manuel utilisateur

Douglas

Douglas Vespa G.S. Manuel utilisateur

Gazelle

Gazelle with BOSCH System Manuel utilisateur
