Shoprider TE-787M Manuel utilisateur

8/12/2004 1

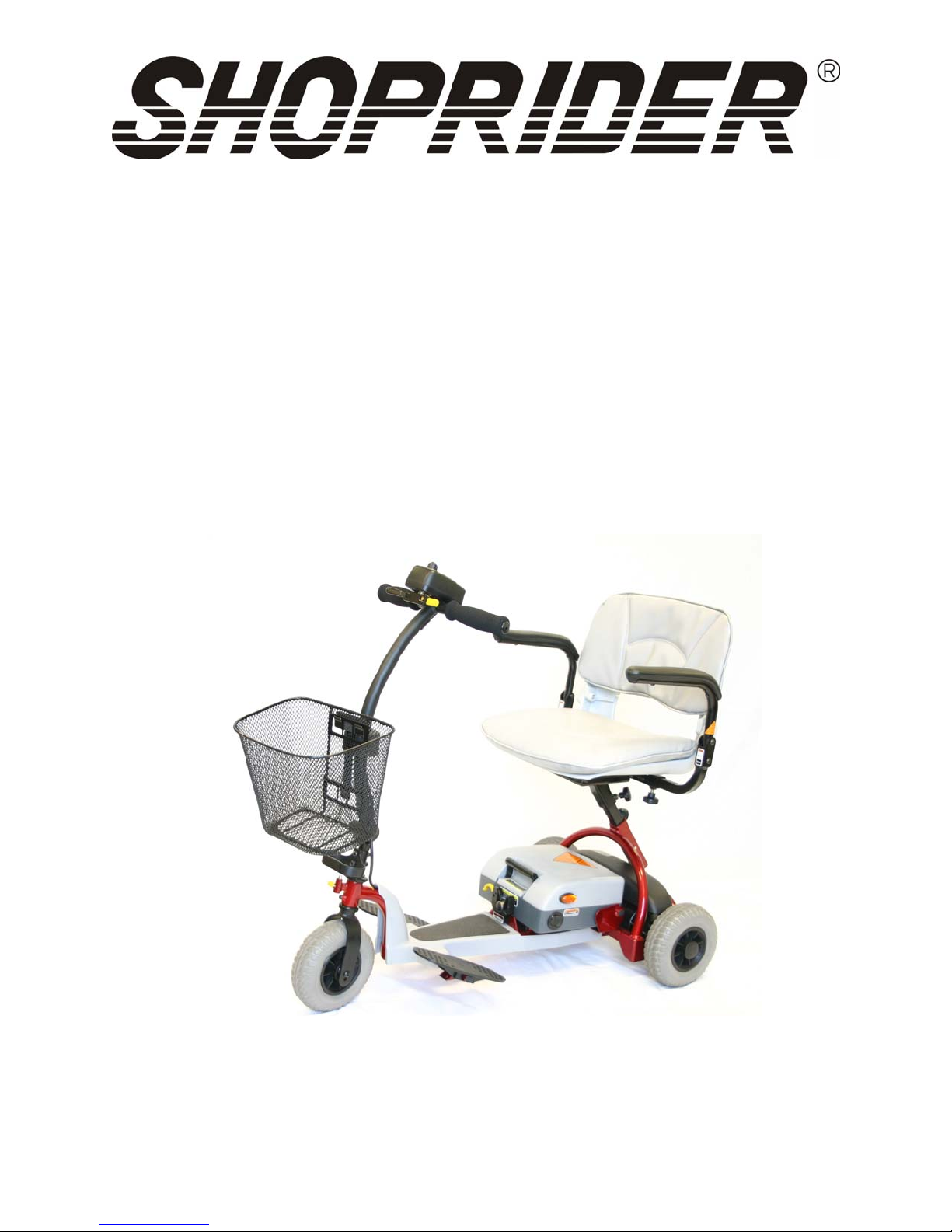

Scootie Jr.

Portable Scooter

Model: TE-787M

User Manual

8/12/2004 2

Table of Contents

INTRODUCTION………………………………………………………………………3

FEATURE GUIDE……………………………………………………………………..3

SAFETY ADVICE……………………………………………………………………...4

EMI WARNING………………………………………………………………………...5

WARNINGS…………………………………………………………………………….6

ADJUSTMENTS………………………………………………………………………..7

SCOOTER TILLER CONTROLS……………………………………………………..9

DRIVE/FREEWHEEL OPERATION…………………………………………………10

STARTING TO DRIVE YOUR SCOOTER………………………………………….11

EXTRA GUIDELINES IN THE CONTROL OF YOUR SCOOTER……………….12

TRANSPORT/STORAGE……………………………………………………………..13

BATTERIES AND BATTERY CHARGING………………………………………….14

MAINTENANCE………………………………………………………………………..15

TROUBLESHOOTING GUIDE……………………………………………………….15

TECHNICAL SPECIFICATIONS……………………………………………………..16

QUARTERLY INSPECTION………………………………………………………….17

WARRANTY…………………………………………………………………………….18

DISCLAIMER…………………………………………………………………………...18

8/12/2004 3

INTRODUCTION

Congratulations on your purchase of the Shoprider® Scootie Jr. Portable scooter. The

Scootie Jr. is the ultimate combination of style, comfort and portability. The Scootie Jr.

Portable scooter is super light and compact, and can be stored in small areas such as

the trunk or back seat of your car. The Scootie Jr. Portable scooter goes with you

wherever you go and can be assembled or disassembled in 15 seconds. The compact

features support easy transportation of your Scootie Jr. for today’s active lifestyle. The

Scootie Jr. Portable scooter can be used in confined spaces both indoors and out.

Direct drive transaxles and electromagnetic brakes give a safe and efficient ride. We

know that it will provide many years of mobility for you.

Please ensure that you read this manual carefully, it is important for your safety

that you understand the guidelines and instructions given.

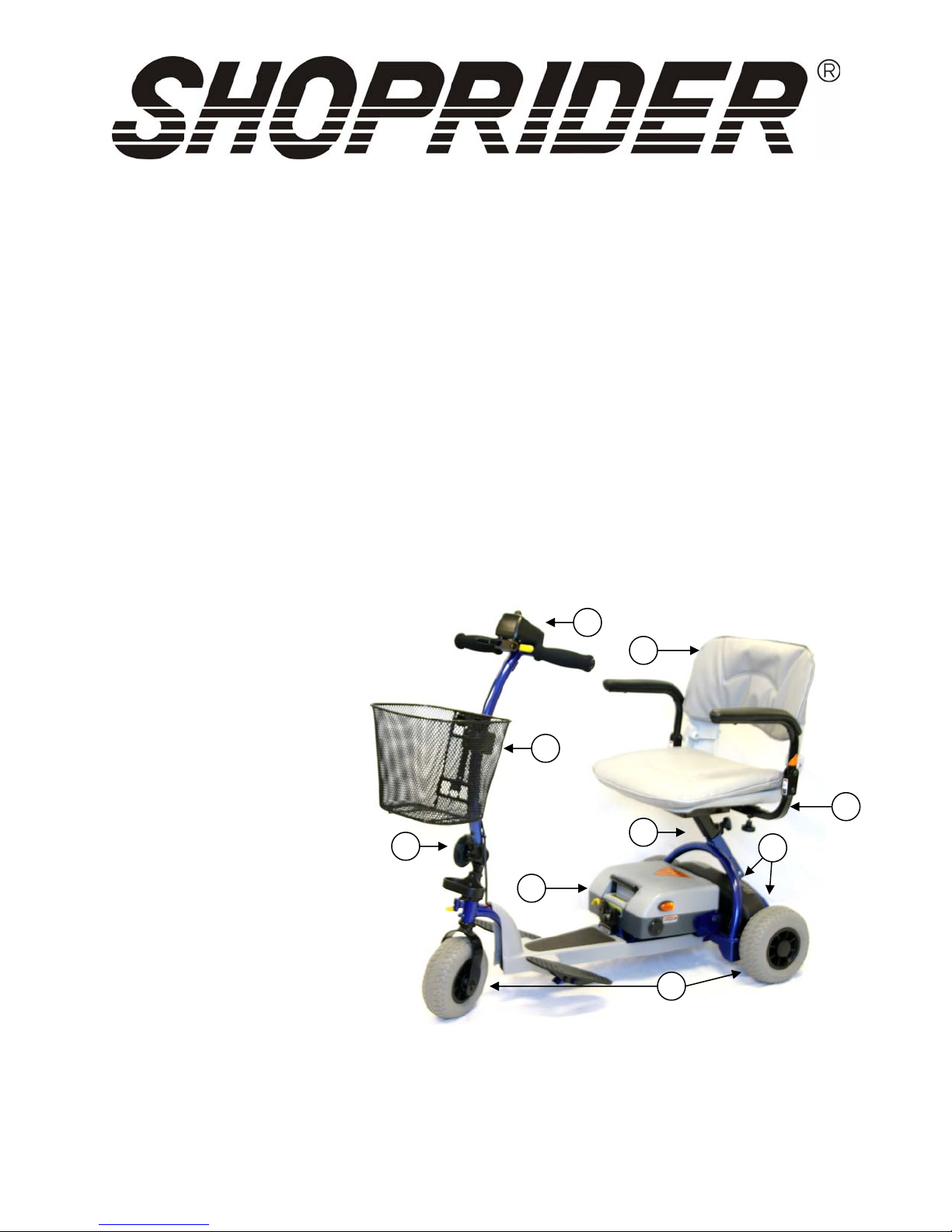

FEATURE GUIDE (Fig 1)

1. Tiller control head

2. Detachable seat with

fold down back

3. Removable arm rests

4. Detachable basket

5. Detachable battery pack

6. Tiller release knob

7. Seat height adjustment

8. Puncture proof tires

9. Anti-tip wheels

Figure 1

8/12/2004 4

SAFETY ADVICE

•DO NOT carry passengers.

•DO NOT exceed inclines over 8 degrees (14% grade).

•DO NOT turn on steep inclines.

•DO NOT turn suddenly at high speeds.

•DO NOT get on or off the scooter unless the brake is on and the scooter is switched

off.

•DO NOT switch off the scooter while the scooter is moving.

•DO NOT drive the scooter where you can not safely or legally walk.

•DO NOT attempt to drive over curbs greater than 2 inches in height. Doing so could

cause your scooter to turn over, causing injury or damage to the scooter.

•DO NOT drink or use a mobile phone when driving your scooter.

•DO NOT exceed the suggested user weight limit. Doing so, could cause personal

injury and invalidate the warranty.

•ALWAYS keep your feet on the scooter when moving.

•Consult your doctor if there is any doubt about your ability to use a scooter safely.

•ALWAYS slow down and proceed carefully when traveling over rough or uneven

ground.

•For individuals with balance problems practice getting on the scooter with assistance

of a qualified healthcare professional.

•DO NOT operate the scooter without anti-tip wheels installed.

•DO NOT use an escalator to move a scooter between floors. Serious injury could

occur.

•DO NOT drive the scooter on an incline that has oil, water or ice film on it.

•DO NOT try to lift the scooter by its seat, tiller, or any removable parts. Any of these

could cause injury to the user or damage to the scooter.

•DO NOT use parts or accessories that are not authorized by Shoprider®.

•Before sitting in or exiting the scooter, REMOVE the key from the ignition. This will

insure the POWER is off and the scooter can not move under its own power.

•As a general precaution, always remove the key from the ignition while the scooter is

not in use. This will prevent use by untrained and unauthorized persons.

•DO NOT connect any medical device to the scooter battery. This could cause failure

of the device, the scooter and personal injury.

•Make sure the tiller is properly adjusted to the user or damage and injury could result.

•DO NOT transport in a vehicle WHILE seated on the scooter. Shoprider® will not be

responsible for any injury or damage that might result.

•DO NOT use the scooter in the rain or near any other water source where the scooter

may get wet. Direct exposure to rain or dampness could cause damage to the scooter

electrical components.

•For maximum battery life, make sure to fully charge batteries for up to 8 hours prior to

first use.

8/12/2004 5

EMI WARNING

Shoprider® scooters may be susceptible to electromagnetic interference (EMI), which is

a kind of interfering electromagnetic energy (EM) emitted from sources such as radio

stations, TV stations, amateur radio (HAM) transmitters, two-way radio, and cellular

phones. The interference (from radio wave sources) can cause the scooter to release

its brakes, move by itself, or move in unintended directions. It can also permanently

damage the scooter’s control system.

The sources of radiated EMI can be broadly classified into three types:

1. Hand-held portable transceivers (transmitters-receivers) with the antenna mounted

directly on the transmitting unit. Examples include: citizens band (CB) radios,

“walkie talkie”, security, fire and police transceivers, cellular telephones, and other

personal communication devices.

NOTE! Some cellular telephones and similar devices transmit signals while they

are ON, even when not being used.

2. Medium-range mobile transceivers, such as those used in police cars, fire trucks,

ambulances, and taxis. These usually have the antenna mounted on the outside of

the vehicle.

3. Long-range transmitters and transceivers, such as commercial broadcast

transmitters (radio and TV broadcast antenna towers) and amateur (HAM) radios.

NOTE! Other types of hand-held devices, such as cordless phones, laptop

computers, AM/FM radios, TV sets, CD players, and cassette players, and small

appliances, such as electric shavers and hair dryers, so far as we know, are not

likely to cause problems to the scooter.

Scooter Electromagnetic Interference (EMI)

Because EM energy rapidly becomes more intense as one moves closer to the

transmitting antenna (source), the EM fields from hand-held radio sources (transceivers)

are of special concern. It is possible to unintentionally bring high levels of EM energy

very close to the scooter’s control system while using these devices. This can affect

scooter movement and braking. Therefore, the warnings listed below are

recommended to prevent possible interference with the control system of the scooter.

8/12/2004 6

WARNINGS

1. Do not operate hand-held transceivers (transmitters-receivers), such as citizens

band (CB) radios, or turn ON personal communication devices, such as cellular

phones, while the scooter is turned ON.

2. Be aware of nearby transmitters, such as radio or TV stations, and try to avoid

coming close to them.

3. If unintended movement or brake release occurs, turn the scooter OFF as soon as it

is safe.

4. Be aware that adding accessories or components, or modifying the scooter may

make it more susceptible to EMI.

NOTE! There is no easy way to evaluate the overall immunity of the scooter.

5. Report all incidents of unintended movement or braking to your Shoprider® provider,

and note whether there are sources of EMI nearby.

WARNING! Shoprider® is not responsible for damage or injury incurred due to

improper and unsafe use of our scooter.

8/12/2004 7

ADJUSTMENTS

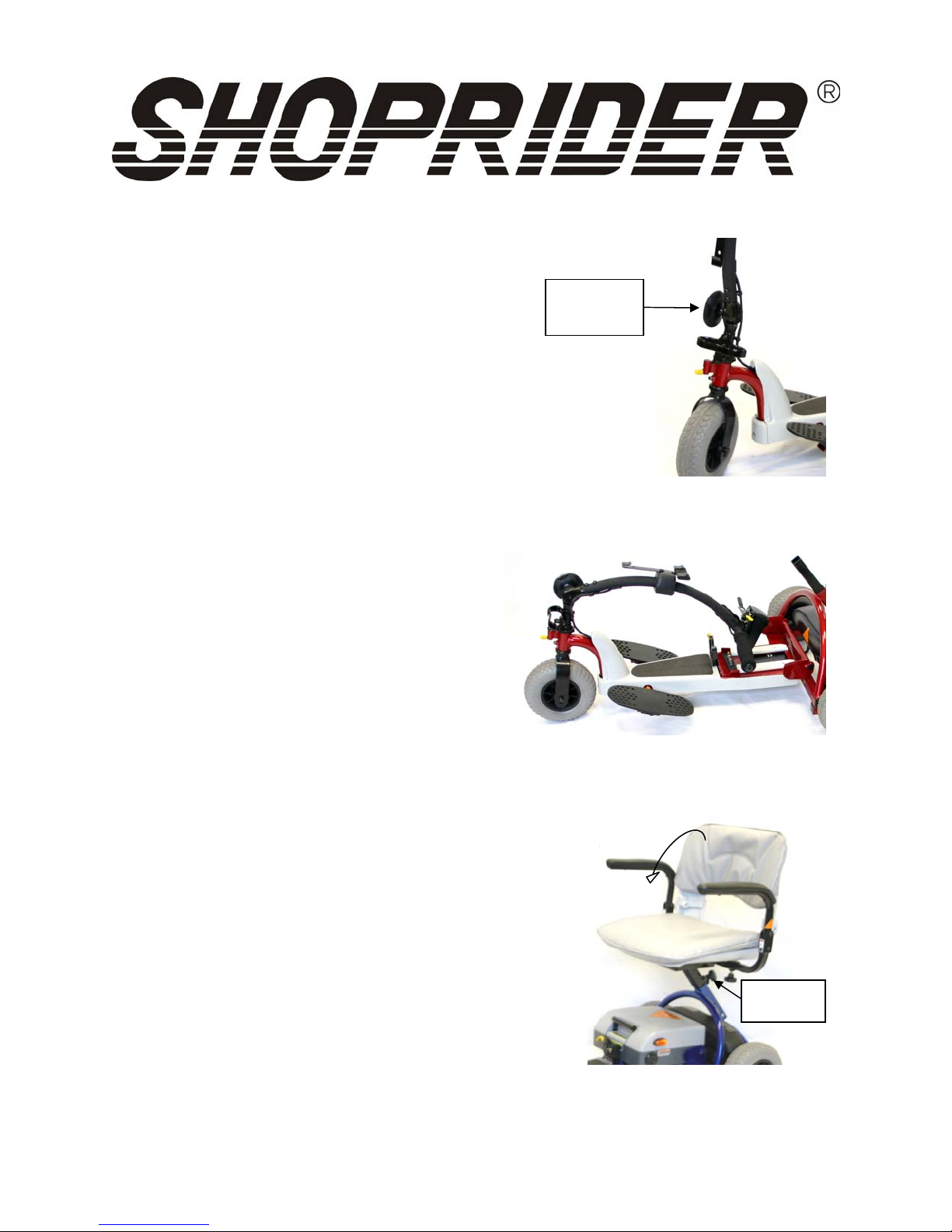

Tiller Angle Adjustment (Fig 2)

At the base of the tiller is a round knob. Turn the

knob counterclockwise to loosen the tiller and

select the desired tiller angle. Turn the knob

clockwise to securely lock the tiller into place.

Folding the Tiller (Fig 3)

Fold down the tiller by loosening the tiller

angle adjustment knob located at the base of

the tiller (fig 2). Tighten knob to lock tiller in

place.

Seat Removal (Fig 4)

Fold down the back of the seat. Turn the seat hand

knob under the base of the seat counterclockwise to

loosen. Lift the seat off the seat post.

Figure 2

Tiller Angle

Adjustment

Knob

Figure 3

Seat Hand

Knob

Figure 4

8/12/2004 8

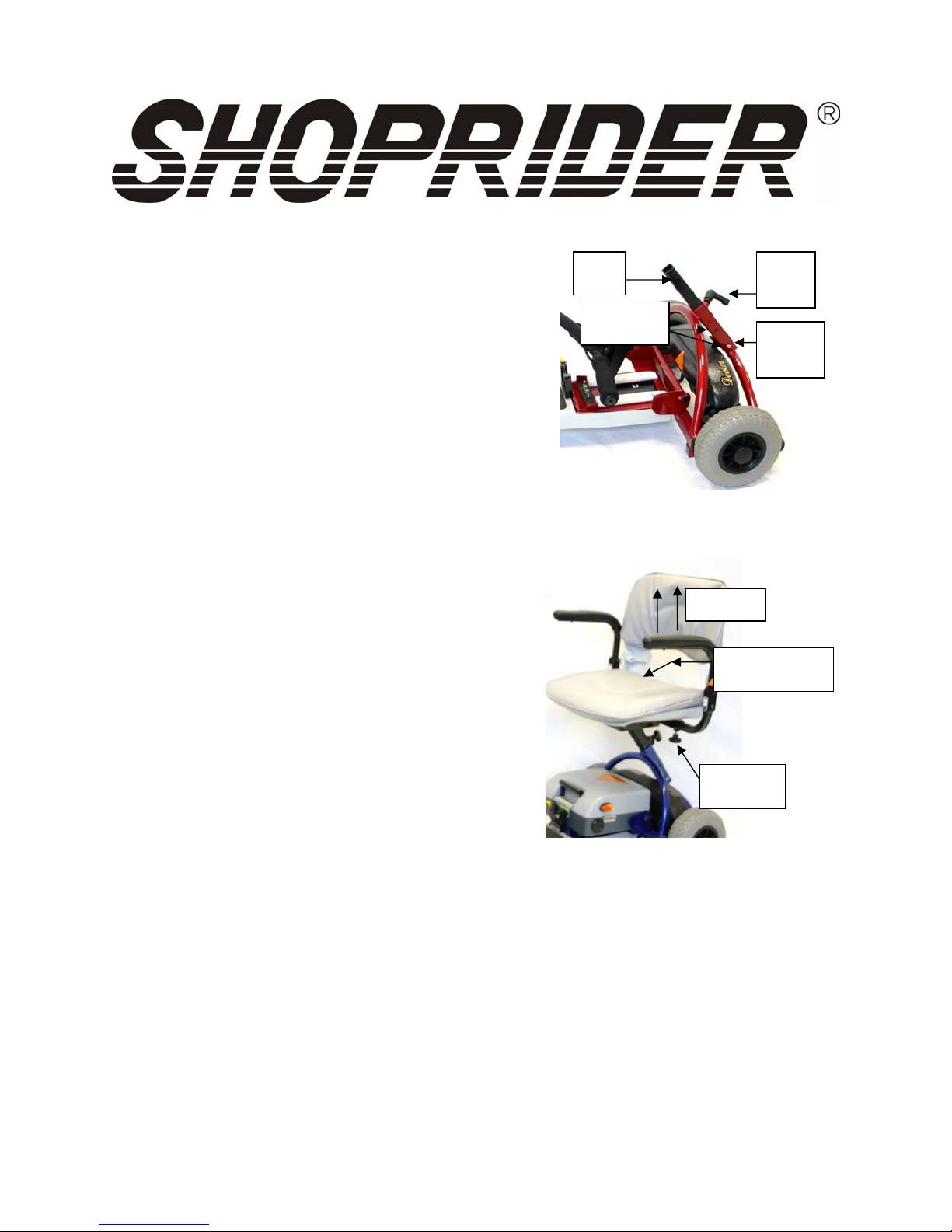

Seat Height Adjustment (Fig 5)

Remove seat as described (fig 4). Loosen the lower

hand knob and remove seat post. The seat height

can be adjusted to two different settings by inserting

the steel locking pin in the desired hole. Replace

the seat post, tighten the lower hand knob and

replace the seat. Tighten the seat knob.

Armrest Width Adjustments (Fig 6)

On the underside back of the seat there are two

arm rest hand knobs, one on each side. Turn

hand knobs counterclockwise to loosen.

Loosening the arm rest hand knob allows the

armrest width to be adjusted or arm rest to be

removed. Once the desired positions of the arm

rests are set, tighten the hand knobs by turning

clockwise to lock the arm rests into place.

Armrest Adjustments (Fig 6)

The arm rests are hinged at the bottom and can

be pushed down and out of the way for sideways

transfer. Pull arm rest up the push arm rest

forward and down.

Lower

Hand

Knob

Steel

Locking

Figure 5

Seat

Post

Adjustment

Holes

Figure 6

Arm Rest

Hand Knob

1) Pull Up

2) Push Forward

& Down

8/12/2004 9

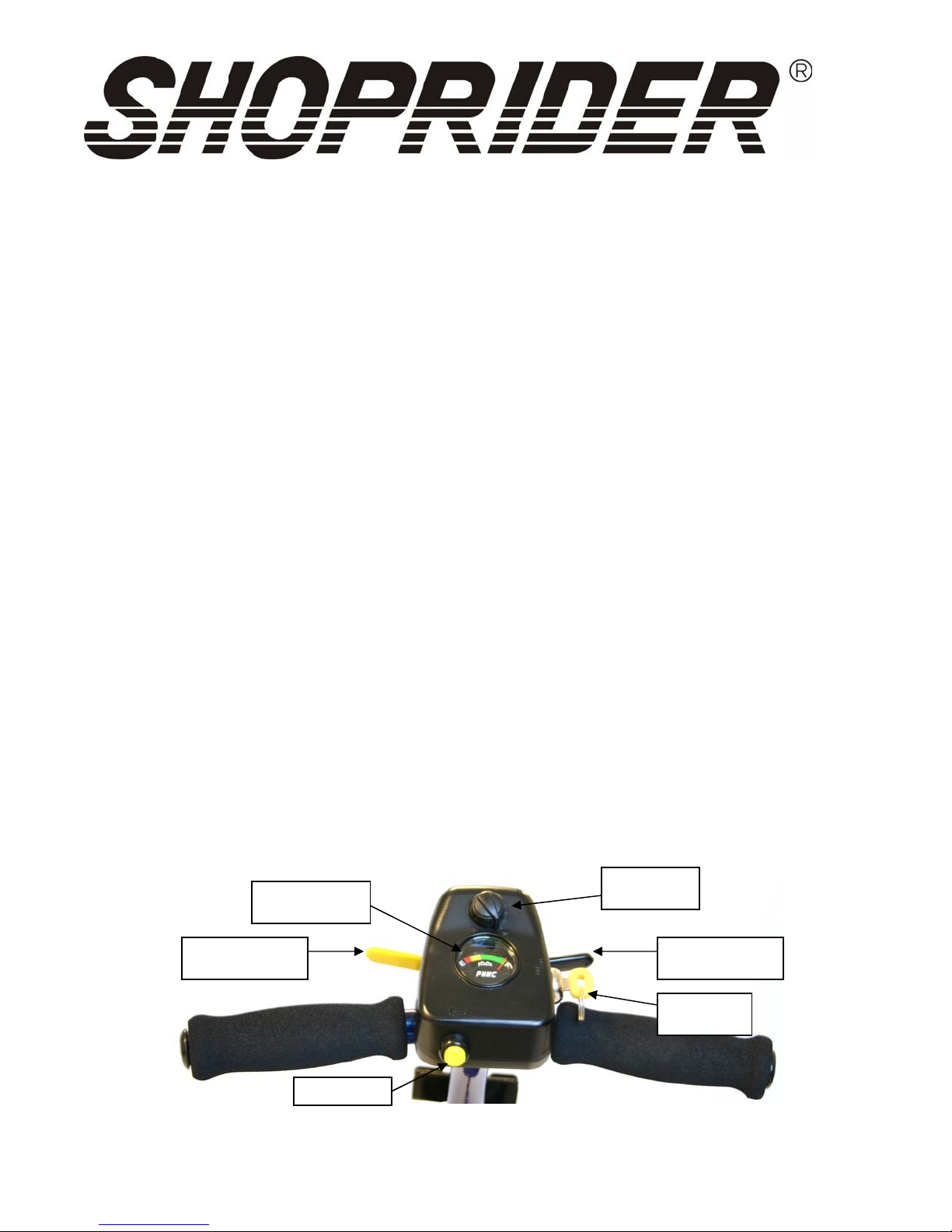

SCOOTER TILLER CONTROLS (FIG 7)

Speed Controls

The speed control allows you to set a speed between 1 (minimum) and 10 (maximum).

Battery Level Indicator Gauge

Where the needle sits, shows the amount of charge left in your batteries. The amount of

charge will only show at its true level when the scooter is in drive.

Caution – Do not allow the gauge needle to go down completely as complete

discharge of the batteries could cause irreversible damage.

Horn

A yellow button at the rear of the tiller operates the horn.

Hand Lever Controls

The left hand lever (yellow) controls the reverse and the right hand lever (black) controls

the forward motion. The amount of pressure applied to each lever will determine the speed

the scooter travels at. Release the lever and the scooter will automatically come to a stop

as the electromagnetic brake is applied to the motor.

On/Off Key Switch

Insert the key in the right side of the tiller. Turn the key and the battery gauge needle will

move. There may be a slight delay before the hand lever control can be operated, while the

controller checks the circuits.

Electromagnetic Brake

The brake is automatically operated when the control levers are pressed or released.

There is a slight delay when the scooter decelerates; this allows the scooter to come to a

smooth stop.

Figure 7

Battery Level

Indicator Gauge

Speed

Control Dial

On/Off

Key Switch

Horn Button

Hand Lever

Control (Forward)

Hand Lever

Control (Reverse)

8/12/2004 10

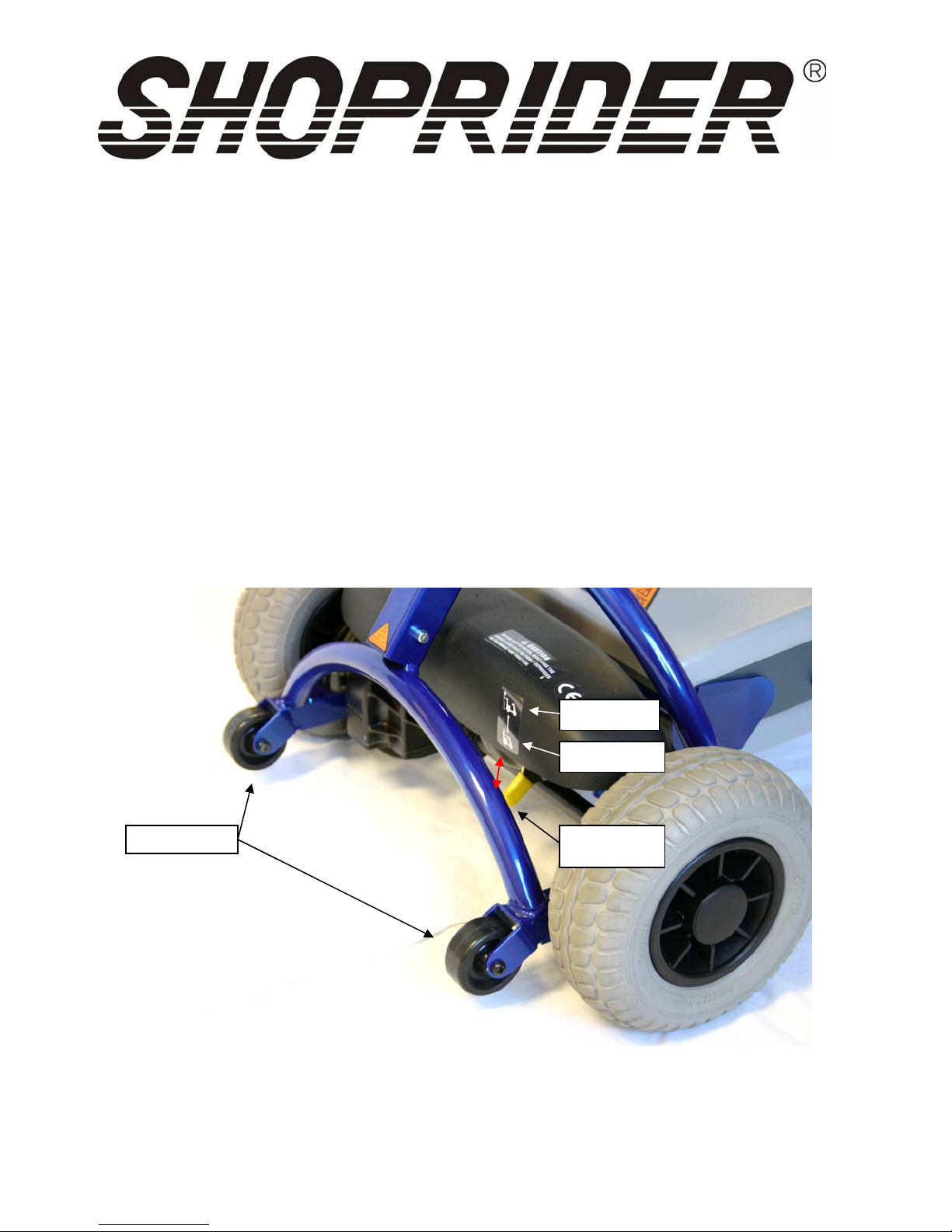

DRIVE/FREEWHEEL OPERATION (FIG 8)

The drive/freewheel lever (yellow handle) is located next to the right rear wheel. This lever

allows you to disengage the drive mechanism and push the scooter while in freewheel

mode. To disengage the drive mechanism, lift the lever in the up position (the scooter can

now be pushed). To re-engage the drive mechanism, push the freewheel lever in the down

position (now the unit may be driven).

WARNING! Always re-engage the free wheeling device after use. Failure to do so

may result in injury.

Anti-tip wheels

The anti-tip wheels are located at the rear of the scooter frame (Fig 8). The scooter should

not be used unless the anti-tipping wheels are in place.

Shoprider® is not responsible for damage or injury incurred due to improper or

misuse of the scooter.

Figure 8

Free Wheel

Lever (yellow)

Anti-Tip Wheels

Push Scooter

Drive Scooter

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Shoprider Scooter

Shoprider

Shoprider Echo 3 SL7-3 Manuel utilisateur

Shoprider

Shoprider LITTLE BEAUTY With SUSPENSION Manuel utilisateur

Shoprider

Shoprider Capri S787M Manuel utilisateur

Shoprider

Shoprider Paris GK9 Manuel utilisateur

Shoprider

Shoprider Paris GK9 Manuel utilisateur

Shoprider

Shoprider QT3 Manuel utilisateur

Shoprider

Shoprider TE-889NRS Manuel utilisateur

Shoprider

Shoprider 778 Series Manuel utilisateur

Shoprider

Shoprider Echo 3 SL7-3 Manuel utilisateur

Shoprider

Shoprider 888SE Explorer Manuel utilisateur

Shoprider

Shoprider EZ Chopper S8M Manuel utilisateur

Shoprider

Shoprider TE-FS4 Manuel utilisateur

Shoprider

Shoprider Scootie Manuel utilisateur

Shoprider

Shoprider Cadiz S-889SL Manuel utilisateur

Shoprider

Shoprider SPRINTER XL4 Manuel utilisateur

Shoprider

Shoprider Cordoba 889XLSBN Manuel utilisateur

Shoprider

Shoprider UL7-4 Manuel utilisateur

Shoprider

Shoprider Cordoba 889XLSBN Manuel utilisateur

Shoprider

Shoprider Rocky 6 Manuel utilisateur

Shoprider

Shoprider (888-3L) Manuel utilisateur

Shoprider

Shoprider ROCKY 8 Manuel utilisateur

Shoprider

Shoprider TE-889SLF Manuel utilisateur

Shoprider

Shoprider QT-8 LITTLE BEAUTY Manuel utilisateur

Shoprider

Shoprider Scooter Manuel utilisateur

Manuels Scooter populaires d'autres marques

TEKTRO

TEKTRO CHEETAH Manuel utilisateur

Douglas

Douglas Vespa Sprint Guide d'installation

PLAYTIVE

PLAYTIVE AS-2448 Manuel utilisateur

Ebinger

Ebinger DONKEY XL Manuel utilisateur

Flyer

Flyer Mountain Guide de l'utilisateur

BackCountry eBikes

BackCountry eBikes Storm Manuel utilisateur

equipmed

equipmed FreeRoam II Manuel utilisateur

Yoto

Yoto Lion Manuel utilisateur

WESTHILL BIKES

WESTHILL BIKES LINK Manuel utilisateur

BAnff

BAnff eProdigy series Manuel utilisateur

Winther

Winther 475 Manuel utilisateur

Jetson

Jetson JBZL17 Manuel utilisateur

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 Manuel utilisateur

Carrera

Carrera impel Manuel utilisateur

Afikim

Afikim Superlight SL-3 Manuel utilisateur

CareCo

CareCo ZOOM Manuel utilisateur

Douglas

Douglas Vespa G.S. Manuel utilisateur

Gazelle

Gazelle with BOSCH System Manuel utilisateur
