Shoprider Paris GK9 Manuel utilisateur

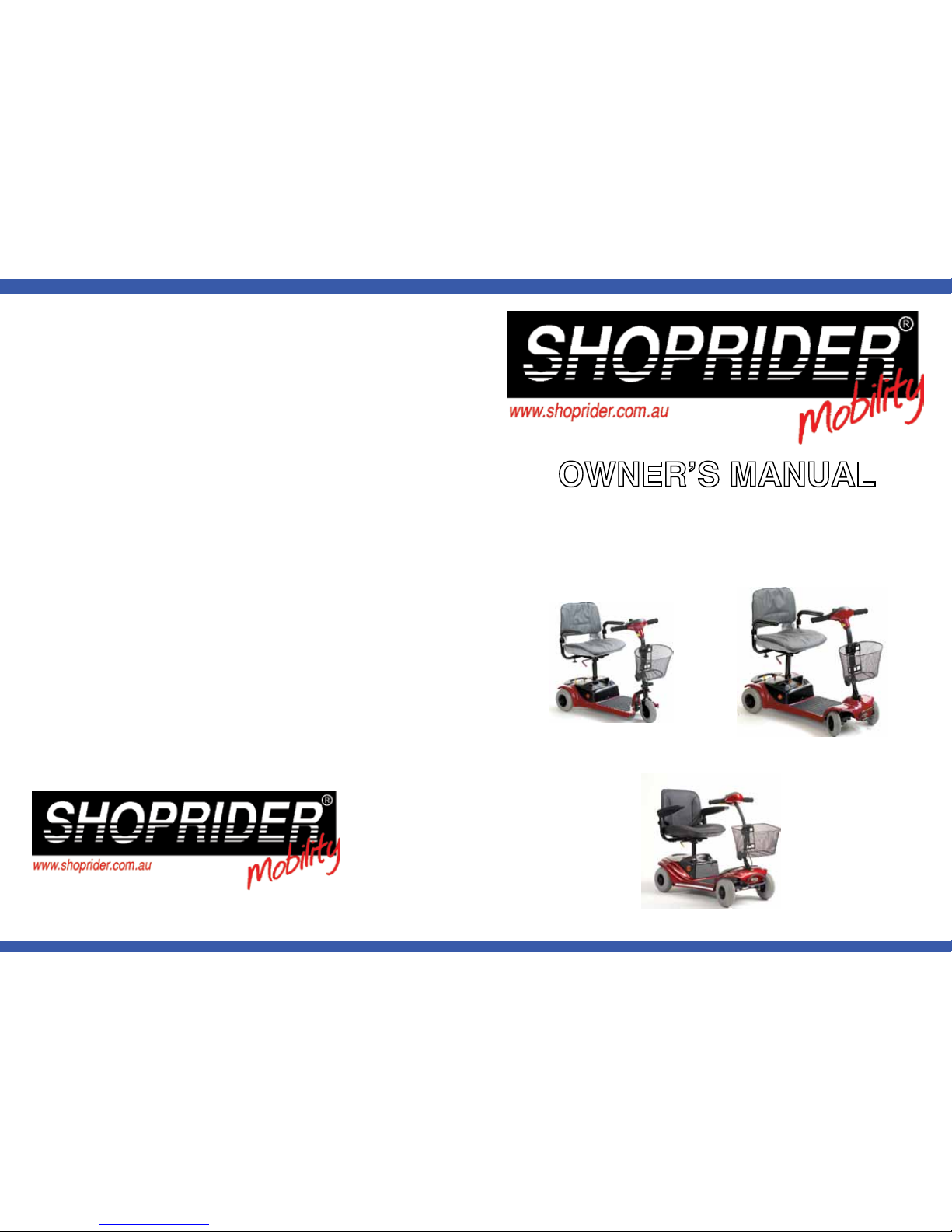

OWNER’S MANUAL
MODELS
QT3, QT4 and GK9
OWNER’S MANUAL
ASK FOR THE BRAND SHOPRIDER
ASK FOR THE BRAND SHOPRIDER
Mounting
Make sure your Q.T. Scooter is on level ground
Seat yourself in the Scooter.
Turn the speed dial to slow. (Turn the dial to the left.)
Turn the on/off key to the ON position – Battery charge meter will be in
the green.
Dismounting
Ensure that your Q.T. Scooter has fully stopped.
Turn the on/off key to the OFF position
You can now dismount from the seat.
Basic Driving
Make sure you have completed the details described under “mounting”.
For the standard unit, push on the accelerator lever with your RIGHT
thumb to start moving forward.
To STOP, gently release the accelerator lever.
Practise these two basic functions until you are proficient in
their use.
1
8
Charging GK9

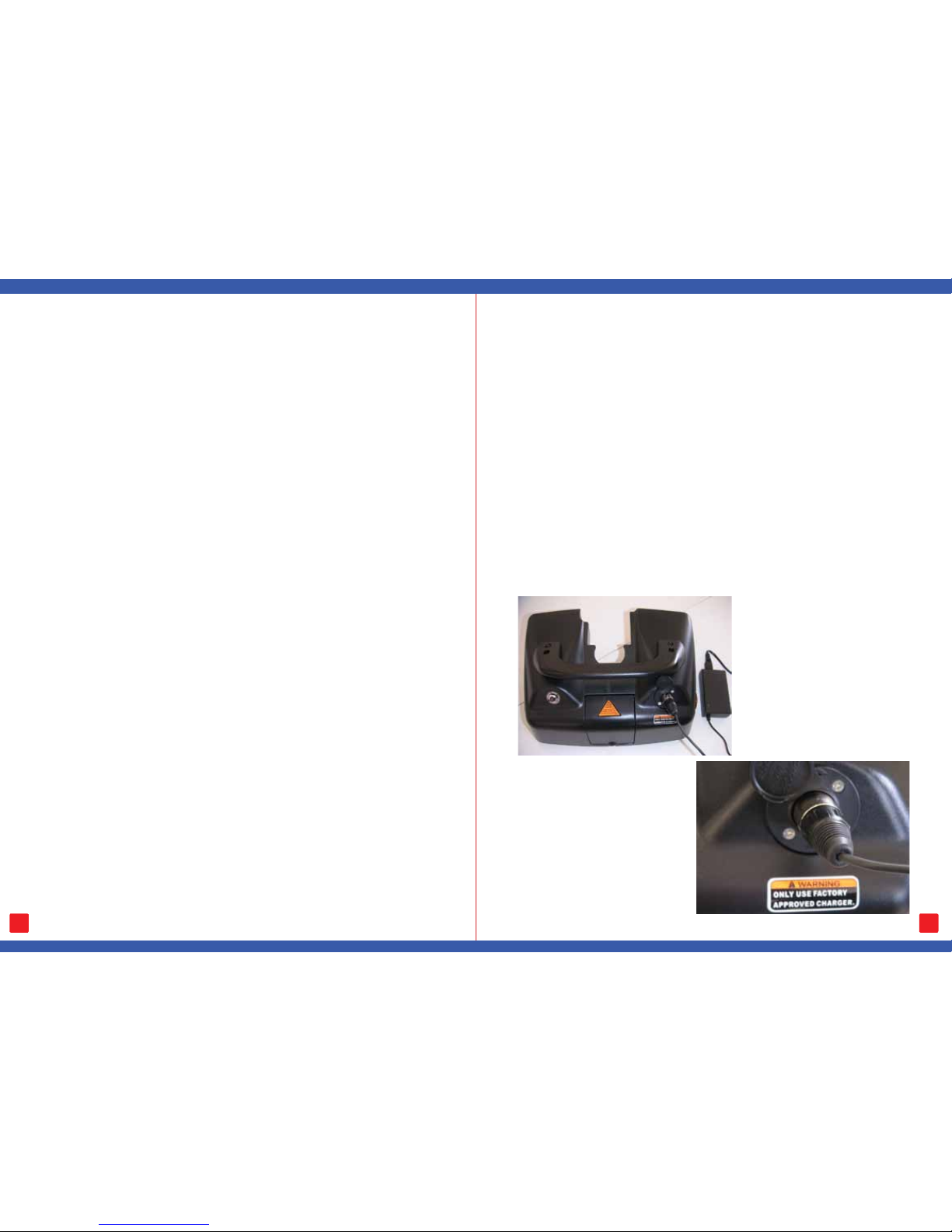

To charge the Dual portable battery pack on board the scooter refer to
the pictures below.
To charge the Dual portable
battery pack off the scooter
refer to the picture at right.
Place the MALE socket of
the battery charger into
the female socket on the
battery pack taking care to
ensure that the pins line up
correctly.
Plug your charger into the
wall and turn the power on.
The charger light will glow
RED indicating the batteries are NOT fully charged. When the batteries
have reached their capacity the charger light will glow GREEN.
Please note that the right and left battery pack need to be engaged
properly before charging Onboard or Off-board.
7
Steering the Q.T. Scooter is easy and logical. Just be sure to remember
to give a clearance when turning so that the rear wheels clear any
obstacles.
When turning, always turn your Q.T. Scooter to a LOW speed.
If it is a tight turn (entering a doorway or going around a blind corner)
STOP your Q.T. Scooter. Turn your steering column in the direction you
wish to proceed while still in the stationary position. Then apply the
power gently to move forward The Q.T. Scooter will move gently and
with complete stability.
REVERSING requires your attention
Always turn your Speed dial to SLOW before reversing.
Push the accelerator lever with your left thumb.
Remember: when you reverse, steer in the OPPOSITE direction to the
way you want to go. Always take your time.
The Q.T. Scooters are not designed for use in loose gravel, sand
or soft grass. Neither is your scooter designed to be used in wet
weather or rain.
Ramps
The stability of your scooter is governed by several factors such as the
seating position of the occupant, the angle of the slope and your height
and weight. When approaching an incline, do so directly, avoid driving
up on an angle. Whereever possible avoid making turns on any incline
or decline. When going down a slope set the speed setting to SLOW,
this will ensure there is a safe controlled descent. When the thumb
levers are released the scooter will slow to a stop.
Do not turn off the control key while the unit is in motion.
Please follow all the guidelines and your scooter will perform admirably
over many surfaces.
2
CHARGING
The battery pack can be charged as an independent unit. It does not
have to be connected to the scooter (See picture below).
The battery charge level indicator will be in the RED section when the
battery is very low.
MODELS QT3 AND QT4
Place the MALE socket of the battery charger into the female
socket on the battery pack taking care to ensure that the pins
line up correctly.
Plug your charger into the wall and turn the power on. The charger light
will glow RED indicating the batteries are NOT fully charged. When
the batteries have reached their capacity the charger light will glow
GREEN.
If you turn your Q.T. Scooter on while the battery charger is still
operating a beeping alarm will sound to advise you to turn off and
disengage the charger.
6
Doors
Always ensure your speed is set at the SLOWEST setting.
Think in terms of using the power of the Q.T. Scooter to do the work for
you. For doors that open outward, hold the door knob with your right
hand and reverse the Q.T. Scooter as described earlier. Where the door
opens inwards, hold the door knob with your left hand and push your
accelerator lever with your RIGHT thumb.
Transporting Your Scooter
Always ensure your scooter is turned OFF on the steering column.
Remove your basket by pulling it up gently.
Remove your seat by folding the back down and gently pulling up on the
seat lever. When the seat lever is up, pull straight up firmly but slowly
and the seat will lift off.
(As indicated in figure #1.)
Remove the battery pack (Models QT3, QT4) by pulling up and forward on
the battery pack handle to release the Velcro tabs holding the battery pack
in place. We suggest you place your free hand on the seat post to help
support you and make the task easier.
(As indicated in figure #2.)

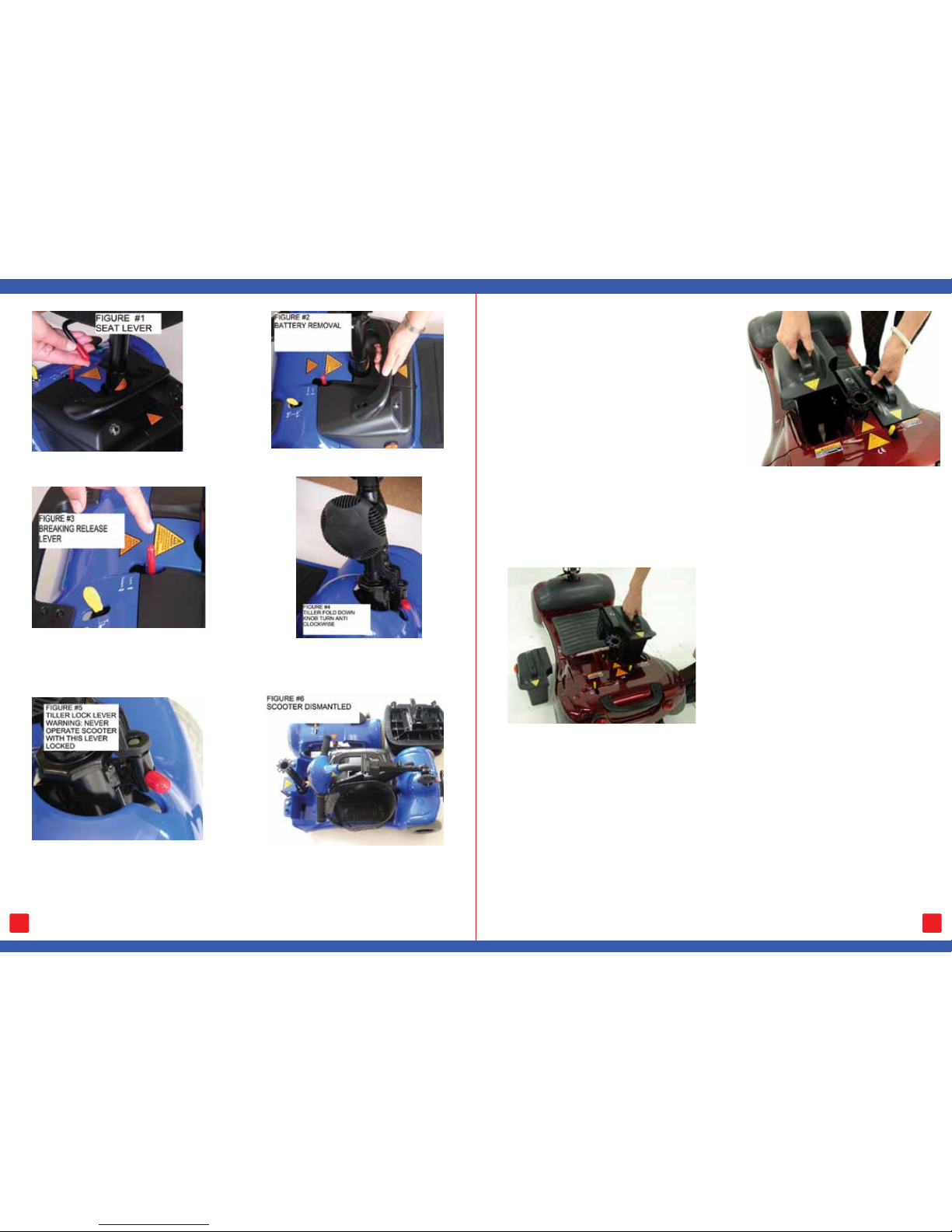

To split the scooter use the red release lever to release the motor
section and lift up to separate.
(As indicated in figure #3.)
Fold the front tiller down onto the scooter after turning the tiller knob
anti clockwise until the small teeth disengage.
(As indicated in figure #4.)
Lay the tiller down and engage the tiller lock at the front of the scooter
to stop the tiller moving in transit. Always remember to disengage the
tiller lock before using your scooter again.
(As indicated in figure #5.)
The scooter is now ready to be placed in the car.
Once the scooter has been placed in the car the basket and battery
pack can be placed loosely around the main components.
(As indicated in figure #6.)
3
Free wheeling Device
The scooter can be moved manually by moving the free wheeling lever
(as indicated figure #7).
This is located on the rear section of the scooter and is the
Yellow lever.
To free wheel the scooter push the Yellow lever towards the front of the
scooter.
To engage the brake pull the lever towards the back of the scooter.
Warning: Do not sit on the scooter while it is in the free wheel mode
and do not disengage the free wheel device when not on level
ground.
FIGURE #7
54
Battery removal for the GK9
The GK9 is now fitted with a split
battery box this reduces the total weight
that need to be lifted at one time.
Steps to remove the
Dual portable battery pack
Remove the Left battery pack first and
then remove the Right as shown above.
Steps to install the
Dual portable battery pack
Install the Right battery pack first and then install the Left as shown.
