Shoprider Mikra TE-7A Manuel utilisateur

Mikra

Model – TE-7A

USER MANUAL

Please ensure that this manual is read and understood before using

the scooter.

September 2014

Rev 1

KB&S - XXXXX

Contents Page

Introduction 3

Intended Use 3

Technical Specification 3

Feature Guide 4

Safety Advice 5

Adjustments

Tillerangle 6

Seatswivel 6

Seat removal 7

Seat height 7

Arm width adjustment 7

Tiller Controls 8

Brake Release / Freewheel Operation 9

Starting to Drive

Getting Started 10

MovingOff 10

Steering 10

Reversing 10

Ramps / Slopes 11

Surfaces 11

Transferring 11

Storage 11

Batteries and Battery Charger 11 - 12

Dismantling 13

Tiller Lock Lever 14

Maintenance 14

Troubleshooting

Fuses 15

CheckList 15

Further Information 16

Warranty

Introduction

Congratulations on your purchase of the SHOPRIDER Mikra scooter. This scooter

incorporates the latest innovative designs. The SHOPRIDER Mikra can be used in

confined spaces both indoors and out. A direct drive rear transaxle and

electromagnetic brake give a safe and efficient ride.

Intended Use

The SHOPRIDER Mikra is intended for indoor or outdoor use in pedestrian areas by a

single individual with limited mobility up to a maximum weight of 113kg (18st). It is

intended to be used by those suffering from some disability or impairment which

prevents a normal level of personal mobility.

The acute manoeuvrability prohibits the use by persons who are severely physically

impaired or those who have balance difficulties. Your assessor / healthcare professional

will determine the suitability of the scooter for each individuals’ intended use.

Note: Persons with lower body amputations should not use this device unless evaluated

with artificial limbs fitted, as stability may be compromised due to an irregular centre of

gravity.

Technical Specification

Class 1 Medical Device

Class 2 Indoor/Outdoor Vehicle

Overall Size Seat

Dimensions

Length 1070mm / 42” Width 470mm / 18”

Width 530mm / 21” Depth 410mm / 16”

Height

(Max to top of seat) 860mm / 34” Seat to floor pan 365mm / 14”

390mm / 15”

Battery 2 x 12Ah

Backrest height

(Incl headrest) 360mm / 14”

Height (folded)

No Seat 450mm / 18” Range 14km / 9m*

Maximum user

weight 113kg / 18st Seat to floor 560mm / 22”

610mm / 24”

Safe working slope 6º/ 10% Battery charger

(off board) 2 Amp

Weight with

batteries 48kg / 106lbs Turning Radius 1150mm / 45”

Max. Speed

(up to) 6kmph / 4mph

Ground

clearance 70mm / 3”

*Passenger weight in excess of 100kg, rough ground conditions, low temperatures and

battery condition can affect maximum range.

Front Chassis – 15kg Rear Chassis – 10kg

Seat – 10kg Battery Pack – 6.5kg (each)

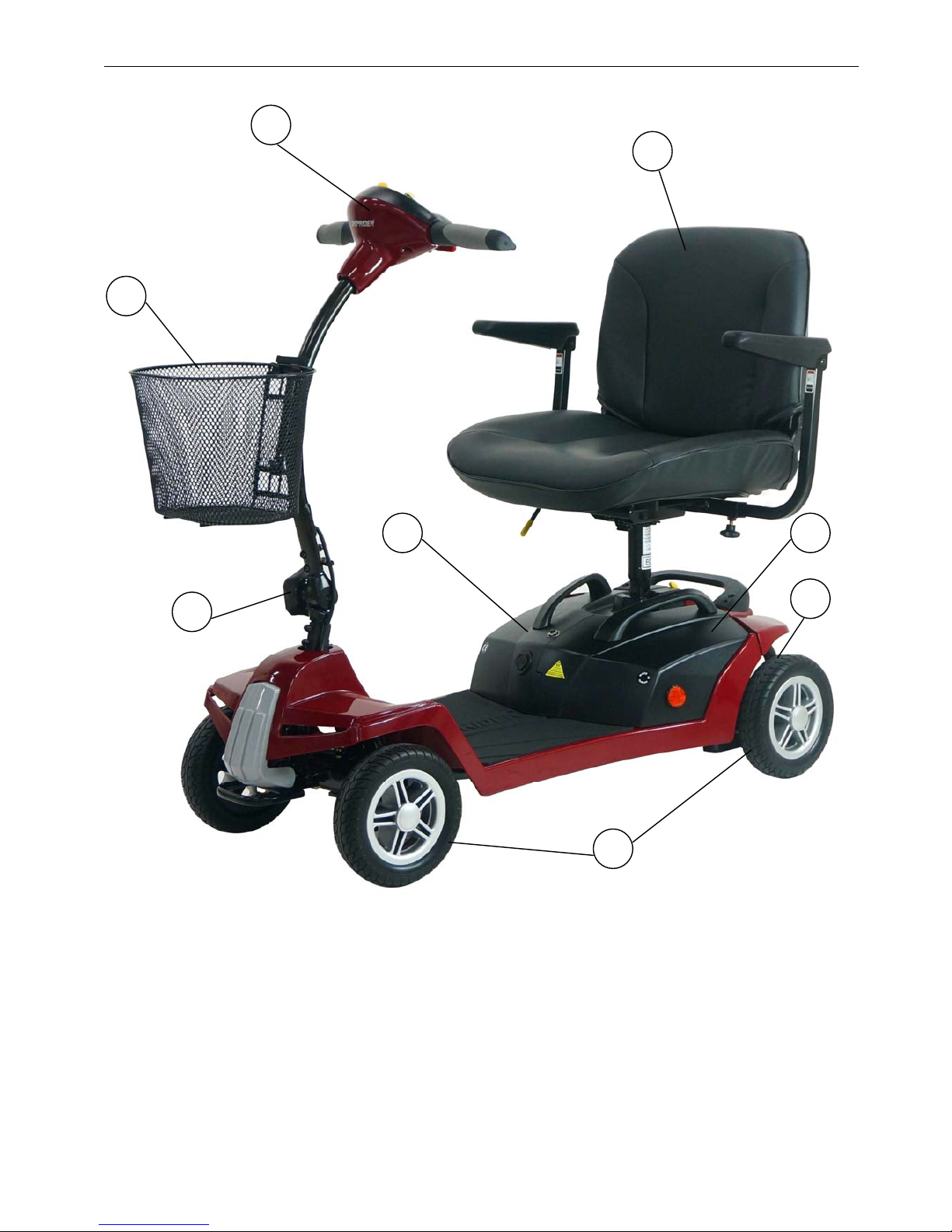

Feature Guide

‘Mikra’

1. Tiller control head

2. Detachable swivel padded seat with fold down back

3. Detachable basket (Capacity 5kg)

4. Right side battery box

5. Left side battery box

6. Anti-tip wheels

7. Puncture proof non-marking wheels

8. Tiller angle adjustment knob

Safety Advice

DO:

Read this manual carefully before using your scooter.

Turn the power off when transferring to and from the scooter.

Select a slow speed when going down gradients (max 6°) or over uneven ground.

Keep your feet on the scooter whilst driving.

Ensure the seat is in a fixed position facing forwards before driving.

Ensure the tiller is secure.

Ensure the batteries are fully charged before your journey.

Avoid rough or soft terrain and long grass wherever possible.

Be aware of other road users and pedestrians.

Turn the power off when not in use.

Follow the maintenance guide to ensure safe operation of the scooter.

Always remove the keys if leaving the scooter unattended. Unauthorised

persons/children may use the scooter resulting in injury.

DO NOT:

Carry passengers.

Exceed inclines over 6°.

Traverse inclines.

Attempt inclines if the surface is slippery.

Turn sharply at full speed.

Exit or enter the scooter unless the power is switched off.

Switch off the power whilst driving – this will cause the scooter to stop abruptly

(see emergency procedures – page 16).

Use the scooter where you cannot safely or legally walk.

Attempt to climb or descend kerbs except drop down kerbs.

Use the scooter if under the influence of alcohol or any medication.

Use a mobile phone whilst driving.

Attempt to negotiate steps or escalators.

Sit on the scooter if being transported in a vehicle.

Attempt to tow any other devices.

Exceed the stated weight limit.

Connect any other devices to the batteries as this could cause permanent

damage and void your warranty.

Use any other batteries/charger other than those supplied by SHOPRIDER.

Travel through water or over soft terrain (mud, sand etc.)

Lift the scooter by the shroud assembly or any plastic part.

Sharply shift your centre of gravity as this could make the scooter unstable.

Freewheel down hills. This will damage the motor and brake and void the

warranty,

Tow the scooter with any other vehicle in the event of a breakdown.

Every care has been taken to ensure that your scooter will give you safe, reliable service

provided you adhere to the advice given above.

Adjustments

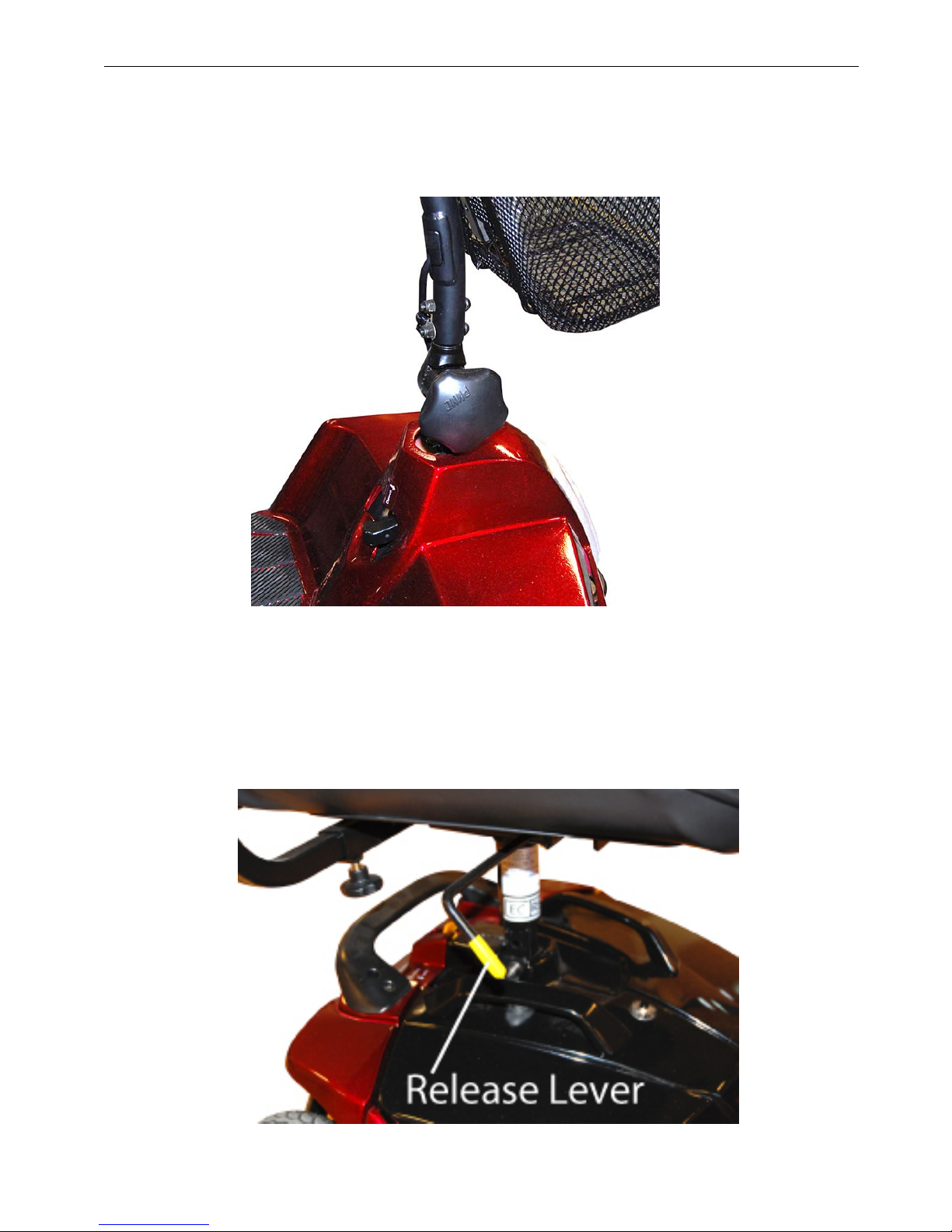

Tiller Angle Adjustment

At the bottom of the tiller stem is the angle adjustment knob. Rotate the hand knob

anticlockwise to loosen and adjust to the required angle. Re-tighten the hand knob fully

before use. DO NOT fully undo the hand knob as the internal components may become

detached from the assembly.

Seat Swivel

The seat has a lockable swivel base to allow easier transfers. Simply lift the end of the

lever and rotate the seat at the same time. Releasing the lever will allow the seat to lock

in position. The seat locks in 45-degree intervals. Always ensure the seat is in a locked

position before mounting or dis-mounting the scooter. The seat should always be locked

facing forward whilst driving.

Continued…..

Seat Removal

To remove the seat, fold down the back of the seat and simply lift the seat away from

the chassis while lifting the seat swivel lever.

Do not hang baggage or other objects on the back of the seat as this may affect

stability.

Battery Box Removal

The battery boxes are simply lifted out of position. The LEFT battery box MUST be

removed before the right hand side. The procedure is reversed for refitting the battery

packs. (Left and right sides are taken as if sitting on the scooter facing forward).

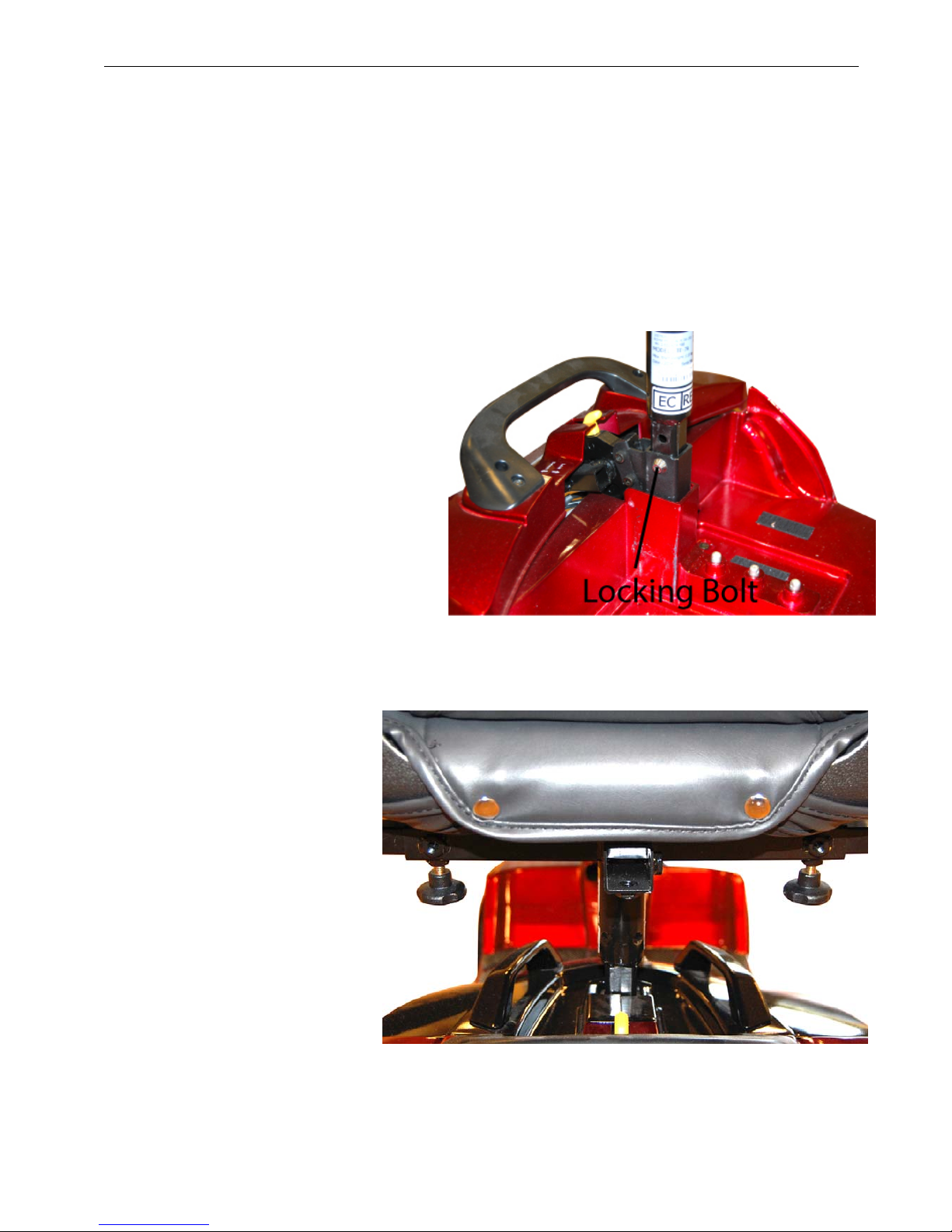

Seat Height Adjustment

Remove the seat as previously

described and remove the battery

box as described above. Undo the

stem-locking bolt and adjust the stem

to the desired height. Re-fit the bolt

and tighten. Re-fit the seat as above.

The higher the seat is adjusted; stability may be affected due to the higher centre of

gravity.

Arm Adjustments

On each side of the seat

towards the back there are

two hand knobs, these are to

adjust the width of the

armrests or to remove then for

transport.

Turn the hand knobs anti-

clockwise to loosen. Once the

knobs are loose you will be

able to adjust the armrests in

or out to the desired width. Re-

tighten when a comfortable

width has been achieved or

remove the armrests

completely for transport.

If removing the armrests for transport, ensure that the hand knobs are re-tightened to

avoid them rattling loose and falling out.

Do not apply full body weight to the armrests for transferring. Lift the arm up out of the

way to transfer to another seat.

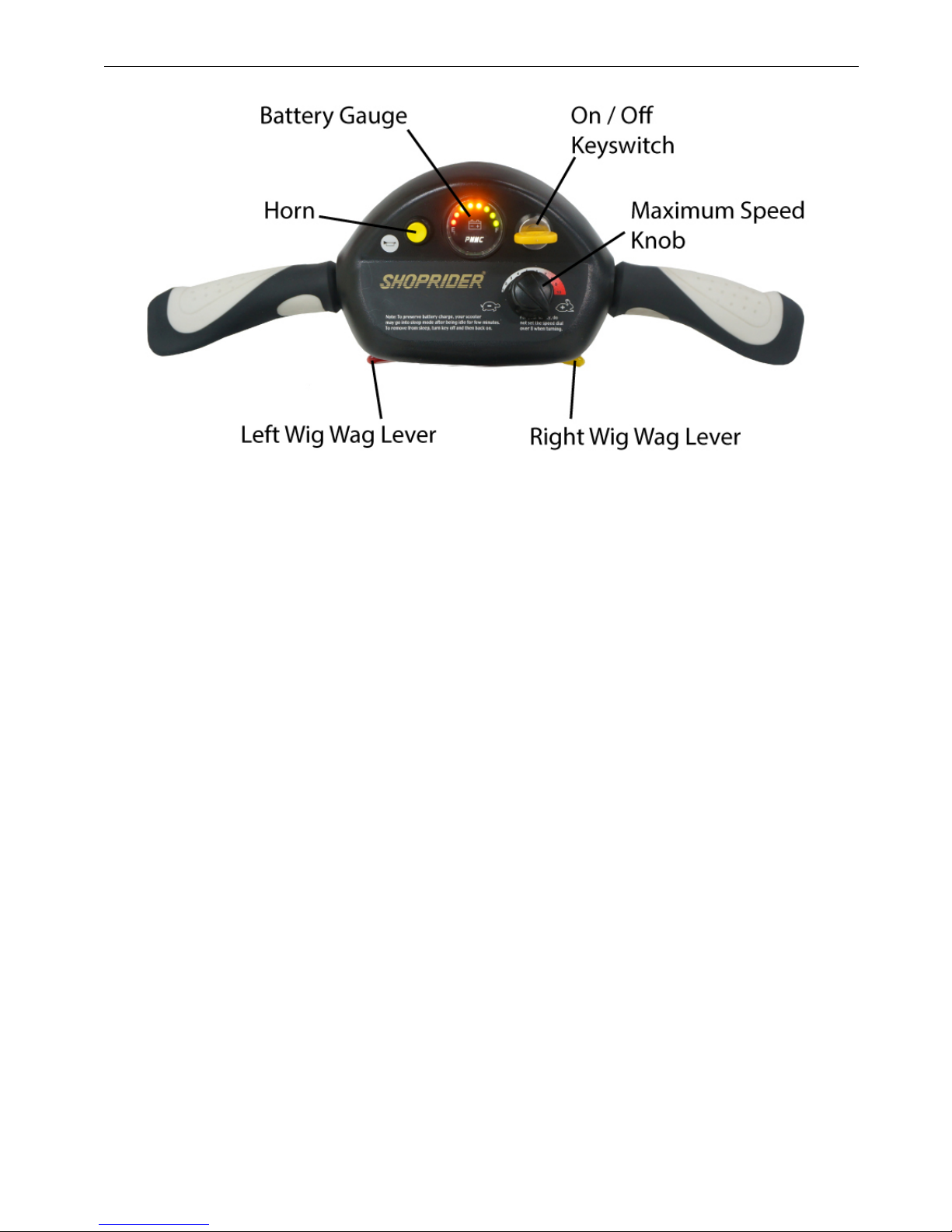

Tiller Controls

Maximum Speed Knob

The speed control enables you to set the maximum speed of the scooter. Turn clockwise

to increase the maximum speed and anti-clockwise to decrease. Always start at a slow

speed until accustomed with the characteristics of your scooter. Do not put excessive

pressure on the dial. Only turn as far as the stops.

When driving in pedestrian areas such as shopping precincts and busy pavement areas

always respect other pedestrians and turn the maximum speed down so that the

scooter travels at the walking pace of others around you.

Horn Button

The yellow button operates the scooters horn. This should only be used to warn others of

your presence and not as a rebuke of any form.

Finger Lever (Wig-Wag)

The finger levers control the reverse and forward motion of the scooter – see ‘Starting To

Drive’ for operation. Remember, more pressure = more speed. Release the lever and

the scooter will automatically come to a safe stop as the electromagnetic brake is

applied. Always release the lever if the scooter behaves erratically.

On/Off Key

The key switch is located on the front of the tiller. Simply insert the key and turn

clockwise to switch the power on. The display will light up to indicate the power is on.

There may be a slight delay before the thumb levers operate as the controller checks

the scooters circuits. Never leave the key in the switch unattended to prevent

unauthorised use. Do not switch the power off to stop the scooter unless it is an

emergency. The scooter will stop very abruptly if stopped in this way.

Battery Level Indicator Gauge

This gauge gives you a guide to the amount of charge left in the scooters batteries. This

will give the truest reading when the scooter is in motion. Always fully charge the

batteries before driving your scooter and never let the batteries become completely

drained, as this may cause permanent damage to the batteries.

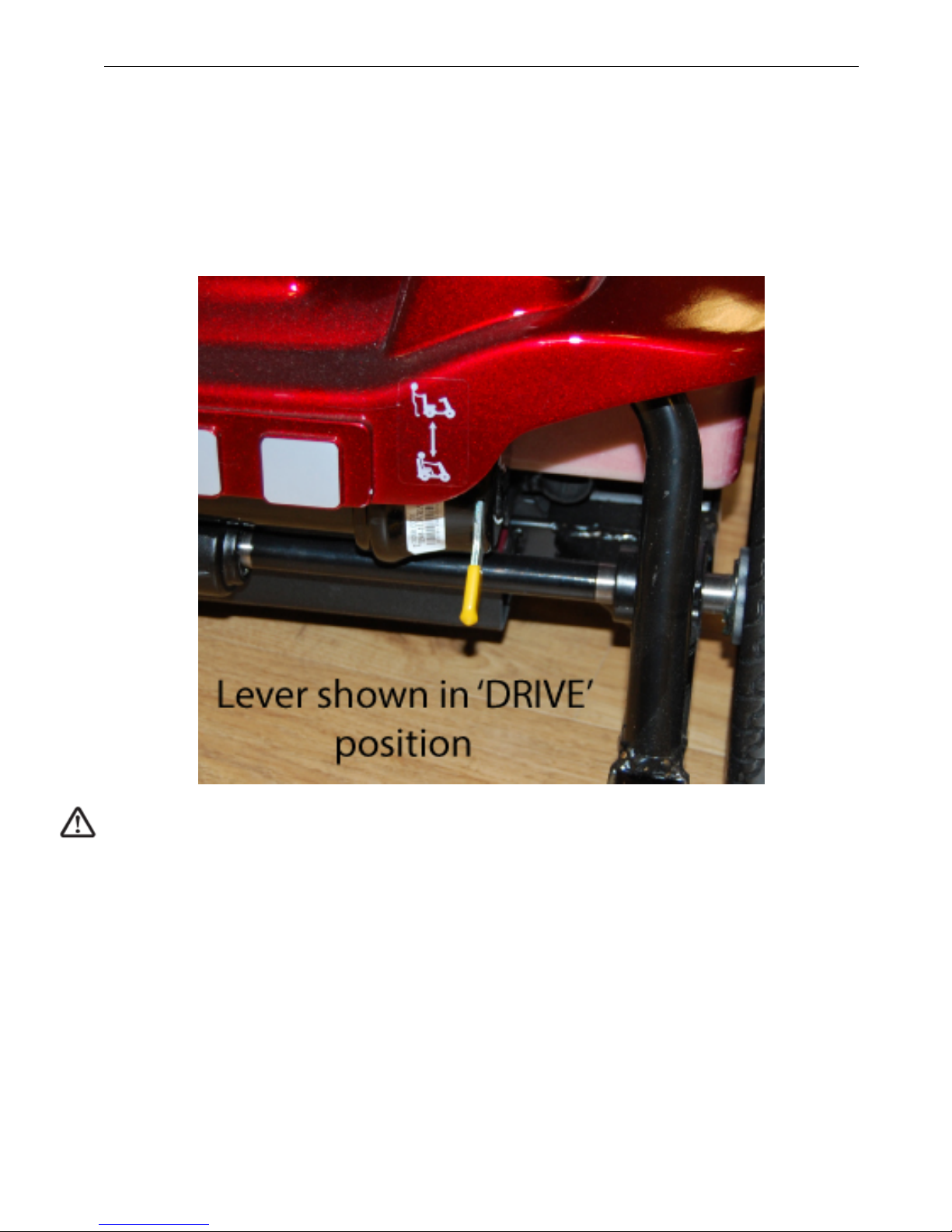

Brake Release / Freewheel Operation

The brake release lever is situated at the right rear of the scooter. This lever allows you to

disengage the drive mechanism and push the scooter in ‘freewheel’ mode. To

disengage the drive, pull the lever up as shown in the image below. The scooter can

now be pushed.

Simply push the lever down toward the ground to re-engage the drive mechanism (the

scooter can now be driven). The scooter will not operate when the lever is in the

disengaged position. The scooter must be turned off and on by the key switch to reset

the circuits before it will resume normal operation

Caution! Never leave the scooter unattended whilst in freewheel mode as it will roll

away down an incline. ‘Freewheel’ mode should only be used in an emergency to

move the scooter due to power failure. NEVER move the scooter in this mode whilst it is

occupied. NEVER tow the scooter.

When in freewheel mode the scooter may be pushed on level ground at a walking

pace. The scooter will ‘auto-brake’ if this speed is exceeded.

DO NOT step on the lever to re-engage the brake as this will damage the brake and

micro-switch.

NEVER sit on the scooter and freewheel down a hill as this can cause permanent

damage to the motor, brake and controller due to excessive regenerative braking. As

above the scooter can only be moved at a walking pace when in freewheel mode.

Starting to Drive

Getting Started

Note: You must fully charge the batteries prior to first use (see ‘Batteries and Charging’)

Select an area with plenty of space.

Mount the scooter by lifting the arm and sliding onto the seat. Ensure the seat is securely

locked in the forward facing position before driving. Adjust the tiller and seat if

necessary (see ‘Adjustments’). DO NOT use the tiller to fully support you during transfers.

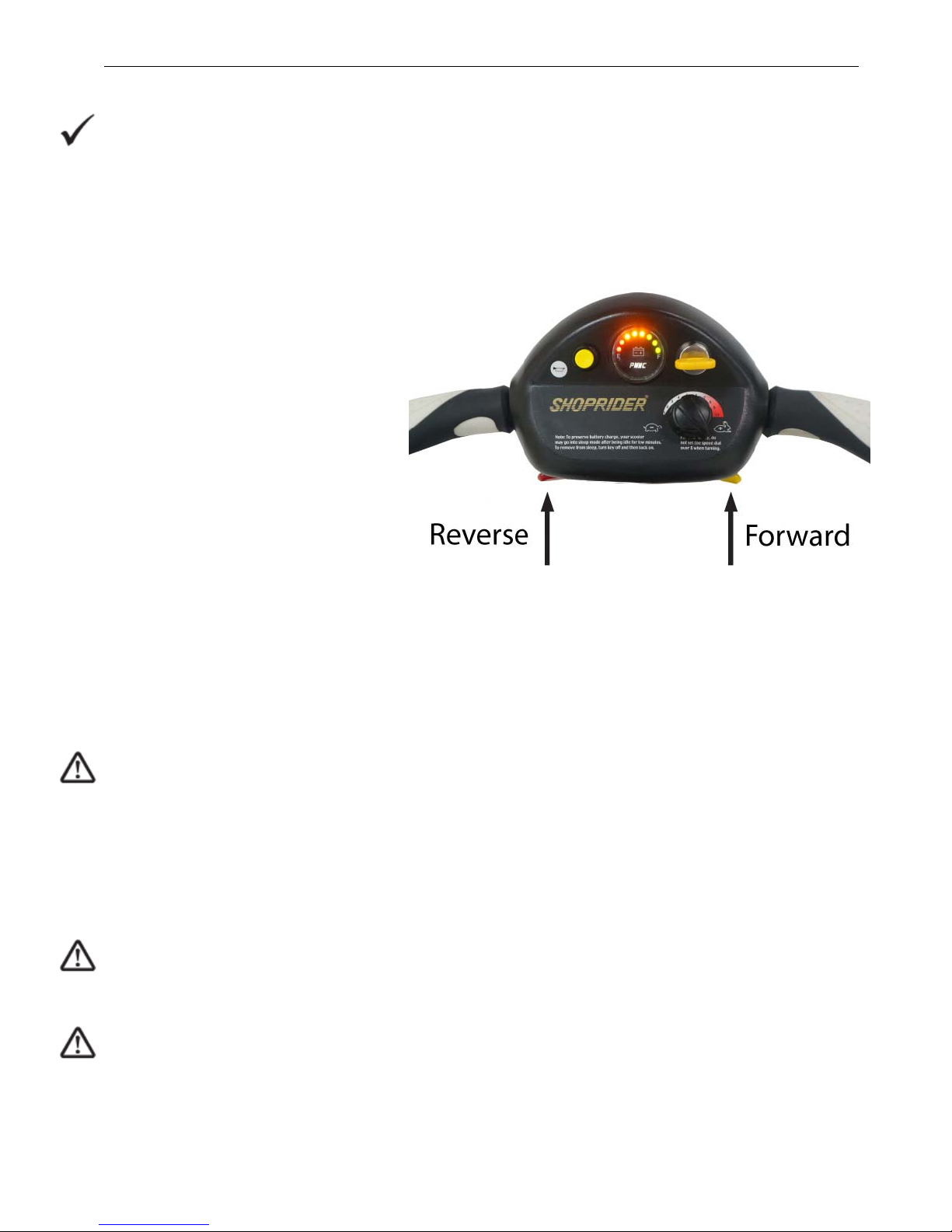

The Mikra has a ‘wig – wag’ finger

lever. The direction of the scooter

is determined by which part of

the lever is pushed / pulled as

outlined above. Pulling the right

side of the lever will cause the

scooter to move forwards, the left

side will select reverse.

Moving Off

Insert the key and switch on the power and initially set the speed control to a low

setting. The further you pull the lever the faster the scooter will travel, but only to the

maximum speed that has been selected. Release the lever and the scooter will come

to a smooth controlled stop.

Caution! DO NOT switch off the power to stop the scooter as this will cause the

transmission to lock and the scooter will come to a sharp stop, which could possibly

cause injury. This procedure should only be used in an emergency.

Steering

Steering the scooter is light and easy. Ensure you give obstacles a wide clearance to

avoid the rear wheels catching. When steering through limited spaces, turn the tiller in

the direction that you wish to go and apply power gently. The scooter can turn very

tightly with complete stability at slow speeds.

Caution! NEVER turn sharply at high speeds as it can make the scooter unstable. The

maximum speed should be set at 50%.

Reversing

Before reversing ensure the area behind the scooter is free from any obstacles or

hazards. Adjust the speed setting to low before you reverse. Steer wide of all corners

and obstacles.

Caution! Do not reverse onto a main thoroughfare.

Table des matières

Autres manuels Shoprider Scooter

Shoprider

Shoprider QT-8 LITTLE BEAUTY Manuel utilisateur

Shoprider

Shoprider Scooter Manuel utilisateur

Shoprider

Shoprider GK8 Manuel utilisateur

Shoprider

Shoprider S-889NR Manuel utilisateur

Shoprider

Shoprider Scootie TE-787NA Manuel utilisateur

Shoprider

Shoprider Start GK3 Manuel utilisateur

Shoprider

Shoprider GK4 Manuel utilisateur

Shoprider

Shoprider Altea SL7-3 Manuel utilisateur

Shoprider

Shoprider Dasher 3 Manuel utilisateur

Shoprider

Shoprider Grande TE-9AS Manuel utilisateur

Shoprider

Shoprider Solares FS777 Manuel utilisateur

Shoprider

Shoprider Dasher 9 Manuel utilisateur

Shoprider

Shoprider Echo 3 SL7-3 Manuel utilisateur

Shoprider

Shoprider 889SLBF Manuel utilisateur

Shoprider

Shoprider Perrero S-888SLR Manuel utilisateur

Shoprider

Shoprider Scootie Manuel utilisateur

Shoprider

Shoprider Greenrider ES-16 Manuel utilisateur

Shoprider

Shoprider 888SE Explorer Manuel utilisateur

Shoprider

Shoprider Paris GK9 Manuel utilisateur

Shoprider

Shoprider 888SL Manuel utilisateur

Shoprider

Shoprider 889-3XLS Manuel utilisateur

Shoprider

Shoprider TE-889SLF Manuel utilisateur

Shoprider

Shoprider TE-778NR Manuel utilisateur

Shoprider

Shoprider LITTLE BEAUTY With SUSPENSION Manuel utilisateur

Manuels Scooter populaires d'autres marques

TEKTRO

TEKTRO CHEETAH Manuel utilisateur

Douglas

Douglas Vespa Sprint Guide d'installation

PLAYTIVE

PLAYTIVE AS-2448 Manuel utilisateur

Ebinger

Ebinger DONKEY XL Manuel utilisateur

Flyer

Flyer Mountain Guide de l'utilisateur

BackCountry eBikes

BackCountry eBikes Storm Manuel utilisateur

equipmed

equipmed FreeRoam II Manuel utilisateur

Yoto

Yoto Lion Manuel utilisateur

WESTHILL BIKES

WESTHILL BIKES LINK Manuel utilisateur

BAnff

BAnff eProdigy series Manuel utilisateur

Winther

Winther 475 Manuel utilisateur

Jetson

Jetson JBZL17 Manuel utilisateur

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 Manuel utilisateur

Carrera

Carrera impel Manuel utilisateur

Afikim

Afikim Superlight SL-3 Manuel utilisateur

CareCo

CareCo ZOOM Manuel utilisateur

Douglas

Douglas Vespa G.S. Manuel utilisateur

Gazelle

Gazelle with BOSCH System Manuel utilisateur
