Shoprider FLAGSHIP TE-889XLSN Manuel utilisateur

7/3/2006

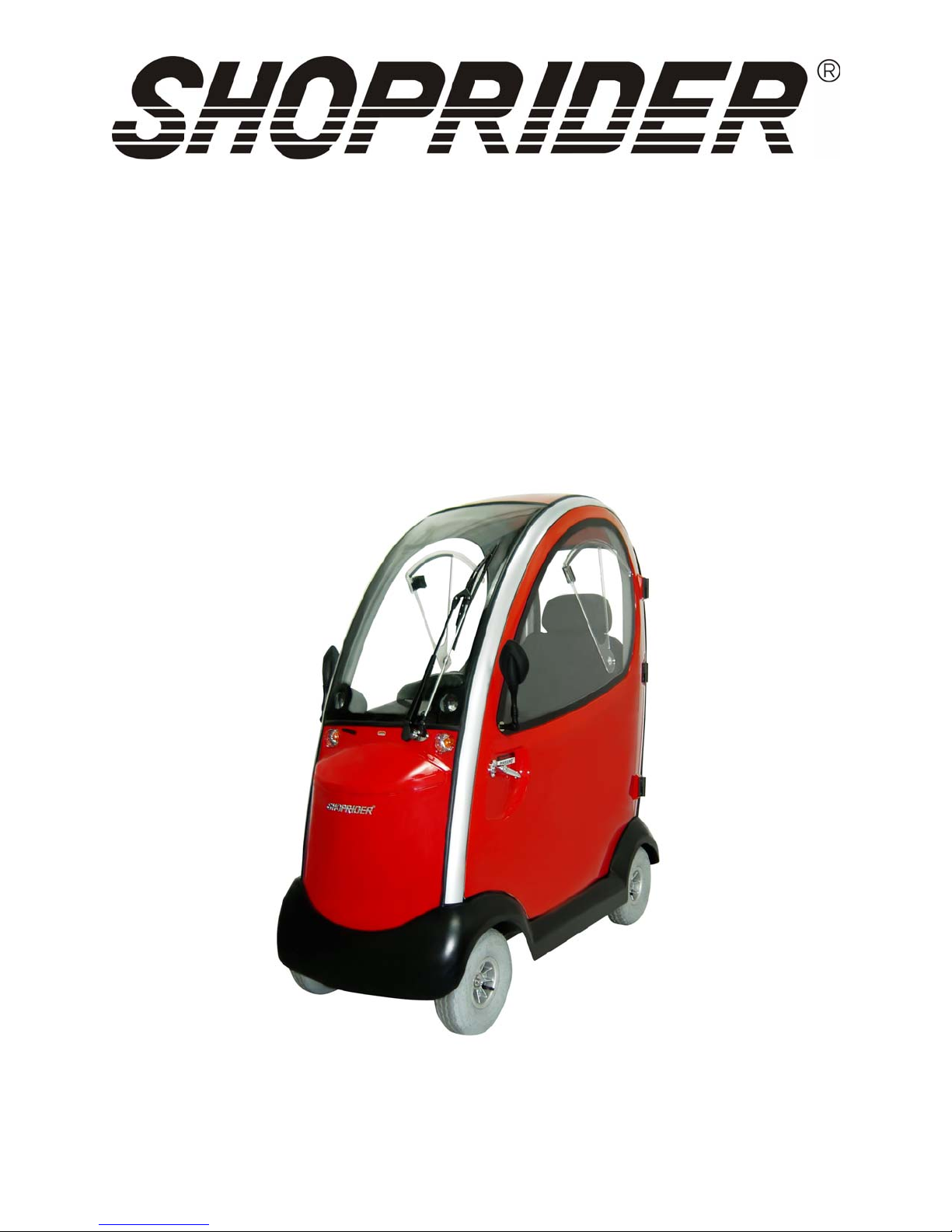

FLAGSHIP

Luxury Scooter

Model: TE-889XLSN

User Manual

7/3/2006 - 2 -

Table of Contents

INTRODUCTION……….……………………………………………………………………3

FEATURE GUIDE………….………………………………………………………………..3

SAFETY ADVICE……….…………………………………………………………………...4

EMI WARNING……………….……………………………………………………………...5

WARNINGS……………….………………………………………………………………….6

ADJUSTMENTS……………………………………………………………………………..7

SCOOTER TILLER CONTROLS…………………………………………………………..9

DRIVE/FREEWHEEL OPERATION……...………………………………………………10

STARTING TO DRIVE YOUR SCOOTER………...…………………………………….11

EXTRA GUIDELINES IN THE CONTROL OF YOUR SCOOTER………...………….12

TRANSPORT/STORAGE…………………..……………………………………………..13

BATTERIES AND BATTERY CHARGING…………...………………………………….14

MAINTENANCE…………………………..………………………………………………..15

TROUBLESHOOTING GUIDE………...………………………………………………….15

TECHNICAL SPECIFICATIONS…………..……………………………………………..16

QUARTERLY INSPECTION…………...………………………………………………….17

WARRANTY……………..………………………………………………………………….18

DISCLAIMER………..……………………………………………………………………...18

7/3/2006 - 3 -

INTRODUCTION

Congratulations on your purchase of the Shoprider® Flagship ™ scooter. The Flagship

™ scooter is the ultimate combination of style, comfort and ease of use. The freedom

that the Flagship ™ scooter offers, allows you the liberty of mobility, rain or shine. Direct

drive transaxles, automatic electromagnetic brake and easy hand controls give a safe

and efficient ride. We know that the Flagship ™ will provide many years of pleasure for

you.

Please ensure that you read this manual carefully, it is important for your safety

that you understand the guidelines and instructions given.

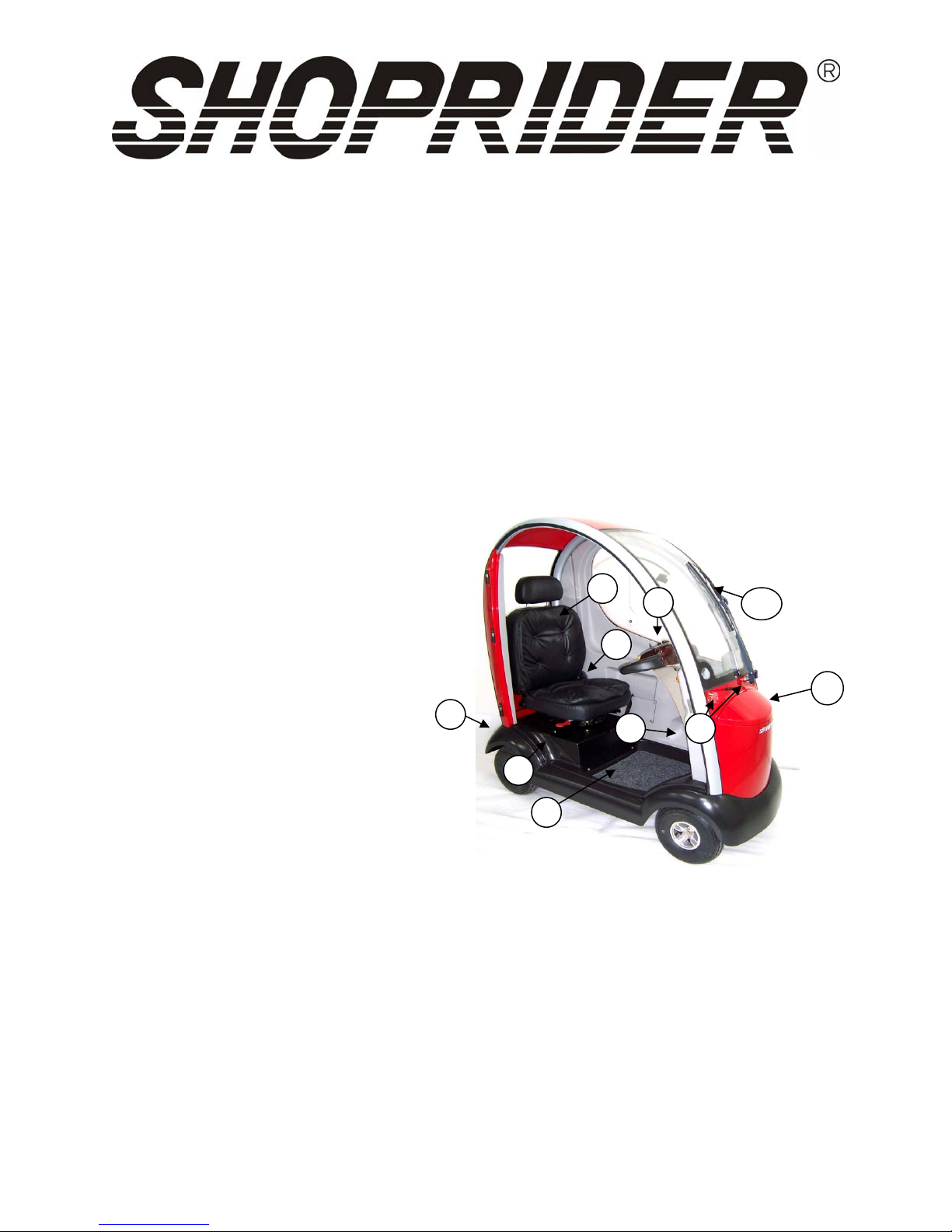

Flagship Features (Figure 1)

1. Delta tiller control head

2. Head lights and indicators

3. Rear lights and indicators

4. Hood w/ charging port & wiper fluid

5. Swivel and sliding seat

6. Reclining seat adjustment

7. Reclining captain’s seat

8. Foot rest

9. Tiller steering column and steering

wheel angle adjustment

10. Windshield wiper

Figure 1

7/3/2006 - 4 -

SAFETY ADVICE

•DO NOT carry passengers.

•DO NOT exceed inclines over 10 degrees (17% grade).

•DO NOT turn on steep inclines.

•DO NOT turn suddenly at high speeds.

•DO NOT get on or off the scooter unless the brake is on and the scooter is switched

off.

•DO NOT switch off the scooter while the scooter is moving.

•DO NOT drive the scooter where you can not safely or legally walk.

•DO NOT attempt to drive over high curbs. Doing so could cause your scooter to turn

over, causing injury or damage to the scooter.

•DO NOT drink or use a mobile phone when driving your scooter.

•DO NOT exceed the suggested user weight limit. Doing so, could cause personal

injury and invalidate the warranty.

•ALWAYS keep your feet on the scooter when moving.

•Consult your doctor if there is any doubt about your ability to use a scooter safely.

•ALWAYS slow down and proceed carefully when traveling over rough or uneven

ground.

•For individuals with balance problems practice getting on the scooter with assistance

of a qualified healthcare professional.

•DO NOT use an escalator to move a scooter. Serious injury could occur.

•DO NOT drive the scooter on an incline that has oil, water or ice film on it.

•DO NOT try to lift the scooter by its seat, tiller, or any removable parts. Any of these

could cause injury to the user or damage to the scooter.

•DO NOT use parts or accessories that are not authorized by Shoprider®.

•Before sitting in or exiting the scooter, REMOVE the key from the ignition. This will

insure the POWER is off and the scooter can not move under its own power.

•As a general precaution, always remove the key from the ignition while the scooter is

not in use. This will prevent use by untrained and unauthorized persons.

•DO NOT connect any medical device to the scooter battery. This could cause failure

of the device, the scooter and personal injury.

•Make sure the tiller is properly adjusted to the user or damage and injury could result.

•DO NOT transport in a vehicle WHILE seated on the scooter. Shoprider® will not be

responsible for any injury or damage that might result.

•For maximum battery life, make sure to fully charge batteries for up to 12 hours prior

to first use.

7/3/2006 - 5 -

EMI WARNING

Shoprider® Flagship ™ may be susceptible to electromagnetic interference (EMI),

which is a kind of interfering electromagnetic energy (EM) emitted from sources such as

radio stations, TV stations, amateur radio (HAM) transmitters, two-way radio, and

cellular phones. The interference (from radio wave sources) can cause the scooter to

release its brakes, move by itself, or move in unintended directions. It can also

permanently damage the scooter’s control system.

The sources of radiated EMI can be broadly classified into three types:

1. Hand-held portable transceivers (transmitters-receivers) with the antenna mounted

directly on the transmitting unit. Examples include: citizens band (CB) radios,

“walkie talkie”, security, fire and police transceivers, cellular telephones, and other

personal communication devices.

NOTE! Some cellular telephones and similar devices transmit signals while they

are ON, even when not being used.

2. Medium-range mobile transceivers, such as those used in police cars, fire trucks,

ambulances, and taxis. These usually have the antenna mounted on the outside of

the vehicle.

3. Long-range transmitters and transceivers, such as commercial broadcast

transmitters (radio and TV broadcast antenna towers) and amateur (HAM) radios.

NOTE! Other types of hand-held devices, such as cordless phones, laptop

computers, AM/FM radios, TV sets, CD players, and cassette players, and small

appliances, such as electric shavers and hair dryers, so far as we know, are not

likely to cause problems to the scooter.

Scooter Electromagnetic Interference (EMI)

Because EM energy rapidly becomes more intense as one moves closer to the

transmitting antenna (source), the EM fields from hand-held radio sources (transceivers)

are of special concern. It is possible to unintentionally bring high levels of EM energy

very close to the scooter’s control system while using these devices. This can affect

scooter movement and braking. Therefore, the warnings listed below are

recommended to prevent possible interference with the control system of the scooter.

7/3/2006 - 6 -

WARNINGS

1. Do not operate hand-held transceivers (transmitters-receivers), such as citizens

band (CB) radios, or turn ON personal communication devices, such as cellular

phones, while the scooter is turned ON.

2. Be aware of nearby transmitters, such as radio or TV stations, and try to avoid

coming close to them.

3. If unintended movement or brake release occurs, turn the scooter OFF as soon as it

is safe.

4. Be aware that adding accessories or components, or modifying the scooter may

make it more susceptible to EMI.

NOTE! There is no easy way to evaluate the overall immunity of the scooter.

5. Report all incidents of unintended movement or braking to your Shoprider® provider,

and note whether there are sources of EMI nearby.

WARNING! Shoprider® is not responsible for damage or injury incurred due to

improper and unsafe use of our scooter.

7/3/2006 - 7 -

ADJUSTMENTS

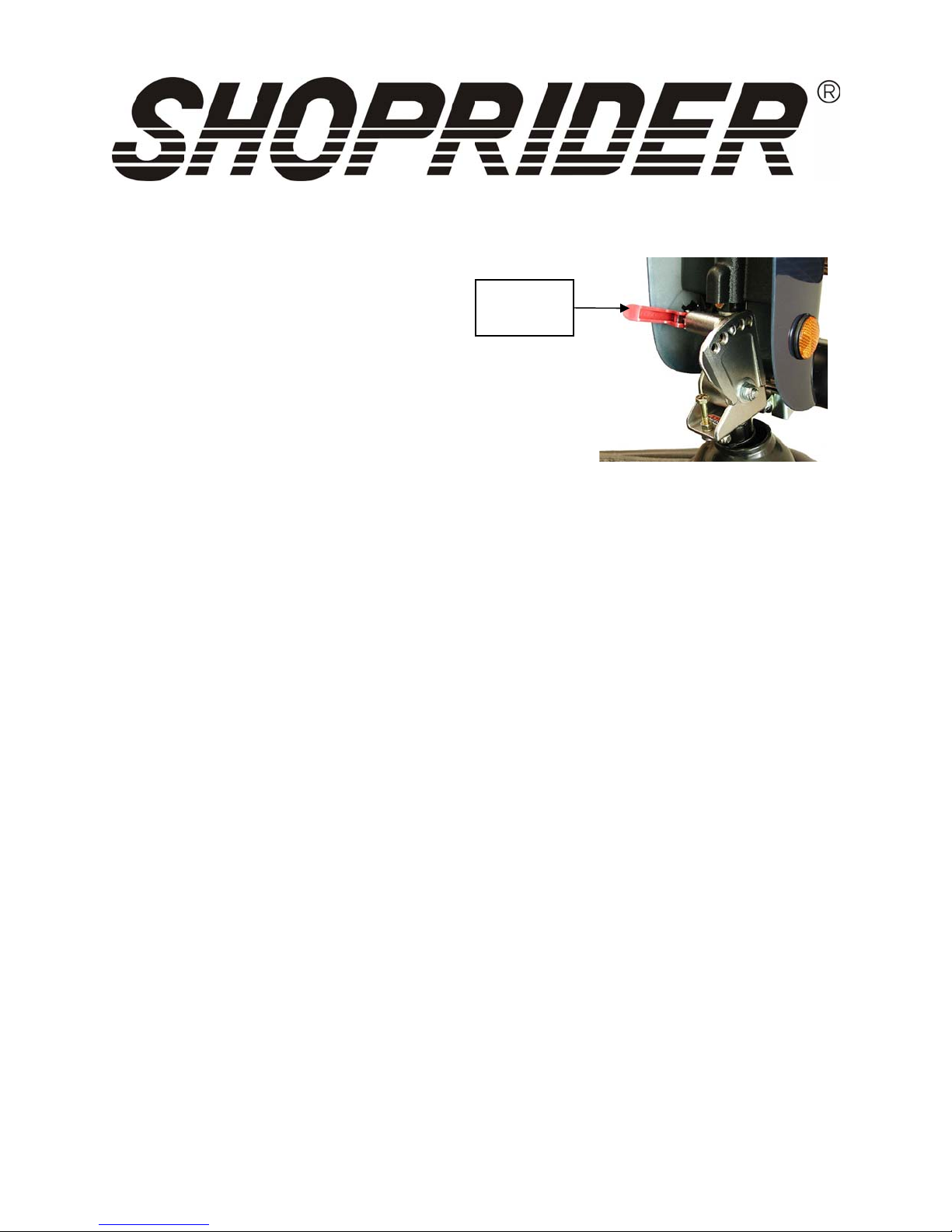

Tiller Angle Adjustment (Fig 2)

On the left hand side at the base of the

tiller is a red lever. Push the lever to

release the pin and select the desired

tiller angle. Refit the pin into one of

the three location holes to lock tiller in

place.

Folding the Tiller

Fold down the tiller by pushing the lever to release the pin (fig 2).

Seat Removal

Turn the seat hand knob under the base of the seat counterclockwise to loosen. Lift the

seat off the seat post.

Seat Slide Adjustment

Lift red lever located under seat & slide seat to desired position. Release lever & seat

will lock into position.

Figure 2

Tiller Angle

Adjustment

Knob

7/3/2006 - 8 -

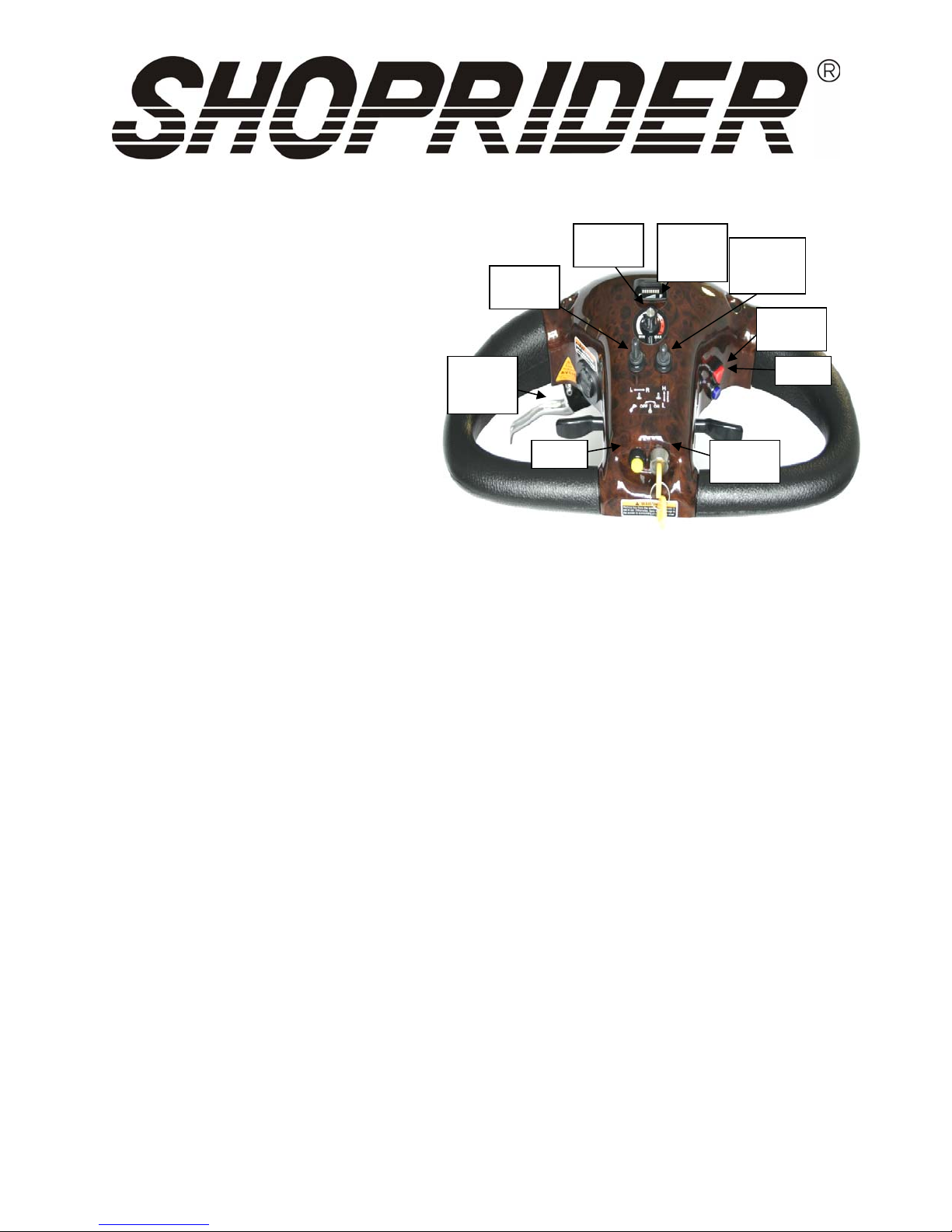

SCOOTER TILLER CONTROLS (FIG 3)

Speed Controls

The speed control allows you to set

a speed between 1 (minimum) and

10 (maximum). There is also a

high/low switch giving you a total of

20 speed settings..

Battery Level Indicator

The number of red bars shows the

amount of charge left in your batteries.

The amount of charge will only show

at its true level when the scooter is in

drive.

Caution – Do not allow the battery

level indicator to go down

completely as complete discharge

of the batteries could cause irreversible damage.

Horn

A yellow button at the rear of the tiller operates the horn.

Hand Lever Controls

The right hand lever controls the forward motion and the left hand lever controls the reverse

motion. The amount of pressure applied to each lever will determine the speed the scooter

travels, up to the speed designated with the speed dial. Release the lever and the scooter

will automatically come to a stop as the electromagnetic brake is applied to the motor.

On/Off Key Switch

Insert the key in the right side of the tiller. Turn the key and the battery light indicator will

light up. There may be a slight delay before the hand lever control can be operated, while

the controller checks the circuits.

Electromagnetic Brake

The brake is automatically operated when the control levers are pressed or released.

There is a slight delay when the scooter decelerates; this allows the scooter to come to a

smooth stop.

Indicator

Switch

Speed

Controls

Battery

Level

Indicator

Speed

High/Low

Switch

Hazard

Lights

Key

Switch

Horn

Finger

Lever

Control

Figure 2

7/3/2006 - 9 -

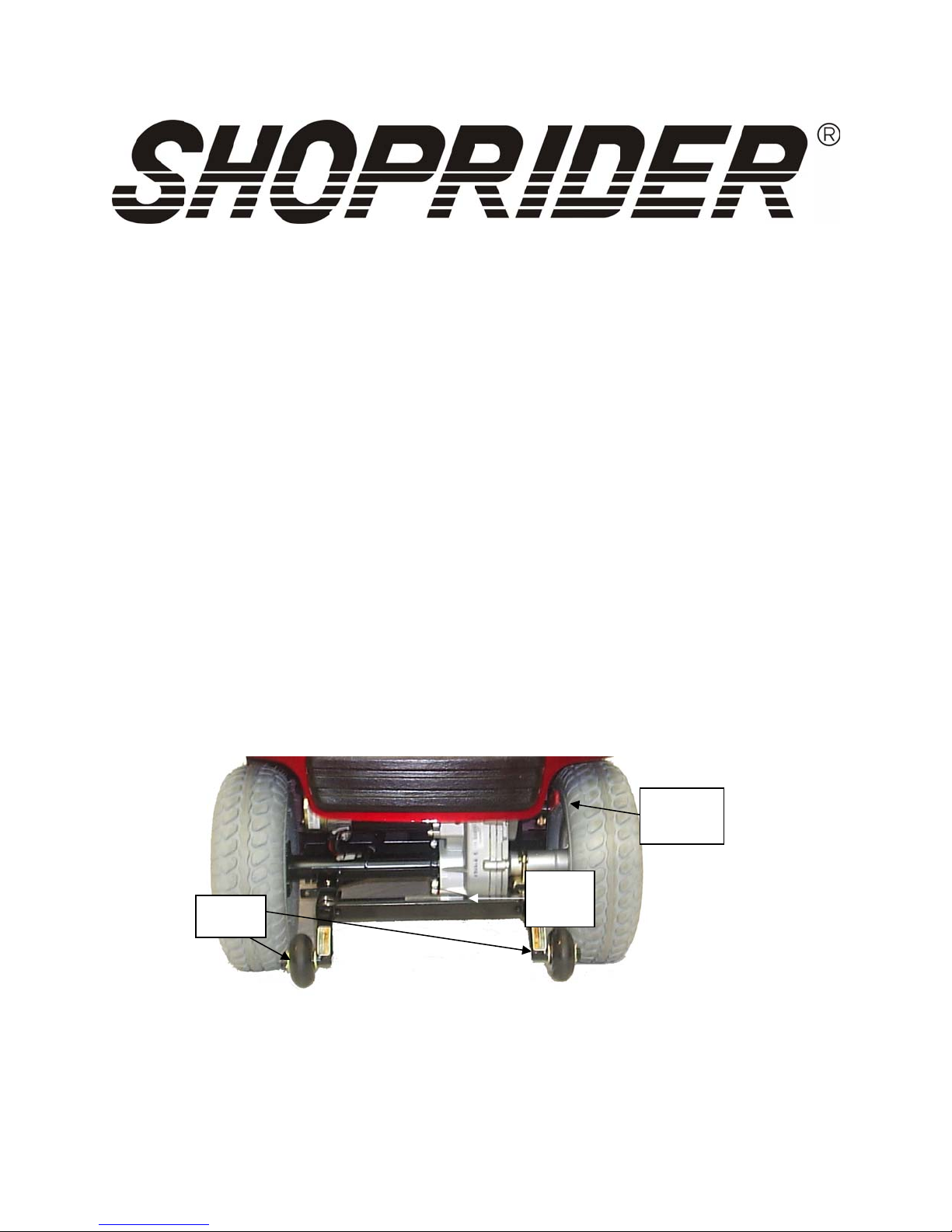

DRIVE/FREEWHEEL OPERATION (FIG 3)

The drive/freewheel lever is located next to the right rear wheel, under rear bumper. This

lever allows you to put the scooter in freewheel (neutral) and push the scooter. To push the

scooter while turned off, lift the lever in the up position (the scooter is now in freewheel).

To put the scooter into drive (in gear); put the lever in the down position (now the unit may

be driven).

Note: The scooter will not operate when the lever is up (in neutral). If the scooter is turned

on while the lever is up, you must turn the scooter off, put the lever in the down position,

and then turn the scooter back on.

WARNING! For safety, always put the scooter into gear (lever down) after pushing

or rolling scooter. Failure to do so may result in injury.

Shoprider® is not responsible for damage or injury incurred due to improper or

misuse of the scooter.

Freewheel

Release

Lever

Scooter

Serial

Number

Anti-tip

Wheels

Figure 3

7/3/2006 - 10 -

STARTING TO DRIVE YOUR SCOOTER

First Time Use

Prior to using your Shoprider® Flagship ™ scooter for the first time, you must charge the

batteries fully (refer to Battery Charging Procedures). Charging may take up to 12 hours.

Charging the batteries completely prior to first time use will benefit battery efficiency and

extend battery life. Failure to do so may cause damage.

Getting Started

•Select a level area with plenty of space.

•Mount the scooter by pushing the arm rest upward out of the way and sliding onto the

seat.

•Adjust the tiller and seat as previously described.

Starting Scooter Movement

•Ensure that you are seated in a comfortable position.

•Turn the key to the on position.

•Your speed setting should be on 1 or 2.

•Squeeze your right hand lever and the scooter will move forward slowly. The harder

you squeeze, the faster the scooter goes but will only reach the speed level that has

been selected.

•Release the lever and the scooter will slowly come to a stop as the magnetic brake

automatically engages.

Steering

Steering the scooter is light and easy. When starting off ensure that you give a wide

clearance when turning so that the rear wheels clear any obstacle that you are passing.

When steering through limited spaces such as a doorway or when turning around, turn the

tiller handles where you want to go and apply power gently. The scooter will turn very

tightly, but will still move with complete stability as long as the speed is not too high.

Reversing

Before reversing ensure that the area behind is free from any hazards or obstructions.

Adjust your speed setting to a low setting before you move in reverse. Squeeze the left

hand lever, and steer wide of all corners and obstacles.

Dismounting

Before dismounting ensure that the key is turned to the off position. Dismount either sliding

off the seat or swivel the seat 90° turn.

CAUTION: Please ensure that care is exercised when mounting or dismounting the

scooter and that the tiller, seat back and foot rest are not used for support.

Table des matières

Autres manuels Shoprider Scooter

Shoprider

Shoprider 889SLBF Manuel utilisateur

Shoprider

Shoprider Start GK3 Manuel utilisateur

Shoprider

Shoprider QT-8 LITTLE BEAUTY Manuel utilisateur

Shoprider

Shoprider Traveso 889XLSBN/CAN Manuel utilisateur

Shoprider

Shoprider TE-778NR Manuel utilisateur

Shoprider

Shoprider TE-787M Manuel utilisateur

Shoprider

Shoprider Rocky 6 Manuel utilisateur

Shoprider

Shoprider Cadiz S-889SL Manuel utilisateur

Shoprider

Shoprider 778 Series Manuel utilisateur

Shoprider

Shoprider Dasher 9 Manuel utilisateur

Shoprider

Shoprider Scootie TE-787NA Manuel utilisateur

Shoprider

Shoprider Scooter Manuel utilisateur

Shoprider

Shoprider Dasher 3 Manuel utilisateur

Shoprider

Shoprider QT3 Manuel utilisateur

Shoprider

Shoprider Mobility Manuel utilisateur

Shoprider

Shoprider Recreational Scooter GR889 Manuel utilisateur

Shoprider

Shoprider 889xlsn Manuel utilisateur

Shoprider

Shoprider Scootie Manuel utilisateur

Shoprider

Shoprider Grande TE-9AS Manuel utilisateur

Shoprider

Shoprider QT3 Manuel utilisateur

Shoprider

Shoprider VIKING 3 Manuel utilisateur

Shoprider

Shoprider Echo 3 SL7-3 Manuel utilisateur

Shoprider

Shoprider SPRINTER XL4 Manuel utilisateur

Shoprider

Shoprider GK10 Manuel utilisateur

Manuels Scooter populaires d'autres marques

TEKTRO

TEKTRO CHEETAH Manuel utilisateur

Douglas

Douglas Vespa Sprint Guide d'installation

PLAYTIVE

PLAYTIVE AS-2448 Manuel utilisateur

Ebinger

Ebinger DONKEY XL Manuel utilisateur

Flyer

Flyer Mountain Guide de l'utilisateur

BackCountry eBikes

BackCountry eBikes Storm Manuel utilisateur

equipmed

equipmed FreeRoam II Manuel utilisateur

Yoto

Yoto Lion Manuel utilisateur

WESTHILL BIKES

WESTHILL BIKES LINK Manuel utilisateur

BAnff

BAnff eProdigy series Manuel utilisateur

Winther

Winther 475 Manuel utilisateur

Jetson

Jetson JBZL17 Manuel utilisateur

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 Manuel utilisateur

Carrera

Carrera impel Manuel utilisateur

Afikim

Afikim Superlight SL-3 Manuel utilisateur

CareCo

CareCo ZOOM Manuel utilisateur

Douglas

Douglas Vespa G.S. Manuel utilisateur

Gazelle

Gazelle with BOSCH System Manuel utilisateur
