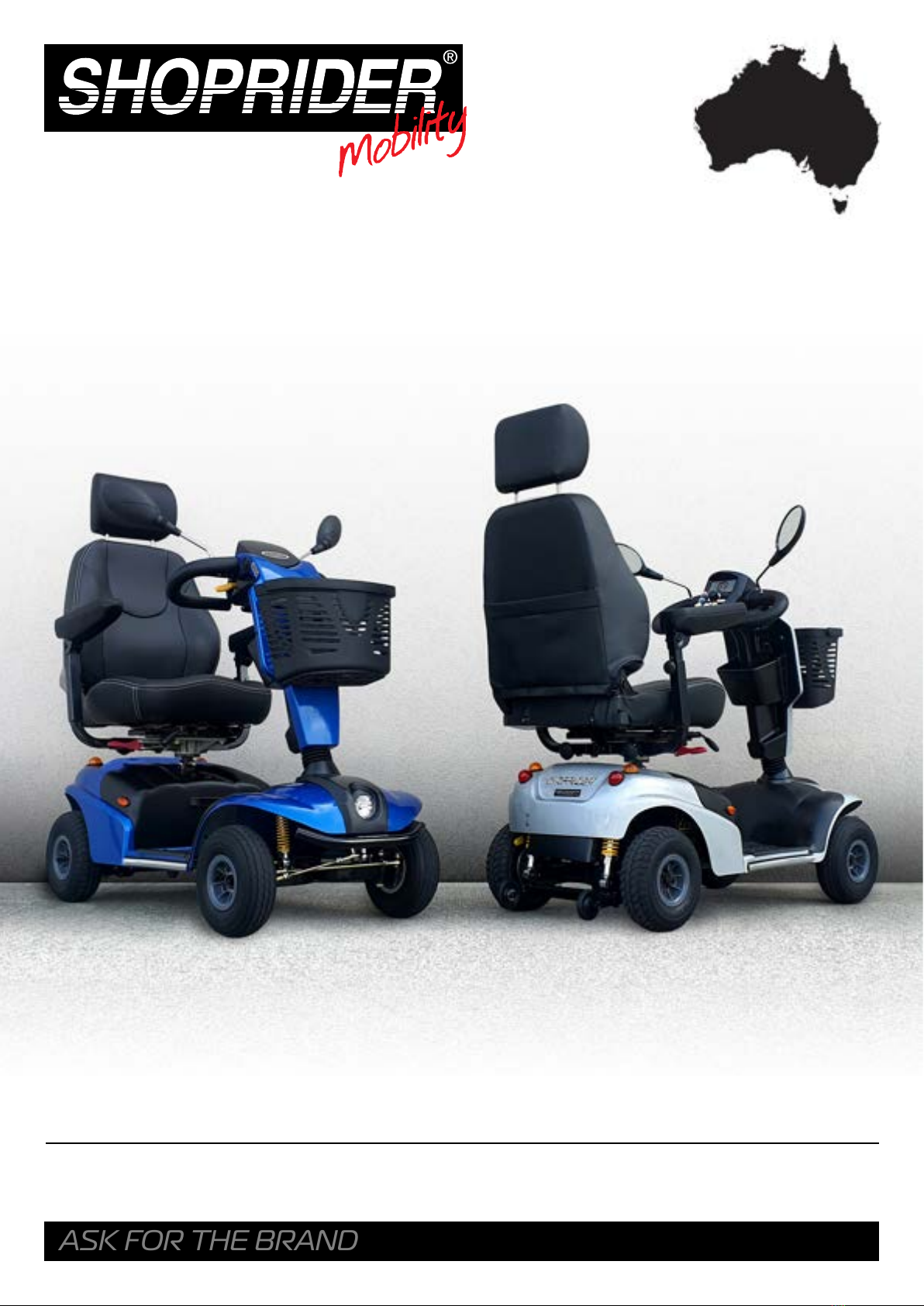

Shoprider 888SE Explorer Manuel utilisateur

ASK FOR THE BRAND

shoprider.com.au

EXPLORER

MOBILITY SCOOTER

888SE

USER MANUAL

Please read these instructions prior to operating scooter

AUSTRALIAN

OWNED / OPERATED

Ed 2

ASK FOR THE BRAND

shoprider.com.au

SHOPRIDER®Mobility owns the copyright to the EXPLORER Mobility Scooter user manual.

Any information contained in this user manual shall not be photocopied, reproduced or

translated into any other languages without the prior written consent of SHOPRIDER®Mobility.

SHOPRIDER®Mobility strives to provide the highest quality products possible.

Product is subject to change without notice.

SHOPRIDER Mobility is part of FOR-DE Group Pty Ltd

ASK FOR THE BRAND

shoprider.com.au

CONTENTS

1. INTRODUCTION

2. FEATURES

3. SPECIFICATIONS

4. SAFETY ADVICE

5. SAFETY ADVICE (continued)

6. EMI WARNING

7. EMI WARNING (continued)

8. GLOSSARY OF SCOOTER

9. ADJUSTABLE TILLER

10. ADJUSTABLE SEAT

11. ADJUSTABLE ARMRESTS

12. SCOOTER CONTROLS

13. OPERATING THE SCOOTER

14. OPERATING THE SCOOTER (continued)

15. FREEWHEEL OPERATION

16. BATTERIES AND CHARGING

17. INSPECT / MAINTAIN / SERVICE

18. TROUBLESHOOTING

19. WARRANTY

20. WARRANTY (continued)

21. DISCLAIMER

22. ACCESSORIES (continued)

23. ACCESSORIES (continued)

24. ACCESSORIES (continued)

ASK FOR THE BRAND

shoprider.com.au

INTRODUCTION

Thank you for purchasing this SHOPRIDER®Mobility product.

If you have any issues or questions about the EXPLORER Mobility Scooter

please contact your supplier or SHOPRIDER®Mobility direct:

T: +61 8 9248 4180

E: orders@for-de.com.au

A: 1 Business Way, Malaga, Western Australia 6090

INTENDED USE

This product has limitations and should be used in accordance to these guidelines.

Failure to follow these guidelines may result in damage to the product and injury

to the user.

This equipment MUST be assembled and used by a competent person. It is the

responsibility of the user to ensure the suitability of this product for its intended use.

The user should consult their appropriate healthcare professional if unsure of the

correct product usage for their unique circumstances.

IMPORTANT NOTE

If you are ever unsure

about any aspect of the

EXPLORER Mobility Scooter

please do not use and contact

your supplier for support.

ASK FOR THE BRAND

shoprider.com.au

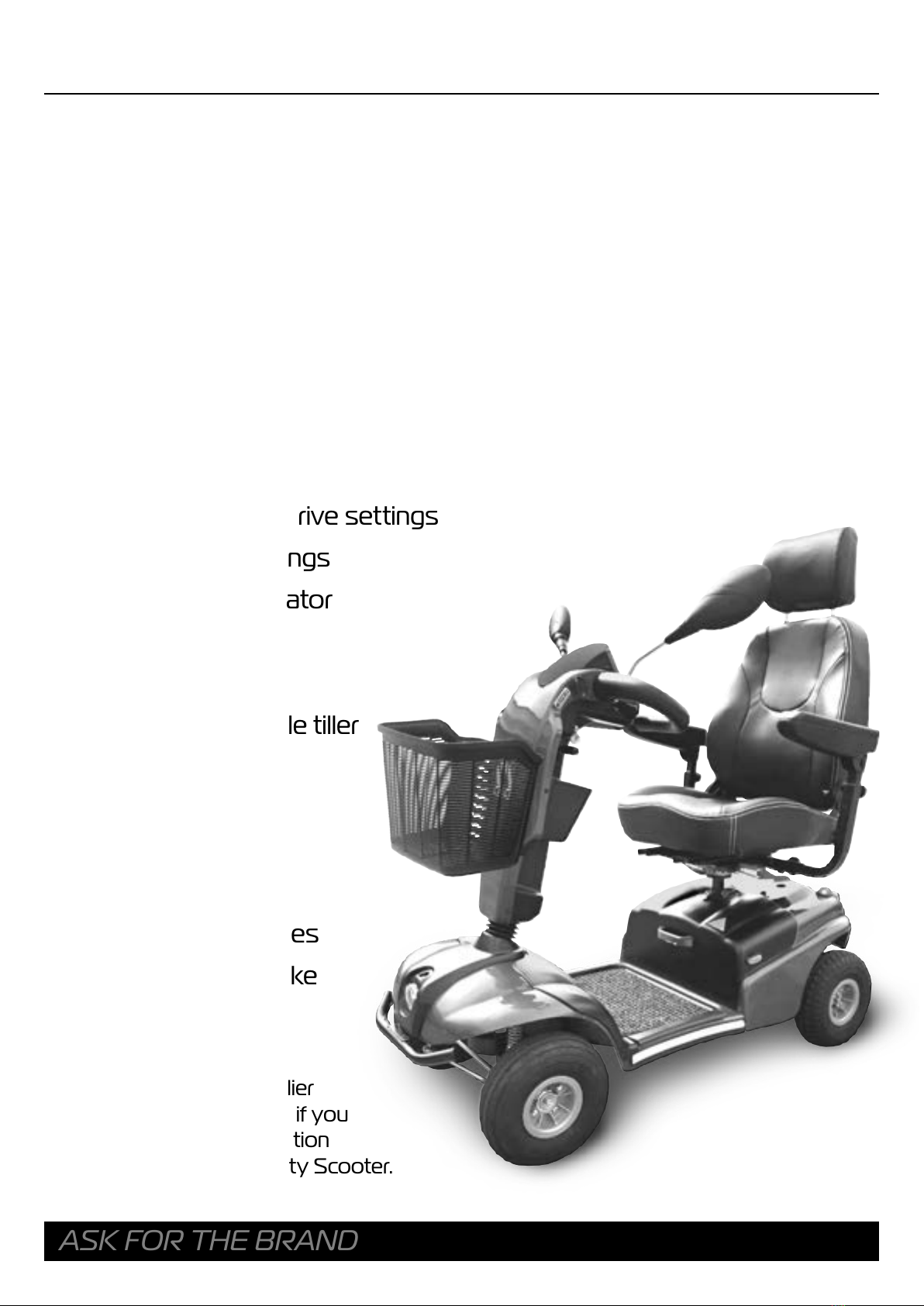

FEATURES

- Full adjustable suspension

- Comfortable high back contoured seat with swivel function

- Height adjustable seat with depth adjustment away from tiller

- Width, height and angle adjustable ﬂip up padded armrests

- Height adjustable headrest

- Angle adjustable backrest

- Padded loop handlebar

- Adjustable rear vision mirrors

- Fingertip operated controls

- Forward / Reverse drive settings

- Variable speed settings

- Battery power indicator

- USB port

- Horn

- Gas assist adjustable tiller

- Removable basket

- LED Headlight

- Rear lights

- Rear wheel drive

- Large pneumatic tyres

- Electromagnetic brake

Please contact your supplier

or SHOPRIDER®Mobility if you

require any further information

on the EXPLORER Mobility Scooter.

ASK FOR THE BRAND

shoprider.com.au

SPECIFICATIONS Note: All dimensions shown are nominal

- Overall: 1280mm (L) x 600mm (W) x 1070mm (H at lowest settings)

- Seat: 460 - 530mm (W int.) x 445mm (D) x 650mm / 680mm / 695mm / 710mm / 725mm (H)

- Backrest: 460mm (W) x 500mm (H) x 0 - 100° (Angle range)

- Headrest: 255mm (W) x 180mm (H) x 630 to 750mm (H from seat - 7 settings at 20mm increments)

- Armrests: 300mm (L) x 85mm (W) x 240 to 315mm (H from seat- 4 settings at 25mm increments)

0 - 90° (Angle range)

- Tiller: 460mm (W) x 900mm (H) x 30° forwards to 15° towards seat (Angle range)

- Turning Circle: 1500mm

- Speed: 10km/h

- Maximum range: Up to 32km*

- Safe climb angle: 9°

- Maximum climb angle: 9°

- Motor: 0.75Hp high torque motor (2 pole)

- Batteries: 2 x 24V / 50 Amp (supplied)

- Charger: 8 Amp (Supplied)

- Tyres (Pneumatic): Front / Rear: Ø260 x 85mm (10”)

- Product Weight: 99kg

- Maximum User Weight: 136kg (on ﬂat ground)

* Maximum range is based on an ambient temperate of 20°C, 75kg user, brand new

fully charged battery and constant driving speed of 5km/h on ﬂat level ground.

Please contact your supplier or SHOPRIDER Mobility if you require any

further information on the EXPLORER Mobility Scooter.

ASK FOR THE BRAND

shoprider.com.au

SAFETY ADVICE

For your own safety, please read the user manual before using the EXPLORER Mobility Scooter.

Failure to follow these guidelines may result in damage to the product and put

the user at risk. I

f in any doubt, contact your supplier directly for advice.

- Please make sure that you are physically capable to operate this unit.

Consult your dealer/appropriate healthcare professional for advice prior to use.

- The EXPLORER Mobility Scooter is designed to take maximum user weight of 136kg.

- Designed for single person use only (Do not carry assengers)

- Do not travel up inclines over 9 degrees (15.8% grade).

- Reduce speed when turning.

- Do not get on or off the scooter unless the brake is on and the scooter is switched off.

- Do not switch off the scooter while the scooter is moving.

- Do not drive the scooter where you can not safely or legally walk.

- Do not attempt to drive over curbs greater than 6.5cm in height. Doing so could cause

your scooter to turn over, causing personal injury or damage to the scooter. For curbs

less than 6.5cm, always approach them at an angle of 90 degrees and at a low speed.

- Do not drink or use a mobile phone when driving your scooter.

- Always keep your feet on the scooter when moving.

- Always slow down and proceed carefully when traveling over rough or uneven ground.

- For individuals with balance problems, practice getting on the scooter with the assistance

of a qualiﬁed healthcare professional.

- Do not use an escalator to move a scooter between ﬂoors or serious injury could occur.

- Do not drive the scooter on an incline that has oil, water or ice ﬁlm on it.

- Do not try to lift the scooter by its seat, tiller, rear chassis cover, or any removable parts.

Any of these could cause injury to the user or damage to the scooter.

- Do not use parts or accessories that are not authorised by the original manufacturer

of the scooter.

- Before sitting in or exiting the scooter, REMOVE the key from the ignition. This will

ensure the POWER is off and the scooter can not move under its own power.

As a general precaution, always remove the key from the ignition while the scooter is

not in use. This will prevent the use by untrained and unauthorised persons.

- Do not connect any foreign device to the scooter battery or charging port.

This could cause failure of the device, the scooter and personal injury.

ASK FOR THE BRAND

shoprider.com.au

SAFETY ADVICE (Continued)

- Make sure the tiller is properly adjusted and in the locked position to suit the user to

avoid damage and injury.

- It is not allowed to have any person sitting in the scooter when transported by a vehicle,

otherwise any injury or damage that might result.

- Do not use the scooter in the rain, near a shower or in a damp bathroom.

Direct exposure to rain or dampness could cause the scooter to electrically malfunction.

- Do not lean against or pull forward on the tiller while mounting or dismounting the

scooter. Otherwise, injury may occur.

- Do not operate the unit or turn the key on while charging.

- Whenever a center bolt of the wheel assembly has been loosened, please replace a

speciﬁed new bolt from authorized dealers and secure with a torque of 240 ± 5 kg-cm

together with Loctite 271 adhesive (or equivalent).

- Charge batteries daily after use.

- Charging plug has to be removed from the scooter after charging.

- Always check the batteries charge remaining before operating the unit to ensure you

have sufﬁcient for your journey.

- Always charge the battery pack of the unit in a well ventilated area.

- If the unit went over or sank into deep water, please abandon the scooter and call

emergency services for assistance.

- Always remove the key from the scooter when the unit is not in use or before charging,

removing and installing the batteries. Otherwise, injury and/or damage to the unit or

surrounding property may occur.

- Do not operate the unit in the way of exceeding to the product’s speciﬁcation listed in

this owner’s manual. Otherwise, injury and/or damage to the unit or surrounding

property may occur. Doing so may also void your warranty.

- Do not use the speed lever before the key switch is turned on, or the operation

will be prohibited until to turn key switch off and then on.

- Ensure the scooter is serviced every 12 months by an authorised SHOPRIDER

Mobility

service provider to ensure it remains in safe working order. Failure to do so may cause

catastrophic failure with possible injury and damage to surrounding property.

ASK FOR THE BRAND

shoprider.com.au

EMI WARNING

Scooters may be susceptible to electromagnetic interference (EMI), which is a kind of

interfering electromagnetic energy (EM) emitted from sources such as radio stations,

TV stations, amateur radio (HAM) transmitters, two-way radio and mobile phones.

The interference (from radio wave sources) can cause the scooter to release its brakes,

move by itself, or move in unintended directions. It can also permanently damage the

scooter’s control system.

The sources of radiated EMI can be broadly classiﬁed into three types:

1. Hand-held portable transceivers (transmitters-receivers) with the antenna mounted

directly on the transmitting unit. Examples include: citizens band (CB) radios, “walkie

talkie”, security, ﬁre and police transceivers, cellular telephones, and other personal

communication devices.

NOTE! Some mobile phones and similar devices transmit signals while they are

ON, even when not being used.

2. Medium-range mobile transceivers, such as those used in police cars, ﬁre trucks,

ambulances, and taxis. These usually have the antenna mounted on the outside of the

vehicle.

3. Long-range transmitters and transceivers, such as commercial broadcast transmitters

(radio and TV broadcast antenna towers) and amateur (HAM) radios.

NOTE! Other types of hand-held devices, such as cordless phones, laptop

computers, AM/FM radios, TV sets, CD players, and cassette players, and small

appliances, such as electric shavers and hair dryers, so far as we know, are not

likely to cause problems to the scooter.

Scooter Electromagnetic Interference (EMI)

Because EM energy rapidly becomes more intense as one moves closer to the

transmitting antenna (source), the EM ﬁelds from hand-held radio sources (transceivers)

are of special concern. It is possible to unintentionally bring high levels of EM energy very

close to the scooter’s control system while using these devices. This can affect scooter

movement and braking. Therefore, the warnings listed below are recommended to

prevent possible interference with the control system of the scooter.

ASK FOR THE BRAND

shoprider.com.au

EMI WARNING (CONTINUED)

WARNINGS

1. Do not operate hand-held transceivers (transmitters-receivers), such as citizens

band (CB) radios, or turn ON personal communication devices, such as mobile

phones, while the scooter is turned ON.

2. Be aware of nearby transmitters, such as radio or TV stations, and try to avoid

coming close to them.

3. If unintended movement or brake release occurs, turn the scooter OFF as soon

as it is safe.

4. Be aware that adding accessories or components, or modifying the scooter may

make it more susceptible to EMI.

NOTE! There is no easy way to evaluate the overall immunity of the scooter.

5. Report all incidents of unintended movement or braking to your dealer, and

note whether there are sources of EMI nearby.

WARNING: The original manufacturer and the importer of the scooter is not

responsible for damage or injury incurred due to improper and unsafe use of our

scooter.

IMPORTANT NOTE

If you are ever unsure about any aspect of the EXPLORER Mobility Scooter

please do not use and contact your supplier for support.

Autres manuels pour 888SE Explorer

Table des matières

Autres manuels Shoprider Scooter

Shoprider

Shoprider EZ Chopper S8M Manuel utilisateur

Shoprider

Shoprider GK10 Manuel utilisateur

Shoprider

Shoprider Capri S787M Manuel utilisateur

Shoprider

Shoprider GK10 Manuel utilisateur

Shoprider

Shoprider Cordoba 889XLSBN Manuel utilisateur

Shoprider

Shoprider S-889NR Manuel utilisateur

Shoprider

Shoprider Solares FS777 Manuel utilisateur

Shoprider

Shoprider TE-9 Manuel utilisateur

Shoprider

Shoprider eclipse 778EL Manuel utilisateur

Shoprider

Shoprider Scootie Manuel utilisateur

Shoprider

Shoprider QT3 Manuel utilisateur

Shoprider

Shoprider GK4 Manuel utilisateur

Shoprider

Shoprider START 8 GK9 Manuel utilisateur

Shoprider

Shoprider FLAGSHIP TE-889XLSN Manuel utilisateur

Shoprider

Shoprider 889xlsn Manuel utilisateur

Shoprider

Shoprider SPRINTER XL4 Manuel utilisateur

Shoprider

Shoprider (888-3L) Manuel utilisateur

Shoprider

Shoprider Paris GK9 Manuel utilisateur

Shoprider

Shoprider Start GK3 Manuel utilisateur

Shoprider

Shoprider Valencia Manuel utilisateur

Shoprider

Shoprider SUNRUNNER 3 888B-3 Manuel utilisateur

Shoprider

Shoprider TE-GK9 Manuel utilisateur

Shoprider

Shoprider Greenrider ES-16 Manuel utilisateur

Shoprider

Shoprider Recreational Scooter GR889 Manuel utilisateur

Manuels Scooter populaires d'autres marques

TEKTRO

TEKTRO CHEETAH Manuel utilisateur

Douglas

Douglas Vespa Sprint Guide d'installation

PLAYTIVE

PLAYTIVE AS-2448 Manuel utilisateur

Ebinger

Ebinger DONKEY XL Manuel utilisateur

Flyer

Flyer Mountain Guide de l'utilisateur

BackCountry eBikes

BackCountry eBikes Storm Manuel utilisateur

equipmed

equipmed FreeRoam II Manuel utilisateur

Yoto

Yoto Lion Manuel utilisateur

WESTHILL BIKES

WESTHILL BIKES LINK Manuel utilisateur

BAnff

BAnff eProdigy series Manuel utilisateur

Winther

Winther 475 Manuel utilisateur

Jetson

Jetson JBZL17 Manuel utilisateur

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 Manuel utilisateur

Carrera

Carrera impel Manuel utilisateur

Afikim

Afikim Superlight SL-3 Manuel utilisateur

CareCo

CareCo ZOOM Manuel utilisateur

Douglas

Douglas Vespa G.S. Manuel utilisateur

Gazelle

Gazelle with BOSCH System Manuel utilisateur
