Ruijie Reyee RG-NBS7003 Manuel d'installation et d'exploitation

Ruijie Reyee RG-NBS7003 Switch

Hardware Installation and Reference Guide

DocumentVersion:V1.0

Date:April 20, 2023

All rights arereservedin this documentand this statement.

Any reproduction, excerption, backup, modification, transmission, translation or commercial use of this

document or any portion of this document, in any form or by any means, without the prior written consent of

RuijieNetworks is prohibited.

Trademarks including , are ownedby Ruijie Networks.

All other trademarks or registered trademarks mentioned in this document are owned by their respective

owners.

Disclaimer

The products,services, or features you purchase aresubject to commercial contracts and terms. Some or all of

the products, services or features described in this documentmaynot be within the scope of your purchase or

use. Unless otherwise agreed in the contract, Ruijie Networks does notmake anyexpress or implied statement

or guarantee for the content of this document.

Due to product version upgrades or other reasons, the content of this document will be updated from time to

time.RuijieNetworks reserves therightto modifythe content ofthe documentwithout anynotice or prompt.

This manual is for reference only. Ruijie Networks endeavors to ensure content accuracyand will not shoulder

any responsibilityfor lossesand damagescauseddue tocontent omissions,inaccuracies orerrors.

Preface

IntendedAudience

This documentis intendedfor:

Networkengineers

Technicalsupportandservice engineers

Networkadministrators

Technical Support

Official website ofRuijieReyee: https://www.ruijienetworks.com/products/reyee

Technicalsupportwebsite:https://ruijienetworks.com/support

Caseportal:https://caseportal.ruijienetworks.com

Community:https://community.ruijienetworks.com

Technicalsupportemail:service_rj@ruijienetworks.com

Conventions

1. GUI Symbols

Interface

symbol

Description

Example

Boldface

1. Button names

2. Window names,tab name, fieldname and

menuitems

3. Link

1. Click OK.

2. Select Config Wizard.

3. Click the Download File link.

Multi-level menus items

Choose System >Time.

2. Signs

The signs usedin this documentaredescribedas follows:

Warning

An alert that calls attentionto importantrules and information thatif not understood orfollowed can resultin

data loss orequipmentdamage.

Caution

An alert that calls attention to essentialinformation thatifnot understood orfollowed canresultin function

failureor performancedegradation.

Note

An alert that contains additional orsupplementaryinformation thatif not understoodorfollowed will notleadto

serious consequences.

Specification

An alert that contains a description ofproductor version support.

3. Note

This manual provides the device installation steps, hardware troubleshooting,module technical specifications,

andspecifications and usage guidelines for cables and connectors. Itis intended for the users who have some

experience in installing and maintaining network hardware. At the same time, it is assumed that the users are

alreadyfamiliarwiththerelatedterms and concepts.

Hardware Installation and Reference Guide ProductOverview

1 Product Overview

The RG-NBS7000 series switches are next-generation switches launched by Ruijie independently. The switch

comes into twomodels:RG-NBS7003andRG-NBS7006.

RG-NBS7003: Anyline card can work as a supervisor engine in slot 1 (slot 1 must be occupied). The switch

provides threelinecard slots.

1.1 RG-NBS7003Switch

1.1.1 Package Contents

Table 1-1Package Contents

Item

Quantity

Chassis

M7003-FAN Module

Cablemanagementbrackets

M3 x 10 mm screw

M6 x 16 mm screw

M6 cagenuts

Anti-static wriststrap

Yellow/green groundingcable

Warranty Card

UserManual

Mounting bracket

2 (pre-installed)

Product managementsoftwareofRuijieNetworks

1 (pre-installed)

Instruction

●The precedingtablelists itemsdeliveredinnormalcases.Theactuallydelivereditems mayvary with the

contract. Carefullycheck your goods againstthe package contents orcontract. Contact the sellerifyou

have any questions orfindanyerrors.

1.1.2 Product Appearance

The hardware system of the RG-NBS7003 switch includes the chassis, power supply system, system modules

and heat dissipationsystem.

The powersupplysystem: Theswitch provides two powersupplyslots and supports 1+1power redundancy.

Hardware Installation and Reference Guide ProductOverview

You areadvisedto configure powersupplyredundancy.

System modules: Theswitch provides threeline cardslots.Anyline card can work as asupervisor engine in

slot1. You canselectdifferent linecards as needed.Slot1 mustbe occupied.

The heat dissipation system:The heatdissipation systemconsists offan modules inthe rearof the chassis.

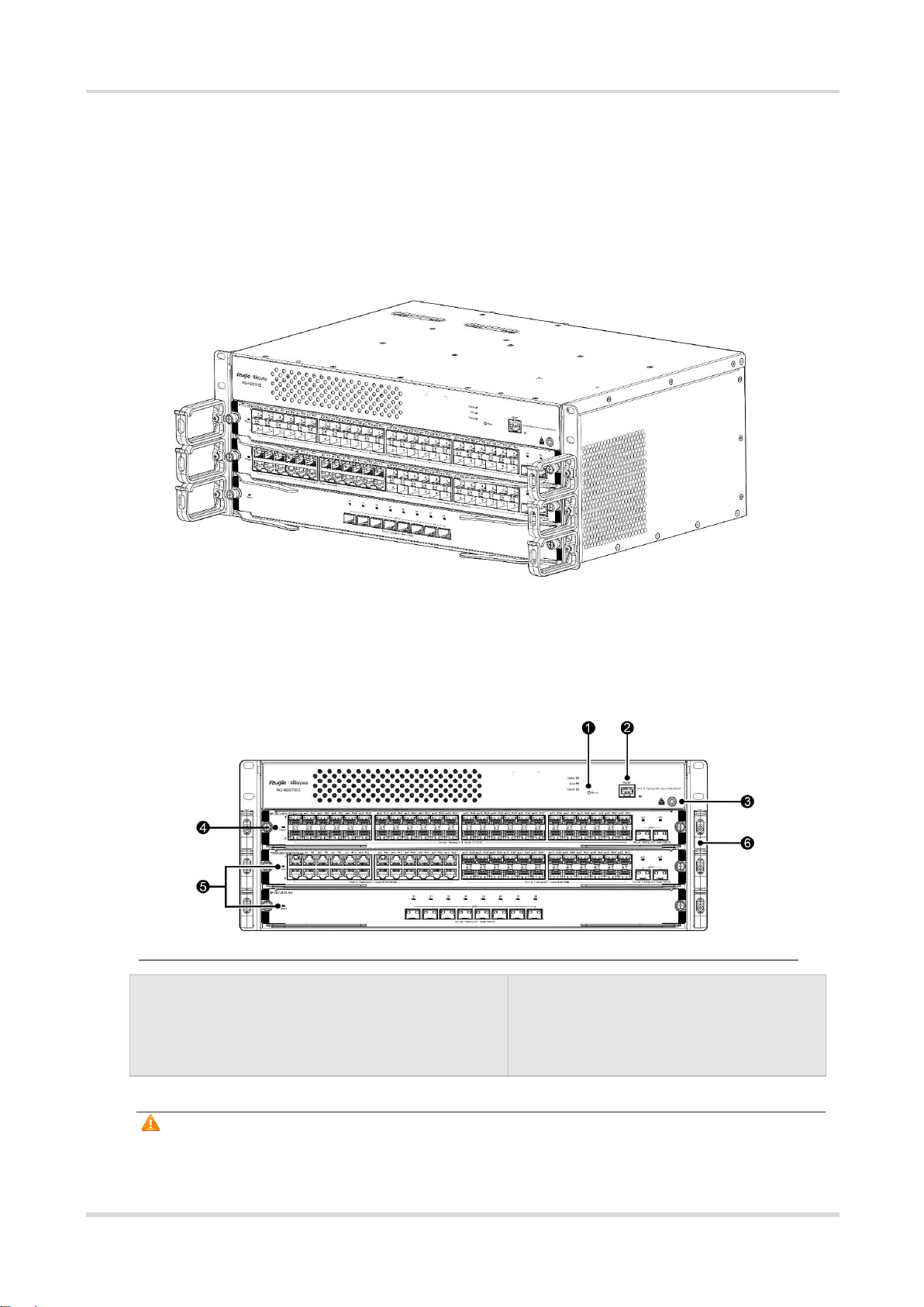

Figure 1-1Appearance of the RG-NBS7003 Switch

1.1.3 Ports - Front Panel

The front panel of the RG-NBS7003 switchis showninFigure1-2.

Figure 1-2 Front Panel of the RG-NBS7003 Switch

1. ResetButton

2. ManagementPort

3. Anti-Static Wrist Strap Socket

4. Slot 1 (SupervisorEngine)

5. Slot 2 and Slot 3 (Line Card)

6. CableManagementFrame

Caution

Ensure the line cards and power supply modules are removed from the chassis before you move the

RG-NBS7003 chassis.

Hardware Installation and Reference Guide ProductOverview

●Press theResetbuttonfor nomorethan two seconds,and allmodules will bereset.

●Press theResetbuttonfor two to five seconds,and no configurations will be changedandno modulewill

be reset.

●Press theResetbuttonfor over 5 seconds,andallmoduleswillberestoredtofactory settings with

configurationbackupsaved.After restart,use the defaultpassword tologin to the Webmanagement

system. You can select Reset Backup to restore previous configurations, or select Delete Backup to delete

previous configurations.

1.1.4 Ports - Rear Panel

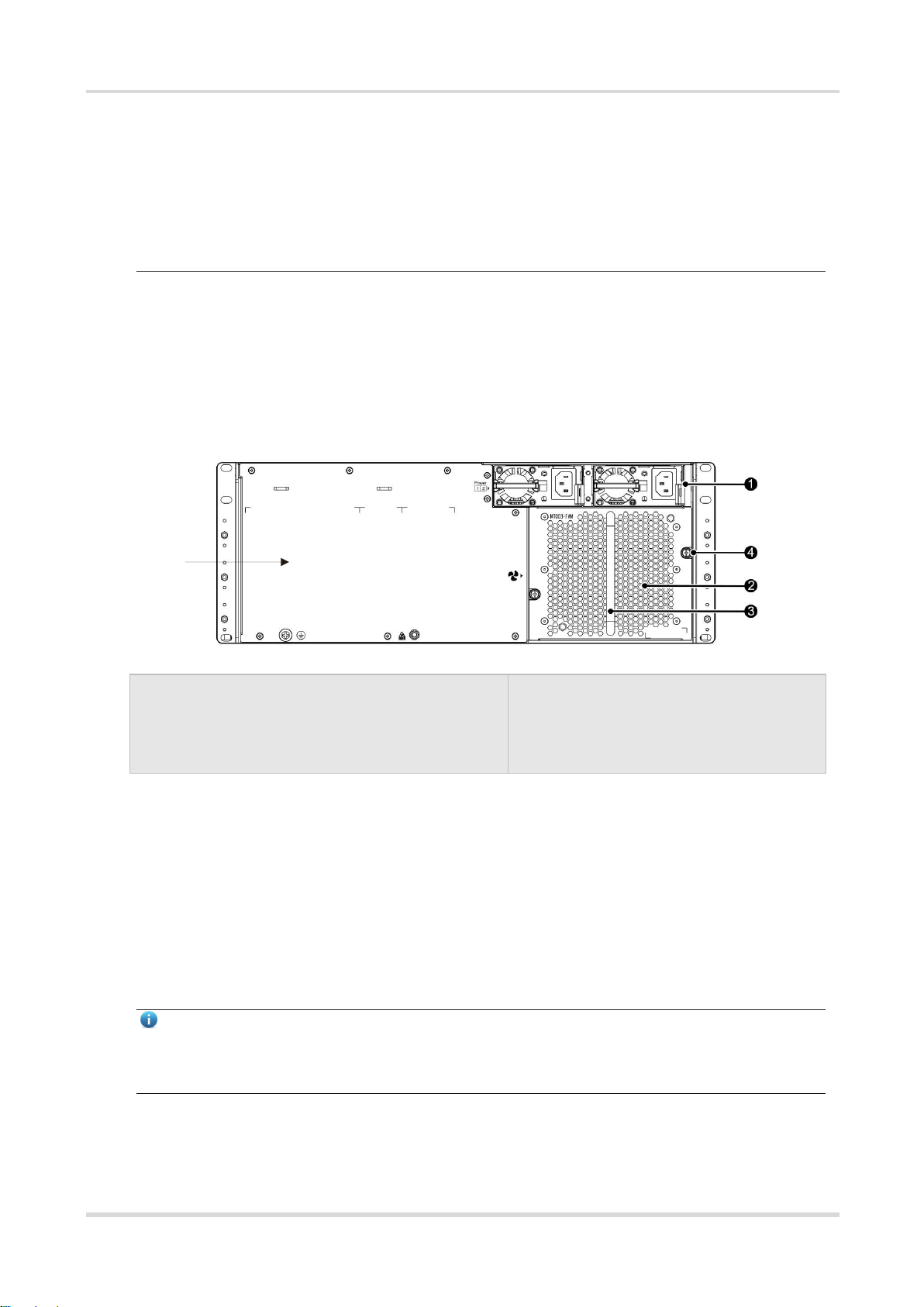

The Rearpanel of the RG-NBS7003 switchis showninFigure 1-3.

Figure 1-3 Back Panel of the RG-NBS7003 Switch

1. PowerSupplyModule

2. Fan Module

3. Fan Module Handle

4. Captive Screw

5. Nameplate

1.1.5 Power Supply

The RG-NBS7003switchadopts AC powerinput.

The RG-PA300I-FS and RG-PA460I-FS modules are available. If you want to use three

M7000-48SFP2XS-EA modules, a combination of two M7000-48SFP2XS-EA modules and one

M7000-24GT24SFP2XS-EA module, a combination of two M7000-48SFP2XS-EA modules and one

M7000-16XS-EA, or a combination of one M7000-48SFP2XS-EA module and two M7000-16XS-EA

modules,selecttheRG-PA460I-FS module.Inother cases,selecttheRG-PA300I-FS module.

Note

The RG-NBS7003switchsupports 1+1powersupplyredundancy.You are advisedto configurepowersupply

redundancyto improve system stabilityand reliability.

Hardware Installation and Reference Guide ProductOverview

1.1.6 LEDs

LED

Panel

Identification

Status

Meaning

System Status LED

Status

Off

The switchis poweredoff.

Blinkinggreen

(Fast)

The switchis beinginitialized.

Blinkinggreen

(Slow)

The switch has been initialized andhas not

accessedRuijieCloud.

Solidgreen

The switch has beeninitializedand

accessedRuijieCloud.

Solidyellow

Possiblecases:

1. Atemperature alarm is generated.

2. A fan module is notin place.

3. The supervisorengine is notfunctioning

properly.

Solidred

The system is notfunctioningproperlydue

to a fan fault, powerfault,or system fault.

The switch maybe damaged if itcontinues

to work.

MGMT Port Status

LED

Link/ACT

Off

No linkis detectedfor this port.

Solidgreen

The port has made asuccessful

10/100/1000Mbps link.

Blinking

The port is transmitting orreceivingdata.

Fan Status LED

FAN

Off

The switchis powered off or the

initialization process is notcomplete.

Solidgreen

The fan module is operating normally.

Solidyellow

The fan moduleis notinplace.

Solidred

The fan moduleis notfunctioningproperly.

PowerSupply

Status LED

Power

Off

The switchis powered off or the

initialization process is notcomplete.

Solidgreen

The powersupplymoduleis operating

normally.

Solidred

The powersupplymoduleis not

functioning properly.

Hardware Installation and Reference Guide ProductOverview

1.1.7 Heat Dissipation

The working temperature of the RG-NBS7003 switch ranges from 0 to 50°C (32°F to 122°F). The heat

dissipation design needs to ensure the stability, safety and maintainability of the switch in such environment.

The RG-NBS7003 switch adopts fan ventilation and forced convection to ensure the switch can work normally

in specified environment.

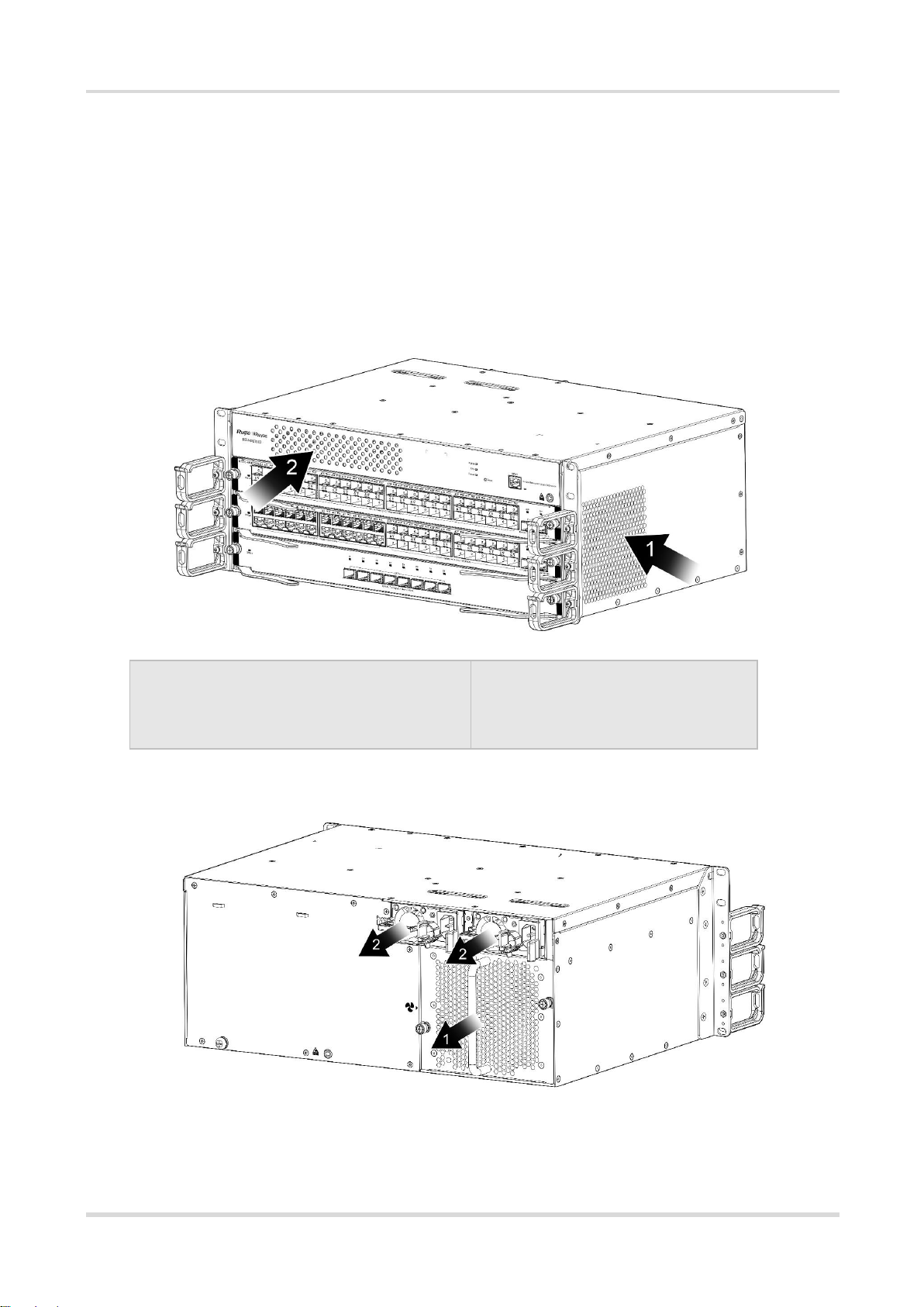

Figure 1-4Air Intake Design

1. Air intakes for linecards andthe supervisor

engine(linecard in slot1 workingas the

supervisorengine)

2. Air intakes for powersupplymodules

Figure 1-5Air Exhaust Design

Hardware Installation and Reference Guide ProductOverview

1. Air exhaustfor linecards andthe supervisor

engine(linecard in slot1 workingas the

supervisorengine)

2. Air exhaustfor powersupplymodules

The linecards andthe supervisorengineadoptsright-to-rearairflow forproperventilation.

The powersupplymoduleadopts front-to-rearairflowforproperventilation.

Note

Maintain aminimum clearance of 10 cm (3.94 in.) around the chassis to allowair circulation. Install a filler panel

properlyinan emptyslotfor ventilation.
