Ruijie RG-ES100 Series Switches

Hardware Installation and Reference Guide V1.0

Ruijie Networks reserves all copyrights of this document. Any reproduction, excerption, backup,

modification, transmission, translation or commercial use of this document or any portion of this document,

in any form or by any means, without the prior written consent of Ruijie Networks is prohibited.

Exemption Statement

This document is provided “as is”. The contents of this document are subject to change without any notice.

Please obtain the latest information through the Ruijie Networks website. Ruijie Networks endeavors to

ensure content accuracy and will not shoulder any responsibility for losses and damages caused due to

content omissions, inaccuracies or errors.

Preface

Thank you for using our products. This manual will guide you through the installation of the device.

This manual describes the functional and physical features and provides the device installation steps,

hardware troubleshooting, module technical specifications, and specifications and usage guidelines for

cables and connectors.

Audience

It is intended for the users who have some experience in installing and maintaining network hardware. At

the same time, it is assumed that the users are already familiar with the related terms and concepts.

Obtaining Technical Assistance

Ruijie Networks Website: https://www.ruijienetworks.com/

Technical Support Website: https://ruijienetworks.com/support

Case Portal: https://caseportal.ruijienetworks.com

Community: https://community.ruijienetworks.com

Technical Support Email: [email protected]

Skype: [email protected]

Related Documents

Documents

Description

Configuration Guide

Describes network protocols and related mechanisms that

supported by the product, with configuration examples.

Command Reference

Describes the related configuration commands, including

command modes, parameter descriptions, usage guides, and

related examples.

Symbol Conventions

The symbols used in this document are described as below:

This symbol brings your attention to some helpful suggestions and references.

This symbol means that you must be extremely careful not to do some things that may damage the

device or cause data loss

Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Product Overview

1 Product Overview

The RG-ES100 series switches include the following models:

Table 1-1 RG-ES100 Series Switches

Model

10/100/1000 Base-T

Auto-sensing Ethernet Port

1000Base-X SFP Port

Console Port

RG-ES109G-LP-L

9 (Ports 1-8 support

PoE+/PoE）

N/A

RG-ES126G-P-L

24 (1-24 ports support

PoE+/PoE）

N/A

RG-ES126G-LP-L

24 (1-24 ports support

PoE+/PoE）

N/A

The SPF ports cannot be downward compatible with 100Base-FX.

1000Base-T is compatible with 100Base-TX and 10Base-T in the downlink direction.

1.1 RG-ES109G-LP-L

Technical Specifications

Model

RG-ES109G-LP-L

Power Supply

AC input

Rated voltage range: 100V to 240V

Maximum voltage range: 90V to 264V

Frequency: 50/60 Hz

Rated current: 1.5A

Power cord requirement: 10A

Adapter output

Rated voltage range: 54V DC

Rated current range: 1.11A

EEE

Not supported

PoE

Supports PoE and PoE+.

Ports 1-8 are PoE/PoE+-capable with the maximum power output of 30W per port. Port 9 does

not support PoE or PoE+.

The overall maximum output power of PoE/PoE+ is 54W.

PoE Mode

Mode A (data pairs 1-2 and 3-6)

Power

Consumption

Less than 7W with no PoE load

Less than 64W with PoE full load

Port Mode LED

When the button is turned to the left position (Mode 1), the LED indicates the switching status

Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Product Overview

Switchover Button

of the port: when the LED is solid green, it indicates that the link is up; when the LED blinks

green, data is being transmitted or received.

When the button is turned to the right position (Mode 2), the LED indicates the PoE status of

ports; when the LED is solid green, it indicates that the PoE-supported ports are supplying

power; when the LED blinks green, the power of the ports is overloaded.

Working Mode

Switchover Button

When the button is turned to the left position (flow control is enabled), all ports’ communication

is available and the flow control function is enabled on all ports.

When the button is turned to the middle position (VLAN isolation), ports 1-8 cannot

communicate with each other but can communicate only with port 9; the flow control is disabled

on port 9 but enabled on ports 1-8.

When the button is turned to the right position (flow control is disabled), all ports’

communication is available and the flow control function is disabled on all ports.

Operating

Temperature

0℃to 40℃(32°F to 104°F)

Storage

Temperature

-40℃to 70℃(-40°F to 158°F)

Operating Humidity

10% to 90% RH

Storage Humidity

5% to 95% RH

Fan

Not supported

Temperature

Warning

Not supported

Accessing Optical

Module Information

Not supported

EMC Standards

GB9254-2008

Security Standards

GB4943-2011

Earth Leakage

Current

≤1.5mA

Dimensions

(W x D x H)

206.5 mm x 108.5 mm x 28 mm

Weight

1.1 kg (with package)

The RG-ES109G-LP-L switch is a class A product. In a domestic environment, this product may cause radio

interference in which case the user may be required to take adequate measures.

Product Appearance

On the front panel, the RG-ES109G-LP-L Ethernet switch provides nine 10/100/1000Base-T Ethernet ports. On the back

panel, it provides an AC power port.

Figure 1-1 Appearance of RG-ES109G-LP-L

Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Product Overview

Front Panel

Figure 1-2 Front Panel of RG-ES109G-LP-L

Note:

1. System status LED

2. Port Mode LED Switch-Over Button

3. Copper port status LED

4. 10/100/1000Base-T auto-sensing Ethernet port

5. Copper port status LED

6. 10/100/1000Base-T auto-sensing Ethernet port

Back Panel

Figure 1-3 Back Panel of RG-ES109G-LP-L

Note:

1. Grounding pole

2. Working Mode Switch-Over Button

3. Power port

4. Hole for anti-theft lock

Heat Dissipation

The RG-ES109G-LP-L adopts natural heat dissipation, thereby ensuring normal function of the device in the specified

environment. 10 cm distance space should be reserved at both sides and the back plane of the cabinet to allow air

circulation. It is recommended to clean the device once every 3 months to avoid dust from blocking vents.

LEDs

LED

Panel Identification

State

Meaning

System status LED

Status

Off

The switch is not receiving power.

Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Product Overview

Blinking green

The PoE power exceeds the power of the entire

device (54 W). The new connected PD cannot be

powered up due to insufficient power. The

switching function is operational.

Solid green

The switch is operational.

RJ45 port PoE status

LED

1-8

Off

PoE is not enabled.

Solid green

PoE is enabled. The port is operational.

Blinking green

Indicates PoE overload.

1000Mbps RJ-45 port

status LED

1-9

Off

The port is not connected.

Solid green

The port is connected at 10/100/1000 Mbps.

Blinking green

The port is receiving or transmitting traffic at

10/100/1000 Mbps.

1.2 RG-ES126G-P-L

Technical Specifications

Model

RG-ES126G-P-L

Optical Module

For details, see Appendix B.

The supported module type may change at any time. Consult us for the latest information.

SFP Port

Supports 1000Base-X modules.

Power Supply

AC input

Rated voltage range: 100V to 240V

Maximum voltage range: 90V to 264V

Frequency: 50/60 Hz

Rated current: 6A

Power cord requirement: 10A

EEE

Not supported

PoE

Supports PoE and PoE+.

Ports 1-24 are PoE/PoE+-capable with the maximum power output of 30W per port.

Ports 25 and 26 do not support PoE or PoE+.

The overall maximum output power of PoE/PoE+ is 370W.

PoE Mode

Mode A (data pairs 1-2 and 3-6)

Power

Less than 25W with no PoE load

Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Product Overview

Consumption

Less than 430W with PoE full load

Port Mode LED

Switchover Button

When the button is turned to the left position (Mode 1), the LED indicates the switching status

of the port: when the LED is solid green, it indicates that the link is up; when the LED blinks

green, data is being transmitted or received.

When the button is turned to the right position (Mode 2), the LED indicates the PoE status of

ports; when the LED is solid green, it indicates that the PoE-supported ports are supplying

power; when the LED blinks green, the power of the ports is overloaded.

Working Mode

Switchover Button

When the button is turned to the left position (flow control is enabled), all ports’ communication

is available and the flow control function is enabled on all ports.

When the button is turned to the middle position (VLAN isolation), ports 1-22 cannot

communicate with each other but ports 23-26 can communicate with each other; the flow

control is disabled on ports 23-26 but enabled on ports 1-22.

When the button is turned to the right position (flow control is disabled), all ports’

communication is available and the flow control function is disabled on all ports.

Operating

Temperature

0℃to 40℃(32°F to 104°F)

Storage

Temperature

-40℃to 70℃(-40°F to 158°F)

Operating Humidity

10% to 90% RH

Storage Humidity

5% to 95% RH

Fan

Supports adaptive speed adjustment. The fan stops running when the ambient temperature is

lower than 25°C and the PoE power is smaller than 185 W.

Temperature

Warning

Not supported

Accessing Optical

Module Information

Not supported

EMC Standards

GB9254-2008

Security Standards

GB4943-2011

Earth Leakage

Current

≤1.5mA

Dimensions

(W x D x H)

440 mm x 292 mm x 43.6 mm

Weight

4.2 kg (with package)

The RG-ES126G-P-L switch is a class A product. In a domestic environment, this product may cause radio

interference in which case the user may be required to take adequate measures.

Product Appearance

On the front panel, the RG-ES126G-P-L Ethernet switch provides twenty-four 10/100/1000Base-T Ethernet ports, and two

1000M SFP ports. On the back panel, it provides an AC power port.

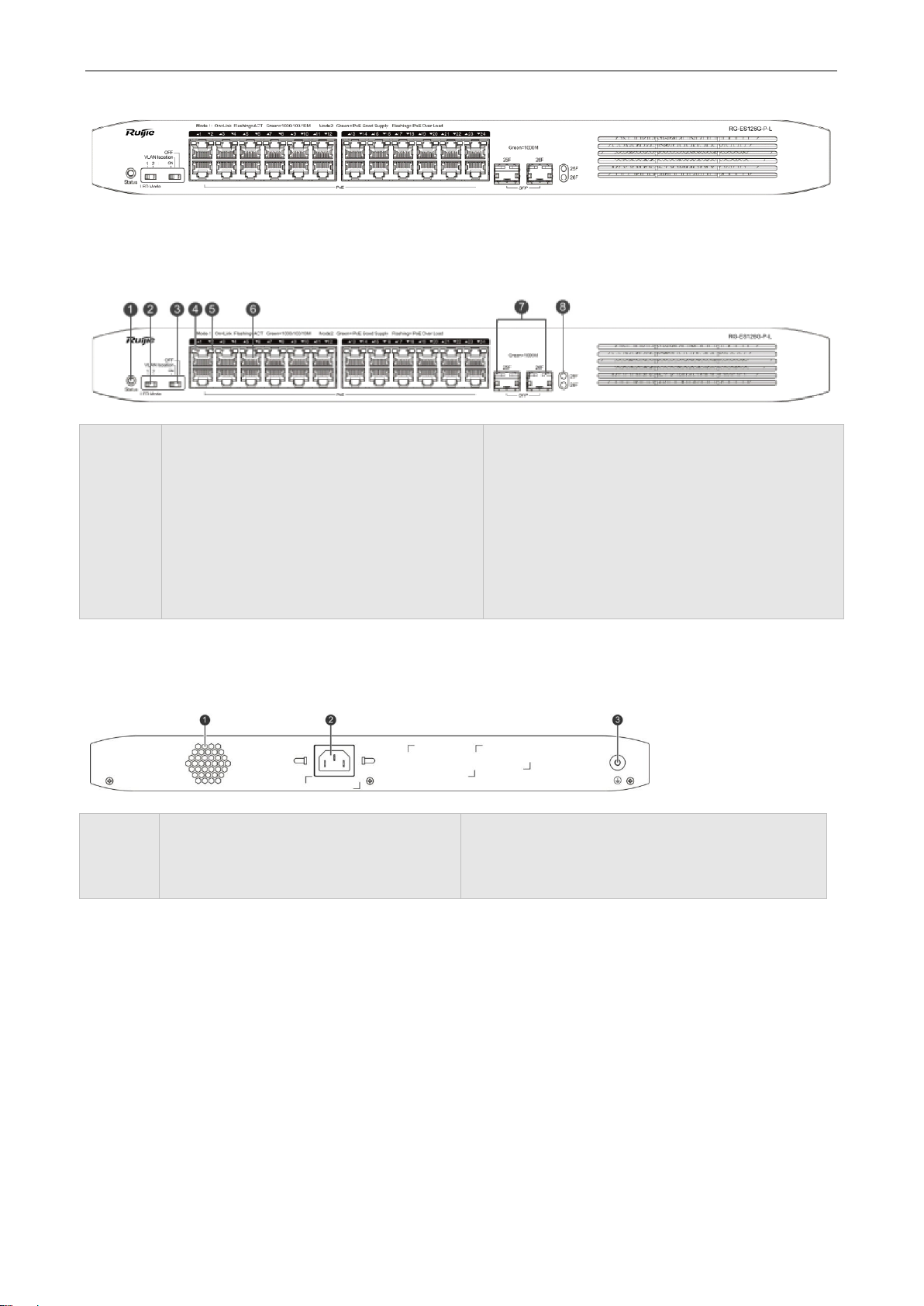

Figure 1-4 Appearance of RG-ES126G-P-L

Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Product Overview

Front Panel

Figure 1-5 Front Panel of RG-ES126G-P-L

Note:

1. System status LED

2. Port Mode LED Switch-Over Button

3. Working Mode Switch-Over Button

4. Copper port status LED

5. Copper port status LED

6. 10/100/1000Base-T auto-sensing Ethernet port

7. 1000Base-X SFP port

8. SFP port status LED

Back Panel

Figure 1-6 Back Panel of RG-ES126G-P-L

Note:

1. Vent

2. AC power port

3. Grounding pole

Heat Dissipation

The RG-ES126G-P-L adopts turbine fans for heat dissipation, thereby ensuring normal function of the device in the

specified environment. 10 cm distance space should be reserved at both sides and the back plane of the cabinet to allow

air circulation. It is recommended to clean the device once every 3 months to avoid dust from blocking vents. Figure 1-7

shows the flow scheme of heat dissipation.

Figure 1-7 Flow Scheme of Heat Dissipation

Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Product Overview

LEDs

LED

Panel Identification

State

Meaning

System status LED

Status

Off

The switch is not receiving power.

Blinking green

The PoE power exceeds the power of the entire

device (370 W). The new connected PD cannot

be powered up due to insufficient power. The

switching function is operational.

Solid green

The switch is operational.

RJ45 port PoE status

LED

1-24

Off

PoE is not enabled.

Solid green

PoE is enabled. The port is operational.

Blinking green

Indicates PoE overload.

1000Mbps RJ-45 port

status LED

1-24

Off

The port is not connected.

Solid green

The port is connected at 10/100/1000 Mbps.

Blinking green

The port is receiving or transmitting traffic at

10/100/1000 Mbps.

1000Mbps SFP port

status LED

25F-26F

Off

The port is not connected.

Solid green

The port is connected at 1000 Mbps.

Blinking green

The port is receiving or transmitting traffic at 1000

Mbps.

Autres manuels pour RG-ES100 Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Ruijie Changer

Ruijie

Ruijie RG-CS83 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6580-48CQ8QC Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-ES126S-LP Manuel utilisateur

Ruijie

Ruijie RG-N18000-E Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6250-48XS8CQ Series Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-ES126S-P V2 Manuel utilisateur

Ruijie

Ruijie RG-NBS3200 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6000C-48GT4XS-E-AC DCN Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S3250E Series Manuel utilisateur

Ruijie

Ruijie RG-CS83 Series Manuel utilisateur

Ruijie

Ruijie RG-ES05 Series Manuel utilisateur

Ruijie

Ruijie XS-S1930J Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6520 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-NIS Series Manuel utilisateur

Ruijie

Ruijie RG-S2928G-E Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-NBS7003 Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6150-X Series Comment utiliser

Ruijie

Ruijie RG-NIS3100 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-CS85 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-ES200 Series Manuel utilisateur

Ruijie

Ruijie RG-S2915-L Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-ES05 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6100 Series Comment utiliser

Ruijie

Ruijie RG-S6910-3C Series Manuel d'installation et d'exploitation

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur

Cabletron Systems

Cabletron Systems GIGAswitch GSR-16 Manuel utilisateur
