RG-MF2920U Series Switches

Hardware Installation and Reference Guide

Document version: V2.0

Date: 2023-05-24

All rights are reserved in this document and this statement.

Any reproduction, excerption, backup, modification, transmission, translation or commercial use of this

document or any portion of this document, in any form or by any means, without the prior written consent of

Ruijie Networks is prohibited.

Trademark and are owned by Ruijie Networks.

All other trademarks or registered trademarks mentioned in this document areowned by their respective owners.

Disclaimer

The products, services, or features you purchase are subject to commercial contracts and terms. Some or all

of the products, services or features described in this document may not be within the scope of your purchase

or use. Unless otherwise agreed in the contract, Ruijie Networks does not make any express or implied

statement or guarantee for the content of this document.

Due to product version upgrades or other reasons, the content of this document will be updated from time to

time. Ruijie Networks reserves the right to modify the content of the document without any notice or prompt.

This manual is for reference only. Ruijie Networks endeavors to ensure content accuracy and will not

shoulder any responsibility for losses and damages caused due to content omissions, inaccuracies or errors.

Preface

Intended Audience

This document is intended for:

Network engineers

Technical support and servicing engineers

Network administrators

Technical Support

Ruijie Networks website: https://www.ruijienetworks.com/

Technical support website: https://ruijienetworks.com/support

Case portal: https://caseportal.ruijienetworks.com

Community: https://community.ruijienetworks.com

Technical support mailbox: [email protected]

Live chat: https://www.ruijienetworks.com/rita

Conventions

1. Signs

The signs used in this document are described as follows:

Warning

An alert that calls attention to important rules and information that if not understood or followed can result in

data loss or equipment damage.

Caution

An alert that calls attention to essential information that if not understood or followed can result in function

failure or performance degradation.

Note

An alert that contains additional or supplementary information that if not understood or followed will not lead to

serious consequences.

Specification

An alert that contains a description of product or version support.

2. Note

The manual offers configuration information (including model, port type and command line interface) for

indicative purpose only. In case of any discrepancy or inconsistency between the manual and the actual version,

the actual version prevails.

Hardware Installation and Reference Guide Product Description

1 Product Description

The RG-PF2920 series switches are simplified optical Ethernet (SOE) switches released by Ruijie Networks for

all-optical network scenarios. They adopt a new hardware architecture to reduce noise, save energy, and can

be flexibly installed. They implement dual-network deployment. They are also designed with built-in power

supply, which is stable and reliable and suitable for indoor scenarios.

With Ruijie's modular OS, they are fit for the SOE solution, and implement lifecycle management, security control,

plug and play, and intelligent O&M through software-defined networking (SDN).

Table 1-1 Ports of the RG-MF2920U

Model

10M/100M/1000

M Base-T

Ethernet

Electrical Port

2.5G/1G

BASE-T

Ethernet

Electrical

Port

SFP

Port

2.5G

SFP

Port

SFP+

Port

Consol

ePort

RG-MF2920U-

4GT1MS

N/A

RG-MF2920U-

EXTENDULE

N/A

Note

2.5G SFP ports are downward compatible with 1000Base-X ports.

2.5GBASE-T ports are downward compatible with 1GBase-T ports.

1000Base-T ports are downward compatible with 100Base-T and 10Base-T ports.

Table 1-2 Specifications of RG-MF2920U Series Switches

Model

PoE

Port

Maxim

um PoE

Power

Per

Port

Availa

ble

PoE

Power

Dimensions (W x

D x H)

Cooling

RG-MF2920U-

4GT1MS

N/A

160 mm x 86 mm x

28.8 mm (6.30 in. x

3.39 in. x 1.13 in.)

(including the

mounting bracket)

Natural heat

dissipation for

fanless design

Hardware Installation and Reference Guide Product Description

RG-MF2920U-

EXTENDULE

N/A

160 mm x 43.6 mm

x 22.7 mm (6.30 in.

x 1.72 in. x 0.89 in.)

Natural heat

dissipation for

fanless design

1.2 RG-MF2920U-4GT1MS

Table 1-3 Technical Specifications

Model

RG-MF2920U-4GT1MS

Supported Optical Module

See Appendix B.

The supported optical module types may update without prior

notification. Please contact Ruijie Networks for any updates.

SFP Port

2500Base-X and 1000Base-X supported

Power Module

Adapter input:

Rated voltage range: 100 V to 240 V

Maximum voltage range: 90 V to 264 V

Frequency: 50 Hz to 60 Hz

Adapter output:

Rated voltage: 12 V

Rated current: 1 A

EEE

Supported

PoE

Not supported

Maximum Power

Consumption

3.8 W

Operating Temperature

0ºC to 40ºC (32°F to 104°F) at the altitude between 0 m to 1,800 m (0

ft. to 5905.51 ft.)

At the altitude between 1,800 m (5905.51 ft.) and 5,000 m (16404.2

ft.), every time the altitude increases by 220 m (721.79 ft.), the

maximum temperature decreases by 1°C (1.8°F).

Storage Temperature

–40°C to +70°C (–40°F to +158°F)

Operating Humidity

10% to 90% RH (non-condensing)

Storage Humidity

5% to 95% RH (non-condensing)

Fan Module

Natural heat dissipation for fanless design

Hardware Installation and Reference Guide Product Description

Intelligent Temperature

Control

Temperature alarm and overheat protection

EMC Standard

GB/T 9254.1

Safety Standard

GB 4943.1

Dimensions (W x D x H)

160 mm x 86 mm x 28.8 mm (6.30 in. x 3.39 in. x 1.13 in.) (including

the mounting bracket)

Weight

0.46 kg (1.01 lbs) (including the package)

Warning

The RG-MF2920U-4GT1MS is a class-A product. In a domestic environment, this product may cause radio

interference in which case the user may be required to take adequate measures.

1.2.1 Product Appearance

The RG-MF2920U-4GT1MS provides 4 x 10/100/1000M Base-T Ethernet electrical ports and 1 x 1G/2.5G Base-

X optical port on the front panel, and the DC power input port on the bottom panel.

Figure 1-2 Appearance of the RG-MF2920U-4GT1MS

Hardware Installation and Reference Guide Product Description

1.2.2 Bottom Panel

Figure 1-3 Bottom Panel of the RG-MF2920U-4GT1MS

Note:

1. DC port input (12 V, 1 A)

2. 10/100/1000Base-T Ethernet port with auto-

negotiation

1.2.3 Rear Panel

Figure 1-4 Rear Panel of the RG-MF2920U-4GT1MS (Device Label Located on the Rear Panel)

Note:

1. 1G/2.5G Base-X port

2. Device label (nameplate)

Hardware Installation and Reference Guide Product Description

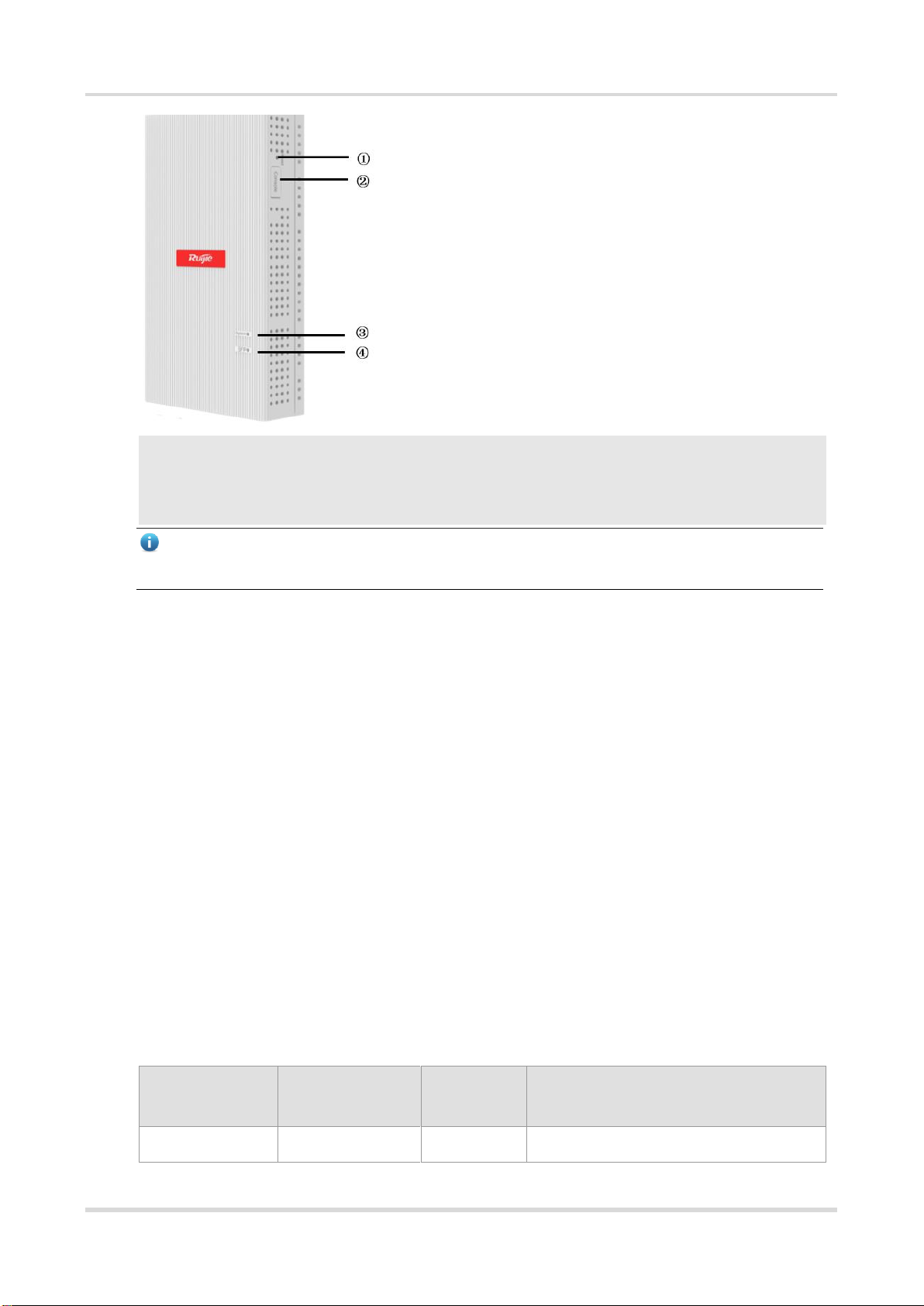

Note:

1. Button for restoring factory defaults

2. Console port (external serial port converter is

required)

3. Switch status LED

4. Optical port LED

Note

You can press the button for restoring factory defaults for at least 5s, so the configuration can be successful.

1.2.4 Power Supply

The RG-MF2920U-4GT1MS uses the adapter. The rated values are as follows:

Adapter input:

Rated voltage range: 100 V to 240 V

Maximum voltage range: 90 V to 264 V

Frequency: 50 Hz to 60 Hz

Adapter output:

Rated voltage: 12 V

Rated current: 1 A

1.2.5 Heat Dissipation

The RG-MF2920U-4GT1MS adopts natural heat dissipation to ensure that it works properly in a specified

environment. For the RG-MF2920U-4GT1MS, maintain sufficient clearance on both sides of the chassis and

above the chassis for air circulation. Dust the device every three months to avoid blocking ventilation openings

on the housing.

1.2.6 LEDs

LED

Panel

Identification

Status

Description

Status LED

PWR

Off

The switch is not powered on.

Hardware Installation and Reference Guide Product Description

Blinking

green

The switch is being initialized. If the LED

blinks continuously, a fault occurs.

Solid green

The switch works properly.

Solid yellow

A switch temperature alarm is generated.

Check the operating environment of the

switch.

Solid red

The temperature exceeds the threshold,

causing the system to restart.

Ethernet

electrical port

LED

G1-G4

Off

The port is not connected.

Solid green

The port is connected at the rate of

10/100/1000 Mbps.

Blinking

green

The port is sending or receiving data at the

rate of 10/100/1000 Mbps.

Optical port LED

SFP

Off

The port is not connected.

Solid green

The port is not connected at the rate of 1

Gbps or 2.5 Gbps.

Blinking

green

The port is sending or receiving data at the

rate of 1 Gbps or 2.5 Gbps.

Solid red

An error occurs when the optical module

sends signals.

Solid yellow

An error occurs when the optical module

receives signals.

1.3 RG-MF2920U-EXTENDULE

Table 1-4 Technical Specifications

Model

RG-MF2920U-EXTENDULE

Supported

Optical Module

1000base-X supported

See Appendix B.

The supported optical module types may update without prior notification. Please

contact Ruijie Networks for any updates.

SFP Port

1000Base-X supported

Hardware Installation and Reference Guide Product Description

Power Module

TYPE C (5 V) input:

Rated voltage: 5 V DC

Rated current: 0.6 A

EEE

Not supported

PoE

Not supported

Maximum Power

Consumption

Without PoE load: 2 W

Operating

Temperature

0ºC to 45ºC (32°F to 113°F) at the altitude between 0 m to 1,800 m (0 ft. to

5905.51 ft.)

At the altitude between 1,800 m (5905.51 ft.) and 5,000 m (16404.2 ft.), every

time the altitude increases by 220 m (721.79 ft.), the maximum temperature

decreases by 1°C (1.8°F).

Storage

Temperature

–40°C to +70°C (–40°F to +158°F)

Operating

Humidity

10% to 90% RH (non-condensing)

Storage Humidity

5% to 95% RH (non-condensing)

Fan Module

Natural heat dissipation for fanless design

Intelligent

Temperature

Control

Temperature alarm and overheat protection

EMC Standard

GB/T 9254.1

Safety Standard

GB 4943.1

Dimensions (W x

D x H)

160 mm x 43.6 mm x 22.7 mm (6.30 in. x 1.72 in. x 0.89 in.)

Weight

0.23 kg (0.51 lbs) (including the package)

Warning

The RG-MF2920U-4GT1MS is a class-A product. In a domestic environment, this product may cause radio

interference in which case the user may be required to take adequate measures.

1.3.1 Product Appearance

The RG-MF2920U-EXTENDULE provides 2 x 10/100/1000M Base-T Ethernet electrical ports and 1 x SFP port.

It provides 5 V power input through the TYPE-C port.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Ruijie Changer

Ruijie

Ruijie RG-S6580-24DC8QC Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S2928G-E Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-N18000-E Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6250-48XS8CQ Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6000C-48GT4XS-E-AC DCN Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-EG210G-P Manuel utilisateur

Ruijie

Ruijie RG-S6580-24DC8QC Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-PF2920U-4GT1MS-P Series Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-ES Series Manuel utilisateur

Ruijie

Ruijie Reyee RG-ES106D-P V2 Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6920-4C Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S8600 Series Manuel utilisateur

Ruijie

Ruijie RG-ES100 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-NBS5100-24GT4SFP-P Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-ES05 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6510-4C Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-IF2920U-12GT1XS Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6510-48VS8CQ Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-ES200 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S5000-E Series Comment utiliser

Ruijie

Ruijie RG-S6510-48VS8CQ Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-ES106D-P V2 Manuel utilisateur

Ruijie

Ruijie RG-IS2712G Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S3250E Series Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur

Cabletron Systems

Cabletron Systems GIGAswitch GSR-16 Manuel utilisateur
