Page 1.1

LOAD RESISTOR MODULE 40-292

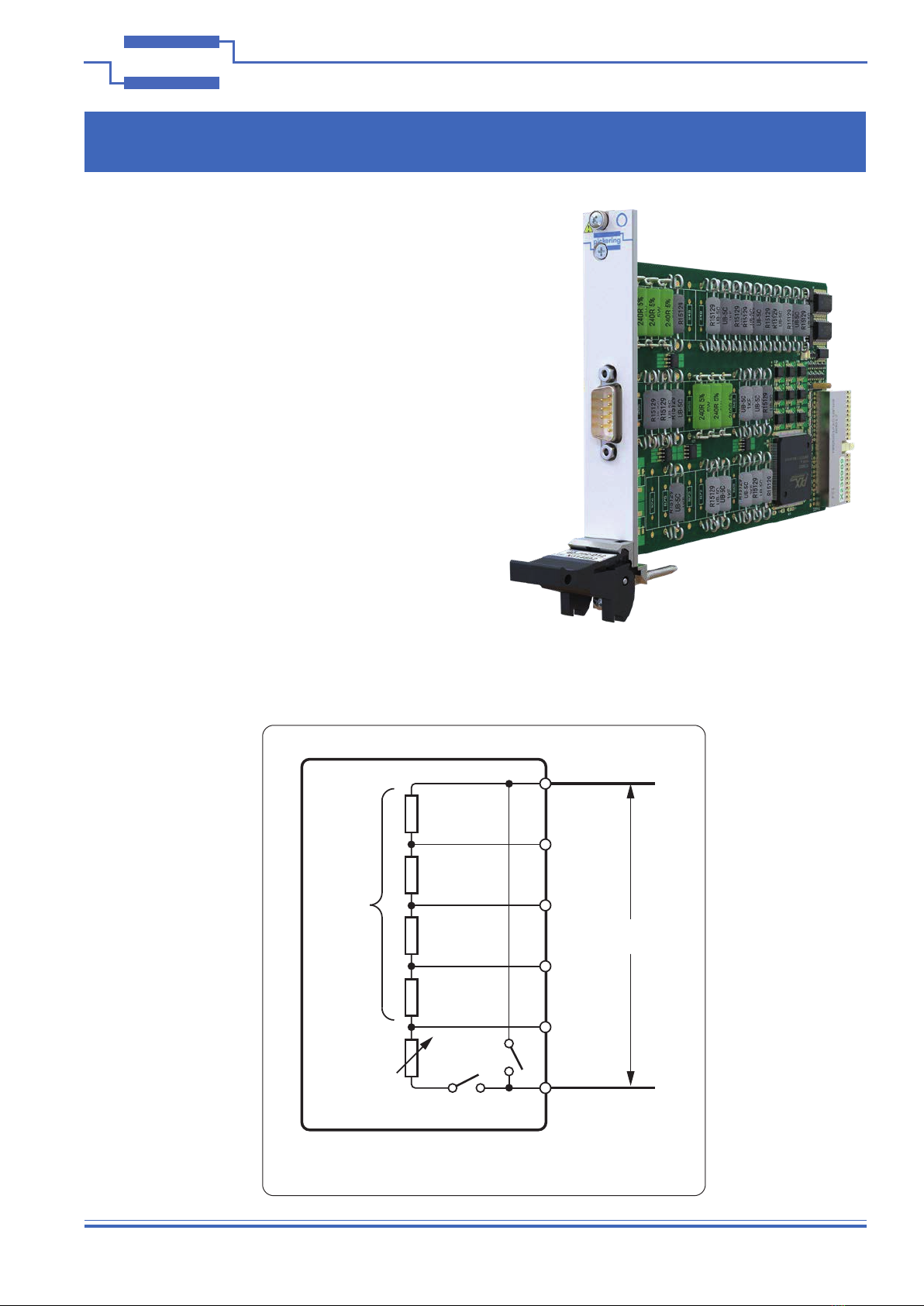

pickering SECTION 1 - TECHNICAL SPECIFICATION

SECTION 1 - TECHNICAL SPECIFICATION

pickeringtest.com

PXI Load Resistor Module 40-292

ISSUE 4.1 SEP 2019

• Up To 15 Watt Resistor Load

• Short and Open Circuit Simulation

• Solid State Switching For Long Service Life

• VISA, IVI & Kernel Drivers Supplied for Windows

• Supported by PXI or LXI Chassis

• 3 Year Warranty

The 40-292 provides a simple solution for applications requiring a

programmable load resistor with up to 15W power handling.

The 40-292 module is able to simulate the common short circuit

and open circuit conditions that can be experienced in a system

due to faulty wiring or sensors. The short circuit position is fully

thermally protected and provides a short circuit current limit. The

series open switch provides an automatic current limit through the

resistor chain and is thermally protected.

The offset resistor can be partially or fully bypassed by the user to

provide a lower minimum resistance at a lower power rating.

For applications requiring greater resolution and lower power, users

should consider the 40-260 or 40-297 series Precision resistor

Modules.

Switched

Resistor

Programmable

Resistance

40-292 Load Resistor Module

R+

Offset

Resistor

R–

Functional Diagram for the Load Resistor Module

Page 1.2 LOAD RESISTOR MODULE 40-292

pickering

SECTION 1 - TECHNICAL SPECIFICATION

Load Resistor Module – 40-292

pickeringtest.com

Speciﬁcations

Power Requirements

+3.3V +5V +12V -12V

00.5A max 0 0

Operating/Storage Conditions

Operating Conditions

Operating Temperature:

Humidity:

Altitude:

0°C to +55°C

Up to 90% non-condensing

5000m

Storage and Transport Conditions

Storage Temperature:

Humidity:

Altitude:

-20°C to +75°C

Up to 90% non-condensing

15000m

PXI & CompactPCI Compliance

The module is compliant with the PXI Specication 2.2. Local Bus,

Trigger Bus and Star Trigger are not implemented.

Uses a 33MHz 32-bit backplane interface.

Safety & CE Compliance

All modules are fully CE compliant and meet applicable EU

directives: Low-voltage safety EN61010-1:2010, EMC Immunity

EN61326-1:2013, Emissions EN55011:2009+A1:2010.

Mechanical Characteristics

Single slot 3U PXI (CompactPCI card).

3D models for all versions in a variety of popular le formats are

available on request.

Connectors

PXI bus via 32-bit P1/J1 backplane connector.

Signals via front panel 9-pin male D-Type connector.

Resistance Channels

Model Number 40-292-011 40-292-012

Resistance

Range 40Ωto 295Ω10Ωto 2.56kΩ

Setting

Resolution 1Ω10Ω

Offset

Resistance

40Ω with tap points

available to user

10Ω with tap points

available to user

Load

Power 15W † 10W †

† Power handling is 7.5W if the offset resistance is bypassed.

Speciﬁcation

Resistance Accuracy: 5%, ± 0.5Ω

Fault Simulation: Open and short circuit (typically

<0.6Ω). Short circuit path includes

thermal overload protection and

current limit (1A typical). The open

position switch limits the resistor

chain current to typically 1A and is

fully thermally protected, the switch

automatically opens when a thermal

threshold is reached.

Number of Operations: Unlimited within module rating.

Voltage Range: 0 to +55V*, polarity sensitive.

Settling time: <1ms

* For full voltage rating, signal sources must be fully isolated from

mains supply and safety earth.

Table des matières

Autres manuels Pickering Unité de contrôle

Pickering

Pickering 40-191B Manuel utilisateur

Pickering

Pickering 40-567A Manuel utilisateur

Pickering

Pickering 4 890 Series Manuel utilisateur

Pickering

Pickering 40-527A Manuel utilisateur

Pickering

Pickering 40-518A Manuel utilisateur

Pickering

Pickering 40-553A Manuel utilisateur

Pickering

Pickering PXI BRIC 40-569B Manuel utilisateur

Pickering

Pickering 4x-585A Manuel utilisateur

Pickering

Pickering 40-651 Manuel utilisateur

Pickering

Pickering 41-765 Manuel utilisateur

Pickering

Pickering 40-587B Manuel utilisateur

Pickering

Pickering 40-650A Manuel utilisateur

Pickering

Pickering 41-760 Manuel utilisateur

Pickering

Pickering 40-290-021 Manuel utilisateur

Pickering

Pickering SYSTEM 10 Manuel utilisateur

Pickering

Pickering SYSTEM 10 Manuel utilisateur

Pickering

Pickering PXI BRIC 40-595A Manuel utilisateur

Pickering

Pickering 40-220A Manuel utilisateur

Pickering

Pickering 40-884 Manuel utilisateur

Pickering

Pickering PXI 40-855 Manuel utilisateur

Pickering

Pickering 40-574 Manuel utilisateur

Pickering

Pickering BRIC Series Manuel utilisateur

Pickering

Pickering SYSTEM 10 Manuel utilisateur

Pickering

Pickering PXI 41-752 Manuel utilisateur

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
