Page 1.1

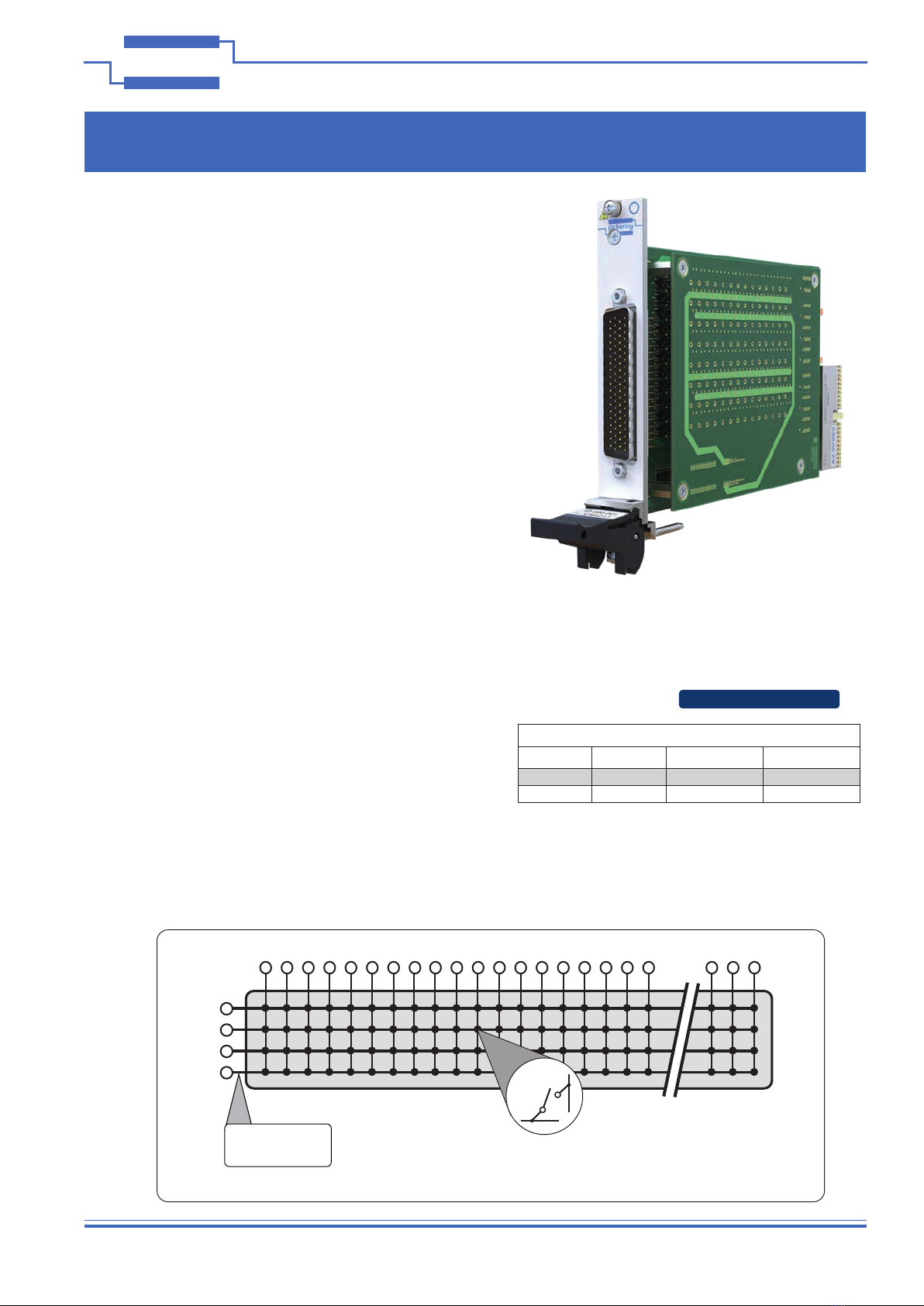

SOLID STATE VERY HIGH DENSITY MATRIX 40-500

pickering SECTION 1 - TECHNICAL SPECIFICATION

SECTION 1 - TECHNICAL SPECIFICATION

pickeringtest.com

PXI Solid State Very High Density Matrix 40-500

ISSUE 5.2 NOV 2021

Supported by

eBIRST

eBIRST switching system test tools simplify switching

system fault-ﬁnding by quickly testing the system and

graphically identifying the faulty relay.

For more information go to: pickeringtest.com/ebirst

ySolid State 1-Pole Matrix

yHigh Density 64x4 Conﬁguration

y0.5 A Hot or Cold Switching

y1.5 A Crosspoint Inrush Current

y±60 V Rating

y3 A Y Bus Rating

yFast Switch Operation and Long Service Life

yVISA, IVI & Kernel Drivers Supplied for

Windows

ySupported by PXI or LXI Chassis

ySupported by

eBIRST

™

y3 Year Warranty

X12

X10

X11

X14

X16

X13

X15

X17

X18

X19

X64

X62

X63

4-way Y-bus with

3 A current capability

for each connection

1-Pole

Crosspoint

Switching Diagram for the 40-500 Very High Density Matrix

The 40-500 is a very high density matrix using solid state

switching. It is conﬁgured as a 64x4 1-pole matrix and

occupies a single PXI slot.

It is ideal for applications requiring fast operation and a

long service life with frequent switch operations at high

currents and voltages. Since the design is based on solid

state relays the matrix has no wear out mechanism.

The crosspoints can switch up to 0.5 A and can sustain an

inrush current of 1.5 A for 100 ms, allowing the matrix to be

used with capacitive loads. Each Y-bus signal can carry 3 A,

allowing multiple crosspoints with the same Y connection

to carrying their maximum current. The module can hot

switch up to 60 V at the full rated current and is suitable

for AC or DC operation.

Applications for the 40-500 include routing signals for

data acquisition systems or for the slave switching of high

current relays. The 40-500 can be used for low current

low voltage applications where cost, speed, zero contact

bounce and the ability to withstand frequent operation is

essential.

Pickering Interfaces offers PXI solid state switching

solutions in a variety of conﬁgurations. If you have a

different requirement for solid state switching contact your

local sales ofﬁce for a quotation.

Pickering’s Range of High Density Solid State Matrices

Model No. Matrix Size Current Rating Voltage Rating

40-500 64x4 500 mA 60 V

40-501 64x4 150 mA 100 V

Page 1.2 SOLID STATE VERY HIGH DENSITY MATRIX 40-500

pickering

SECTION 1 - TECHNICAL SPECIFICATION

Solid State VHD Matrix, 40-500

pickeringtest.com

Speciﬁcations

Switching Speciﬁcation

Switch Type: Solid State Switch

Max Switch Voltage: ±60 V* (AC peak or DC)†

Max Crosspoint Current: 0.5 A continuous

1.5 A for 100 ms

Max Y Bus Current: 3 A continuous for each bus

Initial On Path Resistance:

Switch Leakage

Capacitance:

Leakage Current

(off state):

0.9 Ω (Y to X)

2.5 nF (single Y to X)

<4 µA at 60 V

Turn On Time:

Turn Off Time:

<400 µs

<200 µs

Matrix Bandwidth: 2 MHz typical (one

crosspoint)

* For full voltage rating, signal sources to be switched

must be fully isolated from mains supply and safety earth.

† Differential voltage between channels must not exceed

rated voltage, additional caution should be used when

applying AC voltages as multiple asynchronous supplies

can create high differential voltages between channels.

Power Requirements

+3.3 V +5 V +12 V -12 V

0 0.9 A typical (64 closures) 0 0

Mechanical Characteristics

Single slot 3U PXI (CompactPCI card).

3D models for all versions in a variety of popular ﬁle

formats are available on request.

Connectors

PXI bus via 32-bit P1/J1 backplane connector.

Signals via front panel 78-pin male D-type connector, for

pin outs please refer to the operating manual.

Operating/Storage Conditions

Operating Conditions

Operating Temperature:

Humidity:

Altitude:

0 °C to +55 °C

Up to 90 % non-condensing

5000 m

Storage and Transport Conditions

Storage Temperature:

Humidity:

Altitude:

-20 °C to +75 °C

Up to 90 % non-condensing

15000 m

PXI & CompactPCI Compliance

The module is compliant with the PXI Speciﬁcation

2.2. Local Bus, Trigger Bus and Star Trigger are not

implemented.

Uses a 33 MHz 32-bit backplane interface.

Safety & CE Compliance

All modules are fully CE compliant and meet applicable

EU directives: Low-voltage safety EN61010-1:2010,

EMC Immunity EN61326-1:2013,

Emissions EN55011:2009+A1:2010.

Side View of the 40-500 Matrix Module

Table des matières

Autres manuels Pickering Unité de contrôle

Pickering

Pickering 40-670 Manuel utilisateur

Pickering

Pickering 40-582 Manuel utilisateur

Pickering

Pickering 40-618A Manuel utilisateur

Pickering

Pickering 40-670A Manuel utilisateur

Pickering

Pickering PXI BRIC 40-562A Manuel utilisateur

Pickering

Pickering BRIC 40-565B Manuel utilisateur

Pickering

Pickering 4x-585A Manuel utilisateur

Pickering

Pickering PXI BRIC 40-560A Manuel utilisateur

Pickering

Pickering 40-540 Manuel utilisateur

Pickering

Pickering Pxi 41-660 Manuel utilisateur

Pickering

Pickering 4 890 Series Manuel utilisateur

Pickering

Pickering 41-761 Manuel utilisateur

Pickering

Pickering PXI 41-752 Manuel utilisateur

Pickering

Pickering 40-581 Manuel utilisateur

Pickering

Pickering Pxi 41-750 Manuel utilisateur

Pickering

Pickering 40-331 Manuel utilisateur

Pickering

Pickering SYSTEM 10 Manuel utilisateur

Pickering

Pickering 40-534 Manuel utilisateur

Pickering

Pickering PXI BRIC 40-569B Manuel utilisateur

Pickering

Pickering 40-220A Manuel utilisateur

Pickering

Pickering BRIC Series Manuel utilisateur

Pickering

Pickering 40-262 Manuel utilisateur

Pickering

Pickering PXI 40-855 Manuel utilisateur

Pickering

Pickering 40-592A Manuel utilisateur

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
