BRIC MICROWAVE MATRIX MODULE 40-787

pickering

Issue 4.1 May 2017

User Manual

BRIC Microwave Matrix Module

(Model No. 40-787)

pickeringtest.com pickering

Page (II) BRIC MICROWAVE MATRIX MODULE 40-787

pickering

Page (II) REED RELAY MODULE 40-110/115/120/125

pickering

No part of this publication may be reproduced, transmitted, transcribed, translated or stored in any form, or by

any means without the written permission of Pickering Interfaces.

Technical details contained within this publication are subject to change without notice.

ISO 9001

Reg No. FM38792

Page (III)

BRIC MICROWAVE MATRIX MODULE 40-787

pickering

Page (III)

REED RELAY MODULE 40-110/115/120/125

pickering

TECHNICAL SUPPORT

For Technical Support please contact Pickering Interfaces either by phone, the website or via e-mail.

WARRANTY

All products manufactured by Pickering Interfaces are warranted against defective materials and workmanship for a period of

three years, excluding programmable power supplies, from the date of delivery to the original purchaser. Any product found to be

defective within this period will, at the discretion of Pickering Interfaces be repaired or replaced.

Products serviced and repaired outside of the warranty period are warranted for ninety days.

Extended warranty and service are available. Please contact Pickering Interfaces by phone, the website or via e-mail.

ENVIRONMENTAL POLICY

Pickering Interfaces operates under an environmental management system similar to ISO 14001.

Pickering Interfaces strives to full all relevant environmental laws and regulations and reduce wastes and releases to the

environment. Pickering Interfaces aims to design and operate products in a way that protects the environment and the health and

safety of its employees, customers and the public. Pickering Interfaces endeavours to develop and manufacture products that can

be produced, distributed, used and recycled, or disposed of, in a safe and environmentally friendly manner.

Worldwide Technical Support and Product Information

pickeringtest.com

Germany

Tel: +49 89 125 953 160

E-mail: [email protected]

Sweden

Tel: +46 340-69 06 69

E-mail: [email protected]

USA

Tel: (West) +1 541 471 0700

Tel: (East) +1 781 897 1710

E-mail: [email protected]

Czech Republic

Tel: +420 558 987 613

E-mail: [email protected]

France

Tel +33 9 72 58 77 00

E-mail [email protected]

Pickering Interfaces Headquarters

Stephenson Road Clacton-on-Sea CO15 4NL United Kingdom

Tel: +44 (0)1255-687900

E-Mail: [email protected]

China

Tel: +86 4008 799 765

E-mail: [email protected]

Page (IV) BRIC MICROWAVE MATRIX MODULE 40-787

pickering

Page (IV) REED RELAY MODULE 40-110/115/120/125

pickering

MEANING / DESCRIPTION SYMBOL

PROTECTIVE EARTH (GROUND)

To identify any terminal which is intended for connection to an external conductor for

protection against electric shock in case of a fault, or the terminal of a protective earth

(ground) electrode.

DANGEROUS VOLTAGE

To indicate hazards arising from dangerous voltages.

WARNING / CAUTION

An appropriate safety instruction should be followed or caution to a potential hazard

exists.

Refer to the relevant instructions detailed within the product manual.

HEAVY

If this product is heavy reference should be made to the safety instructions for

provisions of lifting and moving.

STATIC SENSITIVE

To indicate that static sensitive devices are present and handling precautions should

be followed.

SAFETY SYMBOLS

PRODUCT SAFETY

The following safety symbols may be used on the product and throughout the product documentation.

Page (V)

BRIC MICROWAVE MATRIX MODULE 40-787

pickering

Technical Support and Warranty................................................III

Product Safety .............................................................................IV

Contents (this page)....................................................................V

Warnings and Cautions ..............................................................VII

Section 1

Technical Specication...............................................................1.1

Section 2

Technical Description .................................................................2.1

Functional Description..........................................................2.1

Section 3

Installation....................................................................................3.1

Pre Operation Checks...........................................................3.1

Hardware Installation ............................................................3.2

Software Installation .............................................................3.2

Testing Operation ..................................................................3.3

Section 4

Programming Guide....................................................................4.1

Programming Options For Pickering PXI Cards.................4.1

Module Architecture 40-787.................................................4.3

Programming Examples .......................................................4.4

Section 5

Connector Information................................................................5.1

Section 6

Trouble Shooting.........................................................................6.1

Section 7

Maintenance Information............................................................7.1

Relay Lookup Tables.............................................................7.1

Backplane Component Layout.............................................7.3

CONTENTS

Page (VI) BRIC MICROWAVE MATRIX MODULE 40-787

pickering

THIS PAGE INTENTIONALLY BLANK

Page (VII)

BRIC MICROWAVE MATRIX MODULE 40-787

pickering

Page (VII)

REED RELAY MODULE 40-110/115/120/125

pickering

WARNINGS AND CAUTIONS

WARNING - HAZARDOUS ENVIRONMENTS SYMBOL

This product is not specically designed for use in hazardous environments, for example in explosive

atmospheres. If the product is to be used in hazardous environments we recommend that the user

ensures suitable protective measures are taken.

WARNING - DANGER OF ELECTRIC SHOCK SYMBOL

This module may contain hazardous voltages. Before removing the module from the rack remove all

supplies and disconnect user I/O signals.

Unused slots in the PXI/LXI chassis are populated with blanking plates to prevent access to user

I/O signals that may be present. Blanking panels are available to order from Pickering in a variety

of slot widths. If the product is not used in this manner for example by using an extender card then

additional care must be taken to avoid contact with exposed signals.

CAUTION - HANDLING OF ELECTROSTATIC-SENSITIVE DEVICES SYMBOL

Certain semiconductor devices used in this equipment are liable to damage due to static voltage.

Observe the following precautions when handling these devices in their unterminated state, or

sub-assemblies containing these devices:

1. Persons removing sub-assemblies from equipment using these devices must be earthed by a

wrist strap and a resistor at the point provided on the equipment.

2. Soldering irons used during the repair operations must be low voltage types with earthed tips and

isolated from the mains voltage by a double insulated transformer.

3. Outer clothing worn must be unable to generate static charges.

4. Printed Circuit Boards (PCBs) tted with these devices must be stored and transported in

anti-static bags.

CAUTION - PRODUCT DOCUMENTATION SYMBOL

Suitably qualied & trained users should ensure that the accompanying documentation is fully read

and understood before attempting to install or operate the product.

SAFETY INSTRUCTIONS

All cleaning and servicing requires the equipment to be isolated and disconnected from the power source and user I/O

signals (refer to the Maintenance Section).

• Appropriate manual handling procedures should be followed as dictated by the weight of the individual module or

the combined weight of the modules & chassis.

• Should a fault occur with the module or chassis, immediately isolate and disconnect the incoming power to the

chassis and the user I/O signals.

• Ensure the equipment is installed, operated and maintained by trained and authorised personnel.

• For suitably equipped products in the event of an emergency press the red “emergency stop” button situated on

the front of the unit.

Page (VIII) BRIC MICROWAVE MATRIX MODULE 40-787

pickering

THIS PAGE INTENTIONALLY BLANK

Page 1.1

BRIC MICROWAVE MATRIX MODULE 40-787

pickering SECTION 1 - TECHNICAL SPECIFICATION

SECTION 1 - TECHNICAL SPECIFICATION

pickeringtest.com

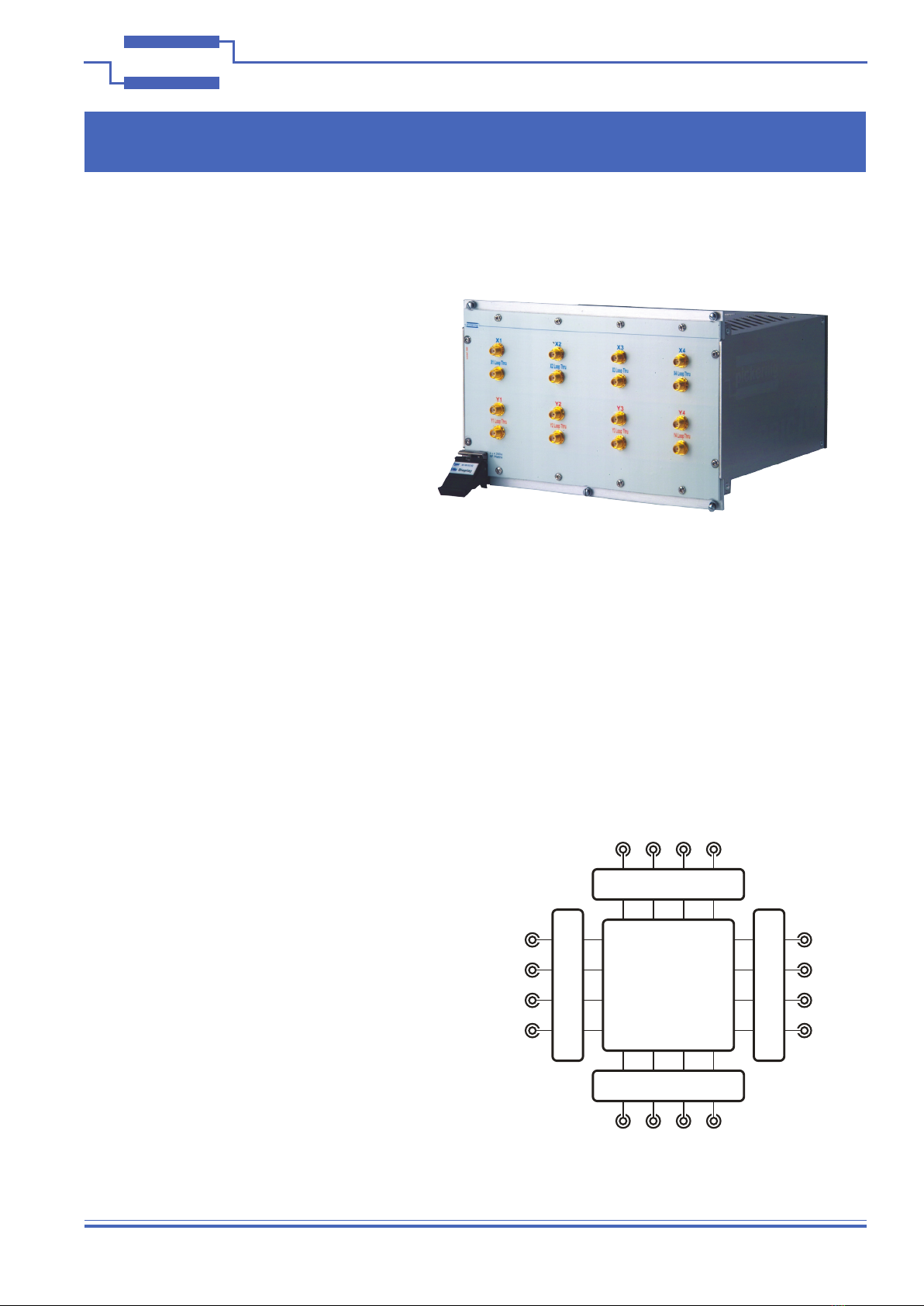

40-787

Microwave BRIC™ Matrix

●Platform For Microwave Matrix and

Switching Applications

●Standard Conﬁgurations Up To Non-

Blocking 4x4 Matrix

●Options For Built-in Termination and

Loop Thru

●High Quality Switches Ensure Low

Loss and VSWR

●Repeatable and Path Independent

Insertion Loss

●Occupies 10 Mechanical Slots of a

3U Chassis

●Single Electrical Slot Ideal For Use In Smaller

Chassis

●Customized Version With Additional Switch

Components and Matrix Size Available

●VISA, IVI & Kernel Drivers Supplied for

Windows

●Supported by PXI or LXI Chassis

●3 Year Warranty

The 40-787 Microwave BRIC platform is designed to

provide a solution for complex RF matrix applications.

Using a common mechanical platform the module can

be constructed to provide scaleable non-blocking or

blocking microwave matrix for frequencies to at least

20GHz.

The standard conﬁgurations provide up to a 4x4 matrix.

More complex matrix can be constructed by adding

further switching functions and other devices inside the

module.

The matrix is available with optional terminated

inputs to avoid the creation of standing waves on

unconnected input cables. A Loop Thru option allows

the matrix size to be expanded by combining a number

of modules with additional cables, enabling 8 x 4 or

even 8 x 8 matrix to be constructed.

The use of high quality microwave switches ensures

high performance in all applications and a similar

insertion loss on all paths through a standard matrix.

The 40-787 can be used efﬁciently in smaller chassis

since only the left hand electrical connection is used

and the module can occupy the expansion slots on

the right hand side of low cost chassis such as the

Pickering Interfaces 40-908.

If you have an application requiring higher frequencies,

more functionality or a larger matrix Pickering Interfaces

can adapt the design of the this module to your

requirements. Contact your local sales ofﬁce for more

information.

ISSUE 8.1 MAY 2017

Y1 Y2 Y3 Y4

Y Loop Thru

X Loop Thru

4 x 4

MICROWAVE

MATRIX

Loop Thru Switches

Termination Switches

40-787 Non-Blocking matrix with optional Loop-

Thru.and Input Termination

Page 1.2 BRIC MICROWAVE MATRIX MODULE 40-787

pickering

SECTION 1 - TECHNICAL SPECIFICATION

pickeringtest.com

Y1 Y2 Y3 Y4

Y Loop Thru

X Loop Thru

4 x 4

MICROWAVE

MATRIX

Loop Thru Switches

Termination Switches

Y1 Y2 Y3 Y4

4 x 4

MICROWAVE

MATRIX

Loop Thru Switches

Termination Switches

Y5 Y6 Y7 Y8

X Loop Thru

4 x 4

MICROWAVE

MATRIX

Loop Thru Switches

Termination Switches

Y Loop Thru

4 x 4

MICROWAVE

MATRIX

Loop Thru Switches

Termination Switches

Y Loop Thru

X Loop Thru

4 x 4

MICROWAVE

MATRIX

Loop Thru Switches

Termination Switches

40-787 non-blocking matrix with optional

Input Termination and Loop-Thru. The Y

axis inputs can be routed to the X axis

connections or the signal can be passed

on to the Loop-Thru connectors to allow

the construction of a larger matrix By combining several 40-787 matrices with the Loop-Thru

option together, a larger matrix can be constructed.

Electrical Speciﬁcation

Frequency range: DC to 20GHz

Typical Insertion Loss

10GHz matrix: 1.5dB at 3GHz,

3.2dB at 10GHz.

20GHz matrix: 1dB at 3GHz,

2dB at 10GHz,

3.5dB at 20GHz.

Typical VSWR

10 GHz matrix: <1.2 to 4GHz,

<1.5 to 10GHz.

20 GHz matrix: <1.15 to 4GHz,

<1.4 to 10GHz,

1.7 to 20GHz

Isolation: >80dB

Maximum RF Power (Non-terminated version)

<3GHz 3GHz to

2GHz

12GHz to

20GHz

10GHz matrix 80 Watts 30 Watts 25 Watts

20GHz matrix 100 Watts 60 watts 30 Watts

Termination Power: 1 Watt

Maximum DC Voltage: 100V (matrix output not

loaded)

Maximum DC Current: 1 Amp

Expected Life: 2x107 (low power)

Mechanical Characteristics

Occupies10 slots of a 3U PXI chassis, one electrical slot

needed.

3D models for all versions in a variety of popular ﬁle formats

are available on request.

Connectors

PXI bus via 32-bit P1/J1 backplane connector.

Signals via front panel mounted SMA connectors.

Product Order Codes

3x3 10 GHz Microwave Matrix

4x3 10 GHz Microwave Matrix

4x4 10 GHz Microwave Matrix

40-787-518-3x3

40-787-518-4x3

40-787-518-4x4

3x3 20 GHz Microwave Matrix

4x3 20 GHz Microwave Matrix

4x4 20 GHz Microwave Matrix

40-787-528-3x3

40-787-528-4x3

40-787-528-4x4

Add -L for Loop Thru option

Add -T for terminated input option

(both options can be ordered simultaneously)

Power Requirements

Power consumption from the backplane supply is as follows:

+3.3V +5V +12V -12V

00.15A 0.35A 0

Mating Connectors & Cabling

For connection accessories for the 40-787 range please refer

to the 90-011D RF Cable Assemblies data sheets where a

complete list and documentation can be found for accessories,

or refer to the Connection Solutions catalog.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Pickering Unité de contrôle

Pickering

Pickering 40-534 Manuel utilisateur

Pickering

Pickering 40-651 Manuel utilisateur

Pickering

Pickering PXI 30 A Manuel utilisateur

Pickering

Pickering 40-565A Manuel utilisateur

Pickering

Pickering 40-529A Manuel utilisateur

Pickering

Pickering 40-573 Manuel utilisateur

Pickering

Pickering 40-553A Manuel utilisateur

Pickering

Pickering 40-528A Manuel utilisateur

Pickering

Pickering 4x-727A Manuel utilisateur

Pickering

Pickering 40-527A Manuel utilisateur

Pickering

Pickering 41-670 Manuel utilisateur

Pickering

Pickering PXI BRIC 40-595A Manuel utilisateur

Pickering

Pickering PXI 40-710 Manuel utilisateur

Pickering

Pickering Pxi 41-750 Manuel utilisateur

Pickering

Pickering BRIC 40-565B Manuel utilisateur

Pickering

Pickering 40-519B Manuel utilisateur

Pickering

Pickering Module Manuel utilisateur

Pickering

Pickering 40-265 Manuel utilisateur

Pickering

Pickering PXI 40-795-001 Manuel utilisateur

Pickering

Pickering 40-252 Manuel utilisateur

Pickering

Pickering 40-584 Manuel utilisateur

Pickering

Pickering SYSTEM 10 Manuel utilisateur

Pickering

Pickering PXI BRIC 40-563A Manuel utilisateur

Pickering

Pickering PXI 40-510 Manuel utilisateur

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
