Issue 1.4 May 2023

40-569B User Manual

PXI BRIC™ Resource Distributor

& Bus Matrix Inputs Module

Page (II) RESOURCE DISTRIBUTOR & BUS MATRIX INPUTS MODULE 40-569B

pickering

Page (II) REED RELAY MODULE 40-110/115/120/125

pickering

No part of this publication may be reproduced, transmitted, transcribed, translated or stored in any form, or by

any means without the written permission of Pickering Interfaces.

Technical details contained within this publication are subject to change without notice.

ISO 9001

Reg No. FM38792

Page (III)

RESOURCE DISTRIBUTOR & BUS MATRIX INPUTS MODULE 40-569B

pickering

Page (III)

REED RELAY MODULE 40-110/115/120/125

pickering

TECHNICAL SUPPORT

For Technical Support please contact Pickering Interfaces either by phone, the website or via e-mail.

WARRANTY

All products manufactured by Pickering Interfaces are warranted against defective materials and workmanship for a period of

three years, excluding programmable power supplies, from the date of delivery to the original purchaser. Any product found to be

defective within this period will, at the discretion of Pickering Interfaces be repaired or replaced.

Products serviced and repaired outside of the warranty period are warranted for ninety days.

Extended warranty and service are available. Please contact Pickering Interfaces by phone, the website or via e-mail.

ENVIRONMENTAL POLICY

Pickering Interfaces operates under an environmental management system similar to ISO 14001.

Pickering Interfaces strives to full all relevant environmental laws and regulations and reduce wastes and releases to the

environment. Pickering Interfaces aims to design and operate products in a way that protects the environment and the health and

safety of its employees, customers and the public. Pickering Interfaces endeavours to develop and manufacture products that can

be produced, distributed, used and recycled, or disposed of, in a safe and environmentally friendly manner.

Worldwide Technical Support and Product Information

pickeringtest.com

Germany

Tel: +49 89 125 953 160

E-mail: [email protected]

Sweden

Tel: +46 340-69 06 69

E-mail: [email protected]

USA

Tel: (West) +1 541 471 0700

Tel: (East) +1 781 897 1710

E-mail: [email protected]

Czech Republic

Tel: +420 558 987 613

E-mail: [email protected]

France

Tel +33 9 72 58 77 00

E-mail [email protected]

Pickering Interfaces Headquarters

Stephenson Road Clacton-on-Sea CO15 4NL United Kingdom

Tel: +44 (0)1255-687900

E-Mail: [email protected]

China

Tel: +86 4008 799 765

E-mail: [email protected]

Page (IV) RESOURCE DISTRIBUTOR & BUS MATRIX INPUTS MODULE 40-569B

pickering

Page (IV) REED RELAY MODULE 40-110/115/120/125

pickering

MEANING / DESCRIPTION SYMBOL

PROTECTIVE EARTH (GROUND)

To identify any terminal which is intended for connection to an external conductor for

protection against electric shock in case of a fault, or the terminal of a protective earth

(ground) electrode.

DANGEROUS VOLTAGE

To indicate hazards arising from dangerous voltages.

WARNING / CAUTION

An appropriate safety instruction should be followed or caution to a potential hazard

exists.

Refer to the relevant instructions detailed within the product manual.

HEAVY

If this product is heavy reference should be made to the safety instructions for

provisions of lifting and moving.

STATIC SENSITIVE

To indicate that static sensitive devices are present and handling precautions should

be followed.

SAFETY SYMBOLS

PRODUCT SAFETY

The following safety symbols may be used on the product and throughout the product documentation.

Page (V)

RESOURCE DISTRIBUTOR & BUS MATRIX INPUTS MODULE 40-569B

pickering

Technical Support and Warranty................................................III

Product Safety .............................................................................IV

Contents (this page)....................................................................V

Warnings and Cautions ..............................................................VII

Section 1

Technical Specication...............................................................1.1

Section 2

Technical Description .................................................................2.1

Functional Description..........................................................2.1

Section 3

Installation....................................................................................3.1

Pre Operation Checks...........................................................3.1

Hardware Installation ............................................................3.2

Software Installation .............................................................3.2

Testing Operation ..................................................................3.3

Section 4

Programming Guide....................................................................4.1

Programming Options For Pickering PXI Modules ............4.1

Module Architecture 40-569B ..............................................4.2

Sub-Units and Programming................................................4.2

Section 5

Connector Information................................................................5.1

Section 6

Trouble Shooting.........................................................................6.1

Section 7

Maintenance Information............................................................7.1

Fuse ........................................................................................7.1

Relay Lookup Tables.............................................................7.1

Component Layout................................................................7.8

CONTENTS

Page (VI) RESOURCE DISTRIBUTOR & BUS MATRIX INPUTS MODULE 40-569B

pickering

THIS PAGE INTENTIONALLY BLANK

Page (VII)

RESOURCE DISTRIBUTOR & BUS MATRIX INPUTS MODULE 40-569B

pickering

Page (VII)

2 AMP 1-POLE UHD MATRIX MODULES 40-575 / 576 / 577 / 578 / 579

pickering

WARNINGS AND CAUTIONS

WARNING - HAZARDOUS ENVIRONMENTS SYMBOL

This product is not specically designed for use in hazardous environments, for example in explosive

atmospheres. If the product is to be used in hazardous environments we recommend that the user

ensures suitable protective measures are taken.

WARNING - DANGER OF ELECTRIC SHOCK SYMBOL

This module may contain hazardous voltages. Before removing the module from the rack remove all

supplies and disconnect user I/O signals.

Unused slots in the host chassis are populated with blanking plates to prevent access to user I/O

signals that may be present. Blanking panels are available to order from Pickering in a variety of

slot widths. If the product is not used in this manner for example by using an extender card then

additional care must be taken to avoid contact with exposed signals.

Not to be used in safety critical circuits, refer to the Pickering Interfaces’ terms & conditions of sale.

This module must not be used for the switching of Mains Circuits. For the switching of voltages up

to the module’s full specication, Secondary Circuit power supplies and the Device Under Test must

be fully isolated from the Mains Circuit and the safety earth.

The host chassis must be correctly installed and be connected to mains or factory safety ground,

please refer to your chassis installation manual.

Diagram Showing Separation Between The Mains Circuit and Secondary Circuit / DUT

For the purposes of this document, a Mains Circuit is an installation classied as Overvoltage

Category II up to 300V. Separation between the Secondary Circuit and Mains Circuit is achieved

by a transformer in which the primary windings are separated from the secondary windings by

reinforced insulation, double insulation, or a screen connected to the protective conductor terminal.

CAUTION - HANDLING OF ELECTROSTATIC-SENSITIVE DEVICES SYMBOL

Certain semiconductor devices used in this equipment are liable to damage due to static voltage.

Observe the following precautions when handling these devices in their unterminated state, or

sub-assemblies containing these devices:

1. Persons removing sub-assemblies from equipment using these devices must be earthed by a

wrist strap and a resistor at the point provided on the equipment.

2. Soldering irons used during the repair operations must be low voltage types with earthed tips and

isolated from the mains voltage by a double insulated transformer.

3. Outer clothing worn must be unable to generate static charges.

4. Printed Circuit Boards (PCBs) tted with these devices must be stored and transported in

anti-static bags.

PXI Switching

Module

Device

Under Test

Power

Supply

Power

Supply

Host Chassis

Secondary Circuit

Mains

Circuit

Mains

Circuit

Mains/Factory

Safety Ground

Page (VIII) RESOURCE DISTRIBUTOR & BUS MATRIX INPUTS MODULE 40-569B

pickering

Page (VIII) 2 AMP 1-POLE UHD MATRIX MODULES 40-575 / 576 / 577 / 578 / 579

pickering

CAUTION - PRODUCT DOCUMENTATION SYMBOL

Suitably qualied & trained users should ensure that the accompanying documentation is fully read

and understood before attempting to install or operate the product.

SAFETY INSTRUCTIONS

All cleaning and servicing requires the equipment to be isolated and disconnected from the power source and user I/O

signals (refer to the Maintenance Section).

• Appropriate manual handling procedures should be followed as dictated by the weight of the individual module or

the combined weight of the modules & chassis.

• Should a fault occur with the module or chassis, immediately isolate and disconnect the incoming power to the

chassis and the user I/O signals.

• Ensure the equipment is installed, operated and maintained by trained and authorised personnel.

• For suitably equipped products in the event of an emergency press the red “emergency stop” button situated on

the front of the unit.

Page 1.1

RESOURCE DISTRIBUTOR & BUS MATRIX INPUTS MODULE 40-569B

pickering SECTION 1 - TECHNICAL SPECIFICATION

SECTION 1 - TECHNICAL SPECIFICATION

pickeringtest.com

PXI Resource Distributor & Bus Matrix Inputs Module 40-569B

ISSUE 1.1 JUN 2022

yDesigned to Support the Requirements of the

ARINC 608A Speciﬁcation

yIntegrated PXI 2 A Matrix Module With Built In

High Performance Screened Analog Bus

yHot Switching 200 VDC/180 VAC, 2 A, 60 W

ySeparate Bus Matrix Inputs and Resource

Distributor Daughter Cards

yLoad Just The Number Of Daughter Switch

Cards You Need For Your Application,

Expansion Cards Can Be Added Later

yPartially Populated Versions Available

yVISA/IVI Drivers Supplied for Windows

ySupported by PXI or LXI Chassis

y3 Year Warranty

BRIC Analog Backplane

Bus

Matrix

Inputs

Daughter

Card #1

Bus

Matrix

Inputs

Daughter

Card #2

Resource

Distributor

Daughter

Card

Resource

Distributor

Daughter

Card #2

40-569B BRIC Module

Test Signal Connections

Bus

Matrix

Inputs

Daughter

Card #3

Bus

Matrix

Inputs

Daughter

Card #4

Bus

Matrix

Inputs

Daughter

Card #5

Bus

Matrix

Inputs

Daughter

Card #6

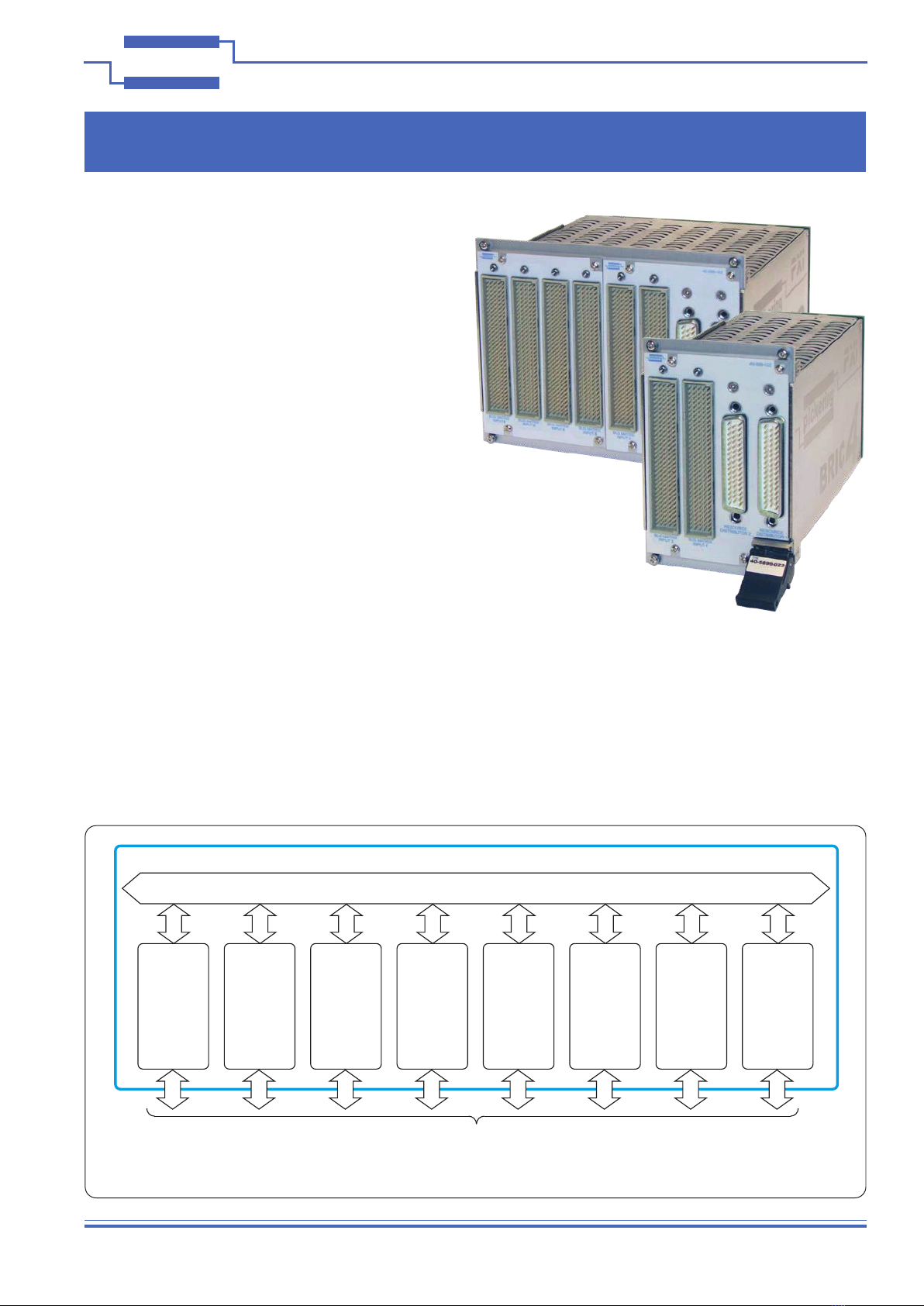

Schematic diagram for a fully loaded 40-569B BRIC8 with 6 Bus Matrix Inputs Cards

and 2 Resource Distributor Cards

BRIC

™

2nd Generation PXI 2A Switch Matrix

The 40-569B BRIC is a range of high density bus matrix

inputs and resource distributor bused conﬁgurations

capable of hot switching up to 2 A and up to 200 VDC/

180 VAC.The 40-569B BRIC modules are available in 4 or

8 slot PXI sizes and are constructed using high quality

electro-mechanical relays.

Typical applications include signal routing for avionics test

systems that conform to the ARINC 608A speciﬁcation. The

ﬂexibility of the 40-569B BRIC module allows a custom

combination of Bus Matrix Inputs and Resource Distributor

cards to meet the user’s requirements.

High Reliability and Ease of Use

The 40-569B is designed to minimise the cost and

complexity of cable assemblies to the device under

test and instrumentation. Analog busing is housed

within the module using a high performance screened

analog backplane. Pickering can construct custom cable

assemblies for all of our PXI modules, please contact sales

ofﬁce for further assistance.

Page 1.2 RESOURCE DISTRIBUTOR & BUS MATRIX INPUTS MODULE 40-569B

pickering

SECTION 1 - TECHNICAL SPECIFICATION

Resource Distributor & Bus Matrix Inputs, 40-569B

pickeringtest.com

Overview

2-POLE 16 x 4 MATRIX

2-POLE 8 x 4 MATRIX

2 2 2 2 2 2 2 2

2222222222222222

50-PIN D-TYPE CONNECTOR

ALL MATRIX

CROSSPOINTS

ARE 2-POLE

RESOURCE DISTRIBUTOR CARD

BRIC

ANALOG

BUS

(16-WIRE)

4-POLE 16 x 2 MATRIX

2 2 2 2 2 2 2 2

4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4

160-PIN DIN 41612 CONNECTOR

ALL MATRIX CROSSPOINTS

ARE 4-POLE WITH INDEPENDANT

2-POLE FUNCTIONALITY

BUS MATRIX

INPUTS CARD

BRIC

ANALOG

BUS

(16-WIRE)

4-POLE 16 x 2 MATRIX

4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4

Schematic Diagram

For The Resource

Distributor Daughter

Card

Schematic Diagram For The Bus Matrix Inputs Daughter Card

Pickering PXI Modules

are compatible with Mass

Interconnect

solutions from both VPC

and MAC Panel. Shown is

the 40-569B with the MAC

Panel Scout

Table des matières

Autres manuels Pickering Unité de contrôle

Pickering

Pickering 40-331 Manuel utilisateur

Pickering

Pickering 4 890 Series Manuel utilisateur

Pickering

Pickering 40-170 Manuel utilisateur

Pickering

Pickering PXI 40-145 Manuel utilisateur

Pickering

Pickering 45-541 Manuel utilisateur

Pickering

Pickering PXI BRIC 40-560A Manuel utilisateur

Pickering

Pickering PXI 40-785 Manuel utilisateur

Pickering

Pickering 40-559 Manuel utilisateur

Pickering

Pickering 40-670 Manuel utilisateur

Pickering

Pickering 40-587B Manuel utilisateur

Pickering

Pickering 4 785C Series Manuel utilisateur

Pickering

Pickering 41-180 Manuel utilisateur

Pickering

Pickering 40-529A Manuel utilisateur

Pickering

Pickering PXI BRIC 40-595A Manuel utilisateur

Pickering

Pickering 40-781 Manuel utilisateur

Pickering

Pickering PXI BRIC 40-563A Manuel utilisateur

Pickering

Pickering PXI 40-664A Manuel utilisateur

Pickering

Pickering 40-252 Manuel utilisateur

Pickering

Pickering 40-582 Manuel utilisateur

Pickering

Pickering 40-290-021 Manuel utilisateur

Pickering

Pickering PXI 30 A Manuel utilisateur

Pickering

Pickering 4x-585A Manuel utilisateur

Pickering

Pickering 40-880 Manuel utilisateur

Pickering

Pickering 40-584 Manuel utilisateur

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
