PEERLESS LDS 1920U Mode d’emploi

ISSUED: 11-05-04 SHEET #: 090-9102-4 09-27-10

Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870.

1 of 5

DESCRIPTION QTY. LDS 1920U LDS 1920U-S LDS 2527U LDS 2527U-S LDS 32U LDS 32U-S

A1 tray 19" - 20" 1 090-1243 090-4243

A2 tray 25" - 27" 090-1244 090-4244

A3 tray 32" 090-1245 090-4245

B#10 x 3/4 particle board screw 8 500-9006 500-9006 500-9006 500-9006 500-9006 500-9006

Cpenta-pin tool 1 520-9249 520-9249 520-9249 520-9249 520-9249 520-9249

DM5 x .8 x 10 mm phillips screw 2 520-9250 520-9250 520-9250 520-9250 520-9250 520-9250

EPeerless cover plate 2 590-1046 590-4046 590-1046 590-4046 590-1046 590-4046

F1/4-20 x 1 3/4 bolt 1 520-9204 520-9204 520-9204 520-9204 520-9204 520-9204

Gspacer 3 540-9455 540-9455 540-9455 540-9455 540-9455 540-9455

HM5 x .8 x 10 mm penta-pin™screw 2 505-9010 500-2001 505-9010 500-2001 505-9010 500-2001

I1/4-20 3 prong T-nut 1 530-9301 530-9301 530-9301 530-9301 530-9301 530-9301

J#1 x 1-1/4 phillips pan wood screw 1 510-9157 510-9157 510-9157 510-9157 510-9157 510-9157

Kswivel base 1 090-0246 090-0247 090-0246 090-0247 090-0246 090-0247

Ladhesive bumper strip 1 570-1029 570-1029 570-1029 570-1029 570-1029 570-1029

Installation and Assembly - Universal Desktop Mount Models:

LDS 1920U, LDS 1920U-S,

LDS 2527U, LDS 2527U-S,

LDS 32U, LDS 32U-S

IMPORTANT! Read entire instruction sheet before you start installation and assembly.

Parts List

Note: Some parts may appear slightly different than illustrated.

B C E

Before you start make sure all parts listed are included with your product.

A2A1

This product is intended for indoor use only. Use of this product outdoors could lead to product failure and personal injury.

ISSUED: 11-05-04 SHEET #: 090-9102-4 09-27-10

Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870.

2 of 5

TurnTVupsidedownanddeterminemounting

locations. For TV’s with a flat front, make sure that

leadingedge of screen is flushwith leading edge of

tray. For TV’s with a curved front, mount screen as

close to the front of leading edge of tray with tray

still being hidden.Attach tray to TV by installing

four screws (B) into TV mounting bosses.

• Donot lift more weight than you can handle. Useadditional manpower or mechanical liftingequipment to safely lift

andattachthetelevision!

WARNING

TOP VIEW

Note: If TV is flush with tray, x= 0.

LEADING EDGE

OF TRAY

LEADING EDGE

OF SCREEN

x= leading edge of tray to leading edge of screen

ForflatscreenTVs,peelpaperfromadhesive

bumper strip (L) and place flush to the front lip

on bottom of TV.

For ZenithH32F56, cut 1" strips off each side of

adhesivebumberstrip(L).Peelpaperfrom

longer strip and place flush to the front lip on

bottom of TV as shown in figure 1.Also, peel

paper from the 1" strips and place on front feet

of TV as indicated.

figure 1

BOTTOMOF TV

FRONTLIPOF TV L

1"STRIPS

ISSUED: 11-05-04 SHEET #: 090-9102-4 09-27-10

Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870.

3 of 5

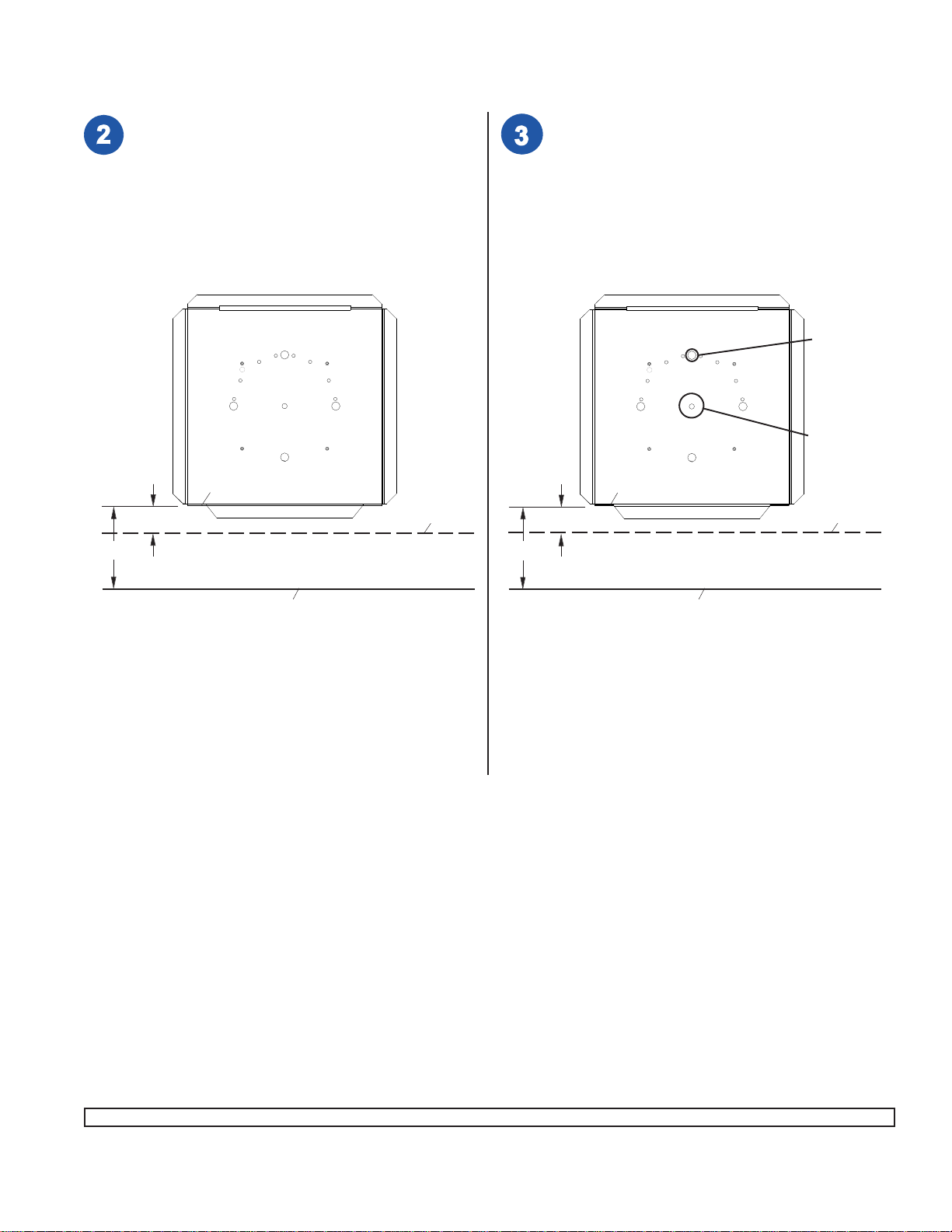

Determine position on desktop to secure mount.

SeeNote below. The leading edgeofTVshould

be flush with edge of mounting surface once TV is

installed. Once position is determined, align .281"

diameterholesin swivel base (marked 1-4 below)

with holes in race. Mark holes and drill 1/8" (3

mm) diameter pilot holes 3/4" (19 mm) into

mountingsurface.

There are two methods of installation. Follow steps 2 and 4 for installation using four 3/4" particle board

screws or steps 3 and 5 to use one 1-3/4" bolt.

For mounting to surface using one 1-3/4" bolt,

determine position on desktop to secure mount.

SeeNote below. The leading edge of TV should

be flush with edge of mounting surface once TV is

installed. Mark holes and drill one 5/16" (8 mm)

diameter thru hole and one 1/8" (3 mm) diameter

pilot hole 3/4" (19 mm) into mounting surface.

Note: To figure out where to mount swivel base soTV is

flush with the edge of the mounting surface, use

thefollowingformula:

y = x + 1.25"

Use distance x from step 1 on previous page.

EDGE

1/8" (3 MM)

DIA. PILOT

HOLE

5/16" (8 MM)

DIA. THRU

HOLE

EDGE

Note: To figure out where to mount swivel base soTV is

flush with the edge of the mounting surface, use

thefollowingformula:

y = x + 1.25"

Use distance x from step 1 on previous page.

EDGEOFTRAY

EDGEOFMOUNTINGSURFACE

EDGEOFTRAY

EDGEOFMOUNTINGSURFACE

1.25" 1.25"

ISSUED: 11-05-04 SHEET #: 090-9102-4 09-27-10

Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870.

4 of 5

Align holes in race with holes 1 through 4 of swivel

base. Once position is determined, attach swivel

base to surface using four screws (B) into posi-

tions 1 through 4. If swivel restriction is needed,

use one spacer (G) and screw (B) in position 1 and

then refer to step 6. If you would like to prevent the

swivelbase from swiveling atall, install one screw

(J) into back hole #1 instead of screw (B) and

spacer(G).

Align holes in race with holes 1 through 4 of swivel

base. Once position is determined, attach swivel

base to surface using one screw (F) and one T-nut

(I) in center of swivel base and one screw (B) and

one spacer (G) in back hole #1. If swivel restriction

is needed, use one spacer (G) and screw (B) in

position 1 and then refer to step 6. If you would like

toprevent the swivel base from swiveling atall,

install one screw (J) into back hole #1 instead of

screw(B) and spacer (G).

Swivel Restriction

Tray swivel can be stopped entirely (as described in steps 4 and 5) or restricted to either 10, 30, 60, or 90

degrees.To restrict swivel, place two screws (D) with spacers (G) into holes on left and on right at desired

degree.

30° 30°

60°

90°

60°

90°

0°

10° 10°

ISSUED: 11-05-04 SHEET #: 090-9102-4 09-27-10

Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870.

5 of 5

TABS

LIP

Attach tray, with TV mounted onto it, to swivel base by

sliding trays together. The lip of the tray (as shown) will

lock into the slot in swivel base. The slot of the two

tabs in the tray will align with the two holes on the

swivelbase.

To lock trays together, be certain that the hole in the

swivel base is centered within the slot in the tray (see

detail below). Secure on left and right using two penta-

pin screws (H) with tool (C).

DETAIL

PeerlessisaregisteredtrademarkofPeerlessIndustries,Inc.

Allotherbrandandproductnamesaretrademarksorregisteredtrademarksoftheirrespectiveowners.

SLOT HOLE

Finishby snapping two Peerlesscover plates (E)

onto tray as shown.

SLOT

HOLES
