Outback Excel 310 Manuel utilisateur

Assembly and Operating Instructions for

Outback® Excel 310 Gas BBQ and Onyx 311 Gas Barbecue

Photographs are not to scale.

Specifications subject to change

without prior notice.

WARNING

FOR YOUR SAFETY

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open barbecue lid or hood.

4. If odour continues, discontinue use and contact

your local dealer.

FOR YOUR SAFETY

1. Do not store or use petrol or other flammable

vapours or liquids in the vicinity of this or any

other appliance.

2. A gas bottle not connected for use must not be

stored in the vicinity of this or any other

appliance.

EX310H EX311H

2575

 For outdoor use only. Not for commercial use.

 Read instructions before using the appliance. Failure to follow instructions could

result in death, serious bodily injury, and/or property loss.

 Warning: accessible parts may be very hot. Keep young children and pets away.

 Do not move the appliance during use.

 Turn off the gas supply at the gas bottle after use.

 Any modification of the appliance, misuse, or failure to follow the instructions

may be dangerous and will invalidate your warranty. This does not affect your

statutory rights.

 Retain these instructions for future reference.

 Leak test annually, and whenever the gas bottle is removed or replaced. Check

that the hose connections are tight and leak test each time you reconnect the

gas bottle.

 For Flare-up control please refer to the 'OPERATION' section of this manual.

0359

CODE PART QTY EX310H EX311H

HOOD

A1 Hood (Pre-Assembled to Body)

1√ √

A2 Hood Handle 1√√

A3 Heat Indicator 1√√

A4 Heat Indicator Bezel 1√√

A5 Warming Rack 1√√

BODY

B1 Barbecue Body 1√√

B2 Main Burner 1√√

B3 Control Panel 1√√

B4 Knob (Pre-Assembled) 2√√

B5 Flame Tamer Bracket 2√√

B6 Flame Tamer 1√√

B7 Cooking Grill 1√√

B8 Ignition Button (Pre-Assembled) 1√√

B9 Control Panel Heat Shield 1√√

B10 Main Electrode 1√√

B11 Hinge Bracket (Pre-Assembled) 2√√

B12 Body Heat Shield 1√√

B13 Body Support 2√√

B14 Grease Cup Holder 1√√

B15 Grease Cup 1√√

B16 Hose and Regulator Assembly 1√√

TROLLEY

C1 Side Shelf 1√√

C2 Side Shelf Bracket A 1√√

C3 Side Shelf Bracket B 1√√

C4 Side Burner Knob 1√√

C5 Side Burner Grid 1√√

C6 Side Burner Shelf 1√√

C7 Side Burner 1√√

C8 Side Burner Electrode 1√√

C9 Side Burner Valve / Hose Assembly 1√√

C10 Left Front Leg 1√√

C11 Left Rear Leg 1√√

C12 Right Front Leg 1√√

C13 Right Rear Leg 1√√

C14 Gas Bottle Holder 1√√

C15 Leg End Loop 1√√

C16 Wheel Spacer 2√√

C17 Wheel 2√√

C18 Wheel Hubcap 2√√

C19 Axle 1√√

C20 Bottom Shelf 1√√

C21 Gas Bottle Strap 1√√

HARDWARE

D1 M6x15 Bolt 28 √√

D2 M5x15 Bolt 2√√

D3 M5x10 Bolt 2√√

D4 M4x10 Bolt 4√√

D5 ST4.0x10 Screw 4√√

D6 ST4.0x15 Screw 4√√

D7 ST4.8x15 Screw 6√√

D8 Locknut 2√√

D9 M4 Nut 4√√

D10 M5 Nut 2√√

D11 Spacer 6√√

D12 Hose Hook 1√√

D13 Washer 2√√

Parts List

Quantity varies according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see the corresponding ‗Hardware Reference Diagram‘.

 Pre-Assembled Component  Quantity varies according to model purchased

Appearance, size, and construction may differ according to model purchased

B11

Parts Diagram:

Quantity varies according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see the corresponding ‗Hardware Reference Diagram‘.

B12

B13

B10

B15

B14

C11

C21

C14

C17 C19

C15

C12

C13

C20

C16

C18

C10

B16

Hardware Reference Diagram:

Specifications subject to change without prior notice.

D4D10

D7 D12

D11

M6x15 Blot 28pcs

M5x15 Blot 2pcs

M5x10 Blot 2pcsM4x10 Blot 4pcs

ST4.0x10 Screw 4pcs

ST4.0x15 Screw 4pcsST4.8x15 Screw 6pcs

Locknut 2pcs

M4 Nuts 4pcs

M5 Nuts 2pcs

Shelf Spacer 6pcs

Hose Hook 1pc

Washers 2pcs

D13

Assembly

IMPORTANT!

 TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,

adjustable spanner or metric spanner set.

 The assembly of this barbecue requires 2 people.

 Whilst every care is taken in the manufacture of this product, care must be taken during assembly in

case sharp edges are present.

 Please read the Important Information section carefully before assembly and use of your

barbecue.

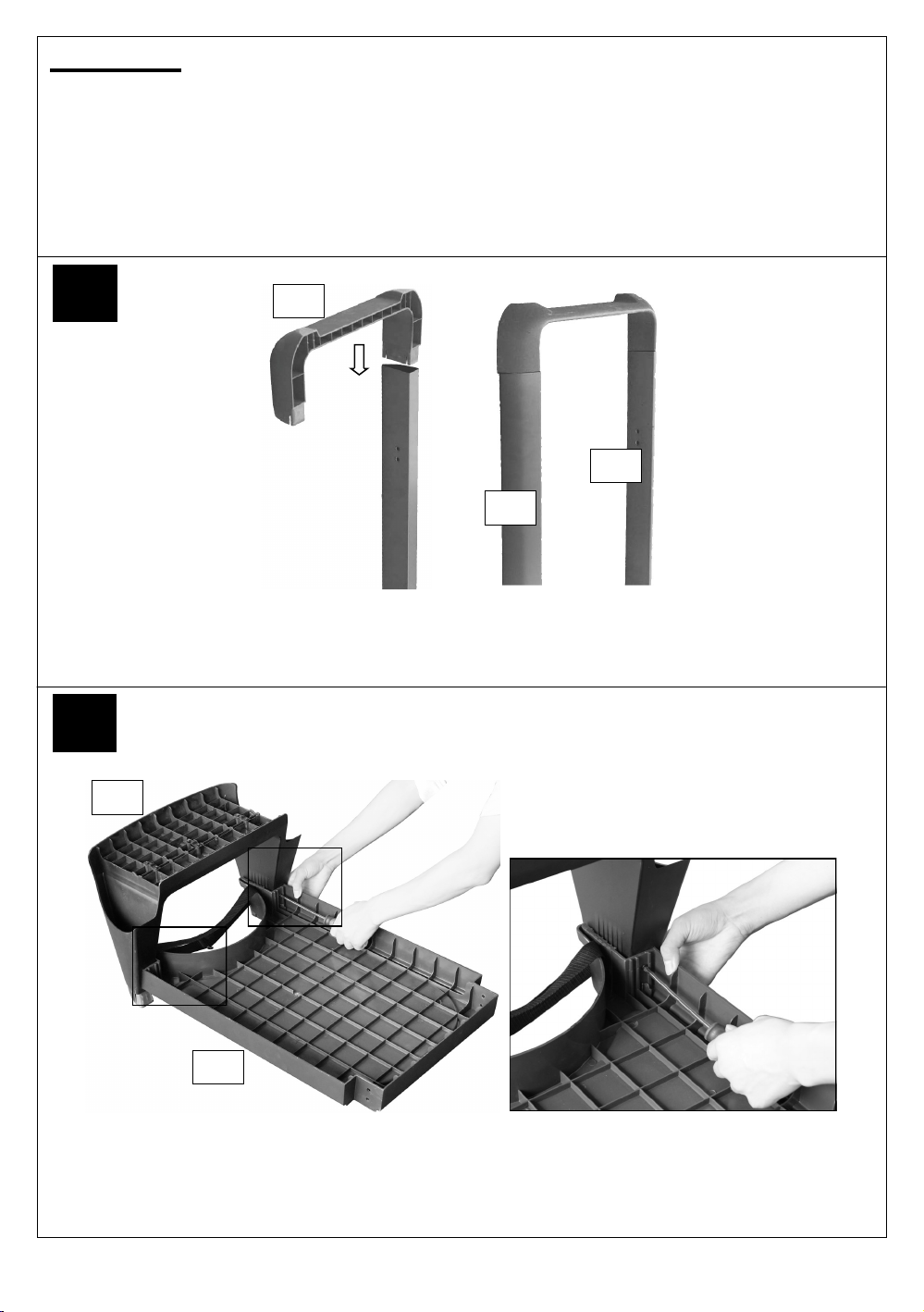

Attach the Right Front Leg (C12) and Right Rear Leg (C13) to the Leg End Loop (C15). The

legs are a push fit onto the leg end loop. In case of difficulty, they may need tapping with a soft

faced mallet. Take care not to damage the parts.

1C15

C12

C13

Attach the Gas Bottle Holder (C14) to the Bottom Shelf (C20) using ST4.8x15 Screws

(D7x2pcs). Take care not to over tighten these screws which will damage the plastic

gas bottle holder.

C20

C14

Attach right leg assembly to the bottom shelf assembly using M6x15 Bolts (D1x4pcs).

Attach the Left Front Leg (C10) and Left Rear Leg (C11) to the Gas Bottle Holder (C14) using

ST4.8x15 Screws (D7x4pcs).

C10

C11

C14

Insert the Axle (C19) through the clamping brackets underneath the Gas Bottle Holder (C14) and

tighten the clamping screws. Take care not to over tighten these screws which will damage the

plastic gas bottle holder.

Slide a Wheel Spacer (C16) over each end of the axle. Note: the spacers are packed in a plastic

bag with the electrode, grease cup holder and grease cup.

Slide the Wheels (C17) over each end of the axle. Secure the wheels into place with the Locknuts

(D8x2pcs). Place the Wheel Hubcaps (C18) onto the outside of the wheels.

Carefully turn the completed trolley over, right side up.

Attach the Body Supports (B13) to the legs using M6x15 Bolts (D1x4pcs).

B13

C14

C19C16

C17 C18





Unscrew the locknut from the Heat Indicator (A3). Insert the heat indicator through

the Heat Indicator Bezel (A4) and the Hood (A1), and then fix it by tightening its

locknut.

Attach the Hood Handle (A2) onto the hood using the M5x15 Bolts (D2x2pcs) and

the Washers (D13x2pcs).

Carefully place the Barbecue Body (B1) onto the tops of the legs.

Attach the barbecue body to the trolley assembly using the M6x15 Bolts (D1x8pcs). Ensure the tabs

on the body fit over the legs as shown in the diagram and do not go down inside of the legs.

WARNING: DO NOT RELEASE THE BARBECUE BODY WHILE THE BARBECUE HAS NOT BEEN

PROPERLY SEATED. THIS MAY RESULT IN INJURY OR DAMAGE TO YOUR BARBECUE.

D13

Feed the Grease Cup Holder (B14) through the hole in barbecue body.

Insert the Grease Cup (B15) into the grease cup holder.

Install a M6x15 Bolt (D1) and a Spacer (D11) into the upper fixing hole on each front leg.

Place the Control Panel (B3) assembly in position by aligning the spacers with the slot on

each side of control panel and fix it onto the trolley assembly using M6x15 Bolts (D1x2pcs).

B14

B15

D11

Feed the Main Burner (B2) into barbecue body. Ensure that the burner venturi tubes are over

the ends of the gas valves. They are a loose fit and not a gas tight seal. Secure the burner

with the ST4.0x10 Screws (D5x2pcs).

Insert the Main Electrode (B10) into the hole at the bottom of the barbecue body and

secure with a ST4.0x10 Screw (D5).

B10

View from underneath the body




