Assembly and Operating Instructions for Outback®

Meteor Select Stainless Steel 4 and

Meteor Select Stainless steel 6 Burner Gas BBQ

Drawings are not to scale.

Specifications subject to change

without prior notice.

WARNING

• For outdoor use only. Not for commercial use.

• Read instructions before using the appliance. Failure to follow instructions could

result in death, serious bodily injury, and/or property loss.

• Warning: accessible parts may be very hot. Keep young children and pets away.

• Do not move the appliance during use.

• Turn off the gas supply at the gas bottle after use.

• Any modification of the appliance, misuse, or failure to follow the instructions may

be dangerous and will invalidate your warranty. This does not affect your statutory

rights.

• Retain these instructions for future reference.

• Leak test annually, and whenever the gas bottle is removed or replaced. Check that

the hose connections are tight and leak test each time you reconnect the gas bottle.

• For Flare-up control please refer to the ‘OPERATION’ section of this manual.

FOR YOUR SAFETY

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open barbecue lid or hood.

4. If odour continues, discontinue use and

contact your local dealer.

FOR YOUR SAFETY

1. Do not store or use petrol or other flammable

vapours or liquids in the vicinity of this or any

other appliance.

2. A gas bottle not connected for use must not be

stored in the vicinity of this or any other

appliance.

MS-4464 MS-5664

CODE PART QTY Outback®

Meteor Select Stainless Steel

4 Burner Gas BBQ

HOOD

A1 Hood (Pre-Assembled to Body) 1 

A2 Hood Handle 1 

A3 Warming Rack 1 

BODY

B1 Barbecue Body 1 

B2 Burner 4

B3 Control Panel 1 

B4 Knob 4

B5 Hose and Regulator Assembly 1 

B6 Lava Rock 1 

B7 Lava Rock Basket 1 

B8 Cooking Grill 1 

B9 Cooking Griddle 1 

B10 Drip Tray Left Bracket 1 

B11 Drip Tray Right Bracket 1 

B12 Drip Tray 1 

B13 Drip Pan 1 

B14 Ignition Button 1 

TROLLEY

C1 Side Burner Shelf 1 

C4 Side Shelf Panel 1 

C5 Side Burner Grid 1 

C6 Side Burner Lid 1 

C7 Side Burner Lid Axle 1 

C8 Side Burner Firebox 1 

C14 Body Support A 2 

C15 Body Support B 2 

C16 Left Front Leg 1 

C17 Left Rear Leg 1 

C18 Right Front Leg 1 

C19 Right Rear Leg 1 

C20 Side Panel 4 

C21 Upper Support 1 

C22 Door Handle 2 

C23 Left Door 1 

C24 Right Dorr 1 

C25 Basket 1 

C26 Bottom Panel 1 

C27 Front Wheel Skirt 1 

C28 Left Wheel Skirt 1 

C29 Right Wheel Skirt 1 

C32 Caster 2 

HARDWARE

D1 M6×40 Bolt 16 

D2 M6×15 Bolt 20 

D3 M4 Nut 7 

D4 ST4.0x10 Screw 16 

D5 ST4.0x10 Screw F# 1 

D6 M6 Nut 12 

D7 M5×15 Bolt 2 

C30 Balance Weight 1 

C31 Lockable Caster 2 

C3 Side Shelf 1 

C2 Side Burner Shelf Panel 1 

Outback®

Meteor Select Stainless Steel

6 Burner Gas BBQ







6



6





























C13 Side Burner Drip Tray 1  

C12 Sear Burner 1  

C11 Side Burner Knob 1  

C10 Knob Bezel 1  

C9 Side Burner Electrode 1  

D8 M4×10 Bolt 21  

Pre-Assembled Component Quantity varies according to model purchased

 Appearance, size, and construction may differ according to model purchased

Parts List

Quantity varies according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.

Parts Diagram

Quantity varies according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.

B10 B11

B14

C29

B12

C26

C22

C27

C12

C11

C10

C28

C23 C24

B13

C31

C32

C25

C30

C21

C2 C4

C13

C17C16 C18C19

C20

C15C14

Hardware Reference Diagram

Specifications subject to change without prior notice.

D1 D2

Assembly

IMPORTANT!

• TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,

adjustable spanner or metric spanner set.

• Remove any internal component or packaging from the barbecue body.

• Whilst every care is taken in the manufacture of this product, care must be taken during assembly in

case sharp edges are present.

• Please read the Important Information section carefully before assembly and use of your

barbecue.

Attach the left cabinet panel assembly (C16, C17, C20) and right cabinet panel assembly (C18,

C19, C20) to the Bottom Panel (C26) using M6x40 Bolts (D1x8pcs) and M6 Nuts (D6x8pcs),

ST4.0x10 Screw (D4x6pcs) as shown.

C26

Carefully turn the cabinet upside-down.

Attach the Casters (C32x2pcs) into the rear legs and the Lockable Casters (C31x2pcs)

into the Front legs.

C31C32

Attach the Wheel Skirt (C27, C28, C29) to the bottom panel using M4x10 Bolts (D8x7pcs) and

M4 Nuts (D3x7pcs) as shown, Then fix the left / right wheel skirts onto the front wheel skirt

using ST4.0x10 Screw (D4x2pcs) as shown.

Unscrew the retaining bolts and retaining nuts from the Balance Weight (C30).

Attach the balance weight to the bottom panel using the retaining bolts and

retaining nuts as shown.

C27C28

C29

C30

Carefully turn the assembled cabinet right side up.

Attach Drip Tray Left Bracket (B10) to the right legs using ST4.0x10 Screws (D4x2pcs) as shown.

Repeat above process for Drip Tray Right Bracket (B11).

Front Side

Rear Side

B10

Attach the Upper Support (C21) to the front legs using M6x15 Bolts (D2x4pcs).

C21

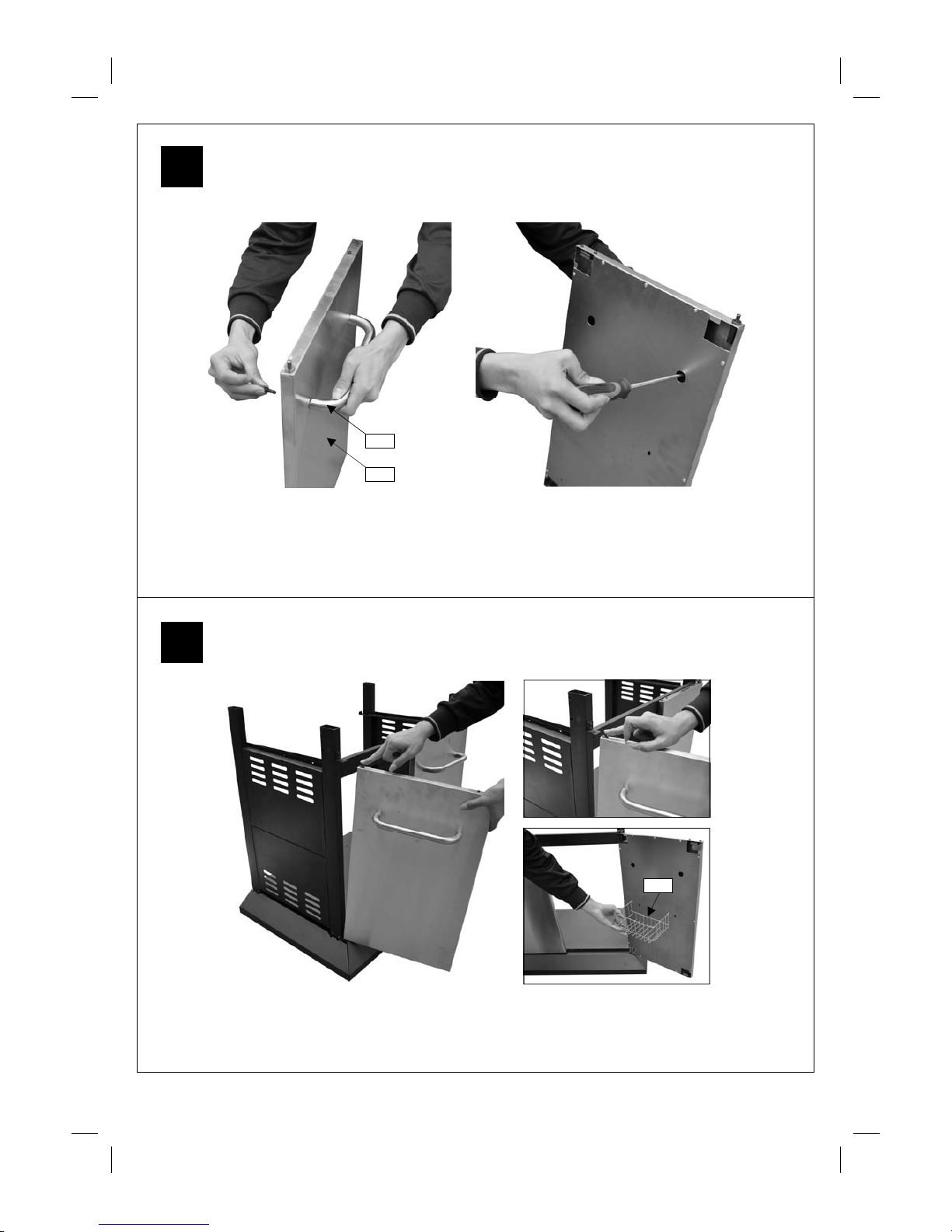

Attach the Door Handle (C22) onto the Left Door (C23) using M6x15 Bolts (D2x2pcs).

Repeat above process for Right Door (C24).

C22

C23

Fit the door to the cabinet by depressing the spring pins and placing into the cabinet.

Attach the Basket (C25) onto the right door as shown.

C25

Carefully place the Barbecue Body (B1) onto the cabinet structure and fix using M6x40 Bolts

(D1x8pcs) as shown.

Attach Body Support A (C14) onto the left rear leg and right front leg using M4x10 Bolts

(D8x4pcs) , and attach Body Support B (C15) onto the right rear leg and left front leg using

M4x10 Bolts (D8x4pcs) as shown.

e C14

C15

Attach Side Shelf Panel (C4) onto Side Shelf (C3) using M6x15 Bolts (D2x2pcs) and

M6 Nut (D6x2pcs) as shown.

Attach the side shelf assembly to the barbecue body using ST4.0x10 Screw (D4x2pcs) and

M6x15 Bolts (D2x4pcs) as shown.
