Assembly and Operating Instructions for Outback®

Saracen 2 Burner Gas BBQ

WARNING

• For outdoor use only. Not for commercial use.

• Read instructions before using the appliance. Failure to follow instructions could

result in death, serious bodily injury, and/or property loss.

• Warning: accessible parts may be very hot. Keep young children and pets away.

• Do not move the appliance during use.

• Turn off the gas supply at the gas bottle after use.

• Any modification of the appliance, misuse, or failure to follow the instructions may be

dangerous and will invalidate your warranty. This does not affect your statutory rights.

• Retain these instructions for future reference.

• Leak test annually, and whenever the gas bottle is removed or replaced. Check that the

hose connections are tight and leak test each time you reconnect the gas bottle.

• For Flare-up control please refer to the ‘OPERATION’ section of this manual.

FOR YOUR SAFETY

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open barbecue lid or hood.

4. If odour continues, discontinue use and

contact your local dealer.

FOR YOUR SAFETY

1. Do not store or use petrol or other flammable

vapours or liquids in the vicinity of this or any

other appliance.

2. A gas bottle not connected for use shall not be

stored in the vicinity of this or any other

appliance.

0359

THG2216

Parts List

Quantities vary according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see ‘Hardware Reference Diagram’.

CODE PART QTY Outback®

Saracen 2 Burner Gas BBQ

HOOD

A1 Hood (Pre-Assembled to Body) 1 

A2 Hood Handle 1 

A3 Hood Handle Spacers 2 

A4 Heat Indicator 1 

A5 Warming Rack 1 

BODY

B1 Barbecue Body 1 

B2 Burner 2 

B3 Cross Channel 1 

B4 Control Panel 1 

B5 Knob 2 

B6 Ignition Pushbutton 1 

B7 Flame Tamer 2 

B8 Cooking Grill 2 

B9 Hose and Regulator Assembly 1 

B10 Drip Tray 1 

B11 Drip Tray Left Bracket 1 

B12 Drip Tray Right Bracket 1 

TROLLEY

C1 Left Side Shelf 1 

C2 Right Side Shelf 1 

C3 Tool Hook 1 

C4 Left Front Leg 1 

C5 Left Rear Leg 1 

C6 Right Front Leg 1 

C7 Right Rear Leg 1 

C8 Beer Bottle Opener 1 

C9 Front Screen 1 

C10 Trolley Base 1 

C11 Leg Endcap 2 

C12 Axle 1 

C13 Wheel 2 

C14 Hubcap 2 

HARDWARE

D1 M5x15 Bolt 4 

D2 Washer 4 

D3 M5 Nut 4 

D4 M6x15 Bolt 11 

D5 M6 Nut 10 

D6 ST4.0x10 Screw 6 

D7 M6x40 Bolt 8 

D8 M6x75 Bolt 8 

D9 Locknut 2 

Pre-Assembled Component

Parts Diagrams

Quantities vary according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see hardware pack page.

B5B6

C11

B12B10

C1 C2

C7 C6

C13

C10

C4 C5

C14

C12

B11

Hardware Reference Diagram

Specifications subject to change without prior notice.

D1,D2,D3

D4D4,D5

D5,D7

Attach the Legs (C4,C5,C6,C7) to the Trolley Base (C10) using the M6x40 Bolts (D7x8pcs) and

M6 Nuts (D5x8pcs), as shown.

Note: The left legs are shorter than right legs.

Assembly

IMPORTANT!

• TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,

adjustable spanner or metric spanner set.

• Remove any internal components or packaging from the barbecue body.

• Whilst every care is taken in the manufacture of this product, care must be taken during assembly in

case sharp edges are present.

• Please read the Important Information section carefully before assembly and use of your

barbecue.

Unscrew the Locknuts (D9) from both ends of the Axle (C12). Slide the axle through the

corresponding holes in the left legs. Slide the Wheels (C13) over each end of the axle. Secure the

wheels into place with the locknuts. Place the wheel Hubcaps (C14) onto the outsides of the

wheels.

C14

C12

C13

C5 D7 D5

C10

Insert M6x75 Bolts (D8x8pcs) through the trolley legs, While holding the barbecue body into

position (2 people required), screw the bolts into the barbecue body as shown.

CAUTION! Care must be taken to ensure the hood or lid does not fall open unexpectedly or

becomes damaged when it is set on the ground.

Attach the Tool Hook (C3) to the Right Side Shelf (C2) using M6x15 Bolts (D4x2pcs) and M6 Nut

(D5x2pcs), as shown.

LEFT

RIGHT

C3 D4

Attach the Right Side Shelf (C2) to the barbecue body using M6x15 Bolts (D4x4pcs), as shown.

Attach the Left Side Shelf (C1) to the barbecue body using M6x15 Bolts (D4x4pcs), as shown.

D4C1

Carefully lay Flame Tamers (B7) into the barbecue body ensuring it lies level within the boy. Lay

the Grills (B8) into place. Ensure the cooking grill lies directly over the flame tamer on the

barbecue body.

Attach the Drip Tray Left Bracket (B11) to the barbecue body using M5x15 Bolts (D1x2pcs),

Washers (D2x2pcs) and M5 Nuts (D3x2pcs) as shown. Repeat above process for Drip Tray Right

Bracket (B12).

NOTE: Please make sure that before and after installing drip tray bracket position such as

enlarge figure,Ensure that the tabs of the brakets which stop the drip tray are located at

the front of the barbecue.

√

D2D1 D3

B11

Front

view

B11

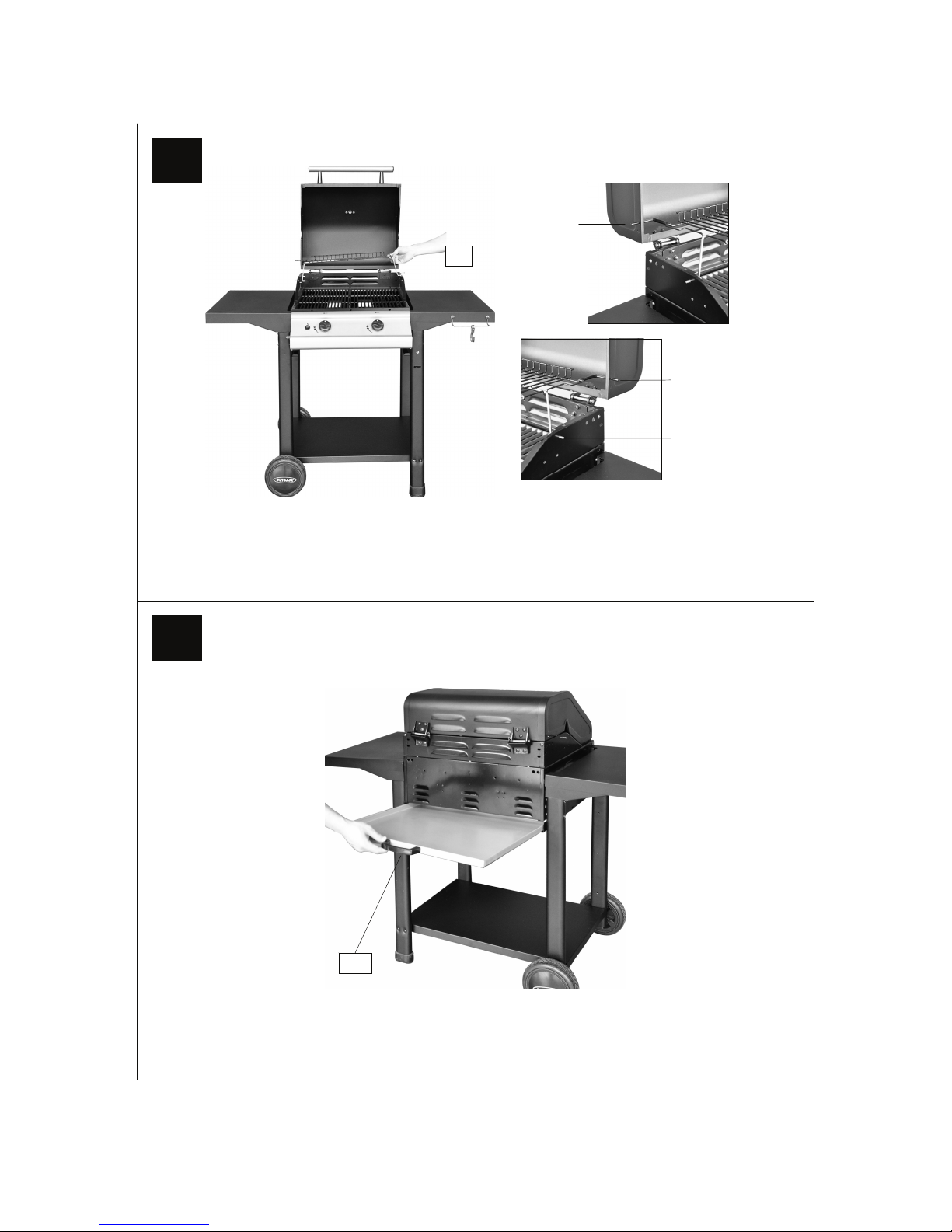

Attach the Warming Rack (A5) to the Hood (A1) and Barbecue Body (B1) as shown.

Make sure that the swing legs fix to the body of the barbecue and the shorter fixed legs go

through the holes in the hood.

Insert the Drip Tray (B11) by sliding it underneath the barbecue body.

LEFT

RIGHT

Step①

Step②

Step③

Step④

(Rear view of the barbecue trolley)

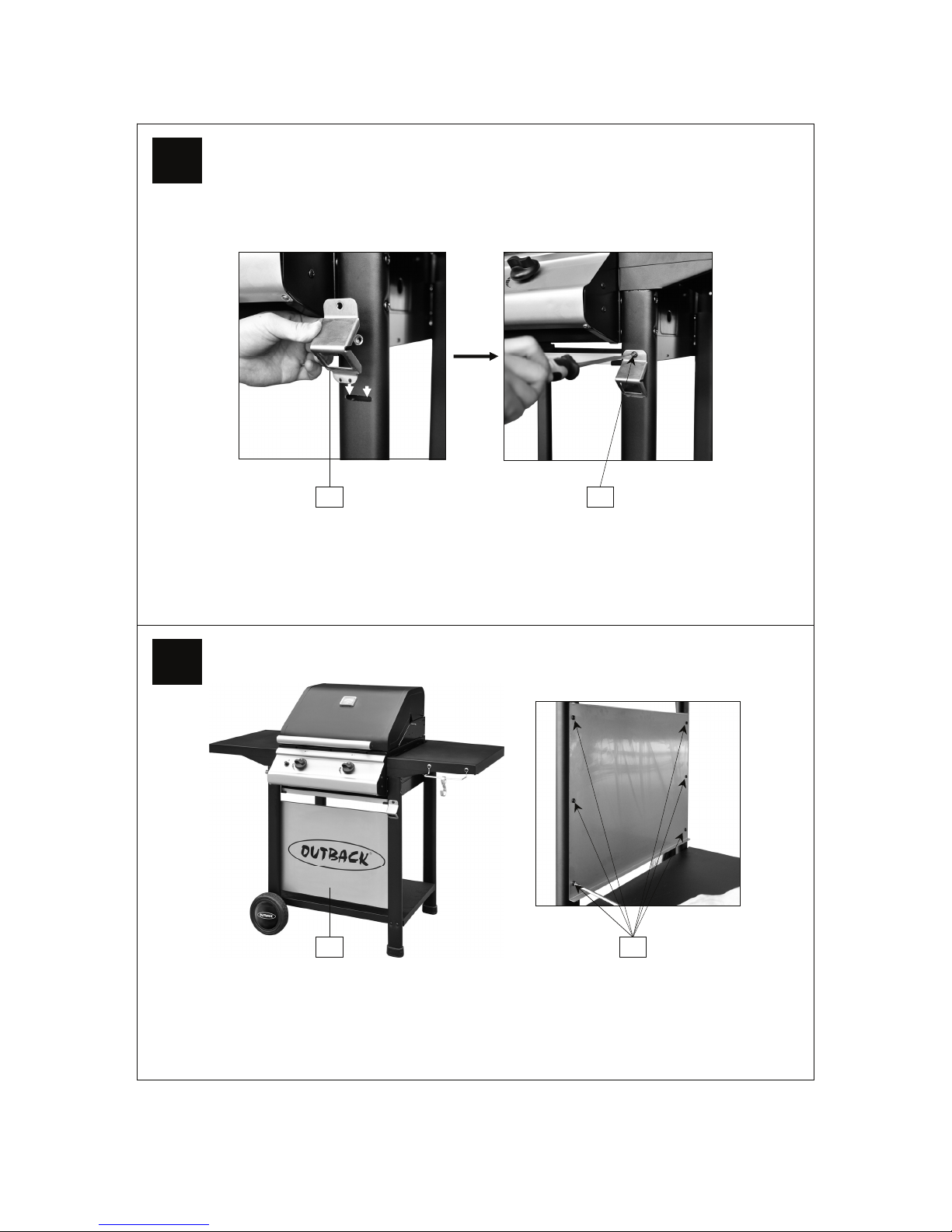

Insert the Beer Bottle Opener (C8) to the Right front leg hole, as shown. Attach the Beer Bottle

Opener (C8) to the Right front leg using M6x15 Bolt (D4x1pc).

Attach the Front Screen (C9) to the Front Left / Right Legs using ST4.0x10 Screws (D6x6pcs) as

shown.

C8 D4

C9 D6
