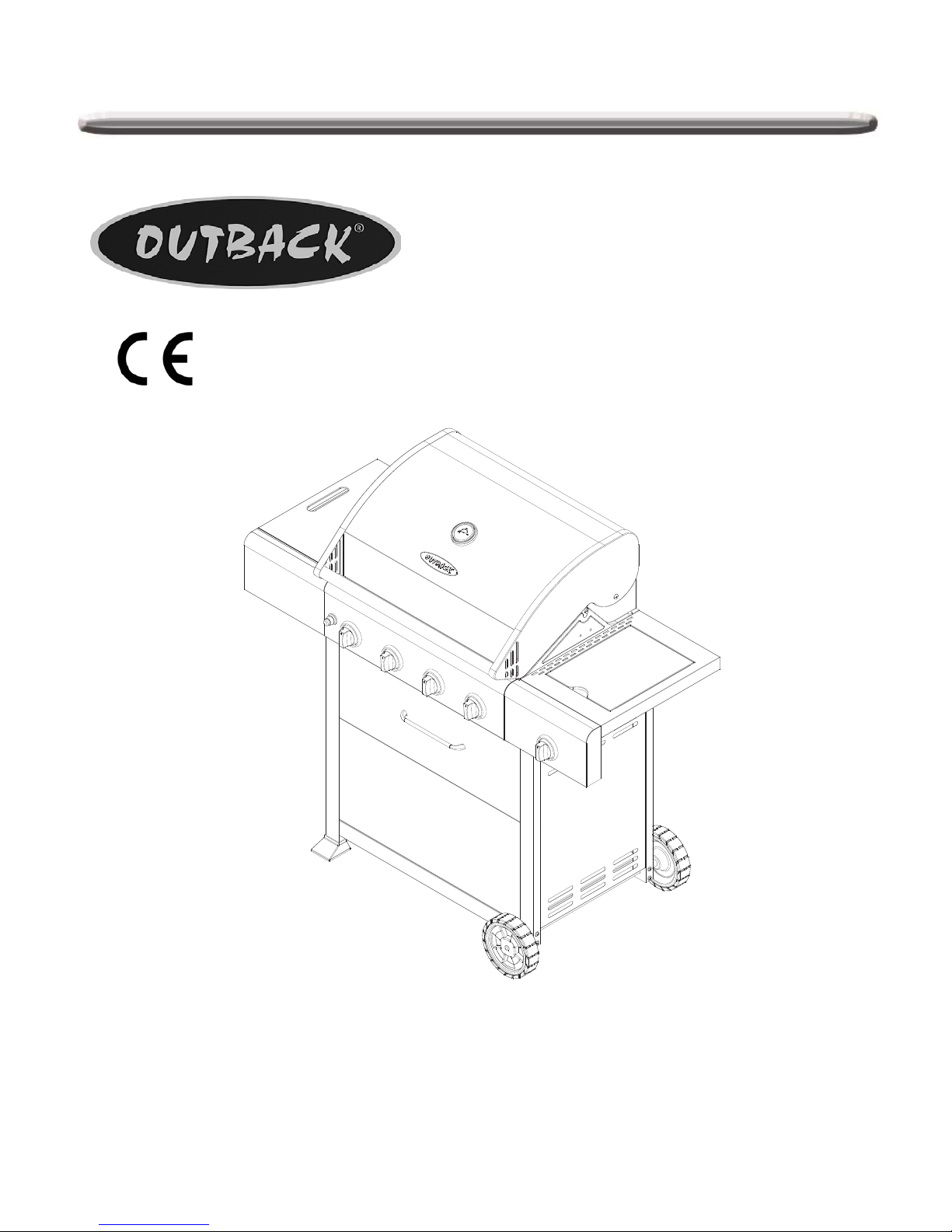

Outback TPA101-2 Guide de référence rapide

ASSEMBLY & OPERATING INSTRUCTIONS

Meteor Gas Barbecue

Model: TPA101-2

Chapter 1: Safety Information

Chapter 2: Package Contents List

Chapter 3: Hardware Contents List

Chapter 4: Assembly

Chapter 5: Leak Testing

Chapter 6: Important Information

Chapter 7: Gas, Regulator and Hose

Chapter 8: Installation

Chapter 9: Operation

Chapter 10: Care and Maintenance

Chapter 11: Technical Speciﬁcations

Chapter 12: Troubleshooting

Chapter 13: Parts Diagram

Chapter 14: Parts List

Page Table of Contents

Safety Information

WARNING

•

For outdoor use only. Not for commercial use.

Read instructions before using the appliance. Failure to follow

instructions could result in death, serious bodily injury, and/or property

loss.

Warning: accessible parts may be very hot. Keep young children and

pets away.

Do not move the appliance during use.

Any modification of the appliance, misuse, or failure to follow the

instructions may be dangerous and will invalidate your warranty. This

does not affect your statutory rights.

For Flare-up control please refer to the ‘OPERATION’ section of this

manual.

Retain these instructions for future reference.

Turn off the gas supply at the gas bottle after use.

Leak test annually, and whenever the gas bottle is removed or

replaced. Check that the hose connections are tight and leak test each

time you reconnect the gas bottle.

FOR YOUR SAFETY

If you smell gas:

Shut off gas to the appliance.

Extinguish any open ﬂame.

Open barbecue lid or hood.

If odour continues, discontinue use and contact your local dealer.

FOR YOUR SAFETY

Do not store or use petrol or other ﬂammable vapours or liquids in the

vicinity of this or any other appliance.

A gas bottle not connected for use must not be stored in the vicinity of

this or any other appliance.

Package Contents List

R. Axle Bushing--------2 pcs.Q. Condiment rack handle--1 pc.P. Front Panel -----1 pc

O. Condiment rack panel------1 pc.N. Lighting Stick----1 pc.M. Bottom Panel -----------1 pc.

L. Wheel---------------------2 pcs.K. Wheel Axle-----------1 pc.J. Warming Rack--------------1 pc.

I. Cart Frame, Front ------1 pc.H. Cart Leg, Rear Right-----1 pc.G. Cart Leg, Front Right-----1 pc.

F. Cart Brace, ------2 pcs.E. Side Panel----2 pcs.D, Cart Leg Foot-----2 pcs.

C. Cart Leg, Rear Left----1 pc.B. Cart Leg, Front Left------1 pc.A. Firebox--------1 pc.

Package Contents List

ZA. Cooking Grid-----------2 pcs.Z. Flame Tamer------------4 pcs.Y. Grease Cup--------------------1 pc.

Carefully unpack the packing box and remove all contents before commencing assembly. Make sure that you

obtain all correct package contents.

X. Grease Tray -1 pc.W.. Control Knob--------------1 pc.V. Bezel---------------------------1 pc.

U. Left side shelf with side shelf

front panel---------1 pc.

T. Side Burner bowl assembly frame

with Side burner control panel-----1

pc.

S. Cart Frame, Rear------1 pc.

Hardware Contents List

Before beginning assembly, make sure all parts are present. Compare parts with package contents list and

diagram above. If any part is missing or damaged, do not attempt to assemble the product. Contact customer

service for replacement parts.

•Tools required for Assembly.

Phillips Screwdriver (not included) and Wrench (not included)·

• Note: The left and right sides of the grill are on your left and right as you face the front of the grill.

Preparation

81/4-in. Flat WasherGG

81/4-in. x 65-mm Round Head ScrewFF

25/32-in. x 6-14 stage screwHH

1Allen KeyEE

181/4-in. Lock WasherDD

181/4-in. x 10-mm Round Head ScrewCC

245/32-in. Lock WasherBB

245/32-in. x 8-mm Round Head ScrewAA

Required for assembly (pcs)

DescriptionPack



AA BB CC DD EE GG

FF HH

Assembly

Fig. 2

Fig. 3

Fig. 1

Fig. 4

UNPACKING

CAUTION: Obtain the aid of an assistant when handling large

or heavy grill components.

1. Remove all packing material from around grill exterior.

2. Open Firebox lid and remove packing materials and

components from inside Firebox.

3. With the aid of an assistant, lift the Firebox out of the

shipping box and place on protected flat surface. Be careful not

to damage hose and regulator.

4. Refer to Parts Lists to check that all parts are present.

5. Inspect the grill for damage as you assemble it. Do not

assemble or operate the grill if it appears damaged.

IMPORTANT: Refer to the package Contents and Hardware

Contents on page 4, 5and 6 when assembling Grill Cart.

1. Grill Cart Assembly

(a) Firstly, attach two Cart Leg Foots (D) to left side legs B&C.

Then use 4 AA Round Head Screws and 4 BB Lock Washers to

attach Side Panel, Left (E) to Cart Leg, Rear Left (C) and Cart

Leg, Front Left (B). Attach so that flat surface of Side Panel will

be on Grill exterior. See (Fig. 1).

(b) Use 4 CC Round Head Screws and 4 DD Lock Washers to

attach Cart Brace, Left (F) to Cart Leg, Front Left (B) and Cart

Leg, Back Left (C). Attach Cart Brace so that flat side will face

Cart Interior and wide lip faces down. See (Fig. 2).

attach Side Panel, Right (E) to Cart Leg, Rear Right (H) and

Cart Leg, Front Right (G). Attach so that flat surface of Side

Panel will be on Grill Exterior. See (Fig. 3).

(d) Use 4 CC Round Head Screws and 4 DD Lock Washers to

attach Cart Brace, Right (F) to Cart Leg, Front Right (G) and

Cart Leg, Back Right (H). Attach Cart Brace so that flat side will

face Cart Interior and wide lip faces down. See (Fig. 4).

Remark: The lighting stick is preassembled on the Cart Leg,

Front Right (G)

AA BB

DDCC

CC DD

Assembly

Fig. 5

Fig. 6

2. Wheel Assembly

Remove Axle Bushings (R) and Screws from the

ends of Wheel Axle (K). Insert Wheel Axle (K)

through Cart Leg, Front Right (G) and Cart Leg,

Rear Right (H). Place Axle Bushing and Wheel

(L), cone side facing Leg, on each end of Axle.

Secure Wheels to Axle with previously removed

Screws. See (Fig. 5).

3. Bottom Panel Assembly

(a) Use 4 FF Round Head Screws, 4 DD Lock

Washers and 4 GG Flat Washers to attach and

securely tighten the bottom of the left cart legs (B

& C) to the Bottom Panel (M). See (Fig. 6).

(b) Repeat step 3(a) to attach & securely tighten

Bottom Panel (M) to Right Cart Legs (G & H).

4. Front Panel Assembly

(a) Use 2 AA Round Head Screw and 2 BB Lock

Washer to attach Condiment rack handle (Q )to

Condiment rack panel (O) (Fig 7).

Fig. 7

Assembly

(b) Firstly, insert the two holes on the bottom of left &

right side of the condiment rack panel to the rotating

shaft on Front Left Cart Leg (B ) and Front Right Cart

Leg (G) use 2 HH Round Head Screws to attach the

Condiment rack panel (O) to the Front Left Cart Leg (B

) and Front Right Cart Leg (G) See (Fig. 8)

Washer to attach the Front panel˄P˅to the Front Left

Cart Leg (B) and Front Right Cart Leg (G) . see (Fig. 9).

(d) Use 4 AA Round Head Screws and 4 BB Lock

Washers to attach Cart Frame, Front (I) to Front Left,

Cart Leg (B), And Front Right, Cart Leg (G). Attach Cart

Frame so that flat side will face Cart Interior and wide

lip faces down. See (Fig. 10).

(e) Use 4 AA Round Head Screws and 4 BB Lock

Washers to attach Cart Frame, Rear (S) to Rear Left,

Cart Leg (C), And Rear Right, Cart Leg (H). Attach Cart

Frame so that flat side will face Cart Interior and wide

lip faces down. See (Fig. 10).

5. Firebox Assembly

NOTE: Obtain the aid of an assistant to lift the

firebox. Be sure the hose and regulator hang outside

the cart when placing Firebox.

(a) With the aid of an assistant, lift the Firebox (A) and

carefully place it onto the grill cart. See (Fig. 11).

Fig. 8

Fig. 9

Fig. 10

Fig. 11

M P

BB B

Assembly

(b) Raise firebox lid and from inside the Firebox use 4

CC Round Head Screws to attach the sides of

Firebox to Cart Brace, Left (F) and Cart Brace, Right

(F). Raise Firebox slightly to align holes for

inserting and tightening screws. See (Fig. 12).

Screws and 2 DD lock washers, attach Rear Right

Cart Leg (H) and Rear Left Cart Leg (C) to the

firebox. See (Fig. 13).

6. Side Burner Shelf Assembly

(a) Attach Side Burner bowl assembly frame (T) with

the side of Front Right Cart Leg (G) and Rear Right

Cart Leg (H) on Loosen 4 pre-assembled AA Round

Head Screws and 4 BB Lock Washers. See (Fig.

14). Note: Still do not fully tighten the four screws at

this point.

(b) Align the holes on Side Burner bowl assembly

frame (T) with the holes on the side of firebox, and

attach from inside of firebox using 2 CC Round

Head Screws. See (Fig. 15).

control Panel with 1 AA Round Head Screw and 1

BB Lock Washer .Tighten all screws. See (Fig. 15).

(d) Repeat steps (a) through (c) to install left side shelf

(U˅.

Fig.12

Fig.14

Fig.15

Fig.13
