Assembly and Operating Instructions for Outback®
Meteor Select Stainless Steel 4 and
Meteor Select Stainless Steel 6 Burner Gas BBQ
Drawings are not to scale.
Specifications subject to change
without prior notice.
WARNING
For outdoor use only. Not for commercial use.
Read instructions before using the appliance. Failure to follow instructions could
result in death, serious bodily injury, and/or property loss.
Warning: accessible parts may be very hot. Keep young children and pets away.
Do not move the appliance during use.
Turn off the gas supply at the gas bottle after use.
Any modification of the appliance, misuse, or failure to follow the instructions may
be dangerous and will invalidate your warranty. This does not affect your statutory
rights.
Retain these instructions for future reference.
Leak test annually, and whenever the gas bottle is removed or replaced. Check that
the hose connections are tight and leak test each time you reconnect the gas bottle.
For Flare-up control please refer to the ‘OPERATION’ section of this manual.
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open barbecue lid or hood.
4. If odour continues, discontinue use and
contact your local dealer.
FOR YOUR SAFETY
1. Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or any
other appliance.
2. A gas bottle not connected for use must not be
stored in the vicinity of this or any other
appliance.
MS4464 MS5664
2
CODE PART QTY
Outback®
Meteor Select Stainless Steel
4 Burner Gas BBQ
Outback®
Meteor Select Stainless Steel
6 Burner Gas BBQ
HOOD
A1 Hood (Pre-Assembled to Body) 1
A2 Hood Handle 1
A3 Warming Rack 1
BODY
B1 Barbecue Body 1
B2 Burner 4 6
B3 Control Panel 1
B4 Knob 4 6
B5 Hose (if supplied)
B6 Lava Rock in Basket / Flame Tamer
B7 Cooking Grill 1
B8 Cooking Griddle 1
B9 Drip Tray Left Bracket 1
B10 Drip Tray Right Bracket 1
B11 Drip Tray 1
B12 Drip Pan 1
B13 Ignition Button 1
TROLLEY
C1 Side Burner Shelf 1
C2 Side Burner Shelf Panel 1
C3 Side Shelf 1
C4 Side Shelf Panel 1
C5 Side Burner Grid 1
C6 Side Burner Lid 1
C7 Side Burner Lid Axle 1
C8 Side Burner Firebox 1
C9 Side Burner Electrode 1
C10 Knob Bezel 1
C11 Side Burner Knob 1
C12 Sear Burner 1
C13 Side Burner Drip Tray 1
C14 Body Support A 2
C15 Body Support B 2
C16 Left Front Leg 1
C17 Left Rear Leg 1
C18 Right Front Leg 1
C19 Right Rear Leg 1
C20 Side Panel 4
C21 Upper Support 1
C22 Door Handle 2
C23 Left Door 1
C24 Right Door 1
C25 Basket 1
C26 Bottom Panel 1
C27 Front Cabinet Skirt 1
C28 Left Cabinet Skirt 1
C29 Right Cabinet Skirt 1
C30 Balance Weight 1
C31 Lockable Caster 2
C32 Caster 2
HARDWARE
D1 ST4.0x10 Screw 16
D2 ST4.0x10 Screw F# 1
D3 M4x10 Bolt 21
D4 M4 Nut 7
D5 M5x15 Bolt 2
D6 M6x15 Bolt 20
D7 M6x40 Bolt 16
D8 M6 Nut 12
Pre-Assembled Component Quantity varies according to model purchased
Appearance, size, and construction may differ according to model purchased
1. Parts List
Quantity varies according to model purchased. Specifications subject to change without prior notice. For
more details on hardware, please see the corresponding ‗Hardware Reference Diagram‘.
3
2. Parts Diagram
Quantity varies according to model purchased. Specifications subject to change without prior notice. For
more details on hardware, please see the corresponding ‗Hardware Reference Diagram‘.
A3
B9 B10
C5
C29
B6
B7 B8
B11
C26
C22
C27
C12
C11
C10
C28
C23 C24
B12
A2
B1
B2
B4
B3
A1
C1 C3
C32
C31
C25
C30
C21
C2 C4
C6
C7
C8
C9
C13
C17C16 C18C19
C20
C15
C14
or
B5
B13
4
3. Hardware Reference Diagram
Specifications subject to change without prior notice.
D7 D6
D1
D8
D4
D3
D2
D5
5
4. Assembly
IMPORTANT!
TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,
adjustable spanner or metric spanner set.
Remove any internal component or packaging from the barbecue body.
Whilst every care is taken in the manufacture of this product, care must be taken during assembly in
case sharp edges are present.
Please read the Important Information section carefully before assembly and use of your
barbecue.
1
2
Attach the left cabinet panel assembly (C16, C17, C20) and right cabinet panel assembly (C18,
C19, C20) to the Bottom Panel (C26) using M6x40 Bolts (D7x8pcs), M6 Nuts (D8x8pcs), and
ST4.0x10 Screw (D1x6pcs) as shown.
Carefully turn the cabinet upside down.
Attach the Casters (C32) into the front legs and the Lockable Casters (C31) into the rear legs.
C32
C31
C26
D7
D1
D8
6
Attach the Cabinet Skirts (C27, C28, C29) to the bottom panel using M4x10 Bolts (D3x7pcs)
and M4 Nuts (D4x7pcs) as shown. Then fix the left / right cabinet skirts onto the front cabinet
skirt using ST4.0x10 Screws (D1x2pcs) as shown.
Unscrew the retaining bolts and retaining nuts from the Balance Weight (C30). Attach
the balance weight onto the bottom panel using the retaining bolts and retaining nuts
as shown.
3
4
C30
C27C28
C29
D3
D1
D4
7
Carefully turn the cabinet assembly over, right side up.
Attach Drip Tray Left Bracket (B9) to the right legs using ST4.0x10 Screws (D1x2pcs) as shown.
Repeat the above process for Drip Tray Right Bracket (B10).
6
Front Side
Rear Side
B10
Attach the Upper Support (C21) to the front legs using M6x15 Bolts (D6x4pcs).
C21
5
8
Attach the Door Handle (C22) onto the Left Door (C23) using M6x15 Bolts (D6x2pcs).
Repeat the above process for Right Door (C24).
7
8
C22
C23
Fit the doors to the cabinet by depressing the spring pins and placing into the cabinet.
Attach the Basket (C25) onto the right door as shown.
C25
9
9
10
Attach the Body Support A (C14) onto the left rear leg and right front leg using M4x10 Bolts
(D3x4pcs) , and attach the Body Support B (C15) onto the right rear leg and left front leg
using M4x10 Bolts (D3x4pcs) as shown.
C14
C15
A
A
B
BA
B

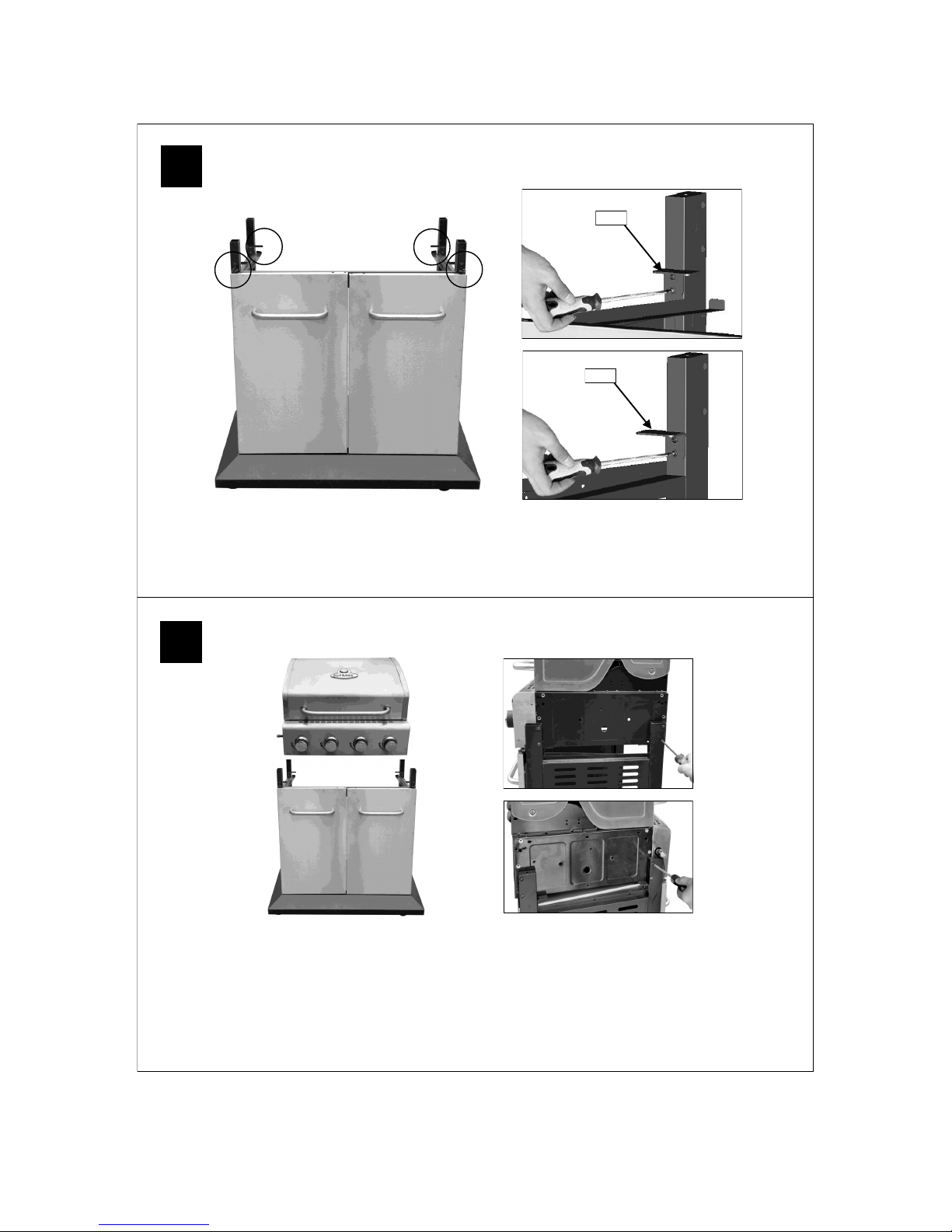

Carefully place the Barbecue Body (B1) onto the body supports and fix using M6x40 Bolts (D7x8pcs)
as shown.
WARNING: DO NOT RELEASE THE BARBECUE BODY WHILE THE BARBECUE HAS NOT BEEN
PROPERLY SEATED. THIS MAY RESULT IN INJURY OR DAMAGE TO YOUR BARBECUE.
CAUTION! Care must be taken to ensure the hood or lid does not fall open unexpectedly or
becomes damaged when it is set on the ground.
10
11
12
Attach the Side Shelf Panel (C4) onto the Side Shelf (C3) using M6x15 Bolts
(D6x2pcs) and M6 Nuts (D8x2pcs) as shown.
Attach the side shelf assembly to the barbecue body using ST4.0x10 Screws (D1x2pcs) and
M6x15 Bolts (D6x4pcs) as shown.
C3
C4
D1
D6
D8
D6
