Outback Comet Kettle K102 Manuel utilisateur
Photographs are not to scale.
Specifications subject to change
without prior notice.
Assembly and Operating Instructions for
Outback® Comet Kettle Charcoal Barbecue
K102
WARNING
For outdoor use only. Do not use indoors! Not for commercial use.
Read instructions before using the appliance. Failure to follow instructions
could result in death, serious bodily injury, and/or property loss.
WARNING! Do not use spirit or petrol for lighting or re-lighting! Use only
firelighters complying to EN1860-3!
WARNING! This barbecue will become very hot, do not move it during operation!
WARNING! Accessible parts may be very hot. Keep children and pets away!
The barbecue has to be installed on a secure level base prior to use.
Any modification of the appliance, misuse, or failure to follow the instructions
may be dangerous and will invalidate your warranty. This does not affect your
statutory rights.
Retain these instructions for future reference.
Do not use the barbecue in a confined and/or habitable space e.g. houses, tents,
caravans, motor homes, boats. Danger of carbon monoxide poisoning fatality.
Do not cook before the fuel has a coating of ash.
2
Parts List
Quantity varies according to model purchased. Specifications subject to change without prior notice. For
more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.
Pre-Assembled Component
CODE PART QTY Outback® Comet
Kettle Charcoal BBQ
HOOD
A1 Hood 13
A2 Hood Hook 13
A3 Handle 23
A4 Hood Air Vent 13
A5 Heat Indicator 13
BODY
B1 Barbecue Body 13
B2 Charcoal Grill 13
B3 Cooking Grill 13
B4 Small Cooking Grill 13
B5 Grill Bracket 33
B6 Grill Lifting Handle 23
B7 Ash Tray Bracket 13
B8 Ash Tray 13
B9 Air Vent 13
TROLLEY
C1 Front Leg 13
C2 Left Rear Leg 13
C3 Right Rear Leg 13
C4 Leg Support Rack 13
C5 Wheel 23
C6 Wheel Hubcap 23
HARDWARE
D1 M6x12 Bolt 11 3
D2 M6 Nut 11 3
D3 M8 Nut 13
D4 M6 Washer 10 3
D5 M5x12 Bolt 43
D6 M5 Nut 43
D7 Axle Nut 23
3
Parts Diagram
Quantity varies according to model purchased. Specifications subject to change without prior notice. For
more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.
A1
B2
B1
B8
C5
B3
A4
B7
B5
C2
C6
B6
C1
A3
A2
A5
B4
C3
C4
B9
4
Assembly
IMPORTANT!
TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,
adjustable spanner or metric spanner set.
Remove any internal components or packaging from the barbecue body.
Whilst every care is taken in the manufacture of this product, care must be taken during assembly in
case sharp edges are present.
Please read the Important Information section carefully before assembly and use of your
barbecue.
1
2
Attach the Front Leg (C1) and the Grill Bracket (B5) onto the Barbecue Body(B1) using the
M6x12 bolts (D1x2pcs), M6 washers (D4X2pcs) and M6 Nuts(D2x2pcs) as shown.
Attach the Handle (A3) onto the Barbecue Body (B1) using the M6x12 bolts (D1x2pcs), M6
washers (D4X2pcs) and M6 Nuts(D2x2pcs) as shown.
C1
D1
D4
D2
B1 A3
B5
D2
D4
D1
5
3
Attach the Left Rear Leg (C2) and the Grill Bracket (B5) onto the Barbecue Body(B1) using the
M6x12 bolts (D1x2pcs), M6 washers (D4X2pcs) and M6 Nuts(D2x2pcs) as shown. Repeat the
above process for the Right Rear Leg(C3).
Attach the Leg Support Rack (C4) onto the legs as shown.
4
C3
C1
C2
B5
6
5
6
Place the air vent wire handle pass through the ash tray bracket slot as per above image .
Slide the Wheels (C5) onto each straight bar of the leg support rack. Secure the wheels into
place with the Axle Nut (D7x2pcs) . Place the Wheel Hubcaps (C6) onto the outside of the
wheels.
C6
D7
C5
B7
B9
7
7
8
Place the Ash Tray (B8) into position underneath the Ash Tray Bracket (B7).
B8
B7
D5
Attach the Ash Tray Bracket Assembly onto the Barbecue Body (B1) using the M5x12 bolts
(D5x3pcs) and M5 Nuts (D6x3pcs) as shown.
Attach the Air vent(B9) to Barbecue body(B1) using the M6 X 12 Bolt(D1x1pce) and M6
Nut(D2x1pce).
D1
D2
D6
Top View
Bottom View
8
9
10
Attach the Handle (A3) and Hood Hook (A2) onto the Hood (A1) using M6x12 Bolt
(D1x2pcs), M6 washers (D4X2pcs) and M6 Nuts(D2x2pcs) as shown.
A3
D1
A1
D4
D2
A2
Place the Charcoal Grill (B2) onto the lower brackets in the barbecue body. Ensure the
charcoal grill lies level within the body.
Place the Cooking Grill (B3) onto the upper brackets in the barbecue body. Ensure the
cooking grill lies level within the body.
B2 B3
9
11

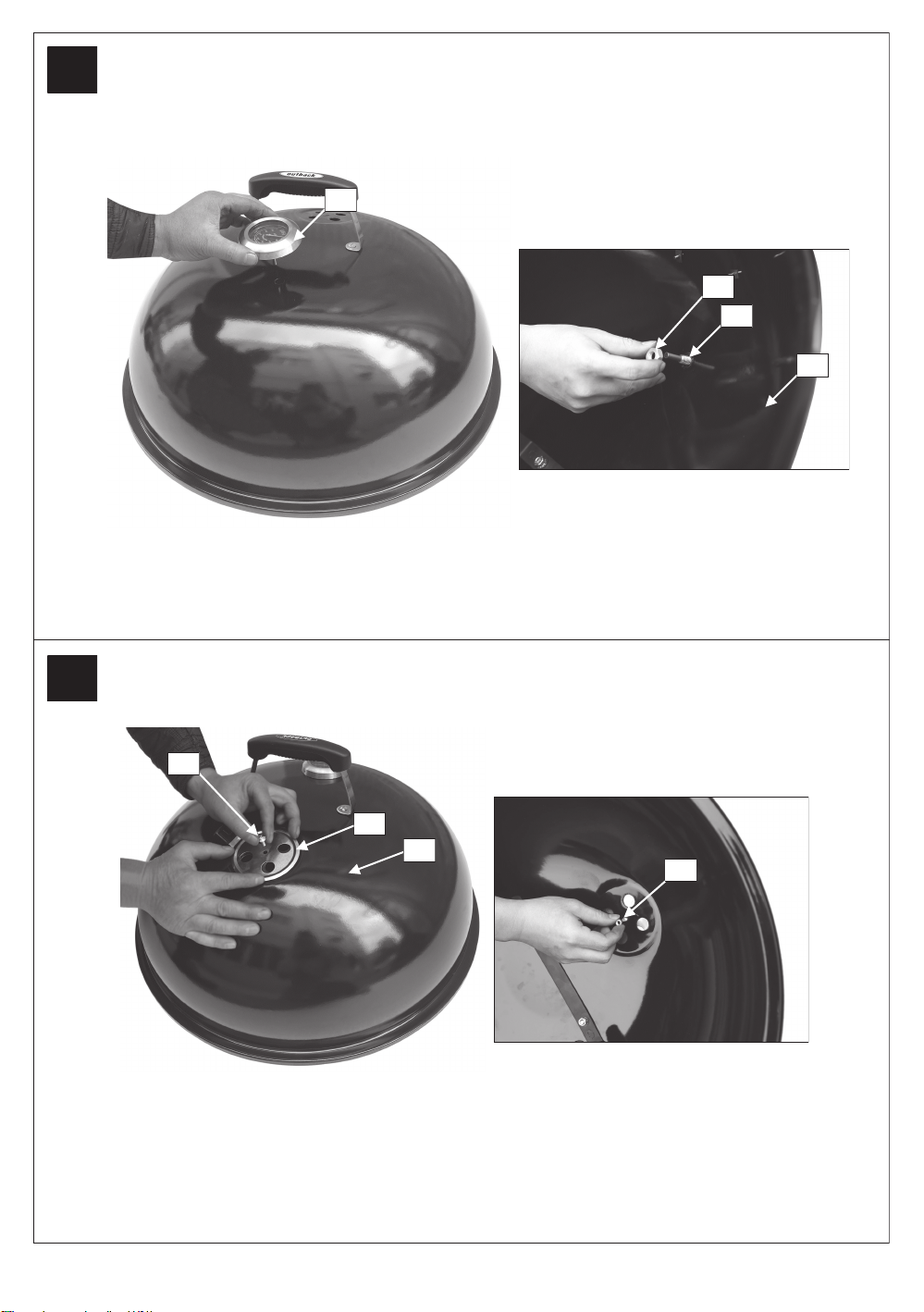

Attach the Heat Indicator (A5) onto the Hood (A1) using the M8 Nut (D3x1pc) as shown.
A5
D3
A1
12
A4
A1
D6
D5
Attach the Air Vent (A4) onto the Hood (A1) using the M5x12 bolt (D5x1pc) and M5 Nut
(D6x1pc) as shown.
ASSEMBLY IS NOW COMPLETE. PROCEED TO THE NEXT PAGE FOR
INSTRUCTIONS ON OPERATION AND MAINTENANCE.
A5
10
Grill Lifting Handle usage reference
To remove the cooking grill for adding charcoal.
