Introducing the Mainboard

Thank you for choosing the MS9077C mainboard. This mainboard is an ATX

mainboard that uses a 4-layer printed circuit board and measures 304.8 mm x

190 mm. The mainboard is design to support the mPGA Socket 478 Intel P4

Willamette/Northwood processors and the new Intel 845PE chipset.

With system bus speeds up to 400/533MHz, this mainboard represents the

most powerful desktop available today.

The mainboard incorporates the 845PE (GMCH) and 82801DB (ICH4) chip-

sets which combinesadvanced full set of I/O ports, such as dual channel IDE

interfaces, a floppy controller, a high-speed serial port, an EPP/ECP capable

bi-directional parallel port connector, four USB (Universal Serial Bus) connec-

tor, a PS/2 keyboard and mouse connectors. One AGP slot, fivePCI local bus

slots and one communication and networking riser (CNR) slot provide ex-

pandability for add-on peripheral cards.

In addition to its excellent performance and stability, the mainboard is highly

suited for Internet and rich multimedia applications, including streaming video

download and are ideal for workstations and high-end home use.

Compare the mainboard’s package contents with the following checklist:

Standard Items

•One mainboard

•One diskette drive ribbon cable

•One IDE drive ribboncable

•One auto-installsoftware supportCD

•One I/O shield

•Retention module

•Thisuser’smanual

Processor The mainboard uses a mPGA 478-pin socket that has the

followingfeatures:

•Accommodates Intel/P4 Willamette/Northwood 478-pins

CPU

•Supports a system bus (FSB) of 400/533 MHz

•Supports 3.2GB/s / 4.2GB/s data bus bandwidth

Chipset Intel’s innovative 845PE (GMCH) and 82801DB (ICH4) chip-

sets are based on an innovative and scalable architecture with

provenreliability and performance. A few of the advanced

features of the chipsets are:

•Host interface controller supports 400/533 MHz front side

(system) bus frequency

•Support DDR-SDRAM at 266/333 MHz operation

•AGTL+ Host Bus with Integrated Termination supporting

32-bits host addressing

•1.5V AGP interface with 4X SBA/data transfer and 2X/4X

fastwritecapability

•Supports 64/128/256/512Mb SDRAM technology

•Supports AGP 2.0 including 1X/2X/4X AGP data transfers

and 2X/4X fast write protocol

•Supports 3D / 2D graphic

•Supports six USB 2.0 ports for serial transfers at 480

Mbits/sec maximum

•PCI to system memory data streaming up to 132 MB/sec

Additional key features include support for an AC 97 link for audio

and modem, hardware monitoring, and ACPI/OnNow power man-

agement.

Memory The mainboard can accommodate 2.5V DDR SDRAM. It ac-

commodates two unbuffered 2.5V 184 pin slots with a total

maximum capacity of 2 GB.

AC’ 97 Audio

Codec The AC’ 97 Audio codec is compliant with the AC’ 97 2.2

specification, and supports 18-bit ADC (Analog Digital Con-

verter) and DAC (Digital Analog Converter) resolution as well

as 18-bitstereofull-duplexcodec withindependentand vari-

able sampling rates.

Expansion

Options The mainboard comes with the following expansion options:

•Five 32-bit PCI slots

•One 4xAGP slot (support 1.5Vonly); supportADD card

•One Communications Network Riser (CNR) slot

•Two IDE connectors which support four IDE channels and

a floppy disk drive interface

•One onboard LAN (optional) chip and LAN port on top of

the USB port

The mainboard supports Ultra DMA bus mastering with trans-

fer rates of 33/66/100 MB/sec.

Integrated I/O The mainboard has a full set of I/O ports and connectors:

•Two PS/2 ports for mouse and keyboard

•One serial port

•One parallel port

•Four USB ports

•One LAN port (optional)

•Audio jacksfor microphone, line-in and line-out

Onboard LAN

(optional) The Realtek RTL8100B LAN chip is incorporated in the chipset

providing the mainboard with 10/100Mbps fast Ethernet con-

troller and integrated Ethernet PCI LAN capabilities.

BIOS

Firmware This mainboard uses Award BIOS that enables users to con-

figure many system features including the following:

•Power management

•Wake-up alarms

•CPU parameters and memory timing

•CPU and memory timing

The firmware can also be used to set parameters for different

processorclockspeeds.

There are many types of computer cases on the market. The mainboard com-

plies with the specifications for the ATX system case. Some features on the

mainboard are implemented by cabling connectors on the mainboard to indi-

cators and switches on the system case. Ensure that your case supports all

the features required. The mainboard can support one or two floppy diskette

drives and four enhanced IDE drives. Ensure that your case has sufficient

power and space for allthe drives that you intend to install.

Most cases have a choice of I/O templates in the rear panel. Make sure that

the I/O template in the case matches the I/O ports installed on the rear edge

of the mainboard.

This mainboard has an ATX form factor of 304.8 mm x 190 mm. Choose a

case that accommodates this form factor.

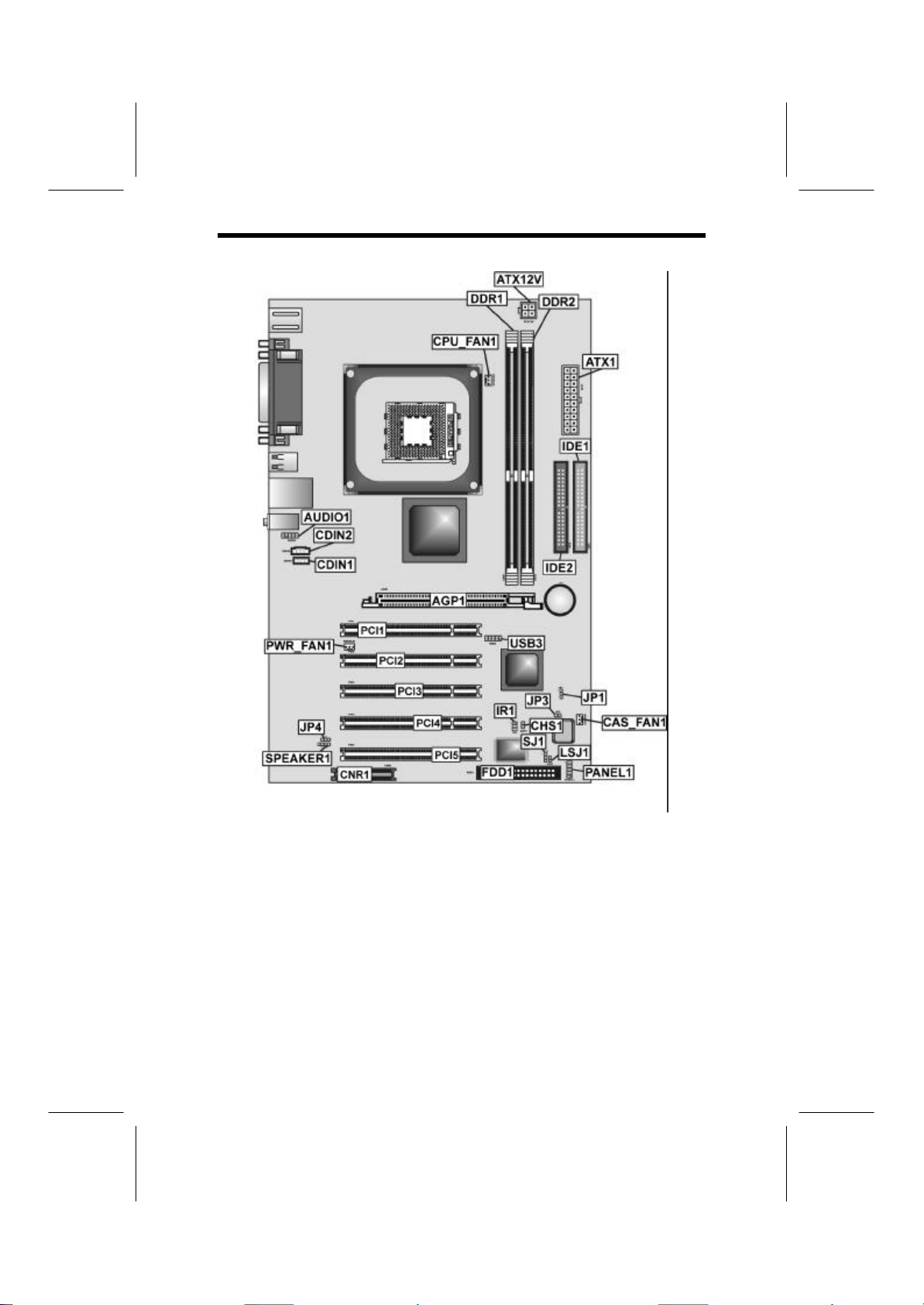

Table of Mainboard Components

Label Component

AGP1 Accelerated Graphics Port

ATX12V Power connector

ATX1 Standard 20-pin ATX power connector

AUDIO1 Front panel MIC/Speaker Out header

BT1 Three volt realtime clock battery

CDIN1 Primary CD-in connector

CDIN2 Secondary CD-in connector

CAS_FAN1 Case fan connector

CHS1 Chassis Intrusion Detect

CNR1 Communications and Networking Riser slot

CPU_FAN1 Cooling fan for CPU

CPU Socket CPU socket (mPGA478)

DDR1 ~ DDR2 Two 184-pin DDR sockets

FDD1 Floppy disk drive connector

IDE1 Primary IDE channel

IDE2 Secondary IDE channel

IR1 Infrared cable header

JP1 Clear CMOS jumper

JP3 BIOS flash protect jumper

JP4 Select onboard LAN

LED1 LED status indicator connector

LSJ1 Single-color LED header (reserved for OEM customer only)

PANEL1 Panel connector for case switches and LEDs

PCI1 ~ PCI5 Five 32-bit add-oncardslots

PWR_FAN1 Powerfanconnector

SJ1 Single-color LED header

SPEAKER1 Speaker connector

USB3 Connector for front panel USB ports

This concludes Chapter 1. The next chapter explains how to install the main-

board.

Installing the Mainboard

Follow these safety precautions when installing the mainboard:

•Wear a grounding strap attached to a grounded device to avoid

damage from static electricity.

•Discharge static electricity by touching the metal case of a safely

grounded object before working on the mainboard.

•Leave components in the static-proof bags they came in.

•Hold all circuit boards by the edges. Do not bend circuit boards.

This Quick Guide suggests the steps you can take to assemble your system

with the mainboards.

The following table provides a reference for installing specific components:

Locating Mainboard Components Go to page 4

Installing the Mainboard in a Case Go to page 7

Setting Jumpers Go to page 7

Installing Case Components Go to page 9

InstallingtheCPU Go to page 12

InstallingMemory Go to page 15

Installing an HDD and CD-ROM Drive Go to page 15

Installing an FDD Go to page 17

Installing Add-on Cards Go to page 18

Connecting Options Go to page 20

Connecting Peripheral (I/O) Devices Go to page 22

Table des matières

Autres manuels MATSONIC Carte mère

MATSONIC

MATSONIC MS7012D Manuel utilisateur

MATSONIC

MATSONIC MS7122A Manuel utilisateur

MATSONIC

MATSONIC MS9317E Series Manuel utilisateur

MATSONIC

MATSONIC MS6393E Manuel utilisateur

MATSONIC

MATSONIC MS9158 Series Manuel utilisateur

MATSONIC

MATSONIC MS9307C Series Manuel utilisateur

MATSONIC

MATSONIC MS7132A Manuel utilisateur

MATSONIC

MATSONIC MS7102C Manuel utilisateur

MATSONIC

MATSONIC MS7191SM Manuel utilisateur

MATSONIC

MATSONIC EM-5900V Manuel utilisateur

MATSONIC

MATSONIC MS7192SM Manuel utilisateur

MATSONIC

MATSONIC MS7080SG Manuel utilisateur

MATSONIC

MATSONIC MS6261 Manuel utilisateur

MATSONIC

MATSONIC MS7057CT Manuel utilisateur

MATSONIC

MATSONIC MS7117C Manuel utilisateur

MATSONIC

MATSONIC MS8157E Manuel utilisateur

MATSONIC

MATSONIC MS9327E Series Manuel utilisateur

MATSONIC

MATSONIC MS9007C Manuel utilisateur

MATSONIC

MATSONIC MS9138D Series Manuel utilisateur

MATSONIC

MATSONIC MS7127C Manuel utilisateur

MATSONIC

MATSONIC MS9357E Series Manuel utilisateur

MATSONIC

MATSONIC MS-5120 Manuel utilisateur

MATSONIC

MATSONIC MS8308E Manuel utilisateur

MATSONIC

MATSONIC MS9147C Series Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
