MATSONIC MS9357E Series Manuel utilisateur

This publication, including all photographs, illustrations and

software, is protected under international copyright laws, with all

rights reserved. Neither this manual, nor any of the material

contained herein, may be reproduced without the express written

consent of the manufacturer.

The information in this document is subject to change without

notice. The manufacturer makes no representations or warranties

with respect to the contents hereof and specifically disclaims any

implied warranties of merchantability or fitness for any particular

purpose. Further, the manufacturer reserves the right to revise this

publication and to make changes from time to time in the content

hereof without obligation of the manufacturer to notify any person

of such revision or changes.

Trademarks

IBM, VGA, and PS/2 are registered trademarks of International

Business Machines.

Intel, Pentium/II/III, Pentium 4, Celeron and MMX are registered

trademarks of Intel Corporation.

Microsoft, MS-DOS and Windows 98/ME/NT/2000/XP are

registered trademarks of Microsoft Corporation.

PC-cillin is a registered trademark of Trend Micro Inc.

AMI is a registered trademark of American Megatrends Inc.

A3D is a registered trademark of Aureal Inc.

MediaRing Talk is a registered trademark of MediaRing Inc.

3Deep is a registered trademark of E-Color Inc.

SiS is a trademark of Silicon Integrated System Corporation.

Other names used in this publication may be trademarks and are

acknowledged.

MS9357E Series, V3.1

S651/May 2003

Notice:

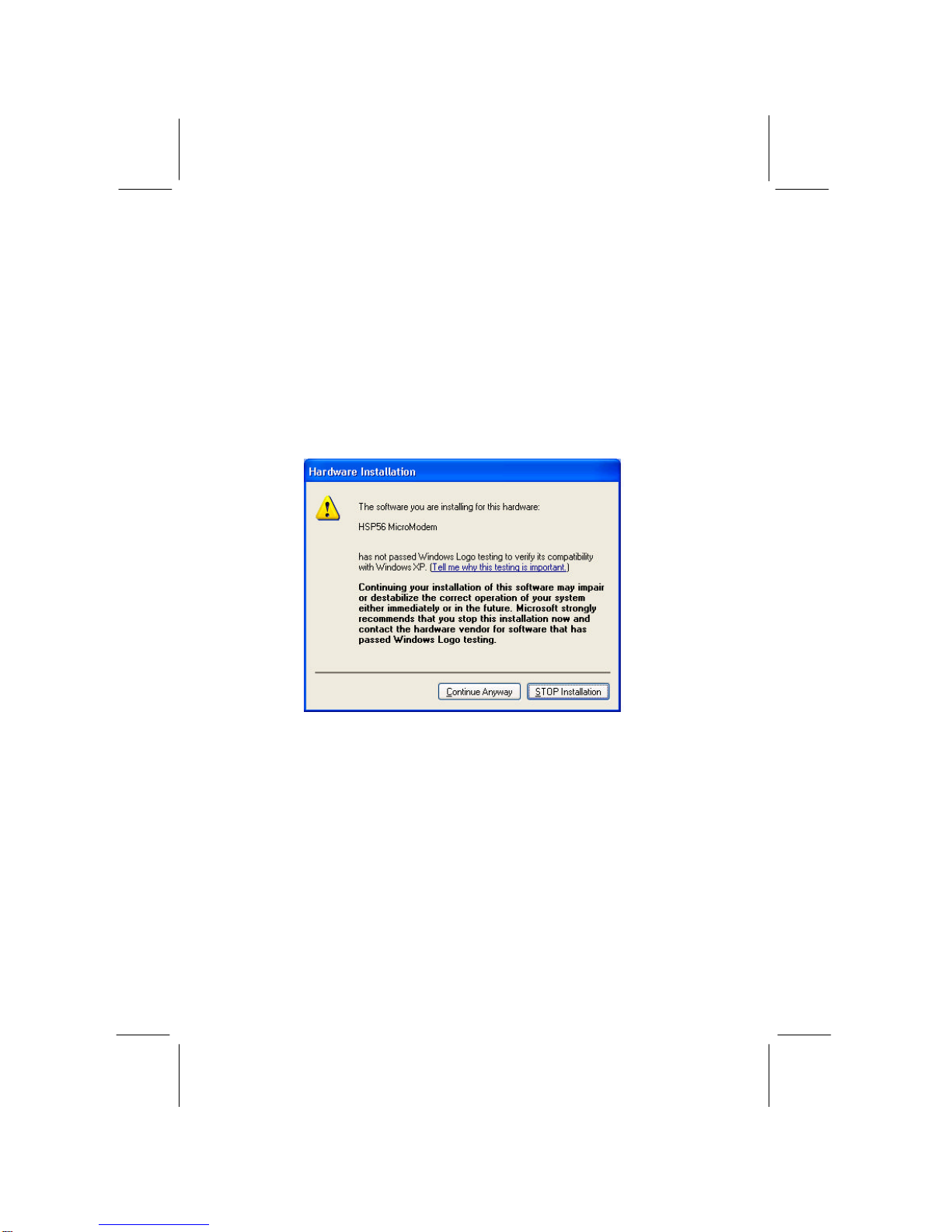

Owing to Microsoft’s certifying schedule is various to every

supplier, we might have some drivers not certified yet by

Microsoft. Therefore, it might happen under Windows XP that a

dialogue box (shown as below) pop out warning you this

software has not passed Windows Logo testing to verify its

compatibility with Windows XP. Please rest assured that our RD

department has already tested and verified these drivers. Just

click the “Continue Anyway” button and go ahead the

insta llation.

III

Table of Contents

Chapter 1: Introduction..............................................................1

Key Features......................................................................2

Package Contents...............................................................5

Static Electricity Precautions...............................................6

Pre-Installation Inspection...................................................6

Chapter 2: Mainboard Installation...............................................7

Mainboard Components......................................................8

I/O Ports............................................................................8

Installing the Processor.......................................................9

Installing Memory Modules .............................................. 10

Setting Jumper Switches...................................................11

Install the Mainboard........................................................12

Connecting Optional Devices............................................13

Install Other Devices........................................................15

Expansion Slots ...............................................................17

Chapter 3: BIOS Setup Utility..................................................18

Introduction.....................................................................18

Running the Setup Utility...........…………………………...19

Standard CMOS Setup Page.............................................. 20

Advanced Setup Page.......................................................21

Power Management Setup Page.........................................24

PCI/Plug and Play Setup Page...........................................25

Load Optimal Settings ...................................................... 26

Load Best Performance Settings ........................................26

Features Setup Page..........................................................27

CPU PnP Setup Page ........................................................28

Hardware Monitor Page....................................................29

Change Password.............................................................30

Exit .................................................................................30

Chapter 4: Software & Applications..........................................31

About the Software & CD-ROM.......................................31

Utility Software Reference................................................32

Appendis:Hyper Threading CPU.......................................34

Chapter 1

Introduction

This mainboard has a Socket-478 processor socket for Intel

Pentium 4/Hyper Threading Technology processors with front-

side bus (FSB) speeds up to 533 MHz. Hyper Threading

Technology, designed to take advantage of the multitasking

features in Windows XP, gives you the power to do more things at

once.

This mainboard integrates the SiS651 Northbridge along with

SiS962LSouthbridge chipsets that supports built-in AC97 Codec,

2DDR modules up to 2GB system memory, and provides Ultra

DMA 33/66/100/133 function. These chipsets’ function is detailed

as the Chipset description in next section. This mainboard

integrates a 256-bit 3D/2D Graphics Engine , Video Accelerator

and Advanced Hardware Acceleration MPEGI/MPEGIIVideo

Decoderfor the Intel Pentium 4 series based PC systems. It has the

external AGP slot with AGP 4X 266MHz capability, one CNR

(Communications and Networking Riser) slot, and built-in

10BaseT/100BaseTX Network Interface(optional). In addition,

there is a full set of I/O Ports including PS/2 keyboard and mouse

ports, one serial port, one VGA port, one parallel port, and

maximum six USB2.0 ports –four back-panel ports and onboard

USB header JUSB1 providing two extra ports by connecting the

Extended USB Module to the mainboard.

This mainboard is ATX size and has power connectors for an ATX

power supply and measures 305 x 190mm.

Note: You must initiate the HT CPU function through

BIOS setup. It is strongly recommended you refer

to the Appendix (page 34) for relative details.

Key Features

The key features of this mainboard include:

Socket-478 Processor

♦The PGA Socket 478

♦Supports Intel Pentium 4 series CPU with Hyper

Threading Technology

♦Supports up to 533 MHz Front-Side Bus

Chipset

There are SiS651 Northbridge and SiS962L Southbridge in this

chipset in accordance with an innovative and scalable architecture

with proven reliability and performance. Here is a list of the

chipset arrangement and their respective features:

Northbridge Southbridge

Function

SiS651 SiS962L CPU FSB: 533MHz, Ultra DMA

ATA133, DDR333, USB2.0

Supports Hyper-Threading

CPU

Memory Support

♦Two 184-pin DIMM slots for DDR memory modules

♦Maximum installed memory is 2GB

Expansion Slots

♦One CNR slot

♦One 2x/4xAGP slot for AGP 2.0-compliant interface

♦Five 32-bit PCI slots for PCI 2.2-compliant bus interface

Onboard IDE channels

♦Primary and Secondary PCI IDE channels

♦Support for PIO (programmable input/output) modes

♦Support for Multiword DMA modes

♦Support for Bus Mastering and Ultra DMA ATA

33/66/100/133modes

Power Supply and Power Management

♦ATX power supply connector

♦Meets ACPI 1.0b and APM 1.2 requirements, keyboard

power on/off

♦Supports RTC Alarm, Wake On Modem, AC97 Wake-Up

and USB Wake-Up

Onboard VGA

♦Supports AGP V2.0 Compliant

♦Supports AGP 4X/2X interface and Fast Write Transaction

♦Supports high performance & high quality 3D

Accelerator —A built-in 256-bit 3D engine, up to 143 MHz

3D engine clock speed

♦Supports high performance 128-bit 2D Accelerator —Ultra-

AGPIITM 2GB/s data read for all 2D engine functions

♦Maximum Share Memory size is 64MB

AC97 Audio Codec

♦6-CH hardware architecture allows multi-channelsouth

bridge to playback 6CH audio

♦IntelAC’97 (REV. 2.2) compatible, meeting Microsoft

PC2001 requirements

♦Built-in earphone buffer and internal PLL, the latter saving

additionsl crystal

♦Line-in/rear out share the same jack; Center/bass share the

MIC jack

♦Digital S/PDIF OUT Support

♦CRL3D: HRTF based BS3D compatible audio engine

Built-in Ethernet LAN (optional)

♦10Base-T/100Base-TX Physical Layer Solution

♦Dual Speed –100/10 Mbps

♦MII Interface to Ethernet Controller/Configuration & Status

♦Auto Negotiation: 10/100, Full/Half Duplex

♦Meet All Applicable IEEE802.3, 10Base-T and 100Base-

TX Standards

Onboard I/O Ports

The mainboard has a full set of I/O ports and connectors:

♦Two PS/2 ports for mouse and keyboard

♦One serial port

♦One parallel port

♦One VGA port

♦Four back-panel USB2.0 ports and extra two USB2.0 ports

(onboard USB header JUSB1)

♦Audio jacks for microphone, line-in and line-out

Hardware Monitoring

♦Built-in hardware monitoring for CPU & System

temperatures, fan speeds and mainboard voltages.

Onboard Flash ROM

♦Supports Plug and Play configuration of peripheral devices

and expansion cards

USB 2.0

♦Compliant with Universal Serial Bus Specification

Revision 2.0

♦Compliant with Intel’s Enhanced Host Controller

Interface Specification Revision 0.95

♦Compliant with Universal Host Controller Interface

Specification Revision 1.1

♦PCI multi-function device consists of two UHCI Host

Controllercores for full-/low-speed signaling and one

EHCI Host Controllercore for high-speed signaling

♦Root hub consists 4 downstream facing ports with

integrated physical layer transceivers shared by UHCI and

EHCIHost Controller

♦Support PCI-Bus Power Management Interface

Specification release 1.1

♦Legacy support for all downstream facing ports

Bundled Software

♦PC-Cillin2002 provides automatic virus protection under

Windows 98/ME/NT/2000/XP

♦MediaRing Talk provides PC to PC or PC to Phone

internet phone communication

♦Super Voiceis data, fax and voice communication software.

♦PageABC is the software to help you create your own

home page.

Dimensions

♦ATX form factor 305 x 190mm

Package Contents

Your mainboard package contains the following items:

qThe mainboard

qThe User’s Manual

qOne diskette drive ribbon cable

qOne IDE drive ribbon cable

qSoftware support CD

Optional Accessories

You can purchase the following optional accessories for this

mainboard.

qExtended USB module

qCard Reader (You can buy your own Card Reader from the

third party, but please contact your local Card Reader vendor

on any issues of the specification and compatibility.)

Static Electricity Precautions

Components on this mainboard can be damaged by static

electricity. Take the following precautions when unpacking the

mainboard and installing it in a system.

1. Keep the mainboard and other components in their original

static-proof packaging until you are ready to install them.

2. During installation, wear a grounded wrist strap if possible. If

you don’t have a wrist strap, discharge static electricity by

touching the bare metal of the system chassis.

3. Handle the mainboard carefully by the edges. Avoid touching

the components unless it is absolutely necessary. During

installation put the mainboard on top of the static-protection

packaging it came in with the component side facing up.

Pre-Installation Inspection

1. Inspect the mainboard for damage to the components and

connectors on the board.

2. If you suspect that the mainboard has been damaged, do not

connect power to the system. Contact your mainboard vendor

and report the damage.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels MATSONIC Carte mère

MATSONIC

MATSONIC MS9118E Series Manuel utilisateur

MATSONIC

MATSONIC MS7177C Manuel utilisateur

MATSONIC

MATSONIC MS7127C Manuel utilisateur

MATSONIC

MATSONIC MS7380SG Manuel utilisateur

MATSONIC

MATSONIC MS7132A Manuel utilisateur

MATSONIC

MATSONIC MS7177CT Manuel utilisateur

MATSONIC

MATSONIC MS9158 Series Manuel utilisateur

MATSONIC

MATSONIC MS6383E Manuel utilisateur

MATSONIC

MATSONIC MS6261 Manuel utilisateur

MATSONIC

MATSONIC MS8137C Manuel utilisateur

MATSONIC

MATSONIC MS7157C Manuel utilisateur

MATSONIC

MATSONIC MS9138E Series Manuel utilisateur

MATSONIC

MATSONIC MS9138D Series Manuel utilisateur

MATSONIC

MATSONIC MS7012D Manuel utilisateur

MATSONIC

MATSONIC MS-7090S Manuel utilisateur

MATSONIC

MATSONIC MS9317E Series Manuel utilisateur

MATSONIC

MATSONIC MS7167D Manuel utilisateur

MATSONIC

MATSONIC EM-5900V Manuel utilisateur

MATSONIC

MATSONIC MS7191SM Manuel utilisateur

MATSONIC

MATSONIC MS8188E Series Manuel utilisateur

MATSONIC

MATSONIC MS9127C Manuel utilisateur

MATSONIC

MATSONIC MS9017C Manuel utilisateur

MATSONIC

MATSONIC MS9118E Series Manuel utilisateur

MATSONIC

MATSONIC MS7122A Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
