MATSONIC MS9007C Manuel utilisateur

Preface

This publication, including all photographs, illustrations and software,

is protected under international copyright laws, with all rights re-

served. Neither this manual, nor any of the material contained herein,

may be reproduced without written consent of the author.

Version 1.0

Disclaimer

The information in this document is subject to change without notice.

The manufacturer makes no representations or warranties with re-

spect to the contents hereof and specifically disclaims any implied

warranties of merchantability or fitness for any particular purpose.

The manufacturer reserves the right to revise this publication and to

make changes from time to time in the content hereof without obliga-

tion of the manufacturer to notify any person of such revision or

changes.

Trademark Recognition

Microsoft, MS-DOS and Windows are registered trademarks of Mi-

crosoft Corp.

MMX, Pentium, Pentium-II, Pentium-III, P4/Northwood, Celeron are

registered trademarks of Intel Corporation.

Other product names used in this manual are the properties of their

respective owners and are acknowledged.

MS9007C, V1.0

I82845/Aug 2001

Federal Communications Commission (FCC)

This equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment gen-

erates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

−Reorient or relocate the receiving antenna.

−Increase the separation between the equipment and the

receiver.

−Connect the equipment onto an outlet on a circuit different

from that to which the receiver is connected.

−Consult the dealer or an experienced radio/TV technician

for help.

Shielded interconnect cables and a shielded AC power cable must

be employed with this equipment to ensure compliance with the per-

tinent RF emission limits governing this device. Changes or

modifications not expressly approved by the system's manufacturer

could void the user's authority to operate the equipment.

iii

Declaration of Conformity

This device complies with part 15 of the FCC rules. Operation is

subject to the following conditions:

−This device may not cause harmful interference, and

−This device must accept any interference received, in-

cluding interference that may cause undesired operation.

Canadian Department of Communications

This class B digital apparatus meets all requirements of the Canadi-

an Interference-causing Equipment Regulations.

Cet appareil numérique de la classe B respecte toutes les exigences

du Réglement sur le matériel brouilieur du Canada.

About the Manual

The manual consists of the following:

Chapter 1

Introducing the Mainboard Describes features of the main-

board, and provides a shipping

checklist.

Go to ⇒page 1

Chapter 2

Installing the Mainboard Describes installation of main-

board components.

Go to ⇒page 8

Chapter 3

Using BIOS Provides information on using

the BIOS Setup Utility.

Go to ⇒page 37

Chapter 4

Using the Mainboard Software Describes the mainboard soft-

ware.

Go to ⇒page 67

Appendix A

Setting Jumpers Provides a reference to the

jumpers on the mainboard.

Go to ⇒page 71

Preface i

CHAPTER 1 1

Introducing the Mainboard 1

Introduction ..................................................................................... 1

Checklist.......................................................................................... 1

Standard Items .....................................................................................1

Features.......................................................................................... 2

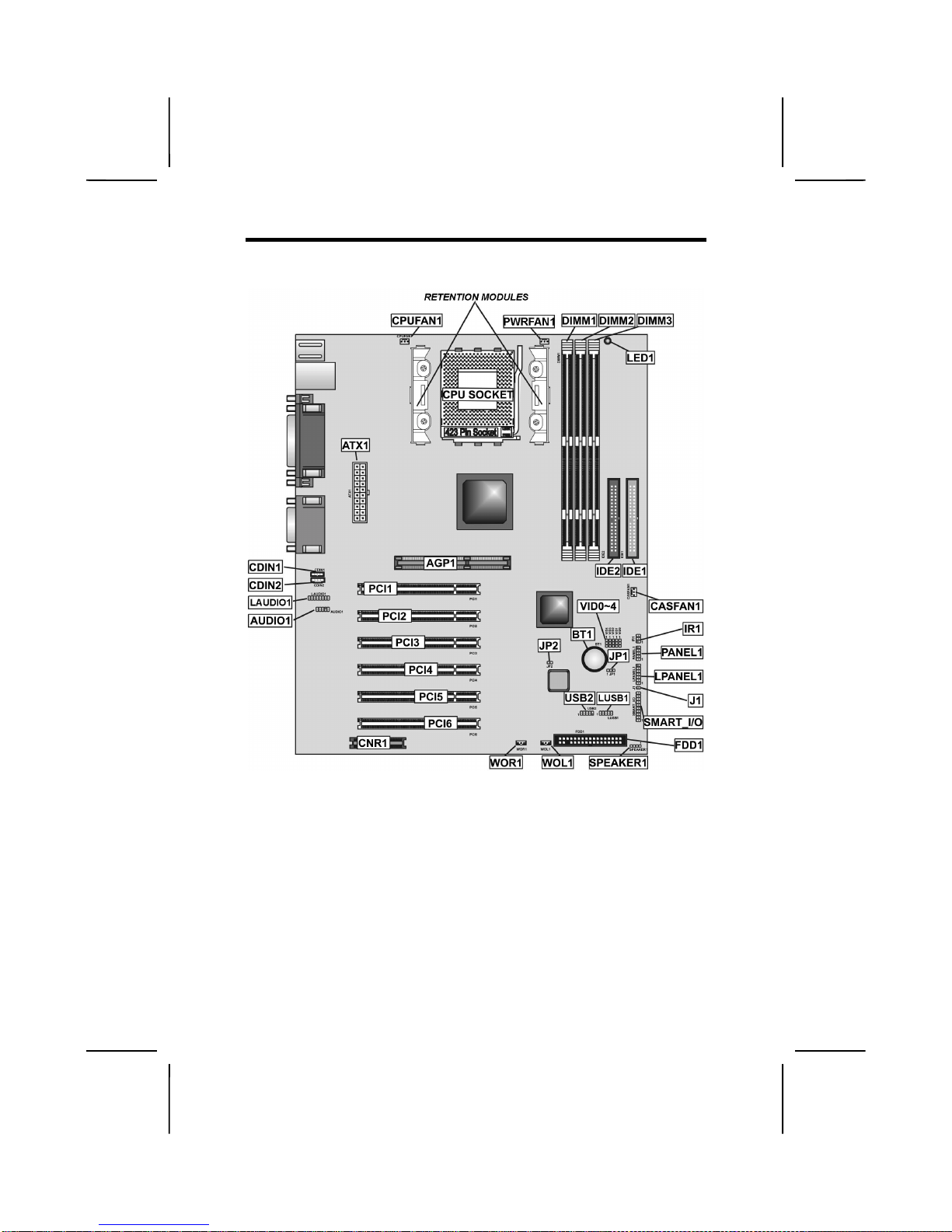

Mainboard Components.................................................................. 4

Choosing a Computer Case............................................................ 7

CHAPTER 2 8

Installing the Mainboard 8

Safety Precautions.......................................................................... 8

Quick Guide .................................................................................... 9

Checking Jumper Settings............................................................ 10

Setting Jumpers..................................................................................10

Checking Jumper Settings.................................................................. 11

Jumper Settings..................................................................................11

Installing the Mainboard in a Case................................................ 13

Connecting Case Components..................................................... 14

The PANEL1 and LPANEL1 Connectors..........................................15

Installing Hardware ....................................................................... 17

Installing the Processor......................................................................17

Installing Memory Modules...............................................................21

Installing a Hard Disk Drive/CD-ROM.............................................23

Installing a Floppy Diskette Drive.....................................................26

Installing Add-on Cards.....................................................................28

Connecting Optional Devices ............................................................30

Connecting I/O Devices ................................................................ 35

External Connector Color Coding......................................................36

CHAPTER 3 37

Using BIOS 37

About the Setup Utility .................................................................. 37

The Standard Configuration...............................................................38

Entering the Setup Utility ..................................................................39

Updating the BIOS.............................................................................40

Using BIOS ................................................................................... 42

Standard CMOS Features...................................................................42

Advanced BIOS Setup Option...........................................................45

Advanced Chipset Features Option....................................................48

Integrated Peripherals Option ............................................................51

Power Management Setup Option .....................................................55

PNP/PCI Configuration Option .........................................................60

PCI Health Status Option...................................................................62

Frequency/Voltage Control................................................................63

Load Fail-Safe Defaults Option.........................................................65

Load Optimized Defaults Option.......................................................65

Set Supervisor and User Passwords Options......................................65

Save & Exit Setup Option..................................................................66

Exit Without Saving...........................................................................66

CHAPTER 4 67

Using the Mainboard Software 67

About the Software CD-ROM........................................................ 67

Folders for this Mainboard............................................................ 66

Running the Support CD-ROM..................................................... 67

Utility Folder Installation Notes ..................................................... 67

Mainboard(MS9007C) Installation Notes...................................... 69

APPENDIX A 70

Setting Jumpers 71

Jumper Settings..................................................................................71

The PANEL1 and LPANEL1 Connectors..........................................72

Introducing the Mainboard

Congratulations on purchasing the MS9007C mainboard. The

MS9007C mainboard is an ATX mainboard that uses a 4-layer

printed circuit board and measures 305 mm x 244 mm. The

mainboard features a Socket 423 that accommodates Intel

Pentium 4 processors supporting system bus (FSB) speeds

up to 400 MHz and data bus bandwidths up to 3.2 GB/s

The MS9007C incorporates the Intel i82845 (MCH) and the

Intel 82801BA (ICH2) chipsets, which supports 3.3V DIMM

DRAM, 2X/4X AGP (1.5V only), and the AC 97 codec.

Compare the mainboard’s package contents with the following

checklist:

Standard Items

•One mainboard

•One diskette drive ribbon cable and bracket

•One IDE drive ribbon cable and bracket

•One auto-install software support CD

•Retention modules (already mounted on the board)

•One retention clip

•This user’s manual

Processor The MS9007C mainboard uses a PGA Socket

423 that has the following features:

•Accommodates Intel Pentium 4 CPUs

•Supports a system bus of 400 MHz

•Supports 3.2 GB/s data bus bandwidth

Chipset Intel’s innovative i82845 (MCH) and 82801BA

(ICH2) chipsets are based on an innovative and

scalable architecture with proven reliability and

performance. A few of the advanced features of

the chipsets are:

•Host interface controller supports 400 MHz

frontside (system) bus frequency

•Supports up to 3 GB of DRAM

•Supports a maximum memory bandwidth of 1

GB/s

•AGP controller is AGP 2.0 compliant and sup-

ports 2x/4x Fast Write Protocol (1.5V only)

•PCI IDE controller supports PCI bus master-

ing, PIO modes 0~4, and UDMA 33/66/100

•Four USB 1.1 ports for serial transfer at 1.2 or

1.5 Mbit/sec.

•Integrated AC 97 audio that supports full sur-

round sound with up to six channels

Additional key features include support for an AC 97

link for audio and modem, hardware monitoring, and

ACPI/OnNow power management.

Memory The mainboard can accommodate 3.3V, unbuf-

fered, 168 pin DIMM DRAM with a total capacity

of 3 GB.

VGA The MS9007C includes a 4xAGP slot that provides

four times the bandwidth of the original AGP specifi-

cation. AGP technology provides a direct connection

between the graphics sub-system and the processor

so that the graphics do not have to compete for

processor time with other devices on the PCI bus.

AC 97 Audio

Codec The AC 97 Audio codec is compliant with the AC

97 2.2 specification, and supports 18-bit ADC

(Analog Digital Converter) and DAC (Digital

Analog Converter) resolution as well as 18-bit

stereo full-duplex codec with independent and

variable sampling rates.

Expansion

Options The mainboard comes with the following expan-

sion options:

•Six 32-bit PCI slots

•One 4xAGP slot

•One Communications Network Riser (CNR)

slot

•Two IDE channels and a floppy disk drive in-

terface

•One Onboard LAN chip and LAN port on top

of the USB port (optional)

The MS9007C supports Ultra DMA bus mastering

with transfer rates of 33/66/100 MB/sec.

Integrated I/O The mainboard has a full set of I/O ports and con-

nectors:

•Two PS/2 ports for mouse and keyboard

•Two serial ports

•One parallel port

•One MIDI/game port

•Two USB ports

•One LAN port (optional)

•Audio jacks for microphone, line-in and line-out

BIOS

Firmware This mainboard uses Award BIOS that enables

users to configure many system features including

the following:

•Power management

•Wake-up alarms

•CPU parameters and memory timing

•CPU and memory timing

The firmware can also be used to set parameters

for different processor clock speeds.

Table des matières

Autres manuels MATSONIC Carte mère

MATSONIC

MATSONIC MS6261 Manuel utilisateur

MATSONIC

MATSONIC MS9317E Series Manuel utilisateur

MATSONIC

MATSONIC MS7057CT Manuel utilisateur

MATSONIC

MATSONIC MS9147C Series Manuel utilisateur

MATSONIC

MATSONIC MS8188E Series Manuel utilisateur

MATSONIC

MATSONIC MS7112C Manuel utilisateur

MATSONIC

MATSONIC MS6383E Manuel utilisateur

MATSONIC

MATSONIC MS7012D Manuel utilisateur

MATSONIC

MATSONIC MS7080SG Manuel utilisateur

MATSONIC

MATSONIC MS9357E Series Manuel utilisateur

MATSONIC

MATSONIC MS6391E Manuel utilisateur

MATSONIC

MATSONIC MS9118E Series Manuel utilisateur

MATSONIC

MATSONIC MS7192S Manuel utilisateur

MATSONIC

MATSONIC MS9077C Manuel utilisateur

MATSONIC

MATSONIC MS7122A Manuel utilisateur

MATSONIC

MATSONIC MS8318E Series Manuel utilisateur

MATSONIC

MATSONIC MS-5120 Manuel utilisateur

MATSONIC

MATSONIC MS7127C Manuel utilisateur

MATSONIC

MATSONIC MS7188DSeries Manuel utilisateur

MATSONIC

MATSONIC MS7132A Manuel utilisateur

MATSONIC

MATSONIC MS7117C Manuel utilisateur

MATSONIC

MATSONIC MS8328E Series Manuel utilisateur

MATSONIC

MATSONIC MS7191SM Manuel utilisateur

MATSONIC

MATSONIC MS7177CT Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
