Welcome

Congratulations on your purchase of the MS7117C mainboard. This

mainboard features the latest VIA ET82C693A/596B chipset. This is a

very special mainboard which allows you to install almost any kind of

Intel Pentium-II/III processor. The MS7117C is a full-sized ATX board

measuring 305x220mm and using 4-layer printed circuit board.

The MS7117C includes a PPGA (Plastic Pin Grid Array) Celeron Socket-

PGA370 processor socket. This feature means that you can install

the mainboard with one of the new generation PPGA Celeron

cartridges.

In addition, the mainboard supports 66 MHz, 100MHz, or a 133 MHz

memory bus, so you can use 66MHz or 100MHz memory chips, or

higher-performance PC-133 memory chips. The board is installed with

an integrated PCI-3D sound system and has a full suite of I/O ports.

Seven expansion slots are available for system development and

hardware monitoring is supported.

This board allows complete flexibility. System integrators can choose

from a wide range of PPGA Celeron processors to build the right system,

according to their computing needs.

This chapter contains the following information:

!About the Manual explains how the information in this manual is

organized

!Checklist comprises a list of the standard and optional components

that are shipped with this mainboard,

!Features highlights the functions and components that make this

one of the best value mainboards on the market

About the Manual

The manual consists of the following chapters:

Introduction

Use the Introduction Chapter to learn about the features of the

mainboard, and the checklist of items that are shipped with the package.

Installation

Use the Installation Chapter to learn how to install the mainboard and

get your system up and running.

Setup

Use the Setup Chapter to configure the mainboard for optimum

performance.

Software

Use the Software Chapter to learn how to use the software drivers and

support programs that are provided with this mainboard.

Checklist

Compare the contents of your mainboard package with the standard

checklist below. If any item is missing or appears damaged, please

contact the vendor of your mainboard package.

Standard Items

"1 x MS7117C Mainboard

"1 x Cable/Bracket Pack

Diskette drive ribbon cable

DMA 66 IDE drive ribbon cable

"This User’s Manual

"Software Support CD-ROM Disc

Optional Items

"1 x V 9.0 Fax/Modem Card

#Features

The key feature of this mainboard is the support for PPGA Celeron

processors. In addition, this is a full-sized ATX mainboard with a full set

of expansion slots for maximum development potential.

Support for PPGA Celeron

The principal feature of this mainboard is that it can support the latest

choice of PPGA Celerons.

The new generation PPGA Celeron processors ship in the familiar

square plastic package, and they install in a Zero Insertion Force (ZIF)

socket called a Socket-370. The new Celeron processors are close to

Pentium-II performance because they include a level-2 cache memory of

128K. However, they operate at a 66/100 MHz system bus and they

currently ship a clock speeds of 533 MHz.

System assemblers can install a second generation PPGA Celeron in

the Socket-370 processor socket, and choose the processor they need

to meet performance or price targets. You can configure the system for

any of the supported processor clock speeds using the BIOS setup utility.

It is not necessary to set switches or jumpers.

Choice of Memory Options

The board has three DIMM slots for the installation of 168-pin, 3.3V

standard or registered SDRAM (Synchronous Dynamic Random Access

Memory) memory modules. The system supports memory that has built-

in error correction (EC), error correction code (ECC), or has no error

correction.

If you install the PPGA Celeron processor, you can install memory that

operates at 66 MHz (you can install PC-100 memory if you wish, but the

system will run the memory at 66 MHz).

You can install one, two or three modules. Each memory module can

hold a maximum capacity of 128 MB of standard SDRAM chips, or 256

MB of registered SDRAM chips so maximum memory capacity is 384

MB of standard SDRAM memory or 768 MB registered SDRAM memory.

Highly Integrated Design

This board uses the VIA ET82C693A/596B chipset. The ET82C693A

forms the north bridge and supports system buses of 66, 100 and

133MHz. It is AGP Rev. 1 compliant and supports 3.3v AGP devices

operating over a 66/133 MHz bus. The memory bus supports the fastest

access (X-1-1-1) for 66 MHz ,100MHz and 133MHz operation. The

board is compliant with PCI Rev.2.1 operating at 33 MHz Four PCI Bus

masters are supported.

The south bridge is provided by the 596B. This chip supports ACPI

(Advanced Configuration and Power Interface) Rev 1.0, onboard PCI

IDE channels(DMA66), USB ports, and a System Management Bus for

OS control and configuration of devices.

Built-in PCI 3D Sound

The PCI Audio CMI 8738 is a single chip solution for PCI-bus 3D audio.

The chip provides Sound Blaster 16-bit-compatible audio, plus support

for Microsoft’s DirectSound 3D specification and Aureal A3D interface.

The sound ports include jacks for speakers, microphone and stereo in,

and a game/MIDI port. The audio system supports full duplex operation

and drivers are available for WIN 95/98 and WIN NT 4.0. The audio

system can output sound to 4 loudspeakers and also supports SPDIF

24-bit digital sound input and output.

Optional Built-in Communications

The mainboard has an integrated fax/modem connector. As an option,

you can purchase a fax/modem extension bracket which connects the

line and telephone RJII sockets to the board. The fax/modem supports

the V.90 protocol that allows transmissions at up to 56Kbps and is fully

compatible with earlier transmission and error correction standards. It

supports automatic fall back and caller ID.

Maximum Expansion Options

This is a full-sized ATX mainboard that offers the maximum in system

expansion. The board has a total of 7 expansion slots. The AGP slot can

be used by an AGP graphics adapter. The four 32-bit PCI slots can be

used by PCI expansion cards, and the two 8/16-bit ISA slots can be used

by legacy ISA expansion cards. One of the PCI slots is shared with one

of the ISA slots. This means that you can use either one of these slots

but not both at the same time. With six usable slots, this mainboard can

be installed with a full set of optional expansion cards.

Integrated I/O

Using the Winbond W83977EF-AW I/O chip and the Intel BX chipset, the

board has a comprehensive set of integrated I/O ports. The I/O port

array features PS/2 keyboard and mouse ports, a parallel port, two USB

ports, two serial ports, a game/MIDI port, and three audio jacks.

Optionally, you can use the built-in mainboard header to add in an

infrared port. The mainboard has two PCI-IDE channels and a floppy

disk drive interface.

Hardware Monitoring

The mainboard is installed with the GL520SM hardware monitoring chip.

Using this chip and the monitoring software supplied with the system,

users and system administrators can monitor critical parameters such as

the CPU temperature, the fan speeds and so on. Hardware monitoring

helps maintain the system and reduce maintenance costs and downtime.

Keyboard Power On Feature

Using the system BIOS setup program, you can configure the system to

turn on using a keyboard-typed password or hot key. A green keyboard

is not required.

Programmable Firmware

The mainboard includes Award BIOS that allows BIOS setting of CPU

parameters. The fully programmable firmware enhances the system

features and allows users to set power management, CPU and memory

timing, LAN and modem wake-up alarms, and so on. The firmware can

also be used to set parameters for different processor clock speeds so

that you don’t need to change mainboard jumpers and switches.

Before You Begin

Before you begin to install your MS7117C mainboard, take some

precautions to ensure that you avoid the possibility of damage to the

product from static electricity. Ensure too that you are installing the

mainboard into a suitable case.

Static Electricity

In adverse conditions, static electricity can accumulate and discharge

through the integrated circuits and silicon chips on this product. These

circuits and chips are sensitive and can be permanently damaged by

static discharge.

♦If possible wear a grounding wrist strap clipped to a safely

grounded device during the installation.

♦If you don’t have a wrist strap, discharge any static by touching

the metal case of a safely grounded device before beginning the

installation.

♦Leave all components inside their static-proof bags until they are

required for the installation procedure.

♦Handle all circuit boards and electronic components carefully.

Hold boards by the edges only. Do not flex or stress circuit

boards.

Choosing a Case

The MS7117C mainboard complies with the specifications for a full-sized

ATX board. Make sure that your system case supports a full-size ATX

board and has a power supply unit for all the expansion potential of the

system.

Some features on the mainboard are implemented by cabling connectors

on the mainboard to indicators and switches on the system case. Ensure

that your case supports all the features required. The MS7117C

mainboard can support one or two floppy diskette drives and four

enhanced IDE drives. Ensure that your case has sufficient power and

space for all the drives that you intend to install.

The mainboard has a set of I/O ports on the rear edge. Ensure that your

case has an I/O template that supports the I/O ports and expansion slots.

Mainboard Guide

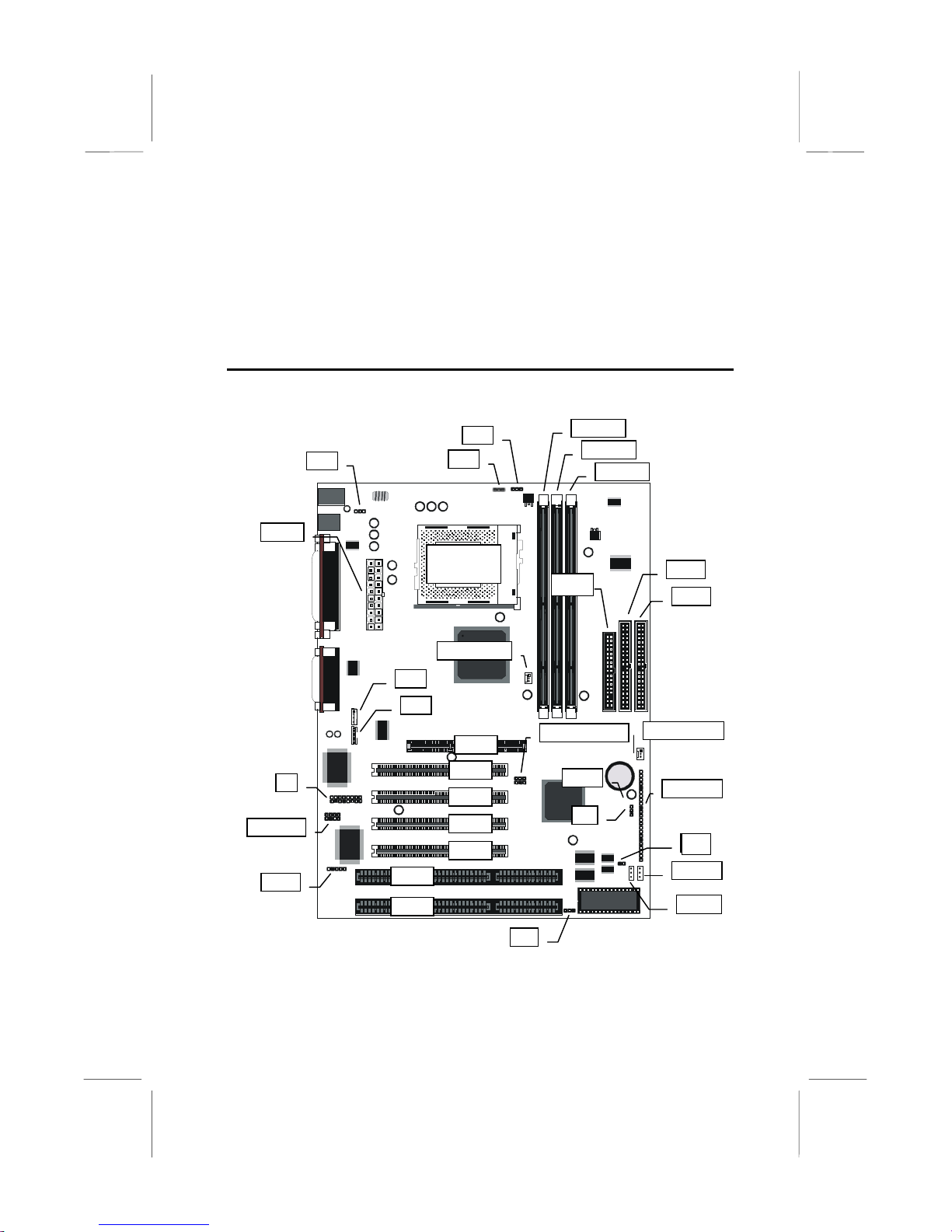

Use the following illustration and key to identify the components on your

mainboard.

 

































































DIMM1

DIMM3

FDD

Table des matières

Autres manuels MATSONIC Carte mère

MATSONIC

MATSONIC MS9147C Series Manuel utilisateur

MATSONIC

MATSONIC MS7023D Manuel utilisateur

MATSONIC

MATSONIC MS9118E Series Manuel utilisateur

MATSONIC

MATSONIC MS8147C Manuel utilisateur

MATSONIC

MATSONIC MS7057C Manuel utilisateur

MATSONIC

MATSONIC MS7112C Manuel utilisateur

MATSONIC

MATSONIC MS9107C Manuel utilisateur

MATSONIC

MATSONIC MS7127C Manuel utilisateur

MATSONIC

MATSONIC MS7167D Manuel utilisateur

MATSONIC

MATSONIC MS8157E Manuel utilisateur

MATSONIC

MATSONIC MS8308E Manuel utilisateur

MATSONIC

MATSONIC MS9017C Manuel utilisateur

MATSONIC

MATSONIC MS6393E Manuel utilisateur

MATSONIC

MATSONIC MS7191SM Manuel utilisateur

MATSONIC

MATSONIC MS9317E Series Manuel utilisateur

MATSONIC

MATSONIC MS9087C Manuel utilisateur

MATSONIC

MATSONIC MS7192SM Manuel utilisateur

MATSONIC

MATSONIC MS8177C Series Manuel utilisateur

MATSONIC

MATSONIC MS7080SG Manuel utilisateur

MATSONIC

MATSONIC MS6261 Manuel utilisateur

MATSONIC

MATSONIC MS8188E Series Manuel utilisateur

MATSONIC

MATSONIC MS6380SG Manuel utilisateur

MATSONIC

MATSONIC MS9327E Series Manuel utilisateur

MATSONIC

MATSONIC MS9007C Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
