Introduction and System Startup

4LCP128TM Setup and Maintenance Guide

Introduction

How to Use this Guide

This programming guide contains three main sections:

•Introduction - Includes system specifications, electrical contractor Start-Up Checklist, and an overview of the

controller and how to use it.

•Step by Step Programming Instructions - Walks you through each step needed to program your system.

•Reference Information - Includes additional procedures that you may need to perform after the system is

programmed, including how to override system settings and lock/unlock the controller. This section also includes

troubleshooting tips, system maintenance, a glossary of terms, and system planning tables.

When programming the LCP128 system, you will need to know the following key information:

• How many panels are in this system and how many circuits are in each panel.

• How many modules are in the system and the module types.

• What the load schedule is.

• Where each wallstation and key switch is located and what each button or key turn should do.

• What each contact closure input and output should do.

• What the time clock should do.

Please read the guide completely before attempting to program the system.

Tables are provided at the back of this guide to record the above information. Photocopy the tables as

needed, and leave them for the occupant after they are completed.

Note: For mounting and wiring information, refer to the LCP128 Installation Guide, Lutron P/N 032-150.

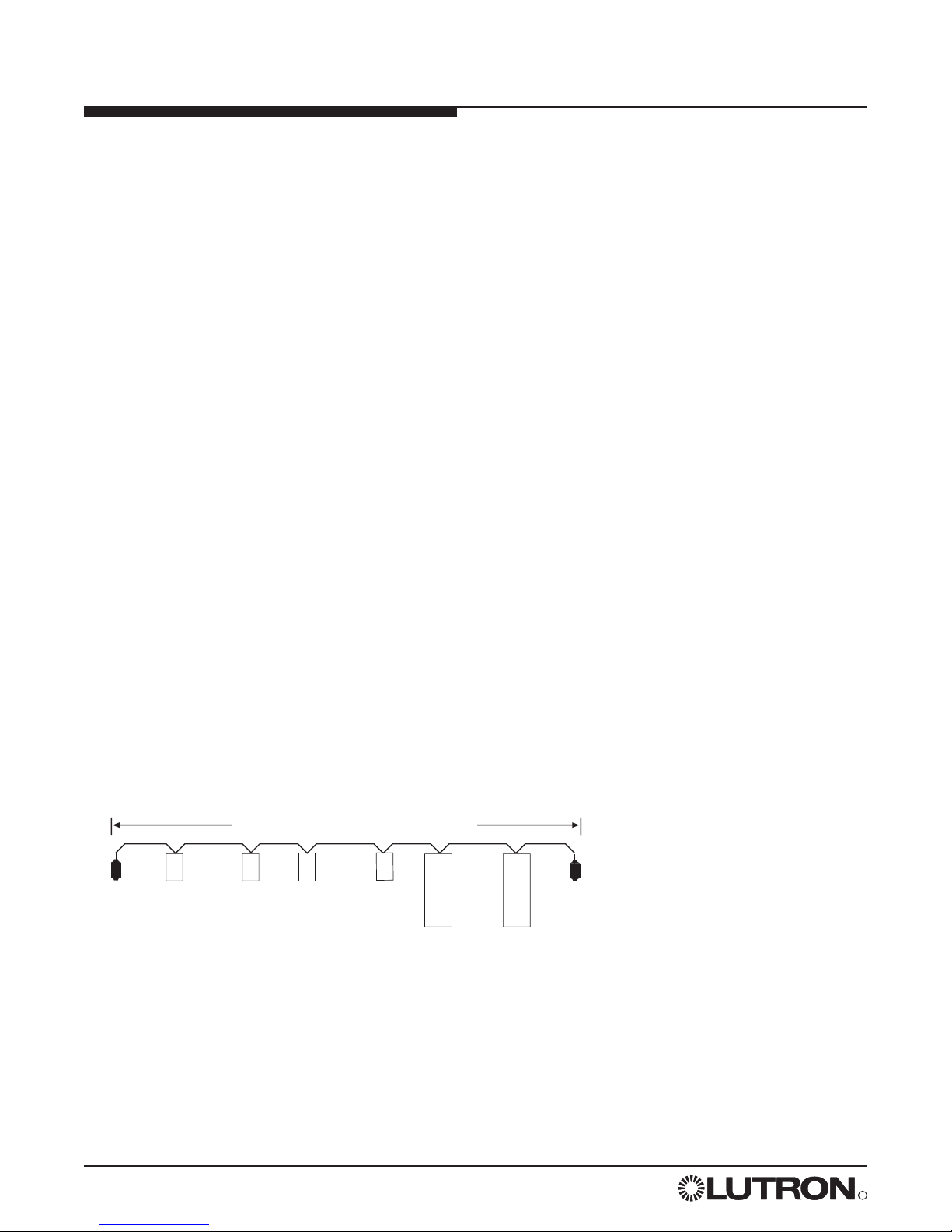

LT-1 LT-1

Control Link 2000 ft. (600 m) maximum

LCP128 Panels

Control Stations:

Wallstations, key switches, contact

closure devices, and RS232 devices

System Overview Diagram

LCP128TM Setup and Maintenance Guide 5

Introduction

System Specifications

LCP128 is a lighting control system designed for commercial buildings. It consists of up to 8 dimming panels

and up to 32 control stations. Control stations can be wallstations, key switches, contact closure input and

output devices (OMX-AV), contact closure output devices (OMX-CCO-8), or building management system

interfaces (OMX-RS232). All panels and control stations are connected by a digital communications link. Refer

to the LCP128 Installation Guide for wiring details. Other system specifications are described below.

Time Clock

• 7 weekly schedules.

• Up to 40 holiday schedules.

• Each holiday schedule can be 1-90 days.

• Up to 500 time clock events.

• Maximum of 25 time clock events per day.

• Up to 32 scenes and 1 Off scene.

• With each time clock event or control station input, you can select which circuits turn on or off and, for dimming

circuits, set specific dimming levels.

• Time clock events can occur at a fixed time of day or at a time relative to sunrise or sunset (astronomical).

• Events can be placed on either a weekly schedule (for example, occurring every Monday) or a holiday schedule

(for example, occurring only on January 1).

• Holiday schedules override weekly schedules.

• Time clock events can start and end afterhours mode. Afterhours is an energy saving mode where lights that

are set to be off will automatically, after a period of time, turn themselves off. Afterhours mode can be

temporarily overridden by any control station action. See STEP 5 for more information.

• Time clock events can enable and disable control stations.

Control Station - Wallstation

Wallstation buttons can be individually programmed to:

• Select a scene or custom scene. A scene is a combination of preset lighting levels used to automatically turn

on, off, or dim a circuit or group of circuits. Each time the wallstation button is pressed, the circuits go to the

programmed scene settings.

• Raise or lower circuits. Dimming circuits progressively raise or lower as long as the button is pressed. Circuits

stay at this setting until another event or control station input occurs.

• Toggle circuits on and off. Each press of the button alternates between turning the circuits on and off. If the

circuits are in a mixed state (some on and some off), the lights turn on.

• Turn off with a time delay. When the button is pressed, the circuits turn off after a preset amount of time.

• Enable or disable time clock.

Control Station - Key Switch

• The key switch (NTOMX-KS) can be programmed for clockwise and counterclockwise turns and with the same

functions as a wallstation button.

Control Station - Contact Closure Inputs

Two contact closure inputs are available on each LCP128 controller – more are available by purchasing a Lutron

OMX-AV control station (five inputs per OMX-AV that can be added anywhere on the digital control station link).

• The contact closure inputs can be programmed on the open and/or closure of the contact to perform the same

functions as a wallstation button.

6LCP128TM Setup and Maintenance Guide

Introduction

Control Station - Contact Closure Outputs

Contact closure outputs can be added with either a Lutron OMX-AV control station (five outputs per OMX-AV) or

with a Lutron OMX-CCO-8 (eight outputs per OMX-CCO-8). Either control station can be added anywhere on

the digital control station link.

• Each contact closure may be momentary or maintained.

• Each contact closure output can be assigned to an action that is programmed to a wallstation button, key turn,

contact closure input, time clock event, or emergency state.

Integration through RS232

The LCP128 system can be integrated with a building management system through the Lutron RS232 interface

(OMX-RS232).

Emergency Power Mode

When a LCP128 panel is placed into emergency power mode (loss of normal power), circuits are changed to

emergency settings and remain at those settings until the controller exits emergency power mode (return of

normal power). All control station inputs and time clock events are ignored while in emergency power mode.

Emergency power mode can be activated using:

• Panel to panel emergency sense line. This method requires that the system have at least two panels. The

system must have at least one normal (non-essential) feed panel and at least one emergency (essential) feed

panel. When power to the normal panel is interrupted, the emergency panel(s) will go into emergency mode.

Note that the normal / emergency switches at the bottom of the controllers need to be set correctly.

• The Lutron emergency lighting interface (LUT-ELI-3PH), a UL 924 listed device, senses the normal (non-

essential) line voltage on all three phases (3PH) of normal power. When one or more phases of power are lost,

the LUT-ELI-3PH sends a signal to the LCP128 controller. If the LCP128 controller’s normal / emergency switch

is set to emergency, the emergency lighting scene or programmed circuit levels are activated.

For more information on emergency lighting applications, refer to Application Note #106. Available at

www.lutron.com.

LCP128 System Start-Up Checklist for Electrical Contractor

Important Note:

To ensure that the LCP128 System is ready for Start-Up, please complete the following checklist.

The LCP128 panel(s) and control station(s) have been mounted in accordance with the installation instructions.

Control stations have been wired to the panel in accordance with installation instructions.

Feed and load wiring to panel have been installed in accordance with the installation instructions.

All load circuits have been activated in bypass mode (bypass jumpers installed) and are correctly and

permanently lamped.

Bypass jumpers have been removed and all circuits activated as default Non-Dim load type.

Load schedule for each panel has been completed.

Correct load type for each circuit has been determined and recorded.

When the above checklist is completed, please fax this sheet along with the completed load schedule

for each panel to Lutron Field Service Scheduling at (610) 282-0298.

Signature: ___________________________ Job Name: _________________________________________

Today’s Date: _________________________ Lutron Job Number: _________________________________

Printed Name: _______________________ Scheduled Startup Date: _____________________________

Phone Number: _______________________ Scheduled Startup Time: _____________________________

Fax Number: _________________________ Job Site Number: ___________________________________

Bill of Material (panels, control stations, etc.):

____________________________________ Qty. ___________

Lutron Electronics Co., Inc.

7200 Suter Road

Coopersburg, PA 18036-1299

Telephone: 800-523-9466 (Listen to menu for scheduling)

System Start-Up Checklist

LCP128TM Setup and Maintenance Guide 7

LCP128TM Setup and Maintenance Guide 9

LCP128TM

LCP128 Controller Layout

Digital Control Station Link

and Emergency Sense Line

Connector

Panel Contact Closure

Inputs Connector

Digital Link Receive (RX) LED

Digital Link Transmit (TX) LED

24 VAC Power

Input Connector

Normal /

Emergency Switch

Module Control

Harness Connectors

Help Button

Home Button

Navigation Arrows

Right Soft Labeled

Button

LCD Screen

OK Button

Power OK LED

Controller Overview

Left Soft Labeled Button

10 LCP128TM Setup and Maintenance Guide

Main Menu

Overrides

Time Clock Setup

Control Station Setup

Panel CCI Setup

Back OK

Screen Title

Scroll Bar

Left Soft Label ( )

Right Soft Label ( )

Button Function

Navigate the screen and change highlighted values

Select an item

Left Soft-Labeled – Function defined on screen

Right Soft-Labeled – Function defined on screen

Go to the Home screen

On-Screen Help

Navigation

The LCP128 controller uses certain methods for navigating, selecting, setting values, etc. Please read this

section carefully before using the controller to program your system.

The LCP128 controller has nine buttons below the display. The table below explains their functions.

The Screen

All screens on the LCP128 controller have a

similar look with some common elements.

These are:

• A screen title

• Left and right soft button labels

• A scroll bar (only present if more information is

available than will fit on the screen.)

The example shows the Main Menu. The scroll

bar indicates that there is more information in the

menu than fits on the screen. Pressing

repeatedly scrolls through the menu and shows

other choices. The shaded slider on the scroll

bar indicates what portion of the menu is being

displayed.

Help

Help on the current screen is always available by

pressing the button. If more information is

available than fits on the screen, use and

to scroll through the text. Pressing either ,

or returns you to the screen you were on.

Help

The home screen shows the

current date and time. Press *

to go to the Menus, press # to go

to the Status screen.

Back OK

Controller Overview

Autres manuels pour LCP128

Table des matières

Autres manuels Lutron Electronics Unité de contrôle

Lutron Electronics

Lutron Electronics Stanza SZ-2B Manuel utilisateur

Lutron Electronics

Lutron Electronics GFS-5E Manuel utilisateur

Lutron Electronics

Lutron Electronics GRAFIK Eye QS with EcoSystem Mode d'emploi

Lutron Electronics

Lutron Electronics AuroRA ARMC-5T Manuel d'utilisation et d'entretien

Lutron Electronics

Lutron Electronics Grafik Eye GRX-4000 Series Instructions de montage

Lutron Electronics

Lutron Electronics Maestro Wireless Pico Series Manuel utilisateur

Lutron Electronics

Lutron Electronics PowPak RMJ-CCO1-24-B Manuel utilisateur

Lutron Electronics

Lutron Electronics GRAFIK Eye Architrave GRX-4SLB-DW Manuel utilisateur

Lutron Electronics

Lutron Electronics QS Timeclock Mode d'emploi

Lutron Electronics

Lutron Electronics QSN-2DALUNV-S Manuel utilisateur

Lutron Electronics

Lutron Electronics LQR-WPM-6D Mode d'emploi

Lutron Electronics

Lutron Electronics PowPak RMK-CCO1-24-B Manuel utilisateur

Lutron Electronics

Lutron Electronics GRAFIK Eye QSGRJ-8E Instructions d'installation et d'utilisation

Lutron Electronics

Lutron Electronics PowPak RMJS-16R-DV-B Manuel utilisateur

Lutron Electronics

Lutron Electronics TriPak Series Manuel utilisateur

Lutron Electronics

Lutron Electronics PowPak FC-SENSOR Manuel utilisateur

Lutron Electronics

Lutron Electronics Vive DFCSJ-OEM-OCC Manuel utilisateur

Lutron Electronics

Lutron Electronics PowPak RMJ-5R-DV-B Manuel utilisateur

Lutron Electronics

Lutron Electronics Pico QSR4P-3R Manuel utilisateur

Lutron Electronics

Lutron Electronics QSGRK-3PCE Manuel du propriétaire

Lutron Electronics

Lutron Electronics RadioRA RA-SBT-CHR Instructions d'utilisation et de sécurité

Lutron Electronics

Lutron Electronics LMM-16R-DV-B Manuel utilisateur

Lutron Electronics

Lutron Electronics Vive PowPak Manuel utilisateur

Lutron Electronics

Lutron Electronics PowPak Energi TriPak Series Manuel utilisateur

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
