Lutron Electronics PPS-9312 Manuel utilisateur

PRESSURE

CONTROLLER/MONITOR

Model : PPS-9312

our purchase of this PRESSURE

CONTROLLER/MONITOR marks a step forward for you

into the field of precision measurement. Although this

PRESSURE controller is a complex and delicate instrument,

its durable structure developed. Please read the following

instructions carefully and always keep this manual within

easy reach.

OPERATION MANUAL

Caution Symbol

Caution :

* Risk of electric shock !

Caution :

* Do not use fingers or any tool

to touch the Wire Terminals.

* Do not apply the relay contact load

current > 0.5 Amp.

* The instrument contains no user

serviceable parts and should not

be opened by the user.

* Repair or after service should be

done by a qualified technician only.

* Power supply should apply the

correct ACV power voltage

* Cleaning - Only use the dry cloth to

clean the plastic case !

* Equipment protected throughout

by Double Insulation or Reinforced

Insulation.

Environmental Condition

* Comply with EN61010.

Transient over voltage at Mains Supply 2500V.

* Pollution Degree 2.

* Altitude up to 2000 meters.

* Indoor use.

* Relative humidity 80% max.

TABLE OF CONTENTS

1.FEATURES..................................................................1

2.SPECIFICATIONS........................................................ 2

3.FRONT PANEL DESCRIPTION.......................................5

3-1 Display................................................................. 5

3-2 PV ( process value ) indicator.................................5

3-3 SV ( set value ) indicator.......................................

3-4 Set Button............................................................ 5

3-5 Button.............................................................

▼5

3-6 Button.............................................................▲5

3-7 Control relay indicator........................................... 5

3-8 Alarm relay indicator............................................ 5

3-9 X10 indicator........................................................ 5

3-10 X100 indicator................................................... 5

3-11 Wire terminals.................................................... 5

3-12 Case holder ....................................................... 5

3-13 RS232 terminal................................................... 5

4.MEASURING PROCEDURE............................................6

4-1 Terminal connection..............................................6

4-2 Pressure measurement..........................................6

4-3 1st layer setting procedures...................................7

4-4 2nd layer setting procedures..................................9

5. RS232 PC SERIAL INTERFACE.....................................

6. SYSTEM RESET..........................................................

7. OPTIONAL PRESSURE SENSORS

( Optional 2 wires pressure transmitters ) ....................16

8.THE ADDRESS OF AFTER SERVICE CENTER..................17

1. FEATURES

* Meter connects with 2, 5, 10, 20, 50, 100, 200, 400 bar

sensor, no calibration procedures are necessary typically

when change a new sensor .

* Unit select : Bar, PSI, Kg/cm^2, inch Hg, mm Hg,

inch H2O, meter H2O, Atmosphere, hPa, KPa.

* Large red LED display, high brightness and easy to read.

* Control setting, Hi/Lo alarm setting.

* Control relay output, alarm relay output.

* Alarm Relay will make action when the reading value

reach to high/low alarm value.

* Control Relay will make action when the reading value

reach to control value.

* Hysteresis value setting for control and alarm function.

* Microprocessor circuit ensures high accuracy and

provides special functions and features.

* Power : 90 ACV to 260 ACV, 50/60 Hz.

* Cooperate the 4-20 mA pressure input, sensor can

install in the faraway position.

* DC 24V output, used for the power of pressure sensor.

* RS-232/USB computer interface.

* DIN size : 96 x 48 mm. Depth : 110 mm.

* Optional pressure sensor, TR-PS2W-xxBAR, PS93MA-xxBAR.

* Optional USB cable, USB-01.

* Optional data acquisition software.

* Optional GSM controller.

2. SPECIFICATIONS

2-1 General Specifications

Display 4 digits red LED, digit size : 14 mm.

x 10, x100 indicator

Circuit Custom chip of microprocessor LSI

circuit.

Sensor type Can cooperate with optional 2, 5, 10, 20,

50, 100, 200, 400 bar two wires 4 to 20

mA pressure sensor, new calibration are

not necessary typically when change the

new sensor .

* Sensor type can make the internal

setting with default

Display units Bar, Psi, Kg/cm^2, mm Hg, inch Hg,

meter H2O, inch H2O, Atmosphere,

hPa, KPa.

* Unit can make the internal setting with

default

Accuracy ± ( 0.5% + 2 d )

* Meter only.

* Within 23 ± 5℃℃

Pressure Cooperate the optional two wires ( or

sensor four wires ) 4 to 20 mA pressure

* optional

sensors ( transmitters ).

* two wires sensor : TR-PS2W-xxBAR

* Four wires sensor : PS93MA-xxBAR

Offset adjust It can make the internal Offset setting

with default.

Gain adjust It can make the internal Gain setting

with default

Input signal

* Input 4 mA = 0 pressure

from sensor

* Input 20 mA = full scale pressure

Sampling Time Approx. 1 second.

Relay Output Number 2 relays

Function

Relay 1 :

Control relay.

Relay 2 :

High/Low alarm relay.

Max load 0.5 ACA/250 ACV

0.5 DCA/24 DCV

Do not apply the rela

contact load current

> 0.5 A, otherwise th

relay may be dama

permanently without

warranty.

Setting

1st layer

CtLo ( Control low limit )

Function

setting

CtHi ( Control high limit )

procedures

ALLo ( Alarm low limit )

ALHi ( Alarm high limit )

Second layer

tyPE ( Sensor type )

setting

FiLt ( Digital filter )

procedures

CtHy ( Control hysteresis set )

ALHy ( Alarm hysteresis set )

oFSt ( Offset adjustment )

GAin ( Gain adjustment )

Unit ( Unit set )

External DC 24 V, 50 mA max.

Power Supply

Data Output RS 232 PC serial interface.

Operating 0 to 50 .℃

Temperature

Operating Less than 80% R.H.

Humidity

Power Supply 90 to 260 ACV, 50/60 Hz.

Power Approx. 7.3 VA/AC 110V.

Consumption Approx. 11 VA/AC 220V.

Weight 258 g/0.57 LB.

Dimension DIN size : 96 x 48 mm.

Depth : 110 mm.

Accessories Instruction manual....................... 1 PC

Included Case holder with screw.................2 PCs

Optional Two wires pressure transmitters,

Accessories Model : TR-PS2W-xx BAR

* Range : 2, 5, 10, 20, 50, 100

400 BAR.

* Data Acquisition software,

SW-U801-WIN.

* RS232 cable, UPCB-02.

* USB cable, USB-01.

* Real time SD card datalogger

DL-9602SD

* GSM controller, GSM-889.

* Interface cable ( cable between meter

to GSM-889 ), GMCB-89.

3. FRONT PANEL DESCRIPTION

Fig. 1

3-1 Display

3-2 PV ( process value ) indicator

3-3 SV ( set value ) indicator

3-4 Set Button

3-5 Button▼

3-6 Button▲

3-7 Control relay indicator

3-8 Alarm relay indicator

3-9 X10 indicator

3-10 X100 indicator

3-11 Wire terminals

3-12 Case holder

3-13 RS232 terminal

4. MEASURING PROCEDURE

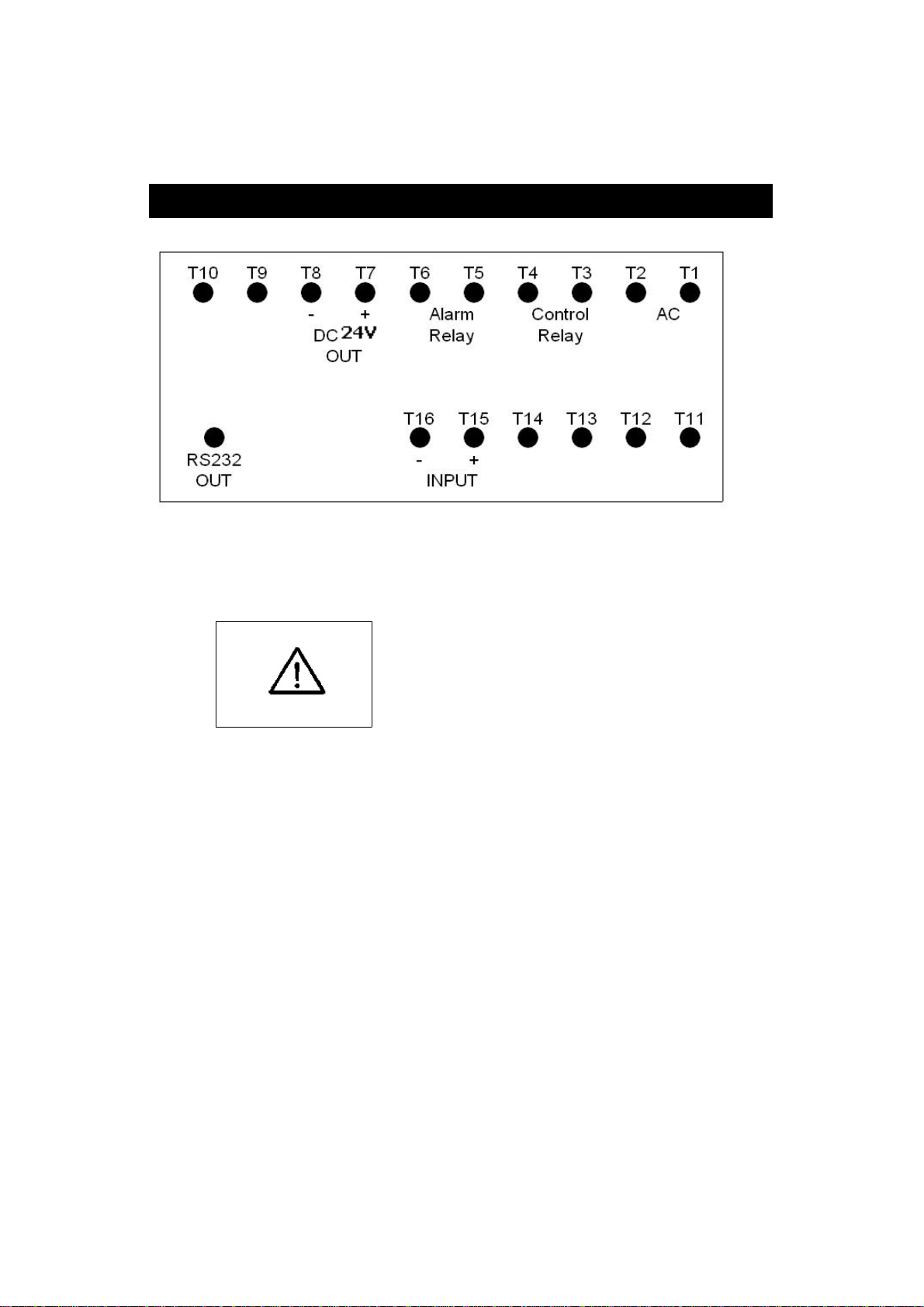

4-1 Terminal connection

1)Input the ACV power ( 90 to 260 ACV ) to T1, T2.

Do not input the

over voltage to the

AC input terminals.

2)Connect the " Control Relay " output from T3, T4.

Connect the " Alarm Relay " output from T5, T6.

4-2 Pressure measurement

1)Prepare the optional two wires pressure sensors

( transmitters ), TR-PS2W-xxBAR.

the optional four wires pressure sensors ( transmitters ),

PS93MA--xxBAR.

2)Make the wires installation as following :

3)Select the sensor type, please refer Chapter 4-2, page 10.

Select the sensor unit, please refer Chapter 4-2, page 14.

4-3 1st layer setting procedures

CtLo Control low value setting

CtHi Control high value setting

ALLo Alarm low value setting

ALHi Alarm high value setting
