Lutron Electronics QS Timeclock Mode d'emploi

QS Timeclock

(for lights and window treatments/shades)

Installation and

Operation Guide

Please Read

The QS Timeclock is a premier energy-saving astronomic timeclock for lights

and window treatments, which integrates seamlessly with the Lutron Energi

Savr Node components and QS window treatments.

Model Number: QSGR-TC-3S-WH

Rating: 120–240 V~50/60 Hz 100 mA

Output: 24 V-150 mA IEC PELV/NEC®Class 2 supply

English

Français Español Português Deutsch Italiano Nederlands 中文

Contents

Features and Functions..................2

Line Voltage Wiring .....................3

Terminations ..........................3

Line Voltage Wiring Details ...............4

Overview of IEC PELV/NEC®Class 2 Wiring..5

QS Link Wiring ........................6

Completing Installation ..................8

Programming Mode ....................9

Associating QS Window Treatments.......10

Adjusting Window Treatment Settings .....10

Contact Closure Input (CCI) Setup ........13

Timeclock Operation

Setting Time and Date.................14

Setting Location .....................15

Setting Daylight Saving Time ...........15

Adding an Event .....................16

Deleting/Viewing an Event .............17

Setting/Viewing/Deleting a Holiday ......18

Copying/Deleting a Schedule...........19

Afterhours ...........................20

Diagnostics ..........................21

Setting the Security Password ...........21

Language Selection....................22

Faceplate Removal ....................22

Troubleshooting.......................23

Warranty, Contact Information ...........24

123456Info screen

Displays programming

functions

Program buttons

Shade (window treatment)

button groups

Preset and raise/lower

buttons with integral LEDs

(maximum of 3 button

groups)

Timeclock button

Displays current

timeclock info

OK button

Used for programming,

navigation

USB type mini B

For programming via PC

Features and Functions

QS Timeclock Installation and Operation Guide 2

QS Timeclock Installation and Operation Guide 3

D1 D1 D2 D2

• Pull power wiring from distribution panel to QS Timeclock.

• Each line voltage terminal can accept one 12 AWG (4.0 mm²) wire.

Line Voltage Wiring

D1 D1 D2 D2

NOT USED

Rear of

QS Timeclock

1234

12 ABC

123456LN

Line voltage (Line/Hot)

is labeled L.

100–240 V~ only

Distribution Panel

1234

12 ABC

123456LN

Terminations

QS Communication link

Contact closure input and 24 V-power

NOT

USED

Input Power

L: Line/Hot

N: Neutral

: Ground

Line Voltage Wiring Details

• Use properly certified cable for all line

voltage/mains cables.

• Proper short-circuit and overload

protection must be provided at the

distribution panel.

• Install in accordance with all local and

national electrical codes.

• IEC PELV/NEC®Class 2 terminals may

be temporarily unplugged for ease of

contact closure and control wiring.

• Notice: Risk of damage to unit. Do not

connect line voltage/mains cable to IEC

PELV/NEC®Class 2 terminals.

Step 1: Install wallbox. Mount a 3`in

(89 mm) deep 4-gang U.S. wallbox on a

dry, flat indoor surface that is accessible

and allows for system programming and

operation. Allow at least 4`in (110 mm)

clearance above and below the faceplate

to ensure proper heat dissipation. Allow

1 in (25 mm) for faceplate overhang on

all sides.

Note: 4-gang wallbox available from

Lutron; P/N 241400.

Step 2: Check wiring.

•Earth/ground terminal connection must

be made as shown in wiring diagrams

(see page 3).

• Follow all local and national electrical

codes when installing IEC PELV/NEC®

Class 2 wiring with line voltage/mains

wiring.

WARNING! Electric Shock hazard.

May result in Serious Injury or

Death. Always turn off circuit

breaker or remove main fuse from

power line before doing any work.

Step 3: Connect line voltage.

• Strip 9in (8 mm) of

insulation off the line

voltage/mains cables in

the wallbox.

• Connect the line voltage/mains and

ground wires to the appropriate terminals

on the back of the timeclock.

L: Line/Hot

N: Neutral

: Ground

The recommended installation torque is

5.0 in∙lb (0.6 N∙m) for line voltage/mains

connections and 5.0 in∙lb (0.6 N∙m) for

the earth/ground connection.

Notice: Risk of damage to unit.

The QS Timeclock must be installed by

a qualified electrician in accordance with

all applicable regulations and building

codes. Improper wiring can result

in damage to the timeclock or other

equipment.

QS Timeclock Installation and Operation Guide 4

Faceplate overhangs

wallbox on all sides;

allow 1 in (25 mm)

4`in

(110 mm)

9in

(8 mm)

Contact Closure Input Wiring

24 V-50 mA

For settings, see CCI Setup.

12 ABC

NH123456

1234

Note: Use appropriate wire

connecting devices as

specified by local codes.

Example:

Third-party contact

closure to enable/

disable timeclock

1: COM

2: 24 V-*

3: MUX

4: MUX

Control Wiring

24 V-100 mA

Overview of IEC PELV/NEC®Class 2 Wiring

18 AWG (1.0 mm2)

each terminal

A: CCI SIG

B: 24 V-

C: CCI COM

To other

QS devices

Data (terminals 3 and 4):

Twisted, shielded pair 22 AWG (0.5 mm2) each terminal

Common and power (terminals 1 and 2):

Two 18 AWG (1.0 mm2) each terminal (for link <500 ft/153 m)

Two 12 AWG (4.0 mm2) each terminal (for link 500–2000 ft/153–610 m)

*Do not connect terminal 2

between a QS Timeclock

and any other power supply.

QS Timeclock Installation and Operation Guide 5

IEC PELV/NEC®Class 2 control wiring

(2) 18 AWG (1.0 mm2)

1: Common

2: 24 V-

Wiring Detail

For links 500–2000 ft (153–610 m)

Data link: (1) twisted, shielded pair

22 AWG (0.5 mm2)

3: MUX

4: MUX

(2) 12 AWG

(4.0 mm2)

(2) 12 AWG

(4.0 mm2)

NOT

USED

QS Timeclock Installation and Operation Guide 6

• Each IEC PELV/NEC®Class 2 terminal

accepts up to two 18 AWG (1.0 mm²)

wires.

• Connect the terminal 1, 3, and 4

connections to all control units,

wallstations, and control interfaces.

• Total length of control link must not

exceed 2000 ft (610 m).

• Do not allow IEC PELV/NEC®Class 2

wires to contact line/mains wires.

• The QS Timeclock provides 3 PDUs

(Power Draw Units) on the QS Link.

For more information, see Lutron

P/N 369405, “Power Draw Units on the

QS Link” at www.lutron.com

QS Communication Link

Terminal Detail

QS Link Wiring

D1 D1 D2 D2

MUX

24 V-

COM

LUTRON

LUTRON LUTRON LUTRON

Energi Savr Node

Sivoia QS

smart

power

panel

Sivoia QS

shade Sivoia QS

shade

QS Timeclock

Wallstation

Wallstations

Connect all 4

terminals within a

power group:

1: Common

2: 24 V-

3 and 4: Data

Connect only 3

terminals between

power groups:

1: Common

3 and 4: Data

Do not connect

Terminal 2: 24 V-

Power Group 1

Power Group 2

Power Group 3

Power Group 4

Energi Savr Node

Wiring Example

• System communication uses

IEC PELV/NEC®Class 2 wiring.

• Follow all local and national electrical

codes when installing IEC PELV/NEC®

Class 2 wiring with line voltage/

mains wiring.

• Make all connections in the control

unit’s wallbox.

• Wiring can be T-tapped or daisy-chained.

• 24 V-100 mA IEC PELV/NEC®Class 2.

QS Link Wiring (continued)

QS Timeclock Installation and Operation Guide 7

T-Tap Wiring Example

LUTRON LUTRONLUTRON LUTRON

LUTRON LUTRON LUTRON

LUTRON

LUTRON LUTRON LUTRON

QS Timeclock seeTouch QS

Sivoia QS

Shade

Sivoia QS

smart panel

Energi Savr Node Energi Savr Node

LUTRON LUTRONLUTRON LUTRON

LUTRON LUTRON LUTRON

LUTRON

LUTRON LUTRON LUTRON

Sivoia QS

smart panel

QS Timeclock

Sivoia QS

Shade

seeTouch QS

Daisy-Chain Wiring Example

Energi Savr Node Energi Savr Node

Note: The QS Timeclock provides

3 power draw units on the QS link.

For more information on PDUs, see

“Power Draw Units on the QS Link”,

PN 369405 at www.lutron.com

Wire Sizes (check compatibility in your area)

QS Link Wiring Length Wire Gauge Lutron Cable Part Number

Less than 500 ft (153 m) Power (terminals 1 and 2)

1 pair 18 AWG (1.0 mm2)GRX-CBL-346S (non-plenum)

GRX-PCBL-346S (plenum)

Data (terminals 3 and 4)

1 twisted, shielded pair 22 AWG (0.5 mm2)

500 to 2000 ft

(153 to 610 m)

Power (terminals 1 and 2)

1 pair 12 AWG (4.0 mm2)GRX-CBL-46L (non-plenum)

GRX-PCBL-46L (plenum)

Data (terminals 3 and 4)

1 twisted, shielded pair 22 AWG (0.5 mm2)

Completing Installation

1.Mount the QS Timeclock in the wallbox

as shown using the four screws provided.

Note: Follow all local and national

electrical codes when installing IEC PELV/

NEC®Class 2 wiring with line voltage/

mains wiring.

2.Verify installation.

3.Restore power.

4.Apply the protective overlay to the QS

Timeclock.

QS Timeclock Installation and Operation Guide 8

Note: When tightening mounting

screws, make sure that the hinged

cover and faceplate will open fully,

as shown.

Wall

7.9 in

(200 mm)

3.5 in

(87 mm) 3.75 in

(95 mm)

Protective overlay

(apply after installation)

Faceplate

(apply after installation)

Entering and Exiting Programming Mode

To enter programming mode:

Press and hold the top and bottom

programming buttons simultaneously for

3 seconds. The LEDs in the scene buttons

will scroll from top to bottom, confirming

that you are in programming mode, and the

info screen will display the main menu.

To exit programming mode:

Press and hold the top and bottom

programming buttons simultaneously for

3 seconds.

Navigating Menus in Programming Mode

Master Buttons

The Master buttons allow you to move through the menu

choices. The current choice is highlighted on the info screen.

OK Button

The OK button chooses the current highlighted menu choice.

This will either take you to the next menu or accept a setting you

have selected. When the screen displays a Yes/ No question, the

OK button is “Yes”.

Timeclock Button

The timeclock button functions as a “back” button during

programming mode. Pressing the timeclock button takes you

back one step in the current menu. Pressing it repeatedly

will eventually return you to the main menu, but will not exit

programming mode. When the screen displays a Yes/No

question, the Timeclock button is “No”.

Programming Mode

Main menu

CCI setup

Timeclock

QS Timeclock Installation and Operation Guide 9

123456

Press and hold the top

and bottom buttons for

3 seconds to enter or exit

programming mode

Master buttons

OK button

Timeclock (back) button

QS Timeclock Installation and Operation Guide 10

To associate or disassociate window treatments with a

shade button group:

1. On the QS Timeclock shade button group you wish to assign

window treatments to, enter window treatment programming

mode: Press and hold the top (open) and bottom (close)

buttons simultaneously for 3 seconds. The top and bottom

LEDs will flash.

Window Treatments that are unassigned will move to open

(up), and window treatments that are assigned will move to

close (down).

2. Tap the top (open) button to start assigning.

3. Tap the top (open) button repeatedly to cycle forward

through the addresses; tap the bottom (close) button to cycle

backward.

4. Press the window treatment group lower button to associate

the window treatment.

Press the window treatment group raise button to

disassociate the window treatment.

5. Exit window treatment programming mode: Press and hold

the top (open) and bottom (close) buttons simultaneously for

3 seconds. The top and bottom LEDs will stop flashing.

You can associate the shade button groups on the QS

Timeclock with QS window treatments so the shade buttons

can directly control the window treatments.

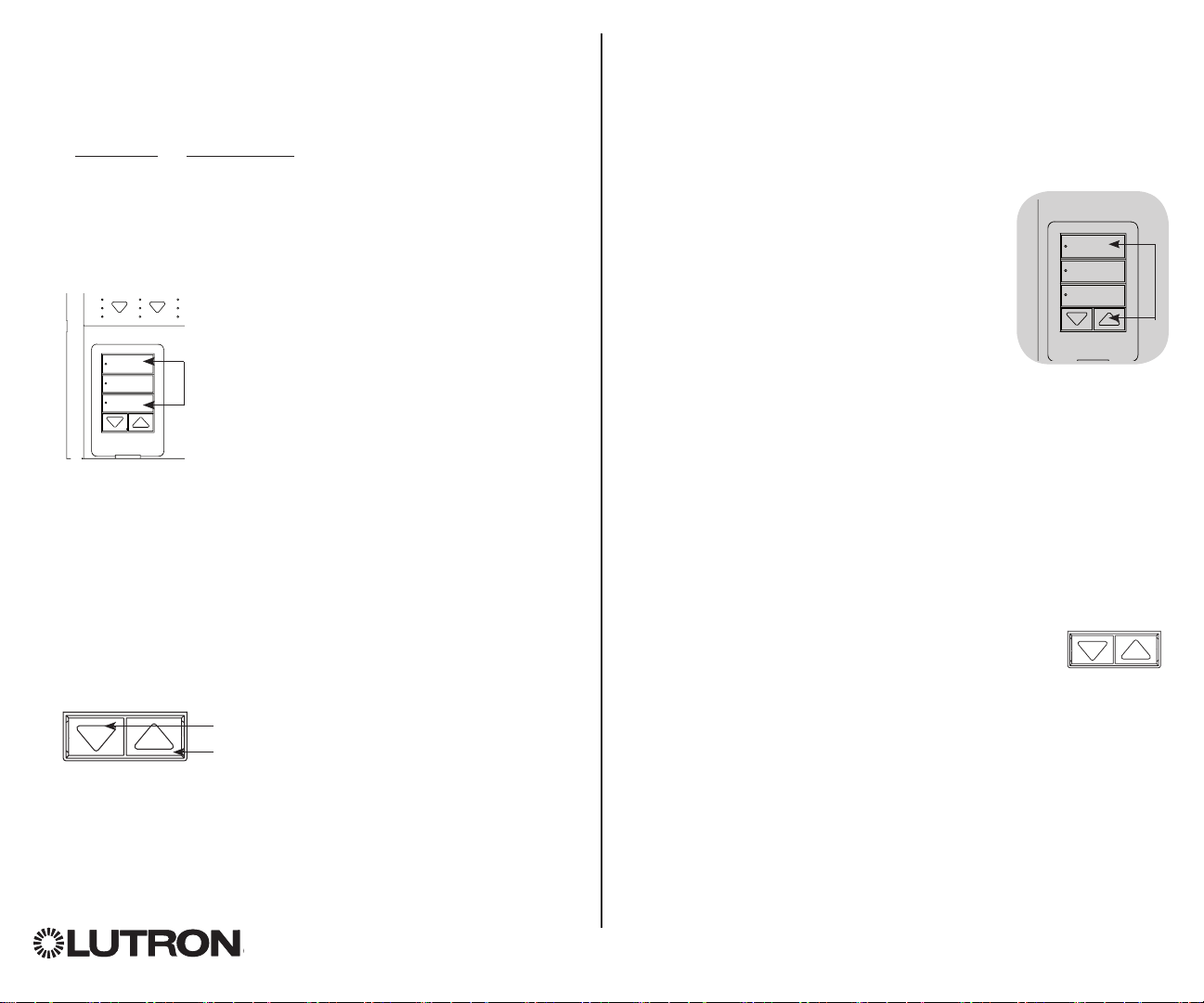

Associating QS Window Treatments

Press and hold the

top (open) and bottom

(close) buttons on the

QS Timeclock shade

button group to enter or

exit window treatment

programming mode.

1 2 3 4 5 6

Open

Preset

Lower button: Press to

associate

Raise button: Press to

disassociate

Adjusting Window Treatment Settings

Setting Limits

Note: Entering Limit Setup mode may cause window treatments

to move approximately 8 in (200 mm) up or down. Be sure that

each window treatment is positioned so that the fabric can

safely move 8 in (200 mm) up or down before entering Limit

Setup mode.

1.On any shade button group, press and hold

simultaneously the top and raise buttons. The

LEDs next to the top and bottom buttons will

cycle.

At any time while in Limit Setup mode, you

can move all window treatments together to

their current open limit by double-tapping the

top button, or to their current close limit by

double-tapping the bottom button.

Note: Window treatment electronic drive units (EDUs) must first

be associated to a shade button group before its limits

can be adjusted.

2.Select the EDU you want to adjust using the top button on the

shade button group. Each time you press and release the top

button, a different EDU that is assigned to that shade button

group will open and close in an 8 in (200 mm) range to indicate

it is selected.

Tap the top button until the EDU for the window treatment you

wish to adjust moves. (You can also use the bottom button,

which moves through the assigned EDUs in the opposite order.)

3.Adjust the currently selected EDU to the desired

level for the open limit (the maximum the window

treatment is allowed to open) using the raise and

lower buttons.

4.Press and hold the top button on the shade button group for

5 seconds to store the current position as the open limit. The

LED next to the top button will flash quickly for 2 seconds.

(continued)

123456

Autres manuels pour QS Timeclock

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Lutron Electronics Unité de contrôle

Lutron Electronics

Lutron Electronics GRAFIK Eye QSGRN-6PCE Mode d'emploi

Lutron Electronics

Lutron Electronics GRAFIK Eye Architrave GRX-4SLB-DW Manuel utilisateur

Lutron Electronics

Lutron Electronics Maestro Wireless Pico Series Manuel utilisateur

Lutron Electronics

Lutron Electronics GRAFIK 6000 Manuel utilisateur

Lutron Electronics

Lutron Electronics GRAFIK Eye QSGRJ-3P Mode d'emploi

Lutron Electronics

Lutron Electronics Grafik Eye GRX-4000 Series Manuel utilisateur

Lutron Electronics

Lutron Electronics Maestro Wireless MRF2-3PD-1 Manuel utilisateur

Lutron Electronics

Lutron Electronics RadioRA RAMC-5W Manuel utilisateur

Lutron Electronics

Lutron Electronics PowPak RMJS-16R-DV-B Manuel utilisateur

Lutron Electronics

Lutron Electronics RadioRA RA-SBT-CHR Instructions d'utilisation et de sécurité

Lutron Electronics

Lutron Electronics LMM-16R-DV-B Manuel utilisateur

Lutron Electronics

Lutron Electronics PPS-9312 Manuel utilisateur

Lutron Electronics

Lutron Electronics Vive PowPak Manuel utilisateur

Lutron Electronics

Lutron Electronics GRAFIK Eye QSGRJ-8E Instructions d'installation et d'utilisation

Lutron Electronics

Lutron Electronics QSE-IO Manuel utilisateur

Lutron Electronics

Lutron Electronics GFS-5E Manuel utilisateur

Lutron Electronics

Lutron Electronics Vive Series Manuel utilisateur

Lutron Electronics

Lutron Electronics PowPak RMK-CCO1-24-B Manuel utilisateur

Lutron Electronics

Lutron Electronics AYFSQ-F Manuel utilisateur

Lutron Electronics

Lutron Electronics QSN-2DALUNV-S Manuel utilisateur

Lutron Electronics

Lutron Electronics Energi Savr Node Manuel utilisateur

Lutron Electronics

Lutron Electronics Maestro Wireless MRF2-3PD-1 Manuel utilisateur

Lutron Electronics

Lutron Electronics PowPak RMJ-5R-DV-B Manuel utilisateur

Lutron Electronics

Lutron Electronics QSGRK-6D Manuel du propriétaire

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
