TruVision High Definition TVI Bullet Camera
Installation Guide
Product overview
This is the TruVision High Definition TVI Bullet Camera
Installation Guide for models TVB-2402/TVB-4402 and TVB-
2404/TVB-4404. This guide describes a standard installation.
Package contents:
Camera with power and
video output cables
4 screws and 4 anchors
for wall or ceiling
installation
Back box
Screws M4.8 ×18,
4pcs to attach the back
box
Template
Hex wrench
•WEEE and Battery
Disposal
CD
Camera description
1. CVBS output cable (black)
2. TVI output cable (grey)
3. Power cable
4. Camera body
5. Sun shield
6. Lens cover
7. Mounting bracket
8. Back box
Note:
Please check the camera output settings before setting up a
system. The TVI video output can be only connected to DVR
with TVI signal input. The CVBS output supports the standard
monitor, test monitor, encoder and DVR.
For TVB-2402 / TVB-4402, the CVBS and TVI output can not
be performed at the same time, you can use the built-in DIP
switch to select the camera video output.
For TVB-2404/TVB-4404, the built-in DIP switch is used to
enable/disable WDR feature, when WDR feature is enabled,
the CVBS output will be blocked out.
DIP switch
Menu button
Installation
To install the camera:
1. Using the template, place it level against the mounting
surface and mark the position of the mounting holes.
2. Following all local codes, drill and prepare the mounting
holes.
3. (Optional) Install the back box on the wall.
4. Route the cables to the cable hole and connect the
corresponding cables. Using a 75-ohm coaxial video
cable, connect the camera TVI video output and a TVI
Ceiling Mounting
11
11
2
22
2
1:Screw Hole for
Bracket
2:Screw Hole for
Mounting Base
8
2
7
3
1
5
6
4
Ceiling Mounting
11
11
2
22
2
1:Screw Hole for
Bracket
2:Screw Hole for
Mounting Base
2 / 3 P/N 1072938-EN • REV A • ISS 26MAR15
DVR, and connect a 12 VDC or 24 VAC power supply to
the power cable.

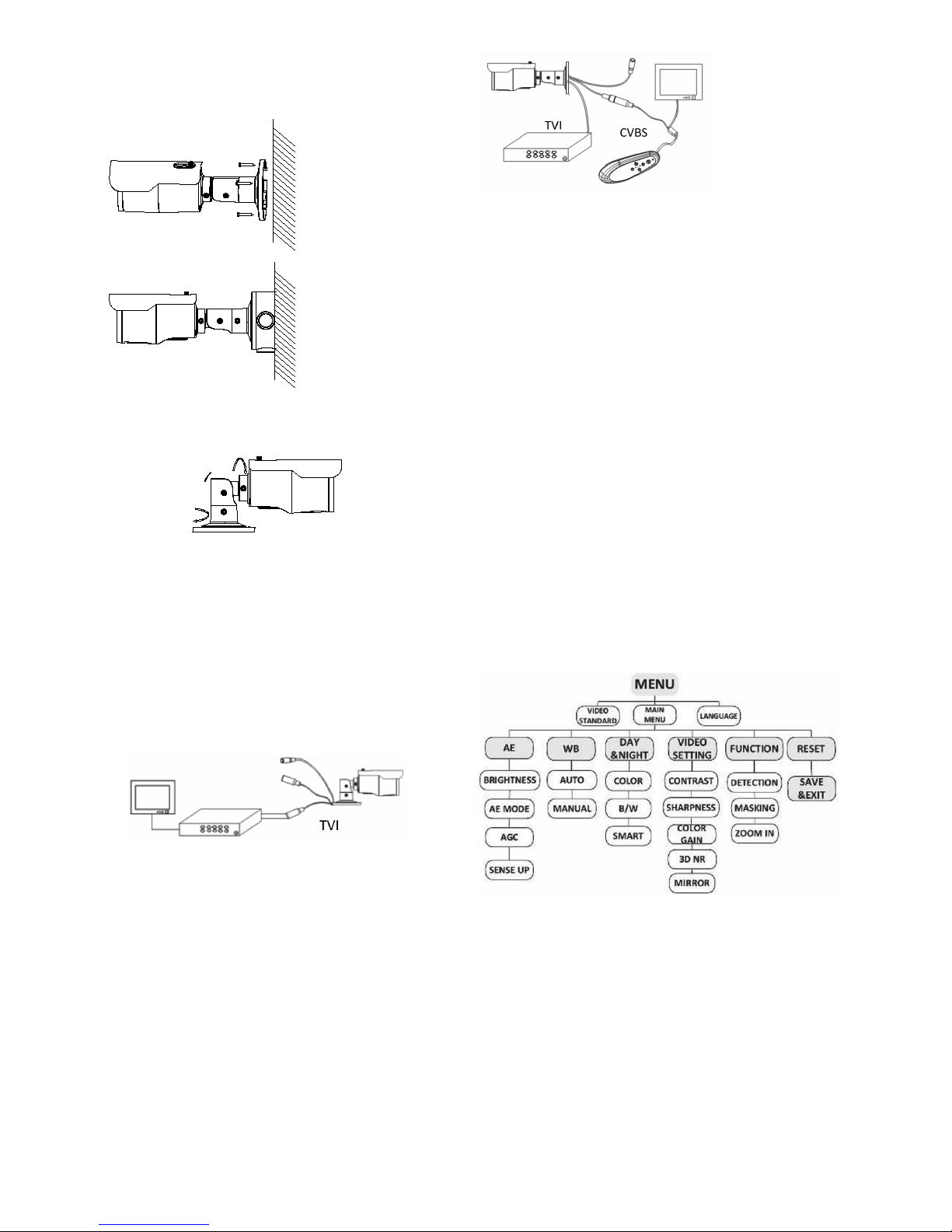

5. Secure the camera to the ceiling or wall with the screws.
6. Loosen the three screws and adjust the camera according
to the figure below to get an optimum angle. Tighten the
screw after completing the adjustment.
7. Loosen the three screws and adjust the camera according
to the figure below to get an optimum angle. Tighten the
screw after completing the adjustment.
Programming
Programming on TVI output:
Once the camera hardware has been installed, you can
configure the camera settings on the TVI DVR.
Select PTZ protocol as TruVision Coax and click menu button
to call up the camera menu.
For more details, please see the TVI DVR user manual.
Programming on CVBS output:
The camera can then be configured by using the built-in OSD
button or a TVS-C200 controller (purchase separately).
Please connect a monitor and the TVS-C200 (if needed)
controller as following system figure.
TVB-2402/TVB-4402
The camera has CVBS and TVI selectable video output. Set
the built-in DIP switch to CVBS for viewing the program on a
standard monitor.
The TVI is blocked out until you finish the settings and change
the DIP switch back to TVI.
TVB-2404/TVB-4404
The camera has the CVBS and TVI dual video output. The
built-in DIP switch is for WDR/CVBS selection.
Please set the built-in DIP switch to CVBS for viewing the
program on a standard monitor.
When the programing is finished, you may change the DIP to
WDR to enable the WDR feature. In such case, the CVBS
output will be blocked out.
If the DIP is set as CVBS, the WDR feature will be disabled,
and the camera has CVBS and TVI output available at the
same time
Setup menus
TVB-2402/TVB-4402
360°
90°
360°
P/N 1072938-EN • REV A • ISS 26MAR15 3 / 3
TVB-2404/TVB-4404
Specifications
Power
supply 12 VDC / 24 VAC
Current
TVB-2402 / TVB-4402:
12 VDC: Max. 333 mA
24 VAC: Max. 250 mA
TVB-2404/TVB-4404:
12 VDC: Max. 420 mA
24 VAC: Max. 250 mA
Power consumption
TVB-2402/TVB-4402:
12 VDC: Max. 4W
24 VAC: Max. 6W
TVB-2404/TVB-4404:
12 VDC: Max. 5W
24 VAC: Max. 6W
Weight (net)
860 g / 1.89 lb. (without back box)
1075 g / 2.36 lb. (with back box)
Dimensions
105 × 94.7 × 265.4 mm / 4.13 × 3.74 ×
10.4 in. (without back box）
105 × 94.7 × 301.4 mm / 4.13 × 3.74 ×
11.86 in. (with back box)
Regulatory information
Manufacturer
Interlogix.
2955 Red Hill Avenue, Costa Mesa, CA 92626
5923, USA
Authorized EU manufacturing representative:
UTC Fire & Security B.V.
Kelvinstraat 7, 6003 DH Weert, The
Netherlands
FCC
compliance Class A: This equipment has been tested and
found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference when the equipment is operated
in a commercial environment. This equipment
generates, uses, and can radiate radio
frequency energy and, if not installed and
used in accordance with the instruction
manual, may cause harmful interference to
radio communications. Operation of this
equipment in a residential area is likely to
cause harmful interference in which case the
user will be required to correct the interference
at his own expense.
ACMA compliance
Notice! This is a Class A product. In a
domestic environment this
product may cause
radio interference in which case the user may
be required to take adequate measures.
Canada
This Class A digital apparatus complies with
Canadian ICES-003.
Cet appareil numérique de la classe A est
conforme à la norme NMB-0330 du Canada.
Certification
N4131
European Union
directives
12004/108/EC (EMC directive): Hereby, UTC
Fire & Security declares that this device is in
compliance with the essential requirements
and other relevant provisions of Directive
2004/108/EC.
2012/19/EU (WEEE directive): Products
marked with this symbol cannot be disposed
of as unsorted municipal waste in the
European Union. For proper recycling, return
this product to your local supplier upon the
purchase of equivalent new equipment, or
dispose of it at designated collection points.
For more information see:
www.recyclethis.info.
Copyright
© 2015 United Technologies Corporation.
Interlogix is part of UTC Building & Industrial
Systems, a unit of United Technologies
Corporation. All rights reserved.
Trademarks and
patents
The trade names used in this document may
be trademarks or registered trademarks of the
manufacturers or vendors of the respective
products.
Contact information
For contact information, see www.interlogix.com or
www.utcfssecurityproducts.eu.
