Interlogix UVC-XP4DN-HR-P Manuel utilisateur

Content

Product description 1

User guidelines 1

Package contents 1

Installation 1

Video connections 1

Attach the lens 2

Connect power 2

Mount the camera 2

Connect the monitor 2

Programming 2

OSD controls 2

Main menu 3

Presets menu 3

Setup menu 3

Viewing menu 4

Exposure menu 5

White balance menu 5

Save/restore menu 5

Regulatory information 6

Menu map 6

Product description

This color video camera is the next generation in wide

dynamic range cameras. It uses the latest in UTC

Xposure image analysis technology.

The sensor architecture provides unequaled wide

dynamic range performance and improves how the

camera deals with low-light conditions.

Another revolutionary feature of the UltraView XP4 is

dual-temperature calibration. The UVC-XP4-HR is

calibrated at the factory, so the camera knows how to

adjust gain, white balance, and other settings based on

its environment. The camera is able to get the best

possible images in any situation and at any

temperatures within its operating specifications.

User guidelines

Use the following guidelines:

• Program as many camera settings as possible

before mounting the camera. Take appropriate

safety precautions while completing programming

after installation.

• Always use a 12 VDC or 24 VAC UL listed Class 2

power supply to power the camera.

Do not use the camera outside the temperature

range specifications: -10 to +50 °C (14 to 122 °F).

• If the light source where the camera is installed

experiences rapid, wide- variations in lighting, the

camera may not operate as intended.

WARNING: To reduce the risk of fire or electronic

shock, do not expose the camera to rain or moisture and

do not remove the cover or back.

Package contents

Check the package and contents for visible damage. If

any components are damaged or missing, do not

attempt to use the unit; contact the supplier immediately.

If the unit is returned, it must be shipped back in its

original packaging.

Package contents:

•Quick Start Guide

•Camera

•C-mount adaptor

Installation

This chapter provides information on how to install the

camera.

Video connections

To make cable connections, do the following:

1. Connect a coaxial cable terminated with BNC

connectors between the MON OUT connector of the

UVC

-XP4DN-HR(-P) Camera User

Manual

2 UVC-XP4DN-HR(-P) Camera User Manual

camera and the video in connector on a test or local

monitor.

2. Connect a coaxial cable terminated with BNC

connectors between the VIDEO OUT connector of

the camera and the video in connector on a monitor,

multiplexer, switcher, or other standard video

device.

Attach the lens

Refer to the instructions that came with the lens you

purchased for complete installation instructions of that

lens. The camera automatically detects the type of lens

used.

Note: For optimal performance, use an autoiris lens.

To install most lenses, see 1. If you are using a C-

mount lens, screw on the provided C-mount adapter.

2. Screw your customer-supplied lens onto the

camera.

3. If you are using an autoiris lens, insert the autoiris

lens plug into the autoiris lens connector.

Figure 1 below and do the following:

1. If you are using a C-mount lens, screw on the

provided C-mount adapter.

2. Screw your customer-supplied lens onto the

camera.

3. If you are using an autoiris lens, insert the autoiris

lens plug into the autoiris lens connector.

Figure 1: Attaching your lens

Video-type autoiris lens

leads DC-type autoiris lens leads

C-mount adapter

(for C-mount lenses only)

B F

C G

D H

Camera Autoiris, lens

connector Autoiris lens

plug Lens (autoiris

shown); manual iris

has no cable

Video-type autoiris lens leads: A. Red (9 VAC); B. NC (no connection);

Black (ground); D. White (video)

DC-type autoiris lens leads: E. Damping coil (+); F. Damping coil (-); G.

Driving coil (+); H. Driving coil (-)

Connect power

Caution: Use direct plug-in UL listed power supplies

marked Class 2 or LPS (limited power source) of the

required output rating as listed on the unit.

1. With a screwdriver, loosen the GND and

~AC24V/DC12V terminal screws on the terminal

block.

2. Connect a universal 12 VDC, 24 VAC power supply

to the terminal block.

Note: The terminal block is not polarity- sensitive.

Either power lead can be connected to either

terminal connector. There is no need for an isolated

ground wire. The two power terminals can accept

any polarity and any combination of power that

equals 12 VDC or 24 VDC.

3. Retighten the terminal screws until snug, ensuring

that the power leads are secure.

4. Supply power to the unit by plugging the power

supply into a proper source.

Note: The power LED illuminates to show that the

camera is receiving power. If it does not illuminate,

check the terminal block connections and the power

source

Mount the camera

To mount the camera, attach the camera to the

mounting surface using the appropriate fasteners.

Connect the monitor

Program the cameras by attaching a standard video

monitor to the system.

To connect the monitor, do the following:

1. Plug the monitor output cable to the video monitor

output connector.

2. Connect the BNC cable to the video monitor.

3. Press Enter (see Figure 2) to display the Setup

menu.

Programming

This chapter describes how to navigate the setup menus

to adjust the camera settings.

OSD controls

Use the OSD (on-screen display) setup menus to

program the camera. See Figure 2 on page 3. The OSD

menus are only available in English.

UVC-XP4DN-HR(-P) Camera User Manual 3

Figure 2: OSD menu controls

Left

Right

Enter

Down

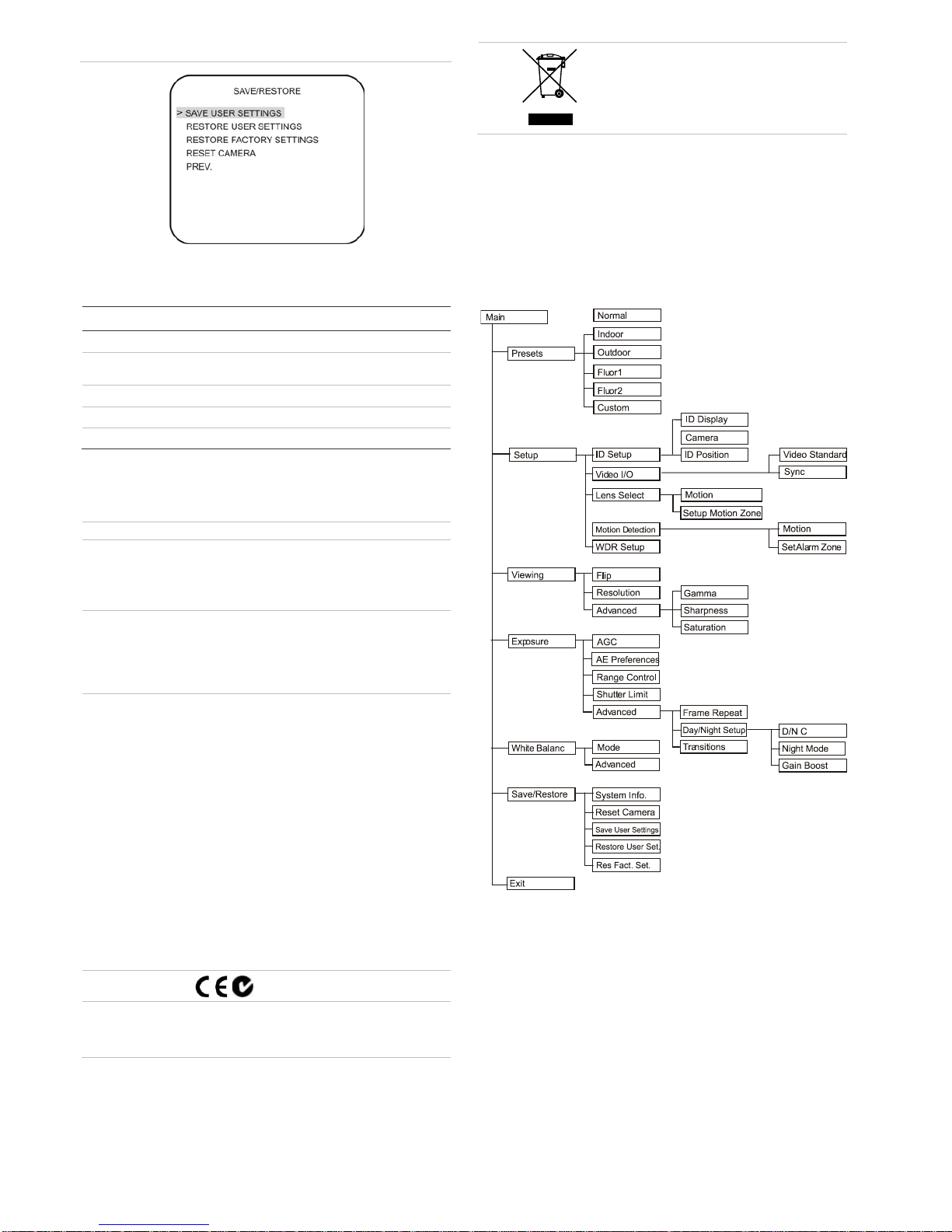

There is a menu map on the back page of the manual

that shows an overview of the menu structure (see

“Menu map” on page 6.)

Main menu

The camera is configured through the setup menus that

appear on-screen (see Figure 3).

To access and navigate the main menu, press and hold

the Enter button (See Figure 2). Use the up or down

buttons to move between items, and press the Enter

button to select that item. Use the left and right buttons

to select the different options available for the item.

Figure 3: Main menu

Table 1 lists the main menu options.

Table 1: Main menu options

Menu option

Function

Presets

Configures the preset for the lighting condition.

Setup

Configures camera ID, motion detection, and

wide dynamic range options.

Viewing

Configures flip and resolution.

Exposure

Configures automatic gain control (AGC), AE

preferences, shutter limit, frame report, and B/W

control.

White balance

Configures automatic white balance (AWB)

mode, and auto tracking white balance (ATW).

Save/restore

Saves user settings, restores user settings, and

restores factory settings.

Exit

Exits the OSD menu system and returns to live

mode.

When in a submenu, you can easily move back to a

previous menu, save changes as well as cancel

changes and return to live mode. Select one of these

options:

Prev.

Returns to the previous menu.

Save

Saves changes.

Cancel

Cancels and returns to live mode.

Presets menu

Table 2 lists the presets for common lighting conditions.

Select the option that suits your camera’s situation.

Table 2: Preset menu options

Menu option

Description

Normal

This is the camera default preset for general

lighting conditions out of the box. This mode

supports 14 bits of dynamic range and gives

priority to rendering the highlights in the

scene.

Indoor

This preset supports 16 bits of dynamic range

and gives priority to rendering the shadows in

the scene. It is primarily used for typical indoor

scenes and when you want to see backlit

objects clearly in front of bright backgrounds

(as in a building lobby, for example).

Outdoor

This preset offers the highest dynamic range

of 17 bits and gives priority to rendering the

highlights in the scene. This mode produces

flatter images than modes with lower dynamic

range.

Flickerless

Internally generated sync that reduces flicker

under fluorescent lighting.

Custom

Whenever any menu items are changed,

Custom will be displayed.

Setup menu

From the Main menu, use the arrow buttons to select

Setup and press the Enter button. The Setup menu

screen appears.

Figure 4: Setup menu

Table 3 below lists the main menu options.

Table 3: Setup menu options

Menu option

Description

ID setup

Configures camera identification and position.

See “Camera ID setup” on page 4 for setup

information.

Sync

Select one of the two options:

INT - Internal Synch. This is used with DC

Power Input as a way to reduce the phase roll

of fluorescent lights.

LL - Line Lock. This is used to synch video for

AC Power Input so that the synch matches the

frequency of the power input. This will

completely eliminate the roll caused by

fluorescent lights.

4 UVC-XP4DN-HR(-P) Camera User Manual

Menu option

Description

Motion detection

Configures detection threshold, PTZ settings,

and the location and size of the detection

zone.

See “Motion detection” below for setup

information.

WDR setup

Configures wide dynamic range (WDR). WDR

allows you to see details of objects in

shadows or details of o

bjects in bright areas of

frames that have high contrast between light

and dark areas.

Select one of the options: Safe area, ATM,

Lower 1/3, or WDR Normal.

Camera ID setup

From the Setup menu, use the arrow buttons to select

ID setup and press the Enter button. The Camera ID

Setup menu screen appears.

Figure 5: ID setup menu

Table 4 below lists the Camera ID setup menu options.

Table 4: Camera ID setup menu options

Menu option

Description

ID display

Select on or off.

Camera ID

Defines the camera name. Press the right

button to move the cursor to edit the camera

ID. Use the right or left buttons to cycle

through the character options and the Enter

button to select. When complete, use the up

down buttons to leave the editing field.

ID position

Defines where on-screen the camera name is

displayed. Select one of the position options:

Up-Left, Up-Center, Up-Right, Down-Left,

Down-Right.

Motion detection

A motion detection alarm refers to an alarm triggered

when the camera detects a motion.

From the Setup menu, use the arrow buttons to select

Motion detection and press the Enter button. The Motion

Detection menu screen appears.

Figure 6: Motion detection menu

Table 5 below lists the Motion Detection Setup menu

options.

Table 5: Motion Detection setup menu options

Menu optio

n Description

Motion

Enable or disable the motion detection option.

Set motion zone

Defines the on-screen area to trigger a response

to motion. Up to four zones can be set. Select

Setup motion zone to open the menu. This menu

lets you select the location and size of the

detection zone.

Use Set active zones to select the desired

number of zones to be set on screen. Select the

zone to be modified using Adjust zone…. This

screen appears with four boxes with the selected

zone in a white frame:

Use the arrow buttons to move and size each

box. The color of the box determines whether the

size or position changes when the arrows are

pressed. When completed, press Enter for a

couple of moments to return to the previous

screen.

Viewing menu

From the Main menu, use the arrow buttons to select

Viewing and press the Enter button. The Viewing menu

screen appears.

UVC-XP4DN-HR(-P) Camera User Manual 5

Figure 7: Viewing menu

Table 6 below lists the Viewing menu options.

Table 6: Viewing menu options

Menu option

Description

Flip

Flips the camera image so that it is correctly

orientated for viewing.

Select one of the options: Off, Horizontal,

Vertical, or Both.

Resolution

Configures resolution.

Select High or Normal option. The High option

oversharpens the image for higher resolution.

Exposure menu

From the Main menu, use the arrow buttons to select

Exposure and press the Enter button. The Exposure

screen appears.

Figure 8: Exposure menu

Table 7 lists the Exposure setup options.

Table 7: Exposure menu options

Menu option

Description

AGC

Configures automatic gain control (AGM). The

image quality is automatically adjusted in low light

conditions.

Select one of the options:

Medium, High, Custom,

or Low.

AE preferences

When enabled, it automatically optimizes the

image for highlights or shadows.

Range

control Select one of the options: Low, Normal, Med

ium,

High, Custom.

If Custom is selected, adjust the bias and limit

options.

Shutter

mode Configures shutter limit.

Select one of the options: X2, X4, X8, X16, X32,

or Off.

Frame

RPT Configures the frame repeat.

Select Off, 2X, or Freeze.

Menu option

Description

B/W control

Enable or disable day/night mode.

Enable the option for automatic day/night control.

Disable for color-only mode (day mode).

White balance menu

From the Main menu, use the arrow buttons to select

White balance and press the Enter button.

Figure 9: White balance menu

Table 8 below lists the White Balance menu options.

Table 8: White

balance menu

options

Menu option

Description

ode ATW (Auto tracking white balance) - The

default white balance range of the XP4

camera

is between 2800 and 7500 Kelvin depending

on the color temperature of the scene

illumination. It can be manually adjusted to

between 2000 and 11000 Kelvin.

PTL – Saves the AWB (Automatic white

balance) value and all changes made.

Use this option with care.

Save/restore menu

From the Main menu, use the arrow buttons to select

Save/restore and press the Enter button.

6 UVC-XP4DN-HR(-P) Camera User Manual

Figure 10: Save/restore menu

Table 9 below lists the Save/restore menu options.

Table 9: Save/restore menu options

Menu option

Description

Save user settings

Saves all current changes.

Restore user

settings Discards all current changes since the last

time “Save user Settings” was used.

Restore factory settings

Resets all settings to factory default.

Reset camera

Performs camera reset.

Prev.

Returns to previous menu.

Regulatory information

Trademarks and

patents Interlogix, UltraView brand and logos are trademarks of

UTC Fire & Security.

Other trade names used in this document may be

trademarks or registered trademarks of the

manufacturers or vendors of the respective products.

Manufacturer UTC Fire & Security Americas Corporation, Inc.

2955 Red Hill Avenue, Costa Mesa, CA 92626-5923,

USA

Authorized EU manufacturing representative:

UTC Fire & Security B.V.

Kelvinstraat 7, 6003 DH Weert, The Netherlands

FCC compliance Class A: This equipment has been tested and found to

comply with the limits for a Class A digital device,

pursuant to part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against

harmful interference when the equipment is operated in

a commercial environment. This equipment generates,

uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction

manual, may cause harmful interference to radio

communications. Operation of this equipment in a

residential area is likely to cause harmful interference in

which case the user will be required to correct the

interference at his own expense.

ACMA compliance Notice! This is a Class A product. In a domestic

environment this product may cause radio interference

in which case the user may be required to take

adequate measures.

Canada This Class A digital apparatus complies with Canadian

ICES-003.

Cet appareil numérique de la classe A est conforme à la

norme NMB-0330 du Canada.

Certification N4131

European Union

directives 12004/108/EC (EMC directive): Hereby, UTC Fire &

Security declares that this device is in compliance with

the essential requirements and other relevant provisions

of Directive 2004/108/EC.

2002/96/EC (WEEE directive): Products marked with

this symbol cannot be disposed of as unsorted municipal

waste in the European Union. For proper recycling,

return this product to your local supplier upon the

purchase of equivalent new equipment, or dispose of it

at designated collection points. For more information

see: www.recyclethis.info.

Contact information

For contact information see: www.interlogix.com or

www.utcfssecurityproducts.eu.

Menu map

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Interlogix Caméra de sécurité

Interlogix

Interlogix TruVision 4 Series Manuel utilisateur

Interlogix

Interlogix TruVision Line Manuel utilisateur

Interlogix

Interlogix UltraSync RS-3240 Manuel utilisateur

Interlogix

Interlogix TruVision TVB-2402 Manuel utilisateur

Interlogix

Interlogix TruVision TVA-1101 Manuel utilisateur

Interlogix

Interlogix TruVision TVD-2402 Manuel utilisateur

Interlogix

Interlogix TruVision Line Manuel utilisateur

Interlogix

Interlogix TruVision TVC-6110-1 Instructions d'utilisation et d'entretien

Interlogix

Interlogix TruVision IP Dome Manuel utilisateur

Interlogix

Interlogix TruVision TVD-2401 Manuel utilisateur

Interlogix

Interlogix UVD-XP3DNR Instructions de montage

Interlogix

Interlogix UVD-XP4DNR(-P) Manuel utilisateur

Interlogix

Interlogix TruVision TVC-7120-1-N Manuel utilisateur

Interlogix

Interlogix UltraView PTZ Manuel utilisateur

Interlogix

Interlogix UltraView PTZ Manuel utilisateur

Interlogix

Interlogix TruVision TVP-5201 Feuille d'instructions

Interlogix

Interlogix TVB-5501 Manuel utilisateur

Interlogix

Interlogix True Vision TVP-5104 Manuel utilisateur

Interlogix

Interlogix TruVision TVB-2402 Manuel utilisateur

Interlogix

Interlogix TruVision TVP-5101 Feuille d'instructions

Interlogix

Interlogix TruVision HD-TVI 3MPX Feuille d'instructions

Interlogix

Interlogix TVB-2201 Manuel utilisateur

Interlogix

Interlogix TruVision TVB-2402 Instructions d'utilisation et d'entretien

Interlogix

Interlogix UVP-M1120P-18X-N Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
