Interlogix TruVision TVB-2402 Instructions d'utilisation et d'entretien

TruVision High

Definition TVI

Bullet

Camera Installation

ide

TVB

-2402/TVB-4402

TVB

-2404/TVB-4404

B-2405/TVB-4405

P/N 1073164-EN • REV A • ISS 31MAR16

Installation Guide 1

Contents

Product overview 2

Camera description 4

Installation 7

Built-in heater in the TVB-2405/4405

camera 11

Program 11

Menu trees 17

Specifications 19

Legal and regulatory information 21

2 Installation Guide

Product overview

This is the TruVision High Definition TVI Bullet

Camera Installation Guide for models TVB-

2402/TVB-4402, TVB-2404/TVB-4404 and TVB-

2405/TVB-4405. This guide describes a standard

installation.

Package contents

Camera with power

and video output

cables

4 screws and 4

anchors for wall or

ceiling installation

Back box

Screws M4.8 ×18,

4 pcs to attach the

back box

Installation Guide 3

Template

Hex wrench

•Installation guide

•WEEE disposal

sheet

CD

•BNC monitor

output cable

Hole A:for cables routed through the wall

Drill Template

Screw hole 1: for integrative bracket

Screw hole 2: for conduit back box

4 Installation Guide

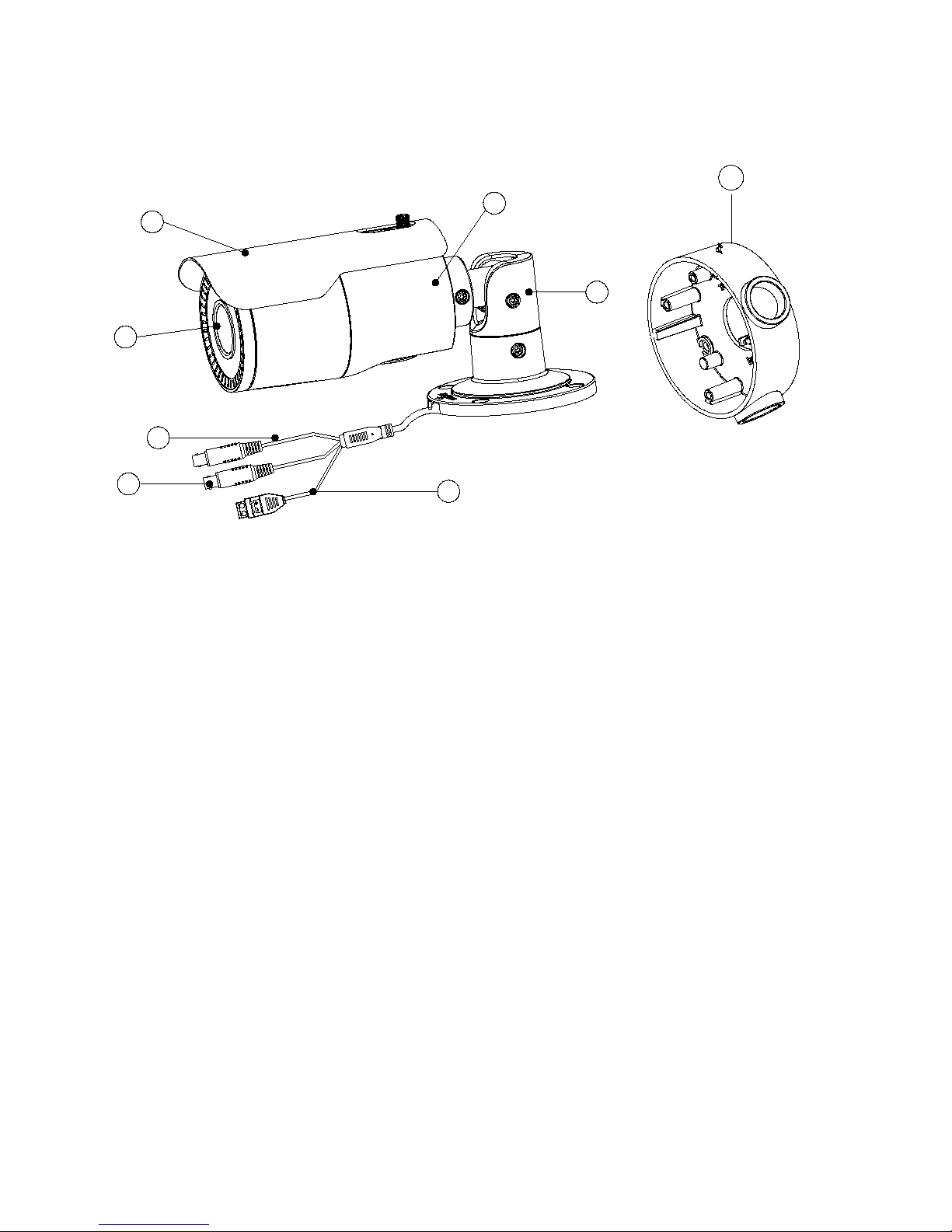

Camera description

1. CVBS output

(black)

2. TVI output (grey)

3. Power cable

4. Camera body

5. Sun shield

6. Lens

7. Mounting bracket

8. Back box

Note:

Please check the camera output settings before

setting up a system. The TVI video output can be

only connected to a DVR with a TVI signal input.

The CVBS output supports a standard CVBS

monitor (or test monitor), an encoder or a DVR.

Installation Guide 5

For 720P VF bullet cameras, TVB-2402 / TVB-4402,

the CVBS and TVI output can not be used at the

same time. Use the built-in switch to select the

camera video output.

For 1080P VF bullet cameras, such as TVB-

2404/TVB-4404 and TVB-2405/TVB-4405, the built-

in switch is used to enable/disable the WDR feature.

When the WDR feature is enabled, the CVBS

output will be blocked.

Figure 1: TVB-2402 /TVB-4402

Focus

Zoom

Menu button

Switch (Up= CVBS/

Down = TVI)

BNC output

6 Installation Guide

Figure 2: TVB-2404 /TVB-4404

Focus

Zoom

Menu button

Switch (Up= CVBS/

Down = WDR)

BNC output

Figure 3: TVB-2405 /TVB-4405

BNC output

Menu button

Switch (Up= CVBS/

Down = WDR)

Installation Guide 7

Installation

To install the camera:

1. Using the template, place it level against the

mounting surface and mark the position of the

mounting holes.

2. Following all local safety regulations, drill and

prepare the mounting holes.

3. As an optional step, install the back box on the

wall.

Hole A:for cables routed through the wall

Drill Template

Screw hole 1: for integrative bracket

Screw hole 2: for conduit back box

8Installation Guide

4. Route the cables to the cable hole and connect

the corresponding cables. Using a 75-ohm

coaxial video cable, connect the camera TVI

video output to a TVI DVR, and connect a

12 VDC or 24 VAC power supply to the power

cable.

5. Secure the camera to the ceiling or wall with

the screws provided.
