P/N 0435490_G

Merchandisers

RLN with INNOVATOR Doors

Technical Data Sheet

P/N 0435490_G

NSF®Certified

January 2007

We reserve the right to change

or revise specifications and

product design in connection

with any feature of our

products. Such changes

do not entitle the buyer to

corresponding changes,

improvements, additions or

replacements for equipment

previously sold or shipped.

Warning:

Terminal block NOT for

case-to-case

wire connection!

Item Part # Description Wiring Item #

FAN ASSEMBLIES, AND THERMOSTATS

A. 12W Standard Fan Assembly (1)

0047000 Fan Motor, Evaporator

(MO.4410103)

0461805 Fan Blade (FB.4780446)

12W Optional Energy Efficient Fan Assembly (1)

0477655 Fan Motor, Evaporator

(MO.4410546)

0461805 Fan Blade (FB.4780446)

B. 0474033 Standard Non-adjustable (2)

Defrost Thermostat (CT.4440726)

C. Optional Adjustable

Refrigeration Thermostat (3)

D. 0344662 Defrost Limit Thermostat (4)

(CT.4440261)

E. 0461814 Relay Control Thermostat or (5)

Fan and Anti-sweat Heater

Thermostat (CT.4481296)

RELAYS

F. 0342598 Anti-Sweat Control Relay (6)

(120V) (RL.4480238)

G. 0342599 Fan Control Relay (208V) (7)

(RL.4480237)

Item Part # (Qty) Description Wiring Item #

HEATERS

H. Electric Defrost Heaters – Front (208V) (8)

0441755 (1) 2 Door Models (HE.4850346)

0441756 (1) 3 Door Models (HE.4850337)

0441757 (1) 4 Door Models (HE.4850347)

0441758 (1) 5 Door Models (HE.4850323)

Electric Defrost Heaters — Rear (208V) (8)

0463891 (1) 2 Door Models (HE.4850358)

0463892 (1) 3 Door Models (HE.4850359)

0463893 (1) 4 Door Models (HE.4850360)

0463894 (1) 5 Door Models (HE.4850361)

I. Drain Pan Heater (Electric & Kool Gas) (9)

(120V)

0387036 (1) 2 Door Models (HE.4850239)

0387037 (1) 3 Door Models (HE.4850240)

0387038 (1) 4 Door Models (HE.4850241)

0387039 (1) 5 Door Models (HE.4850242)

LAMPS AND BALLASTS

J. 0430329 1 Lamp Ballast (BA.4480341)

0430330 2 Lamp Ballast (BA.4480342)

0454319 3 Lamp Ballast (BA.4480601)

0424649 Export Ballast (BA.0424649)

K. Standard Fluorescent Lamp

Replace with like fixtures

Refer to INNOVATOR REACH-INGLASS DOOR

INSTALLATION AND SERVICE manual, P/N 0425683,

for Innovator II door and frame replacement parts.

U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM

NOTE: For LED lighting parts contact your Hussmann

service representative at 1-800-922-1919. Please have

your model and serial number available.

NOTE: Revision G adds LED lighting throughout and fan updates on Pages 1 and 4.

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. RLN with Innovator Doors Technical Data Sheet

2 of 6

53/8

(142)

Front

5-Door Shown

(152)

(see note *)

Water Seal (see note **)

30 5/8

(778)

35 3/8

(899)

39 3/4

(1010)

(711)

37 5/8

(954)

Refrig. Outlet

Electrical Wireway

37 5/8

(954)

Bottom Front

Support

(1219)

3 (76)

4 (102)

Waste Outlet

Relay & Terminal

Block Location

Skid/External Base

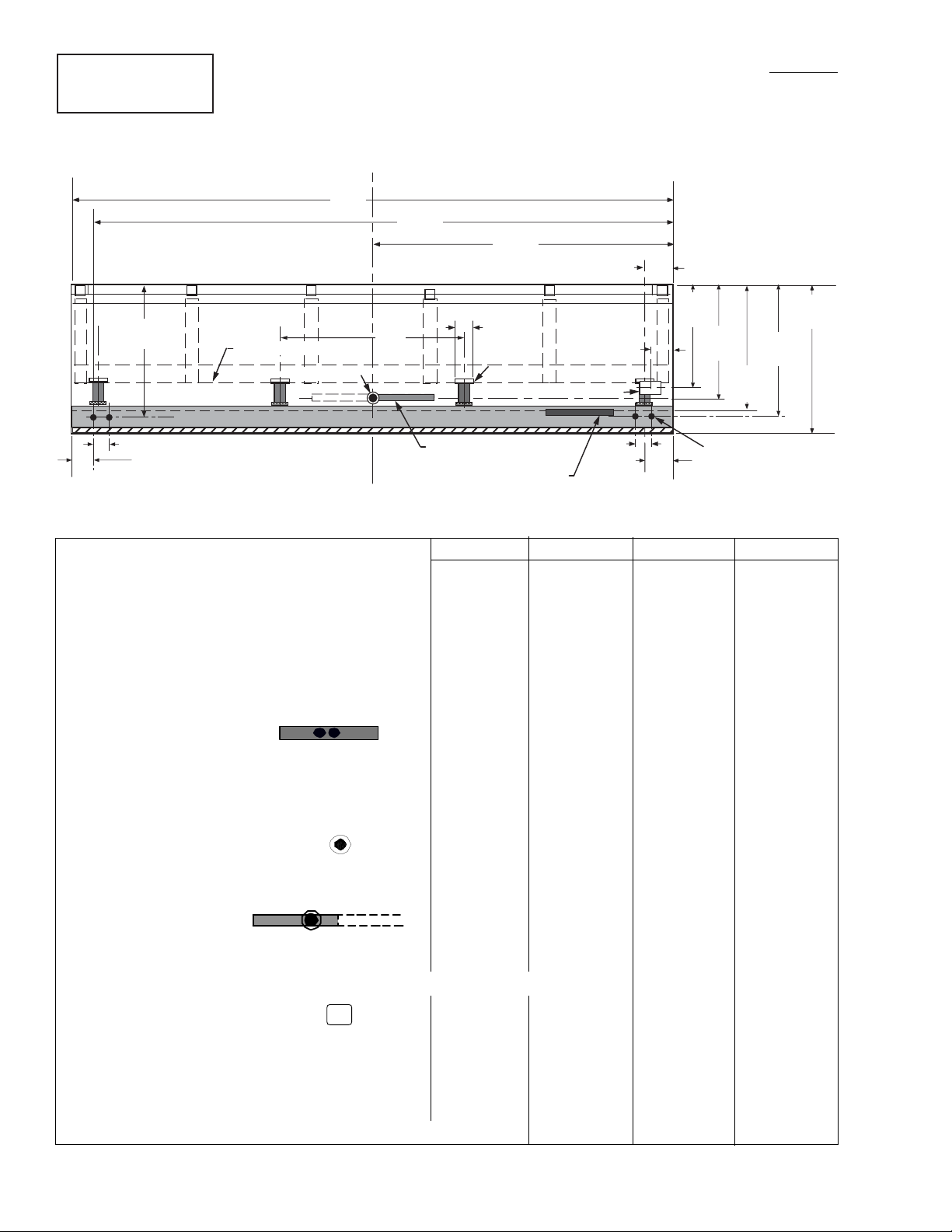

Reach-in Narrow

2, 3, 4, & 5 Door

10/2001

Engineering

Plan Views

RLN & RMN

Plan View

3 (76)

4 (102)

Dimensions shown as in. & (mm).

2 Dr 3 Dr 4 Dr 5 Dr

General

(A) Case Length (without ends or partitions) 62 (1575) 92 1/2 (2350) 122 7/8 (3121) 153 3/8 (3896)

Maximum O/S dimension of case back to front 39 3/4 (1010) 39 3/4 (1010) 39 3/4 (1010) 39 3/4 (1010)

(Includes bumper)

Back of case to rear of splashguard 35 3/8 (899) 35

3/8 (899) 35

3/8 (899)

Width of Skidrail 4 1/2 (114) 4 1/2 (114) 4 1/2 (114) 4 1/2 (114)

Width of Bottom Front Support 6 (152) 6 (152) 6 (152) 6 (152)

Stub-up area between front skidrail and splashguard 6 3/8 (1000) 6 3/8 (1000) 6 3/8 (1000) 6 3/8 (1000)

Electrical Service

RH end of case to the center of nearest knockout 4 (102) 4 (102) 4 (102) 4 (102)

(B) RH end of case to the center of LH knockout 58 (1473) 88 1/2 (2248) 118 7/8 (3019) 149 3/8 (3794)

Back O/S of case to center of knockout 37 5/8 (956) 37 5/8 (956) 37 5/8 (956) 37 5/8 (956)

* NOTE: Electrical Field Wiring Connection Point is at terminal.

Waste Outlet

Back O/S of case to center of waste outlet 34 5/8 (879) 34 5/8 (879) 34 5/8 (879) 34 5/8 (879)

Water Seal

Edge of water seal to center of waste outlet 11 (279) 11 (279) 11 (279) 11 (279)

Outside diameter of drip piping 1 1/4 (32) 1 1/4 (32) 1 1/4 (32) 1 1/4 (32)

** NOTE: Field installed water seal outlets, tees, and connectors are shipped with case

Refrigeration Outlet

RH end of case to center of RH refrigeration outlet 5 3/8 (137) 5 3/8 (137) 5 3/8 (137) 5 3/8 (137)

Back O/S of case to center of refrigeration outlet 28 (711) 28 (711) 28 (711) 28 (711)

(D) Outside bottom front supports from end of case 6 3/4(170) 6 3/4(170) 6 3/4(170) 6 3/4(170)

Center bottom front support from Centerline 24 (610) 24 (610) 24 (610) 24 (610)

Distance between Center and Outside supports will vary

01-2003

REFRIGERATION DATA

Note: This data is based on store temperature

and humidity that does not exceed 75°F and

55% R.H.

FF IC

Discharge Air (°F) –5 –12

Evaporator (°F) –11 –19

Unit Sizing (°F) –14 –22

Btu/hr/Door* FF IC

Parallel 1300 1370

Conventional 1325 1400

*Optional LED lighting reduces refrigeration

load by 100 Btu/hr/Door.

DEFROST DATA

FF IC

Frequency (hr) 24 24

Defrost Water (lb/Dr/day) 1.2 1.2

(± 15% based on case configuration and

product loading.)

ELECTRIC FF IC

Temp Term (°F) 48°48°

Failsafe (minutes) 45 45

GAS

Duration (minutes) 20 20

OFFTIME Not Recommended

CONVENTIONAL CONTROLS

Low Pressure Backup Control

FF IC

CI/CO (Temp °F)** –18°/ –34° – 26°/ –45°

Indoor Unit Only, Pressure Defrost

Termination (Temp °F)**

Not Recommended

**Use a Temperature Pressure Chart to

determine PSIG conversions.

PHYSICAL DATA

Drip Pipe (in.) 1 1/4

Liquid Line (in.) 3/8

Suction Line (in.) 7/8

Estimated Charge (lb)***

2Dr 1.8

3Dr 2.7

4Dr 3.6

5Dr 4.6

***This is an average for all refrigerant types.

Actual refrigerant charge may vary by

approximately half a pound.

Length Added to Lineup by each

Standard End (in.) 2

Optional End with Window (in.) 1 1/2

Optional Partition (in.) 1 1/2

3 of 6P/N 0435490_G HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

28 (711)

39 (1010)

35 (899)

37 (954)

30 (778)

(121)

(67)

82 3/8

(2091) 83 1/2

(2120)

Narrow Reach-in 2, 3, 4 and 5 Door Models

INNOVATOR Doors Standard

NSF Certification: These merchandisers are manufactured to meet

ANSI/National Sanitation Foundation (NSF®) Standard #7 requirements.

Dimensions shown as in. & (mm).

Impact RLN

With INNOVATOR Doors

Frozen Food & Ice Cream

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. RLN with Innovator Doors Technical Data Sheet

Electrical Data

2Dr 3Dr 4Dr 5Dr

Number of Fans—12W 2 3 4 5

Amperes Watts

Merchandiser 2Dr 3Dr 4Dr 5Dr 2Dr 3Dr 4Dr 5Dr

Evaporator Fan

120V 60Hz Standard 1.30 1.95 2.60 3.25 100 150 200 250

120V 50Hz Standard 1.50 2.25 3.00 3.75 114 171 228 285

220V 60Hz Export 0.66 0.99 1.32 1.65 100 150 200 250

220V 50Hz Export 0.76 1.14 1.52 1.90 114 171 228 285

120V 60Hz Energy Efficient 0.60 0.90 1.20 1.50 36 54 72 90

220V 60Hz Energy Efficient 0.30 0.45 0.60 0.75 36 54 72 90

Door Anti-sweat Heaters (on fan circuit)

120V 50/60Hz Standard 1.54 2.31 3.08 3.86 185 278 370 463

220V 50/60Hz Export 0.84 1.26 1.68 2.10 185 278 370 463

Frame Anti-sweat Heaters (on fan circuit)

120V 50/60Hz Standard 0.78 1.18 1.57 1.97 94 141 188 236

220V 50/60Hz Export 0.43 0.64 0.85 1.07 94 141 188 236

Minimum Circuit Ampacity

120V 60Hz Standard 3.82 5.64 7.45 9.28

120V 50Hz Standard 4.02 5.94 7.85 9.78

220V 60Hz Export 2.13 3.09 4.05 5.02

220V 50Hz Export 2.23 3.24 4.25 5.27

120V 60Hz Energy Efficient 3.12 4.59 6.05 7.53

220V 60Hz Energy Efficient 1.77 2.55 3.33 4.12

Maximum Over Current Protection 120V 20 20 20 20

Maximum Over Current Protection 220V 15 15 15 15

Defrost

Drain Heaters (120V) 0.63 1.25 2.00 2.57 75 150 240 300

(Export: 220V 50 Hz) 0.34 0.76 1.22 1.53 84 168 269 336

208V 1Ø Electric Defrost 6.72 10.08 13.46 16.82 1400 2100 2800 3500

(Export: 220V 50 Hz) 7.11 10.66 14.24 17.79 1564 2345 3133 3914

Standard Vertical Lighting 2Dr 3Dr 4Dr 5Dr 2Dr 3Dr 4Dr 5Dr

Innovator* Doors (120V) 1.50 2.00 2.50 3.00 180 240 300 360

(Export: 220V 50 Hz) 0.84 1.12 1.40 1.68 185 246 308 370

Optional LED Lighting (120V) 0.87 1.16 1.45 1.74 105 140 174 209

*Innovator or Innovator II

4 of 6

Impact RLN

With INNOVATOR Doors

Frozen Food & Ice Cream

Hussmann recommends against frame heater cycling with

Innovator

doors to prevent door seals from freezing to the

frames and tearing.

5 of 6P/N 0435490_G HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

Defrost Termination

Thermostat

Refrigeration

Thermostat

(Optional)

Pink

}To

Condensing

Unit

A.S. Relay

Coil

Evaporator Fans 1

Fan Relay

COM

N.O.

Rod Heater (Drain) 9

N.C.

Relay Control

Fan Relay

BCOM N.C.

A.S. Relay

A.S.

Door A.S. Heaters

Frame A.S. Heaters

120V POWER

OR L

120V POWER

Switch

NEUTRAL

17 20

Evaporator Fan

Relay Coil

Rear Defrost Heater

Front Defrost Heater

N.C.

Defrost Limit

208V 208V

Terminal Blocks in Raceway

Low Temperature with

Electric Defrost

20 21 22 26

3456 781011 1413 16

LIGHTS

(120V)

DEFROST HEATERS

(208V)

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

THESE ARE MARKER COLORS (WIRE MAY VARY.)

CAUTION: When multiplexing

merchandisers equipped with defrost

heaters, if branch circuit overcurrent

protection is larger than the

individual merchandiser’s defrost

circuit load, then additional

supplemental overcurrent protection

may be required per NEC Articles

210 and 240.

R = Red P = Purple 2P = Purple (2 Bands) DB = Dark Blue B = Black

BR =Brown Y =Yellow OR = Orange W = White

Fan and Heater Circuits - Electric Defrost (standard)

Low Temperature

24 2512

FANS & A.S.

(120V)

LIGHTS

(Neutral)

FANS & A.S. (Neutral)

Permanent Internal

Jumpers

R P WBRORRRRBBRRBP

2P BB ORB2PY

C.O.R.

6O.O.R.

Removable External

Jumpers

DB C.O.R.

Defrost Termination

Thermostat

FIELD WIRED

NEUTRAL

Dark Blue

Refer to Innovator Reach-In

Glass Door, Installation and

Service manual, P/N 0425683,

for Innovator door and frame

replacement parts.

Electric Defrost Sequence – Low Temperature

1. Power from the defrost contactor energizes Defrost Heaters and 208V Evaporator Fan Relay Coil (7). Relay Contacts open the fan

circuit and energizes the Drain Pan Heater.

2. If the Defrost Heater raises internal air temperature above 90°F, the Defrost Limit Thermostat (4) will open.

3. Temperature rise of the evaporator closes the Relay Control Thermostat (5) at about 35°F, energizing 120V A.S. Relay Coil (6). This

relay’s contacts open the Frame and Door Heater Circuits.

4. When Defrost Termination Thermostat ends defrost period, the defrost contactor opens the Defrost Heater and Evaporator Fan Relay

Coil Circuits. The Drain Pan Heater goes off and fans are on.

5. Temperature fall of the evaporator opens the Relay Control Thermostat (5) at about 20°F, de-energizing 120V A.S. Relay Coil (6).

A.S. Relay Contacts close the Frame and Door Heater Circuits.

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

6 of 6 RLN with Innovator Doors Technical Data Sheet

Permanent Internal

Jumpers

A.S. Relay

Coil

Evaporator Fans 1

Fan Relay

COM

N.O. Rod Heater (Drain) 9

N.C.

Relay Control

Fan Relay

BCOM N.C.

A.S. Relay

A.S.

Door A.S. Heaters

Frame A.S. Heaters

120V POWER

C.O.R.

OR L

120V POWER

Switch

NEUTRAL

17 20

Terminal Blocks in Raceway

Low Temperature with

Gas Defrost

20 21 22 26

10 11 1413 16

LIGHTS

(120V)

Refrigeration

Thermostat

(Optional)

Pink

}To

Condensing

Unit

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

THESE ARE MARKER COLORS (WIRE MAY VARY.)

R = Red P = Purple 2P = Purple (2 Bands) DB = Dark Blue B = Black

BR =Brown Y =Yellow OR = Orange W = White

24 2512

FANS & A.S.

(120V)

LIGHTS

(Neutral) FANS & A.S. (Neutral)

PWBRORBP

2P BB ORB2PY

Removable External

Jumpers

Fan and Heater Circuits - Gas Defrost (optional)

Low Temperature

Fan Relay

Coil

Defrost Limit 4

O.O.R.

NEUTRAL

Refer to Innovator Reach-In

Glass Door, Installation and

Service manual, P/N 0425683,

for Innovator door and frame

replacement parts.

Gas Defrost Sequence – Low Temperature

1. Defrost vapor enters evaporator causing a rise in temperature. At about 35°F the Control Relay Thermostat (5) closes the

Fan Relay Coil (7) and Control Relay Coil (6) circuit. The Coil opens the Fan, Door Heater, and Frame Heater circuits,

while energizing the Drain Pan Heater (9).

2. If the Drain Pan Heater (9) raises internal air temperature above 90°F, the Heater Limit Thermostat (4) will open.

3. When the defrost timer ends a defrost period, the evaporator temperature will start to fall. At about 20°F, the Control

Relay Thermostat will open, de-energizing the Control Relay Coil and Fan Relay Coil (7). Control and Fan Relay’s will

open the Drain Pan Heater circuits, and will close the Fan, Door Heater, and Frame Heater circuits.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Hussmann marchandiseur

Hussmann

Hussmann Impact M1GE Manuel utilisateur

Hussmann

Hussmann IMPACT M1CIMP-4B Guide de l'utilisateur

Hussmann

Hussmann P4XRO-E Mode d’emploi

Hussmann

Hussmann RI1 Mode d’emploi

Hussmann

Hussmann SHVSV Series Manuel utilisateur

Hussmann

Hussmann IMPACT D6L Manuel utilisateur

Hussmann

Hussmann CGFMG Manuel utilisateur

Hussmann

Hussmann SHVS Mode d'emploi

Hussmann

Hussmann Impact C2-LEP Mode d’emploi

Hussmann

Hussmann Impact F6 Manuel utilisateur

Hussmann

Hussmann IMPACT LWEGH Mode d’emploi

Hussmann

Hussmann IMPACT M5NGE Manuel utilisateur

Hussmann

Hussmann SMGV Manuel utilisateur

Hussmann

Hussmann IMPACT Excel C2NX-LE Mode d’emploi

Hussmann

Hussmann PWREE Manuel utilisateur

Hussmann

Hussmann IMPACT CW2-EGE Manuel utilisateur

Hussmann

Hussmann DMM Manuel utilisateur

Hussmann

Hussmann IMPACT LWGH Mode d’emploi

Hussmann

Hussmann IMPACT D5NHE Manuel utilisateur

Hussmann

Hussmann MPCETNM6S Manuel utilisateur

Hussmann

Hussmann microSC VRL1B Manuel utilisateur

Hussmann

Hussmann DDS Guide rapide

Hussmann

Hussmann C2X-XEP Mode d’emploi

Hussmann

Hussmann M1X-GEP Mode d’emploi

Manuels marchandiseur populaires d'autres marques

FRIGOGLASS

FRIGOGLASS Flex 20 HC Manuel utilisateur

EPTA

EPTA COSTAN RHINO MULTI Manuel utilisateur

CASCO

CASCO Nano Cube Manuel utilisateur

True

True GDIM-26 Manuel utilisateur

Structural Concepts

Structural Concepts Oasis Mobile Series Instructions d'installation

Haussmann

Haussmann RL Manuel utilisateur

Howard McCray

Howard McCray R-CDS32E-4 Manuel utilisateur

EPTA

EPTA iarp Cool Emotions Delight Lite Manuel utilisateur

VALERA

VALERA BC 85 Manuel utilisateur

HL Display

HL Display 3eBin Manuel utilisateur

Dixie Narco

Dixie Narco DNCB 501E Manuel utilisateur

APW Wyott

APW Wyott Racer DMXD-30H Manuel utilisateur

Hoshizaki

Hoshizaki KD-90C Manuel utilisateur

Summit

Summit SCR1006 Manuel utilisateur

Delfield

Delfield Shelleyspeed SPM-28E Manuel utilisateur

EPTA

EPTA iarp Cool Emotions GLEE 40 Manuel utilisateur

Kysor/Warren

Kysor/Warren GranBering KW Mode d’emploi

Crane

Crane BevMAX Refresh 6 Media Manuel utilisateur
