Hussmann P4XRO-E Mode d’emploi

P/N 0481571_A

P4XRO-E

Technical Data Sheet

P/N 0481571_A

NSF®Certified

March 2008

We reserve the right to change or revise specifications

and product design in connection with any feature of

our products. Such changes do not entitle the buyer to

corresponding changes, improvements, additions or

replacements for equipment previously sold or shipped.

Item Part # Description Wiring Item #

FAN ASSEMBLIES

4 Ft, 8 Ft & 12 Ft

A. 12W Standard Fan Assembly (1)

0047000 Fan Motor, Evaporator

(MO.4410103)

0461805 Fan Blade (FB.4780446)

12W Energy Efficient Fan Assembly (1)

0477655 Fan Motor, Evaporator

(MO.4410546)

0461805 Fan Blade (FB.4780446)

6 Ft Only

A. 7W Standard Fan Assembly (1)

0058698 Fan Motor, Evaporator

(MO.4410102)

0142780 Fan Blade (FB.0142780)

7W Energy Efficient Fan Assembly (1)

0477654 Fan Motor, Evaporator

(MO.4410545)

0142780 Fan Blade (FB.0142780)

Item Part # Description Wiring Item #

THERMOSTATS

B. 0411744 Standard Non-adjustable (2)

Defrost Thermostat

(CT.0411744)

C. Optional Adjustable Refrigeration Thermostat (3)

LAMPS. BALLASTS, LED FIXTURES AND POWER SUPPLY

D. Ballast, Electronic (4)

0480130 2 lamps (BA.4481676)

0480131 3 lamps (BA.4481654)

0480132 4 lamps (BA.4481677)

E. Fluorescent Lamp (5)

Replace with like fixtures

F. 0501213 Power Supply (EP.4481861) (6)

G. LED Fixture (7)

Replace with like fixtures

U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM

Note: Revision A changes ballast (Page 1); adds optional LED lighting (Pages 1, 3, 4, 8); adds capacity and weight (Page 5).

2 of 8 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. P4XRO-E Technical Data Sheet

Engineering

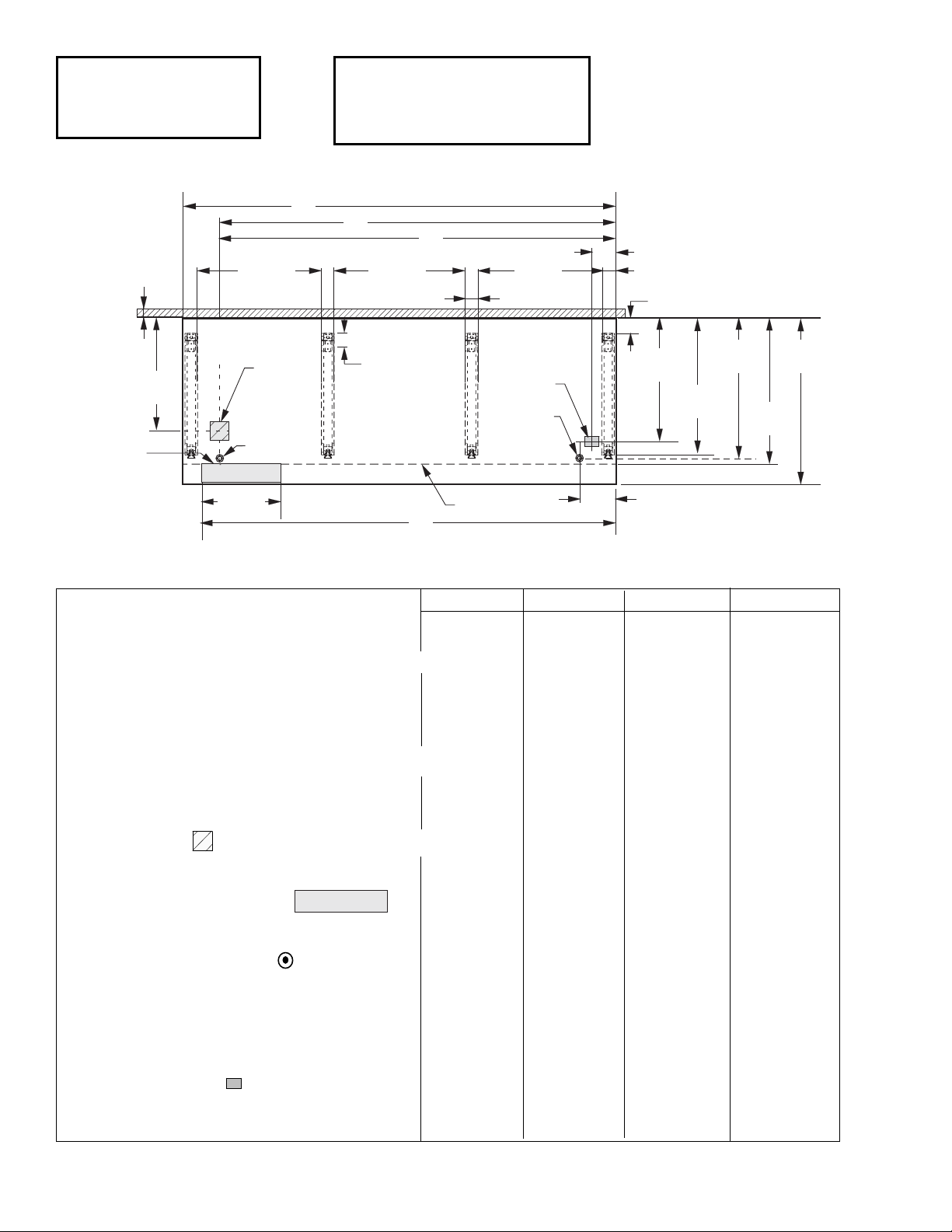

Plan Views

NOTE: Case-to-Case Electrical Connections

are made IN FRONT OF SPLASHGUARD.

4 3/4 (120)

Splashguard

41 1/2

(1054)

3 In.

(77 mm)

Required

Air Gap

Refrigeration

Outlet

Electrical

Stub Up Area

6 x 6

(152x152) Waste Outlet

Waste Outlet

FRONT

8(203)

4 1/2 (115)

12 1/8 (307)

43 7/8

(1114)

Wireway

4 3/4 (120)

26 1/2

(673)

4 1/4 (108)

Electrical

Field

Connection

46 1/4

(1174)

(1220)

40 5/8

(1032)

56 1/2

(1435)

44 5/8

(1133)

41 1/2

(1054)

38 1/2

(978)

Produce

10-2005

P4XRO

4 ft 6 ft 8 ft 12 ft

General

(A) Case Length (without ends or partitions) 48 3/8(1229) 72 3/8(1838) 96 3/8(2448) 144 1/2(3670)

(Each end and insulated partition adds 1 1/2 in. (38 mm) to case line up.)

Maximum O/S dimension of case back to front

(includes bumper) 56 1/2 (1435) 56 1/2 (1435) 56 1/2 (1435) 56 1/2 (1435)

Back of case to front of splashguard 43 3/8 (1102) 43 3/8 (1102) 43 3/8 (1102) 43 3/8 (1102)

Back of case to O/S edge of front leg 40 (1016) 40 (1016) 40 (1016) 40 (1016)

Distance between edges of external legs and center legs NA 29 1/2 (750) 41 1/2 (1054) 41 1/2 (1054)

Distance between edges of center legs NA NA NA 43 7/8 (1114)

Distance between front legs and splashguard 2 3/4(70) 2 3/4(70) 2 3/4(70) 2 3/4(70)

Electrical Service (Electrical Field Wiring connection point)

(B) RH End of case to center of stub up area 36 1/4 (921) 60 1/4 (1530) 84 1/4 (2140) 132 3/8 (3363)

Back of case to center of stub up area 38 1/2 (978) 38 1/2 (978) 38 1/2 (978) 38 1/2 (978)

Length of electrical wireway 26 1/2 (673) 26 1/2 (673) 26 1/2 (673) 26 1/2 (673)

Waste Outlets (One each end)

(D) RH End of case to the center of LH waste outlet 36 1/4 (921) 60 1/4 (1530) 84 1/4 (2140) 132 3/8 (3363)

RH End of case to the center of RH waste outlet 12 1/8 (307) 12 1/8 (307) 12 1/8 (307) 12 1/8 (307)

Back O/S of case to center of waste outlets 41 1/2 (1054) 41 1/2 (1054) 41 1/2 (1054) 41 1/2 (1054)

Schedule 40 PVC drip pipe 1 1/4 (32) 1 1/4 (32) 1 1/4 (32) 1 1/4 (32)

Refrigeration Outlet

Back of case to center of refrigeration outlet 33 5/8 (854) 33 5/8 (854) 33 5/8 (854) 33 5/8 (854)

RH end of case to center of refrigeration outlet 8 (203) 8 (203) 8 (203) 8 (203)

Dimensions shown as inches and (mm).

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 1/4

Merchandiser Liquid Line (in.) 3/8

Merchandiser Suction Line (in.) 7/8

Wireway

REFRIGERATION DATA

Note: This data is based on store temperature and

humidity that does not exceed 75°F and 55% R.H.

P4XRO-E

Discharge Air (°F) 31

Evaporator (°F) 24

Unit Sizing (°F) 22

Btu/hr/ft — Unlit Shelves

P4XRO-E‡‡ Parallel Conventional

UNLIT 1455 1585

‡‡ Add 10 Btu/hr/ft per shelf row for LED fixtures.

Add 20 Btu/hr/ft per shelf row for fluorescent lamps.

DEFROST DATA

P4XRO-E

Frequency Hrs 6

Defrost Water (lb/ft/day) 9

(± 15% based on case configuration and product

loading).

OFFTIME P4XRO-E

Temp Term °F 48

Failsafe Minutes 30

ELECTRIC OR GAS Not Recommended

Standard Defrost Thermostat

Close on rise: close 48°F — open 33°F

CONVENTIONAL CONTROLS

Low Pressure Backup Control

CI/CO*P4XRO-E

17°F / 7°F

Indoor Unit Only, Pressure Defrost

Termination* 48°F

*Use a Temperature Pressure Chart to determine

PSIG conversions.

Estimated Charge (lb)** P4XRO-E

4 ft 1.6

6 ft 2.3

8 ft 3.2

12 ft 4.5

**This is an average for all refrigerant types.

Actual refrigerant charge may vary by

approximately half a pound.

P/N 0481571_A 3 of 8

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

8 3/4

(222)

Refrigeration

Outlet

Electrical

Case to Case

Connections

P4XRO-E

FAN

3 In. (77 mm)

Required

Air Gap

81 3/4

(2077)

11 7/8

(302)

46 1/4 (1174)

4 3/4

(120)

48 (1220)

24 5/8

(625)

12 1/4

(311)

15 3/8

(391)

40 5/8 (1032)

44 3/4

(1136)

52 7/8

(1343)

(280)

56 1/2 (1435)

51 3/8

(1305)

(686)

34 5/8

(880)

31 3/4 (806)

44 5/8 (1133)

14 3/8

(365)

7 1/4

(183)

Impact

Excel

P4XRO-E

Produce

Multi-deck, 4 Display Levels

Dimensions shown as inches and (mm).

NSF Certification

This merchandiser model is manufactured to meet ANSI/NSF

(National Sanitation Foundation) Standard #7 requirements for

construction, materials & cleanability.

Electrical Data

4 ft 6 ft 8 ft 12 ft

Number of Fans—12W 2 — 4 6

Number of Fans—7W — 4 — —

Amperes Watts

4 ft 6 ft 8 ft 12 ft 4 ft 6 ft 8 ft 12 ft

Evaporator Fan

120V 60Hz Standard 1.30 2.00 2.60 3.90 100 156 200 300

120V 50Hz Standard 1.50 2.20 3.00 4.50 114 168 228 342

230V 60Hz Export 0.66 1.00 1.32 1.98 100 156 200 300

230V 50Hz Export 0.76 1.12 1.52 2.28 114 168 228 342

120V 60Hz Energy Efficient 0.60 0.76 1.20 1.80 36 56 72 108

230V 60Hz Energy Efficient 0.30 0.40 0.60 0.90 36 56 72 108

Minimum Circuit Ampacity

120V 60Hz Standard 1.50 2.20 2.80 4.10

120V 50Hz Standard 1.70 2.40 3.20 4.70

230V 60Hz Export 0.86 1.20 1.52 2.18

230V 50Hz Export 0.96 1.32 1.72 2.48

120V 60Hz Energy Efficient 0.80 0.96 1.40 2.00

230V 60Hz Energy Efficient 0.50 0.60 0.80 1.10

Maximum Over Current Protection 120V 20 20 20 20

Maximum Over Current Protection 230V 15 15 15 15

Standard Lighting (T-8 fluorescent)

1 Row Canopy 0.26 0.51 0.51 0.77 30 59 59 85

Optional Lighting (T-8 fluorescent)

Additional 1 Row Canopy 0.26 0.51 0.51 0.77 30 59 59 85

Additional 2 Row Canopy 0.51 1.02 1.02 1.54 59 118 118 170

Additional 3 Row Canopy 0.77 1.53 1.53 2.31 89 177 177 255

1 Row Rail Light 0.26 0.51 0.51 0.77 30 59 59 85

Optional Shelf Lighting (T-8 fluorescent)

3 Rows of Shelves 0.77 1.53 1.53 2.31 59 177 177 255

4 Rows of Shelves 1.02 2.04 2.04 3.08 118 236 236 340

5 Rows of Shelves 1.28 2.55 2.55 3.85 148 295 295 425

Optional Always*Bright LED Lighting

3 Rows of Shelves 0.38 0.53 0.74 1.11 45 63 89 133

4 Rows of Shelves 0.47 0.68 0.93 1.40 56 82 112 168

5 Rows of Shelves 0.57 0.83 1.13 1.69 68 99 136 203

120V Lighting Circuit Total = Standard Lighting + Total Optional Lighting + Optional Shelf Lighting

230V Lighting Circuit Total = Multiply 120V Lighting Circuit Total by 0.52

4 of 8 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. P4XRO-E Technical Data Sheet

Impact

Excel

P4XRO-E

Produce

ESTIMATED SHIPPING WEIGHT 5

Case Solid End

4 ft 6 ft 8 ft 12 ft (each)

lb (kg) 700 (318) 900 (408) 1100 (499) 1400 (635) 100 (45)

5Actual weights will vary according to optional kits included.

5 of 8P/N 0481571_A HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

Impact

Excel

P4XRO-E

Produce

Product Data

ARI Refrigerated Volume 1 (Cu Ft/Ft) 11.55 ft3/ft (1.07 m3/m)

Recommended Usable Cube 2 (Cu Ft/Ft) 9.25 ft3 /ft (0.86 m3 /m)

ARI Total Display Area 3 (Sq Ft/Ft) 4.88 ft2/ft (1.49 m2 /m)

Shelf Area 4(Sq Ft/Ft) 8.09 ft2/ft (2.47 m2 /m)

1Computed using ARI 1200 standard methodology: Refrigerated Volume, ft3[m3]/Unit of Length, ft [m]

2ARI Refrigerated Volume less shelving and other unusable space: Refrigerated Volume/Unit of Length, ft3/ft [m3/m]

3Computed using ARI 1200 standard methodology: Total Display Area, ft2[m2]/Unit of Length, ft [m]

4Shelf surface area is composed of bottom deck plus standard shelf complement, as shown in the Hussmann

Product Reference Guide. The standard shelf complement for this model is (1) row of 16-inch shelf and

(2) rows of 18-inch shelves.eparately from fans.

6 of 8 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. P4XRO-E Technical Data Sheet

Defrost

Termination

Thermostat

Refrigeration

Thermostat

Dark Blue

Condensing

Unit

}

Light Blue

2, 4 & 6 Fans

120V NEUTRAL

BROWN BAND

120V POWER

Fans 1

BROWN BAND

4 ft

6 ft

8 ft

12 ft

Optional

Two Row

Canopy

Optional

Three Row

Canopy

Connector

BL BL

Orange or Tan Band

3 Row Canopy

455

Connector

4 ft 6 ft or 8 ft 12 ft

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = FIELD GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

= CASE GROUND

Fan Wiring

Offtime Defrost

Light Circuits

7 of 8P/N 0481571_A HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = FIELD GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

= CASE GROUND

Optional Shelf Harness and Light Circuits for

Four Rows of Shelves

4 ft case

Connector

6 ft or 8 ft case

12 ft case

Optional Shelf Lighting

Fluorescent Fixtures

8 of 8 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. P4XRO-E Technical Data Sheet

BL 7

RBL

4 ft case

6 ft or 8 ft case

12 ft case

(TYP)

Shelf Light

Plug & Receptacle

Connector

BL 7

RBL

BL 7

RBL

R = Red G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = FIELD GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

= CASE GROUND

Connector

Optional Shelf Harness and LED Light Circuits for

3, 4, 5, 6 & 7 Rows of Shelves

Optional Shelf Lighting

LED Fixtures

Table des matières

Autres manuels Hussmann marchandiseur

Hussmann

Hussmann impact Excel C5X-LEP Mode d’emploi

Hussmann

Hussmann FHMA Manuel utilisateur

Hussmann

Hussmann IMPACT D6L Manuel utilisateur

Hussmann

Hussmann IMPACT LWUGH Mode d’emploi

Hussmann

Hussmann Impact C2-XLE Mode d’emploi

Hussmann

Hussmann Impact C2-XGEP Mode d’emploi

Hussmann

Hussmann DSF Mode d’emploi

Hussmann

Hussmann Impact M3 Manuel utilisateur

Hussmann

Hussmann ISLA Series Manuel du propriétaire

Hussmann

Hussmann IMPACT M1CIMP-4B Manuel utilisateur

Hussmann

Hussmann microSC GSVM A Series Manuel utilisateur

Hussmann

Hussmann microSC MDN-BA Manuel utilisateur

Hussmann

Hussmann RI4-E Mode d’emploi

Hussmann

Hussmann Impact C1CWC Mode d’emploi

Hussmann

Hussmann RDI Mode d’emploi

Hussmann

Hussmann D5X-RE Mode d’emploi

Hussmann

Hussmann IMPACT Excel D6X-ULEP Mode d’emploi

Hussmann

Hussmann NP1 Manuel utilisateur

Hussmann

Hussmann IMPACT LW Manuel utilisateur

Hussmann

Hussmann VR3-M Series Manuel utilisateur

Hussmann

Hussmann FM Manuel utilisateur

Hussmann

Hussmann CRFD Mode d'emploi

Hussmann

Hussmann Impact Excel M4X-E Mode d’emploi

Hussmann

Hussmann PWREE Manuel utilisateur

Manuels marchandiseur populaires d'autres marques

FRIGOGLASS

FRIGOGLASS Flex 20 HC Manuel utilisateur

EPTA

EPTA COSTAN RHINO MULTI Manuel utilisateur

CASCO

CASCO Nano Cube Manuel utilisateur

True

True GDIM-26 Manuel utilisateur

Structural Concepts

Structural Concepts Oasis Mobile Series Instructions d'installation

Haussmann

Haussmann RL Manuel utilisateur

Howard McCray

Howard McCray R-CDS32E-4 Manuel utilisateur

EPTA

EPTA iarp Cool Emotions Delight Lite Manuel utilisateur

VALERA

VALERA BC 85 Manuel utilisateur

HL Display

HL Display 3eBin Manuel utilisateur

Dixie Narco

Dixie Narco DNCB 501E Manuel utilisateur

APW Wyott

APW Wyott Racer DMXD-30H Manuel utilisateur

Hoshizaki

Hoshizaki KD-90C Manuel utilisateur

Summit

Summit SCR1006 Manuel utilisateur

Delfield

Delfield Shelleyspeed SPM-28E Manuel utilisateur

EPTA

EPTA iarp Cool Emotions GLEE 40 Manuel utilisateur

Kysor/Warren

Kysor/Warren GranBering KW Mode d’emploi

Crane

Crane BevMAX Refresh 6 Media Manuel utilisateur
