Hussmann PWREE Manuel utilisateur

PWREE

Data Sheet Set

P/N 0417993A

NSF®Certified

May 2004

Merchandisers

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

NOTE: Changed items have been underlined.

P/N 0417993A

Item Part # Description Wiring Item #

FAN ASSEMBLIES, AND THERMOSTATS

(A) 0378349 Fan Motor, Evaporator (1)

0142780 Fan Blade

Embossing toward motor

We reserve the right to change

or revise specifications and

product design in connection

with any feature of our

products. Such changes

do not entitle the buyer to

corresponding changes,

improvements, additions or

replacements for equipment

previously sold or shipped.

PWREE Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

2 of 4

PWREE

Base Rail

Waste Outlet

& Water Seal

Front

Access Area

3/8

(822)

3/8

(1254)

(432)

1/2

(2070)

1/2

(2502)

3/4

(984)

(432)

7/8

(149)

(667

)

7/8

(149)

Engineering

Plan Views

End Case

for 98 Inch

Produce

Wide Island

07-2003

Dimensions are shown as inches & (mm).

General END

PWREE

Maximum outside dimension of case side to side (includes bumper) 98 1/2(2502)

Lefthand side of case to outside edge of righthand base rail 81 1/2(2070)

Width of case 49 3/8(1254)

Front of base rail to rear of case 32 3/8 (822)

Front of case to outside edge of base rail 17 (432)

Front of splashguard to outside edge of base rail 5 7/8(149)

Width of base rail 2 1/8(54)

Access area between front of base rail and splashguard 4 7/8(124)

Waste Outlet

Front outside edge of case to center of waste outlet 26 1/4(667)

Right outside edge of case to center of waste outlet 38 3/4(984)

3 of 4

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

P/N 0417993A

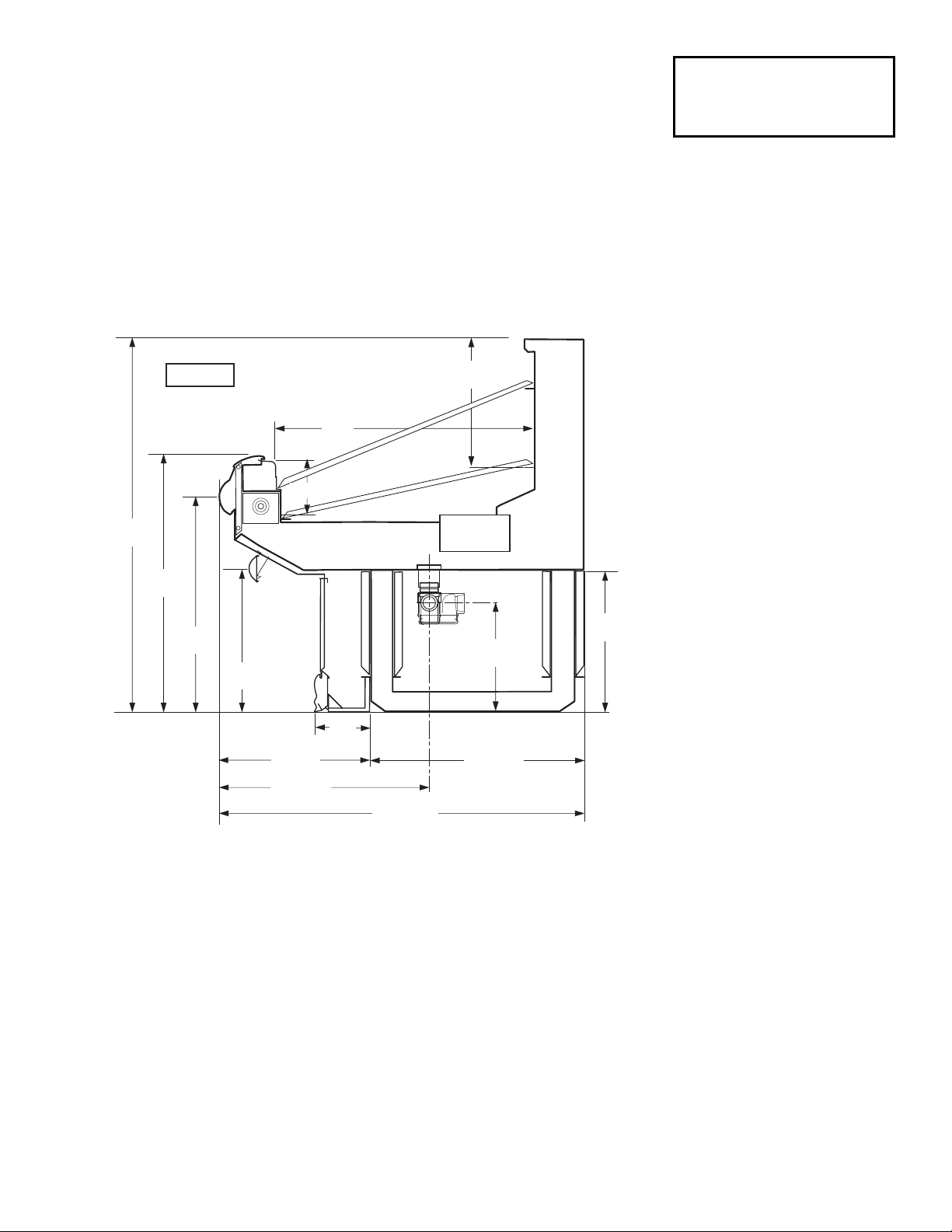

Impact PWREE

Produce

Produce Wide Island End, 1 Display Level

(1118)

30 3/8

(772)

(381)

36 3/4

(933)

6 (152)

12 3/8

(314)

5 7/8

(149)

17 (432)

49 3/8 (1254)

16 5/8

(422)

26 1/4(667)

32 3/8(822)

25 1/2

(648)

17 3/8

(441)

FAN

COIL

PWREE Optional

Rack

Positions

NSF Certification

These merchandisers are manufactured to meet ANSI /National

Sanitation Foundation (NSF®) Standard #7 requirements.

Dimensions are shown as inches & (mm).

REFRIGERATION DATA

Note: This data is based on store temperature

and humidity that does not exceed 75°F and

55% R.H.

PWREE

Discharge Air (°F) 32

Evaporator(°F) 24

Unit Sizing (°F) 22

Btu/hr/case* PWREE

Parallel 2845

Conventional 3140

*For all refrigeration equipment other than

Hussmann, use conventional Btu values.

DEFROST DATA

PWREE

Frequency (hr) 6

Defrost Water (lb/ft/day) 8

(± 15% based on case configuration and

product loading).

OFFTIME PWREE

Temp Term (°F) N/A

Failsafe (minutes) 45

CONVENTIONAL CONTROLS

Low Pressure Backup Control

CI/CO** 17°/ 7° F

Indoor Unit Only, Pressure Defrost

Termination** 48° F

**Use a Temperature Pressure Chart to

determine PSIG conversions.

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 11/2

Liquid Line (in.) 3/8

Suction Line (in.) 7/8

Estimated Charge (lb)*** 1.1

***This is an average for all refrigerant types.

Actual refrigerant charge may vary by

approximately half a pound.

Length Added to Lineup by

Each End/Partition (in.) 1 1/2

Electrical Data

Number of Fans PWWEE

Refrigeration — 9W 1

Refrigeration — 9W (Export) 1

Amperes Watts

Merchandiser PWWEE PWWEE

Fans (Refrigeration)

Standard (120V 60Hz) 0.77 62

Energy Efficient (120V 60Hz) 0.38 25

Export (230V 50 Hz) 0.47 70

Min. Circuit Ampacity

With Standard Fans (120V 60Hz) 0.97

With Energy Efficient Fans (120V 60Hz) 0.58

With Export Fans (230V 50 Hz) 0.67

Maximum Over Current Protection 120V 20

Maximum Over Current Protection 230V 15

Standard Lighting Optional Lighting Optional Shelf Lighting

None None None

PWREE Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

4 of 4

Impact PWREE

Produce

= 120V POWER = 120V NEUTRAL

Fan Wiring

Offtime Defrost

WARNING

All components must have a mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

1 Fan

120V NEUTRAL

BROWN BAND

120V POWER Fan 1

BROWN BAND
