Hussmann IMPACT M1CIMP-4B Guide de l'utilisateur

Merchandisers

Startup

Instruction Supplement

for

M1CIMP-4B

Self Contained Spot Merchandiser

March 2006

P/N 0482457

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.

Begin with power cord

UNPLUGGED!

The condensing unit

should be started up and

checked to ensure proper

performance before

installing the support

brackets and all lower

panels. To gain access to

the unit’s control panel,

remove the front close-

off panel.

Remove the unit control

panel cover. Check all

wiring terminal connec-

tions and make sure they

are tight.

Check defrost settings on

the time clock and adjust

as needed. Refer to the

data sheet (P/N 0480307)

provided with the unit for

recommended settings.

Page 3

P/N 0482457

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.

M1CIMP-4B Self-Contained Spot Merchandiser

Startup Supplement to Installation Instructions

Remove Close-Off Panel

Remove

Unit Control Panel

Cover

Power Switch

Unit Control / Time Clock /

T-Stat / Dual Pressure Control

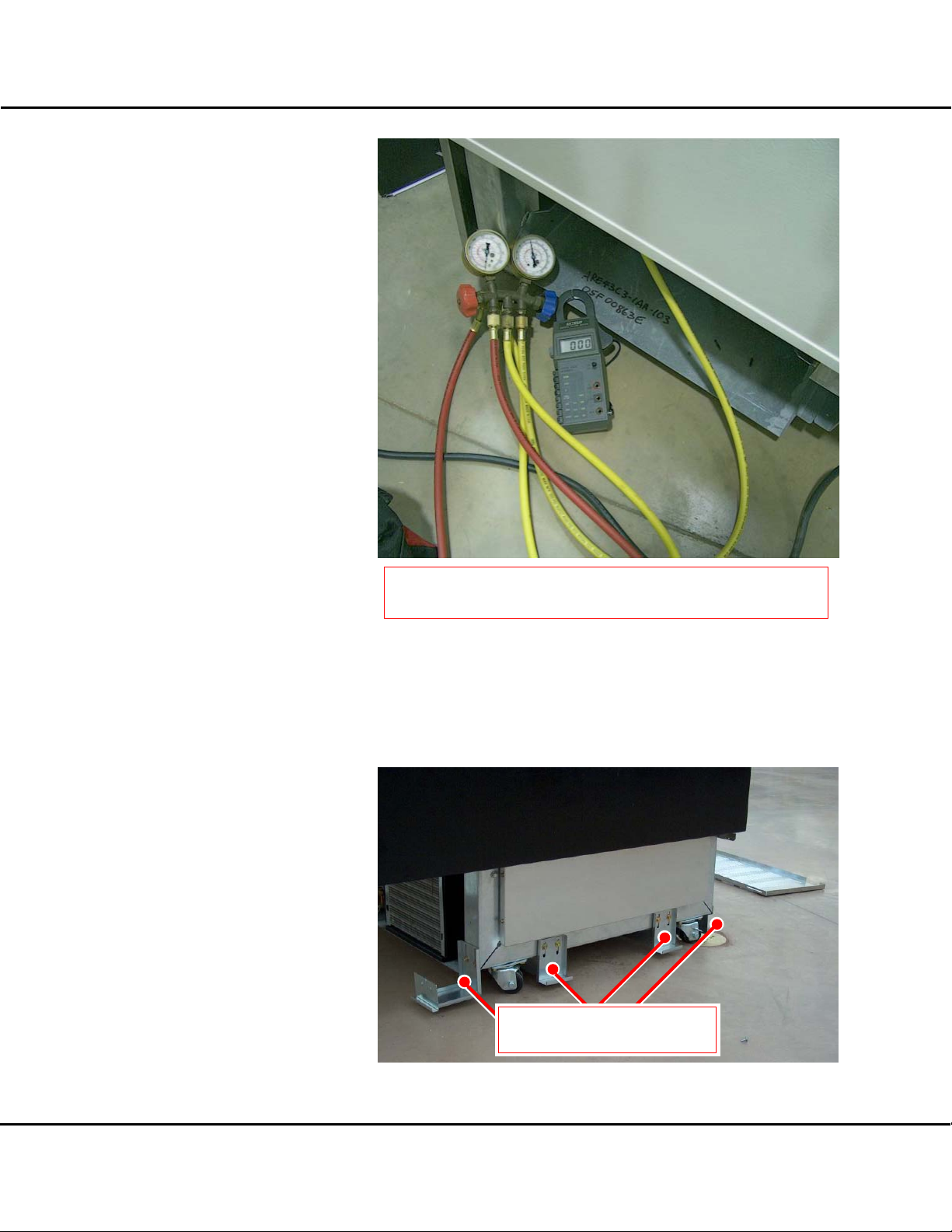

Install a set of refrigera-

tion gauges on the

refrigeration system.

Plug in the unit’s power

cord and turn the unit

ON. Use an Amp-probe

to check the compressor

amp draw. Adjust the

compressor CPR

(crankcase pressure

regulator) as needed to

maintain the rated amp

draw of the compressor.

Check the

LP (low pressure) and

HP (high pressure)

control settings.

While the merchandiser

is pulling down in

temperature:

• Install the panel

retainers so that there

is a gap of approxi-

mately 1/2-inch

between the bottom of

the retainer and the

floor.

P/N 0482457

Page 4 HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.

Install Panel Support Brackets

at Front, Sides and Back

The CPR Valve is Located at the Left Upper Rear of the

Compressor Compartment

• Install the return air

grilles.

• Install the plexiglass

return air guard.

• Install plug button

caps over end bolt

holes.

• Install the side and

rear panels. Some pre-

drilling of holes may

be required.

Check the unit’s operat-

ing pressures before

installing the front panel.

Advance the time clock

to verify it will start a

defrost cycle and return

to the refrigeration mode

on its own. While in the

defrost mode, check the

operation of the conden-

sate heater to make sure

that it operates as

required. When you are

satisfied with the unit’s

performance, replace the

control panel cover and

front close-off panel,

then install the vented

front panel.

Page 5

P/N 0482457

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.

M1CIMP-4B Self-Contained Spot Merchandiser

Startup Supplement to Installation Instructions

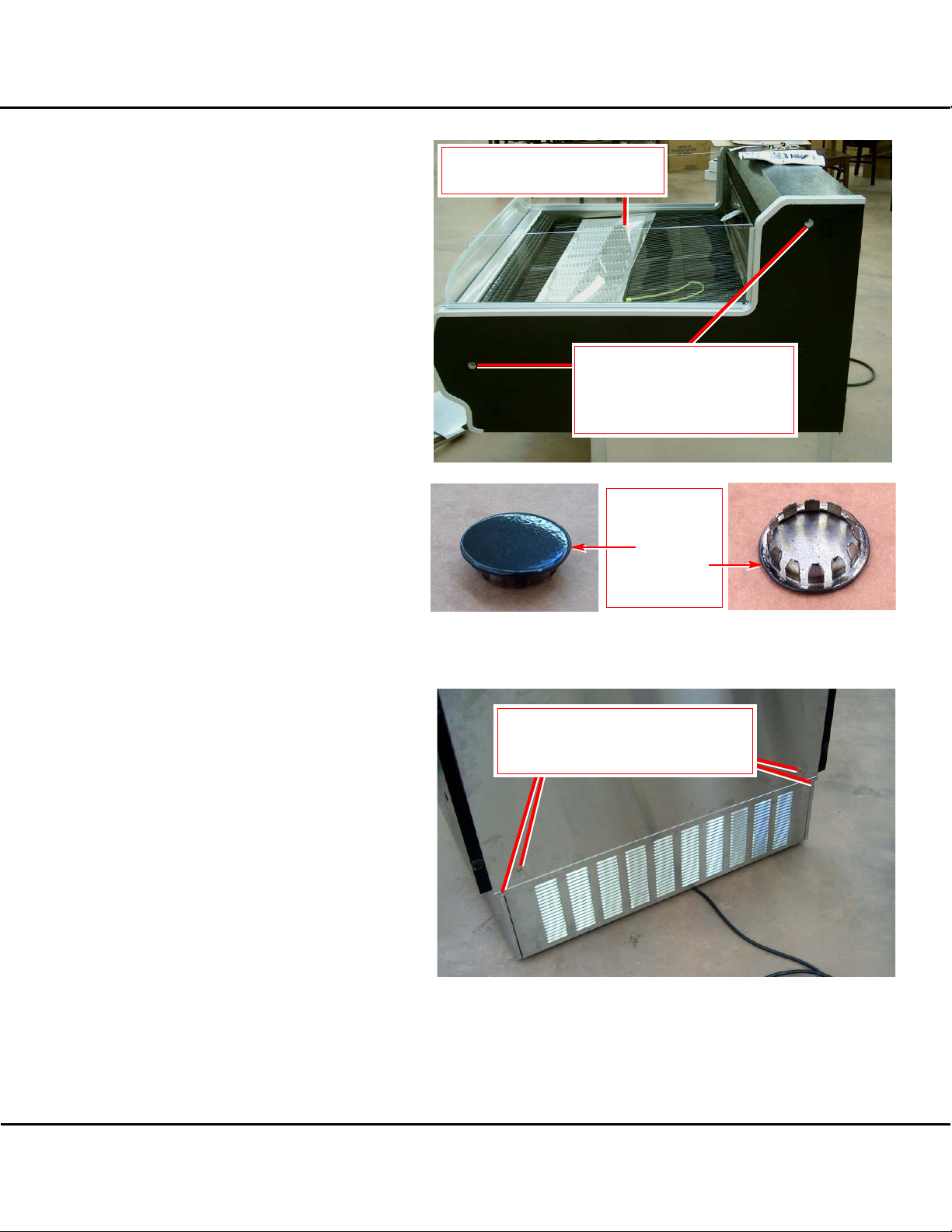

Remove 2x4 Shipping Brace.

Discard Long Bolts.

Install Shorter Bolts Supplied.

Finish with Button Plugs.

Complete the Installation of

Front, Rear and Side Panels

(Pre-drill all holes as required)

Install Return Air Grilles and

Plexiglass Return Air Guard

Button Plug

Top View

Bottom View

The unit will use less

energy, run less, and

maintain even product

temperature with a clean

condenser.

To clean the Condenser,

begin by raising the front

lower panel up and off

the panel brackets. Pull

the bottom edge out and

allow the panel to clear

the upper retainers.

Turn the power switch

to “OFF” (see Page 1).

Use a vacuum hose or

soft brush (non-metallic)

to remove dust and

debris from the surface

of the condenser. Be

careful to not damage the

condenser.

Once condenser is clean,

turn the power switch

“ON” and re-install the

lower front panel.

P/N 0482457

Page 6 HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.

Front Panel

Free Airflow

with

Clean

Condenser

Dirty

Condenser

Airflow

blocked by

accumulated

dust

Cleaning the interior of a

self-contained display is

similar to cleaning

remote displays with one

major exception:

NEVER USE A HOSE!

The evaporator pan of

the self-contained display

is sized to eliminate

condensate from the

refrigeration process,

similar to a residential

refrigerator.

The evaporator pan must

be cleaned regularly.

Page 7

P/N 0482457

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.

M1CIMP-4B Self-Contained Spot Merchandiser

Startup Supplement to Installation Instructions

Exterior Surfaces

The exterior surfaces should be cleaned with a mild detergent and warm water to protect

and maintain their attractive finish. NEVER USE ABRASIVE CLEANSERS OR SCOURING PADS.

Interior Surfaces

The interior surfaces may be cleaned with most domestic detergents, ammonia based

cleaners and sanitizing solutions with no harm to the surface.

DDOONNOOTTUUSSEE::

• Abrasive cleansers and scouring pads, as these will mar the finish.

• Solvent, oil or acidic based cleaners on any interior surfaces.

• Ammonia based cleaners on acrylic surfaces.

DDOO::

• Remove the product and all loose debris to avoid clogging the waste outlet.

• Store product in a refrigerated area such as a freezer. Remove only as much product as

can be taken to the freezer in a timely manner.

• First turn off refrigeration, then disconnect electrical power.

• Thoroughly clean all surfaces with soap and hot water. DO NOT USE STEAM OR HIGH

WATER PRESSURE HOSES TO WASH THE INTERIOR.THESE WILL DESTROY THE SEALS CAUSING

LEAKS AND POOR PERFORMANCE.

• Remove screws and lift hinged fan plenum for cleaning. BE SURE TO REPOSITION THE

FAN PLENUM AFTER CLEANING MERCHANDISER.

• Take care to minimize direct contact between fan motors and water.

• Rinse with hot water, but do NOT flood. NEVER INTRODUCE WATER FASTER THAN THE

WASTE OUTLET CAN REMOVE IT.

• Allow merchandisers to dry before resuming operation.

• After cleaning is completed, turn on power and refrigeration to the merchandiser.

• Verify that merchandiser is working properly.
