Structural Concepts Oasis Mobile Series Instructions d'installation

Rev B Date: 6.11.2016

READ AND SAVE THESE INSTRUCTIONS

I:\Oper Manuals\Oasis\B4732D_In_Aisle_Ambient_Wall_Unit_20-42840.pub

M O B I L E S E R I E S

888 E. Porter Road · Muskegon, MI 49441 Phone: 231.798.8888 Fax: 231.798.4960 www.structuralconcepts.com

Oasis® 32” Deep Non-Refrigerated Self-Service In-Aisle Grab-N-Go Wall Units

SCC P/N

20-42840

Model B4732DShown Without

Optional Roll-Down Security Cover

Model B4732 Shown With

Optional Roll-Down Security Cover

INSTALLATION &

OPERATING MANUAL

*Lengths include end panels.

TABLE OF CONTENTS / MODELS and DIMENSIONS

OVERVIEW / TYPE / COMPLIANCE / WARNINGS / PRECAUTIONS / WIRING / PLUGS ..………....

INSTALLATION: CASE REMOVAL / POSITIONING & ALIGNING CASE .……………………………..

FRONT PANEL ACCESS / MAIN POWER SWITCH ……………………………………………………….

POWER CORD / FIELD ACCESS & ELECTRICAL BOX / BALLASTS …………………………………

LIGHT FIXTURES - T8 FLUORESCENTS …………………………………………………………………...

LIGHT FIXTURES - LEDs ………..…………………………………………………………………………….

OPTIONAL ROLL-DOWN SECURITY COVER ..…………………………………………………...……….

CLEANING SCHEDULE (TO BE PERFORMED BY STORE PERSONNEL) …..……..……....………..

TROUBLESHOOTING (TO BE PERFORMED BY TRAINED SERVICE PROVIDERS ONLY) .………

SERIAL LABEL LOCATION & INFORMATION LISTED / TECH INFO & SERVICE ……….…..……...

TECHNICAL SERVICE CONTACT INFORMATION & WARRANTY INFORMATION …...……....…….

OVERVIEW

 These Structural Concepts merchandisers are

designed to merchandise packaged products at

ambient temperatures.

 Cases should be installed and operated according to

this operating manual’s instructions to insure proper

performance. Improper use will void warranty.

CASE TYPE

This unit is designed for the display of products in ambient

store conditions where temperatures and humidity are

maintained within a specific range.

 For Type 1 Conditions (most cases): ambient

conditions are to be at 55% maximum humidity and

maximum temperatures of 75 °F (24 °C).

 For Type 2 Conditions: ambient conditions are to be

at 60% maximum humidity and maximum

temperatures of 80 °F (27 °C).

 If unsure if unit is designed for Type 1 or 2, see tag

next to serial label. See SERIAL LABEL LOCATION

& INFORMATION LISTED / TECH INFO & SERVICE

section in this manual for sample serial labels.

COMPLIANCE

 Performance issues when in violation of applicable

NEC, federal, state and local electrical and plumbing

codes are not covered by warranty.

WARNINGS

 This sheet contains important warnings to prevent

injury or death.

 Please read carefully!

PRECAUTIONS, CORD/PLUG MAINTENANCE &

WIRING DIAGRAM INFORMATION

 See next page for PRECAUTIONS, CORD/PLUG

MAINTENANCE and WIRING DIAGRAM information.

OVERVIEW / TYPE / COMPLIANCE / WARNINGS / PRECAUTIONS / WIRING / PLUGS

WARNING

Risk of electric shock. Disconnect power before servicing unit.

CAUTION! More than one source of electrical supply is

employed with units that have separate circuits.

Disconnect ALL ELECTRICAL SOURCES before servicing.

WARNING

ELECTRICAL

HAZARD

COMPLIANCE

This equipment MUST be installed in compliance with

all applicable NEC, federal, state and local electrical codes.

CAUTION! LAMP REPLACEMENT GUIDELINES

LED lamps reflect specific size, shape and overall design.

Any replacements must meet factory specifications.

Hera® / Fluorescent lamps have been treated to resist breakage

and must be replaced with similarly treated lamps.

CAUTION

CAUTION! GFCI BREAKER USE REQUIREMENT

If N.E.C. (National Electric Code) or your local code

requires GFCI (Ground Fault Circuit Interrupter) protection,

you MUST use a GFCI breaker in lieu of a GFCI receptacle.

CAUTION! POWER CORD AND PLUG MAINTENANCE

Risk of electric shock. If cord or plug becomes damaged,

replace only with cord and plug of same type.

INSTALLATION: CASE REMOVAL / POSITIONING & ALIGNING CASE

Pry Bar

Base

Frame

Leveler

Adjustable

Wrench

Toe-Kick

3. Position & Align Case Alongside Other

Cases

 Before adjusting levelers, make certain that the

case is in proper position and, if required, aligned

with adjoining case(s).

 This may require the repositioning of the case you

are installing or the already positioned case(s).

4. Adjust Levelers

 After case is in proper position, adjust case so it is

level and plumb (see illustration at right).

 You may need to remove front and/or rear

Toe-Kick to access levelers.

 Use adjustable wrench to adjust leveler.

 Depending upon case weight it may be necessary

to use a Pry Bar to accomplish this task.

 Do not use Pry Bar on Toe-Kick as it may buckle.

 Do not use Pry Bar on End Panel as it may chip.

 Use Pry Bar ONLY on Base Frame to avoid

damaging case.

 See illustration and photos at right.

1. Remove Case From Skid (Levelers)

 Remove shipping brace that may be securing

case to skid.

 Support case to prevent tipping.

 Caution! Levelers can be damaged if case hits

floor with heavy force!

Case can be repositioned with pallet truck when front lower

panel is removed. Blocking may be necessary to obtain

adequate height.

Slide Skid Out

 Carefully slide unit

to rear of skid and

tip backward off

skid.

 Illustration may

not reflect every

feature or option

of your particular

case.

2. Remove Case From Skid (Casters)

Remove shipping brackets that may be securing

casters to skid

 Place ramp up against skid (to allow case to

smoothly slide off from skid).

 Maintain support of case at all times or center

of gravity may cause case to fall.

 Unlock Casters. Roll unit to rear of skid.

Ramp

Roll down ramp

and off from skid.

Support

while

rolling

case

down

ramp.

Note: Illustrations

shown reflect a

general outline of

sample cases and

do not reflect

features or

options of your

particular model.

FRONT PANEL ACCESS / MAIN POWER SWITCH

1. Front Panel

 Front panel can be removed from case by simply

lifting up and off.

 Slots on front panel fit over hooks on case.

 See illustration below.

2. Turning On Power To Case

 Plug in power cord.

 Access main power switch by removing front

panel (lifting up and off; not screw removal

required).

 Turn on main power switch (located on main

ballast box) below controller.

 Return front panel to case after main power

switch is turned on.

 See illustration below.

Main Power

Switch

Case Hooks

(For Front Panel Slots)

Front Panel With

Slots

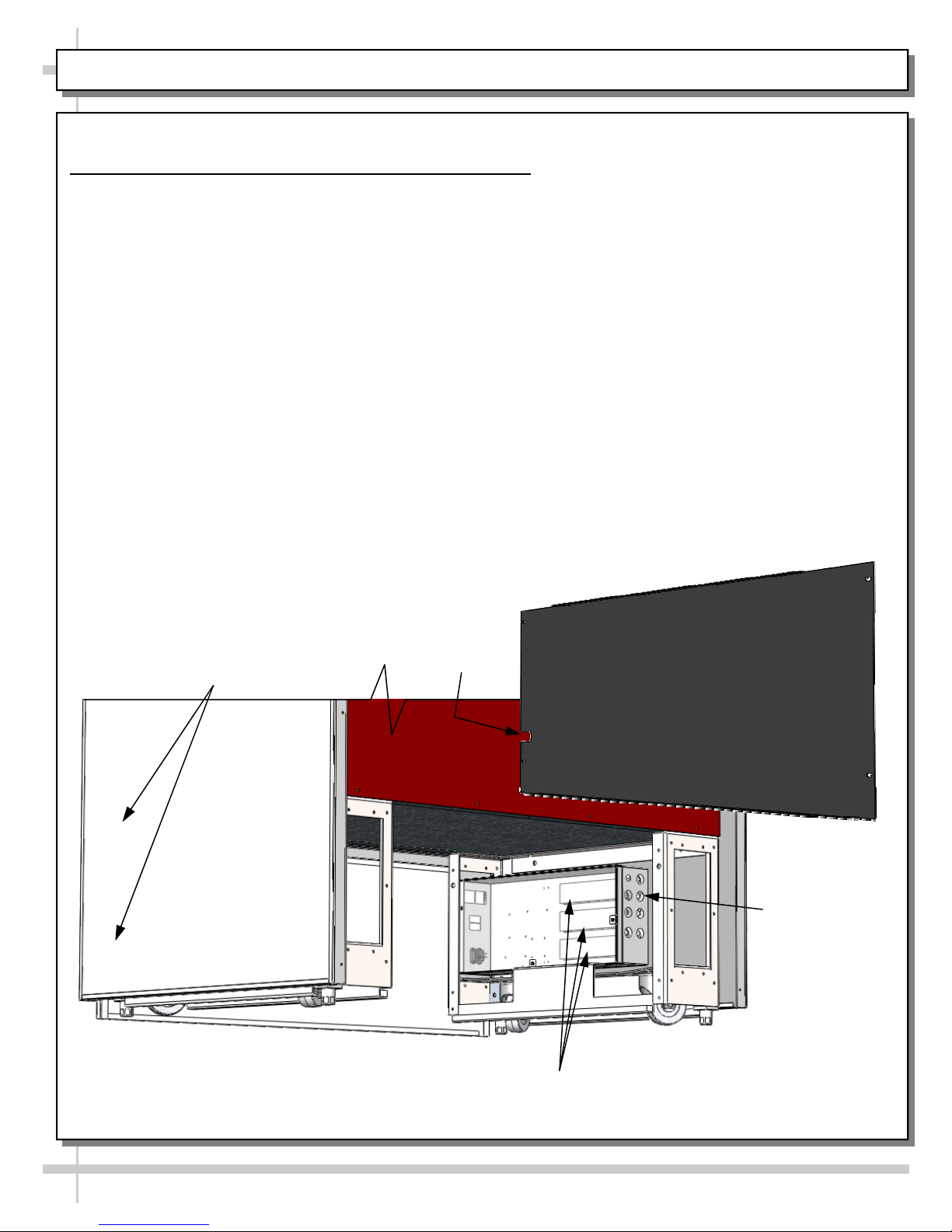

POWER CORD / FIELD ACCESS & ELECTRICAL BOX / BALLASTS

Warning! Disconnect power before providing maintenance and service to unit.

Power Cord / Field Access / Electrical Box / Ballasts

 Power cord exits case at rear.

 Field access box is accessible at case rear by removing rear panel. Four (4) screws must be removed

from panel (as shown below) to separate from case.

 Light ballasts are located in field access box.

 After providing maintenance or service to unit, replace rear panel (by positioning on case rear and

reattaching four (4) screws).

Light Ballasts

Case Hooks

(For Front Panel Slots)

Rear Panel

Field Access Box

Power Cord

Route

1. Light Fixtures - T8 Fluorescents

Warning! Disconnect power before providing

maintenance and service to unit.

Caution: Lights have been treated to resist

breakage and must be replaced with similarly

treated lights.

Light switch is located at customer-left of case just

under header, behind honeycomb. It is to the left of

the header light socket.

 See illustration directly below.

 Turning on light switch will turn on ALL lights in

entire case.

Light fixtures are to be located on underside of shelf

assembly, at the top inside of case, and lower front

nose of case.

LIGHT FIXTURES - T8 FLUORESCENTS

Removal of lamp:

 Rotate lamp (1/4-turn) either direction to

disengage (upper or lower) pins/contacts from

lamp-mounting sockets.

 Remove bulb by applying even pressure from

back side at the bulb ends and pulling the

remaining contact from sockets.

Installation of lamp:

 Align pins with slot.

 Insert pins into socket by rotating the bulb 1/4-turn

to secure either the (upper or lower) pin contacts

into the sockets.

 Rotate remaining bulb contacts (1/4-turn) into

remaining lamp mounting socket contacts.

>> See next page for LED lighting specifics

Light Switch Header Light

Shelving

Lights

2. Light Fixtures - LEDs

Warning! Disconnect power before providing

maintenance and service to unit.

Caution: When replacing LED lights, you must

replace with similar lights.

Light switch is located at customer-left of case under

header, behind honeycomb.

 See illustration below-left.

 Turning on light switch will turn on ALL lights in

entire case.

Removal / Replacement of LED Light Fixtures

Removal of lamp:

 LED lights rarely require change-out.

 Contact Structural Concepts’ Technical Service

Department for replacement parts (see the

Technical Service section of operating manual).

LIGHT FIXTURES - LEDs

Replacement of lamp:

 To replace LED Light Fixture, disconnect existing

light from its brackets. Replace.

 Note: LED Light and Plug must be connected in a

specific manner or they will not work.

 Make certain that oval form of plug connects to

oval form of LED end cap.

 See illustrations immediately below.

>> See previous page for specifics pertaining to

fluorescent lighting.

LED

Light Fixture

Plug’s

Oval

Form

LED’s

Oval Form

OPTIONAL ROLL-DOWN SECURITY COVER

Roll Down Security Cover (Optional): Shown Extended

 Optional roll down security cover has two handles for

grasping, lowering and raising.

 After roll-down cover is lowered, key may be turned

clockwise to lock latch into strike bracket.

 Turn counter-clockwise to unlock.

 Keep keys in safe and secure place.

Latch Lock Keys

Views Below Shown Partially

Disassembled With Transparent Components

For Illustrative Purposes Only

Handles (For Lowering &

Raising Security Cover)

Strike Bracket

Roll-Down

Security Cover

Lock

Locking

Mechanism

CLEANING SCHEDULE - TO BE PERFORMED BY STORE PERSONNEL

AREA TO CLEAN FREQUENCY INSTRUCTIONS

Case Exterior Daily

Sneeze Guard:Clean with a warm water and mild soap

solution and soft cloth. Never use ammonia-based cleaners

on acrylic.

Daily End Panels / Front Panels / Header / Optional Roll-Down

Security Cover: Clean with a warm water and mild soap so-

lution and soft cloth.

Monthly Under Case Cleaning:Vacuum (or use broom) to remove all

dust, debris and dirt that may collect under case.

Case Interior Daily Shelves, Decks:Wipe off with moist cloth.

Daily Stainless Steel Mirror:Clean with household or commercial

window cleaner. Wipe dry with clean cloth or paper towel.

Autres manuels pour Oasis Mobile Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Structural Concepts marchandiseur

Structural Concepts

Structural Concepts Oasis Mobile Series Instructions d'installation

Structural Concepts

Structural Concepts Oasis MOT4048RSS.5197 Instructions d'installation

Structural Concepts

Structural Concepts Reveal NR3633RSSV Instructions d'installation

Structural Concepts

Structural Concepts Harmony HMG3953 Manuel utilisateur

Structural Concepts

Structural Concepts GMDSV12R.7183 Manuel utilisateur

Structural Concepts

Structural Concepts FSI856R Instructions d'installation

Structural Concepts

Structural Concepts Oasis B1832H Manuel utilisateur

Structural Concepts

Structural Concepts Impulse Series Instructions d'installation

Structural Concepts

Structural Concepts B3632H Manuel utilisateur

Structural Concepts

Structural Concepts Harmony HMO7536R Manuel utilisateur

Structural Concepts

Structural Concepts Oasis Mobile Series Instructions d'installation

Structural Concepts

Structural Concepts G Series Manuel utilisateur

Structural Concepts

Structural Concepts Oasis Mobile Series Manuel utilisateur

Structural Concepts

Structural Concepts Oasis Mobile Series Instructions d'installation

Structural Concepts

Structural Concepts BLEND 21-27948 Manuel utilisateur

Structural Concepts

Structural Concepts G Series Manuel utilisateur

Structural Concepts

Structural Concepts G Series Manuel utilisateur

Structural Concepts

Structural Concepts Oasis CO2739R Manuel utilisateur

Structural Concepts

Structural Concepts DO3623R Manuel utilisateur

Structural Concepts

Structural Concepts REVEAL Series Instructions d'installation

Structural Concepts

Structural Concepts FUSION GMSV6H Manuel utilisateur

Structural Concepts

Structural Concepts Reveal NR3651RRSSV Manuel utilisateur

Manuels marchandiseur populaires d'autres marques

FRIGOGLASS

FRIGOGLASS Flex 20 HC Manuel utilisateur

Hussmann

Hussmann ENTYCE TY3 Manuel utilisateur

EPTA

EPTA COSTAN RHINO MULTI Manuel utilisateur

Hussmann

Hussmann CRFD Mode d'emploi

CASCO

CASCO Nano Cube Manuel utilisateur

Hussmann

Hussmann WDCHI Manuel utilisateur

True

True GDIM-26 Manuel utilisateur

Hussmann

Hussmann Q2-SS Instructions d'utilisation d'origine

Haussmann

Haussmann RL Manuel utilisateur

Howard McCray

Howard McCray R-CDS32E-4 Manuel utilisateur

Hussmann

Hussmann microSC SHM-A Series Manuel utilisateur

Hussmann

Hussmann APT0500 Manuel utilisateur

EPTA

EPTA iarp Cool Emotions Delight Lite Manuel utilisateur

VALERA

VALERA BC 85 Manuel utilisateur

HL Display

HL Display 3eBin Manuel utilisateur

Hussmann

Hussmann Q1-SS Mode d’emploi

Hussmann

Hussmann impact Excel C2X-XLEP Mode d’emploi

Hussmann

Hussmann C2NX-XE Mode d’emploi
