Hussmann IMPACT LWGH Mode d’emploi
C
B
GH
I
F
E
C
A
D
D
P/N 0409827_D
Merchandisers
®
LWGH
Technical Data Sheet
P/N 0409827_D
NSF®Certified
February 2007
Item Part # Description Wiring Item #
FAN ASSEMBLIES AND THERMOSTATS
A. 4W Fan Assembly (1)
0392457 Fan Motor, Standard (MO.4410101)
0409511 Fan Blade, embossing toward motor
(FB.0409511)
B. Optional Adjustable Refrigeration Thermostat (2)
C. 0398557 (Front) Defrost Termination Thermostat (3)
(CT.4440611)
0398558 (Rear) (Electric Defrost only) (CT.4481088)
D. 0425304 Heater Switch (4)
(Koolgas Defrost only) (CT.0425304)
HEATERS
E. Control-Glass Anti-sweat Heaters (Export) (5)
Contour Ends 250V, 5amp
0400543 8 & 12 foot cases (CT.4480905)
F. 0395709 Modular Electric
Defrost Heaters, 208V (6)
(HE.4850409)
Item Part # Description Wiring Item #
HEATERS (CONTINUED)
G. Drip Pan Heaters, Electric 208V (7)
0392413 8 foot case (HE.0392413)
0392414 12 foot case (HE.0392414)
Drip Pan Heaters, Koolgas 120V (8)
0421238 8 foot case (HE.4850496)
0421239 12 foot case (HE.4850497)
H. Nosing Anti-sweat Heaters (9)
0401605 8 foot case (Discharge)
(HE.0401605)
0401606 12 foot case (Discharge)
(HE.4850471)
I. Multiglass - 2 Pane, w/heater (Front & Rear) (10)
0420156 8 foot case (GL.4985203)
0420157 12 foot case (GL.4985204)
0420184 Contour end (GL.4985218)
©2007 HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM
We reserve the right to change or revise specifications
and product design in connection with any feature of
our products. Such changes do not entitle the buyer to
corresponding changes, improvements, additions or
replacements for equipment previously sold or shipped.
NOTE: Revision D corrects heater data on Page 4.
LWGH Technical Data Sheet
2 of 7 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.
8
7/8
(141)
Access Area
(Gray)
LWGH
C
L
5
9/16
(141)
10 7/8
(276)
2
7/8
(98)
5
(127)
DB
IFC
Refrig. Outlet
Refrig. Outlet
Electrical
Water Seal
(See Note*)
Waste Outlet
Front
A
H
G
E
Base Rail
81
1/2
(2070)
69
(1753)

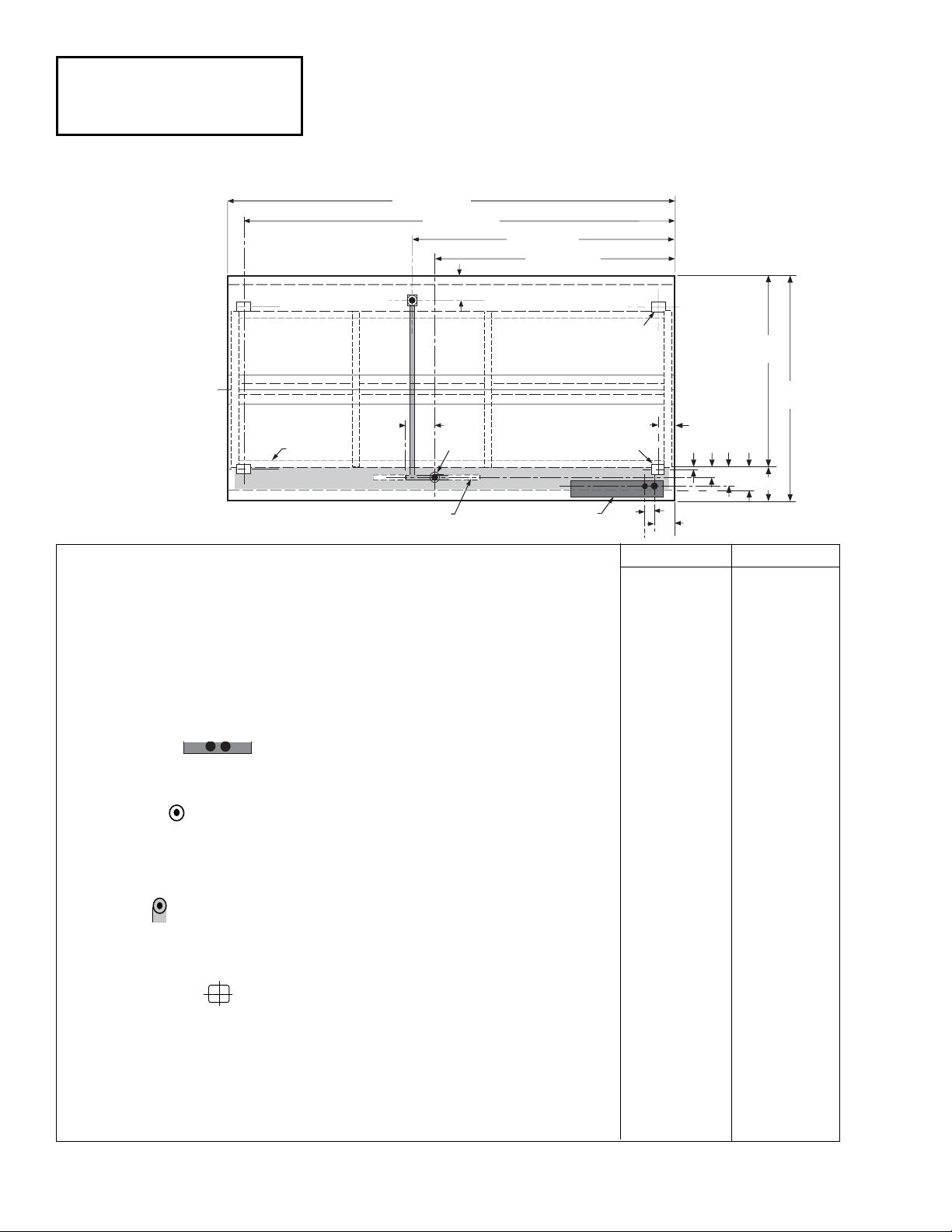

Engineering
Plan Views
Dimensions shown as inches & (mm).
Single Deck
Frozen Food
8 ft 12 ft
General
(A) Case Length (without ends or partitions) 96 1/4(2445) 144 3/8(3667)
(Each end and insulated partition adds 2 in. (51 mm) to case line up.)
Maximum O/S dimension of case back to front (includes bumper) 81 1/2 (2070) 81 1/2 (2070)
(B) Front of splashguard to O/S edge of front base rail 8 1/2 (216) 8 1/2 (216)
Back of case to O/S edge of front base rail 69 (1753) 69 (1753)
(C) Front of case to O/S edge of front base rail 12 1/2 (318) 12 1/2 (318)
Width of base rail 2 1/8(54) 2 1/8(54)
Stub-up area (gray) between front base rail and
splashguard 7 5/8 (194) 7 5/8 (194)
Electrical Service (Electrical Field Wiring connection point)
RH End of case to center of nearest knockout 5 (127) 5 (127)
(D) Center of knockouts to O/S edge of front base rail 7 (178) 7 (178)
Waste Outlets
(E) RH End of case to the center of front waste outlet 58 1/4 (1480)) 67 7/8 (1724)
(F) Center of waste outlet to O/S edge of front base rail 3 3/4 (95) 3 3/4 (95)
(G) RH End of case to center of rear waste outlet 38 (965) 76 1/2 (1918)
Back O/S of case to center of waste outlet 8 7/8 (225) 8 7/8 (225)
Water Seal
Edge of water seal to center of waste outlet 11 (279) 11 (279)
O/S diameter of drip pipe lines 1 1/2 (38) 1 1/2 (38)
Note*: Field installed water seal outlet, tees and connectors are shipped with case.
Refrigeration Outlet
RH End of case to center of RH front and rear refrigeration outlets 5 1/2(140) 5 1/2(140)
(H) LH End of case to center of LH front and rear refrigeration outlets 88 3/8 (2245) 138 7/8 (3527)
Back O/S edges of case to center of refrigeration outlet 70 1/4 (1784) 70 1/4 (1784)
(I) Center of refrigeration outlet to O/S edge of front skidrail 1 1/4(32) 1 1/4(32)
REFRIGERATION DATA
Note: This data is based on store temperature
and humidity that does not exceed 75°F and
55% R.H.
FF IC
Discharge Air (°F) –12 –22
Evaporator (°F) –20 –30
Unit Sizing (°F) –23 –33
Btu/hr/ft FF IC
Parallel 775 785
Conventional 800 810
DEFROST DATA
FF IC
Frequency (hr) 24 24
Defrost Water (lb/ft/day) 1.5 1.2
(± 15% based on case configuration and product
loading).
ELECTRIC FF IC
Temp Term (°F) 48°48°
Failsafe (minutes) 60 60
GAS
Duration (minutes) 15 18
OFFTIME Not Recommended
Standard Defrost Thermostat
Close on rise: close 48°F — open 33°F
CONVENTIONAL CONTROLS
Low Pressure Backup Control
FF IC
CI/CO (Temp °F)* –27/–39 –27/–39
Indoor Unit Only, Pressure Defrost
Termination (Temp °F)
Not Recommended
*Use a Temperature Pressure Chart to determine
PSIG conversions.
PHYSICAL DATA
Merchandiser Drip Pipe (in.) 1 1/4
Merchandiser Liquid Line (in.) 3/8
Merchandiser Suction Line (in.) 5/8
Estimated Charge (lb)**
8 ft 3.5
12 ft 5.3
**This is an average for all refrigerant types.
Actual refrigerant charge may vary by
approximately half a pound.
Length Added to Lineup by:
Each End/Partition (in.) 1 1/2
Each Contoured End 5
3 of 7P/N 0409827_D HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM
G
L
(MM)
381 1753
3
3/4
95
7
D
E
I
G
F
H
J
A
Front
of Case
F
B
FAN COIL
K
CC
AB
C
E
H
I
J
K
LWGH
914 81
3
178 2070
214
12
1/2
318 1 2 7
15 32
5
69
32
1
1/4

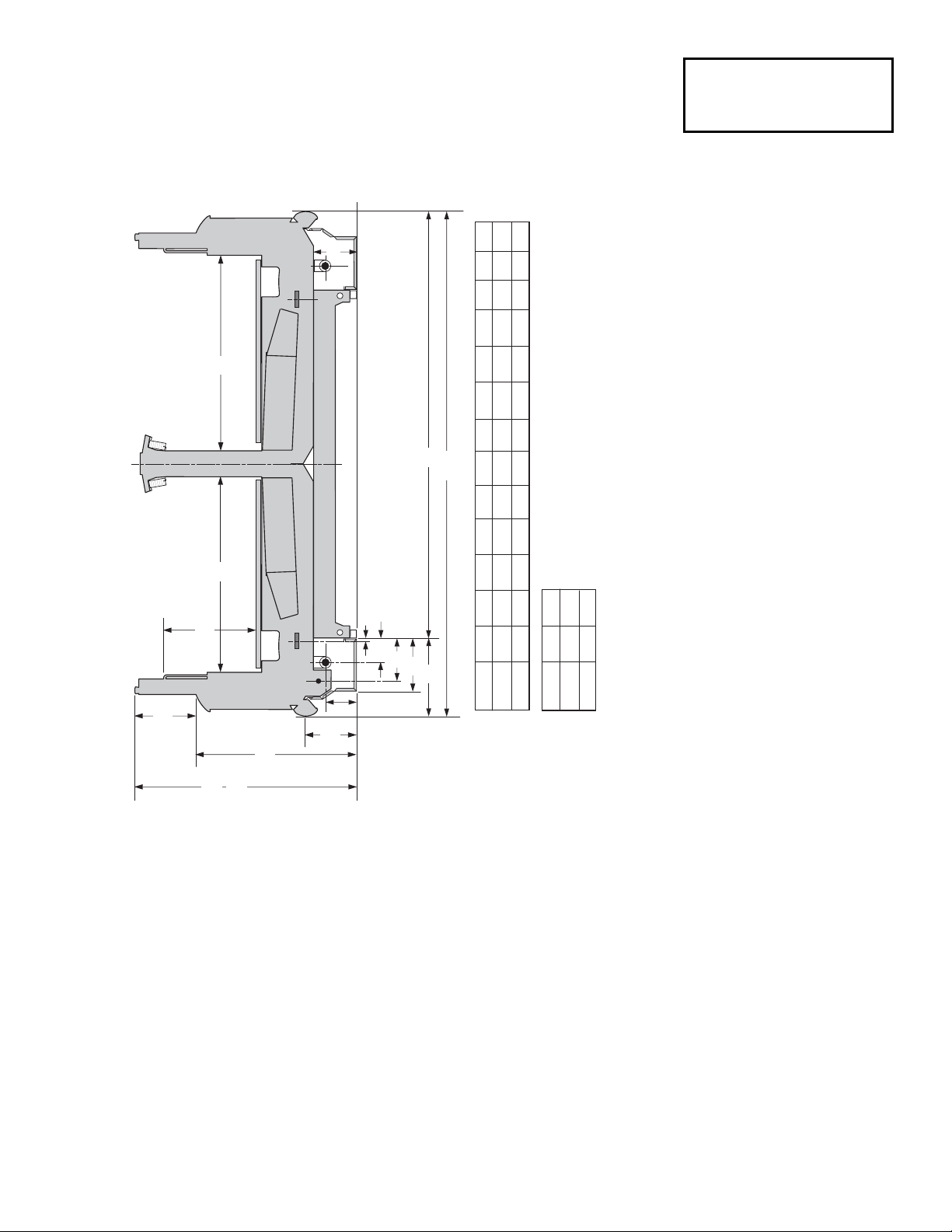

Dimensions
8
1/2
D
36
254
81
1/2
M
7
178
10
L
C
FAN
COIL
L
M
N
O
(MM)
210
NO
LWGH
660
26
8
1/4
Dimensions shown in inches & (mm).
Impact LWGH
Frozen Food & Ice Cream
Single Level Wide Island High Front Display, with Glass Front
NSF Certification
These merchandisers are manufactured to meet ANSI /National
Sanitation Foundation (NSF®) Standard #7 requirements.
HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. LWGH Technical Data Sheet
4 of 7
Impact LWGH
Frozen Food & Ice Cream
Electrical Data
8 ft 12 ft
Number of Fans – 4W 4 6
(Energy Efficient fan motors are not available for End or End-compartment models)
Amperes Watts
8 ft 12 ft 8 ft 12 ft
Evaporator Fans
120V 60Hz Standard 1.24 1.86 96 144
120V 50Hz Standard NA
230V 60Hz Export 0.60 0.90 96 144
230V 50Hz Export 0.72 1.08 108 162
120V 60Hz Energy Efficient 0.56 0.84 40 60
230V 60Hz Energy Efficient NA
Nosing Anti-sweat Heaters (on fan circuit)
120V 60Hz Standard 1.88 2.80 224 336
230V 50Hz Export 0.98 1.46 224 336
Glass Anti-sweat Heaters
120V 60Hz Standard 2.44 3.32 294 398
230V 50Hz Export 1.41 1.91 324 439
Cycling Anti-sweat Heaters
120V 60Hz Standard NA
230V 50Hz Export NA
Minimum Circuit Ampacity
120V 60Hz Standard 5.76 8.18
120V 50Hz Standard NA
230V 60Hz Export
230V 50Hz Export 3.31 4.65
120V 60Hz Energy Efficient 5.08 7.16
230V 60Hz Energy Efficient NA
Maximum Over Current Protection 120V 20 20
Maximum Over Current Protection 230V 15 15
Electric Defrost Heaters
208V 60Hz Standard Front Compartment 8.0 12.0 1670 2505
208V 60Hz Standard Rear Compartment 8.0 12.0 1670 2505
230V 50Hz Export Front Compartment 8.9 13.3 2047 3060
230V 50Hz Export Rear Compartment 8.9 13.3 2047 3060
Koolgas Drip Pan Heaters
120V 60Hz Standard 5.0 7.5 600 900
230V 50Hz Export NA
Standard Lighting: None
5 of 7P/N 0409827_D HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM
Defrost
Termination
Thermostat
Refrigeration
Thermostat
Dark Blue To
Condensing Unit
}
Light Blue
WARNING
All components must have mechanical ground, and the merchandiser must be grounded.
Circled Numbers = Parts List Item Numbers
Grayed components in 12 foot models only.
(Field Installed)
32
208 V Power From Defrost Contactors
L1 L2
Modular Electric Defrost Heaters
Drip Pan Heater
Modular Electric Defrost Heaters
Drip Pan Heater
7
6
7
6
Red
Red
Red
Red
BROWN BAND
Fans
BROWN BAND
Nosing (anti-sweat) Heaters
120V POWER
BROWN BAND
Fans
BROWN BAND
120V NEUTRAL
Nosing (anti-sweat) Heaters
9
1
9
1
Electric Defrost – Standard
Gas Defrost – Optional
LWGH Technical Data Sheet
6 of 7 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.
8
4
Drip Pan Heater
Yellow
Heater Switch
Yellow
120V POWER 120V NEUTRAL
Dark BlueDark Blue
Refrigeration
Thermostat
To
Condensing Unit
}
Light Blue
WARNING
All components must have mechanical ground, and the merchandiser must be grounded.
Circled Numbers = Parts List Item Numbers
Grayed components in 12 foot models only.
(Field Installed)
2
8
4
Drip Pan Heater
Yellow
Heater Switch
Yellow
120V POWER 120V NEUTRAL
Dark BlueDark Blue
BROWN BAND
Fans
BROWN BAND
Nosing (anti-sweat) Heaters
120V POWER
120V NEUTRAL
1
9
BROWN BAND
Fans
BROWN BAND
Nosing (anti-sweat) Heaters
1
9
7 of 7P/N 0409827_D HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

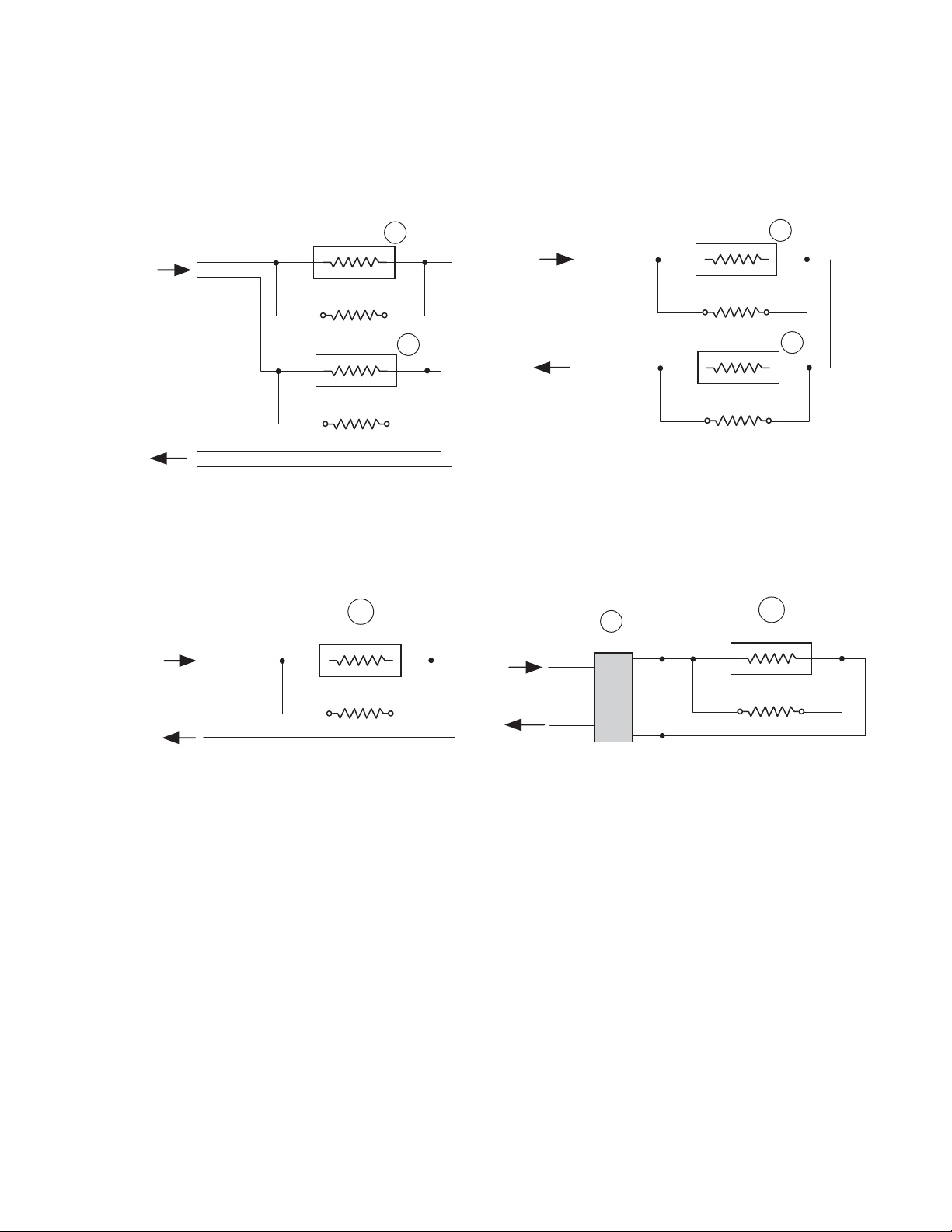

2 Pane Multiglass
Glass Anti-sweat Heater
White
Red
Black Black
Heater Control
Red
230V
Purple
Purple
W/White
W/White
White
Anti-sweat Heater (Export Only)
LWGH Contour Ends
5
2 Pane Multiglass
Glass Anti-sweat Heater
White
230V
Purple
2 Pane Multiglass
Glass Anti-sweat Heater
Black Black
White
White
Glass Anti-sweat Heater (Export Only)
10
2 Pane Multiglass
Glass Anti-sweat Heater
White
Yellow
120V
Purple
2 Pane Multiglass
Glass Anti-sweat Heater
Black Black
White
White
Glass Anti-sweat Heater (Domestic)
WARNING
All components must have mechanical ground, and the merchandiser must be grounded.
Circled Numbers = Parts List Item Numbers
Grayed components in 12 foot models only.
Purple
120V
White
2 Pane Multiglass
Glass Anti-sweat Heater
White
Black Black
120V
Purple
White
Anti-sweat Heater (Domestic)
LWGH Contour Ends
0400543
Yellow Yellow Yellow
Discharge
Glass
Return
Glass
10
10
10 10
10
Purple
Purple
Purple
Purple
Purple
Purple
Glass Anti-sweat Heaters — Domestic & Export
Table des matières
Autres manuels Hussmann marchandiseur
Hussmann
Hussmann MD Series Manuel utilisateur
Hussmann
Hussmann IMPACT CW2U-GE Mode d’emploi
Hussmann
Hussmann IMPACT D5RRI Guide de démarrage rapide
Hussmann
Hussmann microSC VRL1B Manuel utilisateur
Hussmann
Hussmann D5X-E Manuel utilisateur
Hussmann
Hussmann IMPACT D5NHE Manuel utilisateur
Hussmann
Hussmann M3X-EP Manuel utilisateur
Hussmann
Hussmann IMPACT Excel C3LGE Manuel utilisateur
Hussmann
Hussmann IMPACT Excel D6X-ULEP Mode d’emploi
Hussmann
Hussmann Impact C2-EP Mode d’emploi
Hussmann
Hussmann BCH Manuel utilisateur
Hussmann
Hussmann Impact C5HE Manuel utilisateur
Hussmann
Hussmann IMPACT D5 Manuel utilisateur
Hussmann
Hussmann NEBDH Manuel utilisateur
Hussmann
Hussmann DVG-8 Guide de démarrage rapide
Hussmann
Hussmann Impact D5EE Manuel utilisateur
Hussmann
Hussmann XR75CX Manuel utilisateur
Hussmann
Hussmann RCD Mode d'emploi
Hussmann
Hussmann IMPACT Elite E3-XC Manuel utilisateur
Hussmann
Hussmann IMPACT M5NE Manuel utilisateur
Manuels marchandiseur populaires d'autres marques
Howard McCray
Howard McCray R-CDS32E-4 Manuel utilisateur
EPTA
EPTA iarp Cool Emotions Delight Lite Manuel utilisateur
VALERA
VALERA BC 85 Manuel utilisateur
HL Display
HL Display 3eBin Manuel utilisateur
Dixie Narco
Dixie Narco DNCB 501E Manuel utilisateur
APW Wyott
APW Wyott Racer DMXD-30H Manuel utilisateur
